mesaken

macrumors newbie
Mar 19, 2008
14
4
Thanks! That's what I thought. I did use CCC. I'll try zapping the pram again and anything else applicable.


Ennev72

macrumors newbie
May 17, 2019
16
24

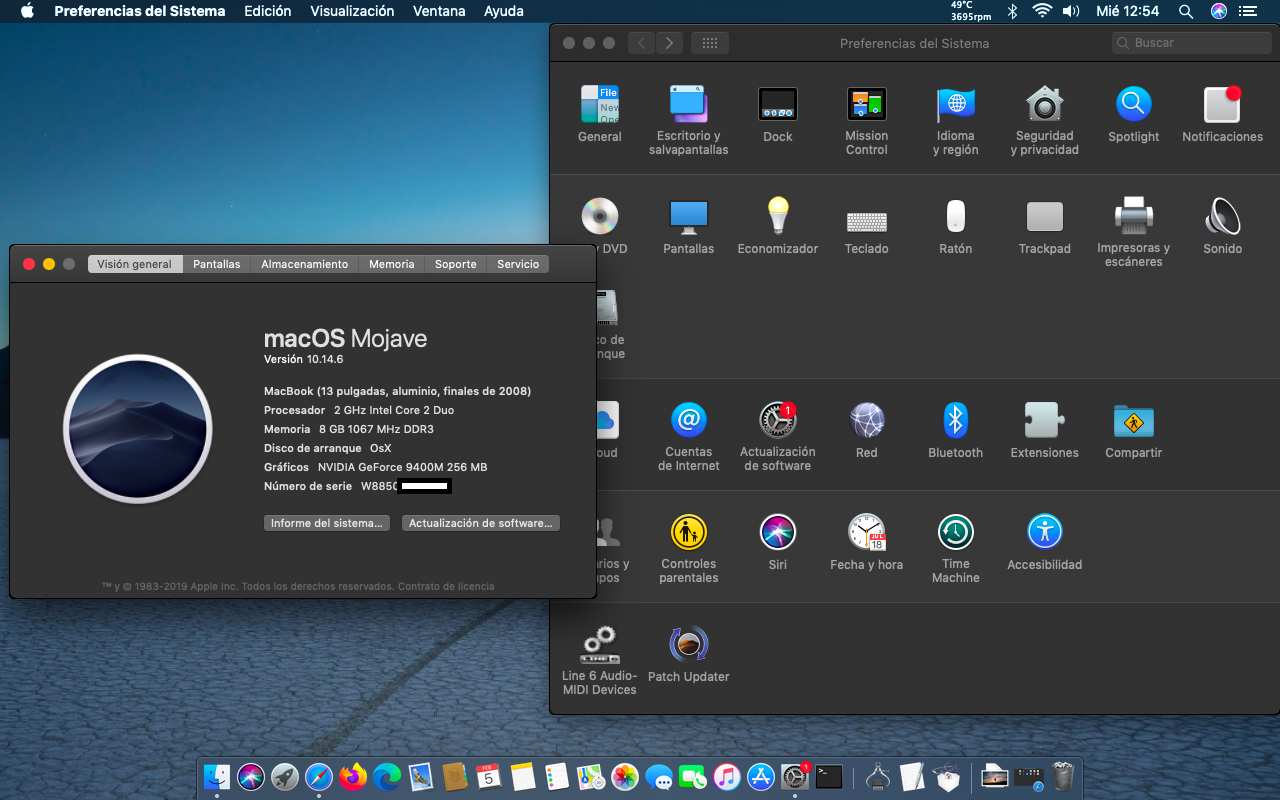

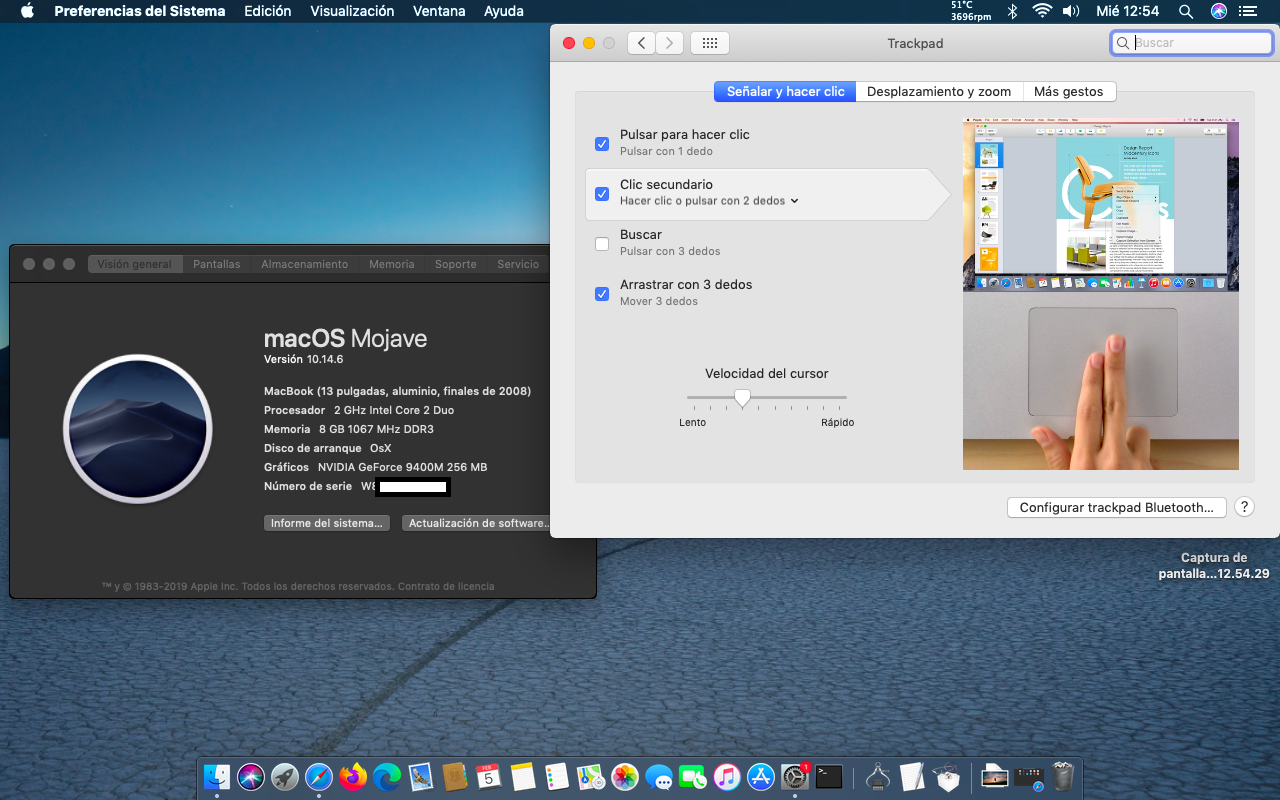

Latest update installed without problems on Macbook Late 2008. After the update I installed the Dosdode1 post patch via the usb stick and rebuilt the cache.


Attachments

  • Schermata 2020-02-02 alle 13.12.35.png
    Schermata 2020-02-02 alle 13.12.35.png
    268.1 KB · Views: 246

RK78

macrumors 6502
Oct 24, 2019
270
92
Re. my earlier post about reapplying the 2020-001: everything went quite well, but I have several questions. First, whenever I've installed one of these updates, automatically from SU or now manually, after the restart I always get a KP. This means doing a hard shutdown and booting immediately to the USB Patcher to reapply patches (iMac 10,1). I'm wondering If there's any way to avoid the KP?

Since everything occurring during the manual (from the standalone) was much more transparent, at least as compared to the automatic, I was tempted to skip the restart -- perhaps from an option boot at the restart chime? -- and try to boot directly to the patcher at the restart, if that's even possible. (Didn't because most likely the restart is needed to finish up the installation.) Is this something I should even entertain trying, in order to perhaps avoid the KP?

Second, any time I do one of these updates the patcher updater suggests I install "SUVMMFaker.dylib by Czo"

Doesn't seem it applies to my situation, since I'm installing a security update, not a 10.14 new release, and I don't have a MacBook Pro, or anything with the T2 security chip. So wondering if I should just skip it, even though it says "available for this model?"

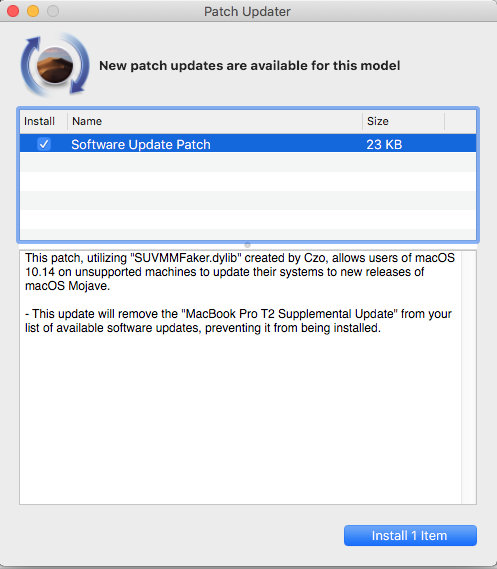

SUVMMFaker.dylib by Czo.png


mrploppy

macrumors regular
Oct 27, 2017
242
128
Re. my earlier post about reapplying the 2020-001: everything went quite well, but I have several questions. First, whenever I've installed one of these updates, automatically from SU or now manually, after the restart I always get a KP. This means doing a hard shutdown and booting immediately to the USB Patcher to reapply patches (iMac 10,1). I'm wondering If there's any way to avoid the KP?

Since everything occurring during the manual (from the standalone) was much more transparent, at least as compared to the automatic, I was tempted to skip the restart -- perhaps from an option boot at the restart chime? -- and try to boot directly to the patcher at the restart, if that's even possible. (Didn't because most likely the restart is needed to finish up the installation.) Is this something I should even entertain trying, in order to perhaps avoid the KP?

Second, any time I do one of these updates the patcher updater suggests I install "SUVMMFaker.dylib by Czo"

Doesn't seem it applies to my situation, since I'm installing a security update, not a 10.14 new release, and I don't have a MacBook Pro, or anything with the T2 security chip. So wondering if I should just skip it, even though it says "available for this model?"

View attachment 891971
I had the same KP. I presume, after the security/system update, you can boot straight into the patcher immediately - as long as you have that device connected, if it lives externally - using the option-boot thing. It never occurred to me that the update could overwrite the patches to the point where it won't even boot - but I guess that's what happened this time.


MTBnBeer

macrumors regular
Dec 9, 2015
101
87
Successfully updated macOS to the latest macOS 10.14.6 (18G3020) which installed the latest Security Update, Safari and Safari Technology Preview on my 17" Early 2008 MacBook Pro MBP4,1

I ran Software Update, rebooted from my macOS Mojave Patcher USB SSD, reapplied DosDude1's macOS Mojave patches including Force Cache Rebuild... AND then DosDude1's Backlight Patch bkltpatch10.14.2

Yes it takes a couple of restarts but simply AMAZING this 12 year old MacBook Pro can run a current macOS !!!

Thanks again DosDude1 !!!

My only wish is macOS Mojave Patcher would re-apply DosDude1's Backlight Patch bkltpatch10.14.2 during it's patching... instead of having to re-apply using Terminal each time. Oh well... Maybe someday. :cool:

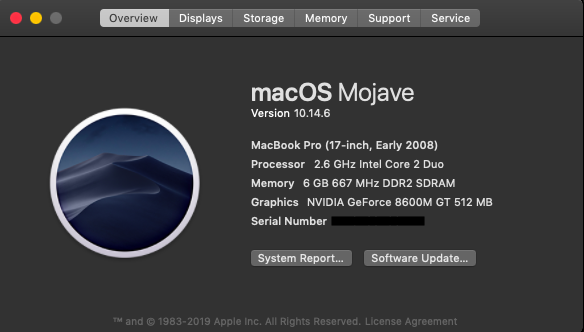

macOS 10.14.6 with Security Update.png


RK78

macrumors 6502
Oct 24, 2019
270
92
I had the same KP. I presume, after the security/system update, you can boot straight into the patcher immediately - as long as you have that device connected, if it lives externally - using the option-boot thing. It never occurred to me that the update could overwrite the patches to the point where it won't even boot - but I guess that's what happened this time.
So you think it's possible to option-boot directly to the patcher at the (manual) installer restart ? And that won't short circuit anything the installer needs to finish?

Any idea about the Czo SUVMMFaker.dylib patch -- screenshot above? Needed or not?


mrploppy

macrumors regular
Oct 27, 2017
242
128
So you think it's possible to option-boot directly to the patcher at the (manual) installer restart ? And that won't short circuit anything the installer needs to finish?

Any idea about the Czo SUVMMFaker.dylib patch -- screenshot above? Needed or not?
Well, I don't know for sure because I don't think I've ever tried it but I don't see why you couldn't boot straight into the patcher - as long as it's on a connected volume, of course. Regarding the installer needing to finish something - if you think about it, it's KPing so may not be doing any "finishing up" anyway. Not sure what it does on the first execution of an updated system - re-index the drive, rebuild caches? I think it would do that anyway, after re-installing patches.

Sorry, but I don't know anything about Czo's patch.


RK78

macrumors 6502
Oct 24, 2019
270
92
Well, I don't know for sure because I don't think I've ever tried it but I don't see why you couldn't boot straight into the patcher - as long as it's on a connected volume, of course. Regarding the installer needing to finish something - if you think about it, it's KPing so may not be doing any "finishing up" anyway. Not sure what it does on the first execution of an updated system - re-index the drive, rebuild caches? I think it would do that anyway, after re-installing patches.

Sorry, but I don't know anything about Czo's patch.
Well, with a trusted backup (or two) at the ready might give it a shot next time. EDIT: remember now that the progress bar shows from start to finish at the restart, as if it were getting ready to boot normally, but then goes into the KP when done.


honeycombz

macrumors 6502a
Jul 6, 2013
588
154
So what are peoples thoughts on this?


So I am still confused. Can I use the GTX 680 on a MP3,1 with Mojave (w/ metal) or no and if no what GPU would I need to acquire?


mrploppy

macrumors regular
Oct 27, 2017
242
128
Hey @dosdude1, as a graphics wizz, any idea why the MacBook Pro late 2008 (5,1) won't sleep correctly when set to Better Battery Life (which I presume means using the integrated graphics NVIDIA GeForce 9400M)? It sleeps perfectly well when set to Higher Performance (presumably the discrete NVIDIA GeForce 9600M GT).

Using better battery life, it correctly activates the screensaver and then display sleep at the correct time. The LED comes on steady, but it never enters "real" sleep i.e. the LED never gets to the pulsing stage. When in the steady LED phase it can't be woken up. It'll then reboot - I guess after 3mins or thereabouts, because the error is the crash log is a 180sec timeout in transitioning to darkwake on the way to sleep.

It works perfectly well with Higher Performace graphics. I had this very same problem after the previous security update, but something I did made it work again. After this latest security update, no such luck.

Incidentally, the Higher Performance graphics makes the fans go nuts, so I'd prefer to have it set to Better Battery Life.


RK78

macrumors 6502
Oct 24, 2019
270
92
@ dosdude1

Also while you're around these parts, do I really need to install SUVMMFaker.dylib by Czo, screenshot above? Doesn't seem to be a fit for my iMac 10,1 + no more 10.14 releases expected. Cutting down on the number of restarts after one of these security updates, which are time consuming, would be welcome.

Plus what do you think about interrupting the installer (manual) restart with an option-boot to the patcher, to avoid the inevitable KP, as described above?

Last edited:

mrploppy

macrumors regular
Oct 27, 2017
242
128
Worryingly, I had a KP this morning. This is the first KP I've ever had when just doing normal things i.e. not sleep related. I was just browsing the BBC news website using Chrome. Again, according to the crash log, it was graphics related so this latest security update, and/or the graphics patches, has not gone well for me. If there was an easy way to undo the latest security update I'd seriously consider doing so. Either that or I'll go back to Better battery life and set display sleep to never (not ideal). BTW, this is with my graphics set to Higher Performance. Here's the crash log in case someone's interested

Code:
Anonymous UUID:       ACCD9CC6-C77A-B9F3-D21F-1E40BBD383E8

Tue Feb  4 09:47:55 2020

*** Panic Report ***
panic(cpu 1 caller 0xffffff7f9d58e83d): "GPU Panic: mux-regs 3 3 7f a8 61 0 severity 3 WS-ready 0 switch-state 0 IG FBs 0 EG FBs 1:3 power-state 0 3D idle HDA idle system-state 1 power-level 20:20 connect-change 0 : NVRM[0/2:0:0]: Read Error 0x00070000: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0xd4000000 0xffffff912963b000 0x096380c1, D0, P3/4\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleGraphicsControl/AppleGraphicsControl-3.28.4/src/AppleMuxControl/kext/GPUPanic.cpp:170
Backtrace (CPU 1), Frame : Return Address
0xffffff9153a73020 : 0xffffff801c1b058d
0xffffff9153a73070 : 0xffffff801c2ec0f5
0xffffff9153a730b0 : 0xffffff801c2dd82a
0xffffff9153a73120 : 0xffffff801c15d9d0
0xffffff9153a73140 : 0xffffff801c1affa7
0xffffff9153a73260 : 0xffffff801c1afdf3
0xffffff9153a732d0 : 0xffffff7f9d58e83d
0xffffff9153a73330 : 0xffffff7f9dc6c441
0xffffff9153a733f0 : 0xffffff7f9dd381ca
0xffffff9153a73430 : 0xffffff7f9ecb23ac
0xffffff9153a73480 : 0xffffff7f9ed240ea
0xffffff9153a736f0 : 0xffffff7f9ed242d1
0xffffff9153a737e0 : 0xffffff7f9dd11465
0xffffff9153a73860 : 0xffffff7f9dc431b4
0xffffff9153a73910 : 0xffffff7f9dc483be
0xffffff9153a739d0 : 0xffffff7f9dc70e23
0xffffff9153a73bc0 : 0xffffff7f9dc72c7b
0xffffff9153a73cb0 : 0xffffff7f9def034b
0xffffff9153a73d20 : 0xffffff7f9def0499
0xffffff9153a73d40 : 0xffffff7f9deedd84
0xffffff9153a73da0 : 0xffffff7f9dee757b
0xffffff9153a73de0 : 0xffffff7f9dea7192
0xffffff9153a73e30 : 0xffffff7f9dea749e
0xffffff9153a73e60 : 0xffffff7f9de97b99
0xffffff9153a73eb0 : 0xffffff7f9de95645
0xffffff9153a73ed0 : 0xffffff801c85862c
0xffffff9153a73f30 : 0xffffff801c856712
0xffffff9153a73f70 : 0xffffff801c855c6c
0xffffff9153a73fa0 : 0xffffff801c15d0ce
      Kernel Extensions in backtrace:
         com.apple.driver.AppleMuxControl(3.28.4)[EB8D7A77-E073-36EB-A5B1-A3672CA840A3]@0xffffff7f9d580000->0xffffff7f9d592fff
            dependency: com.apple.driver.AppleGraphicsControl(3.28.4)[200F1816-A734-3977-B7AE-7A6B2363059F]@0xffffff7f9d53f000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[7E3E0D11-12C4-3BCB-BA0F-880989A691DF]@0xffffff7f9cca6000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
            dependency: com.apple.iokit.IOGraphicsFamily(519.15)[D5F2A20D-CAB0-33B2-91B9-E8755DFC34CB]@0xffffff7f9d237000
            dependency: com.apple.AppleGraphicsDeviceControl(3.28.4)[400C2E21-0880-36D7-AC5E-6B9BC885F158]@0xffffff7f9d530000
         com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7f9dc1b000->0xffffff7f9de83fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
            dependency: com.apple.iokit.IONDRVSupport(519.15)[B419F958-11B8-3F7D-A31B-A72166B6E234]@0xffffff7f9d556000
            dependency: com.apple.iokit.IOGraphicsFamily(519.15)[D5F2A20D-CAB0-33B2-91B9-E8755DFC34CB]@0xffffff7f9d237000
         com.apple.nvidia.classic.NVDANV50HalTesla(10.0.4)[5DCF031B-F81F-32A3-ADCD-18E16EAC7CF0]@0xffffff7f9ec8b000->0xffffff7f9ef33fff
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7f9dc1b000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
         com.apple.GeForceTesla(10.0.4)[426B2568-8B0A-372B-BB33-B421D942837A]@0xffffff7f9de8f000->0xffffff7f9df4dfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
            dependency: com.apple.iokit.IONDRVSupport(519.15)[B419F958-11B8-3F7D-A31B-A72166B6E234]@0xffffff7f9d556000
            dependency: com.apple.iokit.IOGraphicsFamily(519.15)[D5F2A20D-CAB0-33B2-91B9-E8755DFC34CB]@0xffffff7f9d237000
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7f9dc1b000

BSD process name corresponding to current thread: kernel_task
Boot args: -no_compat_check

Mac OS version:
18G3020

Kernel version:
Darwin Kernel Version 18.7.0: Thu Jan 23 06:52:12 PST 2020; root:xnu-4903.278.25~1/RELEASE_X86_64
Kernel UUID: 71EBCAB7-7239-36ED-A2B8-3DCEB0D5EFD1
Kernel slide:     0x000000001be00000
Kernel text base: 0xffffff801c000000
__HIB  text base: 0xffffff801bf00000
System model name: MacBookPro5,1 (Mac-F42D86C8)

System uptime in nanoseconds: 68540096895520
last loaded kext at 267923863094: com.apple.filesystems.msdosfs    1.10 (addr 0xffffff7f9d292000, size 69632)
loaded kexts:
com.parrotgeek.SIPManager    1
com.apple.filesystems.msdosfs    1.10
com.apple.filesystems.smbfs    3.3.2
com.apple.driver.AudioAUUC    1.70
com.apple.driver.AppleHWSensor    1.9.5d0
com.apple.fileutil    20.036.15
com.apple.filesystems.autofs    3.0
com.apple.driver.AGPM    110.23.46
com.apple.driver.AppleMikeyHIDDriver    131
com.apple.driver.AppleHDAHardwareConfigDriver    281.52
com.apple.driver.AppleGraphicsDevicePolicy    3.28.4
com.apple.driver.AppleHDA    281.52
com.apple.AGDCPluginDisplayMetrics    3.28.4
com.apple.driver.AppleHV    1
com.apple.iokit.IOUserEthernet    1.0.1
com.apple.driver.AppleMikeyDriver    281.52
com.apple.GeForceTesla    10.0.4
com.apple.driver.AppleUpstreamUserClient    3.6.5
com.apple.driver.AppleOSXWatchdog    1
com.apple.iokit.IOBluetoothSerialManager    6.0.14d4
com.apple.driver.pmtelemetry    1
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking    4.0.0
com.apple.driver.AppleSMCLMU    212
com.apple.driver.AppleFIVRDriver    4.1.0
com.apple.driver.AGDCBacklightControl    3.50.14
com.apple.driver.AppleBacklight    170.12.12
com.apple.driver.AppleMCCSControl    1.5.6
com.apple.driver.AppleMuxControl    3.28.4
com.apple.driver.SMCMotionSensor    3.0.4d1
com.apple.driver.AppleLPC    3.1
com.apple.driver.ACPI_SMC_PlatformPlugin    1.0.0
com.apple.nvidia.NVDAStartup    12.0.0
com.apple.iokit.IOBluetoothUSBDFU    6.0.14d4
com.apple.driver.AppleUSBTCButtons    255
com.apple.driver.AppleUSBTCKeyEventDriver    255
com.apple.driver.AppleUSBTCKeyboard    255
com.apple.driver.AppleFileSystemDriver    3.0.1
com.apple.driver.AppleVirtIO    2.1.3
com.apple.filesystems.hfs.kext    407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.BootCache    40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.AppleSystemPolicy    1.0
com.apple.driver.AppleIRController    354
com.apple.iokit.SCSITaskUserClient    408.250.3
com.apple.private.KextAudit    1.0
com.apple.filesystems.apfs    945.275.8
com.apple.driver.AirPort.Brcm4331    800.21.31
com.apple.driver.AppleFWOHCI    5.6.0
com.apple.driver.AppleAHCIPort    329.260.5
com.apple.nvenet    2.0.22
com.apple.driver.AppleSmartBatteryManager    161.0.0
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleACPIButtons    6.1
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleACPIEC    6.1
com.apple.driver.AppleAPIC    1.7
com.apple.driver.AppleIntelCPUPowerManagementClient    220.0.0
com.apple.nke.applicationfirewall    202
com.apple.security.TMSafetyNet    8
com.apple.driver.AppleIntelCPUPowerManagement    220.0.0
com.apple.kext.triggers    1.0
com.apple.driver.DspFuncLib    281.52
com.apple.kext.OSvKernDSPLib    528
com.apple.iokit.IOAVBFamily    760.6
com.apple.plugin.IOgPTPPlugin    740.2
com.apple.iokit.IOEthernetAVBController    1.1.0
com.apple.iokit.IOSkywalkFamily    1
com.apple.driver.AppleSSE    1.0
com.apple.iokit.IOSurface    255.6.1
com.apple.AppleGPUWrangler    3.28.4
com.apple.iokit.IOSlowAdaptiveClockingFamily    1.0.0
com.apple.driver.AppleHDAController    281.52
com.apple.iokit.IOHDAFamily    281.52
com.apple.iokit.IOFireWireIP    2.3.0
com.apple.nvidia.classic.NVDANV50HalTesla    10.0.4
com.apple.nvidia.classic.NVDAResmanTesla    10.0.4
com.apple.driver.AppleBacklightExpert    1.1.0
com.apple.driver.AppleSMBusController    1.0.18d1
com.apple.AppleGraphicsDeviceControl    3.28.4
com.apple.driver.AppleGraphicsControl    3.28.4
com.apple.driver.IOPlatformPluginLegacy    1.0.0
com.apple.driver.IOPlatformPluginFamily    6.0.0d8
com.apple.driver.AppleSMBusPCI    1.0.14d1
com.apple.iokit.IONDRVSupport    519.15
com.apple.iokit.IOGraphicsFamily    519.15
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport    6.0.14d4
com.apple.iokit.IOBluetoothHostControllerUSBTransport    6.0.14d4
com.apple.iokit.IOBluetoothHostControllerTransport    6.0.14d4
com.apple.iokit.IOBluetoothFamily    6.0.14d4
com.apple.driver.AppleUSBMultitouch    263
com.apple.iokit.IOSerialFamily    11
com.apple.filesystems.hfs.encodings.kext    1
com.apple.driver.usb.AppleUSBHub    1.2
com.apple.driver.AppleUSBAudio    315.6
com.apple.driver.usb.IOUSBHostHIDDevice    1.2
com.apple.iokit.IOAudioFamily    206.5
com.apple.vecLib.kext    1.2.0
com.apple.driver.usb.cdc    5.0.0
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.2
com.apple.iokit.IOSCSIMultimediaCommandsDevice    408.250.3
com.apple.iokit.IOBDStorageFamily    1.8
com.apple.iokit.IODVDStorageFamily    1.8
com.apple.iokit.IOCDStorageFamily    1.8
com.apple.driver.AppleXsanScheme    3
com.apple.iokit.IOAHCISerialATAPI    267.50.1
com.apple.iokit.IOAHCIBlockStorage    301.270.1
com.apple.driver.AppleUSBMergeNub    900.4.1
com.apple.driver.usb.AppleUSBHostPacketFilter    1.0
com.apple.iokit.IOUSBFamily    900.4.1
com.apple.driver.AppleUSBHostMergeProperties    1.2
com.apple.iokit.IO80211Family    1200.12.2
com.apple.driver.corecapture    1.0.4
com.apple.iokit.IOFireWireFamily    4.7.3
com.apple.iokit.IOAHCIFamily    288
com.apple.driver.usb.AppleUSBOHCIPCI    1.2
com.apple.driver.usb.AppleUSBOHCI    1.2
com.apple.driver.usb.AppleUSBEHCIPCI    1.2
com.apple.driver.usb.AppleUSBEHCI    1.2
com.apple.driver.NVSMU    2.2.9
com.apple.driver.AppleEFINVRAM    2.1
com.apple.driver.AppleEFIRuntime    2.1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.security.quarantine    3
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.DiskImages    493.0.0
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleEffaceableStorage    1.0
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleUSBTDM    456.260.3
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.iokit.IOUSBMassStorageDriver    145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice    408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily    408.250.3
com.apple.iokit.IOStorageFamily    2.1
com.apple.kext.CoreTrust    1
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.KernelRelayHost    1
com.apple.iokit.IOUSBHostFamily    1.2
com.apple.driver.usb.AppleUSBCommon    1.0
com.apple.driver.AppleBusPowerController    1.0
com.apple.driver.AppleSEPManager    1.0.1
com.apple.driver.IOSlaveProcessor    1
com.apple.iokit.IOReportFamily    47
com.apple.iokit.IOTimeSyncFamily    740.2
com.apple.iokit.IONetworkingFamily    3.4
com.apple.driver.AppleACPIPlatform    6.1
com.apple.driver.AppleSMC    3.1.9
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.pthread    1
com.apple.kec.Libm    1
com.apple.kec.corecrypto    1.0

EOF
Model: MacBookPro5,1, BootROM MBP51.007E.B06, 2 processors, Intel Core 2 Duo, 2.4 GHz, 8 GB, SMC 1.33f8
Graphics: kHW_NVidiaGeForce9400MItem, NVIDIA GeForce 9400M, 256 MB
Graphics: kHW_NVidiaGeForce9600MGTItem, NVIDIA GeForce 9600M GT, spdisplays_pcie_device, 256 MB
Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1067 MHz, 0x0198, 0x393930353432382D3030352E4130324C4620
Memory Module: BANK 0/DIMM1, 4 GB, DDR3, 1067 MHz, 0x0198, 0x393930353432382D3030352E4130324C4620
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8D), Broadcom BCM43xx 1.0 (5.106.98.102.31)
Bluetooth: Version 6.0.14d4, 3 services, 18 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: Samsung SSD 860 EVO 500GB, 500.11 GB
Serial ATA Device: MATSHITADVD-R   UJ-868
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: Apple Internal Keyboard / Trackpad
USB Device: IR Receiver
USB Device: USB 2.0 Bus
USB Device: USB 2.0 Bus
USB Device: Built-in iSight
Thunderbolt Bus:


Punteillos

macrumors newbie
Feb 5, 2020
9
0
Hi Guys, another MacBook 13.3" late 2008 in Mojave 10.14.6 using HFS+ working 100%.

Macbook Late 2008 13,3" (5.1)
Intel Core2Duo 2Ghz
nvidia 9400M 256Mb
SSD 256Gb
8Gb Ram

Problem With Trackpad!, only detected as mouse, but.... SOLVED!

For anyone with problems with the trackpad, you can use your Trackpad Pref File from another yosemite installation (/System/Library/PreferncePanes). Just replace and reboot.

The only problem its with the color of the Tracpad Preference panel, this dont have "Dark Mode", but.. this is not a problem.

Hope this can help someone. Thanks to everybody.

Link to download Trackpad Pref Panel from my yosemite Installation:

Captura de pantalla 2020-02-05 a las 12.54.29.png

-
Captura de pantalla 2020-02-05 a las 12.54.43.png


Tested and working 100%. All original features Works Perfect.

Last edited:

philk34

macrumors member
Mar 28, 2019
76
25

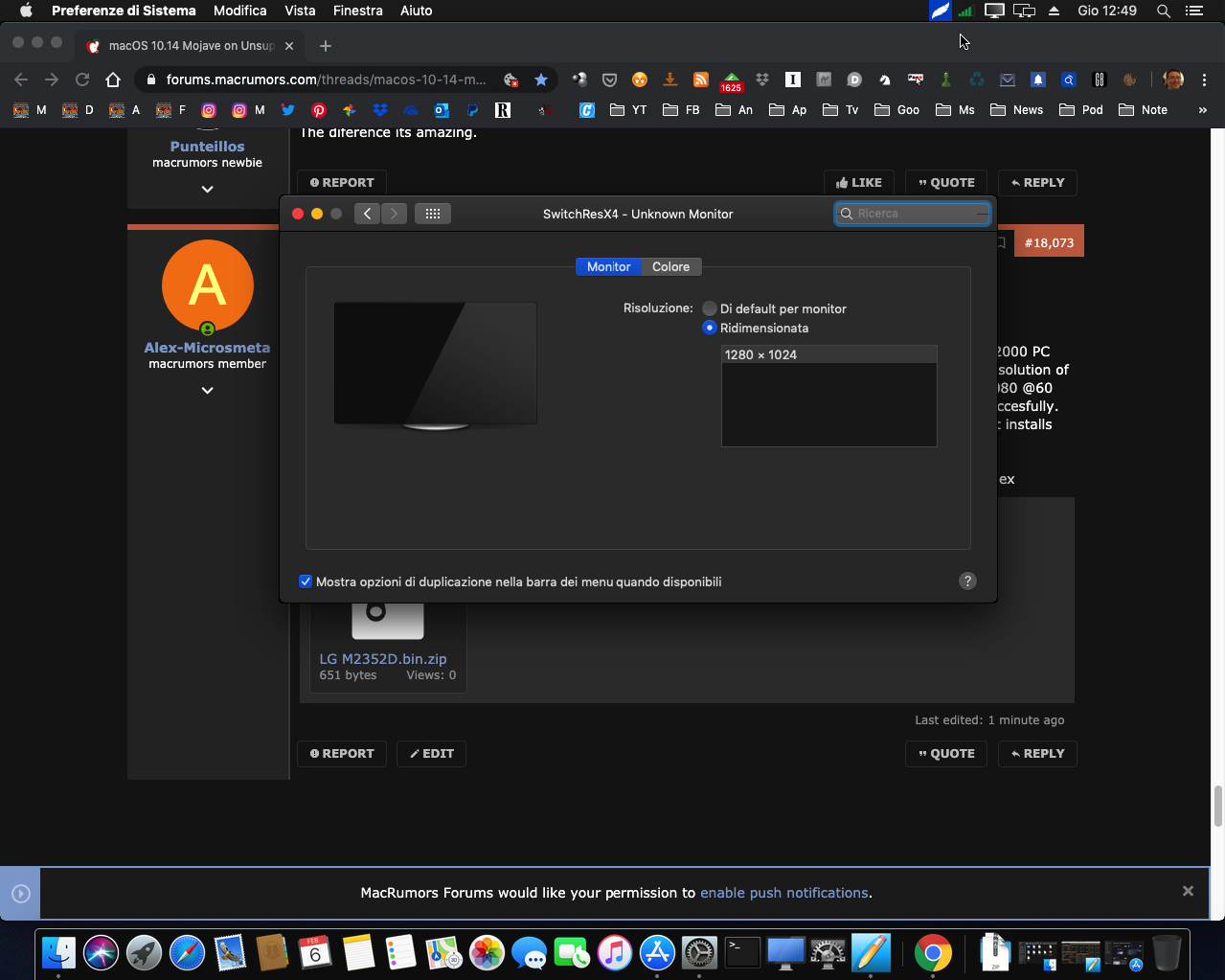

Hello, I have a problem after the 2020 security update. My second screen is no longer detected at startup. I use a GTX 680. Everything works good before this 2020 update…
I have reinstalled all the patches (1.3.7)… help :)


mrploppy

macrumors regular
Oct 27, 2017
242
128
Worryingly, I had a KP this morning. This is the first KP I've ever had when just doing normal things i.e. not sleep related. I was just browsing the BBC news website using Chrome. Again, according to the crash log, it was graphics related so this latest security update, and/or the graphics patches, has not gone well for me. If there was an easy way to undo the latest security update I'd seriously consider doing so. Either that or I'll go back to Better battery life and set display sleep to never (not ideal). BTW, this is with my graphics set to Higher Performance. Here's the crash log in case someone's interested

Code:
Anonymous UUID:       ACCD9CC6-C77A-B9F3-D21F-1E40BBD383E8

Tue Feb  4 09:47:55 2020

*** Panic Report ***
panic(cpu 1 caller 0xffffff7f9d58e83d): "GPU Panic: mux-regs 3 3 7f a8 61 0 severity 3 WS-ready 0 switch-state 0 IG FBs 0 EG FBs 1:3 power-state 0 3D idle HDA idle system-state 1 power-level 20:20 connect-change 0 : NVRM[0/2:0:0]: Read Error 0x00070000: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0xd4000000 0xffffff912963b000 0x096380c1, D0, P3/4\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleGraphicsControl/AppleGraphicsControl-3.28.4/src/AppleMuxControl/kext/GPUPanic.cpp:170
Backtrace (CPU 1), Frame : Return Address
0xffffff9153a73020 : 0xffffff801c1b058d
0xffffff9153a73070 : 0xffffff801c2ec0f5
0xffffff9153a730b0 : 0xffffff801c2dd82a
0xffffff9153a73120 : 0xffffff801c15d9d0
0xffffff9153a73140 : 0xffffff801c1affa7
0xffffff9153a73260 : 0xffffff801c1afdf3
0xffffff9153a732d0 : 0xffffff7f9d58e83d
0xffffff9153a73330 : 0xffffff7f9dc6c441
0xffffff9153a733f0 : 0xffffff7f9dd381ca
0xffffff9153a73430 : 0xffffff7f9ecb23ac
0xffffff9153a73480 : 0xffffff7f9ed240ea
0xffffff9153a736f0 : 0xffffff7f9ed242d1
0xffffff9153a737e0 : 0xffffff7f9dd11465
0xffffff9153a73860 : 0xffffff7f9dc431b4
0xffffff9153a73910 : 0xffffff7f9dc483be
0xffffff9153a739d0 : 0xffffff7f9dc70e23
0xffffff9153a73bc0 : 0xffffff7f9dc72c7b
0xffffff9153a73cb0 : 0xffffff7f9def034b
0xffffff9153a73d20 : 0xffffff7f9def0499
0xffffff9153a73d40 : 0xffffff7f9deedd84
0xffffff9153a73da0 : 0xffffff7f9dee757b
0xffffff9153a73de0 : 0xffffff7f9dea7192
0xffffff9153a73e30 : 0xffffff7f9dea749e
0xffffff9153a73e60 : 0xffffff7f9de97b99
0xffffff9153a73eb0 : 0xffffff7f9de95645
0xffffff9153a73ed0 : 0xffffff801c85862c
0xffffff9153a73f30 : 0xffffff801c856712
0xffffff9153a73f70 : 0xffffff801c855c6c
0xffffff9153a73fa0 : 0xffffff801c15d0ce
      Kernel Extensions in backtrace:
         com.apple.driver.AppleMuxControl(3.28.4)[EB8D7A77-E073-36EB-A5B1-A3672CA840A3]@0xffffff7f9d580000->0xffffff7f9d592fff
            dependency: com.apple.driver.AppleGraphicsControl(3.28.4)[200F1816-A734-3977-B7AE-7A6B2363059F]@0xffffff7f9d53f000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[7E3E0D11-12C4-3BCB-BA0F-880989A691DF]@0xffffff7f9cca6000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
            dependency: com.apple.iokit.IOGraphicsFamily(519.15)[D5F2A20D-CAB0-33B2-91B9-E8755DFC34CB]@0xffffff7f9d237000
            dependency: com.apple.AppleGraphicsDeviceControl(3.28.4)[400C2E21-0880-36D7-AC5E-6B9BC885F158]@0xffffff7f9d530000
         com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7f9dc1b000->0xffffff7f9de83fff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
            dependency: com.apple.iokit.IONDRVSupport(519.15)[B419F958-11B8-3F7D-A31B-A72166B6E234]@0xffffff7f9d556000
            dependency: com.apple.iokit.IOGraphicsFamily(519.15)[D5F2A20D-CAB0-33B2-91B9-E8755DFC34CB]@0xffffff7f9d237000
         com.apple.nvidia.classic.NVDANV50HalTesla(10.0.4)[5DCF031B-F81F-32A3-ADCD-18E16EAC7CF0]@0xffffff7f9ec8b000->0xffffff7f9ef33fff
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7f9dc1b000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
         com.apple.GeForceTesla(10.0.4)[426B2568-8B0A-372B-BB33-B421D942837A]@0xffffff7f9de8f000->0xffffff7f9df4dfff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[109B7A58-40CC-3FD4-BDAF-E7BA84B833C0]@0xffffff7f9ca95000
            dependency: com.apple.iokit.IONDRVSupport(519.15)[B419F958-11B8-3F7D-A31B-A72166B6E234]@0xffffff7f9d556000
            dependency: com.apple.iokit.IOGraphicsFamily(519.15)[D5F2A20D-CAB0-33B2-91B9-E8755DFC34CB]@0xffffff7f9d237000
            dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.4)[F8258F0F-61AD-30F4-BDD5-B18CCAAE535A]@0xffffff7f9dc1b000

BSD process name corresponding to current thread: kernel_task
Boot args: -no_compat_check

Mac OS version:
18G3020

Kernel version:
Darwin Kernel Version 18.7.0: Thu Jan 23 06:52:12 PST 2020; root:xnu-4903.278.25~1/RELEASE_X86_64
Kernel UUID: 71EBCAB7-7239-36ED-A2B8-3DCEB0D5EFD1
Kernel slide:     0x000000001be00000
Kernel text base: 0xffffff801c000000
__HIB  text base: 0xffffff801bf00000
System model name: MacBookPro5,1 (Mac-F42D86C8)

System uptime in nanoseconds: 68540096895520
last loaded kext at 267923863094: com.apple.filesystems.msdosfs    1.10 (addr 0xffffff7f9d292000, size 69632)
loaded kexts:
com.parrotgeek.SIPManager    1
com.apple.filesystems.msdosfs    1.10
com.apple.filesystems.smbfs    3.3.2
com.apple.driver.AudioAUUC    1.70
com.apple.driver.AppleHWSensor    1.9.5d0
com.apple.fileutil    20.036.15
com.apple.filesystems.autofs    3.0
com.apple.driver.AGPM    110.23.46
com.apple.driver.AppleMikeyHIDDriver    131
com.apple.driver.AppleHDAHardwareConfigDriver    281.52
com.apple.driver.AppleGraphicsDevicePolicy    3.28.4
com.apple.driver.AppleHDA    281.52
com.apple.AGDCPluginDisplayMetrics    3.28.4
com.apple.driver.AppleHV    1
com.apple.iokit.IOUserEthernet    1.0.1
com.apple.driver.AppleMikeyDriver    281.52
com.apple.GeForceTesla    10.0.4
com.apple.driver.AppleUpstreamUserClient    3.6.5
com.apple.driver.AppleOSXWatchdog    1
com.apple.iokit.IOBluetoothSerialManager    6.0.14d4
com.apple.driver.pmtelemetry    1
com.apple.Dont_Steal_Mac_OS_X    7.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking    4.0.0
com.apple.driver.AppleSMCLMU    212
com.apple.driver.AppleFIVRDriver    4.1.0
com.apple.driver.AGDCBacklightControl    3.50.14
com.apple.driver.AppleBacklight    170.12.12
com.apple.driver.AppleMCCSControl    1.5.6
com.apple.driver.AppleMuxControl    3.28.4
com.apple.driver.SMCMotionSensor    3.0.4d1
com.apple.driver.AppleLPC    3.1
com.apple.driver.ACPI_SMC_PlatformPlugin    1.0.0
com.apple.nvidia.NVDAStartup    12.0.0
com.apple.iokit.IOBluetoothUSBDFU    6.0.14d4
com.apple.driver.AppleUSBTCButtons    255
com.apple.driver.AppleUSBTCKeyEventDriver    255
com.apple.driver.AppleUSBTCKeyboard    255
com.apple.driver.AppleFileSystemDriver    3.0.1
com.apple.driver.AppleVirtIO    2.1.3
com.apple.filesystems.hfs.kext    407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.BootCache    40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.AppleSystemPolicy    1.0
com.apple.driver.AppleIRController    354
com.apple.iokit.SCSITaskUserClient    408.250.3
com.apple.private.KextAudit    1.0
com.apple.filesystems.apfs    945.275.8
com.apple.driver.AirPort.Brcm4331    800.21.31
com.apple.driver.AppleFWOHCI    5.6.0
com.apple.driver.AppleAHCIPort    329.260.5
com.apple.nvenet    2.0.22
com.apple.driver.AppleSmartBatteryManager    161.0.0
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleACPIButtons    6.1
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleACPIEC    6.1
com.apple.driver.AppleAPIC    1.7
com.apple.driver.AppleIntelCPUPowerManagementClient    220.0.0
com.apple.nke.applicationfirewall    202
com.apple.security.TMSafetyNet    8
com.apple.driver.AppleIntelCPUPowerManagement    220.0.0
com.apple.kext.triggers    1.0
com.apple.driver.DspFuncLib    281.52
com.apple.kext.OSvKernDSPLib    528
com.apple.iokit.IOAVBFamily    760.6
com.apple.plugin.IOgPTPPlugin    740.2
com.apple.iokit.IOEthernetAVBController    1.1.0
com.apple.iokit.IOSkywalkFamily    1
com.apple.driver.AppleSSE    1.0
com.apple.iokit.IOSurface    255.6.1
com.apple.AppleGPUWrangler    3.28.4
com.apple.iokit.IOSlowAdaptiveClockingFamily    1.0.0
com.apple.driver.AppleHDAController    281.52
com.apple.iokit.IOHDAFamily    281.52
com.apple.iokit.IOFireWireIP    2.3.0
com.apple.nvidia.classic.NVDANV50HalTesla    10.0.4
com.apple.nvidia.classic.NVDAResmanTesla    10.0.4
com.apple.driver.AppleBacklightExpert    1.1.0
com.apple.driver.AppleSMBusController    1.0.18d1
com.apple.AppleGraphicsDeviceControl    3.28.4
com.apple.driver.AppleGraphicsControl    3.28.4
com.apple.driver.IOPlatformPluginLegacy    1.0.0
com.apple.driver.IOPlatformPluginFamily    6.0.0d8
com.apple.driver.AppleSMBusPCI    1.0.14d1
com.apple.iokit.IONDRVSupport    519.15
com.apple.iokit.IOGraphicsFamily    519.15
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport    6.0.14d4
com.apple.iokit.IOBluetoothHostControllerUSBTransport    6.0.14d4
com.apple.iokit.IOBluetoothHostControllerTransport    6.0.14d4
com.apple.iokit.IOBluetoothFamily    6.0.14d4
com.apple.driver.AppleUSBMultitouch    263
com.apple.iokit.IOSerialFamily    11
com.apple.filesystems.hfs.encodings.kext    1
com.apple.driver.usb.AppleUSBHub    1.2
com.apple.driver.AppleUSBAudio    315.6
com.apple.driver.usb.IOUSBHostHIDDevice    1.2
com.apple.iokit.IOAudioFamily    206.5
com.apple.vecLib.kext    1.2.0
com.apple.driver.usb.cdc    5.0.0
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.2
com.apple.iokit.IOSCSIMultimediaCommandsDevice    408.250.3
com.apple.iokit.IOBDStorageFamily    1.8
com.apple.iokit.IODVDStorageFamily    1.8
com.apple.iokit.IOCDStorageFamily    1.8
com.apple.driver.AppleXsanScheme    3
com.apple.iokit.IOAHCISerialATAPI    267.50.1
com.apple.iokit.IOAHCIBlockStorage    301.270.1
com.apple.driver.AppleUSBMergeNub    900.4.1
com.apple.driver.usb.AppleUSBHostPacketFilter    1.0
com.apple.iokit.IOUSBFamily    900.4.1
com.apple.driver.AppleUSBHostMergeProperties    1.2
com.apple.iokit.IO80211Family    1200.12.2
com.apple.driver.corecapture    1.0.4
com.apple.iokit.IOFireWireFamily    4.7.3
com.apple.iokit.IOAHCIFamily    288
com.apple.driver.usb.AppleUSBOHCIPCI    1.2
com.apple.driver.usb.AppleUSBOHCI    1.2
com.apple.driver.usb.AppleUSBEHCIPCI    1.2
com.apple.driver.usb.AppleUSBEHCI    1.2
com.apple.driver.NVSMU    2.2.9
com.apple.driver.AppleEFINVRAM    2.1
com.apple.driver.AppleEFIRuntime    2.1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.security.quarantine    3
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.DiskImages    493.0.0
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleEffaceableStorage    1.0
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleUSBTDM    456.260.3
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.iokit.IOUSBMassStorageDriver    145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice    408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily    408.250.3
com.apple.iokit.IOStorageFamily    2.1
com.apple.kext.CoreTrust    1
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.KernelRelayHost    1
com.apple.iokit.IOUSBHostFamily    1.2
com.apple.driver.usb.AppleUSBCommon    1.0
com.apple.driver.AppleBusPowerController    1.0
com.apple.driver.AppleSEPManager    1.0.1
com.apple.driver.IOSlaveProcessor    1
com.apple.iokit.IOReportFamily    47
com.apple.iokit.IOTimeSyncFamily    740.2
com.apple.iokit.IONetworkingFamily    3.4
com.apple.driver.AppleACPIPlatform    6.1
com.apple.driver.AppleSMC    3.1.9
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.pthread    1
com.apple.kec.Libm    1
com.apple.kec.corecrypto    1.0

EOF
Model: MacBookPro5,1, BootROM MBP51.007E.B06, 2 processors, Intel Core 2 Duo, 2.4 GHz, 8 GB, SMC 1.33f8
Graphics: kHW_NVidiaGeForce9400MItem, NVIDIA GeForce 9400M, 256 MB
Graphics: kHW_NVidiaGeForce9600MGTItem, NVIDIA GeForce 9600M GT, spdisplays_pcie_device, 256 MB
Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1067 MHz, 0x0198, 0x393930353432382D3030352E4130324C4620
Memory Module: BANK 0/DIMM1, 4 GB, DDR3, 1067 MHz, 0x0198, 0x393930353432382D3030352E4130324C4620
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8D), Broadcom BCM43xx 1.0 (5.106.98.102.31)
Bluetooth: Version 6.0.14d4, 3 services, 18 devices, 1 incoming serial ports
Network Service: Wi-Fi, AirPort, en1
Serial ATA Device: Samsung SSD 860 EVO 500GB, 500.11 GB
Serial ATA Device: MATSHITADVD-R   UJ-868
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: Apple Internal Keyboard / Trackpad
USB Device: IR Receiver
USB Device: USB 2.0 Bus
USB Device: USB 2.0 Bus
USB Device: Built-in iSight
Thunderbolt Bus:
Just a quick update on my issues with the 2020 sec update - if for no-one's benefit but me!

I've gone back to Better battery life and set my sleep times to never. I have my screensaver activate after 3mins. I made a pleasant discovery though: when I choose sleep from the apple menu, it sleeps correctly. So that's what I do at night, or if I know I'm going to be away for a while. No more ramping up of the fans. At some point I'll see if the auto sleep has fixed itself.


Punteillos

macrumors newbie
Feb 5, 2020
9
0
Hello, I have a problem after the 2020 security update. My second screen is no longer detected at startup. I use a GTX 680. Everything works good before this 2020 update…
I have reinstalled all the patches (1.3.7)… help :)

I update my macbook late 2008 with nvidia 9400M to the security update (01-2020) and the screen now its a 21 inches screen, in the previous version (10.14.6 - base) the screen its correctly detected (lcd screen), but now i have this problem, maybe something with the nvidia graphics?

I loose my sound too :(

Im gona test some drivers.


mrploppy

macrumors regular
Oct 27, 2017
242
128
I update my macbook late 2008 with nvidia 9400M to the security update (01-2020) and the screen now its a 21 inches screen, in the previous version (10.14.6 - base) the screen its correctly detected (lcd screen), but now i have this problem, maybe something with the nvidia graphics?

I loose my sound too :(

Im gona test some drivers.
Seems like this security update caused a number of graphics related issues.


Punteillos

macrumors newbie
Feb 5, 2020
9
0
I run the patch updater again from desktop and reinstall all patches.... and all works again perfect!. Even the trackpad mod.

Try it @philk34

I use yosemite for the last years, and in yosemite my macbook late 2008 works in temps like 50-60 normal use, and 70-80 hard use, but with mojave i have 70-80 normal use, and 80-90 hard use.... but i think this is inevitable...


philk34

macrumors member
Mar 28, 2019
76
25
Thank you Punteillos . Done as you say but always the same.
I recreated an installation key with the DosDude1 patch then reinstall the patch, always the same, moreover the dock is slow… I think there is a patch problem that does not pass or install. Ah also at the end of post install and reboot, it restarts on the patch key and not the hard drive. I hope to be clear :). My SSD is APFS format


avz

macrumors 68000
Oct 7, 2018
1,830
1,897
Stalingrad, Russia
Hi Guys, another MacBook 13.3" late 2008 in Mojave 10.14.6 using HFS+ working 100%.

Macbook Late 2008 13,3" (5.1)
Intel Core2Duo 2Ghz
nvidia 9400M 256Mb
SSD 256Gb
8Gb Ram

Problem With Trackpad!, only detected as mouse, but.... SOLVED!

For anyone with problems with the trackpad, you can use your Trackpad Pref File from another yosemite installation (/System/Library/PreferncePanes). Just replace and reboot.

The only problem its with the color of the Tracpad Preference panel, this dont have "Dark Mode", but.. this is not a problem.

Hope this can help someone. Thanks to everybody.

Link to download Trackpad Pref Panel from my yosemite Installation:

View attachment 892587
-
View attachment 892588

Tested and working 100%. All original features Works Perfect.

This is very strange. I've never had any issues with the trackpad on my MacBook5,1. I believe it is the MacBook5,2 that has the issue as it has a retro trackpad with the button a la mouse.


Punteillos

macrumors newbie
Feb 5, 2020
9
0
Finally i go back to the 10.14.6 stock version with a clear installation, and all comes to normallity, this update broke some drivers i think.... becouse the performance its horrible.

The diference its amazing.


Alex-Microsmeta

macrumors 6502
Jul 14, 2018
376
630
Rome
Hi @dosdude1 @ASentientBot !

If I'm off topic here, I anticipately sorry, please move my question on the right place.

I have succesfully installed macOS Mojave 10.14.6 on a Core i7-860, Asus P7P55D and Nvidia Quadro 2000 PC with Clover bootloader (it starts from an USB pendrive) using DVI connection. All works fine, but the resolution of my TVMonitor LG M2352D is stucked at 1280x1024 4:3. With Windows 10 the display works fine 1920x1080 @60 Hz, so I have tried SwitchResX4 and some EDID editors (exporting the right EDID from Windows) unsuccesfully. Then I have found your "Fix old Nvidia cards V1" patch, (Nvidia web drivers are available until 10.13) It installs correctly, but nothing happens after rebooting. The only workaround that I have found for the correct ratio is to force the display to 4:3.

I attach the right LG EDID extracted from Windows 10. Any idea for how to fix my issue? Thank you, Alex

bad resolution.png


Attachments

  • LG M2352D.bin.zip
    651 bytes · Views: 96
Last edited:

philk34

macrumors member
Mar 28, 2019
76
25
Me too - Go Back to 10.4.6 (18G103) with clean install. Works fine :).
Careful with last security update 2020 MP 3.1


joevt

macrumors 604
Jun 21, 2012
6,983
4,269
I have succesfully installed macOS Mojave 10.14.6 on a Core i7-860, Asus P7P55D and Nvidia Quadro 2000 PC with Clover bootloader (it starts from an USB pendrive) using DVI connection. All works fine, but the resolution of my TVMonitor LG M2352D is stucked at 1280x1024 4:3. With Windows 10 the display works fine 1920x1080 @60 Hz, so I have tried SwitchResX4 and some EDID editors (exporting the right EDID from Windows) unsuccesfully. Then I have found your "Fix old Nvidia cards V1" patch, (Nvidia web drivers are available until 10.13) It installs correctly, but nothing happens after rebooting. The only workaround that I have found for the correct ratio is to force the display to 4:3.

I attach the right LG EDID extracted from Windows 10. Any idea for how to fix my issue? Thank you, Alex
How is the display connected? Probably Single Link DVI to HDMI? If so, you could try using a DisplayPort to HDMI adapter. There's two kinds - passive and active. Passive requires that the DisplayPort output supports DisplayPort dual mode (does the Quadro have that?). Active might be better in your case sense the GPU will send a DisplayPort signal instead of HDMI. You can get a DisplayPort 1.2 to HDMI 2.0 adapter (but your TV only needs HDMI 1.x) which are always active.

https://www.club-3d.com/en/detail/2366/ CAC-1070 DP 1.2 to hdmi 2.0 uhd active adapter
https://www.club-3d.com/en/detail/2438/ CAC-2070 DP 1.2 to hdmi 2.0 uhd active adapter
https://www.club-3d.com/en/detail/2365/ CAC-1073 DP 1.2 cable to hdmi 2.0 uhd 4k60hz active 3m
https://www.club-3d.com/en/detail/2442/ CAC-1080 DP 1.4 to hdmi 2.0b hdr active adapter
https://www.club-3d.com/en/detail/2465/ CAC-1082 DP 1.4 cable to hdmi 2.0b active adapter 2m

The Quadro 2000 is a Kepler generation GPU so it should work in latest macOS?

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
