The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.

TimothyR734

macrumors 68030
Apr 10, 2018
2,723
2,753
Logsden Oregon
@TimothyR734 that is for error 66 to fix wifi?
Possibly I haven't attempted to install macOS Big Sur yet going to order a external ssd for my iMac and try once it arrives
[automerge]1593584612[/automerge]


Ronald Steven

macrumors member
Jun 29, 2020
39
48
I can
Possibly I haven't attempted to install macOS Big Sur yet going to order a external ssd for my iMac and try once it arrives
[automerge]1593584612[/automerge]
I can't deactivated the snapshot seal on the bg disk and neither delete telemetry folder


TimothyR734

macrumors 68030
Apr 10, 2018
2,723
2,753
Logsden Oregon
I can

I can't deactivated the snapshot seal on the bg disk and neither delete telemetry folder
Look for the OpenCoreAPFSloader3 from jackluke you can install it on your Catalina Patcher or if you have a spare 1gb usb after creating the OpenCoreAPFSloaer boot into it and in the menu select nvram reset the will add the no-compat check and AMFI-get-out-of-the-way in the boot-args and disables the telemetry and if your going to be replacing Kext’s you need to add disable authenticated root to the boot-args as well


jackluke

macrumors 68040
Jun 15, 2018
3,321
8,068
I replaced the AppleHDA & IO80211Family kexts with the High Sierra versions through a Big Sur USB recovery terminal, but I still have the same Wi-Fi/audio situation too.
I did kextcache -i / kmutil install --update-all kcditto but I presume now, that I have to do this from single-user mode. However, I'm getting error 66 when mounting system volume as writable — and I'm not sure how to disable/delete snapshot booting to circumvent the error.
I don't fully understand snapshots tbh…it's difficult to grip an understanding of.

Try to use my patched prelinkedkernel (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): patched prelinkedkernel.zip beta1

And replace it here: /Volumes/UUID-BigSur/System/Library/PrelinkedKernels/

together with this BigSur prelinkedkernel fix.zip

to copy here: /Volumes/UUID-BigSur/System/Library/CoreServices/

At reboot you could have also Sound and Wifi.
[automerge]1593587627[/automerge]
I didn’t get a KP when using patched BaseSystem with replaced boot.efi. (I got responsive LegacyUSB for the first time and didn’t work again for some reasons...) Can you send me the BootKernelExtension.kc file that you’re using for me to find out a different approach?
[automerge]1593561197[/automerge]



Here is my patched BootKernelExtensions.kc (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): Patched BootKernelExtensions.kc beta1

For those who want to test it on their BigSur installation replace it here:

/Volumes/UUID-BigSur/boot/System/Library/KernelCollections/

make a backup of your BootKernelExtensions.kc .
[automerge]1593588282[/automerge]
@jackluke Just reinstalled BS on internal SSD (I have read on forums that often It fails to boot from external USB) removed SIP, telemetry, compat-check... It boots, the screen becomes black from white, It continues loading, when the bar Is almost at the end of the run It crashes... ? Waiting for the official automatic patcher.

Have you tried USBOpenCoreAPFSloader3 ? Because it works even with BigSur sealed system and snaphot booting enabled, anyway you should use my prelinkedkernel method, as also explained in this post.

I doubt that an automatic patcher will be released soon for any Mac without video acceleration (and legacy IOUSB), and when BigSur System is sealed with snapshot booting is even harder to make an automatic patcher.

An automatic patcher is only "easier" for "Catalina supported Mac" or eventually "HighSierra APFS supported Mac" with a Metal GPU upgrade and upgraded Broadcom Wifi 802.11ac .

Last edited:

TimothyR734

macrumors 68030
Apr 10, 2018
2,723
2,753
Logsden Oregon

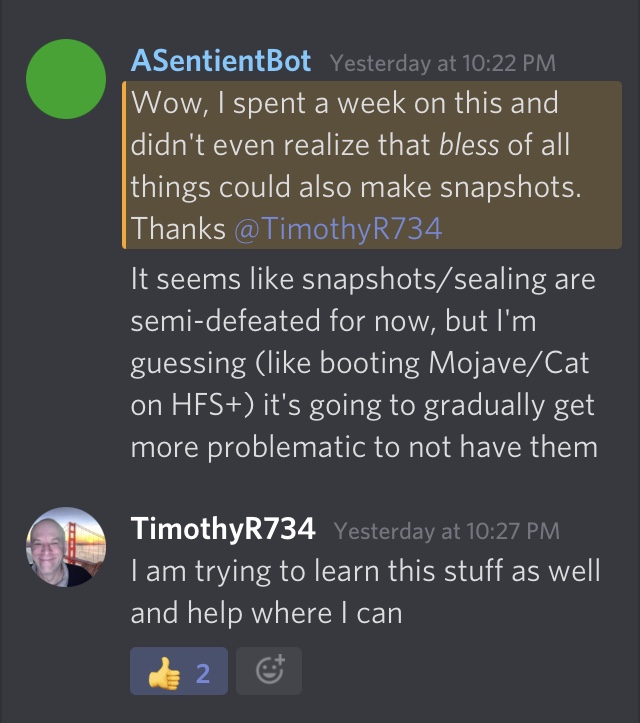

The Bless command will also create a new snapshot
[automerge]1593590081[/automerge]


Attachments

  • A4A28BFC-D232-4599-A3B1-CA74BED93891.jpeg
    115.4 KB · Views: 164
Last edited:

jborko

macrumors regular
Jan 17, 2011
188
114
The Bless command will also create a new snapshot
[automerge]1593590081[/automerge]

This seems like an excellent discovery. For sake of better understanding of the order of things, do I understand this right, that once you have the OS installed, you go on to fix 66, then you install extensions, then you bless the drive and reboot?

  • Like
Reactions: TimothyR734

jackluke

macrumors 68040
Jun 15, 2018
3,321
8,068
@Badruzeus on the other "non-mac hardware" forums are there any fixes for AppleACPICPU early kernel panic for booting the USB BigSur Installer (or installation) when using IntelHD Arrandale (or Arrandale i5 cpu) and i3 Clarkdale cpu ?

Because these Intel architecture are unable to boot the BigSur beta1 kernel , probably they need some DSDT fix.

I made many attempts but can't figure it out, unless AAPL on BigSur beta 2 fixes this kp.


ledzep1

macrumors 6502
Jan 24, 2016
283
100
I have a late 2013 iMac, so how do I go about getting BiG Sur when its released, my iMac is very fast still has SSD and good amount of ram.

Would I need to go down an unofficial route to get the new OSX or will Apple still give me the option of installing it?

If I decided to stay on Catlaina would I still get security/fixes via apple update.

Sorry for noob questions, but this will be first time I have had an apple device not supported.


Thanks

  • Like
Reactions: TimothyR734

maverick28

macrumors 6502a
Mar 14, 2014
630
312
I have a late 2013 iMac, so how do I go about getting BiG Sur when it's released, my iMac is very fast still has SSD and a good amount of ram.

Would I need to go down an unofficial route to get the new OSX or will Apple still give me the option of installing it?

If I decided to stay on Catalina would I still get security/fixes via apple update?

Sorry for noob questions, but this will be the first time I have had an apple device not supported.


Thanks

If your device isn't supported officially Apple won't offer further upgrades. If you run Catalina they'll give you another 2 years of "Security updates".


Alex-Microsmeta

macrumors 6502
Jul 14, 2018
376
630
Rome
Try to use my patched prelinkedkernel (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): patched prelinkedkernel.zip beta1

And replace it here: /Volumes/UUID-BigSur/System/Library/PrelinkedKernels/

together with this BigSur prelinkedkernel fix.zip

to copy here: /Volumes/UUID-BigSur/System/Library/CoreServices/

At reboot you could have also Sound and Wifi.
[automerge]1593587627[/automerge]


Here is my patched BootKernelExtensions.kc (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): Patched BootKernelExtensions.kc beta1

For those who want to test it on their BigSur installation replace it here:

/Volumes/UUID-BigSur/boot/System/Library/KernelCollections/

make a backup of your BootKernelExtensions.kc .
[automerge]1593588282[/automerge]


Have you tried USBOpenCoreAPFSloader3 ? Because it works even with BigSur sealed system and snaphot booting enabled, anyway you should use my prelinkedkernel method, as also explained in this post.

I doubt that an automatic patcher will be released soon for any Mac without video acceleration (and legacy IOUSB), and when BigSur System is sealed with snapshot booting is even harder to make an automatic patcher.

An automatic patcher is only "easier" for "Catalina supported Mac" or eventually "HighSierra APFS supported Mac" with a Metal GPU upgrade and upgraded Broadcom Wifi 802.11ac .
Try to use my patched prelinkedkernel (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): patched prelinkedkernel.zip beta1

And replace it here: /Volumes/UUID-BigSur/System/Library/PrelinkedKernels/

together with this BigSur prelinkedkernel fix.zip

to copy here: /Volumes/UUID-BigSur/System/Library/CoreServices/

At reboot you could have also Sound and Wifi.
[automerge]1593587627[/automerge]


Here is my patched BootKernelExtensions.kc (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): Patched BootKernelExtensions.kc beta1

For those who want to test it on their BigSur installation replace it here:

/Volumes/UUID-BigSur/boot/System/Library/KernelCollections/

make a backup of your BootKernelExtensions.kc .
[automerge]1593588282[/automerge]


Have you tried USBOpenCoreAPFSloader3 ? Because it works even with BigSur sealed system and snaphot booting enabled, anyway you should use my prelinkedkernel method, as also explained in this post.

I doubt that an automatic patcher will be released soon for any Mac without video acceleration (and legacy IOUSB), and when BigSur System is sealed with snapshot booting is even harder to make an automatic patcher.

An automatic patcher is only "easier" for "Catalina supported Mac" or eventually "HighSierra APFS supported Mac" with a Metal GPU upgrade and upgraded Broadcom Wifi 802.11ac .

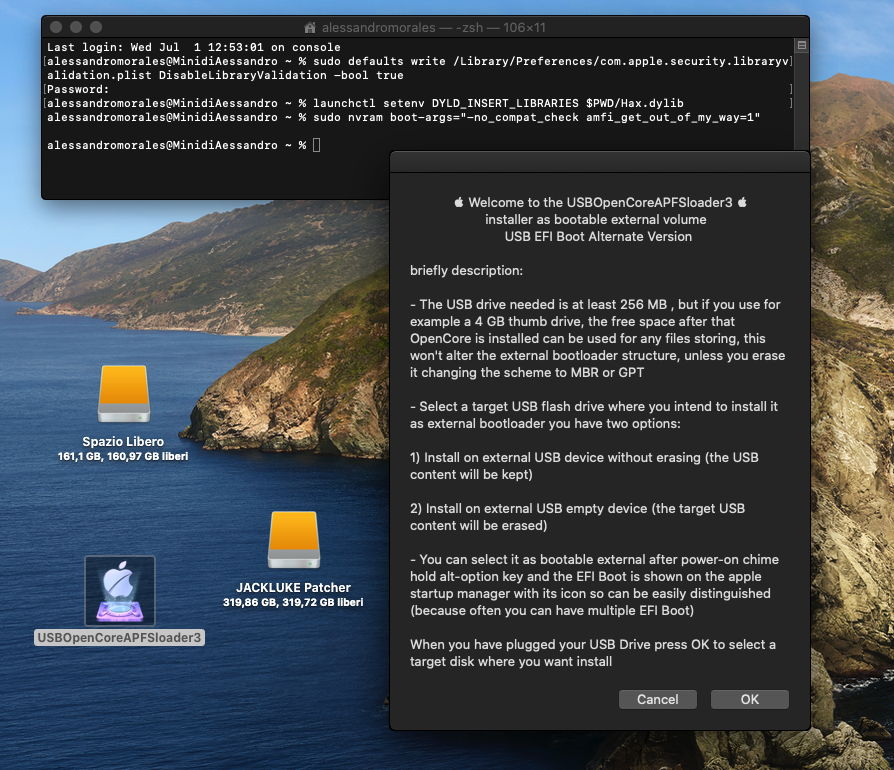

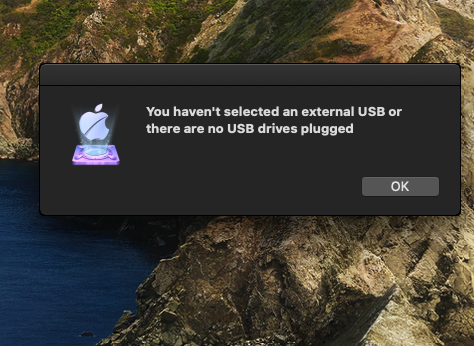

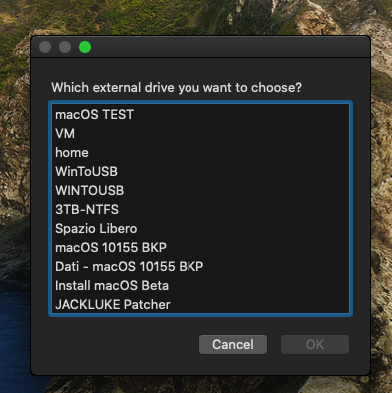

Yes, I have, but maybe I'm missing something. I have used the same Catalina that I use to install for @ASentientBot patch, but your app won't accept any USB pendrive/external disk (GUI, macOS journaled formatted) Why?

My Macmini 4,1 works pefectly with Catalina (No-Metal graphic acceleration included) so I really hope that it will be possible to upgrate to Big Sur.


Attachments

  • 1.png
    851.6 KB · Views: 214
  • 2.png
    127.8 KB · Views: 170
  • 3.png
    262.1 KB · Views: 149
Last edited:
  • Like
Reactions: TimothyR734

Barry K. Nathan

macrumors 6502
Jul 6, 2018
387
1,145
Irvine, CA, USA
A couple hours ago I tested @ASentientBot's HaxLib.dylib from Hax3, and it inhibited volume sealing just like Hax2Lib.dylib.

By the way, v0.0.5 of my patcher is out now. It's possible that I'll just leave ease-of-use where it is now, for the time being, and see what I can do with my patcher regarding WiFi first. (v0.0.5 is already a huge advance over previous versions since it doesn't require a separate Hax download anymore.)



Alex-Microsmeta

macrumors 6502
Jul 14, 2018
376
630
Rome
Try to use my patched prelinkedkernel (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): patched prelinkedkernel.zip beta1

And replace it here: /Volumes/UUID-BigSur/System/Library/PrelinkedKernels/

together with this BigSur prelinkedkernel fix.zip

to copy here: /Volumes/UUID-BigSur/System/Library/CoreServices/

At reboot you could have also Sound and Wifi.
[automerge]1593587627[/automerge]


Here is my patched BootKernelExtensions.kc (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): Patched BootKernelExtensions.kc beta1

For those who want to test it on their BigSur installation replace it here:

/Volumes/UUID-BigSur/boot/System/Library/KernelCollections/

make a backup of your BootKernelExtensions.kc .

OK, I try this too. Thank you!

  • Like
Reactions: TimothyR734

jackluke

macrumors 68040
Jun 15, 2018
3,321
8,068
Yes, I have, but maybe I'm missing something. I have used the same Catalina that I use to install for @ASentientBot patch, but your app won't accept any USB pendrive/external disk (GUI, APFS formatted) Why?

My Macmini 4,1 works pefectly with Catalina (No-Metal graphic acceleration included) so I really hope that it will be possible to upgrate to Big Sur.

From your device list I don't notice any USB flash drive plugged, if your "Install macOS Beta" is a BigSur installer then try to make USBopencore selecting it and use this option "Near an USB device without erasing"


Minh_Ton

macrumors member
May 15, 2019
64
131
Hue, Vietnam
Here is my patched BootKernelExtensions.kc (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): Patched BootKernelExtensions.kc beta1

For those who want to test it on their BigSur installation replace it here:

/Volumes/UUID-BigSur/boot/System/Library/KernelCollections/

make a backup of your BootKernelExtensions.kc .

@jackluke Could you rebuild the BootKernelExtensions.kc file without any other kexts except LegacyUSBInjector.kext or without IO802*.kext? Tried this and the IO802* kext hang at the “IO820*: unsupported channel....” and can’t proceed anymore...


jhowarth

macrumors 65816
Jan 13, 2017
1,122
1,500
[automerge]1593587627[/automerge]


Here is my patched BootKernelExtensions.kc (this embedded telemetrap.kext , LegacyUSBInjector.kext, AppleHDA.kext and IO80211Family.kext, maybe also AAAMouSSE.kext ): Patched BootKernelExtensions.kc beta1

For those who want to test it on their BigSur installation replace it here:

/Volumes/UUID-BigSur/boot/System/Library/KernelCollections/

make a backup of your BootKernelExtensions.kc .

Does BootKernelExtensions.kc contain AAAMouSSE.kext or not? Is unclear what 'maybe also AAAMouSSE.kext' means for Patched BootKernelExtensions.kc beta1.

  • Like
Reactions: TimothyR734

jackluke

macrumors 68040
Jun 15, 2018
3,321
8,068
@jackluke Could you rebuild the BootKernelExtensions.kc file without any other kexts except LegacyUSBInjector.kext or without IO802*.kext? Tried this and the IO802* kext hang at the “IO820*: unsupported channel....” and can’t proceed anymore...

Maybe later I'll try to make a new BootKernelExtensions.kc with LegacyUSB, but I should use the stock BigSur /System/Library/Extensions/, I included the patched IO80211Family.kext because wanted to add also Wifi in the recovery (as it worked for Catalina Recovery), in any macOS Recovery there is "Get Help Online" aka a Safari browser from where you can also download files.
[automerge]1593608412[/automerge]
Does BootKernelExtensions.kc contain AAAMouSSE.kext or not? Is unclear what 'maybe also AAAMouSSE.kext' means for Patched BootKernelExtensions.kc beta1.

I guess I included it too, don't know how to extract a .kc kernelcache, not sure if I included too the GeForceTesla.kext .


jackluke

macrumors 68040
Jun 15, 2018
3,321
8,068
@jackluke Could you rebuild the BootKernelExtensions.kc file without any other kexts except LegacyUSBInjector.kext or without IO802*.kext? Tried this and the IO802* kext hang at the “IO820*: unsupported channel....” and can’t proceed anymore...

Try this: patched BootKernelExtensions.kc beta1 with legacy usb

it contains all the stock BigSur beta1 Extensions with the addition of parrotgeek1 LegacyUSBInjector.kext and Syncretic telemetrap.kext .

Last edited:

chris1111

macrumors 6502
Jul 8, 2015
432
1,037
Montréal Canada
Can someone explain how to use this and how to get the Marvell-injector.kext please? Thanks. Also, if anyone tried it, let me know if it worked.

its a drag and Drop
marvelInjectos is just an exemple of draging kext

Its not test on unsupported Mac I wait for @TimothyR734 result
so don't use


Jordillav22

macrumors newbie
Jul 1, 2020
28
42
Tortosa, España
Sorry for my English, in my iMac late 2012 macOS 11 is working very well. The only thing that does not work is the wifi, what file would I have to download and where to replace it to activate it? I have tried a Wifi AC USB and it works! but I don't have AirDrop and Handoff, I imagine these devices are not compatible to have AirDrop and Handoff. I would like to activate the wifi of the Mac to see if I have AirDrop and Handoff available. Thank you very much.
