MY OLD iMAC mid 2010 GOT STUCK >___> I installed Montery and also Windows 11 very successfully with Mr.Macintosh's great and very accurate instructions.
Why not ask Mr.Macintosh for another "great instruction"?
You did a sector copy, which means you had two disks that were identical in their identification data, but located on two different buses. No wonder no operating system has any idea on which bus should it locate data, when both buses provide identical information.
the internal disks were Cleaned totally with Disk Utility provided from internet at system reinstall, but the computer would always show up only the two options on the boot-up menu = Efi boot (blue icon of OCLP) + Mac Os Installer. How come!? They should not exist anymore as they are cleaned already!
No. You cleaned the visible partitions, not repartitioned the disk (which would eradicate the OC EFI). And you were not able to, since you were in Recovery.

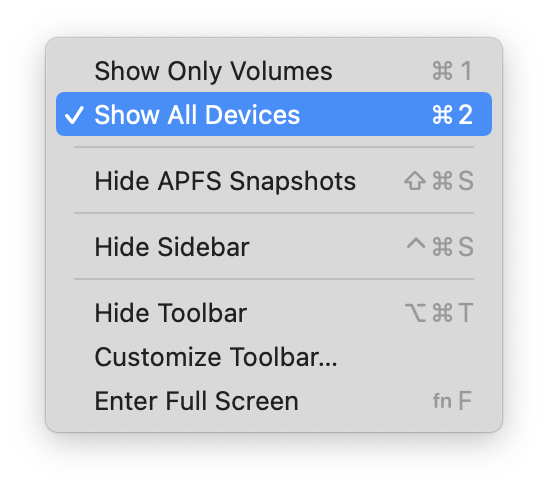

This is the difference in the "View" menu of Disk Utility:

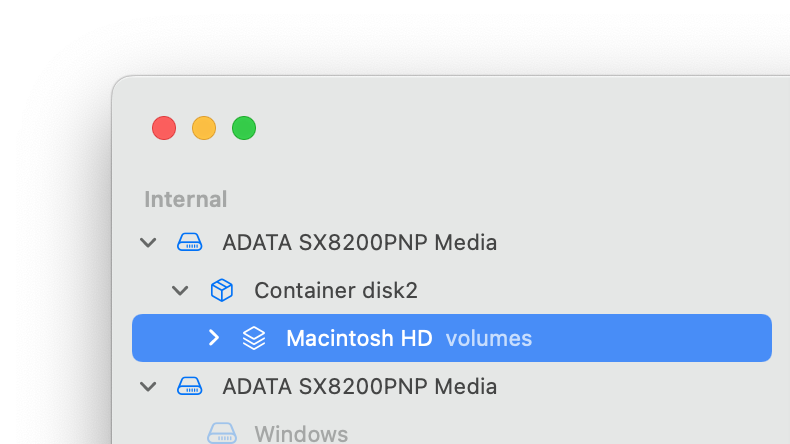

What you did erase:

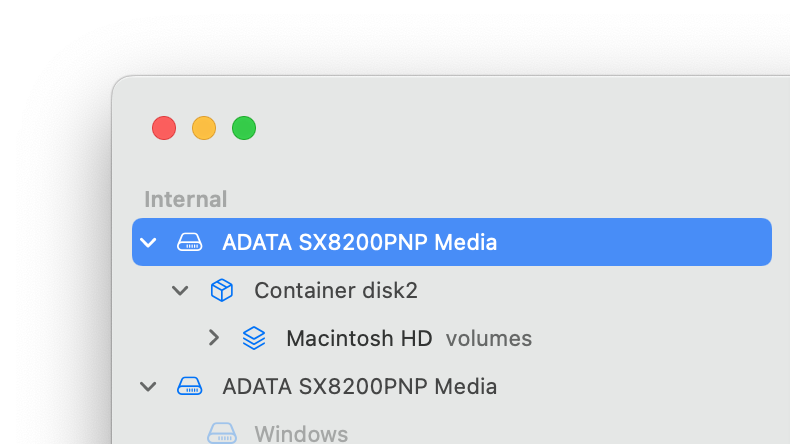

What you should've erased:
Is there any way to revive my old beloved device now? Please help, folks.
Create
an USB installer of High Sierra. Boot it, wipe the disks, not the partitions, install OS, install OC, reboot, install unsupported OS as per instructions in the first post. Unless, of course, you want to follow the bright instructions of Mr. Macintosh.
