MacinMan

macrumors 65816
Jan 27, 2011
1,379
787
Denham Springs, LA
As someone looking for a replacement / fix for the Apple thunderbolt 2 > ethernet dongle's intermittent drop-outs occurring after Monterey I hope you get some replies. $25 sounds good to me if it works.
It works this is running under Monterey (supported OS). It has removed the 940 Mbps cap from my gigabit connection. Hopefully it won't break under my Open core installs: https://www.speedtest.net/my-result/d/705383979


punipuni

macrumors newbie
Sep 17, 2024
3
1
Please help me.
I tried to upgrade OCLP on my MacPro5,1 from 2.0.2 to 2.1.0, but an error occurred.
What should I do?
Thank you.

------- build log ---------------------
Building Configuration on model: MacPro5,1
Build folder already present, skipping
Deleting old copy of OpenCore folder

- Adding OpenCore v1.0.1 RELEASE
- Adding config.plist for OpenCore
- Adding Lilu.kext 1.6.8
- Enabling Rosetta Cryptex support in Ventura
- Adding CryptexFixup.kext 1.0.3
- Adding SurPlus Patch for Race Condition
- Adding NoAVXFSCompressionTypeZlib.kext 12.3.1
- Adding NoAVXFSCompressionTypeZlib-AVXpel.kext 12.6
- Enabling legacy power management support
- Adding AppleIntelCPUPowerManagement.kext 1.0.0
- Adding AppleIntelCPUPowerManagementClient.kext 1.0.0
- Overriding ACPI SMC matching
- Adding ASPP-Override.kext 1.0.1
- Adding ExFatDxeLegacy.efi
- Adding USB 3.0 Controller Patch
- Adding XhciDxe.efi and UsbBusDxe.efi
- Adding PCI Bus Enumeration Patch
- Adding AppleMCEReporterDisabler.kext 1.0.0
- Adding Intel82574L.kext 1.0.0
- Adding ECM-Override.kext 1.0.0
- Adding CatalinaIntelI210Ethernet.kext 1.0.0
- Found Wireless Device 14E4:43A0
- Adding IOSkywalkFamily.kext 1.2.0
- Adding IO80211FamilyLegacy.kext 1.0.0
- Adding AirportBrcmFixup.kext 2.1.8
- Setting Wireless Card's Country Code: US
- Found ARPT device at PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)
- Found dGPU (1): 10DE:640
- Found GFX0 Device Path: PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)
- Found GPU Arch: Archs.Tesla
- Adding WhateverGreen.kext 1.6.7
- Found dGPU (1): 10DE:640
- Found dGPU (1) at PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)
- Enabling Nvidia Output Patch
- Adding AppleALC.kext 1.6.3
- Adding AppleGraphicsPowerManagement Override
- Fixing Legacy Bluetooth for macOS Monterey
- Adding BlueToolFixup.kext 2.6.8
- Adding SATA Hibernation Patch
- Fixing PCIe Storage Controller (1) reporting
- Fixing PCIe Storage Controller (2) reporting
- Found 3rd Party NVMe SSD (1): 8086:F1A8
- Found NVMe (0) at PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)
- Adding NVMeFix.kext 1.1.1
- Enabling SMC exemption patch
- Adding SMC-Spoof.kext 1.0.0
- Adding ipc_control_port_options=0 to boot-args
- Adding AutoPkgInstaller.kext 1.0.4
- Set SIP to allow Root Volume patching
- Allowing FileVault on Root Patched systems
- Enabling KC UUID mismatch patch
- Adding RSRHelper.kext 1.0.2
- Disabling SecureBootModel
- Enabling AMFIPass
- Adding AMFIPass.kext 1.4.1
- Adding FeatureUnlock.kext 1.1.6
- Disabling memory error reporting
- Setting RestrictEvents block arguments: pcie
- Adding RestrictEvents.kext 1.1.4
- Setting RestrictEvents patch arguments: sbvmm
- Adding USB-Map.kext
- Adding UHCI/OHCI USB support
- Adding CPUFriend.kext 1.2.8
- Adding OpenCanopy GUI
- Setting custom OpenCore picker timeout to None seconds
- Adding bootmgfw.efi BlessOverride
- Enabling SMC exemption patch
- Setting macOS Monterey Supported SMBIOS
- Using Model ID: MacPro7,1
- Using Board ID: Mac-27AD2F918AE68F61
- Using Minimal SMBIOS patching
- Setting Firmware Feature: 8c01c1403
- Cleaning up files
An internal error occurred while building:

Traceback (most recent call last):
File "opencore_legacy_patcher/wx_gui/gui_build.py", line 128, in _build
File "opencore_legacy_patcher/efi_builder/build.py", line 52, in __init__
File "opencore_legacy_patcher/efi_builder/build.py", line 165, in _build_opencore
File "opencore_legacy_patcher/efi_builder/build.py", line 146, in _save_config
File "plistlib.py", line 903, in dump
File "plistlib.py", line 334, in write
File "plistlib.py", line 357, in write_value
File "plistlib.py", line 398, in write_dict
File "plistlib.py", line 357, in write_value
File "plistlib.py", line 398, in write_dict
File "plistlib.py", line 357, in write_value
File "plistlib.py", line 398, in write_dict
File "plistlib.py", line 369, in write_value
TypeError: unsupported type: <class 'NoneType'>


MacinMan

macrumors 65816
Jan 27, 2011
1,379
787
Denham Springs, LA
Well for $25 I'll just go ahead and order one and report back on how it goes under Sequoia on an unsupported rMBP10,1
Hope it works out for you too. My main focus was being able to get the full speeds I pay for and eventually try Cox's 2 Gigabit plan. I had to upgrade the router, modem and ethernet to the computer for this to work. However since Open core installed versions can be picky that's why I brought it here. I have an iMac 17,1 and it seems like more things work than don't. I could have just booted into one of my installed patched systems Sonoma, or Sequoia but i figured it was better to ask first than potentially just mess things up without reason. One thing you'll like bout this adapter is it has LEDs for status so you can also see when it's active. By the way, does Apple make any Ethernet dongles above one gig? I have TB 2 on this iMac.


TOM1211

macrumors 6502
Apr 15, 2012
388
567
Please help me.
I tried to upgrade OCLP on my MacPro5,1 from 2.0.2 to 2.1.0, but an error occurred.
What should I do?
Thank you.

------- build log ---------------------
Building Configuration on model: MacPro5,1
Build folder already present, skipping
Deleting old copy of OpenCore folder

- Adding OpenCore v1.0.1 RELEASE
- Adding config.plist for OpenCore
- Adding Lilu.kext 1.6.8
- Enabling Rosetta Cryptex support in Ventura
- Adding CryptexFixup.kext 1.0.3
- Adding SurPlus Patch for Race Condition
- Adding NoAVXFSCompressionTypeZlib.kext 12.3.1
- Adding NoAVXFSCompressionTypeZlib-AVXpel.kext 12.6
- Enabling legacy power management support
- Adding AppleIntelCPUPowerManagement.kext 1.0.0
- Adding AppleIntelCPUPowerManagementClient.kext 1.0.0
- Overriding ACPI SMC matching
- Adding ASPP-Override.kext 1.0.1
- Adding ExFatDxeLegacy.efi
- Adding USB 3.0 Controller Patch
- Adding XhciDxe.efi and UsbBusDxe.efi
- Adding PCI Bus Enumeration Patch
- Adding AppleMCEReporterDisabler.kext 1.0.0
- Adding Intel82574L.kext 1.0.0
- Adding ECM-Override.kext 1.0.0
- Adding CatalinaIntelI210Ethernet.kext 1.0.0
- Found Wireless Device 14E4:43A0
- Adding IOSkywalkFamily.kext 1.2.0
- Adding IO80211FamilyLegacy.kext 1.0.0
- Adding AirportBrcmFixup.kext 2.1.8
- Setting Wireless Card's Country Code: US
- Found ARPT device at PciRoot(0x0)/Pci(0x1,0x0)/Pci(0x0,0x0)/Pci(0x2,0x0)/Pci(0x0,0x0)
- Found dGPU (1): 10DE:640
- Found GFX0 Device Path: PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)
- Found GPU Arch: Archs.Tesla
- Adding WhateverGreen.kext 1.6.7
- Found dGPU (1): 10DE:640
- Found dGPU (1) at PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)
- Enabling Nvidia Output Patch
- Adding AppleALC.kext 1.6.3
- Adding AppleGraphicsPowerManagement Override
- Fixing Legacy Bluetooth for macOS Monterey
- Adding BlueToolFixup.kext 2.6.8
- Adding SATA Hibernation Patch
- Fixing PCIe Storage Controller (1) reporting
- Fixing PCIe Storage Controller (2) reporting
- Found 3rd Party NVMe SSD (1): 8086:F1A8
- Found NVMe (0) at PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)
- Adding NVMeFix.kext 1.1.1
- Enabling SMC exemption patch
- Adding SMC-Spoof.kext 1.0.0
- Adding ipc_control_port_options=0 to boot-args
- Adding AutoPkgInstaller.kext 1.0.4
- Set SIP to allow Root Volume patching
- Allowing FileVault on Root Patched systems
- Enabling KC UUID mismatch patch
- Adding RSRHelper.kext 1.0.2
- Disabling SecureBootModel
- Enabling AMFIPass
- Adding AMFIPass.kext 1.4.1
- Adding FeatureUnlock.kext 1.1.6
- Disabling memory error reporting
- Setting RestrictEvents block arguments: pcie
- Adding RestrictEvents.kext 1.1.4
- Setting RestrictEvents patch arguments: sbvmm
- Adding USB-Map.kext
- Adding UHCI/OHCI USB support
- Adding CPUFriend.kext 1.2.8
- Adding OpenCanopy GUI
- Setting custom OpenCore picker timeout to None seconds
- Adding bootmgfw.efi BlessOverride
- Enabling SMC exemption patch
- Setting macOS Monterey Supported SMBIOS
- Using Model ID: MacPro7,1
- Using Board ID: Mac-27AD2F918AE68F61
- Using Minimal SMBIOS patching
- Setting Firmware Feature: 8c01c1403
- Cleaning up files
An internal error occurred while building:

Traceback (most recent call last):
File "opencore_legacy_patcher/wx_gui/gui_build.py", line 128, in _build
File "opencore_legacy_patcher/efi_builder/build.py", line 52, in __init__
File "opencore_legacy_patcher/efi_builder/build.py", line 165, in _build_opencore
File "opencore_legacy_patcher/efi_builder/build.py", line 146, in _save_config
File "plistlib.py", line 903, in dump
File "plistlib.py", line 334, in write
File "plistlib.py", line 357, in write_value
File "plistlib.py", line 398, in write_dict
File "plistlib.py", line 357, in write_value
File "plistlib.py", line 398, in write_dict
File "plistlib.py", line 357, in write_value
File "plistlib.py", line 398, in write_dict
File "plistlib.py", line 369, in write_value
TypeError: unsupported type:

Looks like same error some of us had you need to put opencore settings back to normal if you have made any changes (according to discord a easy way to do this if you don’t know your default settings is just select the wrong machine instead of your model then change it back will reset it ) default settings e.g opencore 5 seconds and show boot picker then build with default settings then you can select what you want to change after .

  • Like
Reactions: LlamaLarry

Frenchmen

macrumors newbie
Oct 27, 2024
10
4
Hello to all,
I updated yesterday from Sonoma to Sequoia to 15.1 with my iMac 2017 18.3 running an external NVMe WD Black S850X in an Acasis Thunderbolt 3 enclosure and OCLP 2.1.1 Nightly,
the first reboot went normally,
after a second reboot when the loading bar was through, the display was gray for about 15 seconds until then a desktop appeared from Sequoia and this is now the case every time,
I have also installed Ventura on the same NVMe SSD as a backup in a second volume and everything is normal,
under Sonoma the desktop was always there immediately after a restart.
macOS Sequoia is also saved as a start volume.

Can anyone say anything about this? Otherwise, Sequoia runs without any problems.


TOM1211

macrumors 6502
Apr 15, 2012
388
567
Hello to all,
I updated yesterday from Sonoma to Sequoia to 15.1 with my iMac 2017 18.3 running an external NVMe WD Black S850X in an Acasis Thunderbolt 3 enclosure and OCLP 2.1.1 Nightly,
the first reboot went normally,
after a second reboot when the loading bar was through, the display was gray for about 15 seconds until then a desktop appeared from Sequoia and this is now the case every time,
I have also installed Ventura on the same NVMe SSD as a backup in a second volume and everything is normal,
under Sonoma the desktop was always there immediately after a restart.
macOS Sequoia is also saved as a start volume.

Can anyone say anything about this? Otherwise, Sequoia runs without any problems.

Known issue on discord currently no fix for grey issue . (except setting a grey background so it doesn’t look as bad)

  • Like
Reactions: OKonnel

amaze1499

macrumors 65816
Oct 16, 2014
1,192
1,221
Hi,

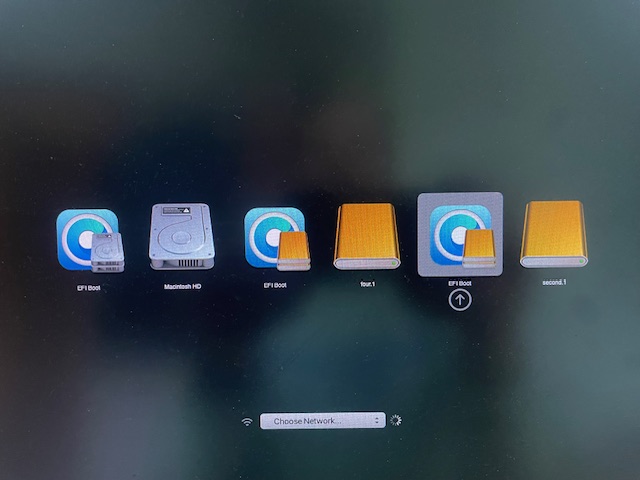

The distpicker give me this :

View attachment 2446310

I select EFI Boot and the comes the same without the EFIs.
I press shift and select second.1 (with 15.0, OCLP 2.1.0)
four.1 is my backup with 14.7.0, OCLP 2.1.0. View attachment 2446312
Can you boot into Monterey? Is the internal disk as well patched with OCLP 2.1.0? What happens if you choose the EFI on the internal drive but boot from the USB device? Same issue?

It's probably worth thinking about to create a new volume on the internal drive and move Sequoia onto that partition. I have seen cases where Sonoma and Sequoia wont boot from external USB connections for whatever reasons. Maybe others can chip in on this question?


Frenchmen

macrumors newbie
Oct 27, 2024
10
4
Known issue on discord currently no fix for grey issue . (except setting a grey background so it doesn’t look as bad)
Okay, thanks for the answer,

it was a little better when I reset the NVRAM several times, but the problem came back after the second restart, let's hope the OCLP team can solve it eventually,
it is annoying to have a grey display after a restart.


MacinMan

macrumors 65816
Jan 27, 2011
1,379
787
Denham Springs, LA
Okay, thanks for the answer,

it was a little better when I reset the NVRAM several times, but the problem came back after the second restart, let's hope the OCLP team can solve it eventually,
it is annoying to have a grey display after a restart.
If you're referring to the plain grey desktop before the wallpaper comes back (e.g. icons and menu / dock) are loaded but the background is just grey. That happened with Sonoma as well at first on supported Macs as well. I've seen it a few times when testing Sequoia, however, i've never thought anything of it as the desktop always loads.


MacinMan

macrumors 65816
Jan 27, 2011
1,379
787
Denham Springs, LA
@rehkram I just became a guinea pig, and rebooted into both Sonoma and Sequoia installs, and the Ethernet adapter was fine. I will let you know, there were some Reddit posts regarding the USB C variants on Silicon Macs, and Ventura and newer. Since I'm assuming you're also getting the USB A one like I did, it doesn't seem like it's going to be an issue. The macOS drivers UGREEN provides seem to be older ones. There are two included in the zip file. One for Mountain Lion (10.8) and one for Mavericks to Catalina (10.9 - 10.15). Since it worked out of the box with Monterey, and now seemingly Sonoma, and Sequoia, I didn't bother with drivers. Maybe it's a Thunderbolt issue, you mentioned having issues with a Thunderbolt to Ethernet adapter, and it sounded like it was similar to the same issues of the device randomly disconnecting, or not being recognized. Let me know what you find out when you get yours. I'd be interested to know if you have a seamless experience, or if you run into issues. For now, mine seems pretty seamless.
The driver package also comes with drivers for Linux, and Windows and UEFI, in case you need any of those.

  • Like
Reactions: OKonnel and rehkram

luckyduke23

macrumors regular
Mar 28, 2023
158
200
If you're referring to the plain grey desktop before the wallpaper comes back (e.g. icons and menu / dock) are loaded but the background is just grey. That happened with Sonoma as well at first on supported Macs as well. I've seen it a few times when testing Sequoia, however, i've never thought anything of it as the desktop always loads.
@Frenchmen

I know this phenomenon with the grey background. It actually indicates that the machine is very slow after updates. It takes longer to load the wall paper and also all startup applications. Whenever this happened I did the NVRAM reset via the OCLP boot picker which solved the issues. However, with MacOS 15 this did not work reliably for me anymore. I therefore did the SMC reset and the old school NVRAM reset (ALT+CMD+R+P) for the first time. Since then my 27" iMac runs like charme again...


The Zip

macrumors newbie
Sep 23, 2024
2
1
Everything was running fine on my 2017 27" 5k iMac (Sequoia 15.1 + OCLP 2.02), until I upgraded OCLP to 2.10. The system never booted again after the new root patches were installed. Tried it twice using both a USB installer, as well as using the System upgade approach. Couldn't get into safe mode, so I just erased the entire MacOS disk, and reverted to the Native Ventura, until I figure things out.


Neon Ball

macrumors newbie
Oct 6, 2023
21
84
Okay, thanks for the answer,

it was a little better when I reset the NVRAM several times, but the problem came back after the second restart, let's hope the OCLP team can solve it eventually,
it is annoying to have a grey display after a restart.
The grey wallpaper happens on my Hackintosh as well which has a native GPU with no patching, seems like a Sequoia bug.

  • Like
Reactions: macpro_mid2014

Frenchmen

macrumors newbie
Oct 27, 2024
10
4
If you're referring to the plain grey desktop before the wallpaper comes back (e.g. icons and menu / dock) are loaded but the background is just grey. That happened with Sonoma as well at first on supported Macs as well. I've seen it a few times when testing Sequoia, however, i've never thought anything of it as the desktop always loads.
That's right, the desktop is loaded,
after a restart before the background image is loaded, the desktop remains grey for 20 seconds,
I had a Sequoia as a test SSD until yesterday, it was also with the grey desktop but long after not so extreme, only a few seconds.


houser

macrumors 6502
Oct 29, 2006
401
529
Dear @Neon Ball
If you don't mind and you are passing thru, may I ask you if you guys are seeing the Safari iCloud favorites sync issue that has been reported here by some, including me? Many thanks regardless of if you have the time.


Frenchmen

macrumors newbie
Oct 27, 2024
10
4
@Frenchmen

I know this phenomenon with the grey background. It actually indicates that the machine is very slow after updates. It takes longer to load the wall paper and also all startup applications. Whenever this happened I did the NVRAM reset via the OCLP boot picker which solved the issues. However, with MacOS 15 this did not work reliably for me anymore. I therefore did the SMC reset and the old schoolI have now also tried the old school NVRAM reset (ALT+CMD+R+P), I used to do it with the boot picker from OCLP, but both did nothing, still the grey screen. for the first time. Since then my 27" iMac runs like charme again...
I have now also tried the old school NVRAM reset (ALT+CMD+R+P), I used to do it with the boot picker from OCLP, but both did nothing, still the grey screen.

  • Wow
Reactions: luckyduke23

Cuadrados

macrumors newbie
Sep 10, 2022
11
8
Hi everyone. I have installed MAC OS Sequoia 15.1 with OpenCore Legacy Patcher 2.1 on a 2013 Mac Pro trashcan (Mac Pro 6,1). Everything works fine except Google Chrome which was stuck on a red screen. I solved it by following these instructions:

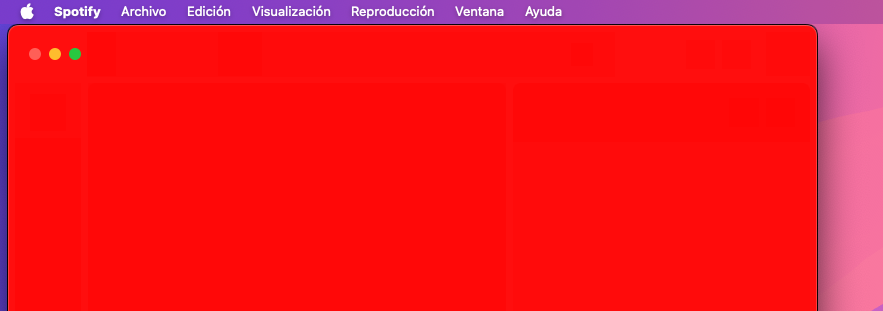

The problem I have now is that the Spotify app also freezes and stays on red, and slows down the whole computer. As far as I understand, it also uses Chromium.

How could I solve this problem with the red screen on Spotify?

Thanks

Regards

Captura de pantalla 2024-11-04 a las 17.46.07.png

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
