bobica

macrumors member
Feb 22, 2019
34
8
Case closed, like MP6,1, your rMBP don't update BootROM without the Apple OEM 12+16 blade. Install the original one back.
Unfortunately that 512gb blade is in iMac and i can't open again for that, is to much work for that. But if i remove nvme ssd and i run os from external usb sata ssd, you think i have a chance ?


tsialex

Contributor
Original poster
Jun 13, 2016
13,455
13,601
Unfortunately that 512gb blade is in iMac and i can't open again for that, is to much work for that. But if i remove nvme ssd and i run os from external usb sata ssd, you think i have a chance ?
Zero, needs to be installed in the 12+16 connector. MP6,1 people tried every trick imaginable and nothing work.

Any Apple OEM 12+16 blade of the same generation will work, even the SSD part of Fusion drives (32/64/128GB).

  • Like
Reactions: bsbeamer

bobica

macrumors member
Feb 22, 2019
34
8
Zero, needs to be installed in the 12+16 connector. MP6,1 people tried every trick imaginable and nothing work.

Any Apple OEM 12+16 blade of the same generation will work, even the SSD part of Fusion drives (32/64/128GB).
Ok Alex, i try to find a cheap blade for this, Thanks


bobica

macrumors member
Feb 22, 2019
34
8
Ok Alex, i try to find a cheap blade for this, Thanks

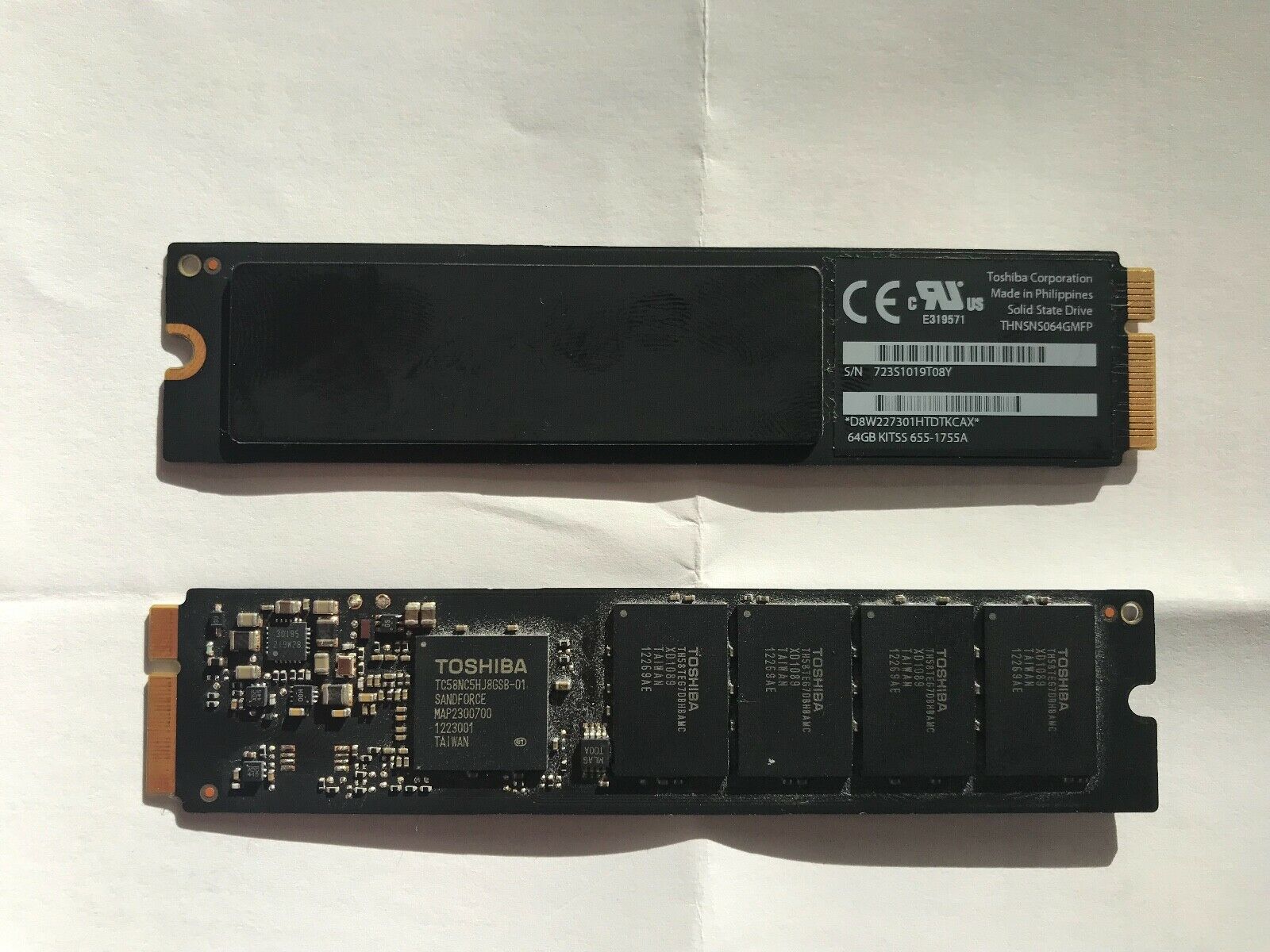

Alex this is 64gb for macbook air *2012* 11" 13" A1465 A1466 . You think i can use to update my firmware? I find cheap in eBay


Attachments

  • s-l1600.jpg
    250.3 KB · Views: 208

tsialex

Contributor
Original poster
Jun 13, 2016
13,455
13,601
Alex this is 64gb for macbook air *2012* 11" 13" A1465 A1466 . You think i can use to update my firmware? I find cheap in eBay
These are SATA, with a totally different conector.

You need:
  • late-2013 MP6,1,
  • late-2014 mini,
  • late-2013 to late-2015 MBPs,
  • mid-2013 to 2017 Airs,
  • mid 2014 to late-2015 iMacs.


bobica

macrumors member
Feb 22, 2019
34
8
These are SATA, with a totally different conector.

You need:
  • late-2013 MP6,1,
  • late-2014 mini,
  • late-2013 to late-2015 MBPs,
  • mid-2013 to 2017 Airs,
  • mid 2014 to late-2015 iMacs.
Yes i see this is 7+17 pins connectors. Thanks


bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
Screen Shot 2019-10-25 at 9.19.19 AM.png


The latest installer versions available publicly via script as of right now. Was re-downloading a few for archive purposes. Interesting a High Sierra Beta is there?


Earl Urley

macrumors 6502a
Nov 10, 2014
793
438
Applied the Security Update 2019-001 for macOS 10.14.6 on my Mac Pro 5,1 and it's still the same at 144.0.0.0.0

Tried upgrading an Early 2015 rMBP to 10.15.1, don't see any changes, still 187.0.0.0.0 as it was before in 10.15.0.


tsialex

Contributor
Original poster
Jun 13, 2016
13,455
13,601
MP5,1 probably won’t get a new firmware update, unless Apple send a stand-alone version, since Catalina don’t support it and we won’t see a 10.14.7 release.

Last edited:

tsialex

Contributor
Original poster
Jun 13, 2016
13,455
13,601
From 10.15.0 to 10.15.1, the only firmware upgrade for non BridgeOS Macs was for iMac19,1, from 1037.0.73.0.0 to 1037.40.118.0.0.

Firmwares creation date for 10.15.1 was October 11.

Mac:EFI version:
IM13,1288.0.0.0.0
IM14,1140.0.0.0.0
IM14,2140.0.0.0.0
IM14,3140.0.0.0.0
IM14,4200.0.0.0.0
IM15,1231.0.0.0.0
IM16,1231.0.0.0.0
IM16,2231.0.0.0.0
IM17,1173.0.0.0.0
IM18,1178.0.0.0.0
IM18,3178.0.0.0.0
IM19,11037.40.118.0.0
MB10,1182.0.0.0.0
MB8,1185.0.0.0.0
MB9,1187.0.0.0.0
MBA5,1260.0.0.0.0
MBA6,1118.0.0.0.0
MBA7,1190.0.0.0.0
MBP10,1258.0.0.0.0
MBP10,2281.0.0.0.0
MBP11,1157.0.0.0.0
MBP11,2157.0.0.0.0
MBP11,4195.0.0.0.0
MBP12,1187.0.0.0.0
MBP13,1240.0.0.0.0
MBP13,2262.0.0.0.0
MBP13,3262.0.0.0.0
MBP14,1202.0.0.0.0
MBP14,2202.0.0.0.0
MBP14,3202.0.0.0.0
MBP9,1229.0.0.0.0
MM6,1281.0.0.0.0
MM7,1245.0.0.0.0
MP6,1133.0.0.0.0


MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan
Off topic : Today, High Sierra Security update 2019-006 ( I think ) for my 13" MBP 8,1 Core i7 2011 upgraded my bootom 85.0.0.0..0 to 87.0.0.0.0

No need to comment . reply to this post

  • Like
Reactions: octoviaa

artikal87

macrumors newbie
Nov 5, 2019
6
1
I was reading through this thread and realised that I might also have a bootrom issue. I previously used a uefi install of Win10. Upon dumping my bootrom I noticed the 509 certs. This is on a 2010 cmp 5,1.

Screen Shot 2019-11-05 at 23.00.47.png


Is this still the most appropriate thread to bring this up in? I read about 80 or so pages in and then came back to the more recent posts, so if it has moved elsewhere apologies in advance.

Edit: was pretty tired last night and could have added more details. I am running 10.13.6 with the
MP51.0089.B00 bootrom. I use a stock 5770 but will be upgrading to an RX580. I am rather wary of installing Mojave when it arrives as I don't really wanna mess around with my firmware given that there have been these problems.

I only came across this thread after trying to figure out why my machine was acting so strangely, and realised that it all ties to the nvram/bootrom. Here are a couple of things that I am currently having problems with, to give an idea:

- I cannot reset nvram/pram using cmd+optn+p+r. I have to go into terminal and use
Code:
nvram -c.
Resetting the pram using the terminal command does not re-enable SIP as it should (at least, I have been told that it should).

- in addition to the nvram problem, virtually no startup shortcut keys work (bar holding alt/option to select boot drive).

- I cannot switch between windows (legacy install) and MacOS using Startup Disk. It tells me that the bless tool was unable to set the startup disk. Bootchamp, Boot Manager and Quickboot all either print a similar error message ('legacy mode not supported') or simply restart into MacOS instead of Win10. I can select & boot with no problem from my Win10 partition when I press alt/option at startup.

In relation to the third problem, I thought that I had messed up the partition table somehow, as I have tinkered with the disks an awful lot and am aware of how easy it is to confuse the OS, so today I tried a test. I erased an SSD and ran 10.13.6 recovery on it, in order to install a fresh copy. I then switched the disk into my MBP 2012 in order to perform a bootcamp partitioned install of Windows (playing by the rules for control purposes). Once this was complete, I switched between Windows and MacOS on the macbook a few times and it worked flawlessly using startup disk.

Upon switching the disk back to the cMP, however, back to the same problem - Startup Disk refused to cooperate. Switch it back to the Macbook Pro again and all works fine. Tried this with all other drives removed, drive inserted into every possible SATA bay etc. Attempting to set the windows drive as startup disk & failing adds an unintelligible line to the nvram output from
Code:
nvram -xp

Please note that I am not asking for assistance with these three outlined problems, but rather trying to illustrate my belief that these may be symptoms of corruption to my BootROM. All are related in some way to the nvram.

Last edited:

bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713

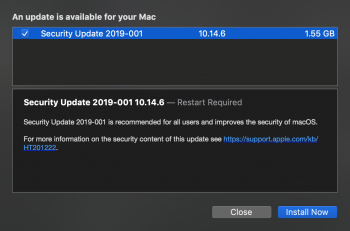

Screen Shot 2019-11-06 at 10.12.06 AM.png

Looks like this update was released, re-released, newly released, mis-labeled, or something...

I'm currently on 10.14.6 (18G103) and was just alerted about this update's availability. Will update with build number after install in a little bit.

-----

Currently available versions from script:

Code:
 #    ProductID    Version    Build   Post Date  Title
 1    041-91758    10.13.6    17G66  2019-10-19  macOS High Sierra
 2    041-83630    10.15.1    19B88  2019-10-29  macOS Catalina
 3    061-26589    10.14.6   18G103  2019-10-14  macOS Mojave
 4    041-88800    10.14.4  18E2034  2019-10-23  macOS Mojave
 5    041-90855    10.13.5   17F66a  2019-10-23  Install macOS High Sierra Beta
 6    061-26578    10.14.5  18F2059  2019-10-14  macOS Mojave


bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
New build version installed after "Security Update 2019-001" (?) available on November 6, 2019 is 10.14.6 (18G1012).


chrfr

macrumors G5
Jul 11, 2009
13,715
7,286

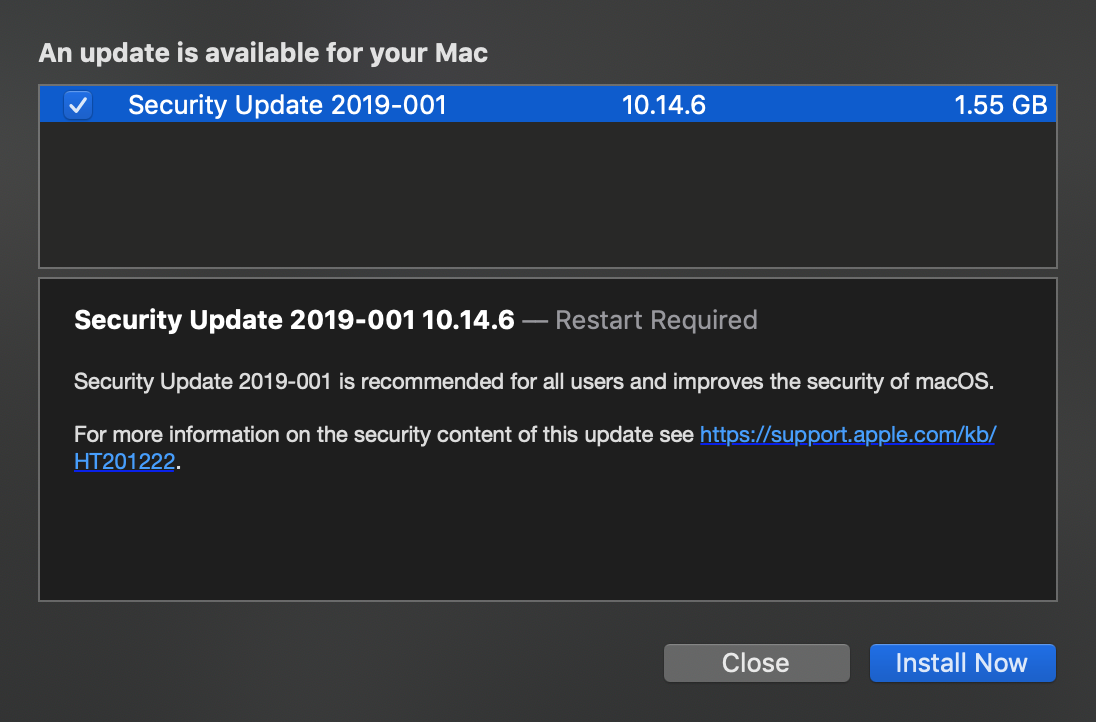

View attachment 875312

Looks like this update was released, re-released, newly released, mis-labeled, or something...

I'm currently on 10.14.6 (18G103) and was just alerted about this update's availability. Will update with build number after install in a little bit.
This update was released last week and then republished overnight. The build number remains at 18G1012 both before and after today's republishing of the update. Apple generally does not release new full installers that incorporate security updates so the installer showing in the catalog is unlikely to ever by anything beyond 18G103.


bsbeamer

macrumors 601
Sep 19, 2012
4,313
2,713
The 10.14.6 security update situation is a mess.

Initial release in July 2019.
A security update in August 2019 for some.
Followed by another security update in August 2019 for all.
A security update in September 2019.
A security update in October 2019.
Followed by a re-release/re-package in November 2019.

At least label the 2019-### correctly at this point, or release 10.14.7 as an all encompassing cleanup. What was just re-released/re-packaged was not "2019-001" by any means.


tsialex

Contributor
Original poster
Jun 13, 2016
13,455
13,601
View attachment 875312

Looks like this update was released, re-released, newly released, mis-labeled, or something...

I'm currently on 10.14.6 (18G103) and was just alerted about this update's availability. Will update with build number after install in a little bit.

-----

Currently available versions from script:

Code:
 #    ProductID    Version    Build   Post Date  Title
 1    041-91758    10.13.6    17G66  2019-10-19  macOS High Sierra
 2    041-83630    10.15.1    19B88  2019-10-29  macOS Catalina
 3    061-26589    10.14.6   18G103  2019-10-14  macOS Mojave
 4    041-88800    10.14.4  18E2034  2019-10-23  macOS Mojave
 5    041-90855    10.13.5   17F66a  2019-10-23  Install macOS High Sierra Beta
 6    061-26578    10.14.5  18F2059  2019-10-14  macOS Mojave
Yes, Apple reissued the last security updates and 10.15.1 yesterday. Even the full installer for Catalina 10.15.1 was re-issued yesterday afternoon.


tsialex

Contributor
Original poster
Jun 13, 2016
13,455
13,601
I was reading through this thread and realised that I might also have a bootrom issue. I previously used a uefi install of Win10. Upon dumping my bootrom I noticed the 509 certs. This is on a 2010 cmp 5,1.

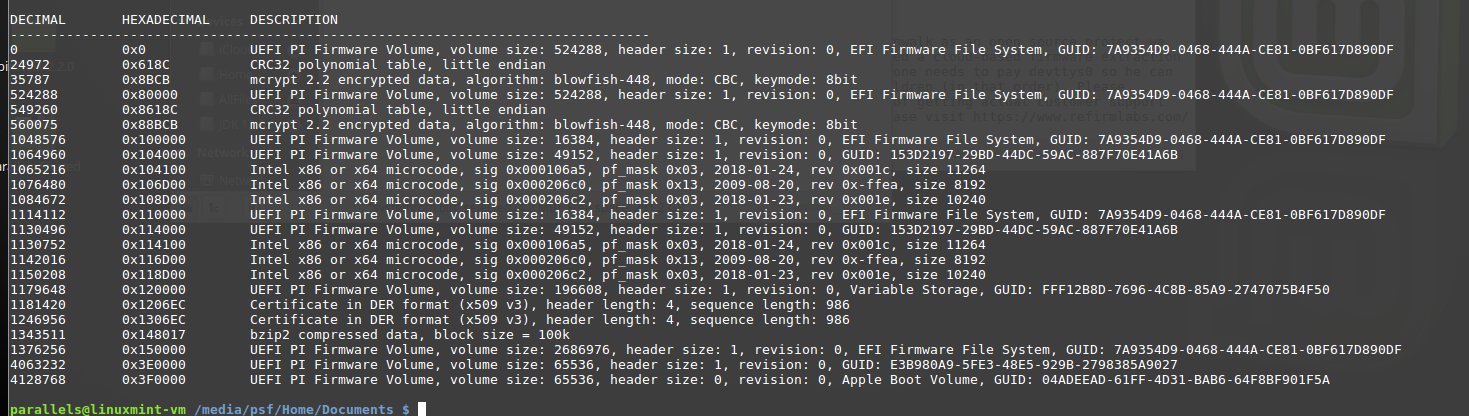

View attachment 875391

Is this still the most appropriate thread to bring this up in? I read about 80 or so pages in and then came back to the more recent posts, so if it has moved elsewhere apologies in advance.

Edit: was pretty tired last night and could have added more details. I am running 10.13.6 with the
MP51.0089.B00 bootrom. I use a stock 5770 but will be upgrading to an RX580. I am rather wary of installing Mojave when it arrives as I don't really wanna mess around with my firmware given that there have been these problems.

I only came across this thread after trying to figure out why my machine was acting so strangely, and realised that it all ties to the nvram/bootrom. Here are a couple of things that I am currently having problems with, to give an idea:

- I cannot reset nvram/pram using cmd+optn+p+r. I have to go into terminal and use
Code:
nvram -c.
Resetting the pram using the terminal command does not re-enable SIP as it should (at least, I have been told that it should).

- in addition to the nvram problem, virtually no startup shortcut keys work (bar holding alt/option to select boot drive).

- I cannot switch between windows (legacy install) and MacOS using Startup Disk. It tells me that the bless tool was unable to set the startup disk. Bootchamp, Boot Manager and Quickboot all either print a similar error message ('legacy mode not supported') or simply restart into MacOS instead of Win10. I can select & boot with no problem from my Win10 partition when I press alt/option at startup.

In relation to the third problem, I thought that I had messed up the partition table somehow, as I have tinkered with the disks an awful lot and am aware of how easy it is to confuse the OS, so today I tried a test. I erased an SSD and ran 10.13.6 recovery on it, in order to install a fresh copy. I then switched the disk into my MBP 2012 in order to perform a bootcamp partitioned install of Windows (playing by the rules for control purposes). Once this was complete, I switched between Windows and MacOS on the macbook a few times and it worked flawlessly using startup disk.

Upon switching the disk back to the cMP, however, back to the same problem - Startup Disk refused to cooperate. Switch it back to the Macbook Pro again and all works fine. Tried this with all other drives removed, drive inserted into every possible SATA bay etc. Attempting to set the windows drive as startup disk & failing adds an unintelligible line to the nvram output from
Code:
nvram -xp

Please note that I am not asking for assistance with these three outlined problems, but rather trying to illustrate my belief that these may be symptoms of corruption to my BootROM. All are related in some way to the nvram.
I have no time available this week, but maybe I have some in the weekend, tomorrow I’ll send a PM with instructions, gather everything and send me back before Saturday and I’ll take a look.


MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan
For what it's worth i just downloaded ( Nov. 7th. 2019 ) Mojave FULL 10.14.6 using this link https://apps.apple.com/us/app/macos-mojave/id1398502828?mt=12 from the App Store:

The build No. is still 18G103

Nov 7th 2019 Mojave full 10.14.6 build 18G103.jpg



Software Update assures me that my 4,1>5.1 is up to date - I don't recall doing any Security updates for Mojave since doing "three " CLEAN " full installs of builds 18G87 - 18G95 & finally 18G103 "

I'm presuming that any Security Updates were included in one of the builds.

  • Like
Reactions: JedNZ

chrfr

macrumors G5
Jul 11, 2009
13,715
7,286
Software Update assures me that my 4,1>5.1 is up to date - I don't recall doing any Security updates for Mojave since doing "three " CLEAN " full installs of builds 18G87 - 18G95 & finally 18G103 "

I'm presuming that any Security Updates were included in one of the builds.
The "supplemental" updates to 10.14.6 were included in the full installer, but security update 2019-001 for Mojave is not included. Software update should be telling you that update, as well as Safari 13.0.3, is still required.
