MP 1,1-5,1 MacPro5,1: BootROM thread | 144.0.0.0.0

[macsforme]

It's not right. Microsoft UEFI documentation never talks about multiple signing.

But I don't think that this is the motive for bricks, I think that this is just one of the causes. Bricked BootROMs that I inspected had multiple certificates, trash in the NVRAM and wrong checksums.

Okay. Is it something that I should fix, to avoid future issues?



[tsialex]

Okay. Is it something that I should fix, to avoid future issues?

Yes. I don't think that is safe to use a BootROM with multiple sign certificates. I'll PM you.



[Spacedust]

Is is it going to be safe upgrade to 140.0.0.0 when I was upgrading in official way:

MP51.0083.B00 -> MP51.0084.B00 -> MP51.085.B00 -> MP51.087.B00 -> MP51.089.B00 -> 138.0.0.0.0

I've never installed Windows 10, just 7 in Legacy mode.



[tsialex]

Is is it going to be safe upgrade to 140.0.0.0 when I was upgrading in official way:

MP51.0083.B00 -> MP51.0084.B00 -> MP51.085.B00 -> MP51.087.B00 -> MP51.089.B00 -> 138.0.0.0.0

I've never installed Windows 10, just 7 in Legacy mode.

I can't tell. You have to check your dump.



[Chrisf1977]

tsialex: would you like to check my rom for your research/statistics? I have never installed windows and have High Sierra with MP51.0085.B00 Bootrom.
So I just make a dump with RomTool and send it to you?

Best Regards
Chris



[tsialex]

tsialex: would you like to check my rom for your research/statistics? I have never installed windows and have High Sierra with MP51.0085.B00 Bootrom.
So I just make a dump with RomTool and send it to you?

Best Regards
Chris

Will be interesting to check, thx, PM sent.



[kings79]

To me, with the information I have, seems that the combination of MP51.0087.B00 and EFI Windows seems prone to problems.

Are we saying we should avoid booting WIN 10 until we know more? Or are the certs ONLY signed/resigned with new EFI Windows installs?



[Chrisf1977]

Will be interesting to check, thx, PM sent.

Comes today if i am back at home.



[vgoutis]

I am watching macrumours for several years (although I recently signed up) and the thread since the beginning so I 'm pretty impressed and thankful for the knowledge I gained.

I tried to binwalk my BootROM dump and the output is that (normal, I guess):

DECIMAL HEXADECIMAL DESCRIPTION
-------------------------------------------------------------------------------
0 0x0 UEFI PI firmware volume
16524 0x408C UEFI PI firmware volume
24972 0x618C CRC32 polynomial table, little endian
35787 0x8BCB mcrypt 2.2 encrypted data, algorithm: blowfish-448, mode: CBC, keymode: 8bit
49948 0xC31C UEFI PI firmware volume
524288 0x80000 UEFI PI firmware volume
540812 0x8408C UEFI PI firmware volume
549260 0x8618C CRC32 polynomial table, little endian
560075 0x88BCB mcrypt 2.2 encrypted data, algorithm: blowfish-448, mode: CBC, keymode: 8bit
574236 0x8C31C UEFI PI firmware volume
1048576 0x100000 UEFI PI firmware volume
1114112 0x110000 UEFI PI firmware volume
1343511 0x148017 bzip2 compressed data, block size = 100k
1376256 0x150000 UEFI PI firmware volume

My cMP is an 4.1->5.1 (purchased from Germany in March 2009) with stock CPUs (2x2.26), stock RAM (6 Gb) and MSI 560 aero 4 Gb with 138.0.0.0.0, running Mojave. I skipped 087 firmware.
Because of the purchase date, i guess that cMP would be one from the earliest machines. If you feel that will help, I can send you my BootROM



[PianoPro]

For your stats - Here's the binwalk of my BootROM dump.

Looks clean? There is no certificate even though I've had Win 10 UEFI boot installed on separate HD previously. Currently have Win 10 legacy-BIOS installed on separate HD



[Socket]

What's the approximate date of Mojave 10.14.1 official?



[Squuiid]

What's the approximate date of Mojave 10.14.1 official?

Only a guess, but I reckon within the next 14 days.



[Jimrd]

Hi tsialex,

Could you please take a look at my binwalk output? I have reinstalled both Windows 10 EFI and Mac OS several times over the past few weeks whilst troubleshooting some unrelated issues and this has me worried.

Also if you could PM me your PayPal details I would like to send a small donation as a thank you for all of your hard work helping us old cMP users!

Cheers



[tsialex]

Hi tsialex,

Could you please take a look at my binwalk output? I have reinstalled both Windows 10 EFI and Mac OS several times over the past few weeks whilst troubleshooting some unrelated issues and this has me worried.

Also if you could PM me your PayPal details I would like to send a small donation as a thank you for all of your hard work helping us old cMP users!

Cheers

You have two signing certificates. I have a lot of BootROMs to correct, I can correct yours but not immediately. I'll PM you.
[doublepost=1539771650][/doublepost]

What's the approximate date of Mojave 10.14.1 official?

A useless analysis of macOS (OS X) release dates
[doublepost=1539771791][/doublepost]

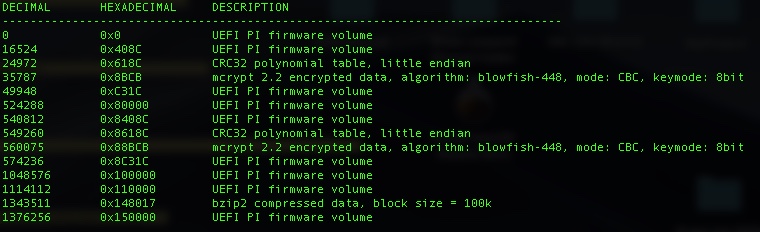

For your stats - Here's the binwalk of my BootROM dump.

Looks clean? There is no certificate even though I've had Win 10 UEFI boot installed on separate HD previously. Currently have Win 10 legacy-BIOS installed on separate HD

View attachment 795739

Yep, no IASInstallPhaseList.plist or signing certificates.
[doublepost=1539771923][/doublepost]

I am watching macrumours for several years (although I recently signed up) and the thread since the beginning so I 'm pretty impressed and thankful for the knowledge I gained.

I tried to binwalk my BootROM dump and the output is that (normal, I guess):

DECIMAL HEXADECIMAL DESCRIPTION
-------------------------------------------------------------------------------
0 0x0 UEFI PI firmware volume
16524 0x408C UEFI PI firmware volume
24972 0x618C CRC32 polynomial table, little endian
35787 0x8BCB mcrypt 2.2 encrypted data, algorithm: blowfish-448, mode: CBC, keymode: 8bit
49948 0xC31C UEFI PI firmware volume
524288 0x80000 UEFI PI firmware volume
540812 0x8408C UEFI PI firmware volume
549260 0x8618C CRC32 polynomial table, little endian
560075 0x88BCB mcrypt 2.2 encrypted data, algorithm: blowfish-448, mode: CBC, keymode: 8bit
574236 0x8C31C UEFI PI firmware volume
1048576 0x100000 UEFI PI firmware volume
1114112 0x110000 UEFI PI firmware volume
1343511 0x148017 bzip2 compressed data, block size = 100k
1376256 0x150000 UEFI PI firmware volume

My cMP is an 4.1->5.1 (purchased from Germany in March 2009) with stock CPUs (2x2.26), stock RAM (6 Gb) and MSI 560 aero 4 Gb with 138.0.0.0.0, running Mojave. I skipped 087 firmware.
Because of the purchase date, i guess that cMP would be one from the earliest machines. If you feel that will help, I can send you my BootROM

Could you please check the Build date (open your BootROM with any hex editor, go to the end, it's something like 090208090208p).
[doublepost=1539771968][/doublepost]

Comes today if i am back at home.

Thx!
[doublepost=1539772163][/doublepost]

Are we saying we should avoid booting WIN 10 until we know more? Or are the certs ONLY signed/resigned with new EFI Windows installs?

With info that we have, seems the trigger is related to MP51.0087.B00 and Windows UEFI install.

You have 140.0.0.0.0, so you will have just one signing certificate after installing Windows in UEFI mode.



[PianoPro]

With info that we have, seems the trigger is related to MP51.0087.B00 and Windows UEFI install.

Is it interesting that I had no signing certificates, but I previously had Win 10 UEFI installed? I did skip over MP51.0087 entirely. On 138.0 now.



[tsialex]

Is it interesting that I had no signing certificates, but I previously had Win 10 UEFI installed? I did skip over MP51.0087 entirely. On 138.0 now.

Microsoft documentation with the Windows Signing Certificate talks about 4 ways to install Windows, some with and without the signing. Maybe you installed in a way that didn't had the signing process?

I started to learn this after I found the multiple certificates problem, I'm no way a expert and the documentation is very confusing.



[PianoPro]

Microsoft documentation with the Windows Signing Certificate talks about 4 ways to install Windows, some with and without the signing. Maybe you installed in a way that didn't had the signing process?

I started to learn this after I found the multiple certificates problem, I'm no way a expert and the documentation is very confusing.

Hmm, I installed from DVD (created from iso downloaded from Microsoft) after choosing UEFI from Option boot manager screen (used HD5770 video card to get that). Seems like a pretty standard UEFI install.



[tsialex]

Hmm, I installed from DVD (created from iso downloaded from Microsoft) after choosing UEFI from Option boot manager screen (used HD5770 video card to get that). Seems like a pretty standard UEFI install.

One of the Microsoft support documents that I and @marcoscc linked before shows a registry search to find if it's a UEFI install and some filesystem clues. If you have time, take a look.

This docs:

Diving into Secure Boot

Windows Secure Boot Key Creation and Management Guidance

Boot to UEFI Mode or legacy BIOS mode



[PianoPro]

One of the Microsoft support documents that I linked before shows a registry search to find if it's a UEFI install and some filesystem clues. If you have time, take a look.

https://docs.microsoft.com/en-us/wi...desktop/boot-to-uefi-mode-or-legacy-bios-mode

Diving into Secure Boot

Windows Secure Boot Key Creation and Management Guidance

It was previously UEFI. No question about that, GPT disk and all. That's why I had the "stuck in Win10 issue" after the v1809 update, and that's when I reinstalled in legacy-BIOS mode.



[tsialex]

It was previously UEFI. No question about that, GPT disk and all. That's why I had the "stuck in Win10 issue" after the v1809 update, and that's when I reinstalled in legacy-BIOS mode.

Maybe for some reason, the UEFI install didn't triggered the start of SecureBoot signing, Microsoft has a mode that has UEFI without SecureBoot, so no surprise here.



[vgoutis]

Could you please check the Build date (open your BootROM with any hex editor, go to the end, it's something like 090208090208p).

I Just checked it, and the outcome is 090218090218p. Not the oldest backplane, I guess...

edit: Base_17 descriptor



[tsialex]

I Just did and the outcome is 090218090218p. Not the oldest backplane, I guess...

Third one that I know of, oldest is 090208090208p, then 090216090216p.



[The Spirit]

how can i download dp3 in order to get the new bootrom?
thanks



[Squuiid]

how can i download dp3 in order to get the new bootrom?
thanks

Please do further reading in this very thread before asking the same question which has been answered many, many times before. It is good etiquette as well as being respectful to other forum members.



[misanthrophy]

how can i download dp3 in order to get the new bootrom?
thanks

If people really need to ask how they can download a developer beta, then it is definitely not appropriate to play around with literally no knowledge. Sorry for being so honest, but recently so many people request help for stuff they don't understand and ask the same questions over and over again. It is getting annoying to read so many "useless" posts when everything was answered million times before.
