MP 1,1-5,1 MacPro5,1: What you have to do to upgrade to Mojave (10.13/10.14 BootROM upgrades instructions thread)

[Don_Con]

Don't matter if the disk that you gonna install Mojave is APFS or not, the installer will convert it to APFS. Apple made APFS is an obligatory requirement of any macOS release after High Sierra.

Decided to upgrade to Mojave after everything seemed stable with the GPU and BootRom update. Everything went super smooth:



[Don_Con]

Decided to upgrade to Mojave after everything seemed stable with the GPU and BootRom update. Everything went super smooth:

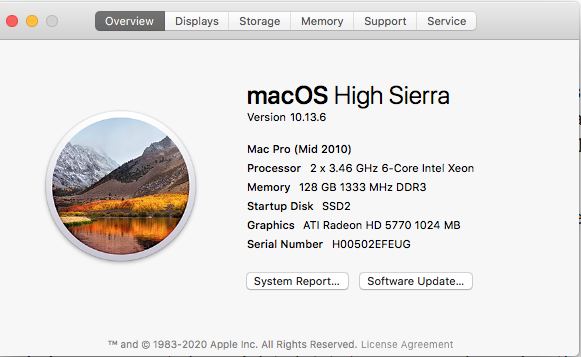

View attachment 1707645

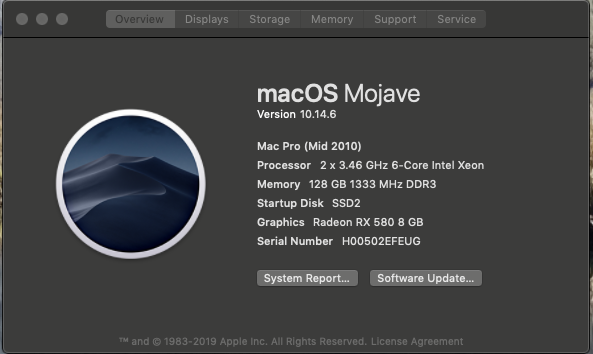

View attachment 1707599

Quick check-in, one thing I've noticed since upgrading, I am having a hard time getting any of the boot menus to load through holding down option, and command R. I am using the OEM keyboard wired into the mac pro via usb.

I also tried to use the start up option in system preferences to point to a new drive, and even though systems preferences recognizes them as boot drives, when I select them and restart, no change.

Thoughts?



[MarkC426]

You won't get the boot screen with an RX580 unless flashed.
You should be able to see other boot devices in startup disk (anything from Sierra upwards with RX580).



[Don_Con]

You won't get the boot screen with an RX580 unless flashed.
You should be able to see other boot devices in startup disk (anything from Sierra upwards with RX580).

Gotcha, yeah no boot screen, which is ok for me. But nothing I did last night (holding option, pressing option multiple times) and also command + R didn't work either?



[MarkC426]

It can take about 10 mins to boot into recovery with RX580 (no visual progress).
Pressing option will have no effect.
What are your other boot disk OS's.



[Don_Con]

It can take about 10 mins to boot into recovery with RX580 (no visual progress).
Pressing option will have no effect.
What are your other boot disk OS's.

Oh, i didn't know that window was 10 minutes.

i utilized the "createmediausb" method via terminal to create a Mojave Boot Disk, both on an external USB drive, and also an external USB SSD plugged in via a OWC doc. System Preferences recognizes BOTH of these as able to be booted from, but when I select them, and hit 'restart' it stays with my normal/original boot drive.

What I am ultimately trying to accomplish is to install a new/clean version of mojave on the external SSD.



[tsialex]

Oh, i didn't know that window was 10 minutes.

i utilized the "createmediausb" method via terminal to create a Mojave Boot Disk, both on an external USB drive, and also an external USB SSD plugged in via a OWC doc. System Preferences recognizes BOTH of these as able to be booted from, but when I select them, and hit 'restart' it stays with my normal/original boot drive.

What I am ultimately trying to accomplish is to install a new/clean version of mojave on the external SSD.

As I explained several times on this thread, USB has the least priority when booting and you can't select it from SysPref/StartUpDisk.

With a PC GPU, you will only boot from the createinstallmedia installer if the firmware won't find nothing else to boot. Below is what you have to do to sucessfully make a clean install with a PC GPU:

• Shutdown,
• Remove any bootable disks installed anywhere on your Mac Pro (even from FW/USB/PCIe),
• Install a new, or fully erased, disk where you will do the clean install and the createinstallmedia USB installer,
• Power on your Mac Pro, after around 5 minutes it will boot from the createinstallmedia USB installer.



[Don_Con]

As I explained several times on this thread, USB has the least priority when booting and you can't select it from SysPref/StartUpDisk.

With a PC GPU, you will only boot from the createinstallmedia installer if the firmware won't find nothing else to boot. Below is what you have to do to sucessfully make a clean install with a PC GPU:

• Shutdown,
• Remove any bootable disks installed anywhere on your Mac Pro (even from FW/USB/PCIe),
• Install a new, or fully erased, disk where you will do the clean install and the createinstallmedia USB installer,
• Power on your Mac Pro, after around 5 minutes it will boot from the createinstallmedia USB installer.

Roger, thanks. I didn't read that section as many times as I did for the GPU/Boot rom section.

Student gets an F. Thx for the poke.



[cheaptech]

Please fully read this first post, you will probably find that you have one or more problems described into the various notes y erased, disk where you will do the clean install and connect the createinstallmedia USB installer to one of the Mac Pro native USB ports (third party USB cards of any kind are not capable of​

Please fully read this first post, you will probably find that you have one or more problems described into the various notes below.​

Mojave will only install if you have upgraded your BootROM to the current release and your Mac Pro have a Metal capable GPU*.

If you are trying to install Mojave on a Mac Pro 5,1 (early-2009 cross flashed with MP5,1 firmware, mid-2010 and mid-2012), you have first to upgrade your BootROM to version MP51.0089.B00 and to High Sierra 10.13.6, then you can install a Metal capable GPU* that works with High Sierra and finally you can upgrade your firmware and install Mojave. It's a two steps firmware upgrade process for anyone that don't have MP51.0089.B00 installed yet.

You can read the Apple Support article here: Install macOS 10.14 Mojave on Mac Pro (Mid 2010) and Mac Pro (Mid 2012).

Remember: Apple Mojave recommend RX-560/580 cards do not have pre-boot configuration support (aka boot screens), so you need to install your original Mac EFI GPU to upgrade your BootROM to MP51.0089.B00 using the Mac App Store High Sierra 10.13.6 full installer. After that, Mojave installer can upgrade your firmware without the need of a Mac EFI GPU and requires that you only have Metal supported cards* installed in your Mac Pro.​

​

The Apple third-party graphics cards list identifies specific cards that are compatible:​

• MSI Gaming Radeon RX 560 128-bit 4GB GDDR5
• SAPPHIRE Radeon PULSE RX 580 8GB GDDR5
• SAPPHIRE Radeon HD 7950 Mac Edition
• NVIDIA Quadro K5000 for Mac
• NVIDIA GeForce GTX 680 Mac Edition

The three cards listed in bold above have pre-boot configuration support/Mac EFI.​

​

The list also identifies cards that might be compatible, none of which have pre-boot configuration support/Mac EFI:​

• AMD Radeon RX 560
• AMD Radeon RX 570
• AMD Radeon RX 580
• AMD Radeon Pro WX 7100
• AMD Radeon RX Vega 56
• AMD Radeon RX Vega 64
• AMD Radeon Pro WX 9100
• AMD Radeon Frontier Edition

*METAL capable GPU as in any METAL supported GPU that works with High Sierra:

For upgrading from MP51.0089.B00 to 144.0.0.0.0, METAL support is the requirement, not pre-boot configuration support like from earlier BootROM versions to MP51.0089.B00.

Your GPU can even be a NVIDIA GPU that has METAL support and don't work with Mojave, like Maxwell (like GTX 980) or Pascal (like GTX 1080). Newer AMD GPUs that won't work with High Sierra, like VII (only works with 10.14.5+) and RX 5500/5600/5700 (NAVI GPUs only work with 10.15.1+) won't work for upgrading the Mac Pro BootROM.

A GPU that High Sierra System Information recognises it as METAL: Supported is the key here.


- Cheapest Apple recommended METAL supported GPU:

It's the first card of the Apple third-party list above, but people ask it anyway:​

• MSI Gaming Radeon RX 560 128-bit 4GB GDDR5

Usually most AMD Radeon RX 560 models available on the western market works with MP5,1 and Mojave, but not the RX 560 made for the Chinese market since this card have less CUs and a different PCIeID than the real ones and Mojave don't know how to configure it correctly.​

- Hacked installs note:

If you did a hacked install, like dosdude one, you will probably need to do a clean install to upgrade your firmware.​

Only the full Mac App Store installers work for upgrading the firmware, macOS installers patched with dosdude tool can't upgrade the firmware. Apple firmware upgrade tool needs a clean and standard EFI partition to do so, so you probably need to do a clean install before trying to upgrade the firmware if you used a hacked install.​

- AppleRAID, RAID & SATA III PCIe cards note:

You can't upgrade your firmware if you are booting from a RAID array or from a SATA III card. The point is that need to be a single SATA device (HDD or SSD) connected to the Mac Pro southbridge SATA ports, not a RAID, not a SAS, not a PCIe device, not a PCIe SATA controller, not a PCIe AHCI blade. Open your Mac Pro, remove all RAID controllers, PCIe SATA cards, PCIe AHCI or NVMe M.2/U.2 drives, disconnect all RAID drives, including AppleRAID, and use a single SATA drive connected into a backplane native SATA port. Keep it simple and use Apple defaults when upgrading Mac Pro firmware.​

​

Btw, Mojave don't boot from SoftwareRAID/AppleRAID arrays or any hardware array that present to the OS as multiple disks.​

​

It's uncommon but sometimes you can't upgrade from PCIe AHCI and NVMe blades too, so use the same advice if you have any problems while upgrading the firmware.​

- Upgrade your firmware from High Sierra installed in an APFS drive:

A lot of people report that can't upgrade the BootROM from High Sierra installed with HFS+, so use a new/empty drive to install High Sierra from an APFS partition. Btw, Mojave requires APFS.​

​

Keep it simple and use Apple defaults when upgrading Mac Pro firmware.​

- Homemade Fusion drives note:

Mojave has to be installed with APFS and the way Fusion drives are made changed. Use a SATA disk installed on the south bridge ports to do all firmware upgrades and the Mojave install. After you already upgraded your Mac Pro firmware to 144.0.0.0.0 and Mojave is installed, you can recreate the Fusion drive.​

​

Keep it simple and use Apple defaults when upgrading Mac Pro firmware.​

- Upgrade firmware from USB note:

Firmware upgrade from USB is not possible unless you have the exact original factory config and if your Mac Pro is mid-2010 or mid-2012. Again, you can’t upgrade Mac Pro firmware from createinstallmedia USB-key.​

​

Don’t waste your time trying, the USB installer asks to upgrade your BootROM, warns that it will do a shutdown for you to enter firmware upgrade mode, but never powers off your Mac Pro. Unfortunately, there are reported cases that shutting down manually bricked the BootROM.​

​

Do it from High Sierra opening the Mojave Mac App Store full installer when you already have MP51.0089.B00 or if your Mac Pro have an earlier BootROM then MP51.0089.B00, from Sierra to High Sierra - see the set-by-step below.​

​

- Kepler NVIDIA GPUs (GT 640/740, GTX 670/680/780, Quadro K5000) note:

If you have a supported NVIDIA Kepler GPU like GTX 680 Mac Edition card, GTX 680 flashed with the Mac Edition firmware, GT 640/740, GTX 670/770/780 or a Quadro K5000 you can't do a USB clean install with it at the moment. The USB installer don't detect that the GPU is a Metal supported card and don't continue the install, it's a bug with Nvidia Kepler GPUs.​

To do a clean install, do from macOS with two drives - just select your empty one when doing the install.​

- Bluetooth keyboards/mice note:

A lot of people have problems installing macOS with Apple and third party bluetooth keyboards/mice. It's best to use wired ones, most third party wired USB keyboards work fine.​

- Firmware upgrades not working when you have a 4K display or a display newer than DP1.1:

You can't update to newer firmwares, with a 4K or DisplayPort v1.2/1.4 screen connected to your GPU. It's an old bug that Apple corrected with late-2013 Mac Pro and "forgot" to correct with MP5,1.​

​

Apple efiflasher for MP5,1 don't support 4K screens or DP v1.2/1.4 displays. Apple OEM GPUs like GT120, HD 4870, HD 5770 and HD 5870 don't have hardware support for DP v1.2/1.4, so you can use a 4K display for upgrading the firmware since your 4K/DP v1.2/1.4 display would be using the supported DP v1.1 spec, but the METAL GPUs and newer EFI flashed GPUs have support for DP v1.2/1.4 and will trigger the efiflasher flasher bug.​

​

If your monitor has a option to downgrade to DP v1.1 or have a DVI port, use it, if not, you will need another monitor for upgrading your firmware. Apple displays like the common Apple Cinema Display are DP1.1 or even DVI and work fine for firmware upgrades. Check your display specs.​

​

Since people asked about headless flashing, Xserves and early-2009 Mac Pro, still with MP4,1 firmware, had the option of upgrading the firmware headless via remote firmware flashing, but Apple removed the option and the remote efiflasher with MP5,1 release.​

​

- Stuttering audio with Dual Processors MP4,1 upgraded to MP5,1 firmware when running Mojave note:

Be aware that with Dual Processors MP4,1>5,1 machines that still have the original Gainestown processors (Xeon 55xx-series), after installing Mojave you will have stuttering audio problems that only can be solved upgrading the Xeon processors to Westmere (Xeon 56xx-series), read about on this thread Strange Audio Issue on MP 4,1>5,1 Mojave 10.14.4.​

​

This is a problem exclusive of Dual Processor MP4,1, single CPU MP4,1 don't have this problem at all. Some people don't even hear the stuttering audio, but if you are an audio guy or audio engineer, it will make you crazy, do your sanity a favour and upgrade your dual CPU tray to Westmere Xeons.​

- Mojave black screens with AMD Polaris GPUs (RX 4xx/5xx) note:

Some people are getting black screens with Mojave when using RX 4xx/5xx GPUs, if you are having it, do a clean install or debug your kexts, seems a problem with incompatible Air Display kexts. Read here.​

- 144.0.0.0.0 and previous macOS releases note:

Yes, BootROM 144.0.0.0.0 can boot even 10.6.4 (10F2521), the first ever macOS release that supports a MP5,1, but you are limited to GPU driver support since you can't boot a macOS version that don't have drivers for your GPU. For example, with AMD RX 4xx/5xx GPUs, you are limited to 10.12.6/10.13/10.14.​

​

It's the distribution file inside the macOS installer that defines what Macs are supported. Earlier releases than 10.6.4 (10F2521) don't have MP5,1 support and are not bootable with a MP5,1. Several people on MacRumors checked 10.6.8 and it runs without any problems with 144.0.0.0.0.​

Other limitation is NVMe support if you have a NVMe drive, NVMe only works since High Sierra (Sierra for 4KB/sector drives), read the first post of the PCIe SSDs - NVMe & AHCI thread to know more. SATA support is not affected by NVMe support requirements.​

Btw, you can upgrade your firmware to 144.0.0.0.0 without installing Mojave, just close the installer after the firmware upgrade is done. Remember that you can't do that by USB, read the Upgrade firmware from USB note.​

- 144.0.0.0.0 and High Sierra with HFS+ drives note:

If you want to upgrade to BootROM 144.0.0.0.0 and don't want to upgrade to Mojave, just close the Mojave installer when the installer opens again post firmware upgrade completion. Mojave changes your main drive to APFS, but if you end the install process after the firmware upgrade, nothing will be changed.​

​

NVMe drives don't work before High Sierra (Sierra for 4Kn drives), read the first post of the thread PCIe SSDs - NVMe & AHCI to know why.​

- 144.0.0.0.0, High Sierra and NVIDIA Maxwell or Pascal GPUs that support METAL but not Mojave:

If you have a NVIDIA GPU from the Maxwell or Pascal families and want to upgrade your Mac Pro BootROM to 144.0.0.0.0 and use it with High Sierra, you can do it. If your GPU is correctly working with High Sierra NVIDIA WEB drivers, just open the Mojave installer and it will ask you to do to the firmware upgrade the same way as with the still supported Kepler NVIDIA and the AMD METAL GPUs. Lot's of people have been using GTX 970/980/1070/1080 with 10.13.6 and upgrading to current BootROMs without any problems.​

Remember that Maxwell and Pascal NVIDIA GPUs are not supported with macOS anymore after High Sierra and won't work with Mojave.​

- 140.0.0.0.0 to 144.0.0.0.0 firmware upgrade note:

The fail-proof way to upgrade a MP5,1 firmware is to fully erase a SATA drive, remove all other drives from your Mac Pro, install High Sierra 10.13.6 to it, download the current Mac App Store full installer (10.14.6), clear the NVRAM 3 times in sequence, after that you try to upgrade the firmware running the Mojave full installer.​

See this thread Updating my MacPro 5.1 from 140.0.0.0.0 to 144.0.0.0.0 does not work.​

- Upgrading firmware from Catalina will work?

This question is becoming common recently, so let's put it here. If you don't have the current 144.0.0.0.0.0 BootROM release and is using Catalina, you have to go back to 10.13.6 or 10.14.6 to do the firmware upgrade. You can't open a macOS installer earlier than the version you are running, the installer won't open at all.​

​

- How to do a clean install with a RX 4xx/5xx/VEGA GPU without pre-boot configuration support?

The easiest way is to do from macOS, opening the installer and then selecting the drive you want to install to.​

​

If you want to do a USB clean install, first create a createinstallmedia USB key, erase the drive that you want to install Mojave, remove all other bootable disks, connect the createinstallmedia USB installer and then power-off/on. When the Mac Pro don't find any bootable SATA/PCIe disk, it will boot from the createinstallmedia USB installer. After three minutes or so, the installer loads the GPU drivers and the screen will work.​

- PCIe drives as external drives:

This is off-topic but since people ask, I added it here.​

​

All types of PCIe drives (SATA, SAS, AHCI, NVMe, M.2, U.2, RAID arrays, etc) are external to the Mac Pro firmware, only drives connected to the six native SATA ports of the Mac Pro southbridge are internal to the BootROM.​

PCIe drives are bootable, exactly as the internal ones.​

If you have an earlier than MP51.0089.B00 BootROM version, these are the steps to upgrade your BootROM to have Mojave support:

This part of the BootROM upgrade require a GPU with pre-boot configuration support. Apple OEM GPUs or Mac EFI flashed GPUs are a requirement for upgrading to MP51.0089.B00.

1. Install a Mac EFI64 GPU. Any original Apple card from 2008 to 2012 (HD 2600XT, 8800GT, Quadro FX 5600, GT120, HD 4870/5770/5870) or 3rd party Mac EFI cards like Sapphire HD 7950 Mac Edition, eVGA GTX 680 Mac Edition, NVIDIA Quadro 4000/K5000 or self-flashed/MVC flashed cards. Please note that if your flashed GPU is not macOS installer compatible, like NVIDIA GPUs from Maxwell and Pascal generations, you need to install one that is.
2. For GPUs that support DP v1.2/1.4, disconnect any 4K or DP1.2 display. You can't update to MP51.0089.B00, or newer firmwares, with a 4K/DP v1.2/1.4 screen connected to a GPU that has hardware support for DP v1.2/1.4 (read the note). If you monitor has a option to downgrade to DP v1.1 or a DVI port, use it, if not, you will need another monitor.
3. Disable FileVault2 if enabled, since FV2 is not supported anymore with a Mac Pro 5,1 running Mojave.
4. If you use a SATA III PCIe card, remove the card from your Mac and move the drive to one of the backplane native SATA ports, a lot of people report trouble doing the firmware upgrade with SATA III PCIe cards installed.
5. If you ever downloaded any previous version of High Sierra, have it saved in any of Mac Pro external drives, you have to delete it/move to a offline disk and then restart your Mac. You need the current High Sierra 10.13.6 full installer from the Mac App Store, no previous version have the needed MP51.0089.B00 BootROM.
6. This is the Apple Support page where you can get the link for the 10.13.6 Mac App Store Installer (you need this even if you already are on 10.13.6). see the image below. Note, if you never used Mac App Store before, you need to validate your account first and download a free app before trying to get High Sierra View attachment 793503
7. Open the High Sierra 10.13.6 Mac App Store full installer, do the firmware upgrade as asked.
8. After the firmware upgrade, High Sierra installer will open again, you can close it.
9. Now check if your Mac Pro BootROM is MP51.0089.B00, if yes you can shutdown, remove all non-METAL GPUs (a non-METAL GPU installed will block you from installing Mojave) and install your Metal capable GPU (any AMD equal or newer than HD 7xxx, NVIDIA GTX 680 Mac Edition, Quadro K5000 and other NVIDIA Kepler cards). [If you have a NVIDIA card that need the web driver, Maxwell and Pascal ones, wait for NVIDIA release it for Mojave if ever…]
10. Download the full Mac App Store installer for Mojave. If you ever downloaded any previous version of Mojave, have it saved in any of Mac Pro external drives, you have to delete it/move to a offline disk and then restart your Mac. You need the current Mojave 10.14.5 or 10.14.6 full installer from the Mac App Store, no previous version have the needed 144.0.0.0.0 BootROM.
11. Open the installer, do the firmware upgrade as asked. (Note, if you never used Mac App Store before, you need to validate your account first and download a free app before trying to get Mojave).
12. After the reboot, open System Information and check if you have BootROM 144.0.0.0.0, if yes, you can do a createinstallmedia USB clean install (read NVIDIA GTX 680/780/Quadro K5000 note) or upgrade your previous High Sierra install.

- Mac Pro 5,1 firmware releases, from the oldest EFI update to the newest:

​

BootROM Version	Released with:	Type:	Note:
MP51.007F.B03	Mac Pro EFI Firmware Update 1.5	General release	First public released Mac Pro 5,1 firmware update, microcodes vulnerable to Spectre and Meltdown
MP51.0083.B00	10.13 DP5	Beta	Beta APFS support, microcodes vulnerable to Spectre and Meltdown
MP51.0084.B00	10.13 DP6 and 10.13.0	General release	Initial APFS support, microcodes vulnerable to Spectre and Meltdown
MP51.0085.B00	10.13.4 and Mojave DP1 to DP3	General release	APFS support, microcodes vulnerable to Spectre and Meltdown
MP51.0087.B00	10.13.5	General release	Missing microcodes and bricks the Mac Pro if you boot UEFI installed Windows 10
MP51.0089.B00	10.13.6	General release	Intel microcodes back with Spectre/Meltdown mitigation (see the April 2 Intel Microcode Update Guidance). Windows 10 works fine again
138.0.0.0.0	10.14 DP7 and 10.14.0	General release	5GT/s support for every PCIe 2.0 card. Requirements for upgrading the BootROM changed to METAL supported GPU
139.0.0.0.0	10.14.1 DP1	Beta	minor updates and corrections
140.0.0.0.0	10.14.1 DP3 and 10.14.1 to 10.14.4	General release	Native NVMe boot support, several minor updates and corrections
141.0.0.0.0	10.14.4 DP2	Beta	minor updates and corrections
142.0.0.0.0	10.14.4 DP4 and 10.14.5 DP1	Beta	Updated APFSJumpStart EFI module - W3xxx Xeon bricker. This BootROM version was never released outside betas.
144.0.0.0.0	10.14.5 DP4 and 10.14.5	General release	lot's of corrections, booting improvements, works with W3xxx Xeons. This is the current BootROM release

- If nothing above works for you, or you use a macOS version earlier than El Capitan, or your Mac Pro have a BootROM earlier than MP51.0089.B00, try this:

1. Download Sierra (10.12.6) - don't use 10.13/10.14 to this, both require firmware updates to install. Download from the Mac App Store, don't use hacked installs, torrents, etc. Download the current installers, not installers that you downloaded years ago and have older firmwares or expired certificates. You need 10.12.6, and later 10.13.6, current installer(s) from the Mac App Store.
2. Use createinstallmedia to create a Sierra USB key installer.
3. Shutdown your Mac Pro and remove all PCIe cards except your Mac EFI GPU.
4. Clear your Mac Pro SMC and NVRAM - clear NVRAM 3 times sequentially.
5. Remove all disks except the one that you will do a clean install of 10.11.6/10.12.6.
6. Power on your Mac Pro and do a clean install of 10.11.6/10.12.6.
7. After 10.12.6 is installed, download the High Sierra 10.13.6 full Mac App Store installer and open it (yes, you will upgrade Sierra to High Sierra don't do a clean install). The High Sierra installer will then ask you to perform a firmware update, shutdown your Mac Pro and do it. Download High Sierra installer from the Mac App Store, don't use hacked installs, torrents, etc.
8. After your Mac Pro restarts, close the installer and go to SystemInformation and check if your BootROM is MP51.0089.B00 now. If not, you did something wrong.
9. Use createinstallmedia to create a USB key installer of High Sierra, power off your Mac Pro.
10. Power on your Mac Pro, boot from the createinstallmedia USB-key and do a clean install of 10.13.6 - always do clean installs.
11. After 10.13.6 is installed, shutdown your Mac Pro and replace your original GPU with a Metal supported one. Remove all non-METAL GPUs, keep just the METAL one installed since a non-METAL GPU present on your Mac Pro will block you from installing Mojave.
12. Power on your Mac Pro and download 10.14.6 full Mac App Store installer. Download from the Mac App Store, don't use hacked installs, torrents, etc. Open it, the Mojave installer will ask you to perform a firmware update, shutdown your Mac Pro and do it.
13. After your Mac Pro restarts, check if your BootROM is 144.0.0.0.0, if it is, you can create a USB-key and do a clean install of Mojave now. If you have a NVIDIA GTX 680, then you have to do a clean install from your 10.13.6 disk into another disk, since USB installer has a bug that don't identify GT640/740, GTX 680/780/Quadro K5000 as a METAL supported GPU.

- How to successfully clean install with a PC GPU:


With a PC GPU, you will only boot from the createinstallmedia installer if the firmware won't find anything else to boot since USB has the least priority when booting and you can't select it from SysPref/StartUpDisk.

Below is what you have to do to sucessfully make a clean install with a PC GPU:

• Shutdown,
• Remove any bootable disks installed anywhere on your Mac Pro (even from FW/USB/PCIe),
• Install a new, or fully erased, disk where you will do the clean install and connect the createinstallmedia USB installer to one of the Mac Pro native USB ports (third party USB cards of any kind are not capable of boot),
• Power on your Mac Pro, after around 5 minutes it will boot from the createinstallmedia USB installer.

- What to do if during the upgrade process your Mac Pro bricked:

If during the upgrade process you bricked the BootROM, you have three options:

1. Buy a replacement backplane on eBay and replace the backplane yourself, cheapest option if you can't solder SMD. Remember that you need a 2009 backplane if you have an early-2009 Mac Pro. If you have a mid-2010 or mid-2012 you can use either 2010 or 2012 backplanes. Don't mix early-2009 backplanes with mid-2010/mid-2012 CPU trays, or vice-versa - either scenario is a SMC firmware version mismatch and all your fans will run at maximum RPM, full time and without any software control.
2. Buy a Mac Pro MATT card and use it as a replacement SPI flash, this is not recommended since all MATT cards are clones and won't work for iCloud/iMessage/FaceTime. A replacement backplane is usually cheaper.
3. Desolder, reprogram and solder back the SPI flash, chip U8700 on the backplane. It's not possible to read or write to the SPI flash memory while it's soldered on the MP5,1 backplane. A cheap SPI flash programmer like ch341a will work for read/write the BootROM after the SPI flash memory is desoldered from the backplane. Start reading here, read all my posts on the subject from there. I strongly recommend that you replace your original SPI flash memory with a brand new one, don't solder it back to the backplane, it will fail soon since SPI flash memories have limited lifetime (manufacture rated for just 100.000 erase/write cycles) when used as NVRAM for a Mac Pro. Again, most hard bricks are caused by the failure of the SPI flash, it's a US$ 2 component easily available, MXIC MX25L3206E, just replace it! Btw, yes, you can use a MXIC MX25L3206E as a modern replacement for the two older models SST25VF032B and MXIC MX25L3205D used on early-2009 and mid-2010 respectively, Apple did it for mid-2012 Mac Pros.

   Mojave has the generic MP51.fd firmware image inside the full installer, it's enough for boot your Mac Pro again but not for iCloud/iMessage/FaceTime login.



   Install\ macOS\ Mojave/Install\ macOS\ Mojave.app/Contents/Resources/Firmware/MP51.fd

- For MP4,1 to MP5,1 cross firmware flashing process, see this thread below:

Mac Pro Firmware Upgrade Utility Released!

Mac Pro Firmware Upgrade Utility Released!

forum.netkas.org

- Frequent question, it's possible to bypass the METAL GPU requirement?

Simple and direct answer:

No. It's a requirement of the Mojave firmware upgrades, like an Apple OEM GPU or a third party one with pre-boot configuration support was required to do all the previous firmware upgrades from Leopard to High Sierra.

Complex answer:

If you are a firmware engineer with Mac Pro experience, you can reconstruct the whole SPI flash memory image and write to it directly, bypassing the requirements. But if you were one, you wouldn't be asking or looking here, no?

I just revived a dual processor 4,1. Took it to Mojave.
I used a Sapphire Nitro+ Radeon 470. It plugged in and fired up with no problems. All the ports mapped as expected. The 22” full HD Insignia TV even looks great ($60 at BB). I only the tail end of the boot process but it is booting extremely fast. I didn’t expect the gpu to make such a difference. Or was it Mojave?

Next steps. NVME and memory.

This forum has been awesome. The first page is bery well written and concise. Thank you.



[Max Black]

Please fully read this first post, you will probably find that you have one or more problems described into the various notes below.​

Mojave will only install if you have upgraded your BootROM to the current release and your Mac Pro have a Metal capable GPU*.

If you are trying to install Mojave on a Mac Pro 5,1 (early-2009 cross flashed with MP5,1 firmware, mid-2010 and mid-2012), you have first to upgrade your BootROM to version MP51.0089.B00 and to High Sierra 10.13.6, then you can install a Metal capable GPU* that works with High Sierra and finally you can upgrade your firmware and install Mojave. It's a two steps firmware upgrade process for anyone that don't have MP51.0089.B00 installed yet.

You can read the Apple Support article here: Install macOS 10.14 Mojave on Mac Pro (Mid 2010) and Mac Pro (Mid 2012).

Remember: Apple Mojave recommend RX-560/580 cards do not have pre-boot configuration support (aka boot screens), so you need to install your original Mac EFI GPU to upgrade your BootROM to MP51.0089.B00 using the Mac App Store High Sierra 10.13.6 full installer. After that, Mojave installer can upgrade your firmware without the need of a Mac EFI GPU and requires that you only have Metal supported cards* installed in your Mac Pro.​

​

The Apple third-party graphics cards list identifies specific cards that are compatible:​

• MSI Gaming Radeon RX 560 128-bit 4GB GDDR5
• SAPPHIRE Radeon PULSE RX 580 8GB GDDR5
• SAPPHIRE Radeon HD 7950 Mac Edition
• NVIDIA Quadro K5000 for Mac
• NVIDIA GeForce GTX 680 Mac Edition

The three cards listed in bold above have pre-boot configuration support/Mac EFI.​

​

The list also identifies cards that might be compatible, none of which have pre-boot configuration support/Mac EFI:​

• AMD Radeon RX 560
• AMD Radeon RX 570
• AMD Radeon RX 580
• AMD Radeon Pro WX 7100
• AMD Radeon RX Vega 56
• AMD Radeon RX Vega 64
• AMD Radeon Pro WX 9100
• AMD Radeon Frontier Edition

*METAL capable GPU as in any METAL supported GPU that works with High Sierra:

For upgrading from MP51.0089.B00 to 144.0.0.0.0, METAL support is the requirement, not pre-boot configuration support like from earlier BootROM versions to MP51.0089.B00.

Your GPU can even be a NVIDIA GPU that has METAL support and don't work with Mojave, like Maxwell (like GTX 980) or Pascal (like GTX 1080). Newer AMD GPUs that won't work with High Sierra, like VII (only works with 10.14.5+) and RX 5500/5600/5700 (NAVI GPUs only work with 10.15.1+) won't work for upgrading the Mac Pro BootROM.

A GPU that High Sierra System Information recognises it as METAL: Supported is the key here.


- Cheapest Apple recommended METAL supported GPU:

It's the first card of the Apple third-party list above, but people ask it anyway:​

• MSI Gaming Radeon RX 560 128-bit 4GB GDDR5

Usually most AMD Radeon RX 560 models available on the western market works with MP5,1 and Mojave, but not the RX 560 made for the Chinese market since this card have less CUs and a different PCIeID than the real ones and Mojave don't know how to configure it correctly.​

- Hacked installs note:

If you did a hacked install, like dosdude one, you will probably need to do a clean install to upgrade your firmware.​

Only the full Mac App Store installers work for upgrading the firmware, macOS installers patched with dosdude tool can't upgrade the firmware. Apple firmware upgrade tool needs a clean and standard EFI partition to do so, so you probably need to do a clean install before trying to upgrade the firmware if you used a hacked install.​

- AppleRAID, RAID & SATA III PCIe cards note:

You can't upgrade your firmware if you are booting from a RAID array or from a SATA III card. The point is that need to be a single SATA device (HDD or SSD) connected to the Mac Pro southbridge SATA ports, not a RAID, not a SAS, not a PCIe device, not a PCIe SATA controller, not a PCIe AHCI blade. Open your Mac Pro, remove all RAID controllers, PCIe SATA cards, PCIe AHCI or NVMe M.2/U.2 drives, disconnect all RAID drives, including AppleRAID, and use a single SATA drive connected into a backplane native SATA port. Keep it simple and use Apple defaults when upgrading Mac Pro firmware.​

​

Btw, Mojave don't boot from SoftwareRAID/AppleRAID arrays or any hardware array that present to the OS as multiple disks.​

​

It's uncommon but sometimes you can't upgrade from PCIe AHCI and NVMe blades too, so use the same advice if you have any problems while upgrading the firmware.​

- Upgrade your firmware from High Sierra installed in an APFS drive:

A lot of people report that can't upgrade the BootROM from High Sierra installed with HFS+, so use a new/empty drive to install High Sierra from an APFS partition. Btw, Mojave requires APFS.​

​

Keep it simple and use Apple defaults when upgrading Mac Pro firmware.​

- Homemade Fusion drives note:

Mojave has to be installed with APFS and the way Fusion drives are made changed. Use a SATA disk installed on the south bridge ports to do all firmware upgrades and the Mojave install. After you already upgraded your Mac Pro firmware to 144.0.0.0.0 and Mojave is installed, you can recreate the Fusion drive.​

​

Keep it simple and use Apple defaults when upgrading Mac Pro firmware.​

- Upgrade firmware from USB note:

Firmware upgrade from USB is not possible unless you have the exact original factory config and if your Mac Pro is mid-2010 or mid-2012. Again, you can’t upgrade Mac Pro firmware from createinstallmedia USB-key.​

​

Don’t waste your time trying, the USB installer asks to upgrade your BootROM, warns that it will do a shutdown for you to enter firmware upgrade mode, but never powers off your Mac Pro. Unfortunately, there are reported cases that shutting down manually bricked the BootROM.​

​

Do it from High Sierra opening the Mojave Mac App Store full installer when you already have MP51.0089.B00 or if your Mac Pro have an earlier BootROM then MP51.0089.B00, from Sierra to High Sierra - see the set-by-step below.​

​

- Kepler NVIDIA GPUs (GT 640/740, GTX 670/680/780, Quadro K5000) note:

If you have a supported NVIDIA Kepler GPU like GTX 680 Mac Edition card, GTX 680 flashed with the Mac Edition firmware, GT 640/740, GTX 670/770/780 or a Quadro K5000 you can't do a USB clean install with it at the moment. The USB installer don't detect that the GPU is a Metal supported card and don't continue the install, it's a bug with Nvidia Kepler GPUs.​

To do a clean install, do from macOS with two drives - just select your empty one when doing the install.​

- Bluetooth keyboards/mice note:

A lot of people have problems installing macOS with Apple and third party bluetooth keyboards/mice. It's best to use wired ones, most third party wired USB keyboards work fine.​

- Firmware upgrades not working when you have a 4K display or a display newer than DP1.1:

You can't update to newer firmwares, with a 4K or DisplayPort v1.2/1.4 screen connected to your GPU. It's an old bug that Apple corrected with late-2013 Mac Pro and "forgot" to correct with MP5,1.​

​

Apple efiflasher for MP5,1 don't support 4K screens or DP v1.2/1.4 displays. Apple OEM GPUs like GT120, HD 4870, HD 5770 and HD 5870 don't have hardware support for DP v1.2/1.4, so you can use a 4K display for upgrading the firmware since your 4K/DP v1.2/1.4 display would be using the supported DP v1.1 spec, but the METAL GPUs and newer EFI flashed GPUs have support for DP v1.2/1.4 and will trigger the efiflasher flasher bug.​

​

If your monitor has a option to downgrade to DP v1.1 or have a DVI port, use it, if not, you will need another monitor for upgrading your firmware. Apple displays like the common Apple Cinema Display are DP1.1 or even DVI and work fine for firmware upgrades. Check your display specs.​

​

Since people asked about headless flashing, Xserves and early-2009 Mac Pro, still with MP4,1 firmware, had the option of upgrading the firmware headless via remote firmware flashing, but Apple removed the option and the remote efiflasher with MP5,1 release.​

​

- Stuttering audio with Dual Processors MP4,1 upgraded to MP5,1 firmware when running Mojave note:

Be aware that with Dual Processors MP4,1>5,1 machines that still have the original Gainestown processors (Xeon 55xx-series), after installing Mojave you will have stuttering audio problems that only can be solved upgrading the Xeon processors to Westmere (Xeon 56xx-series), read about on this thread Strange Audio Issue on MP 4,1>5,1 Mojave 10.14.4.​

​

This is a problem exclusive of Dual Processor MP4,1, single CPU MP4,1 don't have this problem at all. Some people don't even hear the stuttering audio, but if you are an audio guy or audio engineer, it will make you crazy, do your sanity a favour and upgrade your dual CPU tray to Westmere Xeons.​

- Mojave black screens with AMD Polaris GPUs (RX 4xx/5xx) note:

Some people are getting black screens with Mojave when using RX 4xx/5xx GPUs, if you are having it, do a clean install or debug your kexts, seems a problem with incompatible Air Display kexts. Read here.​

- 144.0.0.0.0 and previous macOS releases note:

Yes, BootROM 144.0.0.0.0 can boot even 10.6.4 (10F2521), the first ever macOS release that supports a MP5,1, but you are limited to GPU driver support since you can't boot a macOS version that don't have drivers for your GPU. For example, with AMD RX 4xx/5xx GPUs, you are limited to 10.12.6/10.13/10.14.​

​

It's the distribution file inside the macOS installer that defines what Macs are supported. Earlier releases than 10.6.4 (10F2521) don't have MP5,1 support and are not bootable with a MP5,1. Several people on MacRumors checked 10.6.8 and it runs without any problems with 144.0.0.0.0.​

Other limitation is NVMe support if you have a NVMe drive, NVMe only works since High Sierra (Sierra for 4KB/sector drives), read the first post of the PCIe SSDs - NVMe & AHCI thread to know more. SATA support is not affected by NVMe support requirements.​

Btw, you can upgrade your firmware to 144.0.0.0.0 without installing Mojave, just close the installer after the firmware upgrade is done. Remember that you can't do that by USB, read the Upgrade firmware from USB note.​

- 144.0.0.0.0 and High Sierra with HFS+ drives note:

If you want to upgrade to BootROM 144.0.0.0.0 and don't want to upgrade to Mojave, just close the Mojave installer when the installer opens again post firmware upgrade completion. Mojave changes your main drive to APFS, but if you end the install process after the firmware upgrade, nothing will be changed.​

​

NVMe drives don't work before High Sierra (Sierra for 4Kn drives), read the first post of the thread PCIe SSDs - NVMe & AHCI to know why.​

- 144.0.0.0.0, High Sierra and NVIDIA Maxwell or Pascal GPUs that support METAL but not Mojave:

If you have a NVIDIA GPU from the Maxwell or Pascal families and want to upgrade your Mac Pro BootROM to 144.0.0.0.0 and use it with High Sierra, you can do it. If your GPU is correctly working with High Sierra NVIDIA WEB drivers, just open the Mojave installer and it will ask you to do to the firmware upgrade the same way as with the still supported Kepler NVIDIA and the AMD METAL GPUs. Lot's of people have been using GTX 970/980/1070/1080 with 10.13.6 and upgrading to current BootROMs without any problems.​

Remember that Maxwell and Pascal NVIDIA GPUs are not supported with macOS anymore after High Sierra and won't work with Mojave.​

- 140.0.0.0.0 to 144.0.0.0.0 firmware upgrade note:

The fail-proof way to upgrade a MP5,1 firmware is to fully erase a SATA drive, remove all other drives from your Mac Pro, install High Sierra 10.13.6 to it, download the current Mac App Store full installer (10.14.6), clear the NVRAM 3 times in sequence, after that you try to upgrade the firmware running the Mojave full installer.​

See this thread Updating my MacPro 5.1 from 140.0.0.0.0 to 144.0.0.0.0 does not work.​

- Upgrading firmware from Catalina will work?

This question is becoming common recently, so let's put it here. If you don't have the current 144.0.0.0.0.0 BootROM release and is using Catalina, you have to go back to 10.13.6 or 10.14.6 to do the firmware upgrade. You can't open a macOS installer earlier than the version you are running, the installer won't open at all.​

​

- How to do a clean install with a RX 4xx/5xx/VEGA GPU without pre-boot configuration support?

The easiest way is to do from macOS, opening the installer and then selecting the drive you want to install to.​

​

If you want to do a USB clean install, first create a createinstallmedia USB key, erase the drive that you want to install Mojave, remove all other bootable disks, connect the createinstallmedia USB installer and then power-off/on. When the Mac Pro don't find any bootable SATA/PCIe disk, it will boot from the createinstallmedia USB installer. After three minutes or so, the installer loads the GPU drivers and the screen will work.​

- PCIe drives as external drives:

This is off-topic but since people ask, I added it here.​

​

All types of PCIe drives (SATA, SAS, AHCI, NVMe, M.2, U.2, RAID arrays, etc) are external to the Mac Pro firmware, only drives connected to the six native SATA ports of the Mac Pro southbridge are internal to the BootROM.​

PCIe drives are bootable, exactly as the internal ones.​

If you have an earlier than MP51.0089.B00 BootROM version, these are the steps to upgrade your BootROM to have Mojave support:

This part of the BootROM upgrade require a GPU with pre-boot configuration support. Apple OEM GPUs or Mac EFI flashed GPUs are a requirement for upgrading to MP51.0089.B00.

1. Install a Mac EFI64 GPU. Any original Apple card from 2008 to 2012 (HD 2600XT, 8800GT, Quadro FX 5600, GT120, HD 4870/5770/5870) or 3rd party Mac EFI cards like Sapphire HD 7950 Mac Edition, eVGA GTX 680 Mac Edition, NVIDIA Quadro 4000/K5000 or self-flashed/MVC flashed cards. Please note that if your flashed GPU is not macOS installer compatible, like NVIDIA GPUs from Maxwell and Pascal generations, you need to install one that is.
2. For GPUs that support DP v1.2/1.4, disconnect any 4K or DP1.2 display. You can't update to MP51.0089.B00, or newer firmwares, with a 4K/DP v1.2/1.4 screen connected to a GPU that has hardware support for DP v1.2/1.4 (read the note). If you monitor has a option to downgrade to DP v1.1 or a DVI port, use it, if not, you will need another monitor.
3. Disable FileVault2 if enabled, since FV2 is not supported anymore with a Mac Pro 5,1 running Mojave.
4. If you use a SATA III PCIe card, remove the card from your Mac and move the drive to one of the backplane native SATA ports, a lot of people report trouble doing the firmware upgrade with SATA III PCIe cards installed.
5. If you ever downloaded any previous version of High Sierra, have it saved in any of Mac Pro external drives, you have to delete it/move to a offline disk and then restart your Mac. You need the current High Sierra 10.13.6 full installer from the Mac App Store, no previous version have the needed MP51.0089.B00 BootROM.
6. This is the Apple Support page where you can get the link for the 10.13.6 Mac App Store Installer (you need this even if you already are on 10.13.6). see the image below. Note, if you never used Mac App Store before, you need to validate your account first and download a free app before trying to get High Sierra View attachment 793503
7. Open the High Sierra 10.13.6 Mac App Store full installer, do the firmware upgrade as asked.
8. After the firmware upgrade, High Sierra installer will open again, you can close it.
9. Now check if your Mac Pro BootROM is MP51.0089.B00, if yes you can shutdown, remove all non-METAL GPUs (a non-METAL GPU installed will block you from installing Mojave) and install your Metal capable GPU (any AMD equal or newer than HD 7xxx, NVIDIA GTX 680 Mac Edition, Quadro K5000 and other NVIDIA Kepler cards). [If you have a NVIDIA card that need the web driver, Maxwell and Pascal ones, wait for NVIDIA release it for Mojave if ever…]
10. Download the full Mac App Store installer for Mojave. If you ever downloaded any previous version of Mojave, have it saved in any of Mac Pro external drives, you have to delete it/move to a offline disk and then restart your Mac. You need the current Mojave 10.14.5 or 10.14.6 full installer from the Mac App Store, no previous version have the needed 144.0.0.0.0 BootROM.
11. Open the installer, do the firmware upgrade as asked. (Note, if you never used Mac App Store before, you need to validate your account first and download a free app before trying to get Mojave).
12. After the reboot, open System Information and check if you have BootROM 144.0.0.0.0, if yes, you can do a createinstallmedia USB clean install (read NVIDIA GTX 680/780/Quadro K5000 note) or upgrade your previous High Sierra install.

- Mac Pro 5,1 firmware releases, from the oldest EFI update to the newest:

​

BootROM Version	Released with:	Type:	Note:
MP51.007F.B03	Mac Pro EFI Firmware Update 1.5	General release	First public released Mac Pro 5,1 firmware update, microcodes vulnerable to Spectre and Meltdown
MP51.0083.B00	10.13 DP5	Beta	Beta APFS support, microcodes vulnerable to Spectre and Meltdown
MP51.0084.B00	10.13 DP6 and 10.13.0	General release	Initial APFS support, microcodes vulnerable to Spectre and Meltdown
MP51.0085.B00	10.13.4 and Mojave DP1 to DP3	General release	APFS support, microcodes vulnerable to Spectre and Meltdown
MP51.0087.B00	10.13.5	General release	Missing microcodes and bricks the Mac Pro if you boot UEFI installed Windows 10
MP51.0089.B00	10.13.6	General release	Intel microcodes back with Spectre/Meltdown mitigation (see the April 2 Intel Microcode Update Guidance). Windows 10 works fine again
138.0.0.0.0	10.14 DP7 and 10.14.0	General release	5GT/s support for every PCIe 2.0 card. Requirements for upgrading the BootROM changed to METAL supported GPU
139.0.0.0.0	10.14.1 DP1	Beta	minor updates and corrections
140.0.0.0.0	10.14.1 DP3 and 10.14.1 to 10.14.4	General release	Native NVMe boot support, several minor updates and corrections
141.0.0.0.0	10.14.4 DP2	Beta	minor updates and corrections
142.0.0.0.0	10.14.4 DP4 and 10.14.5 DP1	Beta	Updated APFSJumpStart EFI module - W3xxx Xeon bricker. This BootROM version was never released outside betas.
144.0.0.0.0	10.14.5 DP4 and 10.14.5	General release	lot's of corrections, booting improvements, works with W3xxx Xeons. This is the current BootROM release

- If nothing above works for you, or you use a macOS version earlier than El Capitan, or your Mac Pro have a BootROM earlier than MP51.0089.B00, try this:

1. Download Sierra (10.12.6) - don't use 10.13/10.14 to this, both require firmware updates to install. Download from the Mac App Store, don't use hacked installs, torrents, etc. Download the current installers, not installers that you downloaded years ago and have older firmwares or expired certificates. You need 10.12.6, and later 10.13.6, current installer(s) from the Mac App Store.
2. Use createinstallmedia to create a Sierra USB key installer.
3. Shutdown your Mac Pro and remove all PCIe cards except your Mac EFI GPU.
4. Clear your Mac Pro SMC and NVRAM - clear NVRAM 3 times sequentially.
5. Remove all disks except the one that you will do a clean install of 10.11.6/10.12.6.
6. Power on your Mac Pro and do a clean install of 10.11.6/10.12.6.
7. After 10.12.6 is installed, download the High Sierra 10.13.6 full Mac App Store installer and open it (yes, you will upgrade Sierra to High Sierra don't do a clean install). The High Sierra installer will then ask you to perform a firmware update, shutdown your Mac Pro and do it. Download High Sierra installer from the Mac App Store, don't use hacked installs, torrents, etc.
8. After your Mac Pro restarts, close the installer and go to SystemInformation and check if your BootROM is MP51.0089.B00 now. If not, you did something wrong.
9. Use createinstallmedia to create a USB key installer of High Sierra, power off your Mac Pro.
10. Power on your Mac Pro, boot from the createinstallmedia USB-key and do a clean install of 10.13.6 - always do clean installs.
11. After 10.13.6 is installed, shutdown your Mac Pro and replace your original GPU with a Metal supported one. Remove all non-METAL GPUs, keep just the METAL one installed since a non-METAL GPU present on your Mac Pro will block you from installing Mojave.
12. Power on your Mac Pro and download 10.14.6 full Mac App Store installer. Download from the Mac App Store, don't use hacked installs, torrents, etc. Open it, the Mojave installer will ask you to perform a firmware update, shutdown your Mac Pro and do it.
13. After your Mac Pro restarts, check if your BootROM is 144.0.0.0.0, if it is, you can create a USB-key and do a clean install of Mojave now. If you have a NVIDIA GTX 680, then you have to do a clean install from your 10.13.6 disk into another disk, since USB installer has a bug that don't identify GT640/740, GTX 680/780/Quadro K5000 as a METAL supported GPU.

- How to successfully clean install with a PC GPU:


With a PC GPU, you will only boot from the createinstallmedia installer if the firmware won't find anything else to boot since USB has the least priority when booting and you can't select it from SysPref/StartUpDisk.

Below is what you have to do to sucessfully make a clean install with a PC GPU:

• Shutdown,
• Remove any bootable disks installed anywhere on your Mac Pro (even from FW/USB/PCIe),
• Install a new, or fully erased, disk where you will do the clean install and connect the createinstallmedia USB installer to one of the Mac Pro native USB ports (third party USB cards of any kind are not capable of boot),
• Power on your Mac Pro, after around 5 minutes it will boot from the createinstallmedia USB installer.

- What to do if during the upgrade process your Mac Pro bricked:

If during the upgrade process you bricked the BootROM, you have three options:

1. Buy a replacement backplane on eBay and replace the backplane yourself, cheapest option if you can't solder SMD. Remember that you need a 2009 backplane if you have an early-2009 Mac Pro. If you have a mid-2010 or mid-2012 you can use either 2010 or 2012 backplanes. Don't mix early-2009 backplanes with mid-2010/mid-2012 CPU trays, or vice-versa - either scenario is a SMC firmware version mismatch and all your fans will run at maximum RPM, full time and without any software control.
2. Buy a Mac Pro MATT card and use it as a replacement SPI flash, this is not recommended since all MATT cards are clones and won't work for iCloud/iMessage/FaceTime. A replacement backplane is usually cheaper.
3. Desolder, reprogram and solder back the SPI flash, chip U8700 on the backplane. It's not possible to read or write to the SPI flash memory while it's soldered on the MP5,1 backplane. A cheap SPI flash programmer like ch341a will work for read/write the BootROM after the SPI flash memory is desoldered from the backplane. Start reading here, read all my posts on the subject from there. I strongly recommend that you replace your original SPI flash memory with a brand new one, don't solder it back to the backplane, it will fail soon since SPI flash memories have limited lifetime (manufacture rated for just 100.000 erase/write cycles) when used as NVRAM for a Mac Pro. Again, most hard bricks are caused by the failure of the SPI flash, it's a US$ 2 component easily available, MXIC MX25L3206E, just replace it! Btw, yes, you can use a MXIC MX25L3206E as a modern replacement for the two older models SST25VF032B and MXIC MX25L3205D used on early-2009 and mid-2010 respectively, Apple did it for mid-2012 Mac Pros.

   Mojave has the generic MP51.fd firmware image inside the full installer, it's enough for boot your Mac Pro again but not for iCloud/iMessage/FaceTime login.



   Install\ macOS\ Mojave/Install\ macOS\ Mojave.app/Contents/Resources/Firmware/MP51.fd

- For MP4,1 to MP5,1 cross firmware flashing process, see this thread below:

Mac Pro Firmware Upgrade Utility Released!

Mac Pro Firmware Upgrade Utility Released!

forum.netkas.org

- Frequent question, it's possible to bypass the METAL GPU requirement?

Simple and direct answer:

No. It's a requirement of the Mojave firmware upgrades, like an Apple OEM GPU or a third party one with pre-boot configuration support was required to do all the previous firmware upgrades from Leopard to High Sierra.

Complex answer:

If you are a firmware engineer with Mac Pro experience, you can reconstruct the whole SPI flash memory image and write to it directly, bypassing the requirements. But if you were one, you wouldn't be asking or looking here, no?

Thank you so much for this article I have read it couple of times, but just wondering if you could answer this.

I formated a new internal SSD drive(connected via external case) on another mac book air that already already had Mojave. Then I took that internal SSD and installed in my Mac Pro 5.1 which is running El Capitan, I booted from that SSD drive with an already installed NVIDIA GeForce GTX 770 that supports metal and it worked, but the Boot ROM Version: is MP51.0085.B00, how and why is this working and am I causing damage by not installing High Sierra first and then doing the firmware update that High Sierra will make you do before installing.

The reason I did not want to do the High Sierra version first was because I read in this post that if you have PCIe cards installed there might have some problem after the firmware update, I have 3 Audio type cards installed in this mac pro 2010, so kind of got nervous.

If I did High Sierra install does it matter if the pcie cards are installed or removed ?

Lets say we go through the chain and do fresh installs of El Capitan, then high sierra and eventually Mojave will Mojave eventually change the disk format to APFS? If so then the other older OSX that I have on the other drives will it be recognized? Right now without the Boo Rom firmware update I can see the drives when in Mojave.

Thank You. Warm Regards,



[tsialex]

Thank you so much for this article I have read it couple of times, but just wondering if you could answer this.

I formated a new internal SSD drive(connected via external case) on another mac book air that already already had Mojave. Then I took that internal SSD and installed in my Mac Pro 5.1 which is running El Capitan, I booted from that SSD drive with an already installed NVIDIA GeForce GTX 770 that supports metal and it worked, but the Boot ROM Version: is MP51.0085.B00, how and why is this working and am I causing damage by not installing High Sierra first and then doing the firmware update that High Sierra will make you do before installing.

The reason I did not want to do the High Sierra version first was because I read in this post that if you have PCIe cards installed there might have some problem after the firmware update, I have 3 Audio type cards installed in this mac pro 2010, so kind of got nervous.

Using MP51.0085.B00 is a security risk, microcode versions are vulnerable to Meltdown/Spectre, and a hardware risk, since it's one of the BootROMs more susceptible of NVRAM corruption.

If I did High Sierra install does it matter if the pcie cards are installed or removed ?

Anyway, why did you do the way you did? Why not just disconnect everything, install the original GPU and do it by the book?

Now you have to do it correctly, anyway, and you lost all the time trying to overcome it.

Lets say we go through the chain and do fresh installs of El Capitan, then high sierra and eventually Mojave will Mojave eventually change the disk format to APFS? If so then the other older OSX that I have on the other drives will it be recognized? Right now without the Boo Rom firmware update I can see the drives when in Mojave.

Thank You. Warm Regards,

APFS support has nothing to do with the BootROM version related to older macOS releases.

You can only access an APFS formatted disk if your macOS release support it, Apple started to support APFS with High Sierra. Upgrading your BootROM EFI version won't make Sierra or earlier releases support reading/writing to APFS disks.



[Max Black]

Thank you so much for replying, I came across this forum a bit too late, and you are right I lost a lot of time, but I had assumed that just mojave clean install and metal guard would get me going.

I have another mac pro from 2012 that has a boot room 140, do you think putting the new install mojave on that mac will have problems ? I tested a bit last night and it was fine. That machine did go through the normal chain of osx (el capitan, high sierra, mojave), as it was relayed to me by the seller just early yesterday.

Just one more thing, so you think I should put the original amd 5770 card back in and do the osx upgrade in that way and then install the Nvidea card? This card is mac flashed etc.



[tsialex]

Thank you so much for replying, I came across this forum a bit too late, and you are right I lost a lot of time, but I had assumed that just mojave clean install and metal guard would get me going.

I have another mac pro from 2012 that has a boot room 140, do you think putting the new install mojave on that mac will have problems ? I tested a bit last night and it was fine. That machine did go through the normal chain of osx (el capitan, high sierra, mojave), as it was relayed to me by the seller just early yesterday.

Earlier EFI releases are buggier, some more than others. APFS and NVMe support is extremely buggy with 140.0.0.0.0, Apple iterated 4 other EFI releases to get it right. Even 144.0.0.0.0 has it's problems, but we have to accept that Apple will never correct it and workaround the problems.

A clean install of Mojave with a METAL supported GPU will upgrade 140.0.0.0.0 to 144.0.0.0.0.

Just one more thing, so you think I should put the original amd 5770 card back in and do the osx upgrade in that way and then install the Nvidea card? This card is mac flashed etc.

This is answered on the first post, no need to ask it again, just follow the instructions. The instructions exist because the firmware upgrade has strict requirements and there one set of requirements up to MP51.0089.B00 and other completely different for 13x/14x.0.0.0.0 EFI releases.



[Max Black]

Just want to give Big Thanks to tsialex, getting this sorted out, everything is working just great so far, for anyone reading this, please keep reading the original post he has laid out, there is tons of information to digest, for those wanting to move to Mojave from El Capitan or below, do the High Sierra install first that is the key. Thank You.



[Max Black]

Just noticed that now after the upgrade the Intake front Mac Fan makes little rattling noise, which it never did before, while I was running El Capitan. I have Mac Fan Control and nothing has been adjusted or changed, the same room, and temperature. Will some type of reset work ? I think I read that you should not do any VRAM reset after upgrading to Mojave etc, any input is appreciated.
Thanks.



[tsialex]

Just noticed that now after the upgrade the Intake front Mac Fan makes little rattling noise, which it never did before, while I was running El Capitan. I have Mac Fan Control and nothing has been adjusted or changed, the same room, and temperature. Will some type of reset work ? I think I read that you should not do any VRAM reset after upgrading to Mojave etc, any input is appreciated.
Thanks.

Mojave uses a lot more the GPU hardware, the UI is METAL based and will make the GPU and PCIe fans work harder.

There is no VRAM reset. You can reset SMC and NVRAM anytime, no problem.



[Max Black]

I am ready to install a Samsung 970, 512GB, Pro M.2 NVMe in the PCIE slot, for adapters I am going to try either Lycom or the RIITOP (some recommendations from this site).

Some questions please.

I have Slot 2 open for now, can I put it there or does it have to be on Slot 3 or 4?

Is there another adapter I can put in the Slot 2 that could give me higher speeds other than expensive ones from Highpoint etc ?

Since I am already on Mojave on my current drive, I should format this in new drive as APFS because it will be a boot drive, correct ?

Can I download the Mojave from Apple App store and once it is in my application folder, I can launch from there and choose the Nvme drive for the software to install ? or do I have to make a bootable USB drive for Mojave and boot from that ?

Thank You.



[tsialex]

I am ready to install a Samsung 970, 512GB, Pro M.2 NVMe in the PCIE slot, for adapters I am going to try either Lycom or the RIITOP (some recommendations from this site).

Some questions please.

I have Slot 2 open for now, can I put it there or does it have to be on Slot 3 or 4?

Any slot. M.2 devices are PCIe x4, don't matter which PCIe slot you install on a MP5,1, it will always be limited to PCIe v2.0 x4 unless you use a PCIe switched adapter.

Is there another adapter I can put in the Slot 2 that could give me higher speeds other than expensive ones from Highpoint etc ?

None cheaper than US$ 180~200. See the PCIe thread first post for all the confirmed working options.

Since I am already on Mojave on my current drive, I should format this in new drive as APFS because it will be a boot drive, correct ?

Don't matter HFS or APFS, Mojave installer will always change it to APFS. I personally always format initially to HFS, then the installer do the rest.

Can I download the Mojave from Apple App store and once it is in my application folder, I can launch from there and choose the Nvme drive for the software to install ? or do I have to make a bootable USB drive for Mojave and boot from that ?

Thank You.

Yes, you can install from macOS - no problem.



[Max Black]

You are the Best Thank You So Much.

Now for my last question which I did not know where to post it on the forum regarding Pcie Expansion Cards and or risers for Mac Pro.

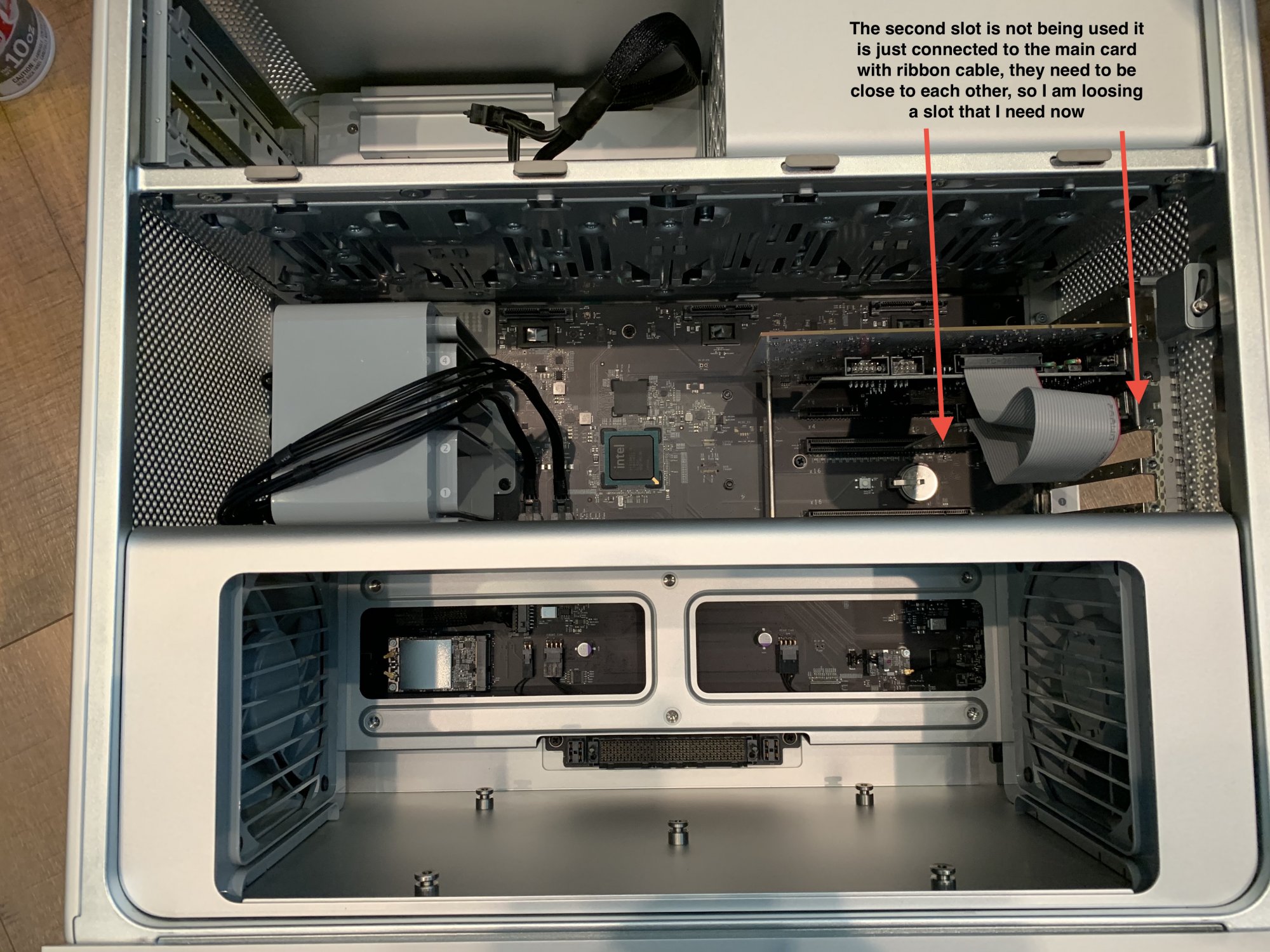

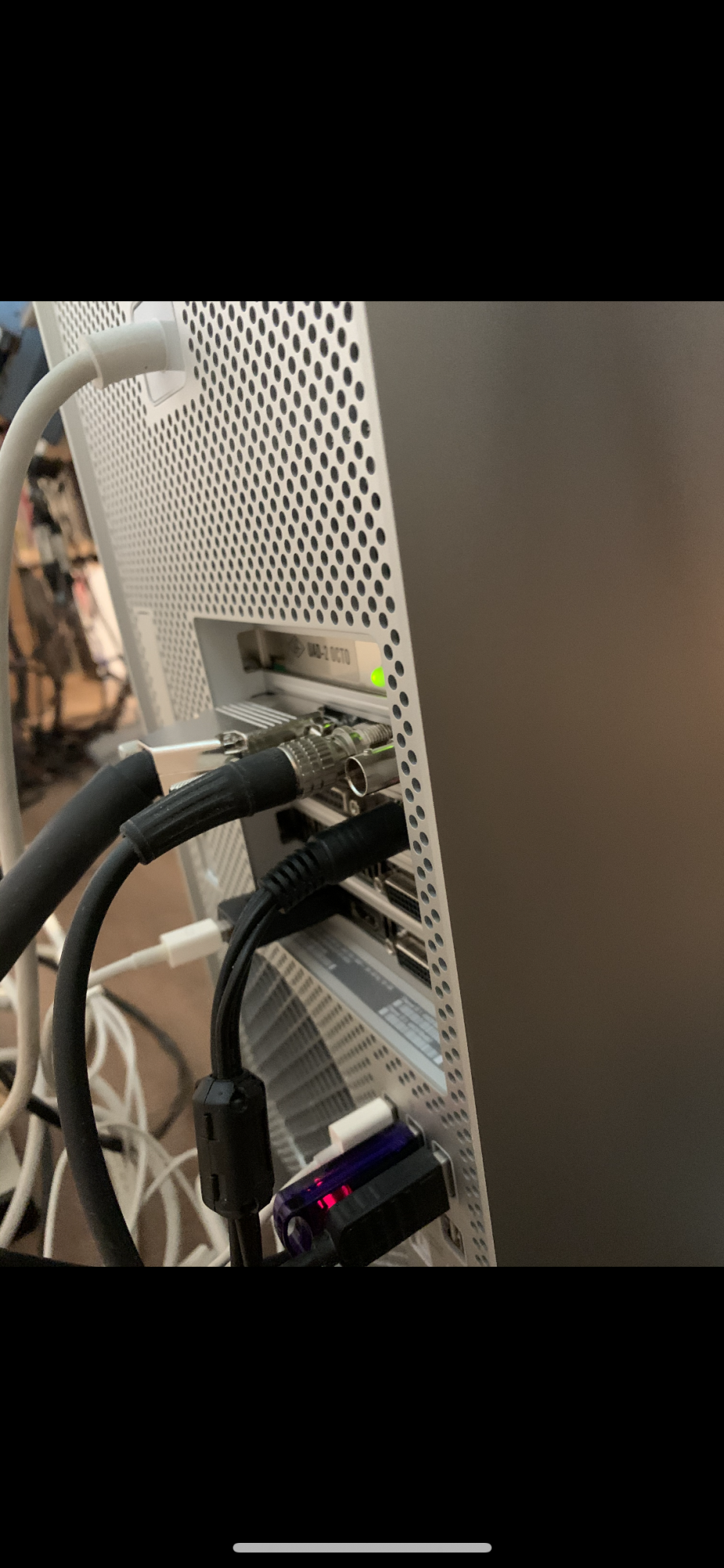

I have 3 of my 4 PCIE slots already used(took GPU out for photo), I have one daughter board that is obstructing Slot 2, which has to be close to main card with the ribbon(photo attached) but does not need to be installed on any Slot and has external cables attached to it (photo from outside the mac). Is there a way for me to try to keep everything inside the mac since I am going to use Slot 2 now, to put this Nvme SSD.

Pcie Multiplier ?

Maybe someone has seen something like this before. If not, I can not find any External Chassis for Pcie, everything I see so far is for Thunderbolt.
Any thoughts tips and recommendation would be appreciated. Thank You Again.



[tsialex]

Pcie Multiplier ?

Search for Netstor, it's the most commonly used around here.

Search results for query: netstor

forums.macrumors.com



[choreo]

Well, my plan to keep my 2012 5,1 (mainly to run 32-bit apps) has failed as I just have too many paid software "subscriptions" that now want to charge me extra for a second or third device annually. I can't justify keeping my 5,1 any longer for that singular purpose. Therefore, I will be selling my 5,1 now that I have a 7,1 as my main machine.

So my question is, what is the best way to prep this machine to put it up for sale? I am guessing the best plan would be to reinstall a fresh copy of just Mojave on one of my internal SSD's?

Here is what I have:
2012 Mac Pro 5,1
Running latest Mojave OS
Boot ROM 144.0.0.0.0
GPU - Sapphire Radeon Pulse RX 580 8GB (flashed by MVC last week)
Boot Drive is Samsung 500 GB 540 EVO installed on PCI Velocity Duo card in Slot#4 (I also have a second blank Samsung 500 GB 540 EVO installed on that card)

How would be the best way for me to wipe my boot drive and reinstall Mojave for a new owner?



[tsialex]

Well, my plan to keep my 2012 5,1 (mainly to run 32-bit apps) has failed as I just have too many paid software "subscriptions" that now want to charge me extra for a second or third device annually. I can't justify keeping my 5,1 any longer for that singular purpose. Therefore, I will be selling my 5,1 now that I have a 7,1 as my main machine.

So my question is, what is the best way to prep this machine to put it up for sale? I am guessing the best plan would be to reinstall a fresh copy of just Mojave on one of my internal SSD's?

Here is what I have:
2012 Mac Pro 5,1
Running latest Mojave OS
Boot ROM 144.0.0.0.0
GPU - Sapphire Radeon Pulse RX 580 8GB (flashed by MVC last week)
Boot Drive is Samsung 500 GB 540 EVO installed on PCI Velocity Duo card in Slot#4 (I also have a second blank Samsung 500 GB 540 EVO installed on that card)

How would be the best way for me to wipe my boot drive and reinstall Mojave for a new owner?

Fully erase your HDD like this?

Boot a createinstallmedia 10.14.6 USB installer, open Terminal:

1) First list your disks with:

diskutil list

2) Find what's the disk number of the HDD that you're gonna erase/install Mojave:


Replace diskXX on the command below to zero disk your HDD:

diskutil zerodisk diskXX

You don't need to wait until the end of zero disk, 3% and you can terminate it, unless you suspect that your disk have some bad sector or another defect.

3) Shutdown, power on and do the 4-times NVRAM reset procedure then boot from your createinstallmedia pendrive and install 10.14.6 on your disk.



[Max Black]

Just a quick question can a GPU be installed on PCIe slot 4 or does it need to be on one of the 16 lane slots. I am trying to figure out a way to keep all the cards inside the Mac Pro before I get the Netstor, it is $829, ouch.



[tsialex]

Just a quick question can a GPU be installed on PCIe slot 4 or does it need to be on one of the 16 lane slots. I am trying to figure out a way to keep all the cards inside the Mac Pro before I get the Netstor, it is $829, ouch.

You can use a GPU on slot 4, it will work. The question is if the performance will be acceptable for what you need the GPU since slots 3 and 4 share just 4 PCIe lines via a PCIe switch.



[Rao Shaheryar]

Open it, the Mojave installer will ask you to perform a firmware update, shutdown your Mac Pro and do it. After your Mac Pro restarts, check if your Boot ROM is 144.0. 0.0. 0, if it is, you can create a USB-key and do a clean install of Mojave now. and also MacOS Mojave is available as a free update via the Mac App Store. To get it, open the Mac App Store and click the Updates tab. MacOS Mojave should be listed at the top after it's released. Click the Update button to download the update
