MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
I believe we could patch UFhTMQ== to R0ZYMA== in the ACPI section. Note that the manual advises against such patches.

CMMChris said:
Your screenshot doesn't show what the ACPI device is called. You just see the bridges there. Please expand the "IOReg Name" column.
Click to expand...

Yeah, I don't know why I can't expand that column. It's already the max width I can set.

Anyway, my Radeon VII also named as PXS1
Screenshot 2019-10-29 at 7.58.50 PM.png

cdf said:
I believe we could patch UFhTMQ== to R0ZYMA== in the ACPI section. Note that the manual advises against such patches.
Click to expand...

So, the code should be ?
Code:
        <dict>
            <key>Comment</key>
            <string>PXS1 to GFX0</string>
            <key>Count</key>
            <integer>0</integer>
            <key>Enabled</key>
            <true/>
            <key>Find</key>
            <data>UFhTMQ==</data>
            <key>Limit</key>
            <integer>0</integer>
            <key>Mask</key>
            <data></data>
            <key>OemTableId</key>
            <data></data>
            <key>Replace</key>
            <data>R0ZYMA==</data>
            <key>ReplaceMask</key>
            <data></data>
            <key>Skip</key>
            <integer>0</integer>
            <key>TableLength</key>
            <integer>0</integer>
            <key>TableSignature</key>
            <data></data>
        </dict>

Last edited:
Yes, that's what I would try. Longer term, maybe we could look into getting the replacement done through WhateverGreen...

So I noticed OpenCore injects/sets the boot-args, including other values it sets in the NVRAM based on enabled options, on every boot it manages.

Will this wear out the SPI flash in the long term?

w1ss said:
So I noticed OpenCore injects/sets the boot-args, including other values it sets in the NVRAM based on enabled options, on every boot it manages.

Will this wear out the SPI flash in the long term?
Click to expand...

I believe that's a soft boot argument injection, not really hard writing anything to the NVRAM. Because OpenCore is designed for non Mac computer as well, NVRAM not necessary exist for it to write anything. If the boot argument need to be wrote into the BootROM in order to work, that will be meaningless as a Hackintosh boot loader.

Also, we can do a test

1) Boot to desktop by using OpenCore, dump the BootROM

2) We change the config plist boot argument, e.g. add "mbasd=1" into the boot argument (this is a very safe boot argument for cMP. The function is to allow cMP able to use the external USB super drive)

3) Reboot, and dump the BootROM again

4) Compare the bootROM image

If OpenCore write the boot argument into the NVRAM, we should able to see that "mbasd=1" in the result.

  • Like
Reactions: donzubeck, w1z and crjackson2134
First test is done, I am able to rename PXS1 to GFX0. So, the code in post #31 is correct.
Screenshot 2019-10-30 at 3.36.11 AM.png

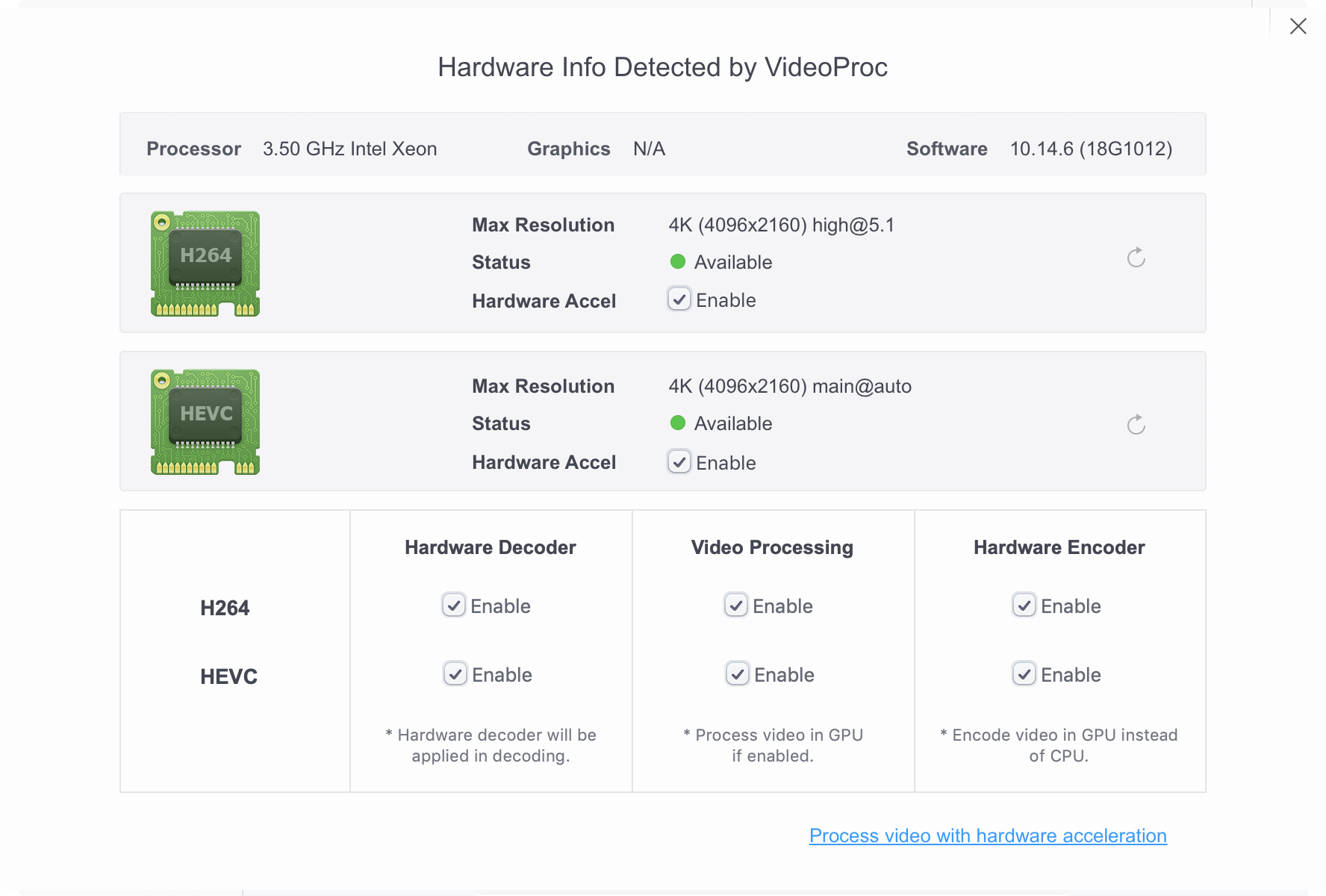

This test use the cdf default config + GFX0 patch, so, still ident as 5,1. With the hex edited AppleGVA framework, HEVC encoding still not available yet.
Screenshot 2019-10-30 at 3.36.33 AM.png

Last edited:
  • Like
Reactions: octoviaa and TheStork
And now, it's time to fix the SMC issue (if ident as iMac Pro)
Screenshot 2019-10-30 at 3.56.22 AM.png


(Update 1: the two fans are the PSU fan, and PCIe fan. Max RPM shows up correctly in iStat menu. And will spin up accordingly when I stress the GPU.

All the missing fans are for CPU. Intake, Exhaust, Booster)

Last edited:
gigignopechegno said:
Wowwwwwww please tutorial💪🏻💪🏻💪🏻
Click to expand...

I will, but may be later. Since all temperature sensors' info are missing at this moment. I am not sure how safe to use this config at this moment. And I want to include the SMC fix in my tutorial if possible.

Anyway, everything I did is actually covered in this thread. The required code I shared in post #7 and post #31.

However, that base on my situation only.

e.g.

1) I only use one monitor. Only the 1st DP port is working at this moment after the iMac Pro patch. CMMChris already told me the fix, but I haven't have time to try that yet.

2) My graphic card is installed in slot 1, and the original ACPI name is PXS1

3) Lilu and WhateverGreen is installed

4) Only tested in Mojave (18G1012)

Last edited:
  • Like
Reactions: octoviaa and TheStork
Get the CPU sensors back by using VirtualSMC, and even better, I can now see the temperature for every single core. However, lost all other sensors 😆
Screenshot 2019-10-30 at 6.06.29 AM.png

  • Like
Reactions: octoviaa
h9826790 said:
I will, but may be later. Since all temperature sensors' info is missing at this moment. I am not sure how safe to use this config at this moment. And I want to include the SMC fix in my tutorial if possible.

Anyway, everything I did is actually covered in this thread. The coding I shared in post #7 and post #31.

However, that base on my situation only.

e.g.

1) I only use one monitor. Only the 1st DP port is working at this moment after the iMac Pro patch. CMMChris already told me the fix, but I haven't have time to try that yet.

2) My graphic card is installed in slot 1, and the original ACPI name is PXS1

3) Lilu and WhateverGreen is installed

4) Only tested in Mojave (18G1012)
Click to expand...
Nice ;)
perfect i wait your tutorial ;)
thanks

  • Like
Reactions: crjackson2134

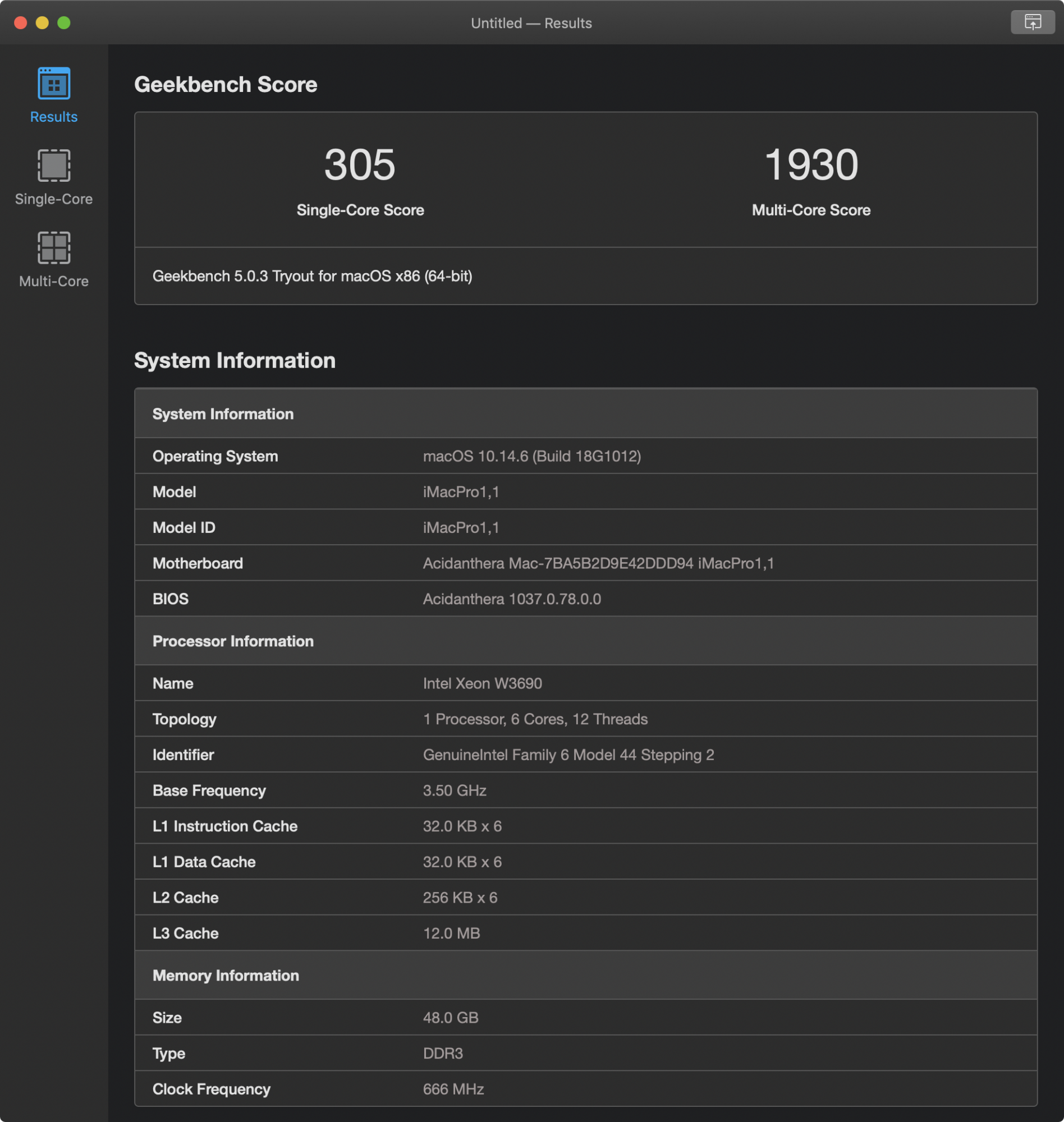

More issue found when ident as iMac Pro. The CPU only work at ~50% speed.
iMad Pro.png


Not sure if it's SMC related. Or due to the computer now can't ident the CPU correctly (the CPU name came from my info edition, not from the system natively), and the Base Frequency is wrong obviously.

h9826790 said:
More issue found when ident as iMac Pro. The CPU only work at ~50% speed.
View attachment 873456

Not sure if it's SMC related. Or due to the computer now can't ident the CPU correctly (the CPU name came from my info edition, not from the system natively), and the Base Frequency is wrong obviously.
Click to expand...
Nice problem there, hope you figure it out as it makes a 3,1 faster than your 5,1 according to a benchmark. Mine was 467/2820

Mac Pro (Early 2008) - Geekbench

Benchmark results for a Mac Pro (Early 2008) with an Intel Xeon X5482 processor.
browser.geekbench.com

h9826790 said:
Not sure if it's SMC related. Or due to the computer now can't ident the CPU correctly (the CPU name came from my info edition, not from the system natively), and the Base Frequency is wrong obviously.
Click to expand...

I've observed the same thing about the frequency when OpenCore sets the platform information.

CMMChris said:
@h9826790 Try using original SMBIOS and set those boot args for whatevergreen:
shikigva=32 and shiki-id=Mac-7BA5B2D9E42DDD94

This spoofs iMacPro1,1 SMBIOS only for the AppleGVA framework to enable HEVC while the remaining components operate in your Mac Pro SMBIOS as intended.
Click to expand...

Good idea. Tested with shikigva=96 and shiki-id=Mac-7BA5B2D9E42DDD94, doesn't work, but I forget to test 32 or 1......

Ludacrisvp said:
Is opencore flexible enough to not set CPU related info?
Click to expand...

The setup described in post #1 does not touch platform information at all. Most would be hard pressed to find differences between such a setup and a natively booted one.

Modifying the SMBIOS in automatic mode is what seems to lead to the wrong frequency. Perhaps manual mode gives more control. This remains to be tested.

  • Like
Reactions: JedNZ and h9826790
