MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

startergo · Nov 26, 2020

TECK said:
Show me your setup.py, I’ll let you know where is the issue.

I may not have been clear. Did you miss that I said that the "built-in" property itself did not work on the MBP15,1? They work on the cMP in Catalina. BS on cMP built-in property works too. It is not related to the setup.py itself as a program.

OneyedK · Nov 26, 2020

Eweie said:
you don't need to have another disk with a supported os on your Mac.
in fact, you can bless the OC boot loader simply from an USB installer of any Mac OS version.

Yes, in that case, the USB installer IS your other disk.

TECK · Nov 26, 2020

startergo said:
I may not have been clear. Did you miss that I said that the "built-in" property itself did not work on the MBP15,1? They work on the cMP in Catalina. BS on cMP built-in property works too. It is not related to the setup.py itself as a program.

I did not, your device is marked as built-in in cMP but not in your laptop. I was simply checking to see what is your config source.

Eweie · Nov 26, 2020

OneyedK said:
Yes, in that case, the USB installer IS your other disk.

ok bro.

TECK said:
That is because you know what you are doing. Not everyone does. And I personally do not want to fiddle with USB drives if my OC setup breaks. Is a matter of choice, that is why @cdf presented the safest way to setup your Mac. The guide will evolve soon (he is busy with work until beginning of December) and be merged with the plistlib generator I created a while ago, so we take out of equation the mistakes made by people while copying files, configuration, etc.

sure but he said you NEED. you in fact do not need. just factual.

Eweie · Nov 26, 2020

also under what circumstances do your OC breaks? cause I've been running Catalina since the guide went up without zero issues.
I'm actually amazed at the amount of different issues in this thread, considering we're all running the same computer.

Eweie · Nov 26, 2020

TECK said:
I never disable SIP, when I bless the EFI partition and I never use the long bless command. I do however shutdown the Mac for 15s, instead restarting it directly. I did tried before a simple reboot and it worked but I rather use the @cdf purist approach for your hardware.

yeah for some reason the short command has never worked for me. and as I said, you need to disable SIP if you're trying to bless form the OS because the bless command has been blocked since the introduction of SIP.
but you don't need to disable it if you're doing it from an USB installer or recovery partition.
personally I always leave it disabled. it's a pointless niche feature.

TECK · Nov 26, 2020

Eweie said:
personally I always leave it disabled

I thought a reboot will enable it automatically? At least this is the behaviour I get on my Mac.

Eweie · Nov 26, 2020

TECK said:
I thought a reboot will enable it automatically? At least this is the behaviour I get on my Mac.

not for me. only reseting the SMC (or PRAM?) should re enable it. I think this also breaks OC, as in you would need to re-bless it. but I'm not sure.

paalb · Nov 26, 2020

TECK said:
I thought a reboot will enable it automatically? At least this is the behaviour I get on my Mac.

Yes. Following the instructions on first page. When you boot into recovery SIP is temporarily disabled. But not set to disabled. So when you boot normally again SIP is enabled. This is how SIP behaves with or without OpenCore.

Check it with this command csrutil status

This is one of the reasons OpenCore is superior to other solutions. You keep a high security OS.

Eweie · Nov 26, 2020

yeah you have to run in the terminal of an usb installer or the recovery partition "csrutil disable" to disable it permanently.
but if you don't need to there's no need. I just like having it disabled cause I do all kinds of things apple doesn't want you to do that SIP blocks. including blessing a volume.

startergo · Nov 26, 2020

TECK said:
Show me your setup.py, I’ll let you know where is the issue. If you don't have a setup.py, give me your Device Path for the disk you want to hide.

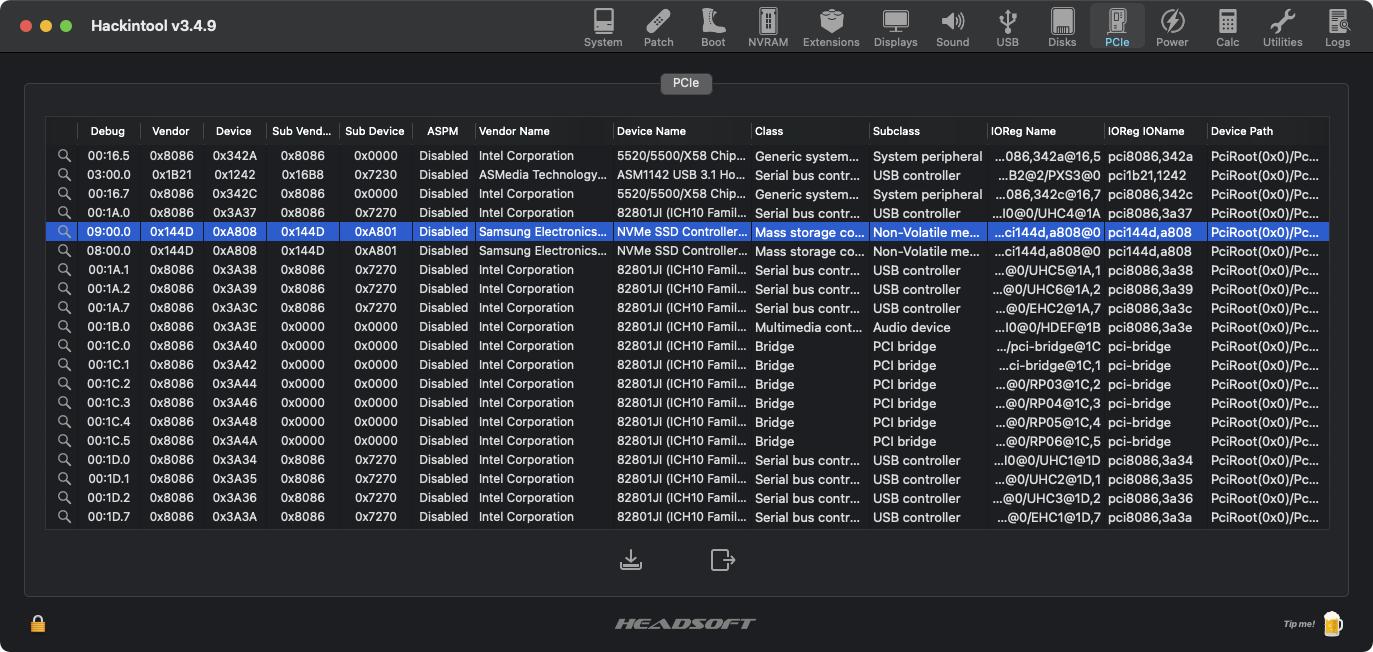

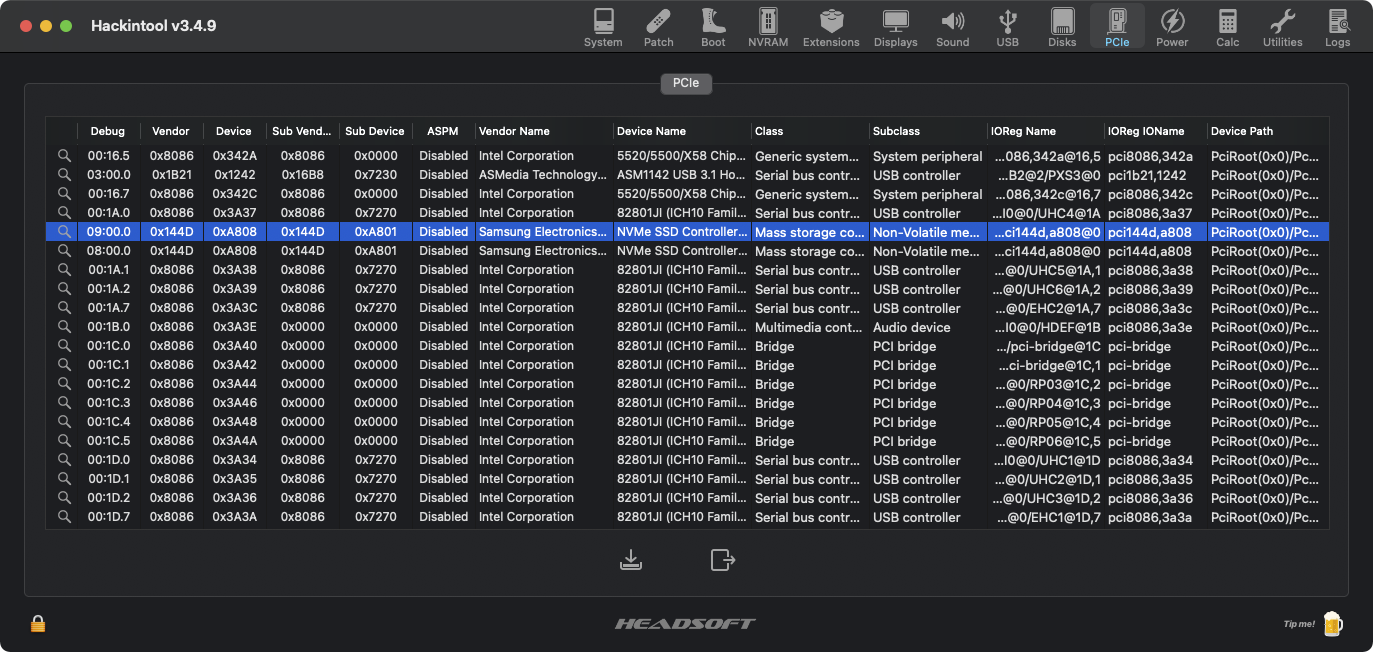

View attachment 1680465

I stand corrected. The built-in property also worked. I must have picked the wrong PCIE address. What did not work were the kexts.

TECK · Nov 26, 2020

startergo said:
What did not work were the kexts.

Have you tried the plistlib generator to build the EFI? If you have the setup.py, please post it.

startergo · Nov 26, 2020

TECK said:
Have you tried the plistlib generator to build the EFI? If you have the setup.py, please post it.

Not yet. I am working on another project. I am trying to create a bootcamp partition on my external drive on the MacBookPro15,1. The Bootcamp assistant works on the cMP in BigSur (it stopped working in Mojave and Catalina). The problem is it creates hybrid (MBR) partition on the same drive where the Big Sur APFS volume is. I would like it to create an UEFI aware partition, but the Bootcamp Assistant complains in the MacBookPro15,1:

although all devices appear as internal (set by OC) as seen in the Bootcamp Log file:

Code:

Last login: Thu Nov 26 17:16:31 on console
g5@G5s-MacBook-Pro ~ % /System/Applications/Utilities/Boot\ Camp\ Assistant.app/Contents/MacOS/Boot\ Camp\ Assistant
2020-11-26 17:17:02.333 Boot Camp Assistant[625:6842] Launching Boot Camp Assistant
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] --- System Configuration ---
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] Model ID: MacBookPro15,1
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] Memory: 16.0
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] UEFI Support: true
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] System is Fusion: false
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] System Supports Hibernation: true
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] System Supports Media Free: true
2020-11-26 17:17:02.416 Boot Camp Assistant[625:6842] System Supports USB Install: false
2020-11-26 17:17:02.417 Boot Camp Assistant[625:6842] System Supports Multi Disk Installation: false
2020-11-26 17:17:02.417 Boot Camp Assistant[625:6842] Secure Boot enabled: false
2020-11-26 17:17:02.417 Boot Camp Assistant[625:6842] Starting SoftwareUpdate scan...
2020-11-26 17:17:11.470 Boot Camp Assistant[625:6859] Canceling boot cache defrag on disk2
2020-11-26 17:17:11.471 Boot Camp Assistant[625:6859] OSStatus = 0x0
2020-11-26 17:17:11.471 Boot Camp Assistant[625:6859] APFS Status = 0x0
2020-11-26 17:17:11.872 Boot Camp Assistant[625:6848] Scan complete
2020-11-26 17:17:12.055 Boot Camp Assistant[625:6859] Canceling boot cache defrag on disk3
2020-11-26 17:17:12.055 Boot Camp Assistant[625:6859] OSStatus = 0x0
2020-11-26 17:17:12.055 Boot Camp Assistant[625:6859] APFS Status = 0x0
2020-11-26 17:17:12.795 Boot Camp Assistant[625:6859] /System/Volumes/Data can purge 1067437748 bytes
2020-11-26 17:17:12.826 Boot Camp Assistant[625:6859] Failed to determine the mount point. Error = A disk with a mount point is required.
2020-11-26 17:17:13.105 Boot Camp Assistant[625:6859] --- Disks in System ---
2020-11-26 17:17:13.106 Boot Camp Assistant[625:6859]
-----------------disk2-----------------
    Human name: EF57347C-0000-11AA-AA11-00306543ECAC
    Media name: APPLE SSD AP0256M Media
    Volume name: N/A
    UUID name: N/A
    Mount Point: N/A
    IODeviceTree:/PCI0@0/RP17@1B/ANS2@0/AppleANS2Controller
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Container Scheme
    Resize Limits: Optional(["Current": 188000215040, "Max": 188000215040, "MinDelta": 25165824, "Min": 175892332544, "MinNoFloor": 165154914304])
    Disk Size: 188000215040
    Free Size: 26984509440
    Purgable Space: 0
    Children: disk1s2, disk1s3
-----------------------------------------------
2020-11-26 17:17:13.106 Boot Camp Assistant[625:6859] *** APFS Volumes ***
2020-11-26 17:17:13.106 Boot Camp Assistant[625:6859]
-----------------disk2s1-----------------
    Human name: Macintosh HD - Data
    Media name:
    Volume name: Macintosh HD - Data
    UUID name: 461BE312-F382-47FF-A408-ABB63FD7D0DB
    Mount Point: /Volumes/Macintosh HD - Data
    IODeviceTree:/PCI0@0/RP17@1B/ANS2@0/AppleANS2Controller
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Volume
    Resize Limits: nil
    Disk Size: 188000215040
    Free Size: 26984509440
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.106 Boot Camp Assistant[625:6859]
-----------------disk2s5-----------------
    Human name: Macintosh HD
    Media name:
    Volume name: Macintosh HD
    UUID name: 34CE9DA3-BC4E-418A-BD0B-F27B23DB02F0
    Mount Point: /Volumes/Macintosh HD
    IODeviceTree:/PCI0@0/RP17@1B/ANS2@0/AppleANS2Controller
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Volume
    Resize Limits: nil
    Disk Size: 188000215040
    Free Size: 26984509440
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.106 Boot Camp Assistant[625:6859] === Children disks ===
2020-11-26 17:17:13.107 Boot Camp Assistant[625:6859]
-----------------disk1s2-----------------
    Human name: Apple_APFS
    Media name:
    Volume name: N/A
    UUID name: N/A
    Mount Point: N/A
    IODeviceTree:/PCI0@0/RP17@1B/ANS2@0/AppleANS2Controller
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: Apple_APFS
    Resize Limits: nil
    Disk Size: 188000215040
    Free Size: 0
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.107 Boot Camp Assistant[625:6859]
-----------------disk1s3-----------------
    Human name: BOOTCAMP
    Media name:
    Volume name: BOOTCAMP
    UUID name: 2E04B5FC-D06E-4980-8CDC-4A4153A3482D
    Mount Point: /Volumes/BOOTCAMP
    IODeviceTree:/PCI0@0/RP17@1B/ANS2@0/AppleANS2Controller
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: Microsoft Basic Data
    Resize Limits: nil
    Disk Size: 62684917760
    Free Size: 31876567040
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.107 Boot Camp Assistant[625:6859]
-----------------disk3-----------------
    Human name: EF57347C-0000-11AA-AA11-00306543ECAC
    Media name: WDS500G3X0C-00SJG0 Media
    Volume name: N/A
    UUID name: N/A
    Mount Point: N/A
    IODeviceTree:/PCI0@0/PEG1@1,1/UPSB@0/DSB1@1/UPS0@0/pci-bridge@1/pci15b7,5006@0/IONVMeController
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Container Scheme
    Resize Limits: Optional(["Max": 250000420864, "Current": 249999998976, "MinNoFloor": 96217333760, "Min": 106954752000, "MinDelta": 25165824])
    Disk Size: 249999998976
    Free Size: 156856823808
    Purgable Space: 0
    Children: disk0s2, disk0s3
-----------------------------------------------
2020-11-26 17:17:13.107 Boot Camp Assistant[625:6859] *** APFS Volumes ***
2020-11-26 17:17:13.107 Boot Camp Assistant[625:6859]
-----------------disk3s1-----------------
    Human name: BigSur - Data
    Media name:
    Volume name: BigSur - Data
    UUID name: 741E51BE-003F-47A5-88A0-72FB35F07EA2
    Mount Point: /System/Volumes/Data
    IODeviceTree:/PCI0@0/PEG1@1,1/UPSB@0/DSB1@1/UPS0@0/pci-bridge@1/pci15b7,5006@0/IONVMeController
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Volume
    Resize Limits: nil
    Disk Size: 249999998976
    Free Size: 156856827904
    Purgable Space: 1067437748
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.108 Boot Camp Assistant[625:6859]
-----------------disk3s5-----------------
    Human name: BigSur
    Media name:
    Volume name: BigSur
    UUID name: 299ACA6D-D159-4EA1-9B1C-E261901AF0D1
    Mount Point: /Volumes/BigSur 1
    IODeviceTree:/PCI0@0/PEG1@1,1/UPSB@0/DSB1@1/UPS0@0/pci-bridge@1/pci15b7,5006@0/IONVMeController
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Volume
    Resize Limits: nil
    Disk Size: 249999998976
    Free Size: 156856852480
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.108 Boot Camp Assistant[625:6859]
-----------------disk3s6-----------------
    Human name: Update
    Media name:
    Volume name: Update
    UUID name: D7E8F8AB-E8D5-4180-B017-2930FA4704CF
    Mount Point: /System/Volumes/Update
    IODeviceTree:/PCI0@0/PEG1@1,1/UPSB@0/DSB1@1/UPS0@0/pci-bridge@1/pci15b7,5006@0/IONVMeController
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: APFS Volume
    Resize Limits: nil
    Disk Size: 249999998976
    Free Size: 156856852480
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.108 Boot Camp Assistant[625:6859] === Children disks ===
2020-11-26 17:17:13.108 Boot Camp Assistant[625:6859]
-----------------disk0s2-----------------
    Human name: Apple_APFS
    Media name:
    Volume name: N/A
    UUID name: N/A
    Mount Point: N/A
    IODeviceTree:/PCI0@0/PEG1@1,1/UPSB@0/DSB1@1/UPS0@0/pci-bridge@1/pci15b7,5006@0/IONVMeController
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: Apple_APFS
    Resize Limits: nil
    Disk Size: 249999998976
    Free Size: 0
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
2020-11-26 17:17:13.108 Boot Camp Assistant[625:6859]
-----------------disk0s3-----------------
    Human name: NTFS
    Media name:
    Volume name: NTFS
    UUID name: B039004D-390C-4AB0-44B0-4A40EB4A40B8
    Mount Point: /Volumes/NTFS
    IODeviceTree:/PCI0@0/PEG1@1,1/UPSB@0/DSB1@1/UPS0@0/pci-bridge@1/pci15b7,5006@0/IONVMeController
    Is Locked: false
    Is Internal: true
    Connection Type: PCI-Express
    Partition Type: Microsoft Basic Data
    Resize Limits: nil
    Disk Size: 249897676800
    Free Size: 244724391936
    Purgable Space: 0
    Children: N/A
-----------------------------------------------
g5@G5s-MacBook-Pro ~ %

@cdf do you think System Supports USB Install: false can be set true trough the firmware features and firmware features mask? Maybe that will unlock the Bootcamp?

cdf · Nov 26, 2020

startergo said:
@cdf do you think System Supports USB Install: false can be set true trough the firmware features and firmware features mask? Maybe that will unlock the Bootcamp?

Perhaps. You could always compare your model's firmware features with those of a known working model to identify the missing bits.

startergo · Nov 26, 2020

cdf said:
You could always compare your model's firmware features with those of a known working model to identify the missing bits.

Which model supports USB Install? I know cMP supports it. But which bit is it? I tried iMac Pro and MP6,1 features.

joevt · Nov 26, 2020

startergo said:
Which model supports USB Install? I know cMP supports it. But which bit is it? I tried iMac Pro and MP6,1 features.

Is there a reason why you want to use Boot Camp Assistant to create the partition? Just use Disk Utility.app. It probably should not be MBR if the disk is external. Besides, you have a new Mac (from 2018) so it should use UEFI.

speedbird436 · Nov 26, 2020

Can anyone help me with this please? I'm getting this whenever I do a cold boot. First boot always results in this error but after that, it boots normally. Any ideas? OC 0.63 with Big Sur on Samsung 970 EVO NVMe drive. Boot volume is encrypted.

panic(cpu 16 caller 0xffffff800616b529): "can't modify o 0xffffff8749787920 on encrypted and locked fs 0xffffff93f6e80000\n"@/AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-1677.50.1/nx/obj.c:4171
Backtrace (CPU 16), Frame : Return Address
0xffffffa198ea3110 : 0xffffff80030bc66d
0xffffffa198ea3160 : 0xffffff80031ff073
0xffffffa198ea31a0 : 0xffffff80031ef6aa
0xffffffa198ea31f0 : 0xffffff8003061a2f
0xffffffa198ea3210 : 0xffffff80030bbf0d
0xffffffa198ea3330 : 0xffffff80030bc1f8
0xffffffa198ea33a0 : 0xffffff80038bee1a
0xffffffa198ea3410 : 0xffffff800616b529
0xffffffa198ea3480 : 0xffffff800610a903
0xffffffa198ea34c0 : 0xffffff800610f90c
0xffffffa198ea3520 : 0xffffff80060b9b42
0xffffffa198ea36a0 : 0xffffff800337bdd6
0xffffffa198ea3ae0 : 0xffffff800337bcab
0xffffffa198ea3b20 : 0xffffff800335cdbe
0xffffffa198ea3b60 : 0xffffff800335cbe4
0xffffffa198ea3d40 : 0xffffff800335d019
0xffffffa198ea3f40 : 0xffffff8003769ceb
0xffffffa198ea3fa0 : 0xffffff80030621f6
Kernel Extensions in backtrace:
com.apple.filesystems.apfs(1677.50.1)[F58A8B8C-6A8B-3186-9197-1D098B799F1A]@0xffffff800606c000->0xffffff80061cefff
dependency: com.apple.driver.AppleEFINVRAM(2.1)[78808055-9D80-3318-8BEE-4C545178A586]@0xffffff8004455000->0xffffff800445efff
dependency: com.apple.driver.AppleEffaceableStorage(1.0)[D239B6A7-DBDE-304E-B049-A9A5A4FD3C5A]@0xffffff8004468000->0xffffff800446dfff
dependency: com.apple.iokit.CoreAnalyticsFamily(1)[BD9FAC59-1D74-38B6-95AE-BCD7E56A3A64]@0xffffff80048a3000->0xffffff80048a9fff
dependency: com.apple.iokit.IOStorageFamily(2.1)[3FE3BE82-782C-3D93-8EFA-F06A4594D17C]@0xffffff8005b37000->0xffffff8005b48fff
dependency: com.apple.kec.corecrypto(1.0)[42140686-EB80-38BB-8CDD-E6CFECB83A5A]@0xffffff80061fc000->0xffffff8006288fff
dependency: com.apple.security.AppleImage4(3.0.0)[018822B1-ADD1-376F-8619-ACA92FA4438C]@0xffffff80044ca000->0xffffff80044d9fff

Process name corresponding to current thread: dirhelper

Mac OS version:
20B29

Kernel version:
Darwin Kernel Version 20.1.0: Sat Oct 31 00:07:11 PDT 2020; root:xnu-7195.50.7~2/RELEASE_X86_64
Kernel UUID: 84C6DC45-6B02-335F-9439-5D2A9BC385A4
KernelCache slide: 0x0000000002e00000
KernelCache base: 0xffffff8003000000
Kernel slide: 0x0000000002e10000
Kernel text base: 0xffffff8003010000
__HIB text base: 0xffffff8002f00000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: NO
Panic diags file available: NO (0xe00002bc)
Hibernation exit count: 0

System uptime in nanoseconds: 81771173975
Last Sleep: absolute base_tsc base_nano
Uptime : 0x0000001309f123a3
Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000
Wake : 0x0000000000000000 0x0000002ae9385f54 0x0000000000000000
last started kext at 81662498343: @filesystems.afpfs 11.3 (addr 0xffffff7fa339b000, size 315392)
loaded kexts:
org.virtualbox.kext.VBoxNetAdp 6.1.16
org.virtualbox.kext.VBoxNetFlt 6.1.16
org.virtualbox.kext.VBoxUSB 6.1.16
org.virtualbox.kext.VBoxDrv 6.1.16
as.vit9696.WhateverGreen 1.4.4
as.vit9696.Lilu 1.4.9
@filesystems.afpfs 11.3
@nke.asp_tcp 8.2
>AGPM 119
@filesystems.autofs 3.0
@fileutil 20.036.15
>!AUpstreamUserClient 3.6.8
>!AMCCSControl 1.14
@kext.AMDFramebuffer 4.0.0
>AudioAUUC 1.70
@kext.AMDRadeonServiceManager 4.0.0
@kext.AMDRadeonX4000 4.0.0
>!AGraphicsDevicePolicy 6.1.27
@AGDCPluginDisplayMetrics 6.1.27
>pmtelemetry 1
>LuaHardwareAccess 1.0.16
>!AHDAHardwareConfigDriver 283.15
|IOUserEthernet 1.0.1
>usb.!UUserHCI 1
>!AHDA 283.15
|IO!BSerialManager 8.0.1f5
@Dont_Steal_Mac_OS_X 7.0.0
>!AMikeyHIDDriver 131
>!AHV 1
>!ADiskImages2 1
>!A!ISlowAdaptiveClocking 4.0.0
>!AMikeyDriver 283.15
>!AFWOHCI 5.7.4
>!AGFXHDA 100.1.431
@kext.AMD9500!C 4.0.0
>!ALPC 3.1
>!A!IMCEReporter 115
>!AFIVRDriver 4.1.0
>ACPI_SMC_PlatformPlugin 1.0.0
|IO!BUSBDFU 8.0.1f5
>Core!SFsck 554
>!AFileSystemDriver 3.0.1
@filesystems.tmpfs 1
@filesystems.hfs.kext 556.41.1
@BootCache 40
@!AFSCompression.!AFSCompressionTypeZlib 1.0.0
@!AFSCompression.!AFSCompressionTypeDataless 1.0.0d1
|SCSITaskUserClient 436.40.6
@filesystems.apfs 1677.50.1
>!I82574LEthernet 2.7.2
>!AAHCIPort 346
@private.KextAudit 1.0
>!ARTC 2.0
>!AHPET 1.8
>!AACPIButtons 6.1
>!ASMBIOS 2.1
>!AACPIEC 6.1
>!AAPIC 1.7
>!A!ICPUPowerManagementClient 222.0.0
@!ASystemPolicy 2.0.0
@nke.applicationfirewall 310
|IOKitRegistryCompatibility 1
|EndpointSecurity 1
>!A!ICPUPowerManagement 222.0.0
$SecureRemotePassword 1.0
|IOUSBUserClient 900.4.2
@kext.triggers 1.0
>!AHIDKeyboard 222
@kext.AMDRadeonX4000HWLibs 1.0
|IOAccelerator!F2 439.35.4
@kext.AMDRadeonX4000HWServices 4.0.0
>!AGraphicsControl 6.1.27
>DspFuncLib 283.15
@kext.OSvKernDSPLib 529
|IOSerial!F 11
|IOAVB!F 900.12
@plugin.IOgPTPPlugin 900.11
|IOEthernetAVB!C 1.1.0
@!AGPUWrangler 6.1.27
|IOSlowAdaptiveClocking!F 1.0.0
|IOFireWire!F 4.8.3
>!AHDA!C 283.15
|IOHDA!F 283.15
>!ASMBus!C 1.0.18d1
|IONDRVSupport 585
>!UAudio 401.4
|IOAudio!F 300.6.1
@vecLib.kext 1.2.0
>!ASMBusPCI 1.0.14d1
@kext.AMDSupport 4.0.0
@!AGraphicsDeviceControl 6.1.27
|IOGraphics!F 585
>IOPlatformPluginLegacy 1.0.0
>IOPlatformPlugin!F 6.0.0d8
>usb.IOUSBHostHIDDevice 1.2
|Broadcom!BHost!CUSBTransport 8.0.1f5
|IO!BHost!CUSBTransport 8.0.1f5
|IO!BHost!CTransport 8.0.1f5
>Core!S 554
|IOAHCIBlock!S 332
>usb.cdc 5.0.0
>usb.networking 5.0.0
>usb.!UHostCompositeDevice 1.2
>usb.!UHub 1.2
>!ABSDKextStarter 3
|IOSurface 289.3
|IOSkywalk!F 1
>mDNSOffloadUserClient 1.0.1b8
@filesystems.hfs.encodings.kext 1
|IOSCSIMultimediaCommandsDevice 436.40.6
|IOBD!S!F 1.8
|IODVD!S!F 1.8
|IOCD!S!F 1.8
|IOAHCISerialATAPI 268
>!AXsanScheme 3
>usb.!UHostPacketFilter 1.0
|IOUSB!F 900.4.2
|IOAHCI!F 294
>usb.!UEHCIPCI 1.2
>usb.!UXHCIPCI 1.2
>usb.!UXHCI 1.2
>usb.!UUHCIPCI 1.2
>usb.!UUHCI 1.2
>usb.!UEHCI 1.2
|IONVMe!F 2.1.0
>!AEFINVRAM 2.1
>!AEFIRuntime 2.1
|IOSMBus!F 1.1
|IOHID!F 2.0.0
$!AImage4 3.0.0
|IOTimeSync!F 900.11
|IONetworking!F 3.4
>DiskImages 493.0.0
|IO!B!F 8.0.1f5
|IOReport!F 47
|IO!BPacketLogger 8.0.1f5
$quarantine 4
$sandbox 300.0
@Kext.!AMatch 1.0.0d1
|CoreAnalytics!F 1
>!ASSE 1.0
>!AKeyStore 2
>!UTDM 511.40.9
|IOUSBMass!SDriver 184.40.6
|IOSCSIBlockCommandsDevice 436.40.6
|IO!S!F 2.1
|IOSCSIArchitectureModel!F 436.40.6
>!AMobileFileIntegrity 1.0.5
@kext.CoreTrust 1
>!AFDEKeyStore 28.30
>!AEffaceable!S 1.0
>!ACredentialManager 1.0
>KernelRelayHost 1
|IOUSBHost!F 1.2
>!UHostMergeProperties 1.2
>usb.!UCommon 1.0
>!ABusPower!C 1.0
>!ASEPManager 1.0.1
>IOSlaveProcessor 1
>!AACPIPlatform 6.1
>!ASMC 3.1.9
|IOPCI!F 2.9
|IOACPI!F 1.4
>watchdog 1
@kec.pthread 1
@kec.corecrypto 1.0
@kec.Libm 1

startergo · Nov 27, 2020

joevt said:
Is there a reason why you want to use Boot Camp Assistant to create the partition? Just use Disk Utility.app. It probably should not be MBR if the disk is external. Besides, you have a new Mac (from 2018) so it should use UEFI.

I guess that works too:

Resize APFS and create BOOTCAMP

GitHub Gist: instantly share code, notes, and snippets.

gist.github.com

Erase BOOTCAMP partition:

Code:

sudo diskutil eraseVolume free free disk1s3

To resize the APFS Container to the whole drive:

Resizing a macOS VM’s APFS boot drive to use all available disk space

A while back, I wrote a post on how to resize the boot drive of an existing virtual machine. However, that guidance only applies to a boot drive that uses HFS+ for its filesystem. Now that Apple Fi…

derflounder.wordpress.com

@joevt There is a difference when Bootcamp is created from the Bootcamp assistant in Catalina and manually:

Code:

 p
Disk \\.\physicaldrive0: 61279344 sectors, 233.8 GiB
Sector size (logical): 4096 bytes
Disk identifier (GUID): B44AD43D-8DE9-4F9E-ACBC-A19BABCBD065
Partition table holds up to 128 entries
Main partition table begins at sector 2 and ends at sector 5
First usable sector is 6, last usable sector is 61279338
Partitions will be aligned on 2-sector boundaries
Total free space is 107 sectors (428.0 KiB)

Number  Start (sector)    End (sector)  Size       Code  Name
   1               6           76805   300.0 MiB   EF00  EFI System Partition
   2           76806        45975295   175.1 GiB   AF0A
   3        45975296        61279231   58.4 GiB    0700


p
Disk \\.\physicaldrive1: 976773168 sectors, 465.8 GiB
Sector size (logical): 512 bytes
Disk identifier (GUID): 021B5A2D-074C-4CC0-BD6C-911A279F05BD
Partition table holds up to 128 entries
Main partition table begins at sector 2 and ends at sector 33
First usable sector is 34, last usable sector is 976773134
Partitions will be aligned on 8-sector boundaries
Total free space is 845 sectors (422.5 KiB)

Number  Start (sector)    End (sector)  Size       Code  Name
   1              40          409639   200.0 MiB   EF00  EFI System Partition
   2          409640       488690887   232.8 GiB   AF0A
   3       488691712       976773119   232.7 GiB   0700  WINDOWSEXT

The Windows on the external drive can see only the partitions installed on the same drive, whereas the Windows installed on the internal drive through Bootcamp assistant can see all drives and partitions.

DigitaLife · Nov 27, 2020

cdf said:
OpenCore on Legacy Apple Hardware

This guide explains how to use the excellent OpenCore bootloader on a classic Mac Pro to install, run and update macOS Catalina, resulting in a clean, unpatched operating system no different than on a supported Mac.

Why OpenCore?

There are several advantages to using OpenCore on a classic Mac Pro:

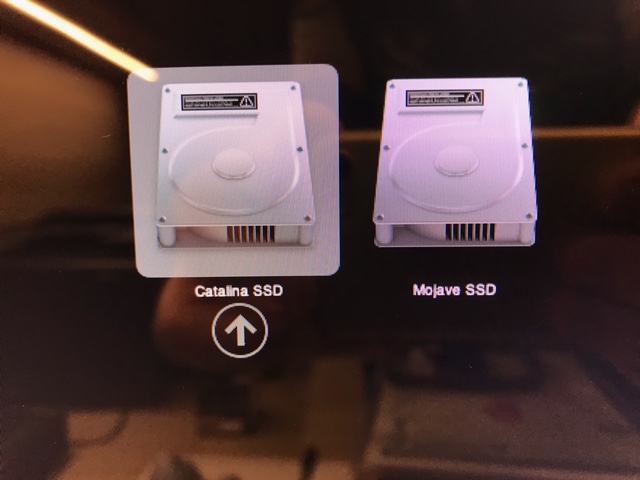

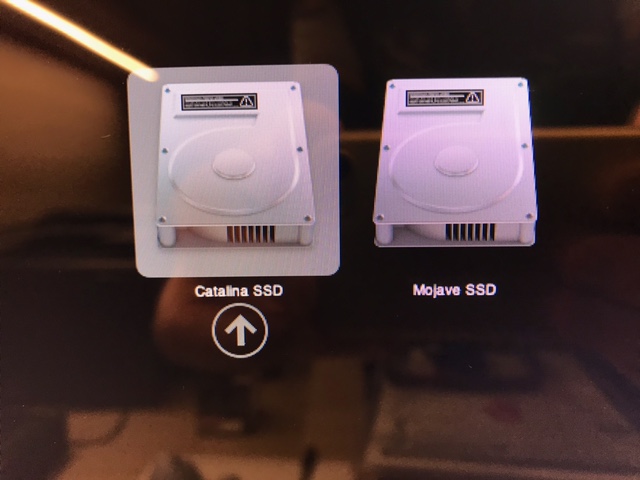

Boot picker screen (even with a standard graphics card)
View attachment 916024
Software Update (just like on a supported Mac)
View attachment 882160
Hardware acceleration (and DRM for Netflix on Safari)View attachment 919405
Requirements

Mac Pro model Early 2009 with MacPro5,1 firmware,* Mid 2010 or Mid 2012
Processor architecture Westmere (E56xx, L56xx, X56xx) / Gulftown (W36xx)
Boot ROM version 144.0.0.0.0*
Graphics Catalina supported GPU**, EFI (flashed) or a standard UEFI card (PC GPU)

* Need to upgrade? See the upgrade instructions.
** Several GPUs that are supported with High Sierra had support removed from Mojave and Catalina, like any non-Kepler generation NVIDIA GPUs or AMD GPUs earlier than HD 7950. Several HD 78xx GPUs (Pitcairn) were rebadged as R9 2xx and are not supported anymore by Mojave/Catalina drivers. All Mac Pro factory GPUs had support removed with Mojave.

PART I
Basic Installation

PART II
Advanced Configuration

PART III
Maintenance

APPENDIX

Acknowledgements

A big thank you to @vit9696 and the other talented developers of Acidanthera for making all of this possible. Special gratitude goes to @h9826790 for spearheading the hardware acceleration study and @startergo for the relentless testing that led to boot screen support. And thanks to all those that have contributed to this thread!

Today I replaced the Sapphire RX 580 card with the Radeon VII (with Pixlas Mod) and with native Mojave it works great but when I reinstall OC 0.5.9 it doesn't work.
I tried to install 0.6.3 too but I can't install it because the bless fails and keeps giving me an error!
Should I do anything other than OC guide?
Until now with the RX 580, OC 0.5.9 and Catalina I have never had any problems with my 5.1 cMP!
Help me pls!!! Thanks!

h9826790 · Nov 27, 2020

DigitaLife said:
Today I replaced the Sapphire RX 580 card with the Radeon VII (with Pixlas Mod) and with native Mojave it works great but when I reinstall OC 0.5.9 it doesn't work.
I tried to install 0.6.3 too but I can't install it because the bless fails and keeps giving me an error!
Should I do anything other than OC guide?
Until now with the RX 580, OC 0.5.9 and Catalina I have never had any problems with my 5.1 cMP!
Help me pls!!! Thanks!

Should makes no difference. At least, GPU won't cause bless fail (this usually because the user forgot to disable SIP).

DigitaLife · Nov 27, 2020

h9826790 said:
Should makes no difference. At least, GPU won't cause bless fail (this usually because the user forgot to disable SIP).

Disabling SIP is the first thing I do!

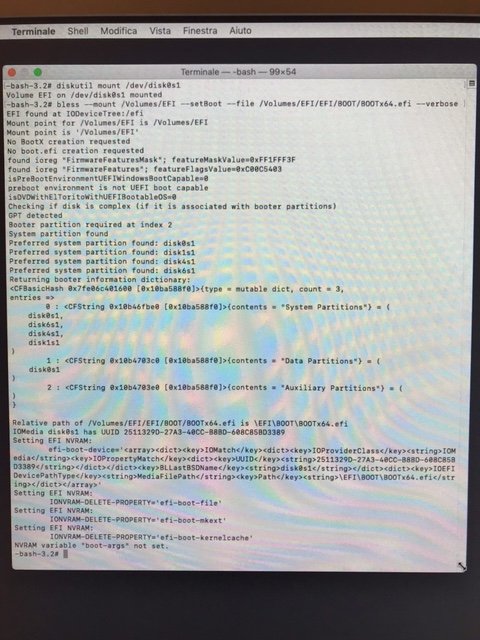

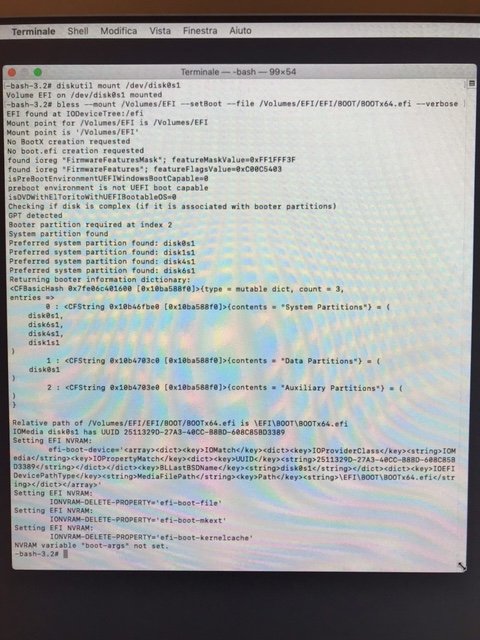

Unfortunately as you can see from the picture of the Terminal the bless is not successful (it doesn't happen correctly) and when I restart the choice is locked on "Catalina" (on monitor #1) and I can only press enter... strangely then (very slowly) monitor #1 turns black and the login screen of "Mojave" appears on monitor #2.
Even while logging in monitor #1 remains black!
It's really a mystery!
The only thing I've changed is the graphics card and when I boot from native Mojave (without OC), everything works fine!
Please help me! Thanks in advance!

Translated with www.DeepL.com/Translator (free version)

joevt · Nov 27, 2020

startergo said:
I guess that works too:

Resize APFS and create BOOTCAMP

GitHub Gist: instantly share code, notes, and snippets.

gist.github.com

Erase BOOTCAMP partition:

Code:

sudo diskutil eraseVolume free free disk1s3

To resize the APFS Container to the whole drive:

Resizing a macOS VM’s APFS boot drive to use all available disk space

A while back, I wrote a post on how to resize the boot drive of an existing virtual machine. However, that guidance only applies to a boot drive that uses HFS+ for its filesystem. Now that Apple Fi…

derflounder.wordpress.com

@joevt There is a difference when Bootcamp is created from the Bootcamp assistant in Catalina and manually:

Code:

p Disk \\.\physicaldrive0: 61279344 sectors, 233.8 GiB Sector size (logical): 4096 bytes Disk identifier (GUID): B44AD43D-8DE9-4F9E-ACBC-A19BABCBD065 Partition table holds up to 128 entries Main partition table begins at sector 2 and ends at sector 5 First usable sector is 6, last usable sector is 61279338 Partitions will be aligned on 2-sector boundaries Total free space is 107 sectors (428.0 KiB) Number Start (sector) End (sector) Size Code Name 1 6 76805 300.0 MiB EF00 EFI System Partition 2 76806 45975295 175.1 GiB AF0A 3 45975296 61279231 58.4 GiB 0700 p Disk \\.\physicaldrive1: 976773168 sectors, 465.8 GiB Sector size (logical): 512 bytes Disk identifier (GUID): 021B5A2D-074C-4CC0-BD6C-911A279F05BD Partition table holds up to 128 entries Main partition table begins at sector 2 and ends at sector 33 First usable sector is 34, last usable sector is 976773134 Partitions will be aligned on 8-sector boundaries Total free space is 845 sectors (422.5 KiB) Number Start (sector) End (sector) Size Code Name 1 40 409639 200.0 MiB EF00 EFI System Partition 2 409640 488690887 232.8 GiB AF0A 3 488691712 976773119 232.7 GiB 0700 WINDOWSEXT

The Windows on the external drive can see only the partitions installed on the same drive, whereas the Windows installed on the internal drive through Bootcamp assistant can see all drives and partitions.

That means one of two things:
a) the manually created Bootcamp was not created correctly
b) booting from external differs from booting from internal - what if you swapped the drives?

Question: are you wanting to boot BIOS or UEFI? Do they both boot UEFI or BIOS or mix? As far as I know, you can't boot BIOS on external drives. There's a info window in Windows that tells what the boot method was, right?

startergo · Nov 27, 2020

joevt said:
Question: are you wanting to boot BIOS or UEFI? Do they both boot UEFI or BIOS or mix?

UEFI is the only option for OC. Hybrid is safe for the cMP, but only rEFInd can boot that so far.
So they are both GPT disks, but pay attention to the start sectors difference.
All GPT partitions start at sector 40, but the one created by Apple's Bootcamp starts at 6.

Details of Disk Utility’s partitioning decisions

I decided it was time I became familiar with the nuts and bolts of how disks on Macs are partitioned by Disk Utility, and why.

ericfromcanada.github.io

Code:

 sudo gpt show /dev/disk0
     start      size  index  contents
         0         1         PMBR
         1         1         Pri GPT header
         2         4         Pri GPT table
         6     76800      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
     76806  45898490      2  GPT part - 7C3457EF-0000-11AA-AA11-00306543ECAC
  45975296  15303936      3  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
  61279232       107
  61279339         4         Sec GPT table
  61279343         1         Sec GPT header

Code:

sudo gpt show /dev/disk1
      start       size  index  contents
          0          1         PMBR
          1          1         Pri GPT header
          2         32         Pri GPT table
         34          6
         40     409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
     409640  488281248      2  GPT part - 7C3457EF-0000-11AA-AA11-00306543ECAC
  488690888        824
  488691712  488081408      3  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
  976773120         15
  976773135         32         Sec GPT table
  976773167          1         Sec GPT header

And here is the Big Sur BOOTCAMP partition creation on a cMP (hybrid partition)

Code:

sudo gpt show /dev/disk10
gpt show: /dev/disk10: Suspicious MBR at sector 0
      start       size  index  contents
          0          1         MBR
          1          1         Pri GPT header
          2          4         Pri GPT table
          6      76800      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
      76806   60058593      2  GPT part - 7C3457EF-0000-11AA-AA11-00306543ECAC
   60135399         25
   60135424   57077248      3  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
  117212672        209
  117212881          4         Sec GPT table
  117212885          1         Sec GPT header

So the only difference between the UEFI and MBR partitions is PMBR vs MBR.

Code:

Partition and Install: true
2020-11-28 00:20:36.894 Boot Camp Assistant[855:7588] Nothing to purge. Proceeding to resizing operation.
2020-11-28 00:20:36.923 Boot Camp Assistant[855:7588] Physical disk: disk10s2
2020-11-28 00:20:37.019 Boot Camp Assistant[855:7588] Resizing target disk down to 246 GB
2020-11-28 00:20:37.020 Boot Camp Assistant[855:7588] Creating MBR partition...
2020-11-28 00:20:37.020 Boot Camp Assistant[855:7588] Creating Boot Camp partitions on Disk: disk17
2020-11-28 00:20:37.021 Boot Camp Assistant[855:7588] Canceling boot cache defrag on disk17
2020-11-28 00:20:37.022 Boot Camp Assistant[855:7588] OSStatus = 0x0
2020-11-28 00:20:37.022 Boot Camp Assistant[855:7588] APFS Status = 0x0
2020-11-28 00:20:37.161 Boot Camp Assistant[855:7588] Partition started
2020-11-28 00:20:37.362 Boot Camp Assistant[855:7588] DM: Aligning shrink delta to 233,789,366,272 bytes and targeting a new physical store size of 245,999,996,928 bytes
2020-11-28 00:20:37.363 Boot Camp Assistant[855:7588] DM: Determined the minimum size for the targeted physical store of this APFS Container to be 25,534,922,752 bytes
2020-11-28 00:20:37.368 Boot Camp Assistant[855:7588] DM: Resizing APFS Container designated by APFS Container Reference disk17
2020-11-28 00:20:37.369 Boot Camp Assistant[855:7588] DM: The specific APFS Physical Store being resized is disk10s2
2020-11-28 00:20:48.928 Boot Camp Assistant[855:7588] DM: Verifying storage system
2020-11-28 00:20:48.929 Boot Camp Assistant[855:7588] DM: Using live mode.
2020-11-28 00:20:48.930 Boot Camp Assistant[855:7588] DM: Performing fsck_apfs -n -x -l /dev/disk10s2
2020-11-28 00:20:49.164 Boot Camp Assistant[855:7588] DM: Checking the container superblock.
2020-11-28 00:20:49.165 Boot Camp Assistant[855:7588] DM: Checking the EFI jumpstart record.
2020-11-28 00:20:49.167 Boot Camp Assistant[855:7588] DM: Checking the space manager.
2020-11-28 00:20:49.168 Boot Camp Assistant[855:7588] DM: Checking the space manager free queue trees.
2020-11-28 00:20:49.170 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:20:49.171 Boot Camp Assistant[855:7588] DM: Checking volume.
2020-11-28 00:20:49.172 Boot Camp Assistant[855:7588] DM: Checking the APFS volume superblock.
2020-11-28 00:20:49.225 Boot Camp Assistant[855:7588] DM: The volume BigSur - Data was formatted by diskmanagementd (1412.141.1) and last modified by apfs_kext (1677.60.22).
2020-11-28 00:20:49.227 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:20:49.228 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata tree.
2020-11-28 00:20:49.229 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata.
2020-11-28 00:20:49.231 Boot Camp Assistant[855:7588] DM: Checking the extent ref tree.
2020-11-28 00:20:49.939 Boot Camp Assistant[855:7588] DM: Checking the fsroot tree.
2020-11-28 00:20:51.780 Boot Camp Assistant[855:7588] DM: Checking volume.
2020-11-28 00:20:51.781 Boot Camp Assistant[855:7588] DM: Checking the APFS volume superblock.
2020-11-28 00:20:51.783 Boot Camp Assistant[855:7588] DM: The volume Preboot was formatted by diskmanagementd (1412.141.1) and last modified by apfs_kext (1677.60.22).
2020-11-28 00:20:51.784 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:20:51.790 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata tree.
2020-11-28 00:20:51.791 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata.
2020-11-28 00:20:51.792 Boot Camp Assistant[855:7588] DM: Checking the extent ref tree.
2020-11-28 00:20:51.794 Boot Camp Assistant[855:7588] DM: Checking the fsroot tree.
2020-11-28 00:20:51.811 Boot Camp Assistant[855:7588] DM: Checking volume.
2020-11-28 00:20:51.812 Boot Camp Assistant[855:7588] DM: Checking the APFS volume superblock.
2020-11-28 00:20:51.814 Boot Camp Assistant[855:7588] DM: The volume Recovery was formatted by diskmanagementd (1412.141.1) and last modified by apfs_kext (1677.60.22).
2020-11-28 00:20:51.815 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:20:51.816 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata tree.
2020-11-28 00:20:51.818 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata.
2020-11-28 00:20:51.819 Boot Camp Assistant[855:7588] DM: Checking the extent ref tree.
2020-11-28 00:20:51.820 Boot Camp Assistant[855:7588] DM: Checking the fsroot tree.
2020-11-28 00:20:51.821 Boot Camp Assistant[855:7588] DM: Checking volume.
2020-11-28 00:20:51.823 Boot Camp Assistant[855:7588] DM: Checking the APFS volume superblock.
2020-11-28 00:20:51.824 Boot Camp Assistant[855:7588] DM: The volume VM was formatted by diskmanagementd (1412.141.1) and last modified by apfs_kext (1677.60.22).
2020-11-28 00:20:51.825 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:20:51.827 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata tree.
2020-11-28 00:20:51.828 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata.
2020-11-28 00:20:51.830 Boot Camp Assistant[855:7588] DM: Checking the extent ref tree.
2020-11-28 00:20:51.831 Boot Camp Assistant[855:7588] DM: Checking the fsroot tree.
2020-11-28 00:20:51.832 Boot Camp Assistant[855:7588] DM: Checking volume.
2020-11-28 00:20:51.841 Boot Camp Assistant[855:7588] DM: Checking the APFS volume superblock.
2020-11-28 00:20:51.843 Boot Camp Assistant[855:7588] DM: The volume BigSur was formatted by storagekitd (1677.40.13) and last modified by apfs_kext (1677.60.22).
2020-11-28 00:20:51.844 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:20:52.891 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata tree.
2020-11-28 00:20:52.892 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata.
2020-11-28 00:20:52.942 Boot Camp Assistant[855:7588] DM: Checking snapshot 1 of 1 (com.apple.os.update-4ADA504A1CBE79E1577C9599A7AE67015BB42417DFDFB5657DDC81338B6590FB)
2020-11-28 00:21:12.636 Boot Camp Assistant[855:7588] DM: Checking the extent ref tree.
2020-11-28 00:21:12.637 Boot Camp Assistant[855:7588] DM: Checking the fsroot tree.
2020-11-28 00:21:19.636 Boot Camp Assistant[855:7588] DM: Checking the file extent tree.
2020-11-28 00:21:25.244 Boot Camp Assistant[855:7588] DM: Checking volume.
2020-11-28 00:21:25.245 Boot Camp Assistant[855:7588] DM: Checking the APFS volume superblock.
2020-11-28 00:21:25.247 Boot Camp Assistant[855:7588] DM: The volume Update was formatted by com.apple.Mobile (1677.40.13) and last modified by apfs_kext (1677.60.22).
2020-11-28 00:21:25.248 Boot Camp Assistant[855:7588] DM: Checking the object map.
2020-11-28 00:21:25.249 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata tree.
2020-11-28 00:21:25.251 Boot Camp Assistant[855:7588] DM: Checking the snapshot metadata.
2020-11-28 00:21:25.252 Boot Camp Assistant[855:7588] DM: Checking the extent ref tree.
2020-11-28 00:21:25.340 Boot Camp Assistant[855:7588] DM: Checking the fsroot tree.
2020-11-28 00:21:25.342 Boot Camp Assistant[855:7588] DM: Verifying allocated space.
2020-11-28 00:21:25.423 Boot Camp Assistant[855:7588] DM: The volume /dev/disk10s2 appears to be OK.
2020-11-28 00:21:25.534 Boot Camp Assistant[855:7588] DM: Storage system check exit code is 0.
2020-11-28 00:21:25.687 Boot Camp Assistant[855:7588] DM: Shrinking APFS Physical Store disk10s2 from 479,789,363,200 to 245,999,996,928 bytes
2020-11-28 00:21:25.688 Boot Camp Assistant[855:7588] DM: Shrinking APFS data structures
2020-11-28 00:22:20.974 Boot Camp Assistant[855:7588] DM: Shrinking partition
2020-11-28 00:22:21.042 Boot Camp Assistant[855:7588] DM: Modifying partition map
2020-11-28 00:22:21.145 Boot Camp Assistant[855:7588] DM: Volume name      : BOOTCAMP
Partition offset : 60135424 sectors (246314696704 bytes)
Volume size      : 57077248 sectors (233788407808 bytes)
Bytes per sector : 4096
Bytes per cluster: 131072
FAT offset       : 256 sectors (1048576 bytes)
# FAT sectors    : 1792
Number of FATs   : 1
Cluster offset   : 2048 sectors (8388608 bytes)
# Clusters       : 1783600
Volume Serial #  : 5fc1de8d
Bitmap start     : 2
Bitmap file size : 222950
Upcase start     : 4
Upcase file size : 5836
Root start       : 5

dalegribble · Nov 27, 2020

I'm trying to do the windows 10 install, and I'm currently stuck on this part of the install. Where I have to run this command.

Verify the configuration

Close config.plist
In Terminal, enter: plutil -convert xml1 config.plist && plutil config.plist

You should see config.plist: OK. If not, recheck all the steps.

I'm receiving this error

plutil -convert xml1 config.plist && plutil config.plist

config.plist: file does not exist or is not readable or is not a regular file (Error Domain=NSCocoaErrorDomain Code=260 "The file “config.plist” couldn’t be opened because there is no such file." UserInfo={NSFilePath=config.plist, NSUnderlyingError=0x7fcbabd06ed0 {Error Domain=NSPOSIXErrorDomain Code=2 "No such file or directory"}})

Any ideas what I may be doing wrong?

h9826790 · Nov 27, 2020

DigitaLife said:
Disabling SIP is the first thing I do!
Unfortunately as you can see from the picture of the Terminal the bless is not successful (it doesn't happen correctly) and when I restart the choice is locked on "Catalina" (on monitor #1) and I can only press enter... strangely then (very slowly) monitor #1 turns black and the login screen of "Mojave" appears on monitor #2.
Even while logging in monitor #1 remains black!
It's really a mystery!
The only thing I've changed is the graphics card and when I boot from native Mojave (without OC), everything works fine!
Please help me! Thanks in advance!

Translated with www.DeepL.com/Translator (free version)

For quick diagnosis, please read this post, and try the pre-configured OC 0.6.3 package.

This package built from my cMP that is running a Radeon VII.

Activate AMD hardware acceleration

I created a new "easy to install package" as per many requested (based on the official OpenCore). [The attached package updated to 1.0.0] For those who only need HWAccel, post #594 has everything you need. This new package mainly offer HWAccel + boot screen. Also, this package should work in...

forums.macrumors.com

MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

macrumors 603

macrumors member

macrumors 65816

macrumors regular

macrumors regular

macrumors regular

macrumors 65816

macrumors regular

macrumors 6502

macrumors regular

macrumors 603

macrumors 65816

macrumors 603

macrumors 68020

macrumors 603

macrumors 604

macrumors newbie

macrumors 603

macrumors regular

macrumors P6

macrumors regular

Attachments

macrumors 604

macrumors 603

macrumors member

macrumors P6

Our Staff
