Thank you @tsialex as always! Your knowledge overwhelms me!

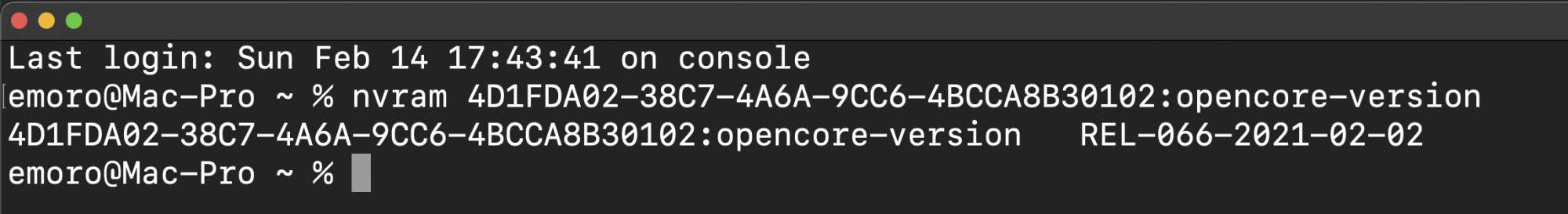

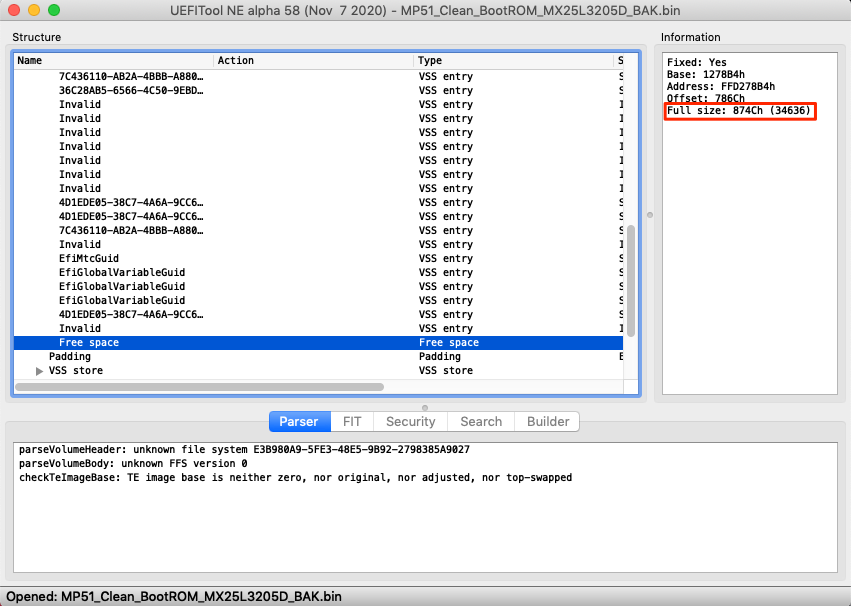

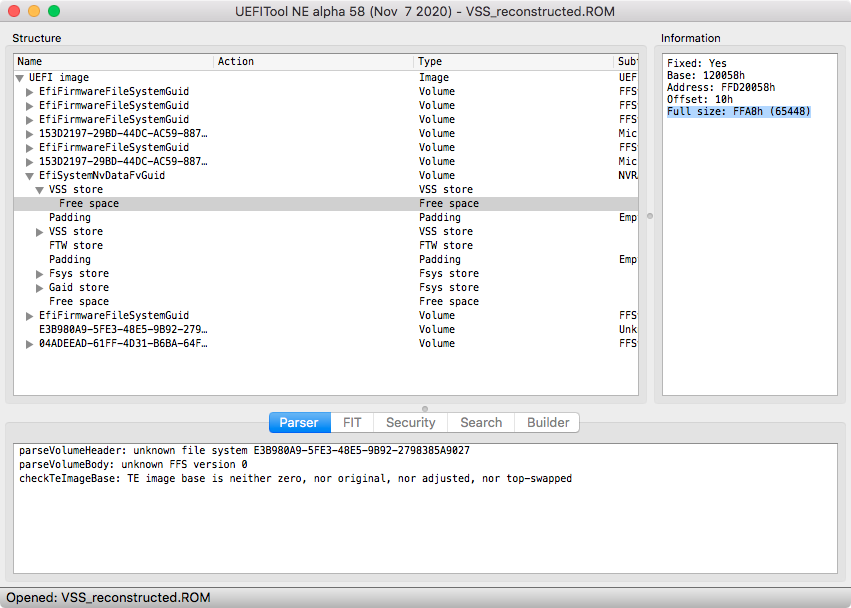

I have fixed my problem just reflashing BootROM using the reconstructed one that you made it for me.
Now everything is ok again
Attachments
Last edited:
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro
- Thread starter cdf
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
I have fixed my problem just reflashing BootROM using the reconstructed one that you made it for me.
Now everything is ok again

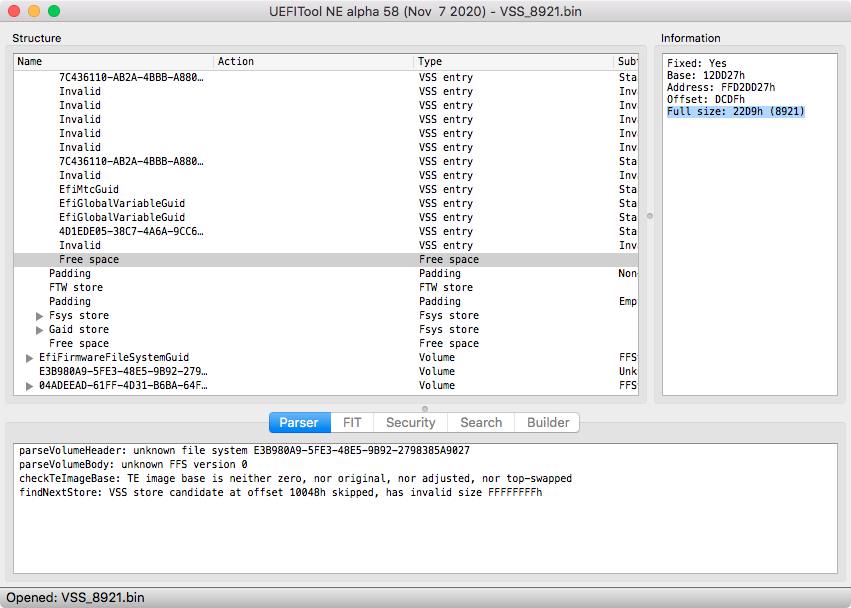

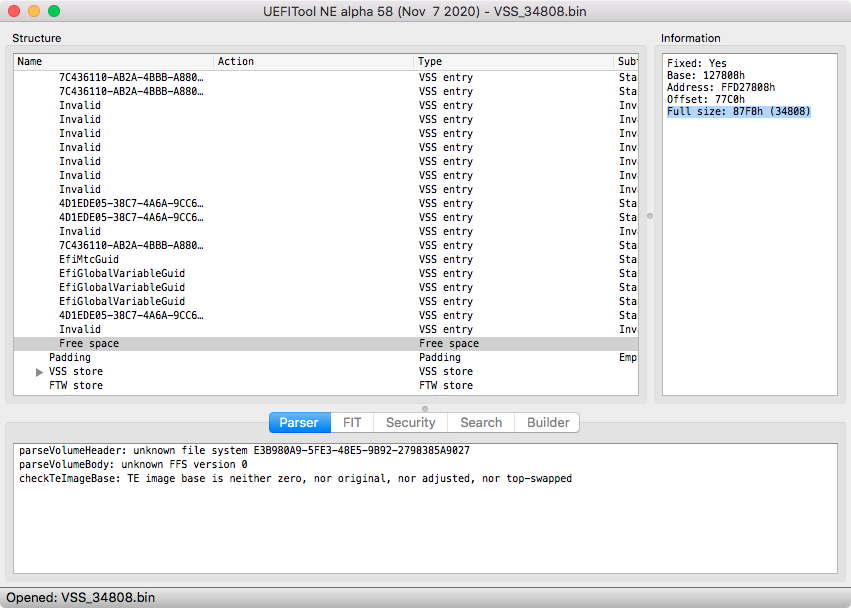

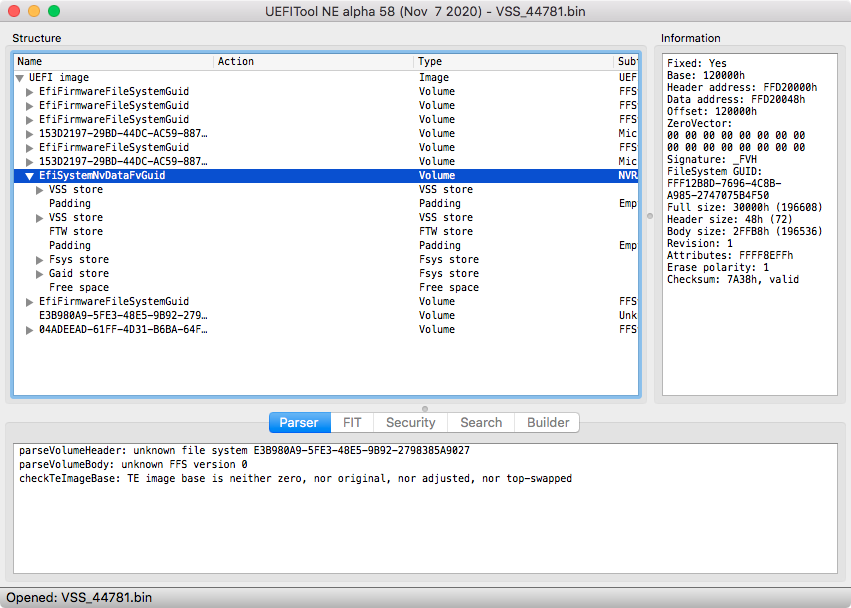

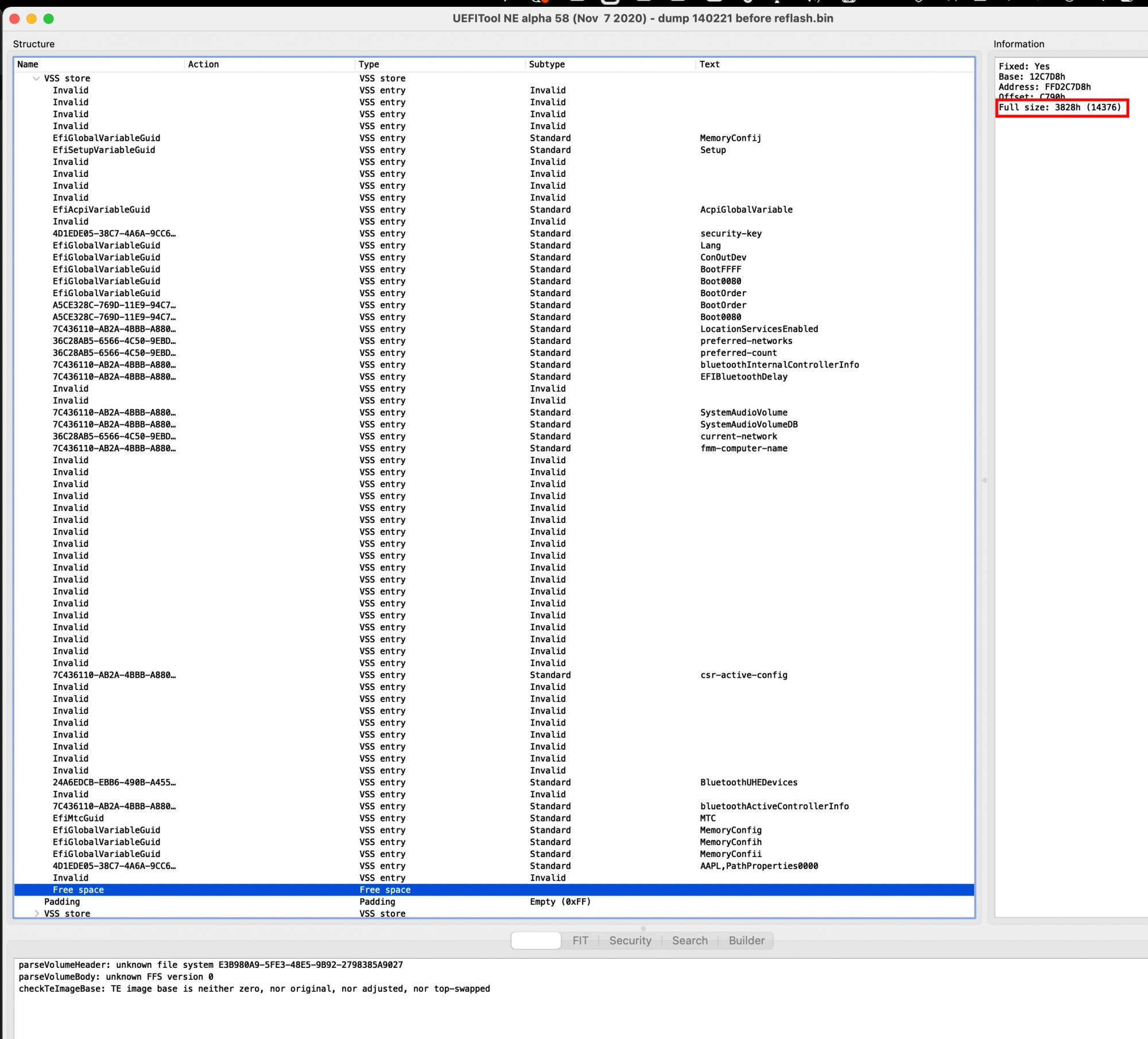

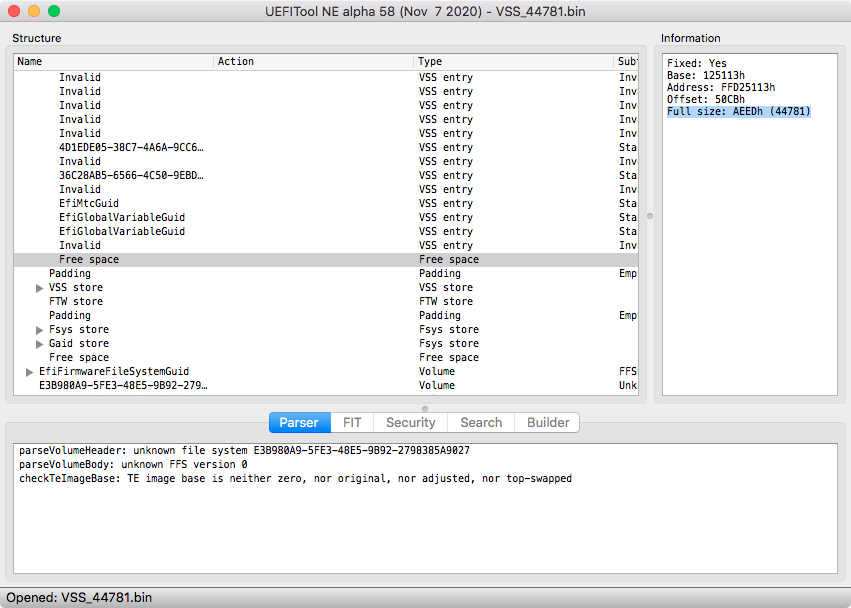

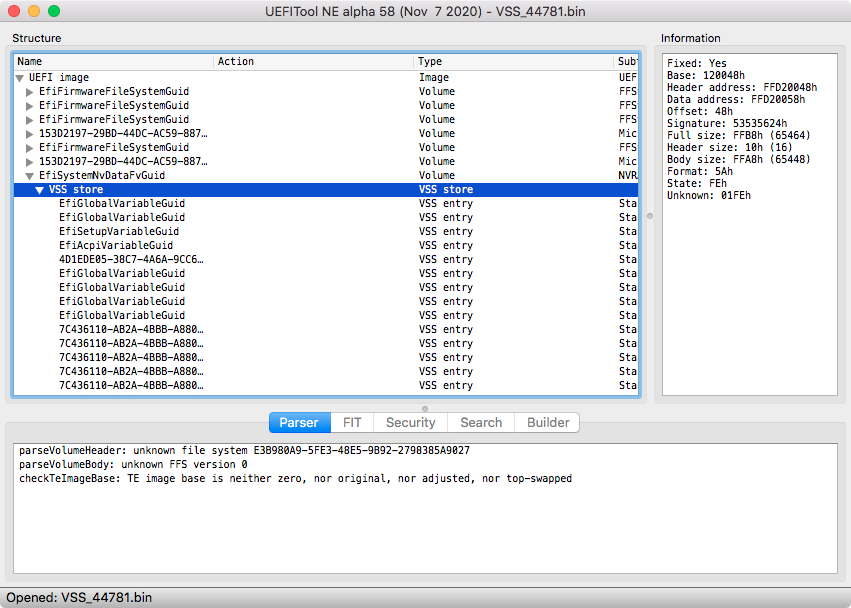

Zapped NVRAM (waited for the 5th chime) and then booted into recovery. Disabled SIP then restarted into vanilla Mojave. Dumped the BootROM and this is the result:
I take it the above is a good sign?
Will be interesting to see how this changes one I re-bless OpenCore. That said, I thought setting
WriteFlash to <false/> prevented OC from writing to NVRAM, instead storing variables into RAM?I will tuck this ROM dump away for safe keeping. OT: What should the free space size be for a clean MP3,1 with 2 processors and 8 DIMMs?
It’s good enough, but you don’t have much headroom.
OC eve with protection enabled still need some variables inside the NVRAM.
MP3,1 have a separate flash memory for the NVRAM, it’s a very different BootROM architecture. You can’t clean it, btw.
Differently from a MP4,1/5,1, a failed NVRAM SPI with a MP3,1 still boots, but you can’t bless for example.
Thanks again for sharing your knowledge with me. Much appreciated.
Last couple of questions. How can I confirm garbage collection is working correctly? And since it appears zapping NVRAM in my 5,1 cleans things up to an acceptable level, would you suggest I do this every several months or so? I'd like to keep the SPI flash working as long as possible.
It’s too complex to really know if a NVRAM volume is healthy, you have to know a lot about Apple flavor of the EFI implementation to evaluate it.
Track the space available, it’s the simplest way to see if it’s still doing it’s job.
Like I wrote, I flash my never booted image every 3 months, I have a recurrent appointment in my calendar.
Understood. Unfortunately I don't have a "never-booted" ROM backup, so will have to flash based on what I have today - or zap until the 5th chime is heard (just to clear space).
Sometimes, when starting with a clean nvram the 4 times nvram reset cleans an exploding stream. Dont ask me why, it happens.
started with a clean nvram, something went nuts with a bootloader, 1st VSS was almost full after only a few boots. In that case the deep nvram reset helped. Of course I have the binwalks and dumps but this is clearly visible.
maybe it was cleaned because of the previous perfect empty stream. I dont know
started with a clean nvram, something went nuts with a bootloader, 1st VSS was almost full after only a few boots. In that case the deep nvram reset helped. Of course I have the binwalks and dumps but this is clearly visible.
maybe it was cleaned because of the previous perfect empty stream. I dont know
When the garbage collection is still working, the circular log is backed up to the second store and the first one is reset.Sometimes, when starting with a clean nvram the 4 times nvram reset cleans an exploding stream. Dont ask me why, it happens.
started with a clean nvram, something went nuts with a bootloader, 1st VSS was almost full after only a few boots. In that case the deep nvram reset helped. Of course I have the binwalks and dumps but this is clearly visible.
maybe it was cleaned because of the previous perfect empty stream. I dont know

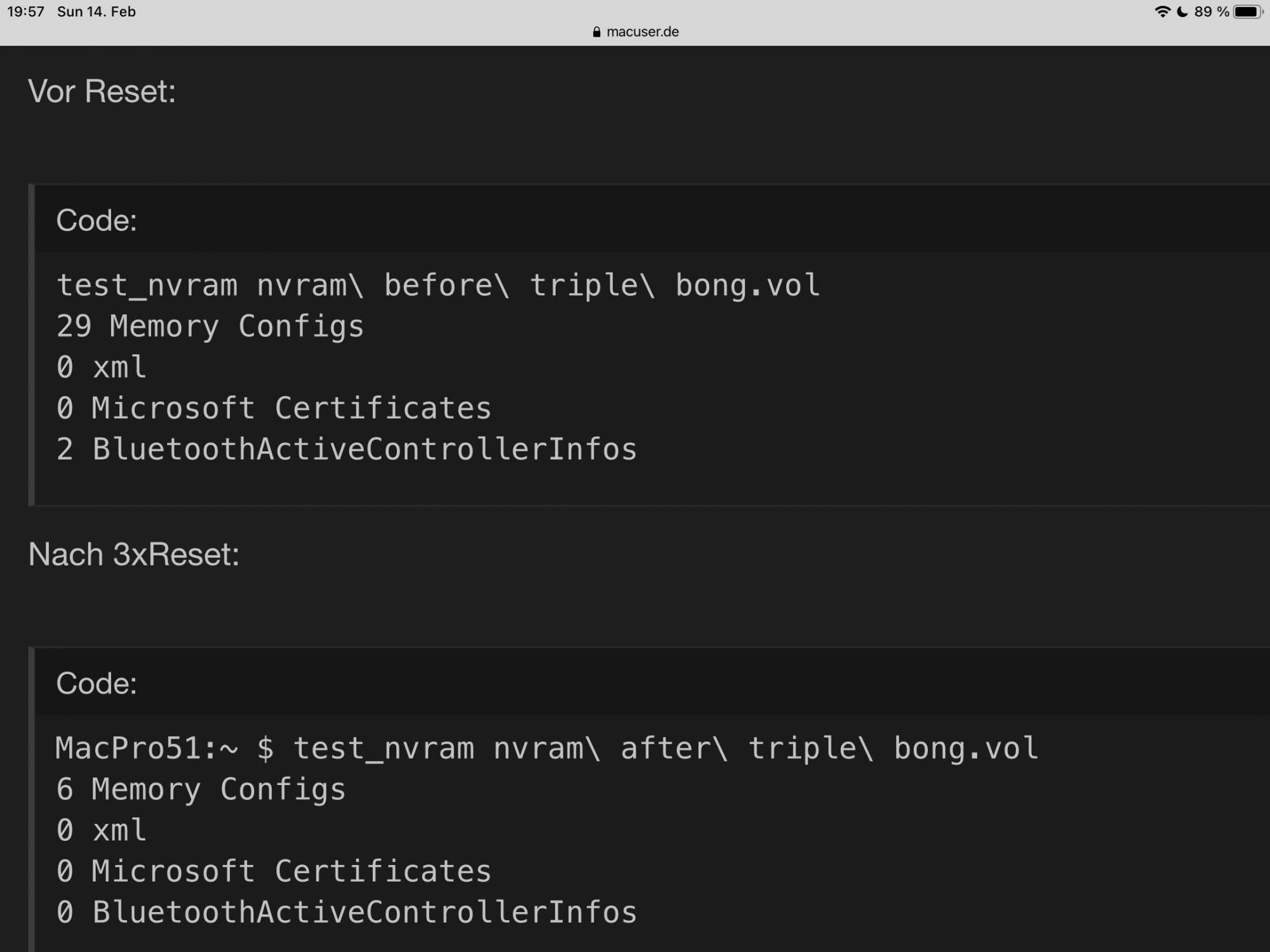

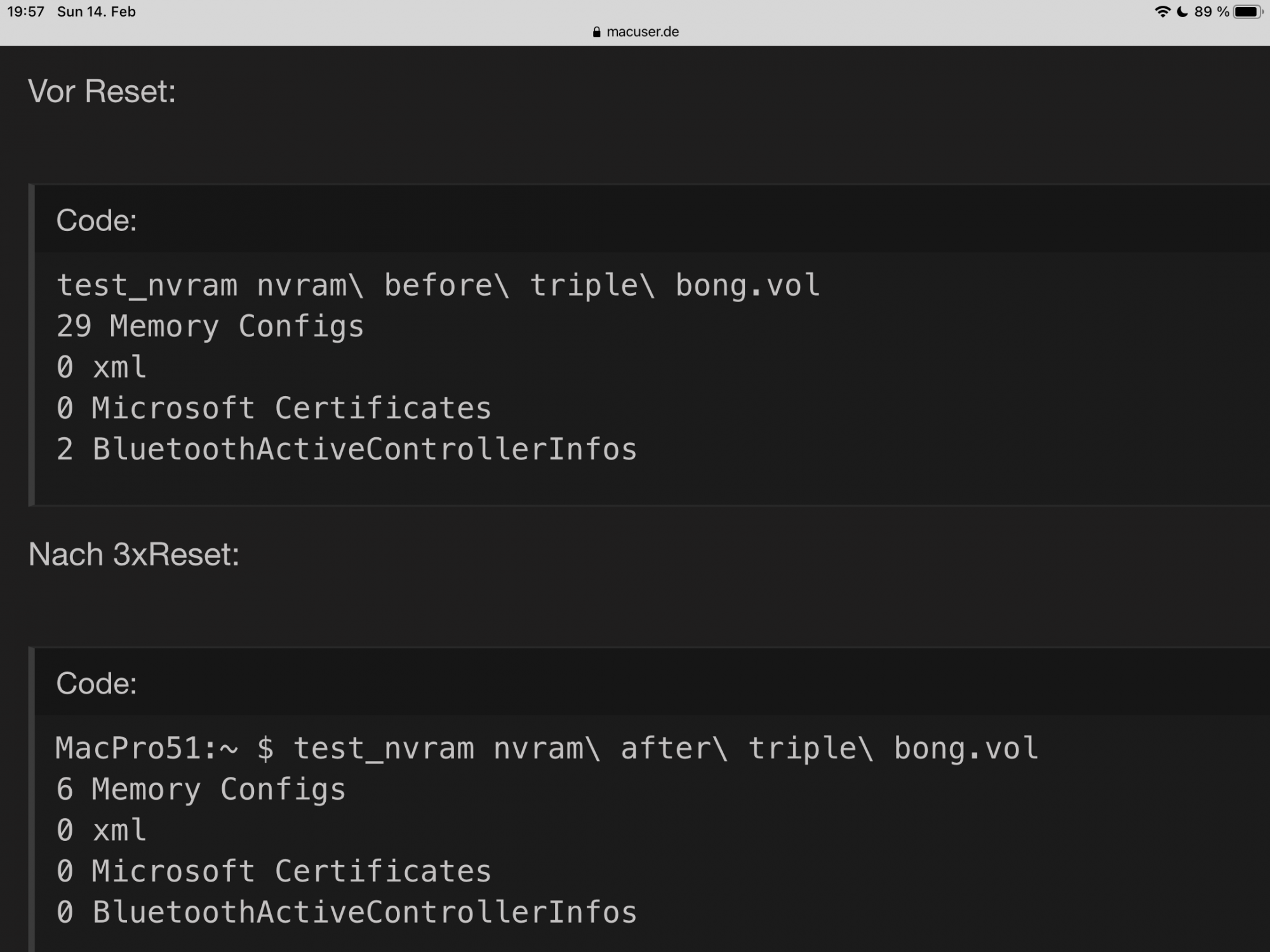

View attachment 1730147

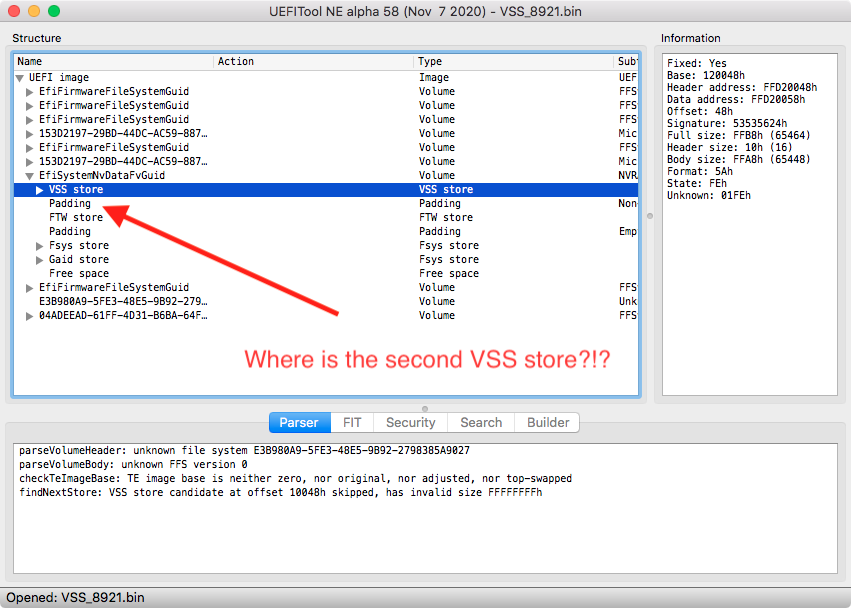

If the circular log lost the control of the head/tail, just the second store is cleaned and the 1st stays as is, that's why some dumps have a crazy 1st VSS store and a pristine 2nd VSS recently cleaned.
yes, it only works with prestine streams. I tried it with messed streams and with luck the deep nvram reset helped to free up a little but not even close to the results when starting with a clean stream.
So second it that everyone should have at least a rom backup or even better a cleaned up firmware to refresh.

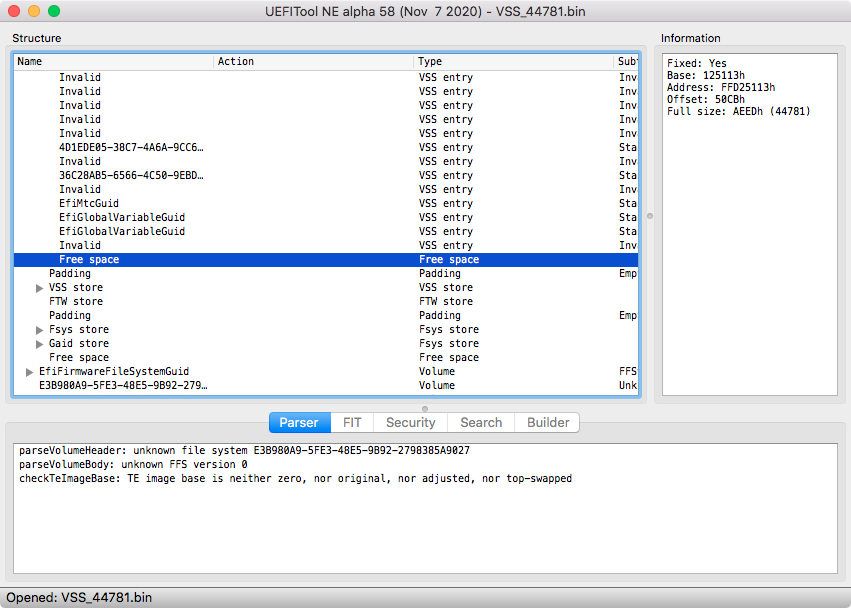

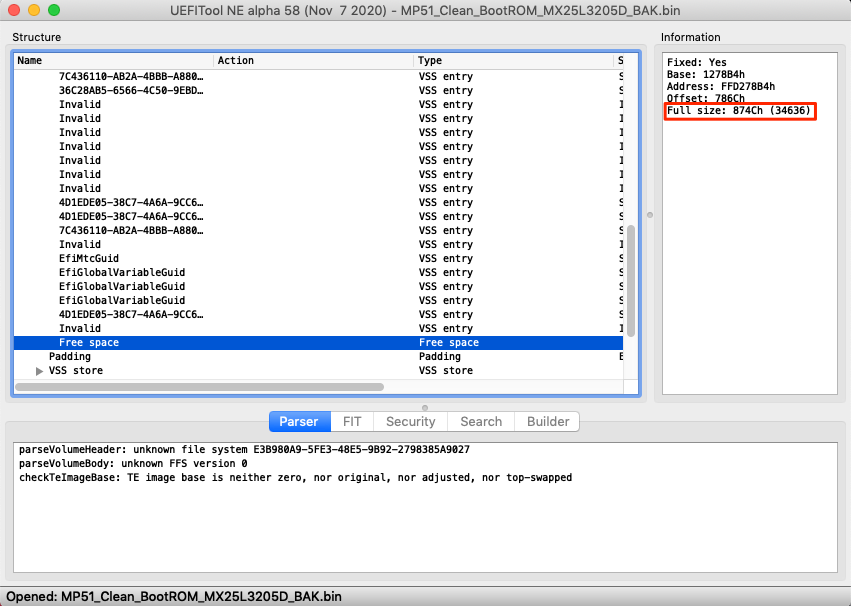

This is the Free Space of my dumped BootROM before I reflashed today because of my issue: 14376. This copy was a clean/reconstructed one exactly on November 16th ( 3 months ago ). I am not a very busy computer engineer... I am just a user... I have really done many changes in Opencore in the lasts few weeks.... that is true....
