Sorry to say, but something is really wrong with your SATA controller. Why not a slot deeper? Then the card does not have to be bent like this.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP All Models PCIe SSDs - NVMe & AHCI
- Thread starter MisterAndrew
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
Sorry to say, but something is really wrong with your SATA controller. Why not a slot deeper? Then the card does not have to be bent like this.

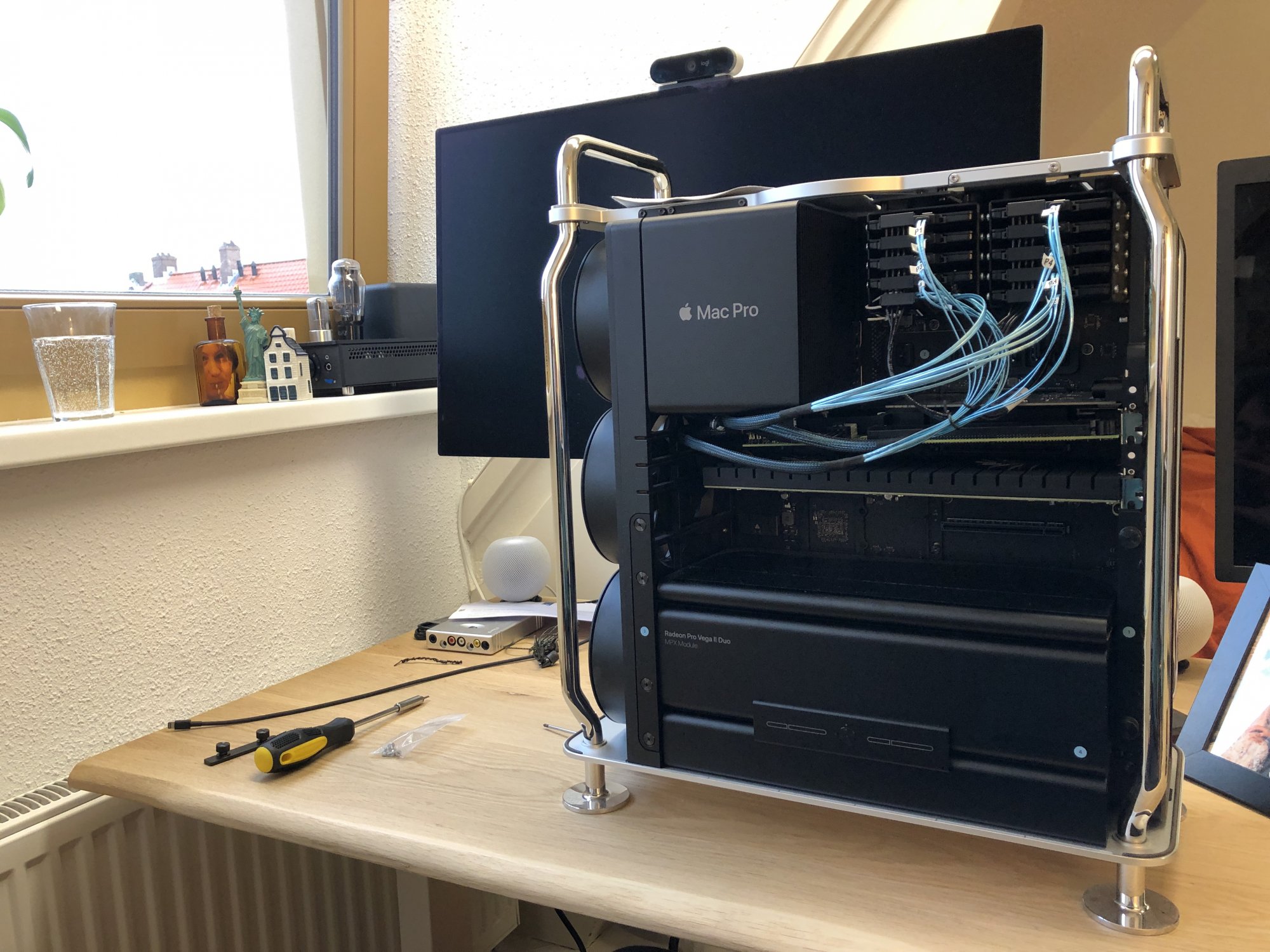

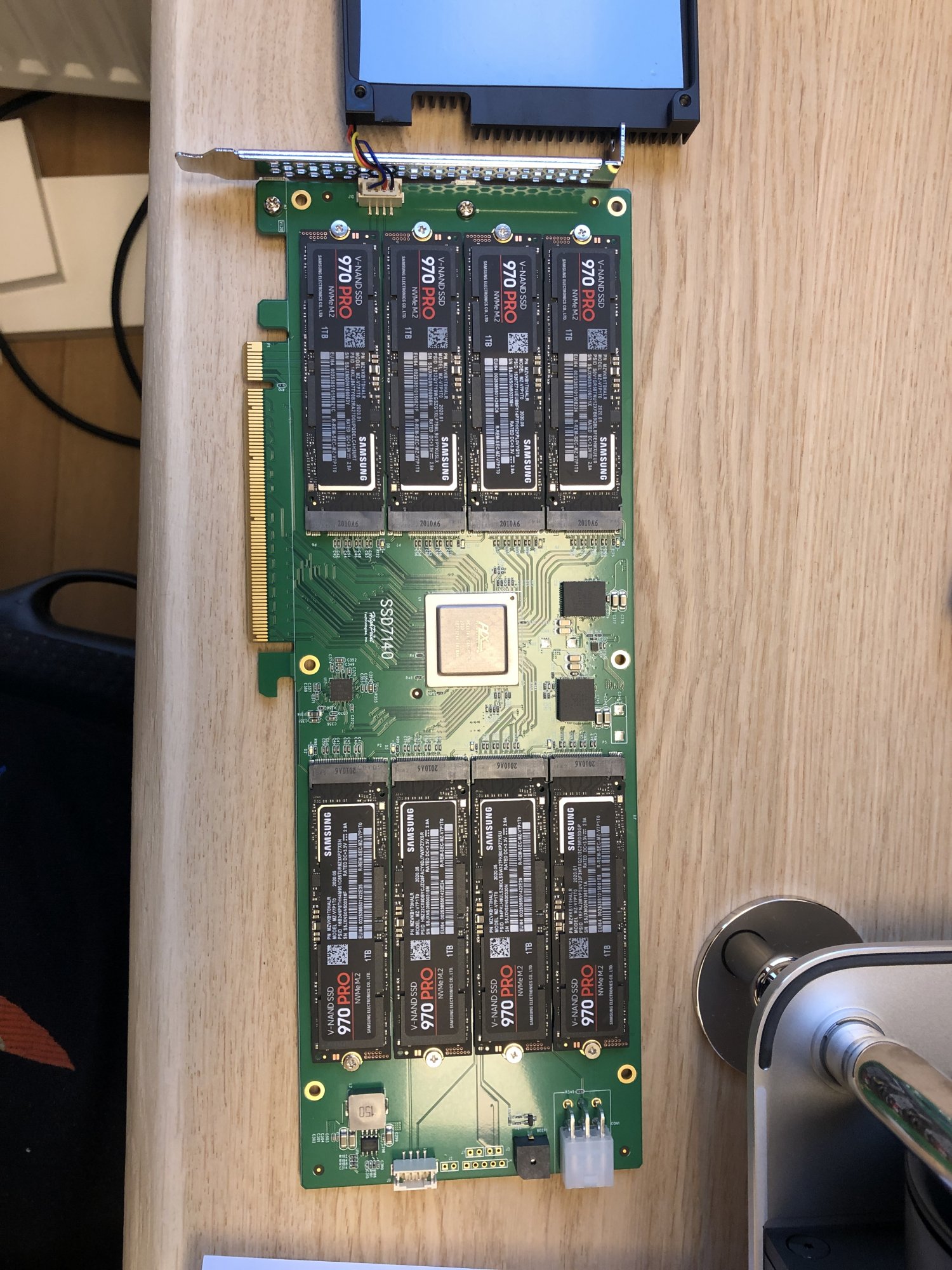

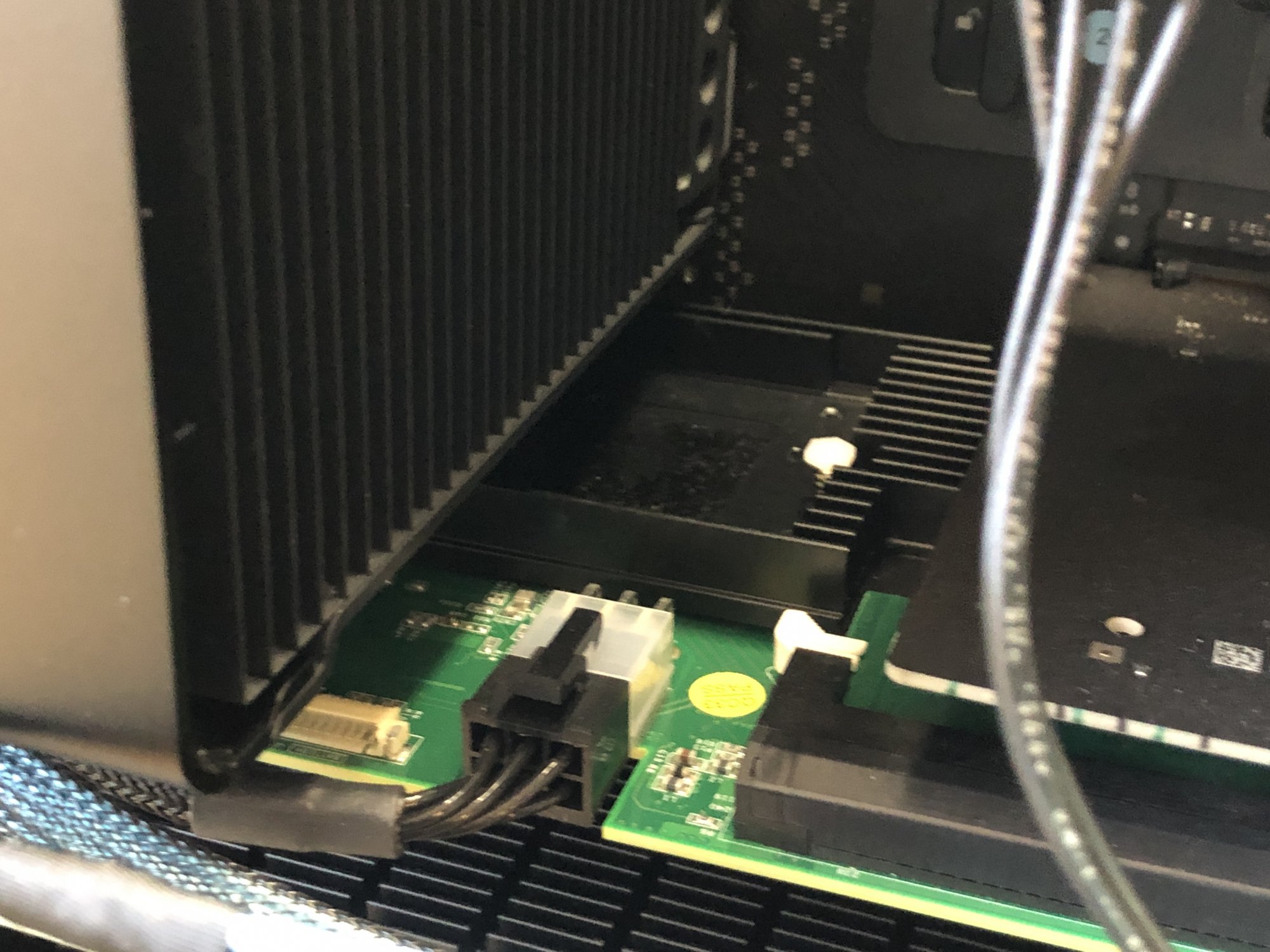

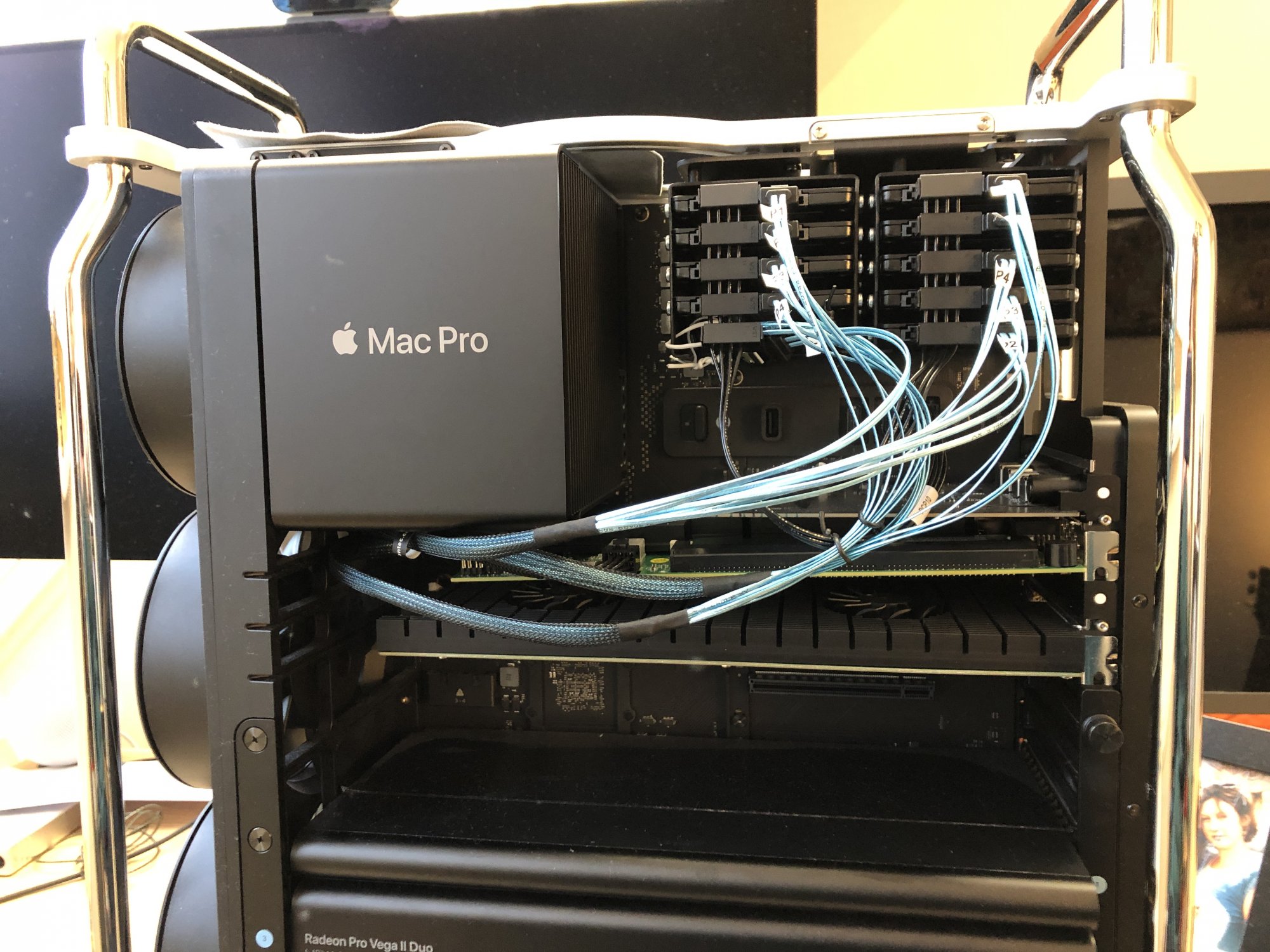

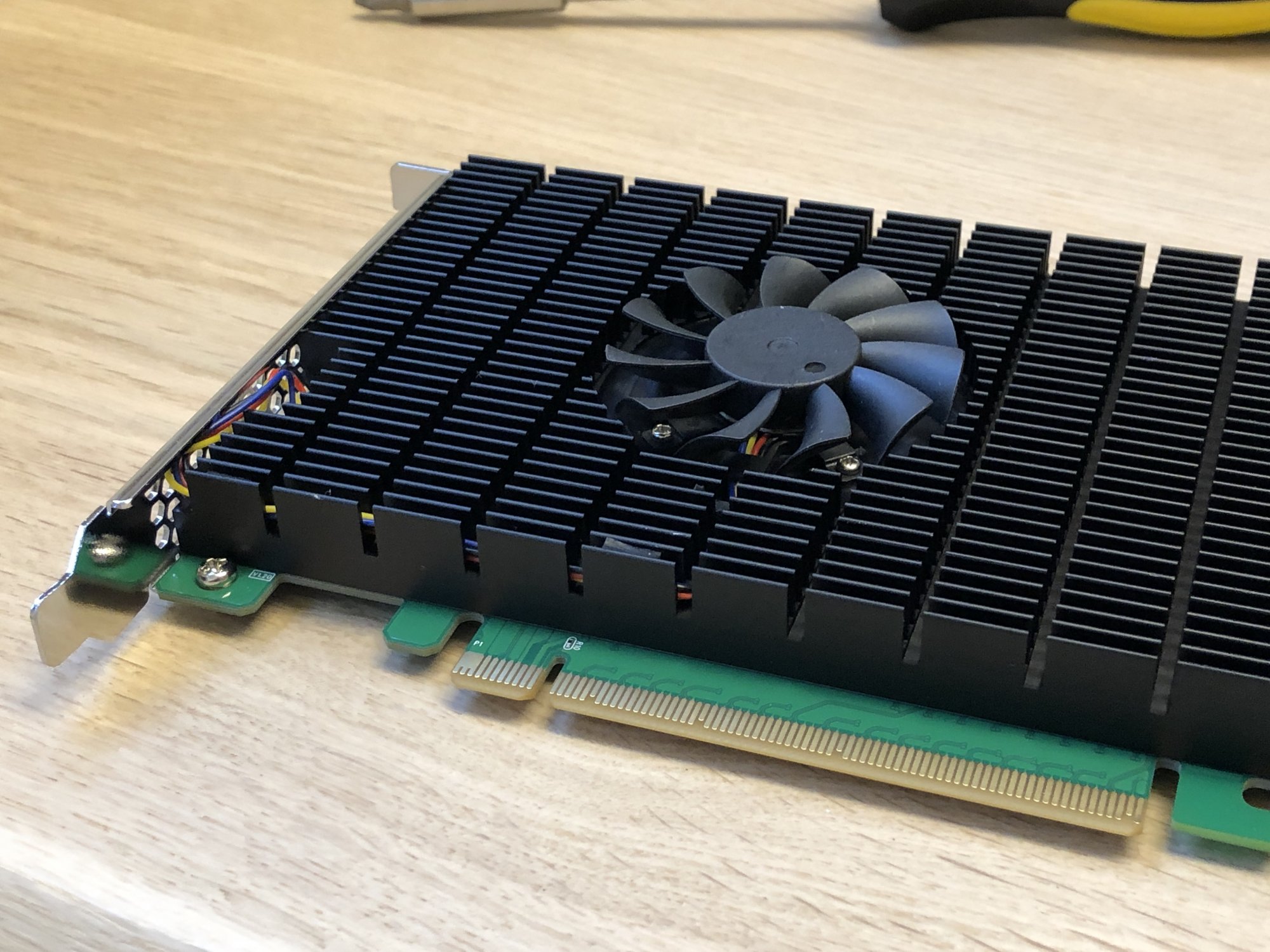

Hi all, I have highpoint 7101a installed on 7,1, and the drives are actually working fine. however, the controller does not show up under NVMExpress; they only show up in "PCI". Am I missing a driver?
Asking about this as I hope to install Innie and make the drives appear internal.
Asking about this as I hope to install Innie and make the drives appear internal.

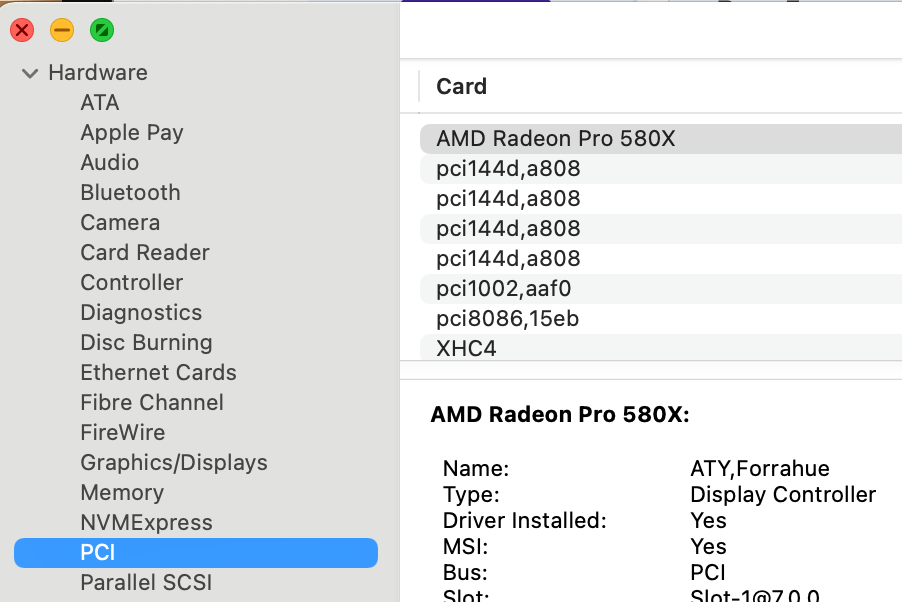

There is no SSD controller on a SSD7101a or any other switched card since switches are not shown with System Information. The SSD controller is on the blade itself and Apple did not developed a way to show the controller for 3rd party NVMe SSDs with System Information.

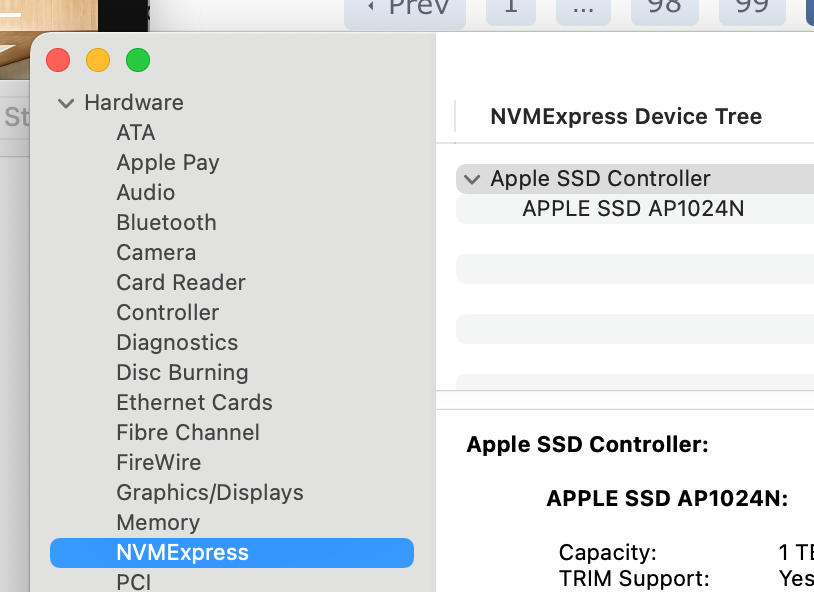

You see the SSD controller for the Apple SSD with NVMExpress because the SSD controller is inside the T2 of 2019 Mac Pro and System Information knows how to find it.
I have three NVMe's in a HighPoint SSD7505 which is in a Netstor NA255A connected to a MacPro3,1 and System Information.app shows them. One of them is shown as an Apple SSD Controller for some reason.
Code:
NVMExpress:
Generic SSD Controller:
Samsung SSD 950 PRO 512GB:
Capacity: 512.11 GB (512,110,190,592 bytes)
TRIM Support: Yes
Model: Samsung SSD 950 PRO 512GB
Revision: 2B0QBXX7
Serial Number: S2GMNXAH114496M
Link Width: x4
Link Speed: 8.0 GT/s
Detachable Drive: No
BSD Name: disk0
Partition Map Type: GPT (GUID Partition Table)
Removable Media: No
S.M.A.R.T. status: Verified
Volumes:
EFI:
Capacity: 209.7 MB (209,715,200 bytes)
File System: MS-DOS FAT32
BSD Name: disk0s1
Content: EFI
SSD950512GB:
Capacity: 181.73 GB (181,729,996,800 bytes)
Free: 177.73 GB (177,726,791,680 bytes)
Writable: Yes
File System: Journaled HFS+
BSD Name: disk0s2
Mount Point: /Volumes/SSD950512GB
Content: Apple_HFS
Volume UUID: F0B0C6F3-2044-305D-93D4-152DEBF381D7
disk0s3:
Capacity: 199.87 GB (199,865,782,272 bytes)
BSD Name: disk0s3
Content: Apple_RAID
Boot OS X:
Capacity: 134.2 MB (134,217,728 bytes)
File System: Journaled HFS+
BSD Name: disk0s4
Content: Apple_Boot
Volume UUID: 6C227A2D-FD3D-3546-9A79-1AB48F8FE65B
SSD950512GB2:
Capacity: 129.87 GB (129,865,785,344 bytes)
Free: 122.85 GB (122,852,347,904 bytes)
Writable: Yes
File System: Journaled HFS+
BSD Name: disk0s5
Mount Point: /Volumes/SSD950512GB2
Content: Apple_HFS
Volume UUID: A3D58905-CC82-340A-B1D0-C2CA833E3E81
Generic SSD Controller:
ADATA SX8200PNP:
Capacity: 2.05 TB (2,048,408,248,320 bytes)
TRIM Support: Yes
Model: ADATA SX8200PNP
Revision: 42B4S9NA
Serial Number: 2K372LQ1BQAP
Link Width: x4
Link Speed: 8.0 GT/s
Detachable Drive: No
BSD Name: disk1
Partition Map Type: GPT (GUID Partition Table)
Removable Media: No
S.M.A.R.T. status: Verified
Volumes:
EFI:
Capacity: 209.7 MB (209,715,200 bytes)
File System: MS-DOS FAT32
BSD Name: disk1s1
Content: EFI
Volume UUID: 0E239BC6-F960-3107-89CF-1C97F78BB46B
XPGSX8200Pro2TB:
Capacity: 2.05 TB (2,048,064,274,432 bytes)
Free: 2.05 TB (2,047,201,521,664 bytes)
Writable: Yes
File System: Journaled HFS+
BSD Name: disk1s2
Mount Point: /Volumes/XPGSX8200Pro2TB
Content: Apple_HFS
Volume UUID: 60C1D227-2652-3898-9545-AE9AA0053179
Apple SSD Controller:
Samsung SSD 960 PRO 1TB:
Capacity: 1.02 TB (1,024,209,543,168 bytes)
TRIM Support: Yes
Model: Samsung SSD 960 PRO 1TB
Revision: 4B6QCXP7
Serial Number: S3EVNWAJ316037R
Link Width: x4
Link Speed: 8.0 GT/s
Detachable Drive: No
BSD Name: disk3
Partition Map Type: GPT (GUID Partition Table)
Removable Media: No
S.M.A.R.T. status: Verified
Volumes:
EFI:
Capacity: 209.7 MB (209,715,200 bytes)
File System: MS-DOS FAT32
BSD Name: disk3s1
Content: EFI
Volume UUID: 0E239BC6-F960-3107-89CF-1C97F78BB46B
disk3s2:
Capacity: 512.1 GB (512,104,771,584 bytes)
BSD Name: disk3s2
Content: Apple_APFS
Samsung960Pro1TB_2:
Capacity: 511.63 GB (511,626,579,968 bytes)
Free: 511.18 GB (511,177,965,568 bytes)
Writable: Yes
File System: Journaled HFS+
BSD Name: disk3s3
Mount Point: /Volumes/Samsung960Pro1TB_2
Content: Apple_HFS
Volume UUID: 30857062-3197-3933-BA5C-F915166FFFD6Is there anyone who can test the M.2 980 Pro inside a MP 5,1 with a standard adapter to awnser my questions?
Is the 980 Pro full compatible? Did you get the full speed of ~1500 MB/s in the standard adapter? Bootable?
Is the 980 Pro full compatible? Did you get the full speed of ~1500 MB/s in the standard adapter? Bootable?
I'm debating on switching from Sabrent Rocket 1T NVMe's to Samsung on my 7,1. Only reason I'm thinking about it is cache performance for Adobe After Effects. I seem to be hitting bottle necks when generating previews with lots of layers/effects and I think it's down to the caching of the sabrents.
I'm finding it difficult to work out which version I should go for between the 970 Pro and the 980 pro.... even after reading a bunch of articles / reviews.
I know that the 980's are PCI4 so I'm only concerned about PCI3 performance. The 980's are cheaper by quite a bit...but the 970 pro's are tried and tested.
I'll eventually be using them in a highpoint or Sonnet card but, for now, the set-up will be:
Existing - Sabrent Rocket Q - 1 x 1TB as general documents (currently via a dumb NVMe card)
Replace with - Samsung 980 pro 1 or 2 TB
Existing - Sabrent Rocket - 2 x 1TB as cache/scratch set to Raid 0 (currently via 2 dumb NVMe cards)
Replace both with - Samsung 980 pro 1TB
Your insights always appreciated!
I'm finding it difficult to work out which version I should go for between the 970 Pro and the 980 pro.... even after reading a bunch of articles / reviews.
I know that the 980's are PCI4 so I'm only concerned about PCI3 performance. The 980's are cheaper by quite a bit...but the 970 pro's are tried and tested.
I'll eventually be using them in a highpoint or Sonnet card but, for now, the set-up will be:
Existing - Sabrent Rocket Q - 1 x 1TB as general documents (currently via a dumb NVMe card)
Replace with - Samsung 980 pro 1 or 2 TB
Existing - Sabrent Rocket - 2 x 1TB as cache/scratch set to Raid 0 (currently via 2 dumb NVMe cards)
Replace both with - Samsung 980 pro 1TB
Your insights always appreciated!
Last edited:
Probably not. Disk Utility puts some info on the drives so that all the partitions of a RAID are known to each other.
Whatever info HighPoint uses will be different (and might not be located on the drive?)
A PCIe gen 4 HighPoint card will let you use PCIe gen 4 NVMe devices at their full speed.
Using the OWC 1M2 PCIE nvme adapter on a 7.1 Mac Pro, I only seem to be getting around 1g/s write speeds, read speeds are closer to 3k.
This is on both a WD 750N 2TB nvme and a Adata 8200 2TB nvme
Any idea what could be happening? They are in 8x slots on the Mac Pro
This is on both a WD 750N 2TB nvme and a Adata 8200 2TB nvme
Any idea what could be happening? They are in 8x slots on the Mac Pro
New Samsung 980 SSD improves on 970 EVO, EVO Plus performance
Samsung’s ever-shifting consumer branding drops “EVO” suffix entirely this time.
arstechnica.com
Lou
I did some tests in a MacPro3,1 at https://forums.macrumors.com/threads/pcie-ssds-nvme-ahci.2146725/post-29483973
Got around 5 GB/s in a PCIe 2.0 x16 slot or a PCIe 3.0 x8 slot.
Interesting, thanks.New Samsung 980 SSD improves on 970 EVO, EVO Plus performance
Samsung’s ever-shifting consumer branding drops “EVO” suffix entirely this time.
Lou
"The 970 Pro does not use an SLC cache at all and therefore doesn't fall from the same "write cliff" that the 980 eventually does. In the longest-running test above—the 1MiB random write, which we ran using fio rather than CrystalDiskMark like the others—this gives the 970 Pro a chance to start running cleanly away from the 980 before the test ends."
So seems that the 970 Pro might be better suited to writing/reading GBs of cache over a sustained period.
NO BOOT
Installed a Startech PEX8M2E2 8x PCI Express to Dual M.2 PCIe SSD Adapter in PCI slot 2 in my 5,1 on HS 10.13.6 MP51.0089.B00.
Also installed on the card a single SK Hynix Gold P31 SSD 1TB.
The machine will not boot.
First time installing an NVME adapter in this computer. Tried it with the SSD in either slot, still will not boot. The progress bar on the apple screen gets to the end an then the screen shuts off and a warning screen appears. I have attached the error report details that were shown once I booted after removing the card. It does not show the adapter card which is in slot 2.
The Starch is said to work in Mac OS and is a recommended card on the definitive upgrade guide. I got it new off Ebay at a discount. Wonder if there is a way to tell if it is bad... Or could it be some incompatibility with my firmware version? I don't have a metal card yet to jump up to 144 but the system profile does indicate NVME support.
Installed a Startech PEX8M2E2 8x PCI Express to Dual M.2 PCIe SSD Adapter in PCI slot 2 in my 5,1 on HS 10.13.6 MP51.0089.B00.
Also installed on the card a single SK Hynix Gold P31 SSD 1TB.
The machine will not boot.
First time installing an NVME adapter in this computer. Tried it with the SSD in either slot, still will not boot. The progress bar on the apple screen gets to the end an then the screen shuts off and a warning screen appears. I have attached the error report details that were shown once I booted after removing the card. It does not show the adapter card which is in slot 2.
The Starch is said to work in Mac OS and is a recommended card on the definitive upgrade guide. I got it new off Ebay at a discount. Wonder if there is a way to tell if it is bad... Or could it be some incompatibility with my firmware version? I don't have a metal card yet to jump up to 144 but the system profile does indicate NVME support.
Like is clearly explained on the first post of this thread, any MP51 firmware earlier than 140.0.0.0.0 don't support booting from NVMe drives.
Apple requires that you have a METAL supported GPU to upgrade your Mac Pro BootROM after MP51.0089.B00 (the last EFI firmware released with High Sierra), so you need to borrow one or do a BootROM reconstruction to overcome the requirement (since you have a cross-flashed early-2009 Mac Pro, you'll probably need it anyway).
Read all the details here:
MP5,1: What you have to do to upgrade to Mojave (BootROM upgrade instructions thread)
Please fully read this first post, you will probably find that you have one or more problems described into the various notes below. Mojave will only install if you have upgraded your BootROM to the current release and your Mac Pro have a Metal capable GPU*. If you are trying to install Mojave...
forums.macrumors.com
Isn't the SK Hynix Gold P31 listed as being not compatible in the blade list in Post#1?
Really like this drive. Great performance/price. Will be interested to see if you can get it working.
Hi guys!
I want to buy one 2TB M.2 SSD for my MacPro 5.1.
I saw here on this thrend that the Sabrent SB-RKTQ-SB (gen3) works on MacPro 5.1, but I only found in my country the Sabrent SB-RKTQ4-SB 2TB (gen4) ...

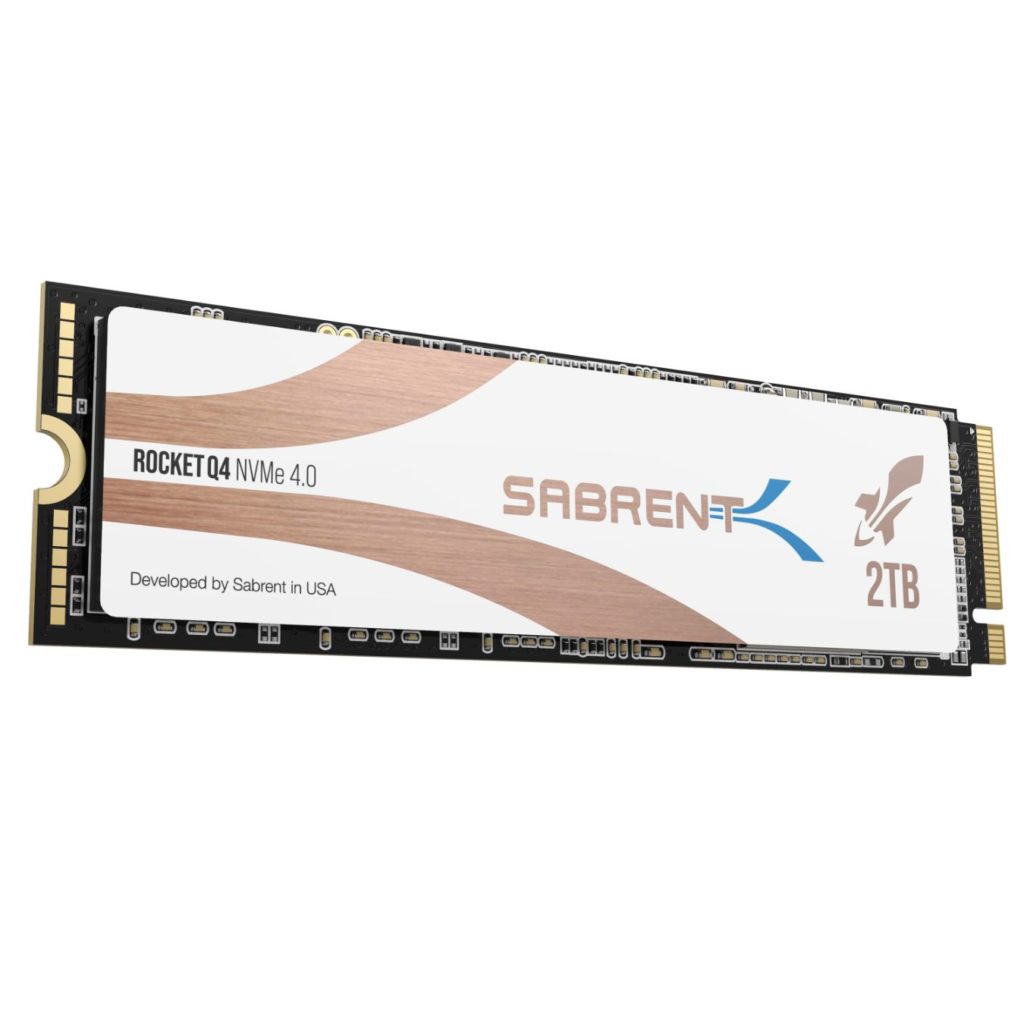

Does the SB-RKTQ4-SB 2TB (gen4) also work on MacPro 5.1? Is it single or doubled sided blade?
It seems that the Aquacomputer KryoM.2 EVO PCIe Card would be a good choice for the Sabrent SSD, but what is the correct model for the SB-RKTQ4-SB 2TB (gen4)? Aquacomputer KryoM.2 EVO or Aquacomputer KryoM.2?
Thanks in advance
I want to buy one 2TB M.2 SSD for my MacPro 5.1.
I saw here on this thrend that the Sabrent SB-RKTQ-SB (gen3) works on MacPro 5.1, but I only found in my country the Sabrent SB-RKTQ4-SB 2TB (gen4) ...
Does the SB-RKTQ4-SB 2TB (gen4) also work on MacPro 5.1? Is it single or doubled sided blade?
It seems that the Aquacomputer KryoM.2 EVO PCIe Card would be a good choice for the Sabrent SSD, but what is the correct model for the SB-RKTQ4-SB 2TB (gen4)? Aquacomputer KryoM.2 EVO or Aquacomputer KryoM.2?
Thanks in advance
Attachments
I wouldn’t get a “q”. Just a regular rocket. Sabrent also do a pcie adapter. Pretty much the same as the kryo but the heat sink is better and you don’t need to remove a PCI slot cover from the case. I currently use 2 of these in a raid 0.
I see you said the the pci 4 version is the only one available to you?
Not 100% sure but it should work. make sure you can return it if not.
I see you said the the pci 4 version is the only one available to you?
Not 100% sure but it should work. make sure you can return it if not.
Hi! Thanks for your response!
I only found this version SB-RKTQ4-SB 2TB (gen4) in my country. I didn't find any other version or another brand, except the Samsung 970 EVO Plus (but I don't know if it already have the new firmware 2B2QEXM7...) so maybe would be safer to buy this Sabrent ... but for that I need to know if this version (gen4) is compatible with my MacPro 5.1 and what version of Kryom.2 I”ll need...
Last edited:
Hello,
i wanted to know if someone could help me, I have a macpro 4.1 flash to 5.1, bootrom 144.0.0.0, high sierra os and I wanted to know if I can install an nvme ssd as the main disk with the operating system.
thanks
i wanted to know if someone could help me, I have a macpro 4.1 flash to 5.1, bootrom 144.0.0.0, high sierra os and I wanted to know if I can install an nvme ssd as the main disk with the operating system.
thanks
^^^^Yes. With a PCIe card like this:
Lou
NVMe PCIe Adapter, RIITOP M.2 NVMe to PCI-e x4/x8/x16 Card with Heat Sink for M.2 (M Key) SSD 2280/2260/2242/2230 [Upgraded]
Features: Supports PCIE M.2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 x4 4Gbps bandwidth Not supported SATA-based M.2 SSD. Apply to 2280/2260/2242 / 2230mm M.2 SSD Support TRIM and UASP PCIE X4 lane installation Supports PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.0 motherboard Compatible with Windows/MAC/Lin...
www.amazon.com
Lou
Ok thanks for the answer ?^^^^Yes. With a PCIe card like this:
NVMe PCIe Adapter, RIITOP M.2 NVMe to PCI-e x4/x8/x16 Card with Heat Sink for M.2 (M Key) SSD 2280/2260/2242/2230 [Upgraded]
Features: Supports PCIE M.2 SSD (NVMe or AHCI, Key-M), PCIE 3.0 x4 4Gbps bandwidth Not supported SATA-based M.2 SSD. Apply to 2280/2260/2242 / 2230mm M.2 SSD Support TRIM and UASP PCIE X4 lane installation Supports PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.0 motherboard Compatible with Windows/MAC/Lin...www.amazon.com
Lou
