MP 1,1-5,1 testing TB3 AIC with MP 5,1

T

tommy chen

macrumors 6502a
Oct 1, 2018
907
390
in slot 3 it will show as USB card only (if you need only as USB card then without OC and flash)
and in slot 4 you will see TB device only if unplug and replug a TB device and after reboot!

  • Like
Reactions: Wernerempire and gastod
205Maxi

205Maxi

macrumors regular
Nov 3, 2019
175
53
If, I put it in slot 3, I can see it, it shows in the PCI as pci8086's not Intel JHL7540 Titan Ridge Thunderbolt 3NHI and Intel JHL Titan Ridge USB 3.1and I get the drive to show up and the driver in the thunderbolt tab is loaded as Gigabyte not Apple.inc

If I put it in the Slot-4 I get nothing, the TR is not even see by the system...

D

DCswitch

macrumors member
Feb 25, 2019
42
10
I'm curious about if everyone is supplying power to either of the two 2x3 pin power ATX connector to support 100W in a Mac Pro. If so- how are you doing it? Are you using 2* 2xSATA to ATX connectors thereby using up four of your six SATA connectors? I guess if your video card doesn't use much power you could tap the same PCIe connectors coming from the logic board, but my video card is a Vega 64 (uses too much power). Or are you just not bothering to connect the ATX connectors?

  • Like
Reactions: Wernerempire
G

gastod

macrumors newbie
Oct 26, 2013
23
2
DCswitch said:
I'm curious about if everyone is supplying power to either of the two 2x3 pin power ATX connector to support 100W in a Mac Pro. If so- how are you doing it? Are you using 2* 2xSATA to ATX connectors thereby using up four of your six SATA connectors? I guess if your video card doesn't use much power you could tap the same PCIe connectors coming from the logic board, but my video card is a Vega 64 (uses too much power). Or are you just not bothering to connect the ATX connectors?
Click to expand...

I flash titan ridge with dsm2 23...bridge pin 3 and 5 on card, and power atx on card, I install Martin lo open core version add on config the text and in efi/acpi tb3 aml file. I do 3 nvram restart. I have an Silver Apollo fw with option tb3 card, a uad satellite fw, 1 hub usb c to usb 3.1 with attached a bay with 2 slot hd and inside 2 ssd .... after first boot show the ssd and only a satellite uad fw, the on restart (second boot) it show Apollo tb3 plus satellite fw and again ssd.., then with 2 boot work all.

I have a Radeon Rx 580 pulse and connect with splitter also the atx on titan ridge, controlled the power with istat menu all under control no problems...

205Maxi

205Maxi

macrumors regular
Nov 3, 2019
175
53
gastod said:
I flash titan ridge with dsm2 23... I install Martin lo open core version add on config the text and in efi/acpi tb3 aml file. I have an Silver Apollo fw with option tb3 card, a uad satellite fw, 1 hub usb c to usb 3.1 with attached a bay with 2 slot hd and inside 2 ssd .... after first boot show the ssd and only a satellite uad fw, the on restart (second boot) it show Apollo tb3 plus satellite fw and again ssd.., then with 2 boot work all.
Click to expand...


Could you please provide the Marin Lo OC? I would like to try.
Also could you provide screenshots of PCI Tab and Thunderbolt tab?
Thank you...

C

cdf

macrumors 68020
Jul 27, 2012
2,256
2,583
gastod said:
I have a Radeon Rx 580 pulse and connect with splitter also the atx on titan ridge, controlled the power with istat menu all under control no problems...
Click to expand...

Can you provide a link for this splitter?

205Maxi

205Maxi

macrumors regular
Nov 3, 2019
175
53
And macOS Catalina Update is here... Let see if it will help me with Titan Ridge or not...

B

Brask

macrumors member
Mar 2, 2020
35
17
Denmark
Auralwiz said:
...
What is Firmware 144.0.0.0.0?
How do we check and install if needed?
Click to expand...

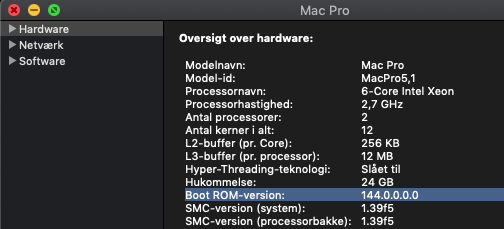

You can check your MacPro's Boot ROM version under Hardware in your Systemrapport:

Boot ROM on cMP 5.1.png

A

abdolla

macrumors newbie
Mar 24, 2020
1
0
Hi

Looks like a great work around?
I am considering buying GC-Titan Ride. I have hackintosh and windows on the same machine and want to use the card with both.
Would I still be able to use the Gigabyte GC-Titan Ridge on my windows machine after flashing it with this?

Thanks for advance.

C

cdf

macrumors 68020
Jul 27, 2012
2,256
2,583
gastod said:
www.amazon.it

8pin PCI Express a 2 X PCIe 8 (6 + 2) pin e scheda madre grafica a 6 pin Scheda video PCI-e GPU VGA Y-splitter Cavo di alimentazione hub (4 pack)

8pin PCI Express a 2 X PCIe 8 (6 + 2) pin e scheda madre grafica a 6 pin Scheda video PCI-e GPU VGA Y-splitter Cavo di alimentazione hub (4 pack)
www.amazon.it
Click to expand...

I guess you are daisy-chaining two splitters. The RX 580 has one 8-pin power connector and the CG-TITAN RIDGE has two 6-pin power connectors. I was hoping to see a single splitter going from one 8-pin connector to one 8-pin and two 6-pin connectors.

G

gastod

macrumors newbie
Oct 26, 2013
23
2
cdf said:
I guess you are daisy-chaining two splitters. The RX 580 has one 8-pin power connector and the CG-TITAN RIDGE has two 6-pin power connectors. I was hoping to see a single splitter going from one 8-pin connector to one 8-pin and two 6-pin connectors.
Click to expand...
On mb 2x6 pin to 8pin ... 8pin to 2x8pin one on 580 the other 8 pin to 2x6 (-2) pin to TR atx plug... check the voltage and amperage on istat menu no prob at moment... is low voltage and amperage... bye

Ps: but I think this is not absolutely necessary on titan ridge, it works also without add power...

J

joevt

macrumors 604
Jun 21, 2012
6,967
4,262
cdf said:
Yes, that's right. But it's necessary if you want to charge a MacBook, for example.
Click to expand...
I don't think you want to do that. The Mac Pro has just enough power for a GPU - you don't want to be adding 100W for laptop charging.

  • Like
Reactions: tommy chen
T

tommy chen

macrumors 6502a
Oct 1, 2018
907
390
I don't understand why people think of charging a macbook on a macpro

Last edited by a moderator:
C

cdf

macrumors 68020
Jul 27, 2012
2,256
2,583
Here's my use case: I use my MacBook in target disk mode with the CG-TITAN RIDGE all the time. Because the MacBook only has one USB-C port, it would be great to be able to charge it at the same time.

J

joevt

macrumors 604
Jun 21, 2012
6,967
4,262
cdf said:
Here's my use case: I use my MacBook in target disk mode with the CG-TITAN RIDGE all the time. Because the MacBook only has one USB-C port, it would be great to be able to charge it at the same time.
Click to expand...
That's interesting. Target Disk Mode is handled by EFI instead of macOS. I suppose that doesn't matter since charging should happen even if the Macbook is powered off.

Well, I guess if your Mac Pro doesn't melt then it should be ok (don't play 3D games and charge the MacBook at the same time?). I have my Thunderbolt cards in a Netstor NA255A so I have plenty of power (1200W power supply).

Check the Power section of System Information.app to see what it says for Watts for charging on the MacBook. Compare each Thunderbolt 3 port of the GC-TITAN RIDGE. Try with PCIe power not connected and connected to see if there's a difference. Maybe consider trying a power delivery sniffer or meter (I don't know if they work with Thunderbolt - they might allow only 20 Gbps in that case?).

  • Like
Reactions: cdf
DSM2.Hackintosh

DSM2.Hackintosh

macrumors regular
Feb 19, 2020
106
295
Finally back home.... A ton of main work is on the table but as soon as it's done I will start to work on thunderbolt further. A lot of new tests had been done. Also thinking about to write a new version of the firmware since other builds are stable and only 2009/2010th macpro creates problems with some gear.

This machine is already waiting...



  • Like
Reactions: Sixtyhorses, Itconnects, loumedia and 21 others
