Even Retina Displays are affected. I have it installed on my mbp2017 which I use with an LG Ultrafine 5K and text still looks fuzzy with AA. With AA off fonts get so thin you can hardly read them and window edges look crooked. Catalina is a mess.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
The subpixel-AA debacle and font rendering
- Thread starter mathcolo
- Start date
- Sort by reaction score
What settings or terminal script are you using? I have the 27MD5KB and I'm finding the fonts are either way too thin (when I turn off AA) or just crooked with AA on.. on MacOS 10.14 AA looks a lot better.
I reverted the "fixes" I had used in Mojave:
The resolution is set to "Default for display" and "Use font smoothing when available" is enabled (System Settings > General).
Code:
defaults -currentHost delete -globalDomain AppleFontSmoothing
defaults write -g CGFontRenderingFontSmoothingDisabled -bool YESThe resolution is set to "Default for display" and "Use font smoothing when available" is enabled (System Settings > General).
hmm.. I used exactly the same script and settings.
Still looks blurry compared to 10.14.. I can compare directly since I still have it installed on my Mac mini.
Still no contest vs. High Sierra.
Here's regular NYT black text from within an article:
Top: High Sierra 10.13.6
Middle: Catalina 10.15.1, default (font smoothing = 0)
Bottom: Catalina 10.15.1, font smoothing = 3
N.B.: The defaults write -g CGFontRenderingFontSmoothingDisabled -bool NO hack was NOT used here.
Put these up on your screen, step back about 10 feet, and you can see for yourself which seems the sharpest and least fatiguing....
Here's regular NYT black text from within an article:
Top: High Sierra 10.13.6
Middle: Catalina 10.15.1, default (font smoothing = 0)
Bottom: Catalina 10.15.1, font smoothing = 3
N.B.: The defaults write -g CGFontRenderingFontSmoothingDisabled -bool NO hack was NOT used here.
Put these up on your screen, step back about 10 feet, and you can see for yourself which seems the sharpest and least fatiguing....
It's not ideal, but you might find that
defaults -currentHost write -globalDomain AppleFontSmoothing -int 3
(entered in the Terminal) helps. It doesn't improve contrast or sharpness (see my last post), but it does make them thicker.
I find it rather ironic that macOS, which led the way with anti-aliasing back in the day, now looks awful on standard dpi dispalys compared to Windows. I did try a P2715Q, but the non-integer scaling for a 5K desktop isn't perfect. It's a shame there aren't any matte 5K monitors available anymore.

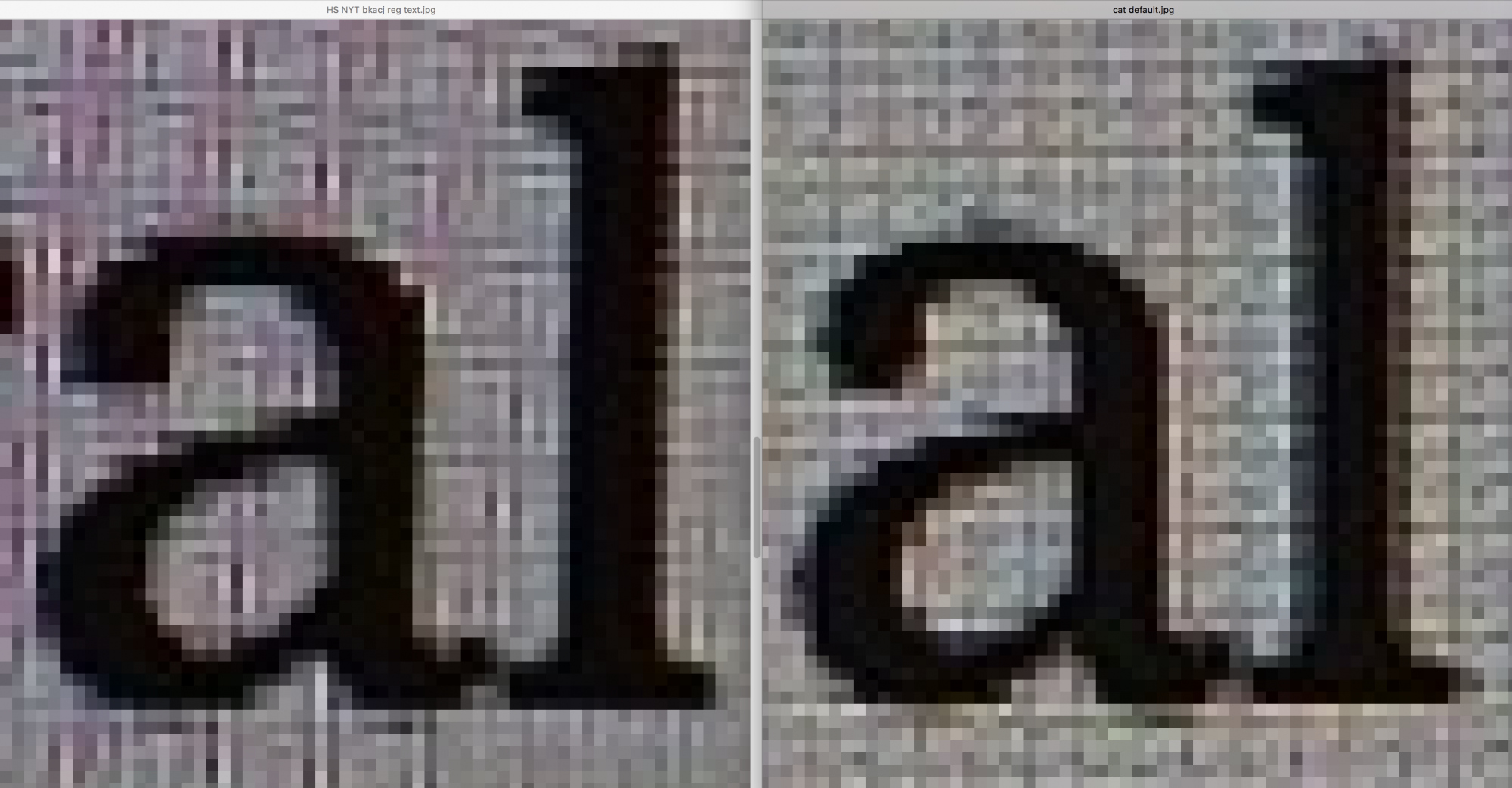

Here's a direct photographic comparison (using Photo Booth with a Logitech USB camera) of High Sierra and Catalina on a calibrated Dell P2715Q 4K monitor. This is normal black print from within a NYT article. High Sierra (10.13.6) is on the L, Catalina (10.5.1) on the R. Both OS's are in their default modes. Compare, for instance, the horizontal section on the top of the "a", and the vertical section of the "l". In both cases, the parts displayed with black/near-black pixels are substantially thicker in High Sierra than Catalina. [N.B.: I believe the pixelation is from the Logitech camera, not the screen. If I have time I'll do another comparison with a higher-resolution camera.]
Last edited:
Thanks, now the date and time on menu bar and fonts in Notification Center do not look hideous anymore.
This workaround might work in Catalina, but to me this is clear sign that the time is running out. They might even disable this in 10.16. Therefore, time to get high DPI display.
Pay attention especially to clock in menu bar:
(without antialiasing)
(with antialiasing)
The difference is obvious. Not the same antialiasing that was used in 10.13 and earlier, but still makes everything looking less hideous.
(without antialiasing)
(with antialiasing)
The difference is obvious. Not the same antialiasing that was used in 10.13 and earlier, but still makes everything looking less hideous.
OK, try this command:
This makes the font smoothing heavier. I do not know if it is placebo, but it does look slightly better to me.
Of course, requires log out and log in to work. "defaults write -g CGFontRenderingFontSmoothingDisabled -bool YES" has been used before this.
Code:
defaults -currentHost write -globalDomain AppleFontSmoothing -int 3This makes the font smoothing heavier. I do not know if it is placebo, but it does look slightly better to me.
Of course, requires log out and log in to work. "defaults write -g CGFontRenderingFontSmoothingDisabled -bool YES" has been used before this.
Last edited:
Honestly, I wish that Apple would leave well enough alone, and stop changing their font rendering with every new release of macOS.
I've lost sight of what problem they must think they're trying to solve anymore.
I've lost sight of what problem they must think they're trying to solve anymore.
They are not trying to solve anything. They are trying to cut on development and maintenance cost wherever possible. That is what I am thinking is the reason.
With respect, I might've bought that argument for Mojave when they removed subpixel aliasing in the first place, but now I don't understand why they've once again changed font rendering even for Retina displays in Catalina -- thus making fonts even thinner, which some of us find increasingly difficult to read.
It isn't. Mojave had RGB rendering still alive for some elements. Catalina does not, only greyscale.
Well, that's what we are talking about whole time. And that's what people are complaining about. RGB rendering was superior to this lame attempt to make font appear normal on non Retina screens. And now, old antialiasing is completely gone.
Indeed, that is what I'm lamenting: P2715Q is 4K, but the physical size of the monitor is such that I want to use a 5K HiDPI desktop resolution with it. The non-integer scaling in this mode is what makes things a bit blurry and generally less than ideal for using day-to-day.
I think the original explanation with Mojave was that sub-pixel anti-aliasing didn't work well with Dark Mode or retina displays in general. Also, with an increasing focus on motion in UI, CoreAnimation never supported sub-pixel in the first place because it was too computationally-intensive to tweak the effect on each frame while an animation was playing.
I think that they are right. Old method antialiasing looks horrible with Dark Mode. New method looks better.
But then again, new method of antialiasing looks horrible on normal (light) mode on non Retina screen.
I guess the solution is: keep dark mode all the time. 🤷♀️
No. Fonts with AA look worse in dark mode on Catalina than Mojave. Even on retina screens, and I can compare directly, since my Mac mini 2018 still runs Mojave, while my MBP has a partition with Catalina. I use both of them on the same screen: an LG Ultrafine 5K.
