An interesting finding:

By using lilu and whatevergreen and by altering nvram to enable HWaccel (sudo nvram boot-args="shikigva=96 shiki-id=Mac-7BA5B2D9E42DDD94"), geekbench scores drop in half. In my case metal from 47K+ dpopped into 23K. Resetting nvram corrects this.

Sorry if this has been mentioned

eVasilis said:
An interesting finding:

By using lilu and whatevergreen and by altering nvram to enable HWaccel (sudo nvram boot-args="shikigva=96 shiki-id=Mac-7BA5B2D9E42DDD94"), geekbench scores drop in half. In my case metal from 47K+ dpopped into 23K. Resetting nvram corrects this.

Sorry if this has been mentioned
Click to expand...
AFAIK, this only happen on RX580 (may be other Polaris GPU as well) and in Catalina.

eVasilis said:
An interesting finding:

By using lilu and whatevergreen and by altering nvram to enable HWaccel (sudo nvram boot-args="shikigva=96 shiki-id=Mac-7BA5B2D9E42DDD94"), geekbench scores drop in half. In my case metal from 47K+ dpopped into 23K. Resetting nvram corrects this.

Sorry if this has been mentioned
Click to expand...

This also happens on my system, but scores are usually back to normal after a sleep-wake cycle. I use AirOut 2 to quickly measure the performance; ideally, I want to see >3000 GFLOPS in FP32 performance.

CMMChris said:
Ah ok. You are the only one with that issue so far though. So I guess it is not directly related to RadeonBoost.
Click to expand...
Then some conflicts between My config, OC0,57 and Radeonboost :(

@CMMChris do I need to repair permissions and rebuild kext cache if I'm using OC 0,57?

Last edited:
CMMChris said:
Please try version 1.5 from here: https://www.hackintosh-forum.de/for...res-wie-am-echten-mac-unter-windows/?pageNo=1
Haven't added it in this topic yet. Also please note that you need to use it along Whatevergreen for Polaris cards.
Click to expand...

This version boosted my RX 580 (a little bit). Thank you.
[automerge]1589932879[/automerge]
eVasilis said:
An interesting finding:

By using lilu and whatevergreen and by altering nvram to enable HWaccel (sudo nvram boot-args="shikigva=96 shiki-id=Mac-7BA5B2D9E42DDD94"), geekbench scores drop in half. In my case metal from 47K+ dpopped into 23K. Resetting nvram corrects this.

Sorry if this has been mentioned
Click to expand...
h9826790 said:
AFAIK, this only happen on RX580 (may be other Polaris GPU as well) and in Catalina.
Click to expand...
cdf said:
This also happens on my system, but scores are usually back to normal after a sleep-wake cycle. I use AirOut 2 to quickly measure the performance; ideally, I want to see >3000 GFLOPS in FP32 performance.
Click to expand...

This post solved in my case (rx580 + Catalina):

forums.macrumors.com

Activate AMD hardware acceleration

Hi all, I think I found the solution for this. I just plug in a secondery display and all the scores back to normal: Metal Score: 48043 OpenCL: 42344 So, all we need to have is one or two HDMI Dummy Plug Hope it helps. @leoaf79 @h9826790
forums.macrumors.com forums.macrumors.com

Last edited:
Recent GB5 Metal Compute Scores
  1. No RadeonBoost : 37154
  2. RadeonBoost v1.0 : 40565
  3. RadeonBoost v1.3 : 37740
  4. RadeonBoost v1.5 : 42946

  • Like
Reactions: CMMChris
CMMChris said:
Ah ok. You are the only one with that issue so far though. So I guess it is not directly related to RadeonBoost.
Click to expand...
@CMMChris
I make new test with 1.5 and OC 0,57 NBK from @h9826790
Then
Lilu.kext 1.4.3 (but test with 1.4.4 same freeze and auto-reboot)
WhateverGreen.kext 1.3.8 (but test with 1.3.9 same freeze and auto-reboot)

It start and RadeonBoost enable

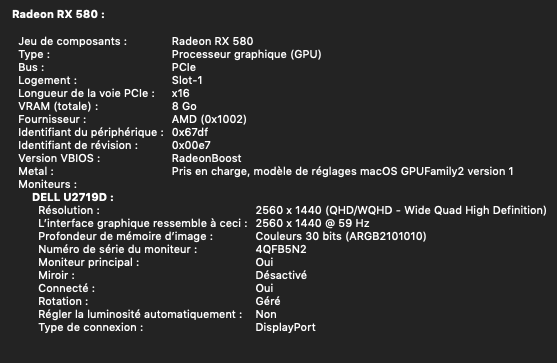

Capture d’écran 2020-05-20 à 09.52.56.png


I have still freeze and auto-reboot cMP with RadeonBoost installed

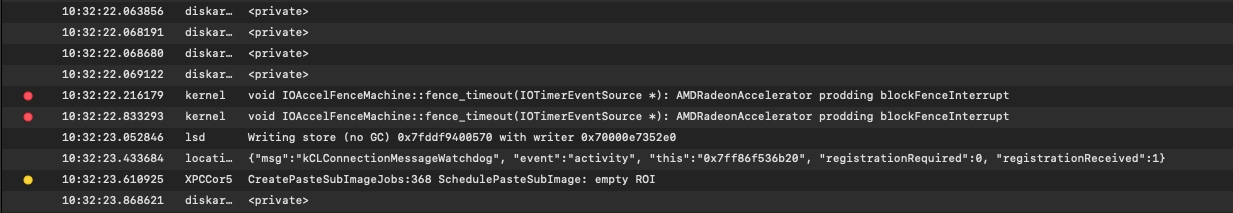

and I have these error in console

lbuisson said:
@CMMChris
I make new test with 1.5 and OC 0,57 NBK from @h9826790
Then
Lilu.kext 1.4.3 (but test with 1.4.4 same freeze and auto-reboot)
WhateverGreen.kext 1.3.8 (but test with 1.3.9 same freeze and auto-reboot)

It start and RadeonBoost enable
View attachment 916902

I have still freeze and auto-reboot cMP with RadeonBoost installed
and I have these error in console
View attachment 916900
Click to expand...
Rather than figure out what’s wrong, it may be easier and quicker to install a new clean MacOS.

Since you are the only person reported this issue so far. Most likely it’s your OS has problem.

To perform a clean installation, we can know if that’s software / hardware issue straight away.

The idea is simple. Install a clean Mojave on a spare drive, then install OC (by using cdf’s config, or my package) and RadeonBoost. Don’t do anything else.

If still freeze, then 99% you have some hardware issue that we can’t fix.

  • Like
Reactions: startergo
h9826790 said:
Rather than figure out what’s wrong, it may be easier and quicker to install a new clean MacOS.

Since you are the only person reported this issue so far. Most likely it’s your OS has problem.

To perform a clean installation, we can know if that’s software / hardware issue straight away.

The idea is simple. Install a clean Mojave on a spare drive, then install OC (by using cdf’s config, or my package) and RadeonBoost. Don’t do anything else.

If still freeze, then 99% you have some hardware issue that we can’t fix.
Click to expand...
OK but it wasn't freeze with the first Radeonboost but without improvement
and now with last RadeonBoost (1.4 and 1.5) it freeze
then impact is clearly based between Radeonboost version and hardware/software of course
but ktext is common with

@CMMChris have you old version of Radeonboost for me I can make several tests

thank you

lbuisson said:
OK but it wasn't freeze with the first Radeonboost but without improvement
and now with last RadeonBoost (1.4 and 1.5) it freeze
then impact is clearly based between Radeonboost version and hardware/software of course
but ktext is common with

@CMMChris have you old version of Radeonboost for me I can make several tests

thank you
Click to expand...
Are you sure you are not running multiple instances of LILU/WEG in different folders? kexstat loaded kexts.

  • Like
Reactions: leoaf79
Ludacrisvp said:
By more than standard deviation?
Click to expand...
I haven't scrupulously collected the data and put it to proper analysis and my conclusion might not stand up to proper review but in general, I am seeing 43xxx for Scenario 5 and 41xxx Scenario 6.

Was hoping others would have a go to confirm.

Last edited:
10.15.5 OC device properties injection even with VMM flag on. Excellent results:
Code:
<dict>
    <key>DeviceProperties</key>
    <dict>
        <key>Add</key>
        <dict>
            <key>PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)</key>
            <dict>
                <key>@0,name</key>
                <data>
                QVRZLE9yaW5vY28=
                </data>
                <key>ATY,EFIVersion</key>
                <data>
                MDEuMDEuMTgz
                </data>
                <key>CFG,CFG_FB_LIMIT</key>
                <data>
                BA==
                </data>
                <key>CFG,CFG_PTPL2_TBL</key>
                <data>
                ggAAAHwAAAB2AAAAcAAAAGoAAABkAAAAXgAAAFgAAABS
                AAAATAAAAEYAAABAAAAAOgAAADQAAAAuAAAAKAAAAA==
                </data>
                <key>PP,PP_PowerPlayEnabled</key>
                <data>
                AQAAAA==
                </data>
                <key>PP,PP_WorkLoadPolicyMask</key>
                <data>
                IA==
                </data>
                <key>agdpmod</key>
                <data>
                cGlrZXJhAA==
                </data>
                <key>model</key>
                <data>
                QU1EIFJhZGVvbiBSWCA1ODA=
                </data>
                <key>rebuild-device-tree</key>
                <data>
                AA==
                </data>
                <key>shikigva</key>
                <data>
                kA==
                </data>
            </dict>
        </dict>
        <key>Delete</key>
        <dict>
            <key>PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0)</key>
            <array>
                <string>ATY,EFIVersion</string>
            </array>
        </dict>
    </dict>
</dict>

  • Like
Reactions: h9826790 and cdf
What is this? Most of those properties are useless. Why are you specifying a framebuffer which is not intended to be used on a PC card? What is "<key>ATY,EFIVersion</key>" supposed to do on a Polaris card?

CMMChris said:
What is this? Most of those properties are useless. Why are you specifying a framebuffer which is not intended to be used on a PC card? What is "<key>ATY,EFIVersion</key>" supposed to do on a Polaris card?
Click to expand...
That framebuffer thing may actually valid for PULSE RX580 (if that's not purely cosmetic with that injection).

Apple do apply Orinoco framebuffer for the PULSE RX580 8GB card that use in the BlackMagic eGPU kit.

Nowadays, I don't think there is any difference anymore. But in the old days, having Orinoco framebuffer can avoid few bugs (e.g. the GPU can't display after wake from sleep).

The VBIOS mod to achieve that was discuss at here
forums.macrumors.com

Turn a "new" Sapphire RX580 PULSE into the "Mac Edition" card

*** Do NOT attempt to do this on your MVC flashed RX580 regardless if that's the Sapphire PULSE RX580 8GB or not *** *** This mod CANNOT make any RX580 shows boot screen *** Forum member Teddy managed to get a Sapphire PULSE RX580 8GB card. But the part number is changed already, so, can't...
forums.macrumors.com forums.macrumors.com
