PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
how is this possible? I will do a fresh re-install tomorrow (it's almost 1 A.M. over here in central europe).

I don't know if something may have gone wrong with the compiler (although, apparently, everything seemed OK). Just in case you haven't reinstalled everything from scratch, here's a new (re)compilation of the latest commit.


Attachments

  • boot 5219d48389f928a623a1800fdbc573e2a8ba5842.zip
    206.3 KB · Views: 302

mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
I already re-installed El Capitan on the MacPro2,1. how come that these two boot.efi files differ? strange..?! I ran a "diff" and they are not the same. will test the freshly compiled one right away...

EDIT

okay, everything seems to run fine now. but no changes regarding the csr-active-config in NVRAM.

Last edited:

PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
I already re-installed El Capitan on the MacPro2,1. how come that these two boot.efi files differ? strange..?!
That's strange indeed. I have no idea. Even more mysterious is the fact that the presumably defective compilation worked roughly all right for splifingate. Let's hope the latest build irons out some of the remaining issues.


mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
report for the testing of the latest commit: booted first into Yosemite 10.10.5 to make sure that there's nothing about csr-active-config to be found in the NVRAM. reboot into the El Capitan Recovery HD: csrutil status -> enabled (Apple Internal). no entries of csr-active in NVRAM. csrutil disable failed. reboot into El Capitan (which still runs on an older release of the new boot.efi) worked flawless.

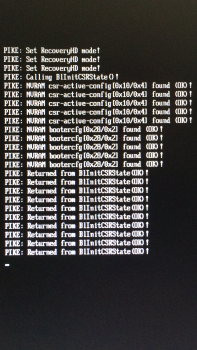

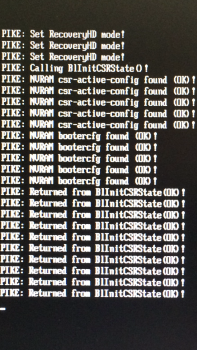

screenshot of the debug output from latest boot.efi:



mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
I cleared the NVRAM with option-command-P-R and booted into OS X Yosemite. ran "sudo nvram -c" to make absolutely sure that there's nothing in NVRAM. reboot into El Capitan Recovery HD. nvram -xp -> csr-active-config present! value "EAAAAA==". IdlePML4 present with value "0NrOAoD///8=". csrutil status -> active (Apple Internal). csrutil disable failed. reboot into El Capitan (with older boot.efi in place) -> blurry desktop picture & BBOD; NO login screen; unable to SSH into the machine! yup, I turned on remote login this time ;-) did a hard reset and rebooted into the Recovery HD without issues. tried again to boot into El Capitan without success. reboot into Yosemite to set the NVRAM vars Pike mentioned I should try if boot into El Capitan fails -> happy-happy: got the login screen again.

after clearing PRAM again I'm unable to successfully boot into El Capitan... hm. off to a customer now. might be back in the middle of the afternoon.


Last edited:

mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
after clearing PRAM again I'm unable to successfully boot into El Capitan... hm. off to a customer now. might be back in the middle of the afternoon.
Mike, check Pike's site. He needs some answers that you alone can provide.

reply posted on Pike's blog:

nope. I just tried it with the latest boot.efi installed on the El Capitan volume -> after booting successfully into Recovery HD and/or clearing PRAM, the standard El Capitan installation hangs on the blurry screen. but prior to a boot into the Recovery HD, El Capitan booted flawless.

boot into Recovery HD, issued command:

nvram 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config
gives nvram: Error getting variable...... data was not found

nvram 7C436110-AB2A-4BBB-A880-FE41995C9F82:bootercfg
gives nvram: Error getting variable...... data was not found


F1Mac

macrumors 65816
Feb 26, 2014
1,284
1,604
Mike, Peter (and Pike of course!) - you guys are just doing an amazing job. I wish I had more time to help!


PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
Fix chosen/boot-file property.


Attachments

  • boot 8af05a3cf2be3dee736fc1f31f240c7ea648c4ef.zip
    206.2 KB · Views: 297

mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
cleared NVRAM -> El Capitan only gets to the blurry screen with BBOD. booted into the Recovery HD: csr-active-config present in NVRAM with value "EAAAAA==". csrutil disable failed. reboot into Yosemite to set the NVRAM vars manually (nvram 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config=%10%00%00%00 and nvram 7C436110-AB2A-4BBB-A880-FE41995C9F82:bootdercfg=%28%00) and El Capitan boots again just fine.

  • Like
Reactions: PeterHolbrook

PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
Trying to get mikeboss back in El Capitan.


Attachments

  • boot fb48d03fdfe76401393b69d3126fffc8933a8a5b.zip
    206.2 KB · Views: 302

PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441

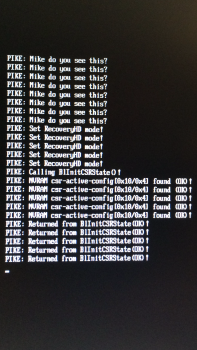

Special debug output for Mikeboss.


Attachments

  • boot eb6d3ad59ed58cf98d1ab80c60083823859178d2.zip
    206.3 KB · Views: 312

mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
this is "Special debug output for mikeboss" commit -> cleared NVRAM -> El Capitan only gets to the blurry screen with BBOD. bootroot-active and boot-file are absent in ioreg.



PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
Set EFI_VARIABLE_NON_VOLATILE for Recovery HD only.


Attachments

  • boot a2c4a4b1c2097ef742be283013aaee1d94807418.zip
    206.2 KB · Views: 224

mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
latest commit: csrutil disable failed. boot after clearing PRAM into Recovery HD -> csr-active-config present in NVRAM. bootroot-active and boot-file are absent in ioreg.


PeterHolbrook

macrumors 68000
Sep 23, 2009
1,625
441
Have any of you seen this?
Not only have we seen it, but have actively participated in making it work. Your secondary source points to this primary source. The original author is Tiamo (for Mavericks and Mountain Lion). Pike is the current developer, responsible for adapting Tiamo's bootloader to Yosemite, and now to El Capitan. His source code has been compiled by different people, such as Hennesie2000 and myself, and it has been tested by several others, such as mikeboss. It is here and at Pike's blog that this is developed, not at dgwilson.


mikeboss

macrumors 68000
Aug 13, 2009
1,546
867
switzerland
cleared NVRAM prior to first boot. booted into Recovery HD -> csr-active-config present in NVRAM with value “EAAAAA==”. bootroot-active and boot-file are absent in ioreg. reboot into El Capitan failed (blurry screen & BBOD).
