sOwL

macrumors 6502
Sep 25, 2007
490
6
Nerd Cave

rthpjm

macrumors 6502a
Jan 31, 2011
720
309
U.K.
Okay thanks. I checked the md5 of my kernel and it's not updated, so my issue is different :(
[doublepost=1524036430][/doublepost]

Yeah only I can't boot into OSX currently :(
Hi @sOwL

Try a verbose boot (hold Cmd and V after the chime, let go when you see text)
See where it gets to....


sOwL

macrumors 6502
Sep 25, 2007
490
6
Nerd Cave
Hi @sOwL

Try a verbose boot (hold Cmd and V after the chime, let go when you see text)
See where it gets to....

Is that mode showing kernel logs? I really want to figure this out without re-installling.. Many many things configured on the OS level, I'm so sad :( I can't forgive myself for actually bricking my backup as well. I'll try a verbose boot once I'm home.

I'll probably have to start a new thread about my issue, but If it's any hint my problems started with a failing GPU. I noticed at first that logging into the OS via VNC has become unreliable and needed restarts to work. I tried a screen (headless machine) and sure enough I was greeted with artifacts everywhere. I bought a new GPU, got picture, am able to boot into recovery HD properly, etc. Still, apple logo only loads half way before I get a spinning death ball. Same on safe mode. What's very weird is that some things do work even without getting into the OS. The computer gets the static IP in the network and the shared drives are perfectly usable from networked machines.

Meh, like I said, I'll start a new thread. I was kind of hoping I somehow installed the update.


Trax99

macrumors newbie
Apr 18, 2018
2
0
Okay thanks. I checked the md5 of my kernel and it's not updated, so my issue is different :(
[doublepost=1524036430][/doublepost]

Yeah only I can't boot into OSX currently :(

Hi all,

I got same issue, after updating by mistake to latest security update 2018-002, when reboot, gray screen appears with apple logo for 1 sec then it reloads again.

I checked the kernel and indeed it was modified as expected, I re-linked 2017 kernel version again but boot failure still present.

Doing verbose boot (Cmd + V) boot stops at very early stage: right after :

Code:
ACPI: sleep states S3 S4 S5

Googling for that I spotted:
https://www.tonymacx86.com/threads/solved-el-capitan-kernel-panic-after-upgrade.176178/

So I booted into recovery partition and used this command in terminal:

Code:
touch /Volumes/Macintosh\ HD/System/Library/Extensions/ && kextcache -Boot -U /Volumes/Macintosh\ HD

After kextcache was rebuild I was able to boot into OSX properly.

Hope this helps,

cheers,

Trax





sOwL

macrumors 6502
Sep 25, 2007
490
6
Nerd Cave
@Trax99 Nice, glad you got it fixed and thanks for sharing. I tried re-building my kextcache but that didn't work either. Also ran a verbose boot but I couldn't really catch the error. Do you know where the startup log is dumped?


Trax99

macrumors newbie
Apr 18, 2018
2
0
@Trax99 Nice, glad you got it fixed and thanks for sharing. I tried re-building my kextcache but that didn't work either. Also ran a verbose boot but I couldn't really catch the error. Do you know where the startup log is dumped?

Hmm, I don't know where bootlogs are stored, so I used my iphone to make a video during verbose boot and check the logs on last frame ;)

After trying to fix it with kernel re-link I attempted to re-install 10.11 via pinkify v14 USB disk I used earlier, but the install is not starting (I can just see grey screen with apple logo and small progress bar moving very slowly and nothing happens when it reach the end). So in my case fault was on much lower level which also was causing pinkify install fail.

In the kextcache rebuild command you need to use boot folder as argument, mine is "/Volumes/Macintosh\ HD" if you have a differenvt name you need to replace it. In first attempt I used just "/" as in the link in my reply, this didn't work till I replaced it with "/Volumes/Macintosh\ HD".


Iron Bridge

macrumors newbie
Jan 24, 2018
12
7
Last edited:

Menger

macrumors newbie
Apr 18, 2018
1
0
Hi @sOwL

Try a verbose boot (hold Cmd and V after the chime, let go when you see text)
See where it gets to....
Hi rthpjm,

I did what you say because I also failed boot into my system and boot into the recovery over and over again.
It said that :
Localhost com.apple.xpc.launchd[1] (com.apple.xpc.launched.domain.system)
<error>: Could not read path: path = /Library/LaunchDaemons. error = 2: No such file or directory.
<error>: Failed to bootstrap path: path = /Library/LaunchDaemons, error = 2 No such file or directory.
<errir>: assertion failed:15A284...

I can't figure out what's going on. I upgrade my system and it goes like this.

Can you help me? Thanks a lot!


sOwL

macrumors 6502
Sep 25, 2007
490
6
Nerd Cave
Hmm, I don't know where bootlogs are stored, so I used my iphone to make a video during verbose boot and check the logs on last frame ;)

After trying to fix it with kernel re-link I attempted to re-install 10.11 via pinkify v14 USB disk I used earlier, but the install is not starting (I can just see grey screen with apple logo and small progress bar moving very slowly and nothing happens when it reach the end). So in my case fault was on much lower level which also was causing pinkify install fail.

In the kextcache rebuild command you need to use boot folder as argument, mine is "/Volumes/Macintosh\ HD" if you have a differenvt name you need to replace it. In first attempt I used just "/" as in the link in my reply, this didn't work till I replaced it with "/Volumes/Macintosh\ HD".

Yep I ran the command properly. In fact, it did find a kext with a wrong signature, which I have removed and rebuilt once again, but that wasn't the problem it seems.


hungry ghost

macrumors member
Jul 2, 2007
33
0
Follow these instructions if you have just installed El Capitan, or are already using El Capitan and want to automatically put the modifications in place during updates.
@rthpjm: many thanks for the instructions on p56 — just followed your YouTube vid and it worked perfectly!


rthpjm

macrumors 6502a
Jan 31, 2011
720
309
U.K.

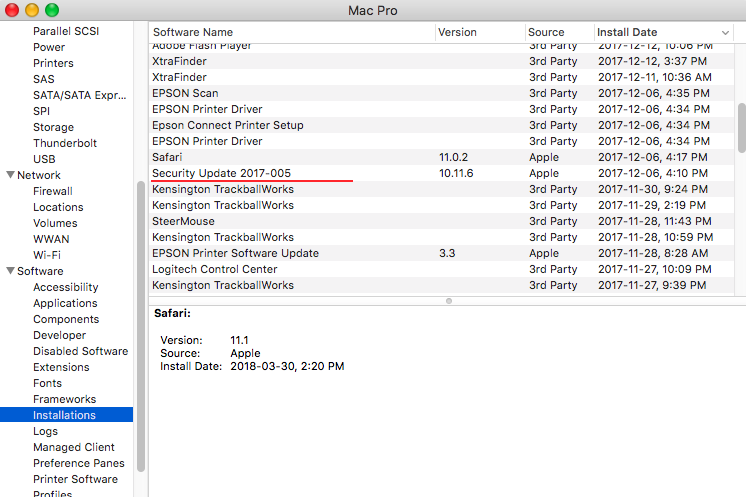

2018-002 definitely breaks your El Cap Install. Also app store no longer offers the working 2017-001/005 security updates after fresh 10.11.6 install, You need to download packages from apple website.

https://support.apple.com/kb/DL1914?locale=en_US
https://support.apple.com/kb/DL1920?locale=en_US
https://support.apple.com/kb/DL1932?locale=en_US
https://support.apple.com/kb/DL1939?locale=en_US
https://support.apple.com/kb/DL1945?locale=en_US
You can get the 2017-005 Security Update from the support downloads section. Remember the method before the App Store ;)!

https://support.apple.com/en_GB/downloads/Security


rthpjm

macrumors 6502a
Jan 31, 2011
720
309
U.K.
Okay thanks. I checked the md5 of my kernel and it's not updated, so my issue is different :(
[doublepost=1524036430][/doublepost]

Yeah only I can't boot into OSX currently :(
The command line from the Terminal

Code:
uname -a

will give you the kernel name/number/version, if you get the IP address and disks are accessible, then it won’t be the kernel that’s causing your issue.

The “system log” is /var/log/messages, it’s a text file....

You can also check the kernel ring buffer log

Code:
dmesg

Very low level log info direct from the kernel (or kexts) is written here. It’s sort of an in-memory buffer on most systems, it’s not usually a file on the disk, hence the dmesg command to dump it.

You’re looking for “unusual” items.....


oztig

macrumors newbie
Apr 27, 2018
9
3
rthpjm - Many thanks for the instructions on Page 56.
I used these on a second hand mac Pro I purchased (Upgarded the CPU to 2 x 4 core 3.0Ghz), and it installed perfectly - I'm now using it to run Parallels (for Windows Dev), and also as a MySQL server

Cheers,
Nick


rthpjm

macrumors 6502a
Jan 31, 2011
720
309
U.K.
rthpjm - Many thanks for the instructions on Page 56.
I used these on a second hand mac Pro I purchased (Upgarded the CPU to 2 x 4 core 3.0Ghz), and it installed perfectly - I'm now using it to run Parallels (for Windows Dev), and also as a MySQL server

Cheers,
Nick
No worries. It was a community effort. All I did was automate it ;)


kevinchou

macrumors newbie
Apr 28, 2018
2
0
Even Newer:
The Pikify App.


Please treat the App as initial Alpha code. It's a bit rough, but it works. I might find the time to give the app a bit more polish, it could really do with some more error checking, there's no help file, etc...

Version 1.0 had a bug which took me while to track down.
Version 1.1 would not run correctly on Snow Leopard 10.6. Turns out I was using a method for 10.7 or higher!
Version 1.2 fixes the 10.6 usage
Versions 1.3 through 1.7 weren't released

Version 1.8 contains many fixes and better progress visuals

The current stable release is version 1.8 (build 7)

The App is not signed, therefore you may need to right-click on the app and select Open the first time you run it. This forces Gatekeeper to allow the app.


The same conditions apply:

  • You must have a unmodified copy of the Apple 'Install OS X El Capitan' app in your Applications folder.
  • If you are running from a MacPro, you must have 12Gb of RAM or more.


Notes: The app is designed to run from Mac OS X 10.6 Snow Leopard or later;
Tested on:

  • 10.6 Snow Leopard
  • 10.7 Lion
  • 10.11 El Capitan
    • If you are going to use this app from El Capitan, be aware that SIP prevents the bless command from setting the boot partition. There are two workarounds:
      1. Reboot and hold the ALT key down, select the Pike Installer
      2. Reboot into the Recovery HD, turn off SIP, reboot back into El Capitan and run the App again...

USAGE:

It's an app, double-click it (or right-click and choose 'Open' if you get a unsigned/unknown developer warning). The rest should be self-explanatory...

NEW for 2017:

Version 14 marks a shift in technique. With V14 the installation process is much simpler, becomes a single pass, does not require an intermediate installer volume (USB memory stick), and does not require the use of the EFI boot selector (which should be a great help to those people with graphics cards that do not show boot screens).

NO USB!

Also note: I have tested V14 on Snow Leopard 10.6.8. It will work (even though the video says "Lion 10.7.x or higher" as the starting point.


See https://support.apple.com/en-us/HT206886 if you are having difficulty finding a copy of El Capitan.

12Gb or more of RAM is required

I made a video


To use v14, pass the path to your target disk. Let's say you want to install El Capitan onto the Macintosh HD disk....

Code:
sudo ./createpikeinstallmedia /Volumes/Macintosh\ HD
[your password]

============== Previous Versions ===========================

Are now retired....

V14 can build on a USB stick, then you can install from there...


==================== Version 12 ==================================
Version 12 saves the unmodified software in a format that makes it easier to restore. Also adds more checks. The biggest change is that the disk images are now mounted on specific mount points so that my script doesn't conflict with the default mount points.

==================== Version 13 ==================================
Not released


==================== Version 14 ==================================
Version 14 is a major change in strategy. With this version you no longer need an intermediate installation media (USB memory stick). Version 14 emulates the way Apple is currently performing the installation. With version 14 you target the disk you want to install El Capitan onto (not the USB memory stick). New users should use v14. If you encounter any issues, please post an entry on this thread.

One really big advantage to V14 is that it will reboot directly into the installer. This should be a great boon for those people with graphics cards that do NOT show boot screens. There's no more need to guess how to boot into the installer.

The only exception is using El Capitan to install another copy of El Capitan. If SIP is active, then the bless command is not allowed to change the boot device settings (setBoot). This is a security feature and should be applauded, but it means with SIP enabled, you must reboot and manually select the installer...



++++++++++++++++ MD5 ++++++++++++++++++++++++++++++++++++++++++

MD5 (pikify3.1.v14.zip) = e7b1699c8db8335c2331e1e8b247efa8
MD5 (PikifyApp-1-8.tar.zip) = 6ed325dd851b1baf681173621334db3f

Hi all,

Need some help here:

1. I got the target drive (80gb flash SATA) hooked up via SATA-to-USB to a MacBook Pro (High Sierra) w/ 16gb RAM
2. Downloaded the latest El Capitan from App Store (in Applications folder)
3. Used the pikify3.1 script via terminal and successfully built the installation drive.
4. After completion, hooked target drive back into the Mac Pro 1,1 (10 gb of RAM)
5. Boot right into it on the first try and begin installation
6. Around the 6 minute mark, the screen goes blank and the system reboots (guessing KP)
7. Boots right back into the installer and wants to do the installation again from the beginning
8. Tried again, same result, black screen and reboots around the 6 minute mark.

What am I missing here?

Kevin


Sko

macrumors 6502
Oct 17, 2009
285
59
Germany
4. After completion, hooked target drive back into the Mac Pro 1,1 (10 gb of RAM)

What am I missing here?
2 GB of RAM, as stated millions of times in this thread.

From the post you quoted:
  • If you are running from a MacPro, you must have 12Gb of RAM or more.


kevinchou

macrumors newbie
Apr 28, 2018
2
0
Thanks guys. My apologies, I forgot to mention that I am well aware of the 12 GB requirement and was wondering if there was a workaround, such as doing the installation from the MacBook Pro, update the EFI and then dropping the drive into the MacPro, thereby bypassing the requirement.

The reason is because I'm trying to avoid putting more $ into the MacPro knowing that El Capitan is likely the end of the road.

Thoughts?

If a workaround is not possible, I'm looking for recommendations on best options to acquire 4x2gb sticks. I'm currently running 4x2gb(from OWC several years back) and 4x512mb(original)

Thanks again.


flyinmac

macrumors 68040
Sep 2, 2006
3,579
2,465
United States
Thanks guys. My apologies, I forgot to mention that I am well aware of the 12 GB requirement and was wondering if there was a workaround, such as doing the installation from the MacBook Pro, update the EFI and then dropping the drive into the MacPro, thereby bypassing the requirement.

The reason is because I'm trying to avoid putting more $ into the MacPro knowing that El Capitan is likely the end of the road.

Thoughts?

If a workaround is not possible, I'm looking for recommendations on best options to acquire 4x2gb sticks. I'm currently running 4x2gb(from OWC several years back) and 4x512mb(original)

Thanks again.

It is possible to do the install from another Mac and then modify the install and put the drive into the Mac Pro.

I believe that is covered in this thread somewhere back.


jbarley

macrumors 601
Jul 1, 2006
4,023
1,895
Vancouver Island
Some time back I did something similar.
I booted my MP1,1 from an external drive running Lion.
Then I cloned a working El-Cap system from a mac mini via FW target disk mode to the MP's boot drive.
All that was left was to copy the modified boot.efi to the new El-Cap installation (2 locations) and all was good.
After creating a Recovery partition I modified the boot.efi files also to make in boot-able.


Sko

macrumors 6502
Oct 17, 2009
285
59
Germany
If a workaround is not possible, I'm looking for recommendations on best options to acquire 4x2gb sticks. I'm currently running 4x2gb(from OWC several years back) and 4x512mb(original)
I bought server-pulled RAM from HP and Dell machines with small heatsinks. Pretty low price, around 35€ for a 2x4GiB kit. I have two sets installed for a total of 16 GiB.
But if you get El Capitan installed any other way, you're good to go as long as you get rid of the 512 MiB sticks. That leaves you with 8 GiB, which works fine in one of the three 1,1s I have access to. The third Mac Pro with only 4 GiB is somewhat unstable, so I guess 8 GiB is the minimum.
