well, i asked him if the card got bootscreen or not, but hes not replying yet. if the card got bootscreen, then it might be worth it if you want to share the BIOS here. Experts like Nick and others can study on them
Just a side note: We may touch some property if we start to download BIOS from business products and redistribute it here. I saw this before when a guy uploaded a BIOS from a macvidcards.com product.
Thank you for this thread.
I put a GTX 780m into a 21.5” iMac ( Mid 2010 - iMac11,2 - A1311 ), Running MacOS 10.12 ( Sierra ). It booted good and well with no problems other than documented no boot screen, etc.

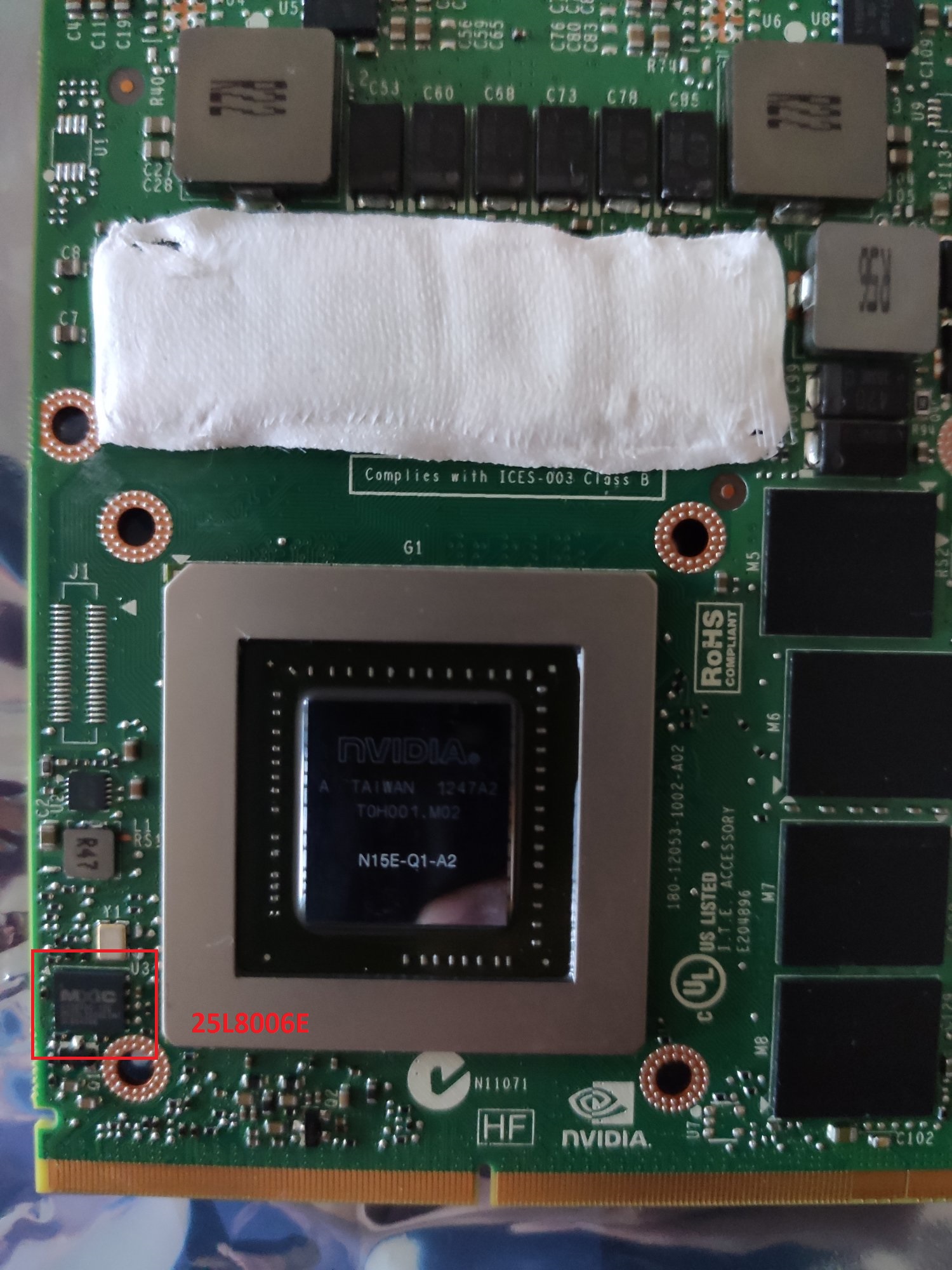

Then I flashed the video card with @Nick [D]vB's Kepler_Beta3. It’s showing the boot screen and loading screen, but after loading up a bit with the Apple logo, the screen shows black. The screen is definitely on, and I can see the 4 logic board LEDs on and good. I used @xanderon’s premade GRML USB to do the flashing.
I tried booting from a Sierra bootable USB, and Mojavi USB and got the same black screen after a certain load point.
It boots fine in Ubuntu btw, and runs like a charm, no video issues there.
Any ideas about MacOS booting?
Specs:
- Core i7-860s
- GTX 780m Kepler
- 8GB RAM
- SSD
I put a GTX 780m into a 21.5” iMac ( Mid 2010 - iMac11,2 - A1311 ), Running MacOS 10.12 ( Sierra ). It booted good and well with no problems other than documented no boot screen, etc.
Then I flashed the video card with @Nick [D]vB's Kepler_Beta3. It’s showing the boot screen and loading screen, but after loading up a bit with the Apple logo, the screen shows black. The screen is definitely on, and I can see the 4 logic board LEDs on and good. I used @xanderon’s premade GRML USB to do the flashing.
I tried booting from a Sierra bootable USB, and Mojavi USB and got the same black screen after a certain load point.
It boots fine in Ubuntu btw, and runs like a charm, no video issues there.
Any ideas about MacOS booting?
Specs:
- Core i7-860s
- GTX 780m Kepler
- 8GB RAM
- SSD
Attachments
Last edited:
![Nick [D]vB](/data/avatars/m/1132/1132239.jpg?1552018909){kind=avatar}
Yes, it could. Someone probably spent a lot of time creating that rom. Flashing a dump to an unmodified K3100 would probably end badly, for everyone. If you kill the golden goose then you probably shouldn't expect any more Easter eggs, if COVID-19 does that anyway I'll promise to hit the upload button before calling the ambulance...
@Nick [D]vB could you be more specific on how to mod the WX4170/WX7100 with bios chip, and where to put the resistor(s)?.
i could made a mod to have some test, thanx
i could made a mod to have some test, thanx

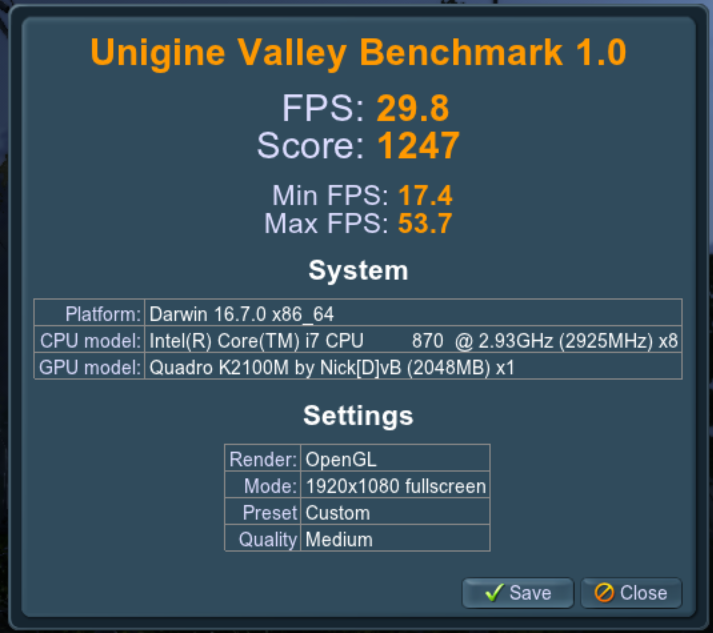

I get that Values with my stock Hd4670 256mb now with the K1100m the imac hits the 900 score, this is with High Sierra.
Attachments

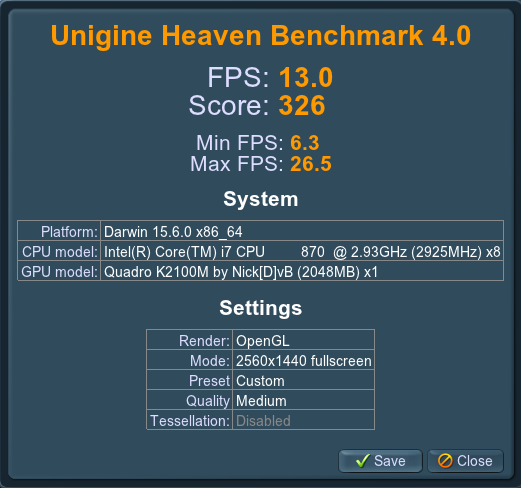

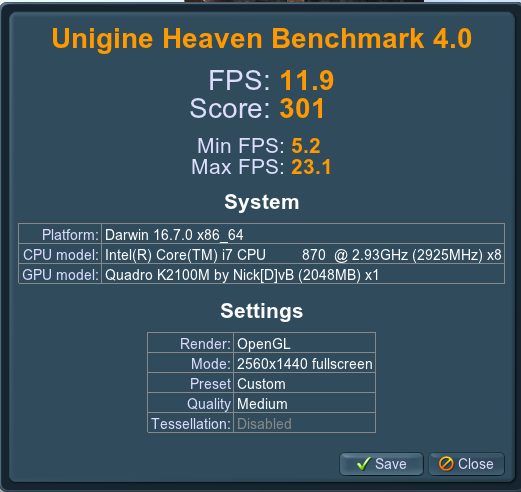

well, to rule out the os i should try to upgrade to high sierra first.
some1 with sierra had some bench to compare?
i see also your k1000m is detected with only 256mb, which version of bios have you flashed?

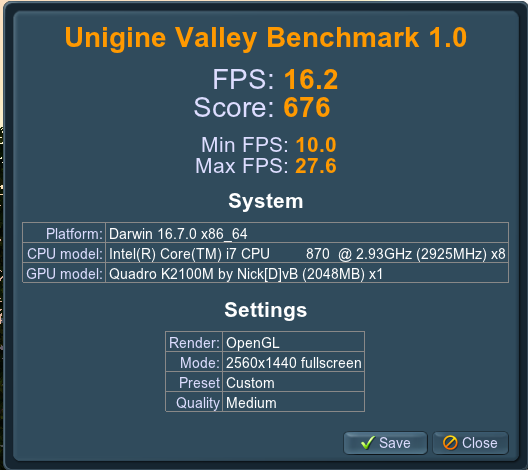

btw i've done also the bench using valley, and the score much better, but with native res the result is lower.
to have better result i need to low the res @1920 hd (like yours), and i can see the difference now.
some1 with sierra had some bench to compare?
i see also your k1000m is detected with only 256mb, which version of bios have you flashed?
btw i've done also the bench using valley, and the score much better, but with native res the result is lower.
to have better result i need to low the res @1920 hd (like yours), and i can see the difference now.
Attachments
Last edited:
Yes, it could. Someone probably spent a lot of time creating that rom. Flashing a dump to an unmodified K3100 would probably end badly, for everyone. If you kill the golden goose then you probably shouldn't expect any more Easter eggs, if COVID-19 does that anyway I'll promise to hit the upload button before calling the ambulance...
Sorry, never thought about commercializing information from this topic.
I expected that this rom could be useful for your research, but looks like you already know all about it)
Last edited:
I use the @Nick [D]vB bios downloaded from here, I don't know why say 256mb
It would be a good question of why only 256mb appears, it is that I have to do the flash again? :\
I got an hd6970M 2Gb and when I bench using both unigine valley or heaven, it only shows 256Mb
It's normal for cards to report the wrong VRAM in Valley or Heaven, nothing wrong with the flash.
I think so, mostly my graphic card is an original apple one, unflashed vbios
want to thank everyone for all of the work that has made this possible
just finished successful instal and flash of gtx 770m bought from DES global trading on ali
included benchmark comparison with the original 2GB 6970
EDIT:

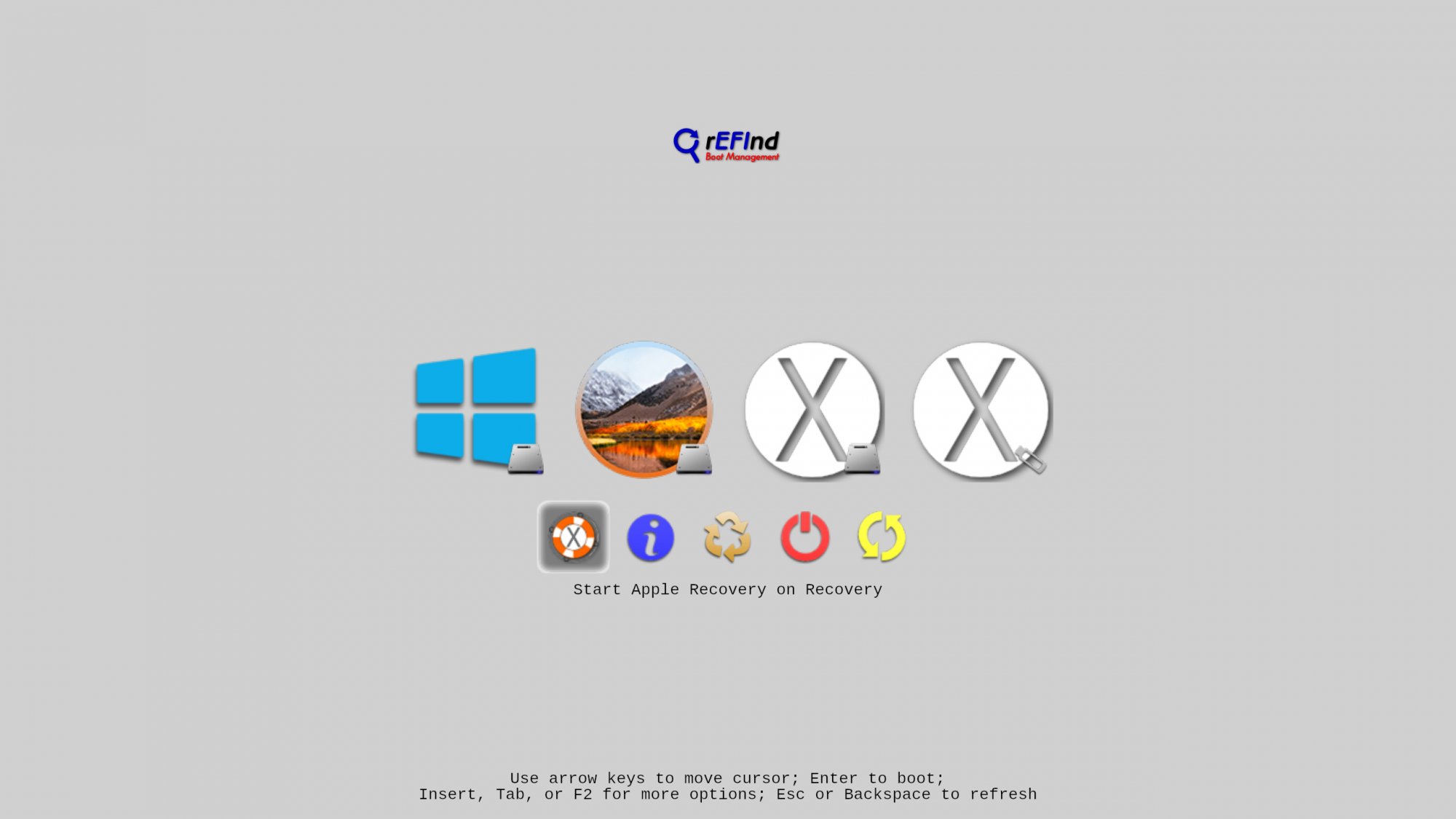

added refind screenshot in case anyone else is wondering it works
just finished successful instal and flash of gtx 770m bought from DES global trading on ali
included benchmark comparison with the original 2GB 6970
EDIT:
added refind screenshot in case anyone else is wondering it works
Attachments
Last edited:
A few pages up I posted a config file for open Core that allows 675m/770m/780m to load with faked working backlight control. This also allows you to do things such as Target Display Mode over thunderbolt. Since Open Core can load Kexts on boot you will also have working Die temps with HW monitor, and enable HD3000kexts to load externally to not break software updates.
2011 iMac Graphics Card Upgrade
It's not a curse. It's simply MXM-B in an 21.5" MXM-A iMac shouldn't be attempted at all. I have the same config in one of my 21.5" iMac and there are stability issues. This was purely because me and @Nick [D]vB wanted to know what would happen if a less wattage 765M MXM-B card was installed in...
forums.macrumors.com
A few pages up I posted a config file for open Core that allows 675m/770m/780m to load with faked working backlight control. This also allows you to do things such as Target Display Mode over thunderbolt. Since Open Core can load Kexts on boot you will also have working Die temps with HW monitor, and enable HD3000kexts to load externally to not break software updates.
2011 iMac Graphics Card Upgrade
It's not a curse. It's simply MXM-B in an 21.5" MXM-A iMac shouldn't be attempted at all. I have the same config in one of my 21.5" iMac and there are stability issues. This was purely because me and @Nick [D]vB wanted to know what would happen if a less wattage 765M MXM-B card was installed in...
thanks
I haven't dug in to open core yet but I wouldn't mind having target display mode back for when I'm working on the family's laptops
I suppose if y'all ever get us backlight control on the gtx cards it will need open core as well?
I didn't think I would miss backlight control so much because I generally keep my screen pretty bright but full brightness is quite bright, and pretty hot
Article on pc world say
Radeon Pro WX 4100, Radeon Pro WX 5100, and Radeon Pro WX 7100 will be based on its latest Polaris architecture and are aimed at professional users.
https://www.pcworld.com/article/309...-radeon-pro-wx-series-to-replace-firepro.html
Radeon Pro WX 4100, Radeon Pro WX 5100, and Radeon Pro WX 7100 will be based on its latest Polaris architecture and are aimed at professional users.
https://www.pcworld.com/article/309...-radeon-pro-wx-series-to-replace-firepro.html
Last edited:
What Dremel bit / type of file are people using to grind down the aluminium? and what's the basic safety procedure? Goggles and gloves? Is it is soft enough that you can just file it down slowly and safely?
