iM 4,1-14,4 2011 iMac Graphics Card Upgrade

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
one of our 2011 GTX765M upgraded iMac's, with patched mojave install is getting firmware error messages these days.
I dont know why, since I have got kepler vbios beta 3 running from Nick, and the firmware on the eeprom of the logic board is back to the stock latest version.

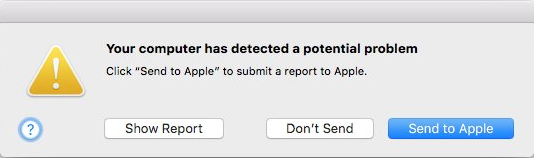

I thought these firmware error messages would only appear if your bootrom has been modded.. ?
Guess perhaps apple changed something, or I have missed something here.. ?

Seems like the EFI checker, is not liking this iMac afterall.. ?


Attachments

  • eficheck_dialog.png
    50 KB · Views: 161
Chris Rual David Maitin said:
i flashed my dell wx4150 the model 109-c98581-00_02 that model works in a mid 2011 imac 21inch i will be posting pics of it with the wx4150 working inside it i used the rx 560 rom that was on this site thanks for the person how made tht rom and others on this site for all your hard work but it came up as a rx 460
Click to expand...
Oh, thanks for your report. Did you take any photo for the card?

  • Like
Reactions: iPlasm and Chris Rual David Maitin
Chris Rual David Maitin said:

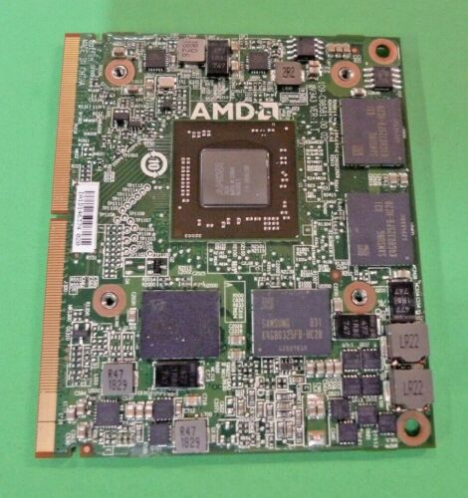

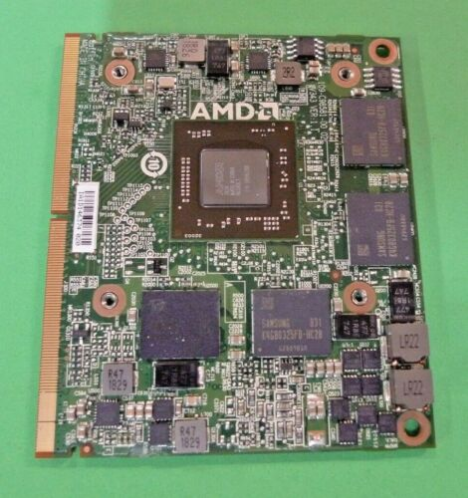

View attachment 945885
Click to expand...

I guess this item is exactly on this eBay page:
Ebay - AMD WX4150 (109-c98581-00_02) GPU Card
and here is better quality image of Card



Chris Rual David Maitin, I Thank you. I am waiting for more results of how stable is AMD WX4150
Looks like the the AMD WX4150 with model "109-c98581-00_02" is working.
There're a lot of card with "109-c98581-00D_02" model which many of them are new.
but yours working is "109-c98581-00_02" model card. without D letter.


My Computer; iMac 21.5" (2011) i5 2.5Ghz with AMD 6750M 512GB.

  • Like
Reactions: Chris Rual David Maitin, wa9im and NOTNlCE
iPlasm said:
Looks like the the AMD WX4150 with model "109-c98581-00_02" is working.
There're a lot of card with "109-c98581-00D_02" model which many of them are new.
but yours working is "109-c98581-00_02" model card. without D letter.
Click to expand...
It's not that simple actually - we already had tested models with the same ID but not all of them were equally populated. Some worked in only some iMac models, some made the system run unstable - even when they had the same ID and seemed to be populated identically. All of them worked well in non-iMac machines.

  • Like
Reactions: Chris Rual David Maitin and Nguyen Duc Hieu
internetzel said:
It's not that simple actually - we already had tested models with the same ID but not all of them were equally populated. Some worked in only some iMac models, some made the system run unstable - even when they had the same ID and seemed to be populated identically. All of them worked well in non-iMac machines.
Click to expand...

So is it safer to go with the old K3100M/K2100M than gambling with the new WX4150?

internetzel said:
It's not that simple actually - we already had tested models with the same ID but not all of them were equally populated. Some worked in only some iMac models, some made the system run unstable - even when they had the same ID and seemed to be populated identically. All of them worked well in non-iMac machines.
Click to expand...

I've read your past posts and checked (Post #6,543) did you exactly test a Green Card GPU Dell WX4150 109-C98581-00_02 on iMac 2011 21.5"? 🧐

because you were saying "HP PCB labelled 109-C98581-00_02, suggesting the D is for Dell." so you were talking about a HP WX4150 with 109-C98581-00_02 that didn't work.... even highvoltage12v did tested a blue HP GPU 109-C98581-00_02 which didn't work!
but Chris Rual David Maitin, has tested a green dell GPU with model 109-c98581-00_02.

if you did exactly what Chris Rual David Maitin did, like Green coloured GPU Dell model 109-c98581-00_02 WX4150..... then we're doing chances!! :eek:

Last edited:
  • Like
Reactions: Chris Rual David Maitin
iPlasm said:
if you did exactly what Chris Rual David Maitin did, like Green coloured GPU Dell model 109-c98581-00_02 WX4150..... then we're doing chances!! :eek:
Click to expand...
Testing was done behind the scenes, in order to prevent people from massively buying cards that won't work in their machines.

Not working in any machine so far is the HP 109-C98581-10_02; that board has a white HP label on the PCB.
All 109-C98581-00_02 or 109-C98581-00D_02 boards were working in the 2009 and 2010 iMacs - but one such board would make the iMac run unstable (while it worked without problems in a non-Apple machine). Those were HP and Dell boards, all of them with a white AMD label on the PCB.

However, I can't guarantee my statements to be entirely correct.

  • Like
Reactions: Nguyen Duc Hieu, iPlasm and NOTNlCE
iPlasm said:
I guess this item is exactly on this eBay page:
Ebay - AMD WX4150 (109-c98581-00_02) GPU Card
and here is better quality image of Card

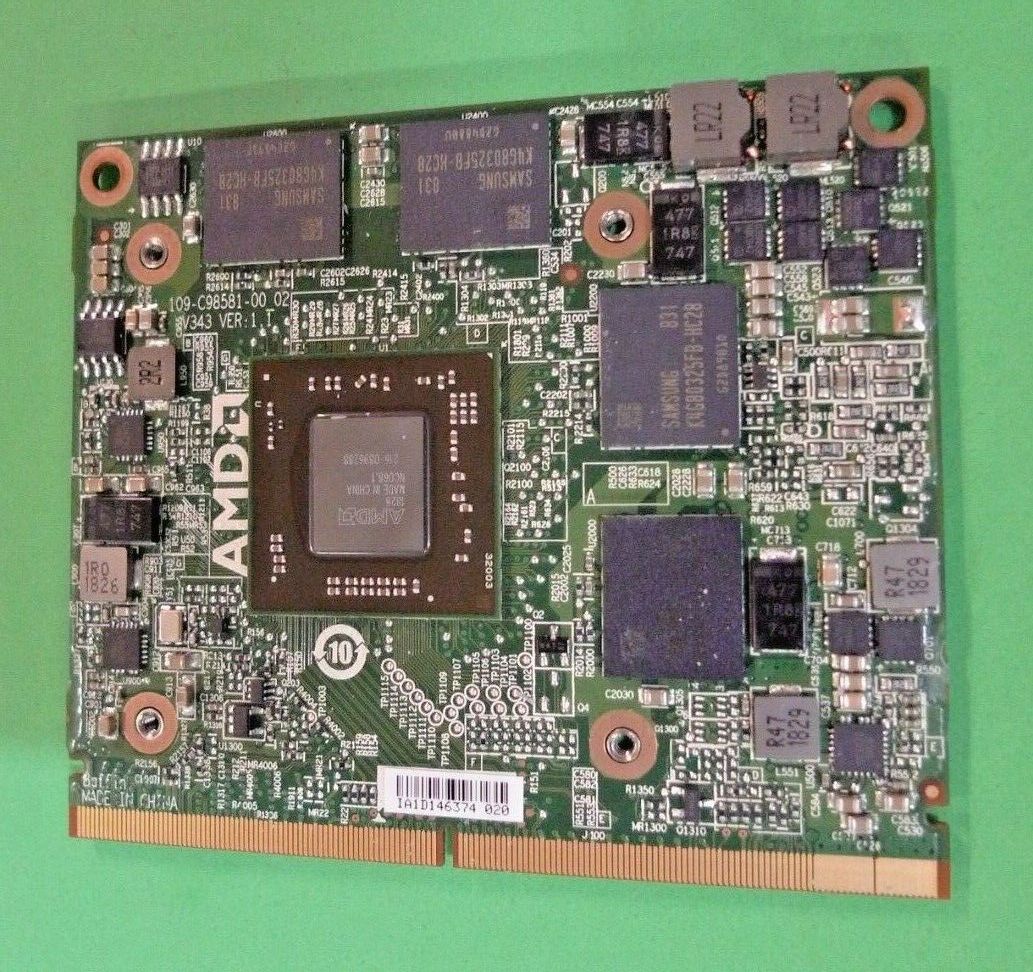

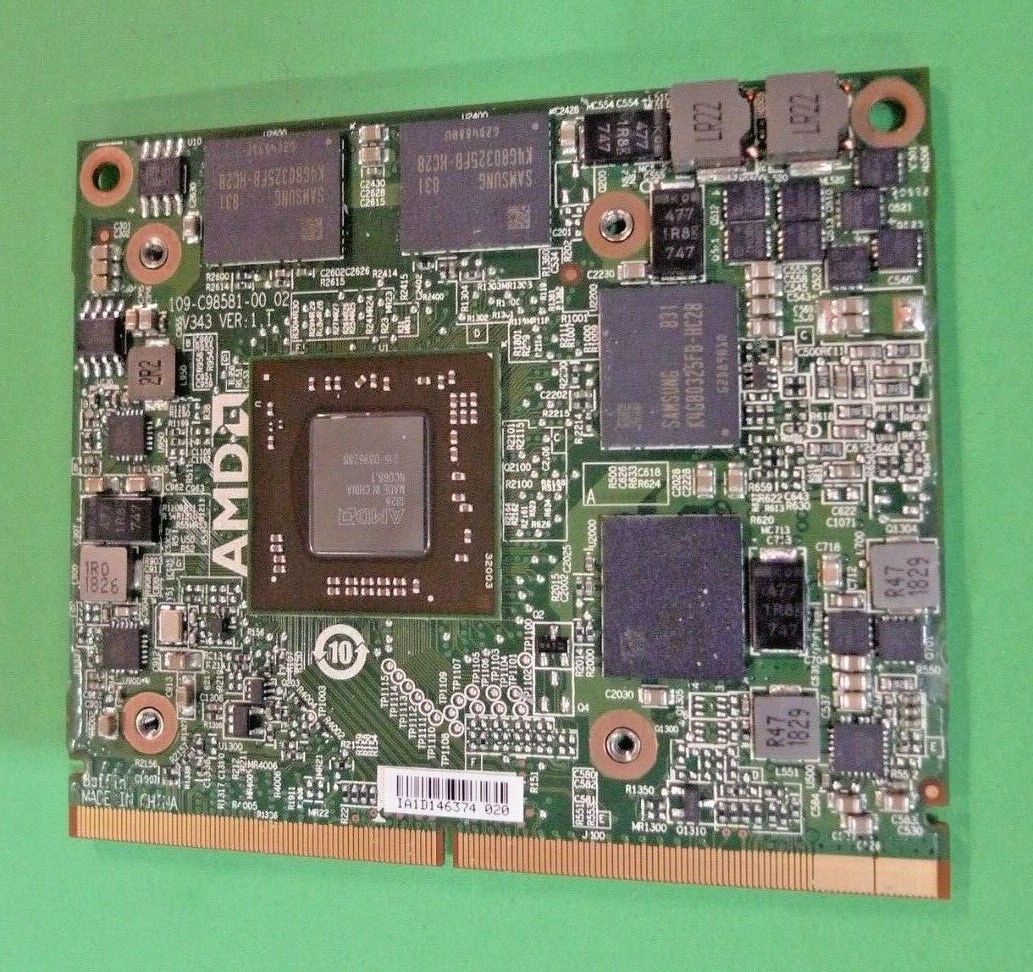

View attachment 945903


Chris Rual David Maitin, I Thank you. I am waiting for more results of how stable is AMD WX4150
Looks like the the AMD WX4150 with model "109-c98581-00_02" is working.
There're a lot of card with "109-c98581-00D_02" model which many of them are new.
but yours working is "109-c98581-00_02" model card. without D letter.


My Computer; iMac 21.5" (2011) i5 2.5Ghz with AMD 6750M 512GB.
Click to expand...
ok and this the card that worked for me I just for got to take a pic of the gpu wen I put it in the my iMac

Last edited:
that's wild that card with the same id works and some don't do you guys t think it could be something do with the memory chips like I have the hp 109-c98581-10-02 and that one dose not work at all in my iMac 2011 21inch but that green one I have dose work for me its wild that the 109-c9851-00_02 works in my iMac I'm going to buy another one for my iMac 27inch form the same seller and see if it works and if it dose that's going to be cool I got 4 iMac 2011s I may just buy 4 of them cards to just test for iMacs 2011s

Last edited:
  • Like
Reactions: iPlasm
Allistah said:
Now that I got the K4100M installed and working along with Mojave, I just wanted to report a couple of observations:

  • Pressing CMD-F2, did enter Target Display Mode and it appeared to be working fine - at full brightness
  • Pressing CMD-F2 again did not exit Target Display Mode. I had to unplug the cable to end it.
  • While in Target Display Mode, pressing the brightness on the other computer would control the brightness on the iMac. Now it only controls the brightness on the other machine. Looks like Target Display Mode is limited to full brightness at this point. Is there something I can use to reduce the brightness while only in Target Display Mode?
Click to expand...

This is really interested to hear. Target display mode is the most important feature to me as I use my iMac as a display for my work laptop (pretty much constantly now). My current card works so I've been holding off to see what the most powerful card (with target display) will be when updates stop rolling out. I'll probably use high sierra for target dipslay and Mohave for person use. The info on page 1 doesn't reflect Target Display Mode working with this card. I wonder if it works with all the listed Quadro cards?

Last edited:
  • Like
Reactions: Chris Rual David Maitin

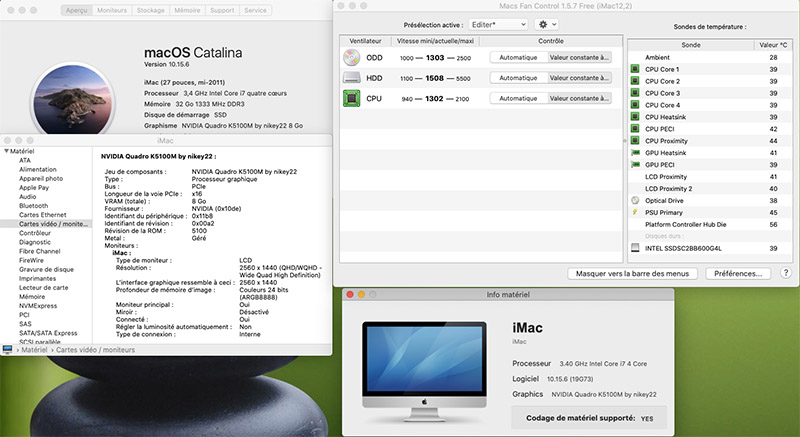

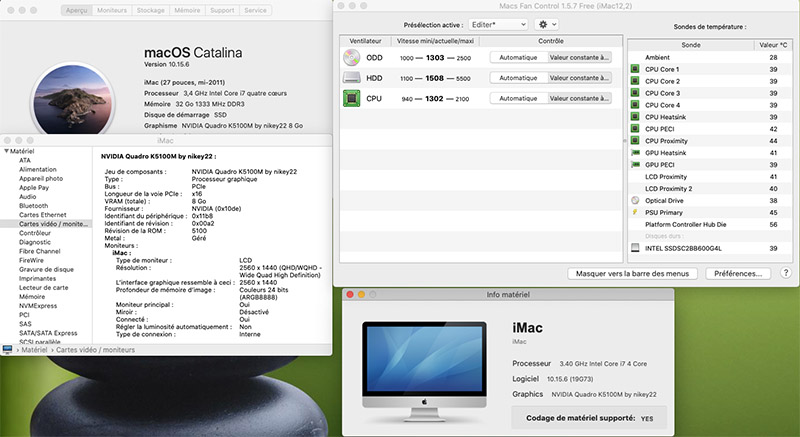

Hi all just went through with a flash of the k5100m board on my 27" 2011 imac

Run through all the commands from ssh and get the following after verifying



Reading adapter firmware image...
Current - Version:80.04.C9.00.02 ID:10DE:11B8:1028:15CD
GK104 Board - 20530503 (Normal Board)
Compare with - Version:FE.ED.00.C0.DE ID:10DE:11B8:1028:15CD
NVIDIA Quadro K5100M by nikey22 (Normal Board)

ERROR: Mismatch at offset 0x0000043B.


Size diffs between file(262144) and adapter firmware (167936)


2 root@grml /lib/live/mount/medium/flash # :(

attempted boot up with PRAM rest and get a black screen

Any help is greatly appreciated!

earmstr18 said:
Hi all just went through with a flash of the k5100m board on my 27" 2011 imac

Run through all the commands from ssh and get the following after verifying



Reading adapter firmware image...
Current - Version:80.04.C9.00.02 ID:10DE:11B8:1028:15CD
GK104 Board - 20530503 (Normal Board)
Compare with - Version:FE.ED.00.C0.DE ID:10DE:11B8:1028:15CD
NVIDIA Quadro K5100M by nikey22 (Normal Board)

ERROR: Mismatch at offset 0x0000043B.


Size diffs between file(262144) and adapter firmware (167936)


2 root@grml /lib/live/mount/medium/flash # :(

attempted boot up with PRAM rest and get a black screen

Any help is greatly appreciated!
Click to expand...
are you sure 1 this is a quadro K5100M and 2 this is a Dell CG?

internetzel said:
Testing was done behind the scenes, in order to prevent people from massively buying cards that won't work in their machines.

Not working in any machine so far is the HP 109-C98581-10_02; that board has a white HP label on the PCB.
All 109-C98581-00_02 or 109-C98581-00D_02 boards were working in the 2009 and 2010 iMacs - but one such board would make the iMac run unstable (while it worked without problems in a non-Apple machine). Those were HP and Dell boards, all of them with a white AMD label on the PCB.

However, I can't guarantee my statements to be entirely correct.
Click to expand...

Of course, I know you good people try to make best possible things without wasting cash for you and people. and I'm thankfully for that. 😇
from what've read in past posts, the iMac 2011 hasn't really been tested (am I wrong?) with these two cards (Dell's 109-C98581-00_02 and 109-C98581-00D_02) but you people did for 2009 and 2010 iMacs.
I ask that this text mentions to which model number in first page wiki?: 🤨
"These WX 4130/4150 are not detected by the 2011 iMacs for unknown reason, and therefore are currently incompatible"
I count on Chris Rual David Maitin for the results.....

I wonder why we are talking about 2009 and 2010 iMac? this thread subject is "2011 iMac Graphics Card Upgrade" 😜 at least change the year.....
Chris Rual David Maitin said:
that's wild that card with the same id works and some don't do you guys t think it could be something do with the memory chips like I have the hp 109-c98581-10-02 and that one dose not work at all in my iMac 2011 21inch but that green one I have dose work for me its wild that the 109-c9851-00_02 works in my iMac I'm going to buy another one for my iMac 27inch form the same seller and see if it works and if it dose that's going to be cool I got 4 iMac 2011s I may just buy 4 of them cards to just test for iMacs 2011s
Click to expand...

All you agree is that Blue HP 109-c98581-10-02 does not work.
Did you had or tested 109-C98581-00D_02 (with D letter) on your 2011 iMac? for confirmation just.
Please don't forget to take pictures both sides of GPU Card, with described iMac's specification.
Thanks again! 🙂


from my research if you search WX4150 with 109-c9851-00_02 GPU model are only green..... not seen blue 109-c9851-00_02, which makes easier to find out with carefully not to mistake with D Letter 109-c9851-00D_02 or different numbers.

There are few other 109-c9851-00_02 GPU on AliExpress, one example Link: https://www.aliexpress.com/item/4000307284366.html
wonder what is 2G and 4G cable length for this item? 😟 or 2GB and 4GB? 😝

  • Like
Reactions: Chris Rual David Maitin
Hi Guys.

First post.

This thread and the work done here is some of the most impressive I've seen in a long time.
It's not easy working on undocumented and unsupported bios mods I'm sure. Thank you for your hard work.

I just fixed up a broken 27" iMac late 2009. Had to replace the logic board as it was rebooting after 2 minutes of runtime. I also upgraded the CPU to an i7 860 now. Memory up to 20gb. And an SSD. Cleaned out the cobwebs inside and she's running fast as can be! It feels good to be able to reclaim and recycle older tech that is still so elegant. These older machines ability to be upgraded (memory, cpu, gpu) are much preferred over the newer soldered on memory Apple is going towards these last few years. One more reason I've stopped buying and refuse to buy newer macs that are limited in this way. Us old school guys just consider it an insult to pay so much for a bit more memory, etc.

Anyway, two weeks ago I ordered a K3000m (N12E-Q1-A1) before the ROM was pulled. I didn't download the ROM at the time unfortunately. So for now it seems I will have to wait patiently.

But I have the card in hand now as of yesterday so I'm a willing beta tester for you @nikey22 if you're in search of additional beta testers. Or if someone wants to send me the originally posted ROM. I intend to use the @xanderon method of flashing it as it seems the most streamlined method out there yet. Thank you to you both for sharing the fruits of your skill set. I for one am supremely grateful. I look forward to getting dark mode going on this via Mojave.

In the meantime I have been reading this entire thread for several weeks now and will continue to as there's a lot to wrap your head around on the fine details of each card and setup limits/requirements. It's all very fascinating though.

Anyway, thank you to the research scientists among us. I'd love to build the skills to be able to contribute, so I'm interested in any resources that could train me up in the most optimal way. If you know of any PM them over. I'll be on the hunt for more knowledge on my own regardless.

Thanks everyone.

  • Like
Reactions: stephle and Nguyen Duc Hieu
earmstr18 said:
Hi all just went through with a flash of the k5100m board on my 27" 2011 imac

Run through all the commands from ssh and get the following after verifying



Reading adapter firmware image...
Current - Version:80.04.C9.00.02 ID:10DE:11B8:1028:15CD
GK104 Board - 20530503 (Normal Board)
Compare with - Version:FE.ED.00.C0.DE ID:10DE:11B8:1028:15CD
NVIDIA Quadro K5100M by nikey22 (Normal Board)

ERROR: Mismatch at offset 0x0000043B.


Size diffs between file(262144) and adapter firmware (167936)


2 root@grml /lib/live/mount/medium/flash # :(

attempted boot up with PRAM rest and get a black screen

Any help is greatly appreciated!
Click to expand...
This different size no error! Ignore it. The cause has been explained here several times. Just use the search button to find it yourself.
The mismatch is probably one. Since you have a used card you may always encounter problems with (half) broken cards. We cannot help with this.

iPlasm said:
Of course, I know you good people try to make best possible things without wasting cash for you and people. and I'm thankfully for that. 😇
from what've read in past posts, the iMac 2011 hasn't really been tested (am I wrong?) with these two cards (Dell's 109-C98581-00_02 and 109-C98581-00D_02) but you people did for 2009 and 2010 iMacs.
I ask that this text mentions to which model number in first page wiki?: 🤨
"These WX 4130/4150 are not detected by the 2011 iMacs for unknown reason, and therefore are currently incompatible"
I count on Chris Rual David Maitin for the results.....

I wonder why we are talking about 2009 and 2010 iMac? this thread subject is "2011 iMac Graphics Card Upgrade" 😜 at least change the year.....


All you agree is that Blue HP 109-c98581-10-02 does not work.
Did you had or tested 109-C98581-00D_02 (with D letter) on your 2011 iMac? for confirmation just.
Please don't forget to take pictures both sides of GPU Card, with described iMac's specification.
Thanks again! 🙂


from my research if you search WX4150 with 109-c9851-00_02 GPU model are only green..... not seen blue 109-c9851-00_02, which makes easier to find out with carefully not to mistake with D Letter 109-c9851-00D_02 or different numbers.

There are few other 109-c9851-00_02 GPU on AliExpress, one example Link: https://www.aliexpress.com/item/4000307284366.html
wonder what is 2G and 4G cable length for this item? 😟 or 2GB and 4GB? 😝
Click to expand...
im going to to do some test with the hp card 02_10 but im going to try the vbios that is posted on the 1st page and see if there is any difference in the imac i tryed with wx4150gop.rom and that rom just made my imac turn on and off and the model i have is a 2gb version and may that gop vbiso was for a 4gb card or something but i want to now why that vbiso didnt work at all on that card im also wornding if the memory chips on the card has something to do with it i could be wrong about but like i tryed micron ram stick in my imac 2011 and the were 12800s and thos did not work at all in that imac i could be wrong but is pc3-12800s is 1600mhz and 106000s is 1333mhz ive always seen that with like sandy bridge that the mother bord will down clock the ram to 1333 mhz if its a 12800s cuz i have four of them ram sticks in my imac with 12800s but im going to do some more test with that hp card i have tho just to make sure and if it dose work then i now it was the wx4150 gop vbiso and all the 00 cards and 00d cards have sam memory chips on them its wild that if that could be the case with the memory chips but i will report back wen i do that test to see

and will the vbiso file work with that hp card thats on the fornt page or is it only for dell cards and thanks for your insight on this

  • Like
Reactions: iPlasm
