Yes, I've read about it, but I think the problem with the Evga powerlink and the Vega 56 pulse -card is the placement of the power connectors as they are in the middle of the card and not on the back... I don´t know how I could fit the powerlink in this situation...?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP All Models AMD Polaris, Vega, & Navi GPU macOS Support
- Thread starter MisterAndrew
- Start date
- Sort by reaction score
Yes, I've read about it, but I think the problem with the Evga powerlink and the Vega 56 pulse -card is the placement of the power connectors as they are in the middle of the card and not on the back... I don´t know how I could fit the powerlink in this situation...?
Yeah, but I'm still confused about this: DUAL 6+2pin (2 cables combination)
So from an 8pin to two 6pin + 2pin, but why 6+2 and not just straight 8?
I received my RX 580 (reference) card and installed it into my mid 2010 cMP 5,1. It's actually working surprisingly great. I noticed right away that the card is quiet and my case fans are back to the default rpm values even on High Sierra 10.13.6. My MVC flashed GTX 980 had my PCI and PSU fans spinning a few hundred rpm higher than default. I like the fact that the RX 580 (reference) has a single 6 pin power connector and is a true 2 slot card at a reasonable price. It's also nice to go back to a native supported GPU with normal SMC behavior. My only disappointment, or subjective con that I found is that there is no LED in the shroud. I really love and have become attached to the green light that emanated from the NVIDIA card and illuminated the inside of my case. Another con would be that there is no Apple EFI but us RX 580 and Vega owners may have an option to change that soon! It looks like MVC has been working on something. I found this yesterday: http://www.macvidcards.com/blog/could-it-be-amd-rx-580-with-efi-running-on-314151
Yeah, but I'm still confused about this: DUAL 6+2pin (2 cables combination)
So from an 8pin to two 6pin + 2pin, but why 6+2 and not just straight 8?
As far as I know 6+2 = 8 and is therefore the same. Just get the adapter that is available to you (6+2 or 8).
I even saw a cable that takes the two mini6 pins directly to an 8pin. With this you save one adapter..
Yeah, but I'm still confused about this: DUAL 6+2pin (2 cables combination)
So from an 8pin to two 6pin + 2pin, but why 6+2 and not just straight 8?
Because keep the flexibility, no matter 6+6, 6+8, 8+8, all combinations can use this config.
Easier for users to swap cards, no matter for diagnosis, or future upgrade.
Eight unreleased AMD Radeon GPUs found in second macOS Catalina beta:
https://appleinsider.com/articles/1...deon-gpus-found-in-second-macos-catalina-beta
https://appleinsider.com/articles/1...deon-gpus-found-in-second-macos-catalina-beta
I looked through the cccmanifest_64.xml file in the Windows driver and it only lists 7 Vega 20 GPUs, including the 6 already supported in macOS plus 1 more with device ID 0x66A4. The only one it lists a name for is the Radeon VII. It appears the Windows driver already supports the 7,1's Vega II and Vega II Duo though since it lists their device IDs.

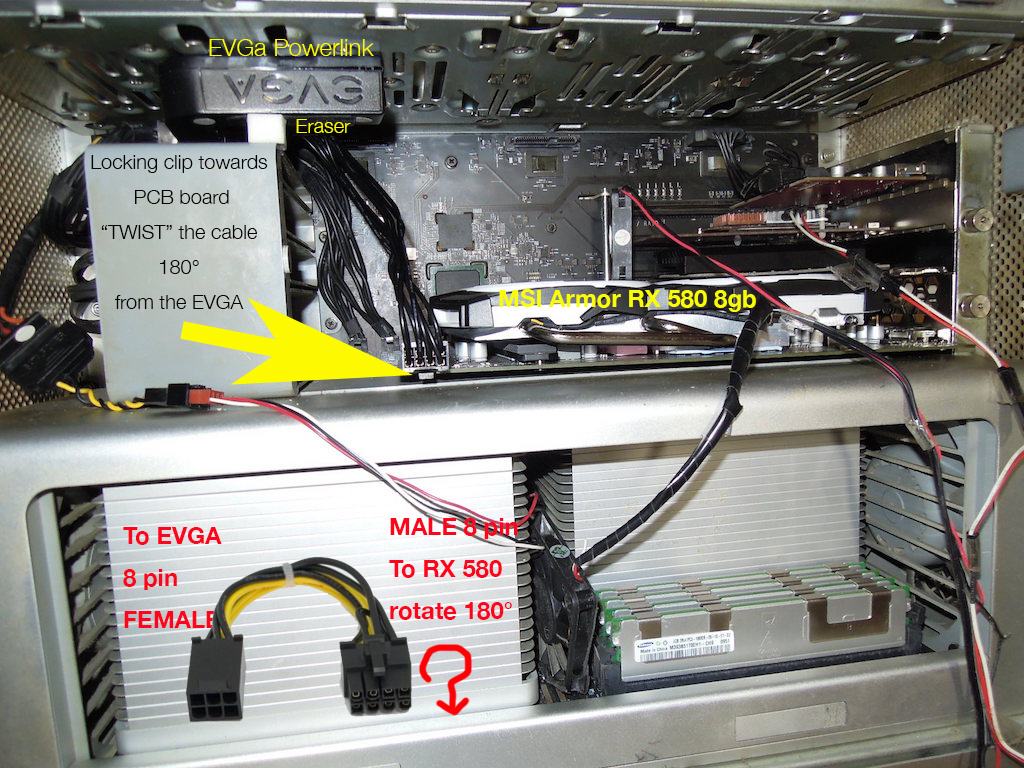

Regarding the EVGa Power link. I use it as BRIDGE for my MSI RX 580.
For cards with two 8 pin sockets in the middle of the card.
1.
Mount the EVGA Powerlink on top of the front PCI / SATA drives area INTAKE fan and secure it with a clean eraser cut to size to give a firm grip.
Like this . .
( bear in mind that this setup is for a single 8 pin RX 580 8gb. ) ..
. .. .
==========================================
From the cMP to the Powerlink
2. ( For the 1st. Powerlink INPUT socket )
TWO x mini 6 pin to 8 pin Powerlink 8 pin "INPUT" socket.
3. ( For the 2nd. Powerlink 8 pin INPUT socket )
TWO x SATA to 8 pin to the Powerlink INPUT.
=================
From the PowerLink to the dual 8 pin socket GPU
3. Female 8 pin to MALE 8 pin 1st. GPU 8 pin.
4. " " " " " " ditto.
DONE
For cards with two 8 pin sockets in the middle of the card.
1.
Mount the EVGA Powerlink on top of the front PCI / SATA drives area INTAKE fan and secure it with a clean eraser cut to size to give a firm grip.
Like this . .
( bear in mind that this setup is for a single 8 pin RX 580 8gb. ) ..
. .. .
==========================================
From the cMP to the Powerlink
2. ( For the 1st. Powerlink INPUT socket )
TWO x mini 6 pin to 8 pin Powerlink 8 pin "INPUT" socket.
3. ( For the 2nd. Powerlink 8 pin INPUT socket )
TWO x SATA to 8 pin to the Powerlink INPUT.
=================
From the PowerLink to the dual 8 pin socket GPU
3. Female 8 pin to MALE 8 pin 1st. GPU 8 pin.
4. " " " " " " ditto.
DONE
Apple eGPU for macOS recommendations updated:
https://support.apple.com/en-us/HT208544
Apple is officially listing these GPUs for eGPU now, but will likely trickle down to MP:
AMD Radeon RX 470, RX 480, RX 570, RX 580, and Radeon Pro WX 7100
These graphics cards are based on the AMD Polaris architecture. Recommended graphics cards include the Sapphire Pulse series and the AMD WX series.
AMD Radeon RX Vega 56
These graphics cards are based on the AMD Vega 56 architecture. Recommended graphics cards include the Sapphire Vega 56 and XFX Vega 56.
AMD Radeon RX Vega 64, Vega Frontier Edition Air, and Radeon Pro WX 9100
These graphics cards are based on the AMD Vega 64 architecture. Recommended graphics cards include the Sapphire Vega 64, XFX Vega 64, AMD Frontier Edition air-cooled, and AMD Radeon Pro WX 9100.
https://support.apple.com/en-us/HT208544
Apple is officially listing these GPUs for eGPU now, but will likely trickle down to MP:
AMD Radeon RX 470, RX 480, RX 570, RX 580, and Radeon Pro WX 7100
These graphics cards are based on the AMD Polaris architecture. Recommended graphics cards include the Sapphire Pulse series and the AMD WX series.
AMD Radeon RX Vega 56
These graphics cards are based on the AMD Vega 56 architecture. Recommended graphics cards include the Sapphire Vega 56 and XFX Vega 56.
AMD Radeon RX Vega 64, Vega Frontier Edition Air, and Radeon Pro WX 9100
These graphics cards are based on the AMD Vega 64 architecture. Recommended graphics cards include the Sapphire Vega 64, XFX Vega 64, AMD Frontier Edition air-cooled, and AMD Radeon Pro WX 9100.
I have a question: to install a Vega 64 in my cMP is needed pixlas mod or can work with the power of both 6 pins miniPCIe from MB??
I'm reading but no one explain clear...
I'm reading but no one explain clear...
IFF you only use it for video editing etc, most likely it's OK to use only dual mini 6pin.
However, that's extremely tight. If you do any more demanding job (e.g. 3D rendering), your cMP may be shutdown at anytime.
If you can do Pixlas mod, do it. Then no need to worry about that anymore.
I had thought in boy a RX Vega 64 8Gb OC new for 290€... but I finally rejected it because occupies 2.5 Slots and I need to remove one of my PCIe cards...
For video editing, I don’t think the difference between Vega56 and 64 is that huge.
IMO, it will be much easier to manage a dual slot Vega56.
E.g. Powercolour Red Dragon, MSI Air Boost, XFX Double Dissipation, or even just the reference card.
No need to give up a slot. Also, more margin if you only power it by dual mini 6pins.
Today AMD announced the WX 3200. A workstation graphics card priced under $200. I don't know the device ID so I don't know if it is supported under macOS. Its predecessor, the WX 3100, is not supported (device ID 0x6985).
https://www.anandtech.com/show/1460...-3200-a-professional-graphics-card-for-sub200
Edit: According to this list, it might be 0x6981, and therefore not supported.
https://www.anandtech.com/show/1460...-3200-a-professional-graphics-card-for-sub200
Edit: According to this list, it might be 0x6981, and therefore not supported.
640 stream processors (640:40:16 12 - 10 CUs)? It's probably a Polaris 12 - RX-550/560 equivalent. Interesting product, will sell a lot for entry level CAD.
its a Lexa based card which OS X does not have drivers for sadly
OS X only has drivers for Baffin and up
it's worth noting the 8x thing is a limitation of the Lexa GPU itself, only having 8x PCIe lanes, the same is true for the Baffin cards like the RX 460/560 as well
but given these are relatively low end cards I doubt they would suffer much if any performance loss from only having 8x lanes
OS X only has drivers for Baffin and up
it's worth noting the 8x thing is a limitation of the Lexa GPU itself, only having 8x PCIe lanes, the same is true for the Baffin cards like the RX 460/560 as well
but given these are relatively low end cards I doubt they would suffer much if any performance loss from only having 8x lanes
![Nick [D]vB](/data/avatars/m/1132/1132239.jpg?1552018909){kind=avatar}
I think it's the PCIE x8 limit causing detection problems with most Baffin cards in the 2010/11 iMacs, it's not vbios related, they are detected just fine in older 2009 iMacs, shame they can't output LVDS. Would be interested to know if they work in later xserves, should be a nice bump up from the GT120, with boot-screens, HEVC etc.
The Navi based RX 5700 GPUs are available from AMD today. No macOS drivers yet. They have 8 + 6 pin power connectors. We'll have to see how the power characteristics are to see if they're suitable for unmodified cMP. It's odd Apple didn't include this GPU for the base 7,1 instead of the old Polaris GPU. (Edit: The Navi GPUs are optimized for gaming and have poor compute performance so not suitable for a workstation.)
Last edited:
The 8+6 pin configuration doesn't make any kind of sense on the plain 5700 as it has a max power consumption of 202,61W during Furmark (it's just 183W during intense gaming).
I'm wondering if it will work alright with a single 8-pin cable, although, judging from Tom's Hardware tests, 2 6-pin might be better.
https://www.tomshardware.com/reviews/amd-radeon-rx_5700-rx_5700_xt,6216-4.html
I'm wondering if it will work alright with a single 8-pin cable, although, judging from Tom's Hardware tests, 2 6-pin might be better.
https://www.tomshardware.com/reviews/amd-radeon-rx_5700-rx_5700_xt,6216-4.html
Yeah, they probably used the same PCB design on all the variants to keep costs down. It looks like the plain 5700 would be fine in an unmodified cMP. I would just combine the two 6-pins first to balance the load. So something like a dual 6 pin to 8 pin cable + a 8 pin to 8+6 pin cable.
It looks like the RX 5700 is only about 10% slower than a Radeon VII and costs half the price, and also consumes almost half the power. Absolutely incredible. Edit: Based on gaming benchmarks. Vega GPUs are still king for compute.
Last edited:
I wonder if the Sapphire Rx 5700 will become the GPU de rigueur to replace the Sapphire RX 580 Pulse. Once we get drivers of course.
I think it will for those wanting to install the best possible GPU (edit: depending on the apps they use RX 580 is still better) in an unmodified cMP, but the RX 580 Pulse still has the special frame-buffer going for it and costs half the price. It's only $170 at Newegg right now.
Last edited:
