DIY 5k Monitor - success :-)
- Thread starter fiatlux
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status

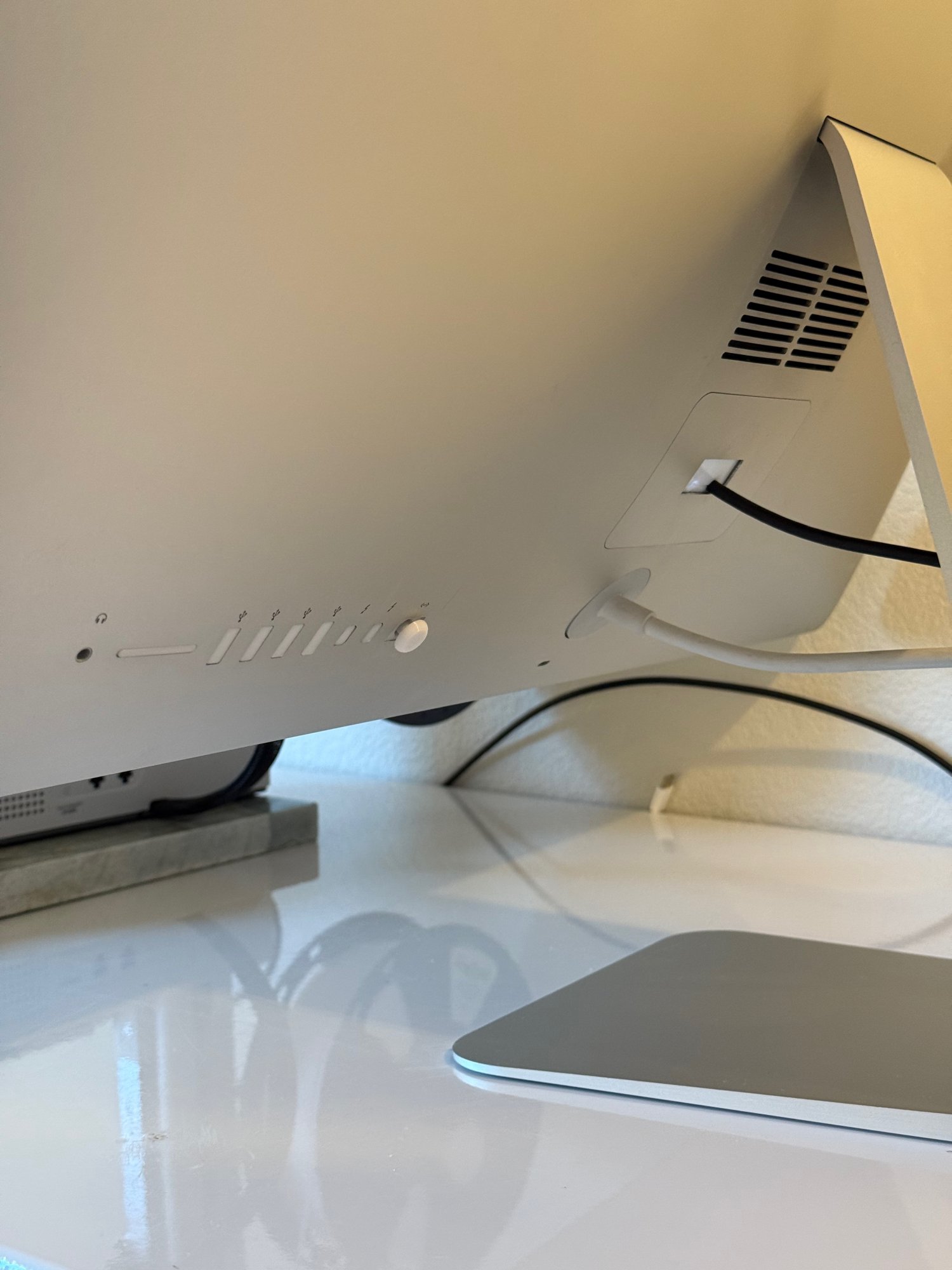

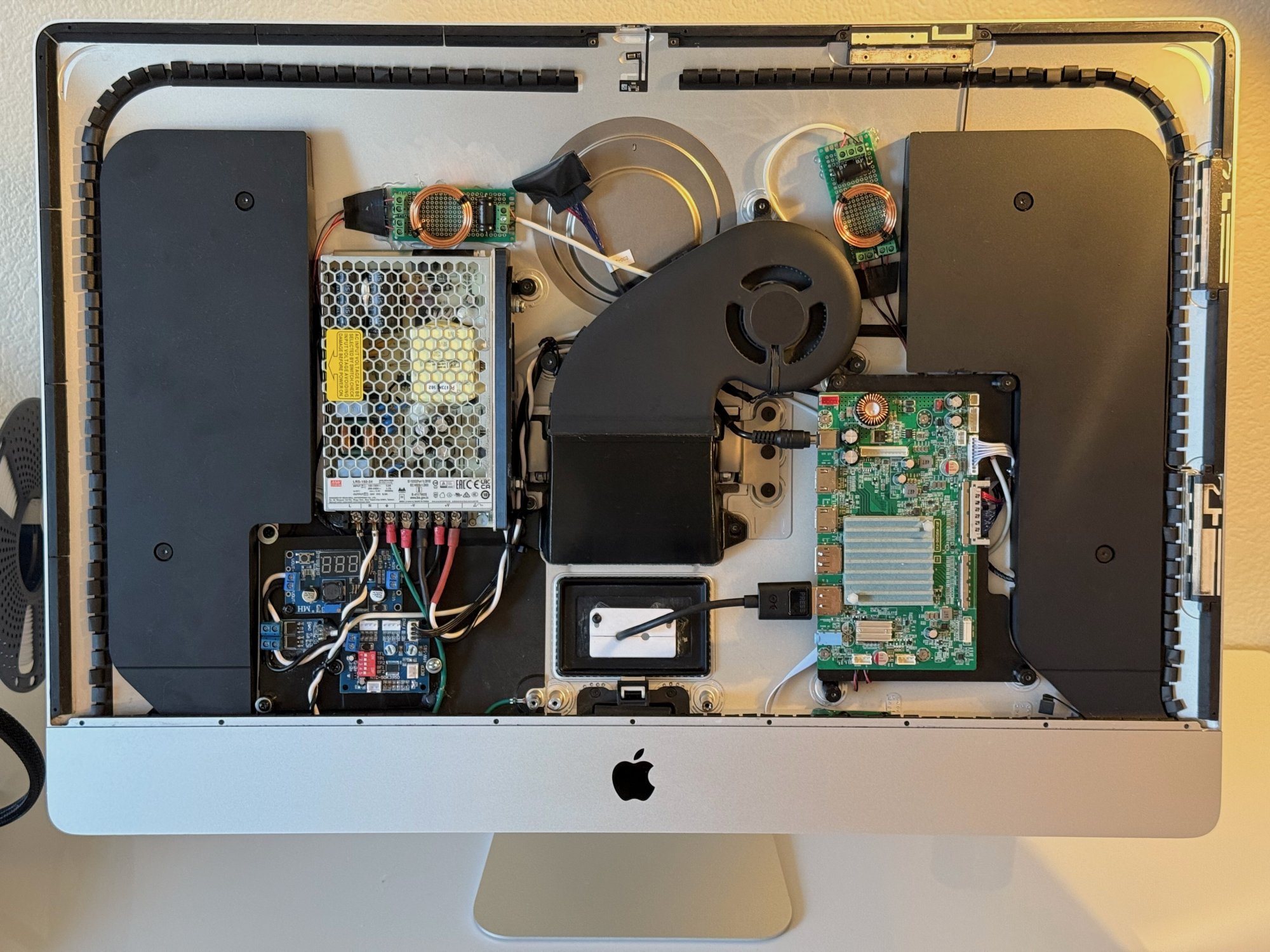

Just wanted to chime in to share my completed iMac 5K Franken-Monitor, which I’ve finally gotten around to finishing thanks in large part to the many brilliant contributors in this thread.

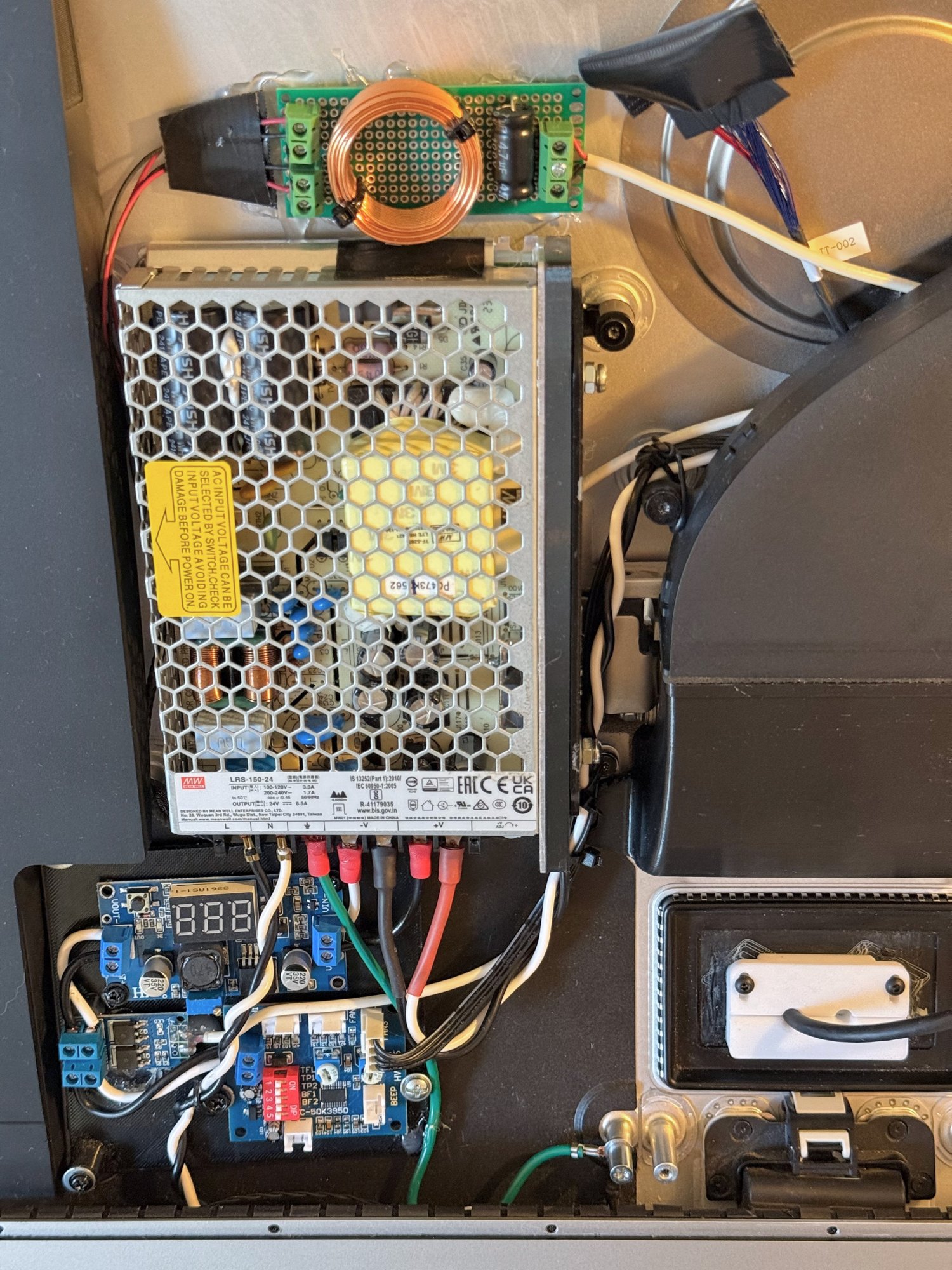

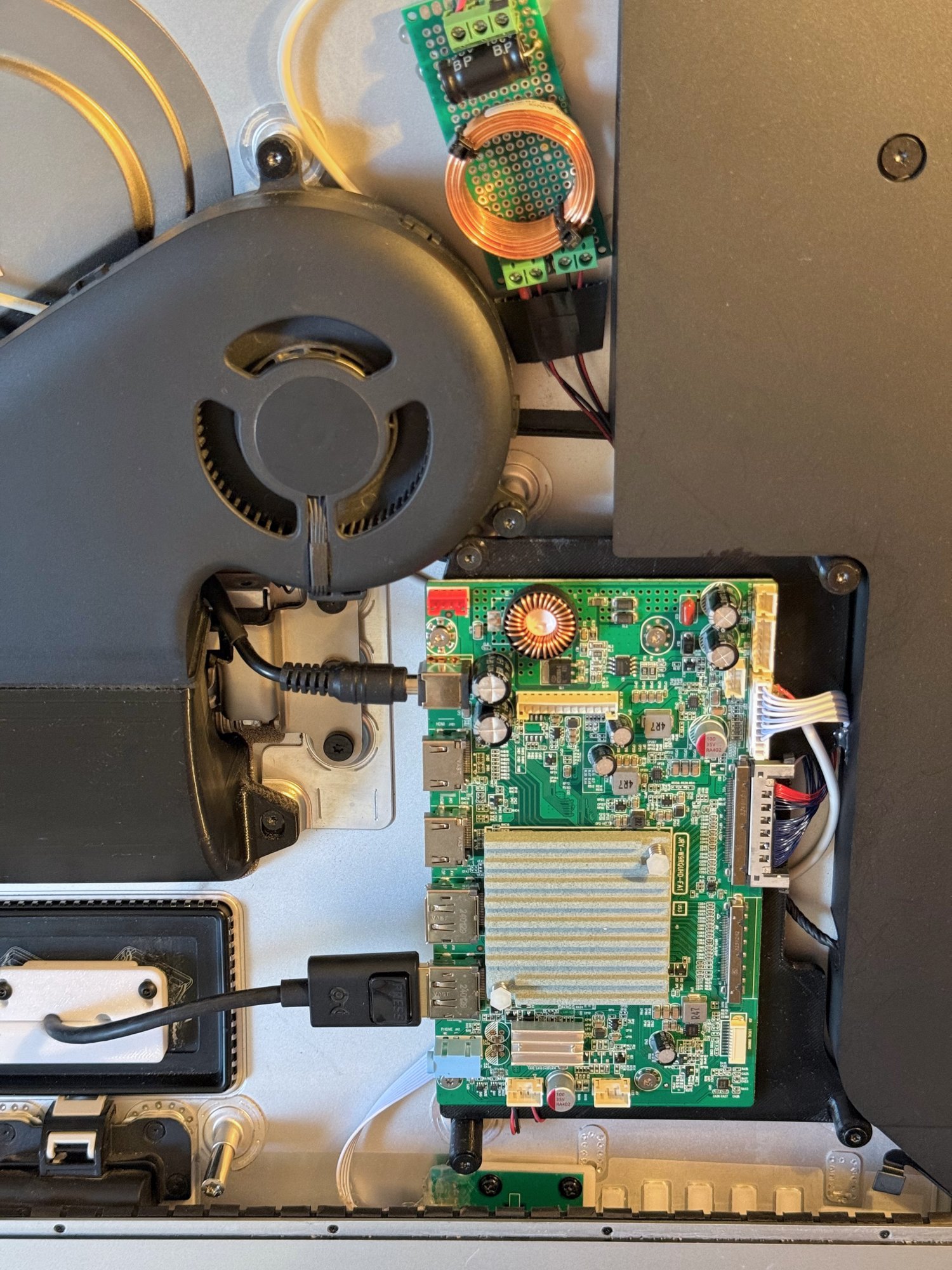

It’s a fairly modest build powered by a StoneTaskin FA1 (which I have to say I’m very pleased with) but I did make some alterations of my own, including some custom 3D printed parts such as the board mount, fan exhaust shroud, power supply mount, joystick adapter, cable lock, and port inserts. If there’s enough interest perhaps I’ll getting around to sharing those files once I’ve had time to clean them up a bit.
The speaker crossovers are just simple 2-way single-order units including a 4.7µF capacitor and a 0.15mH inductor wired in parallel. I did find for whatever reason that reversing the polarity of the woofer did improve the sound quality somewhat, contrary to other reports in this thread. In fact I was pleasantly surprised by the quality of the audio when driven by the fairly weak integrated amp in the FA1, I was fully expecting to have to use a separate amplifier but was delighted to discover that the integrated unit was plenty powerful to drive the speakers to an adequate volume for my use case without noticeable distortion. I did however have to EQ them quite substantially to correct for some of the resonant peaks and inconsistencies others have mentioned in this thread, but after doing so I think they sound pretty good.
I was also able to find a switched 5V output on the FA1 in the form of the green status led on the OSD control board, I was then able to use this as a control signal for a little switching MOSFET I found on Amazon, which in turn allows the fan to be switched on and off in sync with the display controller (including in standby mode).
Anyways, just wanted to thank everyone who’s contributed so much to this thread, especially: @Xarl-li, @PaulD-UK, @5lives. I have some other details about the project I’d like to share at some point, but rather than clutter this thread further I might just make a blog post or something and link to it here.
Cheers!
It’s a fairly modest build powered by a StoneTaskin FA1 (which I have to say I’m very pleased with) but I did make some alterations of my own, including some custom 3D printed parts such as the board mount, fan exhaust shroud, power supply mount, joystick adapter, cable lock, and port inserts. If there’s enough interest perhaps I’ll getting around to sharing those files once I’ve had time to clean them up a bit.
The speaker crossovers are just simple 2-way single-order units including a 4.7µF capacitor and a 0.15mH inductor wired in parallel. I did find for whatever reason that reversing the polarity of the woofer did improve the sound quality somewhat, contrary to other reports in this thread. In fact I was pleasantly surprised by the quality of the audio when driven by the fairly weak integrated amp in the FA1, I was fully expecting to have to use a separate amplifier but was delighted to discover that the integrated unit was plenty powerful to drive the speakers to an adequate volume for my use case without noticeable distortion. I did however have to EQ them quite substantially to correct for some of the resonant peaks and inconsistencies others have mentioned in this thread, but after doing so I think they sound pretty good.
I was also able to find a switched 5V output on the FA1 in the form of the green status led on the OSD control board, I was then able to use this as a control signal for a little switching MOSFET I found on Amazon, which in turn allows the fan to be switched on and off in sync with the display controller (including in standby mode).
Anyways, just wanted to thank everyone who’s contributed so much to this thread, especially: @Xarl-li, @PaulD-UK, @5lives. I have some other details about the project I’d like to share at some point, but rather than clutter this thread further I might just make a blog post or something and link to it here.
Cheers!
Attachments
Hi!

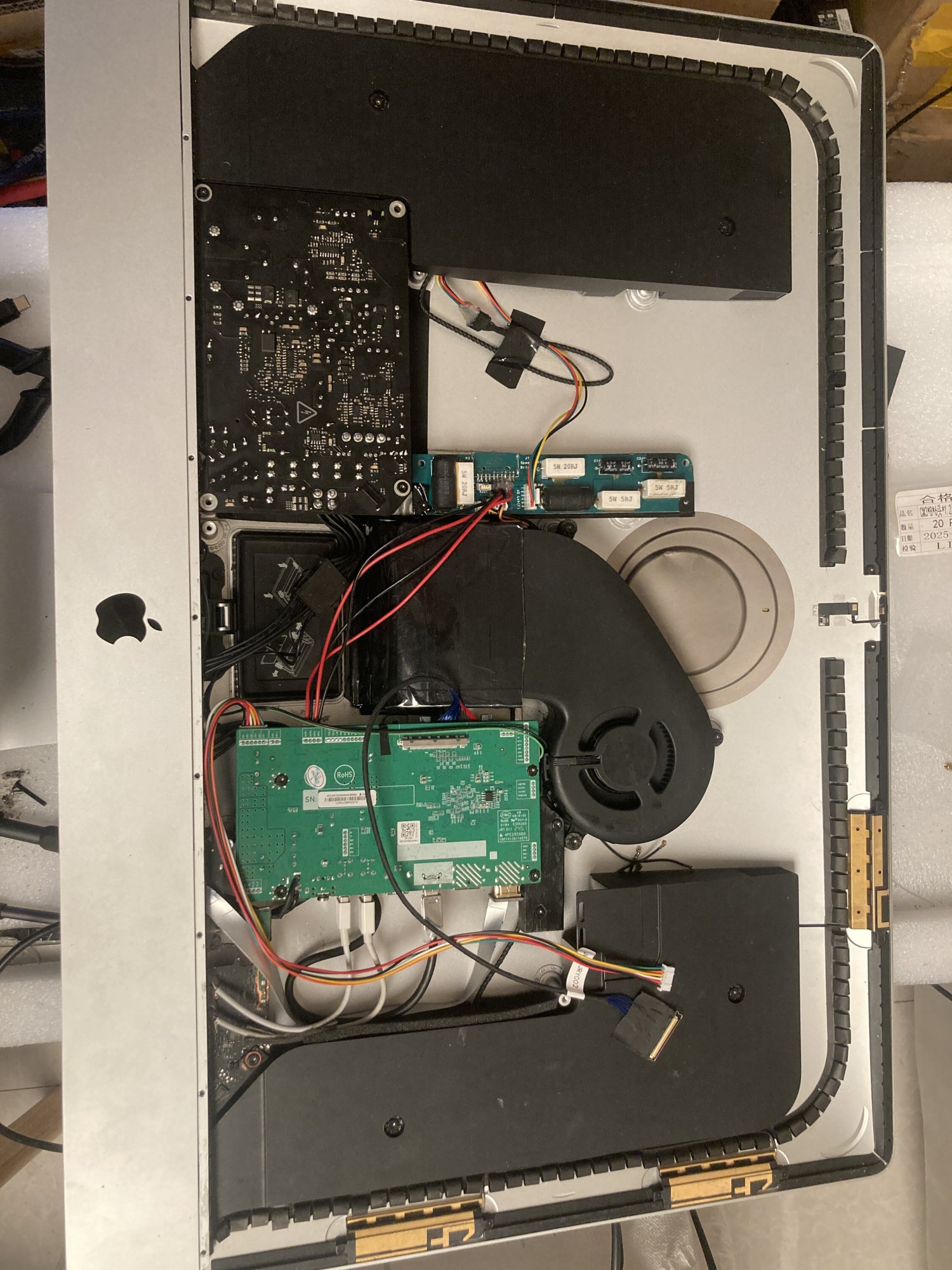

I am in the middle of my conversion of a late 2015 retina 4K iMAC 21.5" to monitor.
Have bought and just tried the CY.R9513 v5 board for imac A1418.

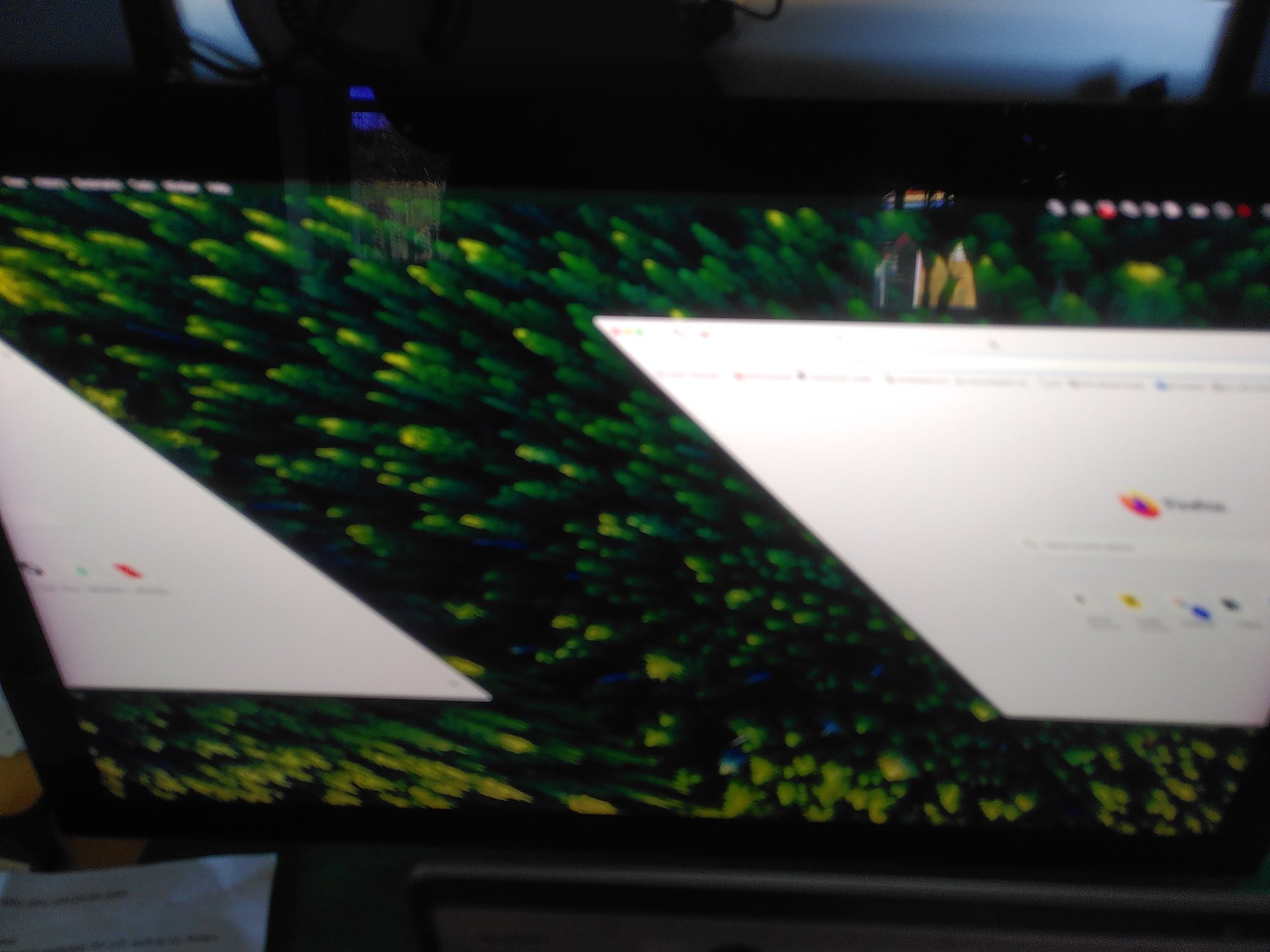

Connected with a HDMI 2.1 cable from my macbook i am getting a weired and sqewed display.
Seller ask me to try a different cable or update firmware. Dont have another cable home at the moment. I think i have seen someone else having this trouble somewhere but cannot reccon, and cannot find again.
(sorry for bad focused picture with reflection from window. The picture on screen is sharp, but skewed. The menu for screen settings is straight.)
Any ideas?
I am in the middle of my conversion of a late 2015 retina 4K iMAC 21.5" to monitor.
Have bought and just tried the CY.R9513 v5 board for imac A1418.
Connected with a HDMI 2.1 cable from my macbook i am getting a weired and sqewed display.
Seller ask me to try a different cable or update firmware. Dont have another cable home at the moment. I think i have seen someone else having this trouble somewhere but cannot reccon, and cannot find again.
(sorry for bad focused picture with reflection from window. The picture on screen is sharp, but skewed. The menu for screen settings is straight.)
Any ideas?
Attachments
@Mowgli10L
Because the OSD is normal and straight the R9513 is connecting to the screen normally.
So that means the skew problem is between the MacBook and the R9513.
All these conversion boards work best when connected through the DisplayPort input, so the best thing is to get a USB-C to DisplayPort 4K cable, and try that.
For 5K iMac conversions it needs to be an 8K DP 1.4 cable, but for 4K/60 just a 4K cable should be OK.
I don't know enough about these boards to be sure it's a cable problem, because it might be that the firmware on the board is not right for your screen.
Normal 4K is 3840x2160, but A1418 4K iMacs have a screen that is 4096x2304, so they presumably have different firmware to enable that.
Did you tell your seller that you needed the R9513 to work with an iMac, so they could flash the board with the correct firmware??
Because the OSD is normal and straight the R9513 is connecting to the screen normally.
So that means the skew problem is between the MacBook and the R9513.
All these conversion boards work best when connected through the DisplayPort input, so the best thing is to get a USB-C to DisplayPort 4K cable, and try that.
For 5K iMac conversions it needs to be an 8K DP 1.4 cable, but for 4K/60 just a 4K cable should be OK.
I don't know enough about these boards to be sure it's a cable problem, because it might be that the firmware on the board is not right for your screen.
Normal 4K is 3840x2160, but A1418 4K iMacs have a screen that is 4096x2304, so they presumably have different firmware to enable that.
Did you tell your seller that you needed the R9513 to work with an iMac, so they could flash the board with the correct firmware??
Hi Paul and thanx for reply!
yeah, the seller was informed that it was for an iMac conversion. He also got the modelnumber written on the screen and picture of connectors. A strange thing was that he believed my picture of display connection and model number was from different screens...! Argued that they were incompatible. The modelnumber is for a non 4K display (LM215WF3SDD5), but the connection was is a 4K display, so have gotten a board for the (LM215UH1-SDA1)... he believed it was the wrong sticker attached in the end...so ofcourse here might be an issue as well. But also on the iFixit site (https://www.ifixit.com/Answers/View/627222/Screen+Replacement+for+iMac+4K) it says that the screen is supposed to be the LM215UH1-SDA1. And since im the only owner of the computer, i am absolutely positive it is a late 2015 4K retina iMac 21.5". So i figuered the bad sticker was a plausible explanation.
Will get a thunderbolt-DP 4K cable tomorrow and try that.
yeah, the seller was informed that it was for an iMac conversion. He also got the modelnumber written on the screen and picture of connectors. A strange thing was that he believed my picture of display connection and model number was from different screens...! Argued that they were incompatible. The modelnumber is for a non 4K display (LM215WF3SDD5), but the connection was is a 4K display, so have gotten a board for the (LM215UH1-SDA1)... he believed it was the wrong sticker attached in the end...so ofcourse here might be an issue as well. But also on the iFixit site (https://www.ifixit.com/Answers/View/627222/Screen+Replacement+for+iMac+4K) it says that the screen is supposed to be the LM215UH1-SDA1. And since im the only owner of the computer, i am absolutely positive it is a late 2015 4K retina iMac 21.5". So i figuered the bad sticker was a plausible explanation.
Will get a thunderbolt-DP 4K cable tomorrow and try that.
Last edited:

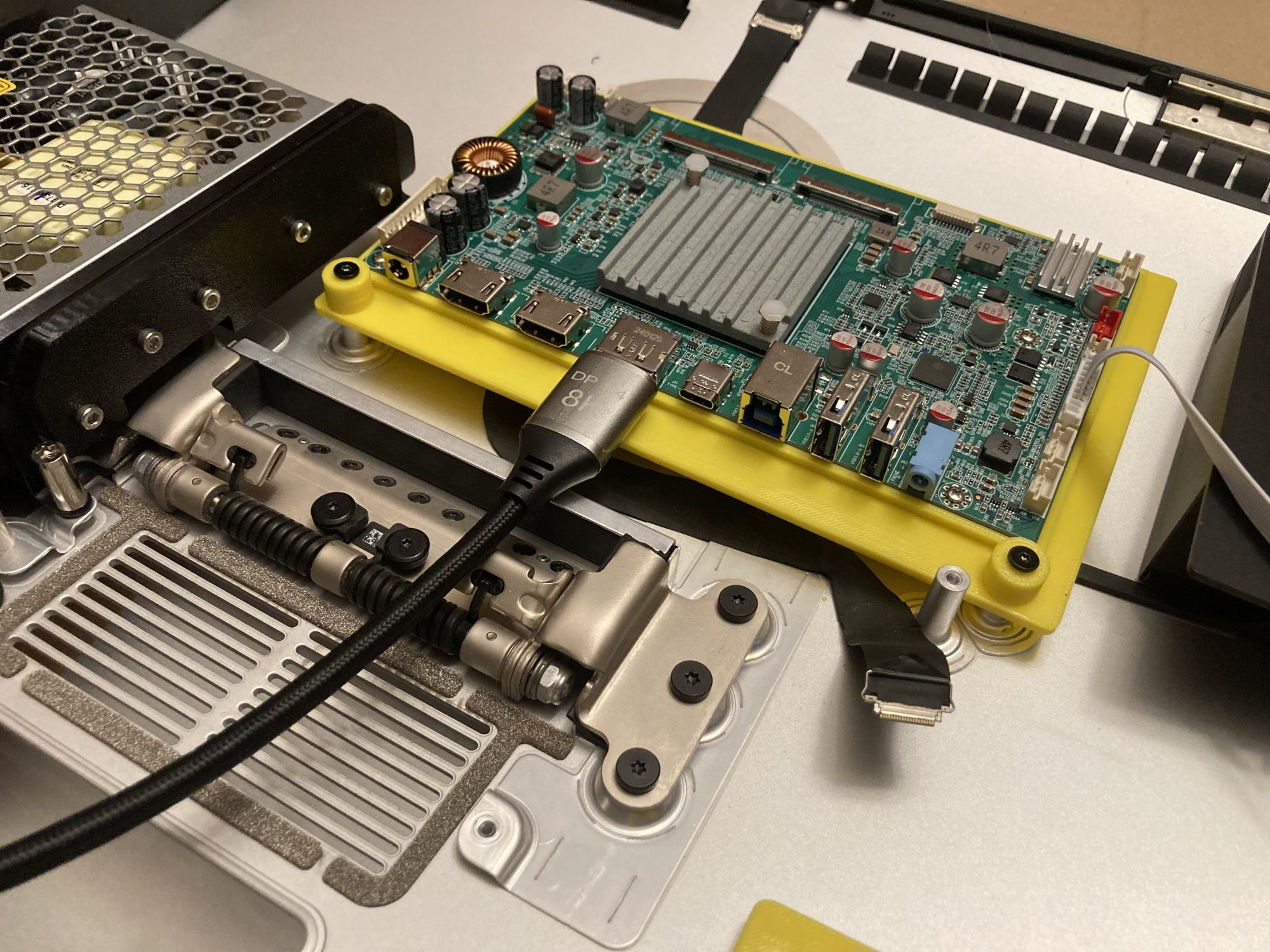

Thanks again! I had your first version printed, I think I can get it to fit with some fiddling
What screws are you using to fix the SA1 to the 3D-printed board?
Hi again! Yes, with a USB-c to DP it works just fine! Very strange behavior on the HDMI cable though.. Wonder if it was a bad HDMI-cable or if the HDMI input to the board itself is bad?
In my build I try to make "nice" connections ala @Aiwi by enlarging some original connection holes in the case for the new connections (DP & HDMI), but considering to drop the HDMI if it doesent work...
If the board works perfectly with DP, the likelihood is that the iMac-specific 4096x2304 firmware hasn't been properly implemented for HDMI, just for DP.
I guess the skew comes from the HDMI 3840x2160 /4096x2304 mismatch....
Macs work with DP internally and through the USB-C ports, and I think the HDMI port output is derived by converting DP to HDMI internally.
I guess the skew comes from the HDMI 3840x2160 /4096x2304 mismatch....
Macs work with DP internally and through the USB-C ports, and I think the HDMI port output is derived by converting DP to HDMI internally.
Ah, OK. And i guess its not so simple to just update to correct firmware on my own. So i guess i stick to DP.
@RDCh I use M2.5 inserts and M2.5x6mm screws (I bought a cheap jig in Amazon to install inserts and it's like night and day, no more fiddling with an iron solder, great investment)Thanks again! I had your first version printed, I think I can get it to fit with some fiddling
What screws are you using to fix the SA1 to the 3D-printed board?
Amazon - Vertical Heat Press Machine-Heat Set Insert Tool
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Well. End of story. Now the thing is dead....Displays no input and goes to sleep. I guess i f*kd up trying to cram everything into the case, moving things around to much and finally breaking something. Big bummer. Just got to buy a new board.....

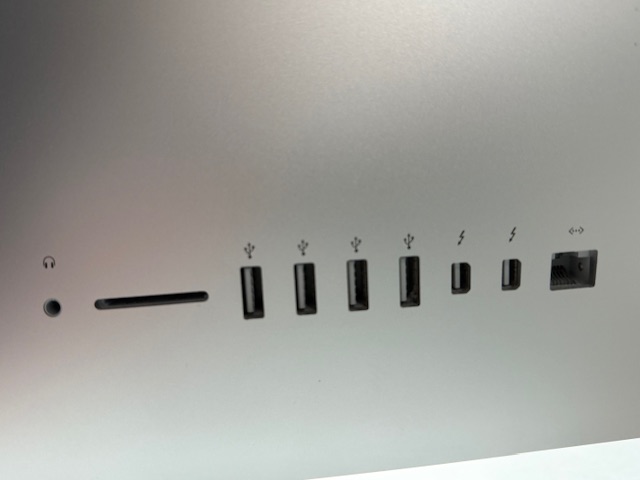

@joergz Previous DIY conversions in this thread have used 3D printed bungs to fill up the original iMac ports. I don't know if anyone has shared a design. There would need to be different versions for 2014-15 and 2017-20 iMacs.

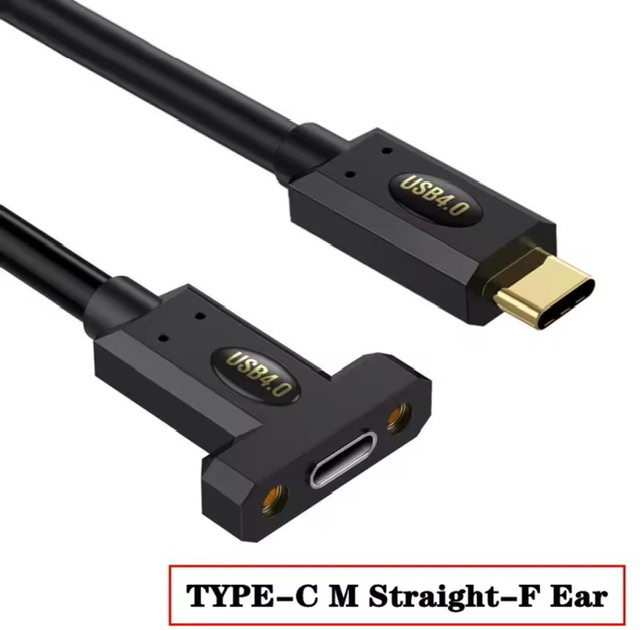

You would need to test whether that USB-C extension cable works properly, especially if you want to charge a MacBook Pro...
Here is a post describing why they are generally not a good idea. It may work. or it may not:
"Direct USB-C to USB-C extensions are explicitly forbidden for safety and performance reasons because they defeat built-in safety mechanisms. ...the signal integrity requirements for USB-C's higher transmission rates are very strict."
You would need to test whether that USB-C extension cable works properly, especially if you want to charge a MacBook Pro...
Here is a post describing why they are generally not a good idea. It may work. or it may not:
"Direct USB-C to USB-C extensions are explicitly forbidden for safety and performance reasons because they defeat built-in safety mechanisms. ...the signal integrity requirements for USB-C's higher transmission rates are very strict."
Thanks Paul, I‘m just interested in trying but if these don’t work it wouldn‘t be a problem. I don‘t want to use the charging option anyway. My docking station will take care of that.
Thanks for your feedback. Always a bit tricky to read 100+ pages when one is new to a topic.

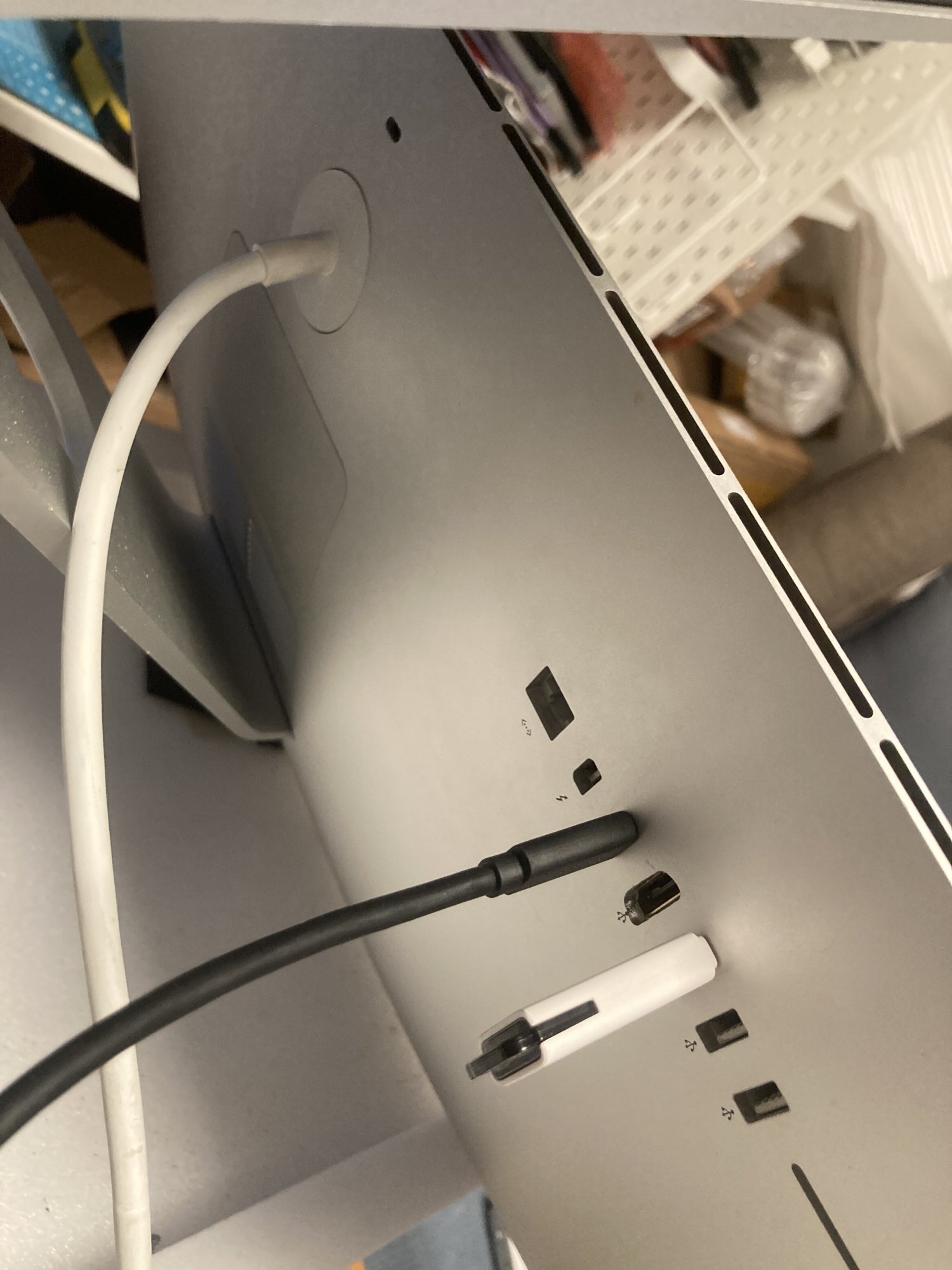

Here's a 3mf file for the port inserts (see post #2,503 for an example of them in use).
I had initially wanted to mount some kind of extension as you suggested, but I was unable to find a suitable product. The closest thing I could find was this panel-mount DisplayPort extension which I thought I might be able to mount to the ram hatch, but ultimately I decided not to bother and chose instead to just cut a hole and 3d print a channel for the cable.
Thanks so much. That's what I was looking for.
It will probably take a couple of weeks until all my ordered parts arrive but I will report back once I have completed the build - or stumbled upon obstacles.
Yes, eqMac is the only thing I've found to work for controlling sound using the SA1 and crossovers (and only if I disable DCC control). It works, but it's fiddly (e.g. sometimes you have to play around with the eqMac settings to get sound working again). The sound is noticeably worse than when it was still a 2017 iMac, but it's OK for most uses.
That's awesome. I ended up going with something simpler: https://www.amazon.nl/dp/B08J7PK8V3
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I've taken the plunge and ordered the SA1 board to convert my iMac 27 late 2015.
I just recieved a Meanwell LRS-200-24 which I want to power it, but looking at my mac I'm really not sure it's going to fit. Has anyone managed to fit one into a late 2015 before? I've seen a few mentions of that unit.
I might return and swap for the smaller LRS-150-24 if not.
I just recieved a Meanwell LRS-200-24 which I want to power it, but looking at my mac I'm really not sure it's going to fit. Has anyone managed to fit one into a late 2015 before? I've seen a few mentions of that unit.
I might return and swap for the smaller LRS-150-24 if not.
@share_and_enjoy
I don't think the interior space of the iMac case changed much after late-2015.
The late-2014/mid-2015 cases have a logic board stand-off post missing, and smaller HD mounting brackets.
Both the LRS-200-24 and the LRS-150-24 have been used by builders in this thread:
@Aiwi has written a lengthy blog about his LRS-200-24 build process.
And this one uses the LRS-150-24:
The builder @kevinherring had no-load noise problems with this PSU.
I don't think the interior space of the iMac case changed much after late-2015.
The late-2014/mid-2015 cases have a logic board stand-off post missing, and smaller HD mounting brackets.
Both the LRS-200-24 and the LRS-150-24 have been used by builders in this thread:
@Aiwi has written a lengthy blog about his LRS-200-24 build process.
And this one uses the LRS-150-24:
The builder @kevinherring had no-load noise problems with this PSU.
Last edited:
Coming back to the thread after a few years. Amazing to see it's still going. I've started having some issues with my conversion and wanted to see if anyone had run across this. I'm using the R9A18 as it was all the rage at the time.
Recently the monitor has started powering itself off during use at random times, sometimes it will be fine and others just shut off. Sometimes it happens right after the computer wakes from sleep other times after hours and hours of use. I'm fairly sure its powering right off because the LED on the button board turns off vs turning red for standby. The power supply I'm using is a mean well 12v that appears to still be running(it has its own power LED which remains on). Disassembled the monitor today and there's nothing obviously wrong, no bulging caps or burnt ICs. Next step will be trying some checks with the multimeter but I'm not entirely sure where to look given it's an intermittent problem.
Wondering if anyone has experienced something like this? Or any pointers on a where to start troubleshooting.
Recently the monitor has started powering itself off during use at random times, sometimes it will be fine and others just shut off. Sometimes it happens right after the computer wakes from sleep other times after hours and hours of use. I'm fairly sure its powering right off because the LED on the button board turns off vs turning red for standby. The power supply I'm using is a mean well 12v that appears to still be running(it has its own power LED which remains on). Disassembled the monitor today and there's nothing obviously wrong, no bulging caps or burnt ICs. Next step will be trying some checks with the multimeter but I'm not entirely sure where to look given it's an intermittent problem.
Wondering if anyone has experienced something like this? Or any pointers on a where to start troubleshooting.
