DP/USB-C/Thunderbolt to HDMI 2.1 4k@120hz RGB4:4:4 10b HDR with Apple Silicon M1-M4 now possible !

Does this 4k@120hz tweak work for you?

  • Yes

    Votes: 189 79.4%

  • No

    Votes: 22 9.2%

  • Can not get the right Adapter

    Votes: 20 8.4%

  • Yes, but Apple limit HDR/HiDPI functionality with macOS 14.1 and macOS 15

    Votes: 7 2.9%
  • Total voters
    238
aug0211 said:
Embarrassing question - this will work fine through a dock once flashed and with the appropriate cable, right? I want to use a thunderbolt dock with power so I only need to worry about one cable to my MBP. And from the dock I want the 2.1 HDMI cable left in place.

Also, anyone have a recommended dock for this setup? :)
Click to expand...
Depends on the dock. A USB-C dock will probably only have 2 lanes of HBR3.
You need a Thunderbolt 3 dock with Titan Ridge (supports DisplayPort 1.4 - 4 lanes of HBR3) or a Thunderbolt 4 dock.
Older Thunderbolt 3 docks with Alpine Ridge only support DisplayPort 1.2.

aug0211 said:
Embarrassing question - this will work fine through a dock once flashed and with the appropriate cable, right? I want to use a thunderbolt dock with power so I only need to worry about one cable to my MBP. And from the dock I want the 2.1 HDMI cable left in place.

Also, anyone have a recommended dock for this setup? :)
Click to expand...
This is exactly what i want to do as well! Was hoping that a good hdmi2.1 capable dock would work but that doesn't seem to be the case! Let me know if you find a solution!

aug0211 said:
Embarrassing question - this will work fine through a dock once flashed and with the appropriate cable, right? I want to use a thunderbolt dock with power so I only need to worry about one cable to my MBP. And from the dock I want the 2.1 HDMI cable left in place.

Also, anyone have a recommended dock for this setup? :)
Click to expand...
Iam using a TB4 Dock and the CM Adapter is connected to it. This works fine.

Last edited:
I got the Moshou C-006 (cable, not the adapter) from Aliexpress. It came with the synaptics vmm6100 and I was able to change the firmware.
But, on a Intel MBP 2019, I could'n get 4k@120hz with RGB (only 4:2:0) on a LG C2.
Does anyone know if 4k@120hz rgb 4:4:4 10b on a Intel MBP is even possible ?
(Sorry for asking Intel related question on this thread).

AironMan said:
Plz read the OP!
Click to expand...
I have, but I still don't have a clear idea if its better a 6100 or 7100. As per my understanding reading the OP:

6100, full 4k120hz RGB 10bit. But need external program to make it work
7100, full 4k120hz RGB but 8bit. Doesn't need a external program to work.

Is that right?

  • Like
Reactions: dabotsonline
freshtest said:
I have, but I still don't have a clear idea if its better a 6100 or 7100. As per my understanding reading the OP:

6100, full 4k120hz RGB 10bit. But need external program to make it work
7100, full 4k120hz RGB but 8bit. Doesn't need a external program to work.

Is that right?
Click to expand...

Only the Anker with vmm7100 works but not 100% correctly, only 8b and non HDR. So u will be better with an vmm6100 till now.

  • Like
Reactions: dabotsonline
AironMan said:
Only the Anker with vmm7100 works but not 100% correctly, only 8b and non HDR. So u will be better with an vmm6100 till now.
Click to expand...
Thanks! I have found links for mainly US stores. Any one from aliexpress confirmed working or to buy in the EU/Spain?

freshtest said:
Thanks! I have found links for mainly US stores. Any one from aliexpress confirmed working or to buy in the EU/Spain?
Click to expand...
www.amazon.de

Cable Matters 48Gbps USB C auf HDMI 2.1 Adapter (USB C HDMI Adapter) für 4K 120Hz und 8K 60Hz HDR - Thunderbolt 3, USB4, Thunderbolt 4 Port kompatibel-Maximale Auflösung auf jedem Mac beträgt 4K 60Hz

Cable Matters 48Gbps USB-C-zu-HDMI-Adapter-Kabel unterstützt 4K 120Hz und 8K 60Hz HDR - kompatibel mit Thunderbolt-3 und Thunderbolt-4-Port - 1,8m - maximale unterstützte Auflösung auf jedem Mac 4K @ 60Hz
www.amazon.de


Looks like it not available in EU anymore. U have to search by ure self where to get one. Check the OP there are some other Brand Adapters too.

Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
AironMan said:
www.amazon.de

Cable Matters 48Gbps USB C auf HDMI 2.1 Adapter (USB C HDMI Adapter) für 4K 120Hz und 8K 60Hz HDR - Thunderbolt 3, USB4, Thunderbolt 4 Port kompatibel-Maximale Auflösung auf jedem Mac beträgt 4K 60Hz

Cable Matters 48Gbps USB-C-zu-HDMI-Adapter-Kabel unterstützt 4K 120Hz und 8K 60Hz HDR - kompatibel mit Thunderbolt-3 und Thunderbolt-4-Port - 1,8m - maximale unterstützte Auflösung auf jedem Mac 4K @ 60Hz
www.amazon.de


Looks like it not available in EU anymore. U have to search by ure self where to get one. Check the OP there are some other Brand Adapters too.
Click to expand...
It is available in the UK store, even with the import fees from the UK to the EU it's a reasonable price:
www.amazon.co.uk

Cable Matters 48Gbps USB C to HDMI 2.1 Adapter Supporting 4K 120Hz / 8K 60Hz HDR - Thunderbolt 3 and Thunderbolt 4 Port Compatible - Maximum Supported Resolution on Any Mac via This Adapter is 4K@60Hz

www.amazon.co.uk

I'll report as soon as a I get it if it works with the OP's method.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I noticed that the only setting neither BetterDisplay NOR macOS ever seem to remember is HDR on; I always have to flip it on manually, Config Protection doesn't do anything for this setting it seems. Anyone else?

I feel like there is something off here. Somehow when I am in 4k 120hz mode it feels really laggy when dragging windows and in some animations. I do not have that when in 4k 60hz it rather feels smoother too. Anyone else having this experience.

The mouse and everything feels smooth but its just some animations like dragging a window really fast it seems like it skips some frames. My guess is that somehow this setup can not deliver the whole bandwidth all the time.

Anyone else having this experience?

Gussu said:
I feel like there is something off here. Somehow when I am in 4k 120hz mode it feels really laggy when dragging windows and in some animations. I do not have that when in 4k 60hz it rather feels smoother too. Anyone else having this experience.

The mouse and everything feels smooth but its just some animations like dragging a window really fast it seems like it skips some frames. My guess is that somehow this setup can not deliver the whole bandwidth all the time.

Anyone else having this experience?
Click to expand...
Use something other than a bluetooth accessory. Using a mouse with a 2.4G dongle or Magic Trackpad (which uses some ‘magic’ interpolation or something) will give you smooth animations. Had the same and definitely not a bandwidth issue

  • Like
Reactions: dabotsonline
Technotron said:
I noticed that the only setting neither BetterDisplay NOR macOS ever seem to remember is HDR on; I always have to flip it on manually, Config Protection doesn't do anything for this setting it seems. Anyone else?
Click to expand...
Best is to contact BetterDisplay @stevemr123 for support in this

davidawolf said:
Cable Matters support first had me order a used version of 201388-GRY from Amazon.com. It should arrive this week. They say it should contain the VMM6100. We'll see about that.
Click to expand...
Thanks again for the tip! I ordered a used one from their amazon listing which was delivered today, and sure enough it was the older 201388-GRY model I was hoping for. Works great!

Gussu said:
I feel like there is something off here. Somehow when I am in 4k 120hz mode it feels really laggy when dragging windows and in some animations. I do not have that when in 4k 60hz it rather feels smoother too. Anyone else having this experience.

The mouse and everything feels smooth but its just some animations like dragging a window really fast it seems like it skips some frames. My guess is that somehow this setup can not deliver the whole bandwidth all the time.

Anyone else having this experience?
Click to expand...
Is the HDMI input set to "PC" mode (PC icon in the input settings) when in 120Hz still? Sometimes it switches back to the standard HDMI icon when you switch cables, which has much higher latency than when it's in PC mode.

JWort93 said:
Thanks again for the tip! I ordered a used one from their amazon listing which was delivered today, and sure enough it was the older 201388-GRY model I was hoping for. Works great!
Click to expand...
My 'used' 201388-GRY arrived today. Here's more information on how to tell the two versions of 201388 Cable Matters adapters apart:

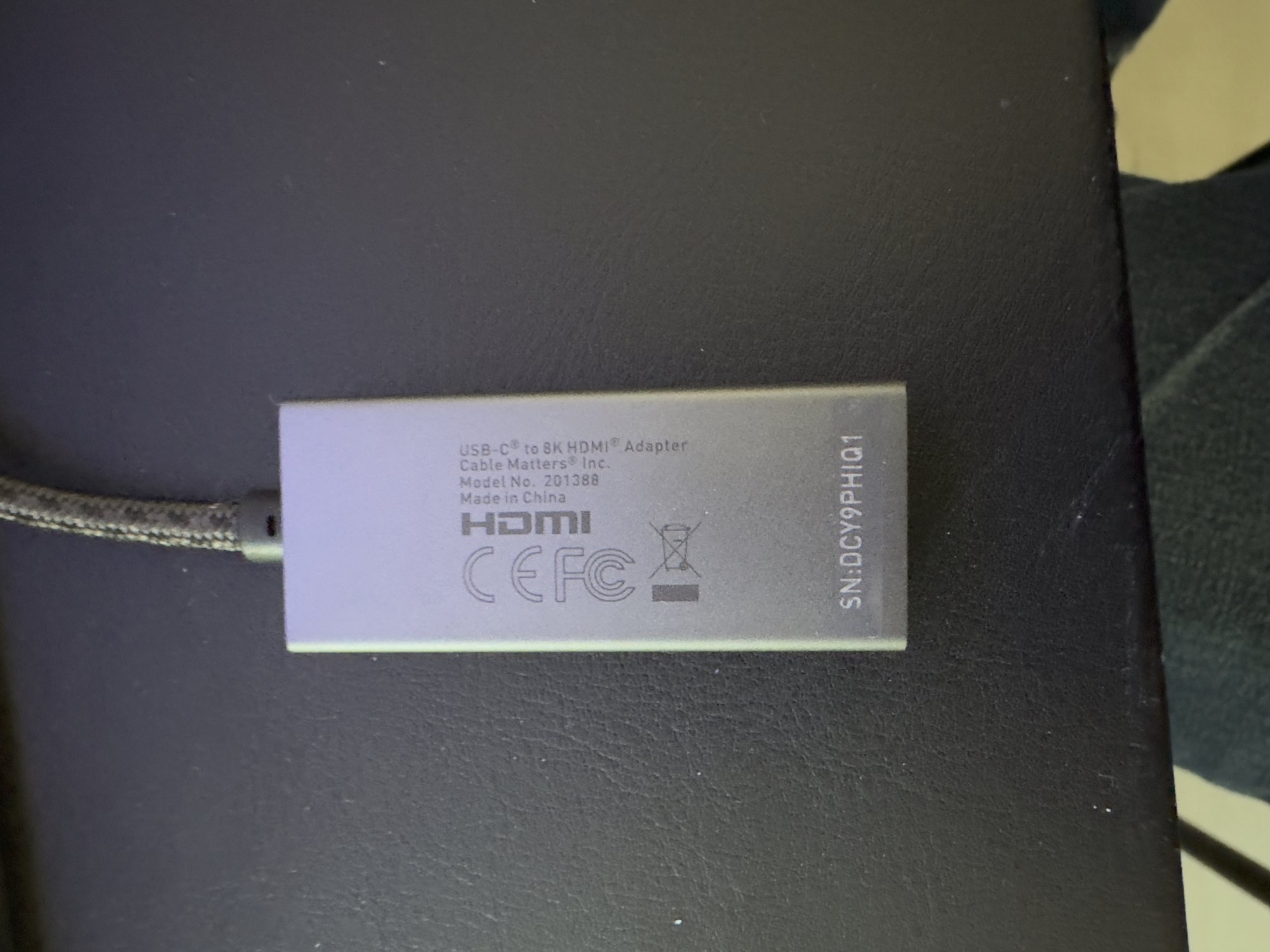

(1) Cable Matters Model 201388-GRY (on the outside of the box). This adapter has Model No. 201388 on the aluminum case. This contains chip VMM6100.
Cable Matters VMM6100 201388-GRY.jpg

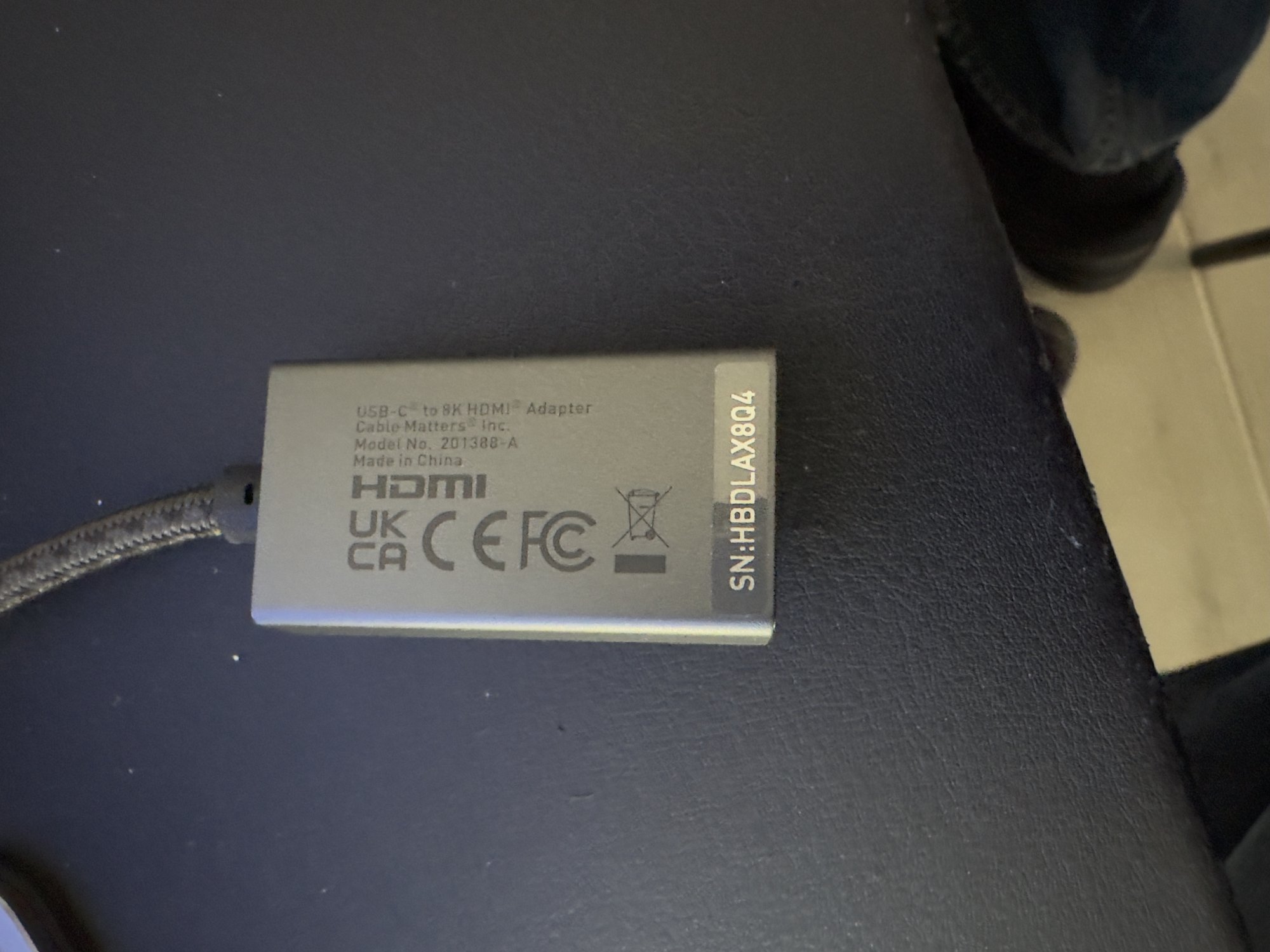

(2) Cable Matters Model 201388-A (on the outside of the box). This adapter has Model No. 201388-A on the aluminum case. This contains chip VMM7100.
Cable Matters VMM7100 201388-A.jpg

  • Like
Reactions: beesinmyhead, dabotsonline, Technotron and 1 other person
For those asking, there is no solution for Intel MPBs. The best you can do is use patch-edid.rb to get 4K 60 Hz RGB.

Last edited:

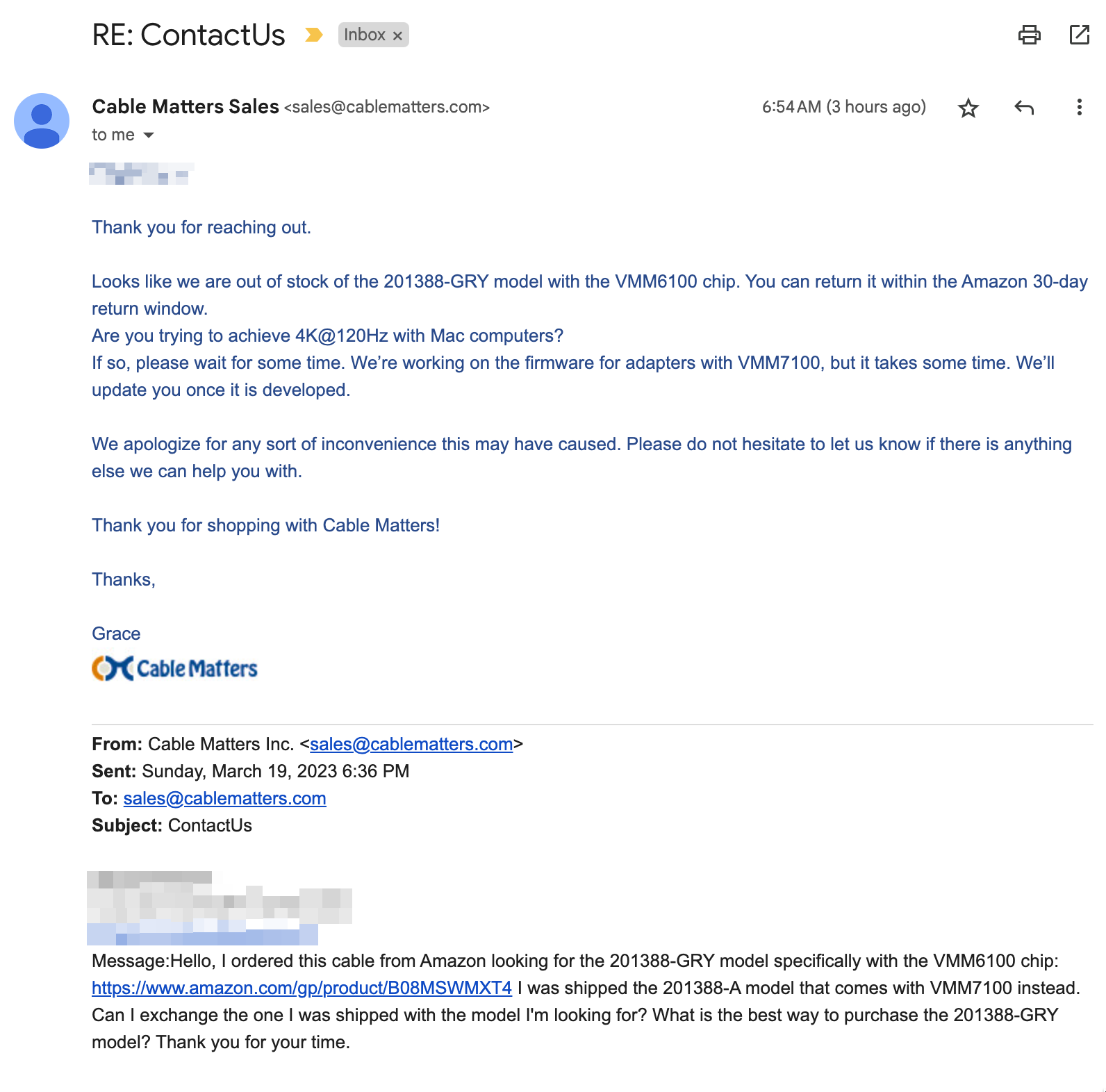

FYI for those trying to order the 201388-GRY model from Amazon (US), it appears they are out of stock at the moment. I did reach out to Cable Matters support and this was their response - hopefully the VMM7100 chip will get a firmware update soon! Ordered the 4XEM cable in the meantime, should arrive sometime this week.


Attachments

  • SCR-20230320-e2l.png
    303.9 KB · Views: 135
  • Like
Reactions: dabotsonline and BeatCrazy
