The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.

loby

macrumors 68000
Jul 1, 2010
1,885
1,517
Please add the Apple 27" Thunderbolt Display MC914LL/A connected with an Apple TB3>TB2 adaptor MMEL2AMA/A

Verified on a 16gb / 1TB M1 Mini:
The Display operates as it should, including the controls in System Preferences.
USB ports operate correctly.
FaceTime HD webcam operates correctly
Speakers operate correctly
FireWire800 port operates correctly
Both the display itself and the connected devices are reported in System Report as expected.

The Thunderbolt Display does seem to take a second or two longer to wake up than the 27" LED Cinema Display.
Apple Thunderbolt Display works with M1 Mini using the T3 to T2 Apple adapter. I have that currently in use also with no issues. Big Sur v.4


Seantmb

macrumors newbie
Jun 16, 2021
11
0
Finally got my M1 Mac mini, pairing with BenQ PD2700u. It works fantastic with HDMI or DisplayPort. It just work straight away once I connect everything, and the only adjustment I did is set the "Scaled" to the second on the right setting.

Will update if I encounter any problem.


Andy012

macrumors newbie
Aug 10, 2020
7
0
From what I can tell, the U3419W is 10bit and the U2520D is 8bit. My P3421W (10bit) runs YPbPr on every cable I've tried, my P2419H (8bit panel) will run in RGB with a USB-C to DP cable. Wonder if the issue is related to the colour depth of the panel?
Hi,

I also have a P3421W purchased recently and tried everything I could find online but still can't get it to display HiDPI. It works in the standard resolution for it which is 3440 x 1440 but the fonts and windows are too small for me.

Plus sharpness (edges around the font) also bothers me.

Laptop is a 2018 4TB MBP.

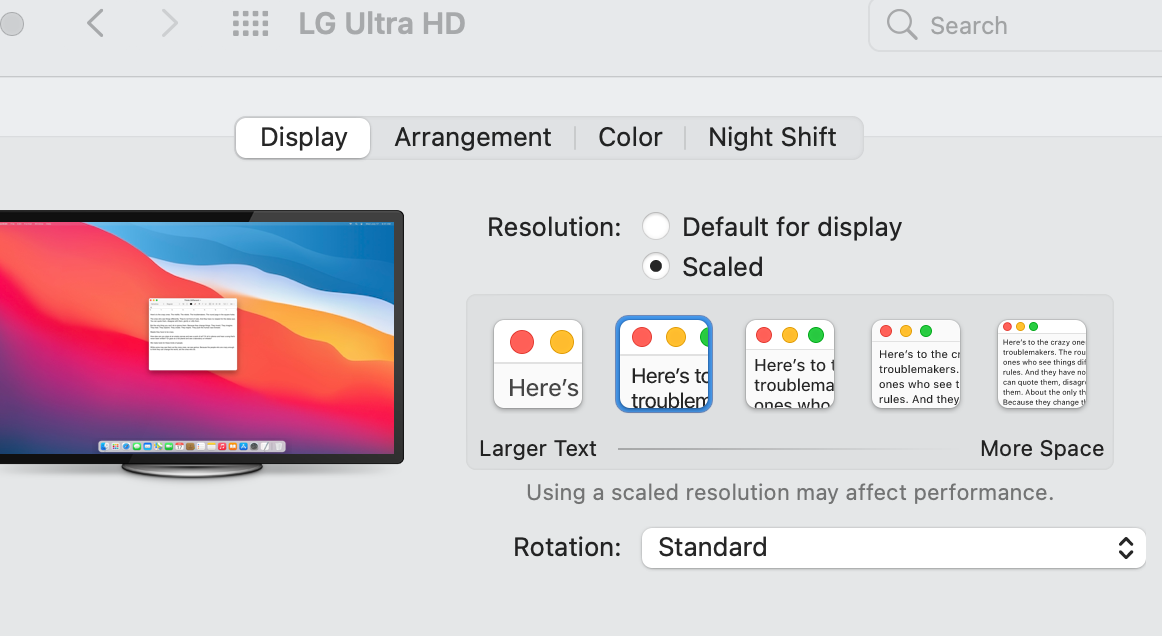

I also have a 2020 4TB MBP with an 32" non ultra wide LG and when I go to Preferences > Display > Scaled it shows me this....

Screen Shot 2021-07-26 at 5.46.07 PM.png



while on the Dell ultra wide P3421W it shows me a list of resolutions (even with holding Option while clicking it).

Any tips on fixing the Dell one? If not I'll have to take it back... can't stand the small windows and fonts plus bad sharpness, hurts my eyes.

Thanks!

PS. If I take it back, do you think a 2k monitor is enough to display HiDPI (use it like a Retina one) or do I need 4k monitor? Thank you!! :)


Eduardot

macrumors regular
Mar 30, 2013
198
69
Mac mini M1, LG 27850ul usb c to usb c. Samsungs27D850 HDMI to HDMI. No problems. Both 2560x1440. If I go 4K on the LG the text si too small. No problems waking from sleep. Apple Watch 6 Wakes it up no issues.


dimme

macrumors 68040
Feb 14, 2007
3,272
32,343
SF, CA
Just checking on on the Dell U2720Q, is it working in RGB mode or still stuck in YPbPr?


prospervic

macrumors 65816
Aug 2, 2007
1,154
1,433
NYC
Hi all !

With the threads multiplying about monitor choices for the Mac mini M1 and since I got many likes about my proposition to create a wiki thread listing compatible monitors, I decided to create a wiki thread where everyone could contribute.

If you have a monitor which is compatible with the Mac mini, please list it here below. If it required any special manipulation/setting/adapter, please mention it in the appropriate section.

UserBrandExact modelInterface connectedCable used (include link if third party)Adapter used (include link)Color scheme (RGB or YPbPr, if available)IssuesNotes

pingchp


ght56


maxsquared


n0dragon

DellU2720Q/QMSet SmartHDR to DisplayHDR. Do not use macOS HDR setting. Reboot Mac and you get RGB color scheme.Same quality as an Intel Mac. Text is super sharp.

WildSky

DellU2718QUSB-C to DisplayPortWorks perfectly.

Mistercharlie


Donza

DellU3219QUSB-C to USB-C

USB-C to DisplayPort
USB-C to USB-C

Club 3D USB-C to DisplayPort
RGB

YPbPr
Enable SmartHDR in display OSD menu and you get RGB color scheme with USB-C to USB-C cable.

aednichols


ilex27
DellP2721Q

Peter118

LG43UD79-BUSB-C to UBC-CWorks perfectly.

ivnj

DellS2421NXHDMI to HDMIWorks fine.

nctraveler

ViewSonicVG2455USB-C to USB-CWorks perfectly.

MDMac

LG27UK850-WUSB-C to USB-C

warp9

DellU2421EUSB-C to USB-CWorking on YPbPr color scheme.
trevozPhillips272B7QPTKEB/75HDMI to HDMIGeneric HDMI cableGenericUSB-C to VGA adapterSpeakers are horrible.Text is crystal clear on both HDMI 2560x1440 and VGA 1920x1080.
Webcam works perfectly.
USB hub works perectly.
410HPZ27DisplayPort
to TBT3-UDZ Thunderbolt dock
No issue.
decatAOCQ2790PQUWorks fine.

erinford

AOC24P2CUSB-C to USB-CAOC suppliedKVM works and USB Hub too. Need to power cycle monitor late in the boot sequence for USB ports to be recognised.
MuGeN PoWeRAcerPredator X34P
SpindelAsusProArt PA27ACTB3 (USB-C to USB-C)TB3 cable included with monitorWorking perfectly.
Since I connect via TB3 the USB hub built in to the monitor works flawlessly for both my keyboard and webcam.

Also works at 75Hz
xylitolBenqSW2700ptHDMI to HDMIsome old HDMI 1.4 cablelooks and works OK

paledale

LG32UN650HDMI to HDMIWorking flawlessly.

Cassandle


loby

LG27UL850-WUSB-C to USB-C, HDMI to HDMIWorking flawlessly.
decatIiyamaProlite XB2483HSUHDMI to HDMIWorking good.

Ninja Dom

electriq32CVQ165A 32" 165HzCable Matters Thunderbolt USB-C to Display PortRunning macOS at 2560 x 1449 @ 120Hz. Suffers
from fuzzy fonts.

istvan

LG27MD5KL-BThunderbolt
to Thunderbolt

braceface79

DellU2721DEUSB-C to USB-CQGeeM USB-C Hub
YPbPr with USB-C only (2560x1440 @60hz), or RGB with HDMI over the QGeeM Hub (2560x1440 @60hz)Select native resolution for the monitor (2560x1440). Fonts look a little blurry / fuzzy. Reduced the Apple Font Smoothing to 1 (if I choose 0, the fonts are thinner and more fuzzy).The colors looks to me OK even with YPbPr- the contrast is overall a little bit less I think. Switch to RGB with HDMI with help of the QGeem Hub: I can't see any major difference in color- the contrast is better I think.

dewluca

DellS2421NXHDMI to HDMIYPbPr

scgf

LG24UD58USB-C to DisplayPortResolution set at "looks like" 2048 x 1152. Beautifully crisp display and no problems with waking after sleep.
eRondeauSamsungU28E590HDMI-2.0 to HDMI-2.0HDMI-2.0 Cable Incl.None. Beautiful.Both HDMI inputs are 3840x2160 but only Input #2 is 60Hz. Input #1 is 30Hz.
moccasinDellP2421DCUSB-C to DisplayPortCheotech USB-C to DislayPortRGBNone that I can find - resolution 2560x1440monitor’s own inbuilt USB-C connection dedicated to my work laptop
NihilVorLenovoL28u-30HDMI-2.0 to HDMI-2.0 &
USB-C to DP
HDMI 2.0Both HDMI & USB-C worked: RGBNone.28 inch monitor. Works at max 3840 x 2160 at 60hz with no problem.
displayatorAcerXV272UHDMI-2.0 to HDMI-2.0 &
USB-C to DP
HDMI 2.0Both HDMI & USB-C workedRGBCan't get HDR to work. DDC / CI not recognized by MonitorControl (can't change sound/brightness from Mac).27" - Using at 2560x1440 up to 144Hz
jayducharmeLG27UD58HDMI-2 to HDMI-2HDMI 2.0RGBIn order to get 60hz, you have to enable HDMI Deep Color in the settings.4k display
barry.pearsonBenqEX3501RUSB-C to USB-C

HDMI to HDMI
Cables included35" 3440x1440

Built in USB hub works. Can be used in USB2.0 mode at 100Hz or USB3 at 60Hz over USB-C cable.
teohycHuionKamvas Pro 16 (4K)USB-C to USB-C

HDMI+USB-A to USB-C
Cables includedRGB
teohycC-ForceCF015xTUSB-C to USB-CUSB-CRGBNeeds to be the first to connect to the Mac if you want to connect another monitor.
StandingGooseDellP3421WHDMI-HDMIHDMI cable that came with the monitor
fuchalAsusVG289USB-C to DisplayPortDP cableRGBHDR works over DP and HDMI


Thank you for participating in this thread.
prospervic LG UltraFine 5K 27MD5KL Thunderbolt to Thunderbolt Cables included. Works


0128672

Cancelled
Apr 16, 2020
5,962
4,783
Please add the Apple 27" Thunderbolt Display MC914LL/A connected with an Apple TB3>TB2 adaptor MMEL2AMA/A

Verified on a 16gb / 1TB M1 Mini:
The Display operates as it should, including the controls in System Preferences.
USB ports operate correctly.
FaceTime HD webcam operates correctly
Speakers operate correctly
FireWire800 port operates correctly
Both the display itself and the connected devices are reported in System Report as expected.

The Thunderbolt Display does seem to take a second or two longer to wake up than the 27" LED Cinema Display.
This thread has a Wiki post as the first post, so you can add your own.


Farsider

macrumors 6502a
Jul 30, 2014
630
308
London, UK
Hi,

I also have a P3421W purchased recently and tried everything I could find online but still can't get it to display HiDPI. It works in the standard resolution for it which is 3440 x 1440 but the fonts and windows are too small for me.

Plus sharpness (edges around the font) also bothers me.

Laptop is a 2018 4TB MBP.

I also have a 2020 4TB MBP with an 32" non ultra wide LG and when I go to Preferences > Display > Scaled it shows me this....

View attachment 1811066


while on the Dell ultra wide P3421W it shows me a list of resolutions (even with holding Option while clicking it).

Any tips on fixing the Dell one? If not I'll have to take it back... can't stand the small windows and fonts plus bad sharpness, hurts my eyes.

Thanks!

PS. If I take it back, do you think a 2k monitor is enough to display HiDPI (use it like a Retina one) or do I need 4k monitor? Thank you!! :)
I have the P3421W plugged into a 2018 Intel Mini and I really don't see what you see. Fonts are a nice size and whilst I have turned off all the font smoothing its all very nice looking and Windows are normal sizes.


mostro900

macrumors member
Nov 14, 2007
58
7
Just to say that I’ve got a LG 27UL850W plugged in via USB-C and an old Dell U2410 via HDMI. Both working well.


thejadedmonkey

macrumors G3
May 28, 2005
9,248
3,508
Pennsylvania

dimme

macrumors 68040
Feb 14, 2007
3,272
32,343
SF, CA
I have a M1 mini coming in a few weeks. Reading over the post here and other places I see lots of issues with minis and 4K displays. I also see some success. Is it safe to assume 2K monitors do not have as many or any issues with the M1 Minis?


fresh_green

macrumors newbie
Apr 15, 2020
3
0
Does anybody know if Philips 288E2UAE is compatible with Mini M1?

It's a pretty good monitor for it's price.

Older Phillips models seem to not work well with M1, perhaps because of the outdated Display port version. But this one is a 2020/2021 model I think


Woodcrest64

macrumors 65816
Aug 14, 2006
1,310
526
The issue with 27 inch 4K monitors and Mac OS is that anything other than full native 4K with no scaling or HiDPI “looks like 1920x1080” will appear softer in terms of the UI, plus it also impacts the UI fludity/ performance.

I’d like to see Apple do something like what Windows does for scaling it’s UI which doesn’t have this issue.


Amethyst1

macrumors G3
Oct 28, 2015
9,832
12,249
I’d like to see Apple do something like what Windows does for scaling it’s UI which doesn’t have this issue.
Ironically, macOS did have non-integer UI scaling (from 50 to 300%), like Windows does, from 2005 to 2011. It was extremely unfinished and glitchy though.


DisraeliGears

macrumors regular
Nov 8, 2015
120
89
Just set up (still futzing with settings) a Viewsonic VG2455. It was the cheapest USB-C Monitor+Hub I came across. USB-C working fine so I'm pretty happy.


kinga

macrumors member
Jun 29, 2021
31
2
USA
This is worthwhile! Also, it's really compact! As a result, the Asus ProArt series is fantastic!


ronald reggae

macrumors newbie
Aug 13, 2021
1
0
Hi guys
Is it in any way possible to hook up a portible monitor wirelessly to the mac mini?
I have this dream of a portable multi touch screen hooked up to the mac mini. I dont fill like going for an Ipad, even though it might be the only solution as far as my reseach has taking me.
Could be wireless hdmi?
Any solution is very welcome


vodkasalad

macrumors newbie
Aug 21, 2021
2
1
New to mini just bought samsung smart monitor m5 32 in, plan on returning to sams club but I might keep refresh only 60 hz though. Wife like the monitor so I might buy a different with better refresh rate. Hdmi


yinyang

macrumors regular
Aug 14, 2003
118
12
sunny brisbane
Just checking on on the Dell U2720Q, is it working in RGB mode or still stuck in YPbPr?

Not really sure it's been fixed, but I just noticed that Big Sur 11.5.2 has removed the ability to use HDR in the Displays prefs, which in my case would cause the issue with my U2720Q using Ypbpr instead of RGB. So maybe that's Apple's solution....?!

Just restarted the Mac mini and the HDR option has re-appeared and the Dell is back to YPbPr 😢

Last edited:

aznboi91

macrumors regular
Jul 27, 2012
173
6
Does anybody here know or have an LG Ergo? Was wondering if the M1 works well with them. Thanks!
