Tried with a USB-connected HDD. Still hangs.
Tried cpus=1. Still hangs.

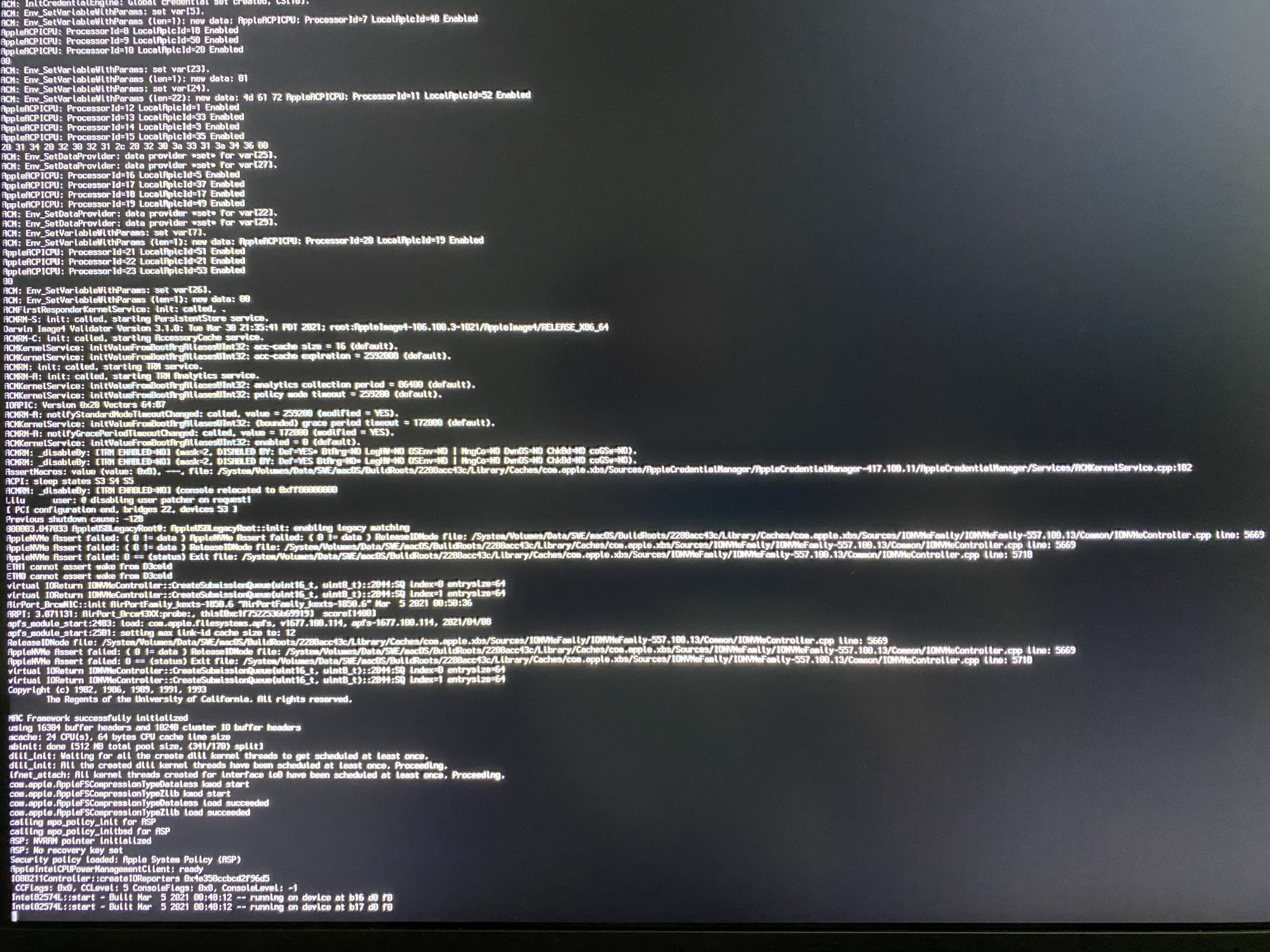

One thing I noticed: shortly after the hang, sometimes I see the line "!BSD" appear in verbose mode. Does anybody know what that indicates?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 Mac OS 11.3 has broken support for older Mac Pros
- Thread starter VitaminK
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
- Status
One thing I noticed: shortly after the hang, sometimes I see the line "!BSD" appear in verbose mode. Does anybody know what that indicates?
That's what I think my issue is for some reason the boot picker isn't coming up anymore, I haven't done anything with the drive that has opencore on it but something must have messed that up.
Going to try and put opencore on a USB stick and boot up with the clone drive.
Perhaps an indication that a process is assuming BSD code and this is just spelling "this is not a BSD code"
By the way maybe we can test Darwin-xnu compiled directly and linked to the IOKit?
GitHub - mooons/darwin-xnu: Spiritual successor to https://github.com/apple/darwin-xnu.git
Spiritual successor to https://github.com/apple/darwin-xnu.git - mooons/darwin-xnu
github.com
In .../iokit/bsddev/IOKitBSDInit.cpp, there's this:
Code:
IOFindBSDRoot( char * rootName, unsigned int rootNameSize, dev_t * root, u_int32_t * oflags )
{
mach_timespec_t t;
IOService * service;
IORegistryEntry * regEntry;
OSDictionary * matching = NULL;
OSString * iostr;
OSNumber * off;
OSData * data = NULL;
UInt32 flags = 0;
int mnr, mjr;
const char * mediaProperty = NULL;
char * rdBootVar;
char * str;
const char * look = NULL;
int len;
bool debugInfoPrintedOnce = false;
bool needNetworkKexts = false;
const char * uuidStr = NULL;
static int mountAttempts = 0;
int xchar, dchar;
// stall here for anyone matching on the IOBSD resource to finish (filesystems)
matching = IOService::serviceMatching(gIOResourcesKey);
assert(matching);
matching->setObject(gIOResourceMatchedKey, gIOBSDKey);
if ((service = IOService::waitForMatchingService(matching, 30ULL * kSecondScale))) {
service->release();
} else {
IOLog("!BSD\n");
}
// <snip> - (there's much more to this function)
Seems your hang is this wait period:
C++:
// stall here for anyone matching on the IOBSD resource to finish (filesystems)
matching = IOService::serviceMatching(gIOResourcesKey);
assert(matching);
matching->setObject(gIOResourceMatchedKey, gIOBSDKey);Perhaps some don't pass the ASSERT?
@cdf ... you need to try to see whether there is a pattern to when the log item shows up.
Hopefully the person did put a report in ... might need a further prompt.
The assert()s are no-ops in production kernels. I don't have 11.3 to verify absolutely, but in every other production kernel, assert() is a no-op, and can be ignored when analyzing the code (it's mostly useful to understand the programmer's intent). It's definitely that way in 11.1, which is the newest 11.x I have here.
Indeed ... Only active in the debug version. Presumably safely locked up in Apple HQ.
But if the condition fails, a crash will follow at some point.
A crash could follow at some point. I'm not trying to be argumentative, but I've now spent months poring over the MacOS source code and disassemblies, working on my AVX integration, and I know that many of the assert()s in the code are non-fatal. Some even appear to be quick-and-dirty debugging statements that probably should have been removed but got overlooked during cleanup.
In this case, we know that
assert(matching) passes muster, because matching->setObject(... would immediately panic if it didn't (and the "!BSD" message would not be displayed).
@TECK 's research specifically makes me think that it may all be the same issue: https://forums.macrumors.com/thread...port-for-older-mac-pros.2289056/post-29821781
But I agree that's definitely not proven.
Also, until proven otherwise, it seems as if that message at startup must mean that something has (quietly) failed, crashed or panicked somewhere, either during the boot itself (less likely) or in the previous shutdown (more likely) - but I agree that is also not proven.
Was speaking in general terms on what to expect on ASSERTS. Didn't expect Apple code would be so sloppy but we learn everyday.
So, speculating that in some cases, the ASSERT condition is not met and it chokes thereafter.
It seems he sees the message only after using a slow connection (USB Drive) or after reducing CPU.
Asked him earlier for whether there is a pattern on when this message comes up to be sure.
Point is that the message, from what I can make of @cdf report, is not there all the time.
So, speculating that in some cases, the ASSERT condition is not met and it chokes thereafter.
It seems he sees the message only after using a slow connection (USB Drive) or after reducing CPU.
Asked him earlier for whether there is a pattern on when this message comes up to be sure.
Last edited:
My current work has me running in circles, so I could use a little break. My only interest in Big Sur is as a test platform, since I'll need to support it in the future; I have no plans to make it my daily driver. As such, my newest (and only) BS installation is the aforementioned 11.1, and I'm not in a good position to help with hands-on installation testing.
However, I can definitely poke around in the kernel, so: if someone wants to create a ZIP or .tgz (or other compressed archive) containing a complete panic report that's representative of the problem so many folks seem to be having, along with the following files, and PM it to me, I'll have a look and see if I can find anything useful to offer. (No promises, of course, other than another set of eyes looking for causes and possible solutions...)
Big Sur 11.3 files to include in the ZIP/.tgz:
However, I can definitely poke around in the kernel, so: if someone wants to create a ZIP or .tgz (or other compressed archive) containing a complete panic report that's representative of the problem so many folks seem to be having, along with the following files, and PM it to me, I'll have a look and see if I can find anything useful to offer. (No promises, of course, other than another set of eyes looking for causes and possible solutions...)
Big Sur 11.3 files to include in the ZIP/.tgz:
Code:
/System/Library/Kernels/kernel
/System/Library/Extensions/IOPCIFamily.kext/IOPCIFamily
/System/Library/Extensions/IONVMeFamily.kext/Contents/MacOS/IONVMeFamily
(and a complete panic report from a system running those exact kernel/kexts)
Last edited:
The problem is that the NVMe panic occurs before initialization. So most likely the only way is to make a video from the screen or slow down the boot process. I remember there was an OC option to slow the boot process, but I forgot how to to do it.
I can't identify a pattern. Sometimes it shows up, sometimes it doesn't. HDD or SDD it doesn't matter. And that goes for the prohibitory symbol, too. More data: When it does show up, "!BSD" appears exactly 30 seconds after the hang. Similarly, when it does show up, the prohibitory symbol appears exactly 1 minute after "!BSD" if that message did show up or after the initial hang, otherwise.
Are you saying that the panic doesn't produce a panic report? (I know firsthand that there are certainly a lot of instances of that!) Or perhaps a panic report doesn't get written to the disk because the NVMe isn't yet initialized?
If it's the latter, didn't I see folks saying that it happens even when booting from a non-NVMe drive, if an NVMe drive is present? In that case, a panic report should (hopefully) get produced on the non-NVMe boot drive...
Actually I found one panic log. Sometimes it I written, but sometimes it is not. I think you are right, I may have gotten it after booting to Catalina.
Post in thread 'Mac OS 11.3 has broken support for older Mac Pros' https://forums.macrumors.com/thread...port-for-older-mac-pros.2289056/post-29720393
The hanging at boot occurs even with no NVMe device at all. This is not an NVMe thing. IONVMeFamily panicking is a symptom not a cause of this unfortunate situation.
@tsialex @cdf @startergo What do we know so far, for sure? From what I read, even with a stripped down machine, we got random failures. I have no idea how is it possible for me to have a functional machine, after reading what everyone reports here.
Unfortunately, I'm not sure that we know anything for sure yet!
Regarding the consistency that you're seeing, my theory is that there's something in your hardware configuration that's mitigating the problem. You could test this by seeing if you can still boot consistently after removing PCIe devices one by one.
Question (for another theory): do you have the SMC fan bug?
The only PCIe devices I have is the Syba and Sonnet cards. Obviously I cannot remove the Syba card, it has the Big Sur (CH0) and Windows (CH1) disks. I am positive the Sonnet card has no influence in the system stability.
Is there a way I can save the boot log so we can see what is happening in my system? Can you post the procedure what I need to do? Can you compare Plistlib EFI I have with yours? Can you try the Plistlib EFI in your system, just to be 100% sure?
Last edited:
