MBAir2010

macrumors 604
May 30, 2018
6,975
6,354
there
yesterday I reinstalled Snow leopard, then El Capitan then Catalina (safari15) on my MacBook Air 2010
im getting this and the ad blOckers don't Blok ads: everything else seem very good, expect my typing sucks.
Screen Shot 2021-10-05 at 12.52.40 PM.png


Jack Neill

macrumors 68020
Sep 13, 2015
2,272
2,308
San Antonio Texas
yesterday I reinstalled Snow leopard, then El Capitan then Catalina (safari15) on my MacBook Air 2010
im getting this and the ad blOckers don't Blok ads: everything else seem very good, expect my typing sucks.

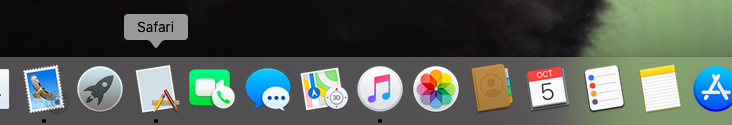

View attachment 1857365
Seems excessive for no gain. Why not just drop a clean 15.7 on it? You can always try to uninstall safari and reinstall it. Mr Macintosh has a guide

  • Like
Reactions: MBAir2010

MBAir2010

macrumors 604
May 30, 2018
6,975
6,354
there
Seems excessive for no gain. Why not just drop a clean 15.7 on it? You can always try to uninstall safari and reinstall it. Mr Macintosh has a guide
the clean install had to be done cause the ssd drive was missing files and needed a clean snow leopard.
even cleaning and repair the driver in snow leopard was a task!

I tried for 4 days to reboot or do anything in BigSur hitch just spun into a non-working experience.
as far as safari, luckily there was a backup of Catalina were I dragged a nice icon strong safari 15 and am using that.
this is a MacBook Air 2010 which should not see the light of day, today

  • Wow
Reactions: Jack Neill

borgo1971

macrumors regular
Sep 5, 2013
158
39
See #14,644. Make sure the OTAupdateFix button is applied immediately after the D/L starts. Since the iMac BootROM is unpatched, some form of OpenCore will be needed to see the macOSInstaller. Attached is a tool to do that. Follow the built-in instructions, closely. ?
I deleted everything in /Library/Updates, but the only difference was that SilentKnight needed more time to say I need to reboot (I guess because it downloaded newly entry update). But reboot was fas as usually, with iMac that come up with 19H15 again.... :-(
Trying OpenCoreAPFSloader3, at last I come every time to this:

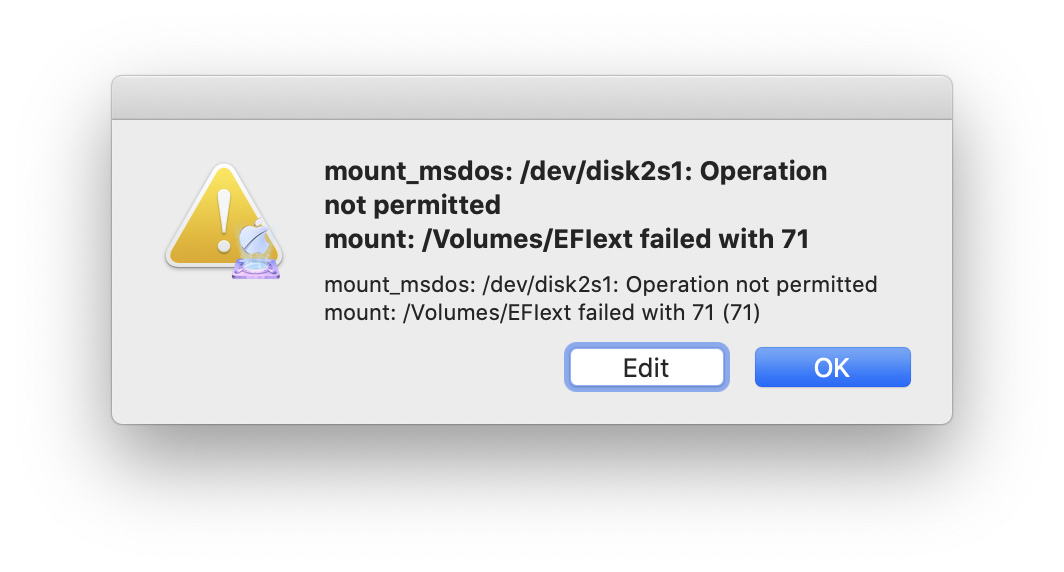

Schermata 2021-10-06 alle 08.12.44.png

I tried first to install without erasing USB drive, and in second erasing it with OpenCoreAPFSloader (Install on external USB empty device), and at last erasing the drive with DiskUtility. But as I said, I become every time in the error above (if not some error before, as an existing folder in /private/tmp/... that I removed to go on).
Some other suggestion? Could patching iMac's BootROM be a better strategy (but I've no idea how to do this)?

P.S.: I noticed that OpenCoreAPFSloader created a folder named EFIext in /Volumes, and I removed it before restart entry process again... but OpenCoreAPFSloader recreates the empty folder without mounting the USB EFI partition.

Last edited:

TigerA

macrumors 6502
Sep 19, 2013
408
324
I tried first to install without erasing USB drive, and in second erasing it with OpenCoreAPFSloader (Install on external USB empty device), and at last erasing the drive with DiskUtility.
This error 71 is most likely due to no EFI partition. You need a USB stick with at least 4GB for macOS to create a EFI partition through erasing command or Disk Utility with GUID enabled. I've mentioned this issue a few pages back.
You can use "diskutil list" to check if a EFI partition was successfully created.

Last edited:

borgo1971

macrumors regular
Sep 5, 2013
158
39
This error 71 is most likely due to no EFI partition. You need a USB stick with at least 4GB for macOS to create a EFI partition through erasing command or Disk Utility with GUID enabled. I've mentioned this issue a few pages back.
You can use "diskutil list" to check if a EFI partition was successfully created.
It's a 16GB Trashend USB stick, and I'm pretty sure it's partitioned with GUID scheme and the EFI partition is there (I used it to install Catalina 19H15 with DosDude1's patcher). EFI partition is not 256MB large, but I'm not aware how to resize it. This is the diskutil output:
Code:
/dev/disk2 (external, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *16.1 GB    disk2
   1:                        EFI EFI                     209.7 MB   disk2s1
   2:                  Apple_HFS OpenCoreAPFSloader3     15.7 GB    disk2s2

Last edited:

internetzel

macrumors 6502a
Apr 29, 2015
627
804
Last edited:
  • Like
Reactions: Ausdauersportler

Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
You might try it the hackintosh way, like this:
https://dortania.github.io/OpenCore-Install-Guide/extras/spoof.html
Or you could apply dosdude1's trick via OpenCore - that would then survive an NVRAM reset, as long as you boot into OpenCore first:
http://dosdude1.com/gpudisable/

I'd recommend the second approach.
Edit:
There already seems to be an OCLP issue that touches your problem:
https://github.com/dortania/OpenCore-Legacy-Patcher/issues/522
Edit 2:
But it doesn't explain how to add the dosdude patch using OpenCore.
Take a look here


or here


But is does not work, at least from what I understand reading through the posts.

Last edited:
  • Like
Reactions: internetzel

internetzel

macrumors 6502a
Apr 29, 2015
627
804
Take a look here


or here


But is does not work, at least from what I understand reading through the posts.
Can you explain or send a link about this?
So you unfortunately can't do it using OC.

Last edited:
  • Like
Reactions: Ausdauersportler

borgo1971

macrumors regular
Sep 5, 2013
158
39
So you unfortunately can't do it using OC.
Thanks to both. If I can't sell the 2011 MacBook Pro as a replacement parts, sooner or later I'll try it. In past I had already disabled the GPU with DosDude's software method, but then I had to reset the PRAM, and I couldn't disable the GPU again because the display got worse.


internetzel

macrumors 6502a
Apr 29, 2015
627
804
Thanks to both. If I can't sell the 2011 MacBook Pro as a replacement parts, sooner or later I'll try it. In past I had already disabled the GPU with DosDude's software method, but then I had to reset the PRAM, and I couldn't disable the GPU again because the display got worse.
So you cannot even boot into safe mode now?
In that case I think you would need a bootrom mod.


K two

macrumors 68020
Dec 6, 2018
2,314
3,187
North America
It's a 16GB Trashend USB stick, and I'm pretty sure it's partitioned with GUID scheme and the EFI partition is there (I used it to install Catalina 19H15 with DosDude1's patcher). EFI partition is not 256MB large, but I'm not aware how to resize it. This is the diskutil output:
Code:
/dev/disk2 (external, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *16.1 GB    disk2
   1:                        EFI EFI                     209.7 MB   disk2s1
   2:                  Apple_HFS OpenCoreAPFSloader3     15.7 GB    disk2s2

? The @jackluke tools are intended for use with unpatched ROM, non-Metal actual Macs. Let's get back on track. ?

The @jackluke APFS USB booter has succinct built-in instructions to build it. Failure means a USB disk issue or user error. Because your iMac has the stock (unpatched) bootROM, it is not capable of launching the macOSinstaller in any update. So, once the USB booter is built, correctly. . . . . Do this - Delete everything in the /Library/Updates ƒ, one more time. Open the Software Update C/P, then run CatalinaOTAswufix app by double-clicking on the folder icon (the app runs best from inside the home ƒ e.g. Desktop or Downloads ƒ), The app will open to two(2) options - select the Software Update fix, the D/L will start in the C/P - immediately apply the OTA update fix button, it may ask for p/w, the D/L will complete and the progress bar will run to about 15% and reboot, hold the option key and select the USB drive furthest to the right, the iMac will boot into a menu, MacOS installer will be one of the entries, once selected the installation will complete and restart <option> into Catalina Patcher v.1.4.4 (if accidentally booting into USB boot picker menu, the Catalina Patcher will be one of the selections, it will boot if selected), re-install recommended patches, Force Cache Rebuild to complete. If performed as documented within the apps this works every single time. ;) Run SilentKnight after the update is completed.

Last edited:
  • Like
Reactions: windrider42

MBAir2010

macrumors 604
May 30, 2018
6,975
6,354
there
if there is any advice to give
from someone who reinstalled Catalina on their 2010 MacBook from BigSur (just Monday) that needed repair.
I reinstalled Snow leopard, (original usb drive)
ran 4 disk verifications and permissions where the repair finally worked.
then installed elcap from  site
then Catalina from dosdude with w/updated patch via usb drive.

this info might be useful to someone next week, year or maybe today.


TigerA

macrumors 6502
Sep 19, 2013
408
324
It's a 16GB Trashend USB stick, and I'm pretty sure it's partitioned with GUID scheme and the EFI partition is there (I used it to install Catalina 19H15 with DosDude1's patcher). EFI partition is not 256MB large, but I'm not aware how to resize it. This is the diskutil output:
Code:
/dev/disk2 (external, physical):
   #:                       TYPE NAME                    SIZE       IDENTIFIER
   0:      GUID_partition_scheme                        *16.1 GB    disk2
   1:                        EFI EFI                     209.7 MB   disk2s1
   2:                  Apple_HFS OpenCoreAPFSloader3     15.7 GB    disk2s2
I'd suggest you follow K two's suggestion first. Failing that, you can try OCLP to boot your mac. Make sure you use the latest nightly built TUI version. You will need to set SMBIOS to moderate and enable Catalina (in item 5 ->3&7) before building the OCLP (item 1) and write to EFI (item 2, select your USB stick -> EFI). Once you have a working OCLP USB, boot your mac holding the option key and select OCLP EFI (hold down the control key before clicking), then boot to dosdude1 Catalina. You should see OTA update in Software Update. Make sure the OCLP EFI is selected during rebooting for update installation.
If still not working, boot to OCLP EFI and install the stock Catalina and apply the post-install patch by rerunning the OCLP installation app and select item 3. Run CatalinaOTAswufix app if no software update showing up.... After successfully installed the update, you can roll back to dosdude1's Catalina if you like. After rolling back, boot again with OCLP EFI. You will be surprised to see OTA update showing up and will be successfully installed this time around. You can apply the dosdude1 patch again after that. This is a very convoluted process due to the lack of understanding for the root cause of the issue.

Just noticed the latest nightly built OCLP has added
  • Add AppleGVA patch set for HD3000 machines
    • Mainly applicable for iMac12,x and iGPU-only MacBooks

Last edited:
  • Like
Reactions: K two

borgo1971

macrumors regular
Sep 5, 2013
158
39
? The @jackluke tools are intended for use with unpatched ROM, non-Metal actual Macs. Let's get back on track. ?
OK, thanks in advice. I guess my fault was to try to install OpenCoreAPFSloader3 using my MacBook Pro. Using iMac it installed on first try (to USB stick with DosDudes patched Catalina Installer). Let's go on...
The So, once the USB booter is built, correctly. . . . . Do this - Delete everything in the /Library/Updates ƒ, one more time. Open the Software Update C/P, then run CatalinaOTAswufix app by double-clicking on the folder icon (the app runs best from inside the home ƒ e.g. Desktop or Downloads ƒ), The app will open to two(2) options - select the Software Update fix, the D/L will start in the C/P - immediately apply the OTA update fix button, it may ask for p/w, the D/L will complete and the progress bar will run to about 15% and reboot, hold the option key and select the USB drive furthest to the right, the iMac will boot into a menu,
OK, done, done, done... but:
I can't see "MacOS installer".?
I tried to start with option 1, 2, 5, 6... but wasn't able to start installer. The first option boots from internal drive, second from USB stick with DosDudes installer (19H15)... 5 and 6, don't know how to use it and if there is a possibility to boot the updater installer.
MacOS installer will be one of the entries, once selected the installation will complete and restart <option> into Catalina Patcher v.1.4.4 (if accidentally booting into USB boot picker menu, the Catalina Patcher will be one of the selections, it will boot if selected), re-install recommended patches, Force Cache Rebuild to complete. If performed as documented within the apps this works every single time. ;) Run SilentKnight after the update is completed.
OK, far all the rest, I think I need the above lacking step... Thanks again in any case.

Last edited:
  • Like
Reactions: K two

K two

macrumors 68020
Dec 6, 2018
2,314
3,187
North America
OK, thanks in advice. I guess my fault was to try to install OpenCoreAPFSloader3 using my MacBook Pro. Using iMac it installed on first try (to USB stick with DosDudes patched Catalina Installer). Let's go on...

OK, done, done, done... but:

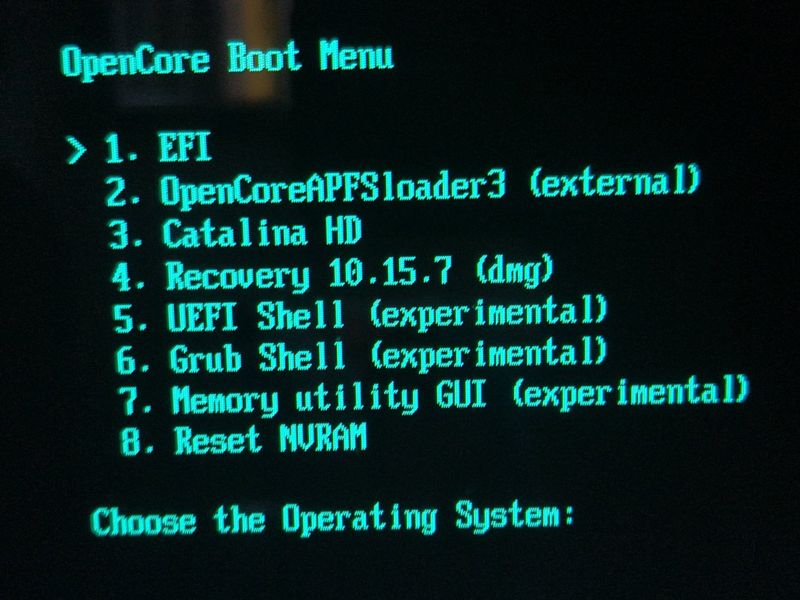

View attachment 1859045
I can't see "MacOS installer".?
I tried to start with option 1, 2, 5, 6... but wasn't able to start installer. The first option boots from internal drive, second from USB stick with DosDudes installer (19H15)... 5 and 6, don't know how to use it and if there is a possibility to boot the updater installer.

OK, far all the rest, I think I need the above lacking step... Thanks again in any case.
OK, thanks in advice. I guess my fault was to try to install OpenCoreAPFSloader3 using my MacBook Pro. Using iMac it installed on first try (to USB stick with DosDudes patched Catalina Installer). Let's go on...

OK, done, done, done... but:
View attachment 1859045
I can't see "MacOS installer".?
I tried to start with option 1, 2, 5, 6... but wasn't able to start installer. The first option boots from internal drive, second from USB stick with DosDudes installer (19H15)... 5 and 6, don't know how to use it and if there is a possibility to boot the updater installer.

OK, far all the rest, I think I need the above lacking step... Thanks again in any case.
Almost there. Delete everything in the /Library/Updates ƒ, one more time. Open the Software Update C/P, then run CatalinaOTAswufix app by double-clicking on the folder icon (the app runs best from inside the home ƒ e.g. Desktop or Downloads ƒ), The app will open to two(2) options - select the Software Update fix, the D/L will start in the C/P - immediately apply the OTA update fix button, it may ask for p/w, the D/L will complete and the progress bar will run to about 15% and reboot, hold the option key and select the OpenCore booter USB . . . . . macOS installer should be there if the CatalinaOTAswufix app steps were performed, correctly. Both options in CatalinaOTAswufix app report success if working. If not, do over. Make certain the OTA update fix button is applied early-on in the D/L. Reminder: If whatever Mac in use can boot APFS native - The OC USB is not needed. The update should complete unattended.

Congrats on the iMac, btw. ?

Last edited:
  • Like
Reactions: TimmuJapan

borgo1971

macrumors regular
Sep 5, 2013
158
39
Almost there. Delete everything in the /Library/Updates ƒ, one more time.../cut
OK, I'll try again from scratch...
Reminder: If whatever Mac in use can boot APFS native - The OC USB is not needed. The update should complete unattended.
I tried to use my MacBook Pro only for installing OpenCoreAPFSloader3 on USB stick, because...
Congrats on the iMac, btw. ?
It's my daughter's iMac :), and I haven't access to it all the time.

  • Like
Reactions: K two

K two

macrumors 68020
Dec 6, 2018
2,314
3,187
North America
CatalinaOTAswufix.app, DD1 Catalina Patcher, Open Canopy booter strikes, again. Latest Security Beta runs as intended. Also, two other Apple updates, then MRT took two strokes to update, followed by Validation Patch Update, rebuild kext cache, restart into Build 19H1511. No issues, so far.



Shadow Demon

macrumors member
Oct 24, 2018
92
236
CatalinaOTAswufix.app, DD1 Catalina Patcher, Open Canopy booter strikes, again. Latest Security Beta runs as intended. Also, two other Apple updates, then MRT took two strokes to update, followed by Validation Patch Update, rebuild kext cache, restart into Build 19H1511. No issues, so far.

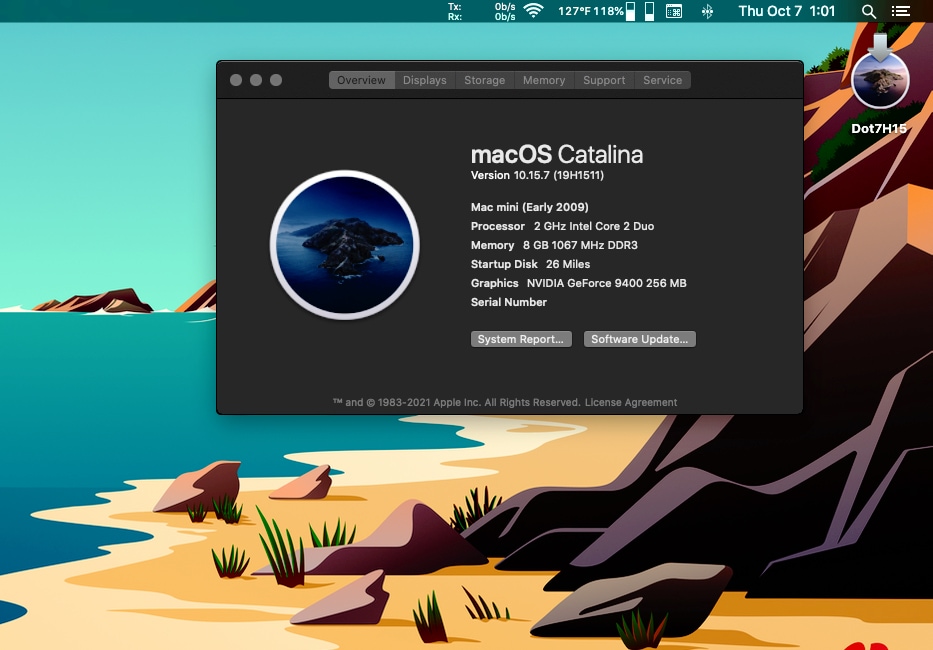

View attachment 1859317
I really appreciate your Security Update Beta installs Because of you, I can have confidence the Security Update release is going to work without issue.

  • Like
Reactions: K two

fzJNotIBOxgnbqejSeVCvJScL

macrumors regular
Jun 16, 2021
116
49
Newb here. I ran the main.scpt that runs catalinaswubetaotafix.command and it appears to have run successfully, but I still only see this.

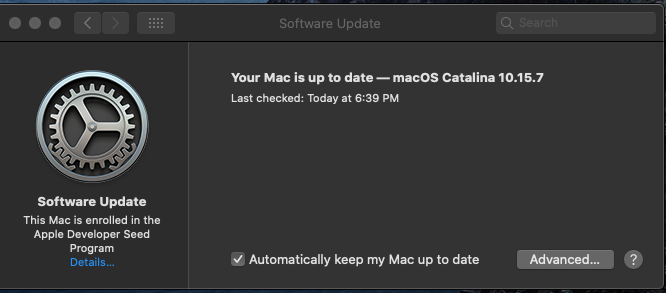

Screen Shot 2021-10-07 at 6.58.29 PM.png


Mac Pro 4,1 2009 converted to 5,1.


K two

macrumors 68020
Dec 6, 2018
2,314
3,187
North America
Newb here. I ran the main.scpt that runs catalinaswubetaotafix.command and it appears to have run successfully, but I still only see this.

View attachment 1859468

Mac Pro 4,1 2009 converted to 5,1.
Do this - Delete everything in the /Library/Updates ƒ, Open the Software Update C/P, then run CatalinaOTAswufix app by double-clicking on the folder icon READ THE BUILT-IN INSTRUCTIONS (the app runs best from inside the home ƒ e.g. Desktop or Downloads ƒ), The app will open to two(2) options - select the Software Update fix, OK - the D/L will start in the C/P - immediately apply the OTA update fix button, OK. The CatalinaOTAswufix app will confirm the success of each step. The update will complete and re-start to option boot into the DD1 Catalina Patcher. What Catalina build are you running, now and by what means Catalina installed??


Ausdauersportler

macrumors 603
Nov 25, 2019
5,007
5,826
e
Newb here. I ran the main.scpt that runs catalinaswubetaotafix.command and it appears to have run successfully, but I still only see this.

View attachment 1859468

Mac Pro 4,1 2009 converted to 5,1.

You might take a look at this thread, there are at least three OpenCore based solutions available to install Catalina, Big Sur and Monterey on your iMacPro5,1 without any patching and complex solutions to upgrade. If you have metal GPU you will enjoy even full app functionality.

  • Haha
Reactions: K two
