Yes, it is booting from a Samsung 970 Evo NVMe connected to one of the cMP 3,1 PCIe x16 slots via a Highpoint 7101A-1 SSD card (not a cheap card at around $250)
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
macOS 11 Big Sur on Unsupported Macs Thread
- Thread starter dosdude1
- WikiPost WikiPost
- Start date
-
- Tags
- 10.16 macos unsupported
- Sort by reaction score
- Status
Not broken here on Samsung 970 Evo NVMe connected to cMP 3,1 PCIe x 16 slot using HighPoint 7101A SSD card and booting 11.3 RC
I tried, resetting PRAM SMC did not help anything, deleted the bluetooth plist file and so on, I tried all the options, the result is zero (((I wrote, as soon as I started the bootloader, the mouse stopped working, I used usb mouse, everything is fine in Sierra) ! Even in the boot menu, the mouse works! Downloaded this version "11.2.3 20D91 download here update 2.3" I did the installation through this "OpenCore Legacy Patcher" and what should have been done differently?Do an SMC reset and check if your BT card came back to live. This has IMHO nothing to do with Big Sur or OCLP - there are simply too many other users running your type hardware without any problems. Since you did not wrote which installation method you used I can only assume it was OCLP.
Would be nice if you could be more precise with your issue descriptions. No one owns a really working glass ball here. And with the glass balls there is no such thing a an SMC reset
I had bluetooth problems from time to time as well.
Unfortunately I don't know any instructions how to definitely make it work.
What might help (only if the bluetooth controller was actually recognized by the OS):
- always power off and manually power on the machine instead of a restart
- NOT use any bluetooth devices (keyboard or mouse) before booting into the OS, not in the Apple boot menu nor in any type of OpenCore
- SMC reset (refer to Apple's instructions for your specific machine model)
- PRAM reset three times in a row
I use a Samsung 970 Pro on Highpoint 7101 My macPro 12 Cores 2010 using Opencore Martin Lo 068 but no luck with Big Sur 11.3 or 11.4 beta
Reset does not work 10 times tried everything. I say the same as soon as I entered the installation immediately stopped working. in sierra and windows everything works fine! in the boot menu too !!
back to catalina ... (((((
Rebuild the OLCP EFI following the docs and make sure your iMac12,2 is recognized properly in the patcher app. If not set the machine by hand. Set NVIDIA metal patch manually, too.
this is difficult for me! I broke everything, and again restored from time machines, everything works! later, when will there be time, I will try another version of the patch, if it's not difficult to help me choose a patch, which one is better for my configuration? I will be very grateful for the links) it's really very difficult for me! I have to translate the text to understand ...
and there is still a bootloader from the patch, and now there is no way to boot into Windows (((what I did, it worked fine)))))
even a calculator from the 90s is faster))) to observe such settings))) horror)))
Why do you need FPS? the screen is already shining well)))
Last edited:
MacPro5,1 (Mid 2010)
OCLP 0.1.0
MacOS 11.2.3
970 EVO SSD NVMe
Radeon RX 5700 XT 8 GB

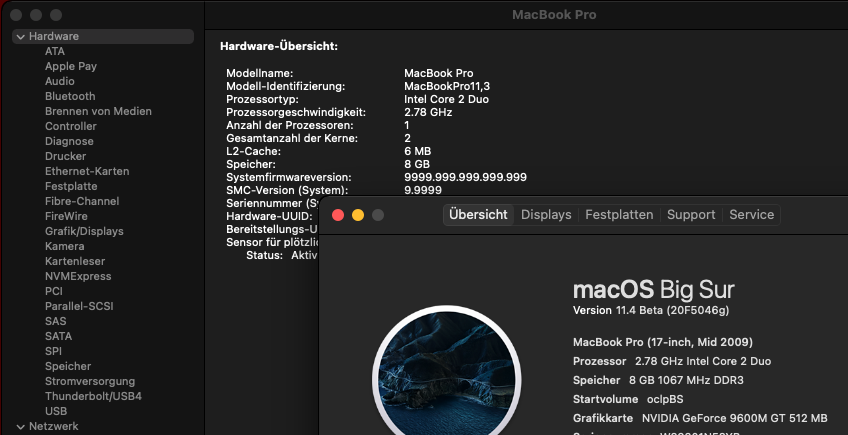

Installed 11.4b1 over 11.3b8 on my MBP5,2 17", on an external (USB) SSD, using OCLP 0.1.0. Working well.
Then also tried the OCLP public beta. This is very promising, to say the very least!
The system is using an NVIDIA GeForce 9600M GT.
Big thanks khronokernel, ASentientBot and all involved.
(Of course I left the internal (SATA) production SSD, with Catalina 10.15.7, untouched).
Attachments
Last edited:
Windows and OCLP on the same disk does not work. Remove the OC folder from the internal EFI partition (read the OLCP or OpenCore docs how to manage this and get used to it). You need to use an SD card or USB thumb drive to store the OC EFI.
OCLP download links are on the first page of this thread.

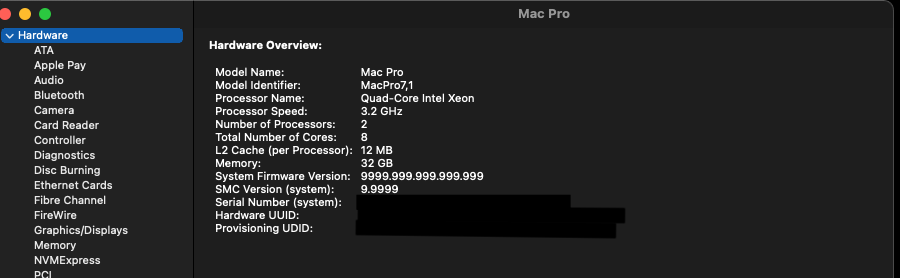

Have you first run the dosdude1 rom upgrade for APFS and NVMe support? Then rebuild a new USB installer using OCLP 0.0.22 or later using the correct MP gestalt and parameter setiings. Install and if successful, finally copy correct EFI folder files from USB installer to NVMe SSD EFI folder on HP7101A for USB-free booting; Ausdauersportier described this last step in a previous post a few pages back. Here's what my system information firmware version looks like.
Attachments
Last edited:
He is using cMP5,1 Dosdudes APFS ROM patch is for cMP3,1. dosdude does not provide NVMe patch. Can you please elaborate on your NVME patch?
See D)
Mac Pro 3,1 NVMe support + Upgrade Guide + Questions
Hello everybody! I'm newly owner of MP 3,1 and I want to discuss upgrading of this nice but old machine with you. I suggest everyone to take part in creating this guide. Now I will post my achievement in making it bootable from NVMe SSD. Bootable NVMe Note: it can be dangerous for your MP...
forums.macrumors.com
So according to this you actually used NVMe from cMP5.1 ROM, correct?See D)
But this is for cMP 3,1 not sure about cMP 5,1Mac Pro 3,1 NVMe support + Upgrade Guide + Questions
Hello everybody! I'm newly owner of MP 3,1 and I want to discuss upgrading of this nice but old machine with you. I suggest everyone to take part in creating this guide. Now I will post my achievement in making it bootable from NVMe SSD. Bootable NVMe Note: it can be dangerous for your MP...
what you mean by OCLP and Windows on the same Disk doesnt work? u mean the same partition or Physical Disk? am asking because i have OCLP in the EFI Partition and Mac and Windows on each seperate partition all on one SSD
See post 6 in this thread
I know all these threads and guides. I am asking you what you have used to patch the NVMe?
this one uses: "In this step you are going to make a NEW EFI rom with DXEInject using the NVMe driver Apple provides for the MacPro 6,1."
The previous link was using NVMe.ffs from MP51.fd.
Which one did you use?
The issue is not the software, it's the hardware. Specifically sourcing compatible hardware. Currently there are no socketed Broadcom cards with the BCM4425 used in the M1 series. For reference, we don't have the BCM4364 or BCM4355 used in the iMac Pro or the 2019 Mac Pro. Seeing as we've gone over 3+ years with the iMac Pro's release, and no sight of their cards on socketed cards, it's extremely unlikely we'll see any vendors such as Fenvi release products utilizing the BCM4425 chipset.
Currently we're locked at the BCM43602 chipset, and for the foreseeable future this is what users will max out at for natively supported modules
NVMe boot support how-to guide for the Mac Pro 3,1 / 4,1 / 5,1
The Mac Pro NVMe upgrade Apple forgot... An easy-to-follow step-by-step guide Supporting the Mac Pro 3,1 / 4,1 / 5,1 EFI The following document provides an easy to follow, step-by-step process for upgrading your Apple Mac Pro to include to support NVMe PCIe SSDs. Note: If you are running NVi...
Last edited:
