macOS 12 Monterey on Unsupported Macs Thread

5tracks · Dec 15, 2021

tchek said:
Yes it work fine here on Mac mini (late 2012) 2,3 GHz Intel Core i7, macOS Monterey 12.1 (21C52)

May I please enquire how you got AirPlay to Mac working on 0.3.1 with Monterey 12.1?

Right now, something with 0.3.2/3 is working badly on my mini6,1 and so I’m staying on 0.3.1 for now.

I had airplay to Mac on 12.0.1, but as soon as I did the update to 12.1 it stopped working (disappeared from sharing options in System Preferences)

Ausdauersportler · Dec 15, 2021

Pogoon said:
I had the same problem and someone in the Big Sur thread told me that the SMBIOS in OC 0.3.2 is set now by default on "None", so you must change it to "Minimal", then building and installing OC again, and you will be fine with OTA updates.

His machine uses the AMD Radeon Pro 570 which is a Polaris GPU. Every OCLP (TUI) version would recognize this GPU and enable the minimal spoofing (according to the OCLP docs and the change log of the most recent versions and my own experiences).

The GUI version has a limited hardware detection built in and I can only repeat: Use the TUI version!

Systems with different GPU types will use the spoof-less VMM approach with 0.3.2 and later - my guess is Apple delayed for unknown reason the updates of virtual machines. This has happened before and got fixed.

Still do not understand why there are some success reports using the spoof-less method.

SteW96 · Dec 15, 2021

Hello everyone! Hope this helps someone☺️
I have an iMac mid 2011 21.5 with an upgraded video card to Nvidia Quadro K3100M and so far I have not experienced any problems with installing and using unsupported MacOS through OpenCore Legacy up to this point. Last night I started the system, the computer gave an error about the last unsuccessful shutdown (although everything was fine). Then I discovered that the bar menu was missing, it was also impossible to make any window active, and it was also impossible to print text (for example, in the terminal). Attempts to find the root of the problem were unsuccessful, but I found a temporary solution to the problem:

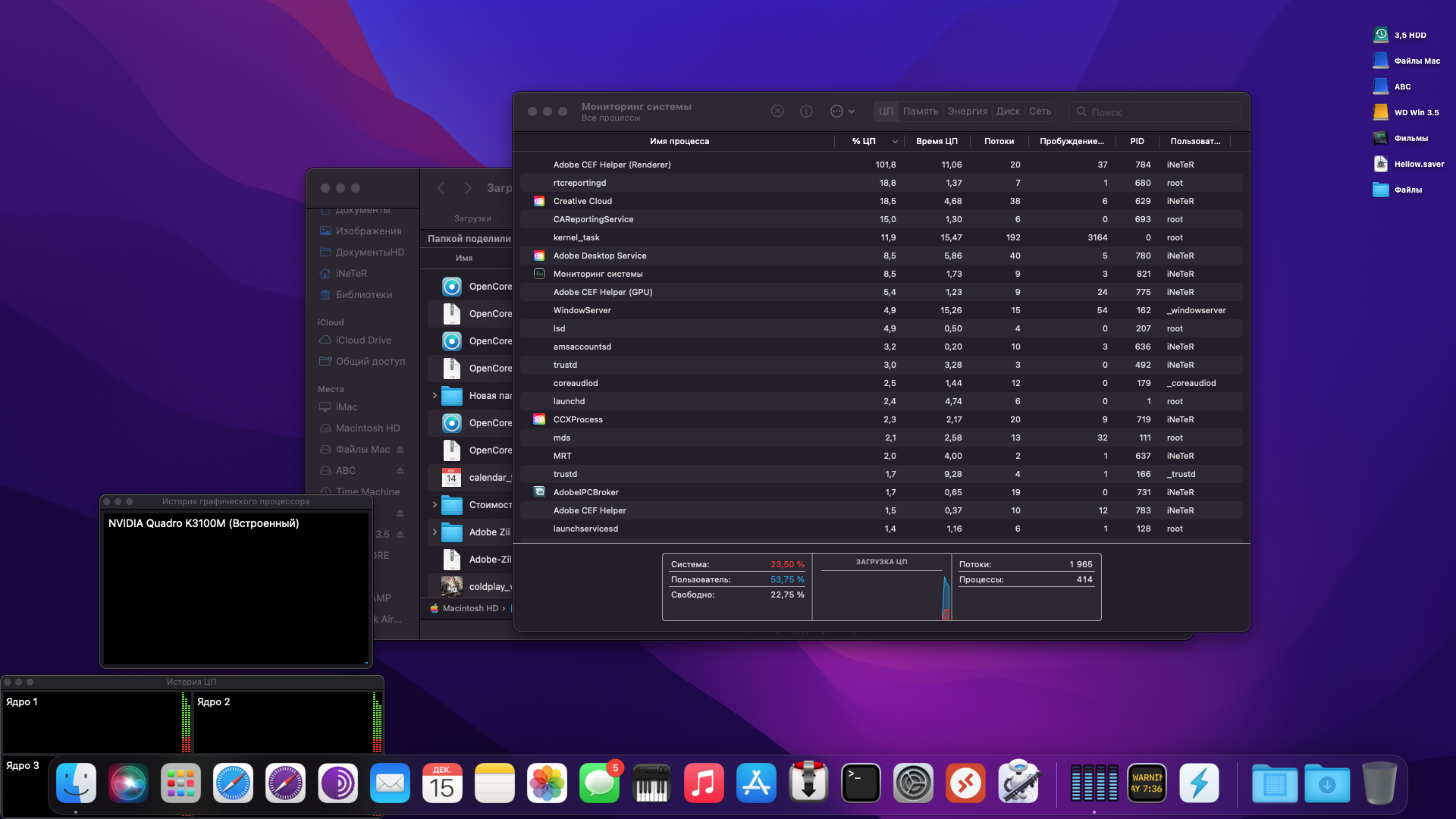

1. After starting, you need to open Activity Monitor (in my case from Launchpad)

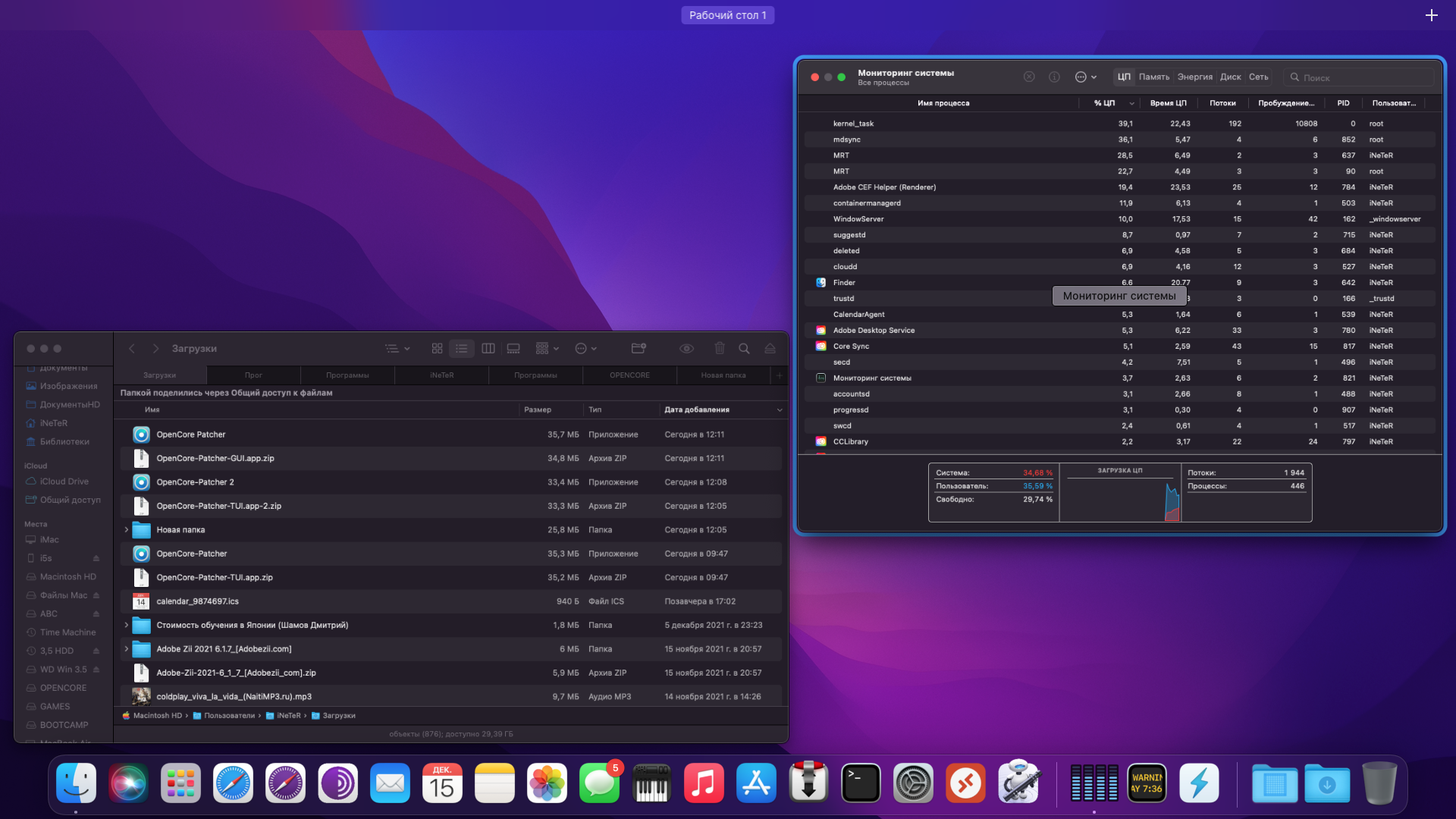

2. To make window active, enter the mission control, then select the desired window

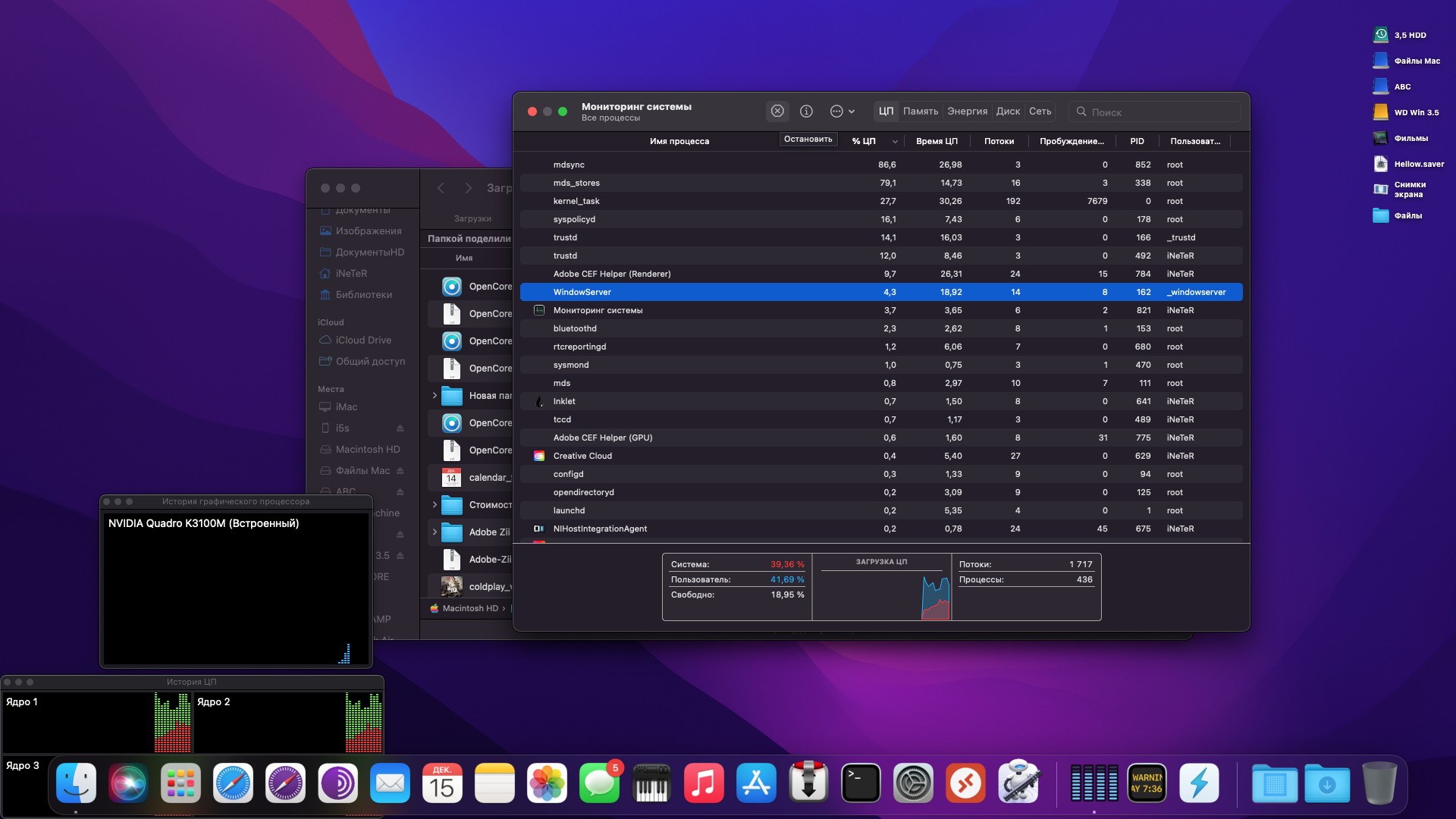

3. After that we will have the opportunity to select the processes and quit it, in our case we need a WindowServer
4. You are great, everything is back in place until the next reboot?

KennyW · Dec 15, 2021

Ausdauersportler said:
His machine uses the AMD Radeon Pro 570 which is a Polaris GPU. Every OCLP (TUI) version would recognize this GPU and enable the minimal spoofing (according to the OCLP docs and the change log of the most recent versions and my own experiences).

The GUI version has a limited hardware detection built in and I can only repeat: Use the TUI version!

Systems with different GPU types will use the spoof-less VMM approach with 0.3.2 and later - my guess is Apple blocked for unknown reason the updates of virtual machines. This has happened before and got fixed.

Still do not understand why there are some success reports using the spoof-less method.

Yes, I am also clueless. I use the TUI version instead of the GUI. The spoofing has been set automatically to minimal.
It is just that no OTA OS update ever appears in Software Update in Monterey, even when set to beta channel.

On the other hand, when I boot to Big Sur on another internal SSD, OTA OS update to 11.6.2 does appear for my 11.6.1 with successful install.

I suspect some further tweaking of OC might be needed in the spoofing to get the OTA update.

Ausdauersportler · Dec 15, 2021

KennyW said:
Yes, I am also clueless. I use the TUI version instead of the GUI. The spoofing has been set automatically to minimal.
It is just that no OTA OS update ever appears in Software Update in Monterey, even when set to beta channel.

On the other hand, when I boot to Big Sur on another internal SSD, OTA OS update to 11.6.2 does appear for my 11.6.1 with successful install.

I suspect some further tweaking of OC might be needed in the spoofing to get the OTA update.

iMac12,2 /WX4170 / OCLP 0.3.2N Monterey 12.1 update announced in swupdate pane.
iMac11,3 /RX480 / OCLP 0.3.2 - Monterey 12.1 installed
iMac12,2 /R9 M370X / OCLP 0.3.3 - Monterey 12.1 installed

All systems use minimal spoofing and stock OCLP settings, no manual changes, really do not know what is going on around the world

KennyW · Dec 15, 2021

Ausdauersportler said:
iMac12,2 /WX4170 / OCLP 0.3.2N Monterey 12.1 update announced in swupdate pane.
iMac11,3 /RX480 / OCLP 0.3.2 - Monterey 12.1 installed
iMac12,2 /R9 M370X / OCLP 0.3.3 - Monterey 12.1 installed

All systems use moderate spoofing and stock OCLP settings, no manual changes, really do not know what is going on around the world

oh, that might be the key in regard to my minimal spoofing !

Ausdauersportler · Dec 15, 2021

KennyW said:
oh, that might be the key in regard to my minimal spoofing !

minimal, it is minimal, sorry!

Macschrauber · Dec 16, 2021

OCLP 0.33n stock settings
Mac Pro 5,1 Dual, clean installed Monterey 12.1 (21C52)

can't get the post install patches to work, TUI, tried standard and offline built. Need it for a Kepler GPU.

See terminal output:

Code:

    Last login: Thu Dec 16 12:17:11 on ttys000
/var/folders/sv/tsl427d159g371z8tkgh3dg40000gn/T/AppTranslocation/2DBB7133-9111-458A-AA7C-3BDB4D75BD45/d/OpenCore-Patcher\ 0-33\ tui\ offline.app/Contents/MacOS/OpenCore-Patcher ; exit;
test@Pro-von-test ~ % /var/folders/sv/tsl427d159g371z8tkgh3dg40000gn/T/AppTranslocation/2DBB7133-9111-458A-AA7C-3BDB4D75BD45/d/OpenCore-Patcher\ 0-33\ tui\ offline.app/Contents/MacOS/OpenCore-Patcher ; exit;
- Loading...
- No arguments present, loading TUI















##################################
# OpenCore Legacy Patcher v0.3.3 #
#   Selected Model: MacPro5,1    #
##################################

This model is supported

1.  Build OpenCore
2.  Install OpenCore to USB/internal drive
3.  Post-Install Volume Patch
4.  Change Model
5.  Patcher Settings
6.  Installer Creation
7.  Credits
Q.  Quit

Please select an option: 3







##########################
# Patching System Volume #
##########################
Patches Root volume to fix misc issues such as:

- Metal Graphics Acceleration
  - Intel: Ivy Bridge (4000 series iGPUs)
  - Nvidia: Kepler (600-700)
- Non-Metal Graphics Accelertation
  - Intel: Ironlake - Sandy Bridge
  - Nvidia: Tesla - Fermi (8000-500 series)
  - AMD: TeraScale 1 and 2 (2000-6000 series)
- Audio support for iMac7,1 and iMac8,1
- Wifi support for BCM94328, BCM94322 and Atheros cards

WARNING: Root Volume Patching is still in active development, please
have all important user data backed up. Note when the system volume
is patched, you can no longer have Delta updates.

Supported Options:

1. Patch System Volume
2. Unpatch System Volume
B. Exit

Patch System Volume?: 1
- Starting Patch Process
- Determinging Required Patch set for Darwin 21
- Found GPU (0): 10DE:FFA

The following patches will be applied:
- Add Legacy Nvidia Kepler Graphics Patch
- Add legacy WiFi Control
Would you like to continue with Root Volume Patching?(y/n): y
- Continuing with Patching
- Verifying whether Root Patching possible
- Patcher is capable of patching
- Apple binaries missing
- Found local 12-Monterey zip, skipping download
- Duplicating into Apple.zip
- Download completed
- Unzipping download...
- Renaming folder
- Binaries downloaded to:
/private/var/folders/sv/tsl427d159g371z8tkgh3dg40000gn/T/_MEIJrHb6S/payloads
- Found Root Volume at: disk3s5
- Mounting APFS Snapshot as writable
Password:
- Successfully mounted the Root Volume
- Running patches for MacPro5,1
- Installing Kepler Patches
- Detected supported OS, installing Acceleration Patches
- Installing Kepler Acceleration Kext patches for Monterey
- Adding GeForce.kext
- Adding GeForceAIRPlugin.bundle
- Adding GeForceGLDriver.bundle
- Adding GeForceMTLDriver.bundle
- Adding GeForceVADriver.bundle
- Adding NVDAGF100Hal.kext
- Adding NVDAGK100Hal.kext
- Adding NVDAResman.kext
- Found conflicting kext, Deleting Root Volume's NVDAStartup.kext
- Adding NVDAStartup.kext
- Merging Kepler Frameworks
- Installing legacy Wireless support
- Merging Wireless CoreSerices patches
- Merging Wireless usr/libexec patches
- Merging Wireless private/etc
- Adding CoreWLAN.dylib to list.txt
- Updating SkyLightPlugins List.txt
- Removing existing List.txt
- Rebuilding Kernel Cache (This may take some time)
- Unable to build new kernel cache

Please report this to Github
Reason for Patch Failure:
Error Domain=KMErrorDomain Code=31 "Error occurred while building a collection:
    1: One or more binaries has an error which prevented linking.  See other errors.
    2: Could not use 'com.apple.GeForce' because: Cannot find symbol for metaclass pointed to by '__ZN16nvDisplayManager10superClassE'.  Expected symbol '__ZN27IOAccelLegacyDisplayMachine10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN13nvDisplayPipe10superClassE'.  Expected symbol '__ZN24IOAccelLegacyDisplayPipe10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN9nvSurface10superClassE'.  Expected symbol '__ZN20IOAccelLegacySurface10gMetaClassE' to be defined in another kext
com.apple.GeForce specific:
    1: Cannot find symbol for metaclass pointed to by '__ZN16nvDisplayManager10superClassE'.  Expected symbol '__ZN27IOAccelLegacyDisplayMachine10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN13nvDisplayPipe10superClassE'.  Expected symbol '__ZN24IOAccelLegacyDisplayPipe10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN9nvSurface10superClassE'.  Expected symbol '__ZN20IOAccelLegacySurface10gMetaClassE' to be defined in another kext
" UserInfo={NSLocalizedDescription=Error occurred while building a collection:
    1: One or more binaries has an error which prevented linking.  See other errors.
    2: Could not use 'com.apple.GeForce' because: Cannot find symbol for metaclass pointed to by '__ZN16nvDisplayManager10superClassE'.  Expected symbol '__ZN27IOAccelLegacyDisplayMachine10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN13nvDisplayPipe10superClassE'.  Expected symbol '__ZN24IOAccelLegacyDisplayPipe10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN9nvSurface10superClassE'.  Expected symbol '__ZN20IOAccelLegacySurface10gMetaClassE' to be defined in another kext
com.apple.GeForce specific:
    1: Cannot find symbol for metaclass pointed to by '__ZN16nvDisplayManager10superClassE'.  Expected symbol '__ZN27IOAccelLegacyDisplayMachine10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN13nvDisplayPipe10superClassE'.  Expected symbol '__ZN24IOAccelLegacyDisplayPipe10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN9nvSurface10superClassE'.  Expected symbol '__ZN20IOAccelLegacySurface10gMetaClassE' to be defined in another kext
}
checking collections...
Warning: com.apple.driver.KextExcludeList was not found!
updated extension 'com.apple.nvidia.driver.NVDAGF100Hal' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/NVDAGF100Hal.kext' (mach-o UUID changed from <unknown> to 83ECEC97-996E-3E74-A930-5EF165210C51)
updated extension 'com.apple.nvidia.driver.NVDAResman' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/NVDAResman.kext' (mach-o UUID changed from <unknown> to 879FE28C-BC88-3553-B3C7-1CCFAE357D45)
updated extension 'com.apple.driver.usb.AppleUSBVHCICommonRSM' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/AppleUSBCommon.kext/Contents/PlugIns/AppleUSBVHCICommonRSM.kext' (mach-o UUID changed from <unknown> to 814F7D7E-DCBB-3840-A306-572BABC10CC1)
updated extension 'com.promise.driver.stex' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/PromiseSTEX.kext' (mach-o UUID changed from <unknown> to AE253556-66D8-38D2-B9D1-179B78F29153)
updated extension 'com.apple.nvidia.driver.NVDAGK100Hal' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/NVDAGK100Hal.kext' (mach-o UUID changed from <unknown> to CCDFB15A-E29E-38CE-A6C0-732F5648BC28)
updated extension 'com.Areca.ArcMSR' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/ArcMSR.kext' (mach-o UUID changed from <unknown> to 01FC5EBD-0A34-3E77-9216-53B89DDD8CE4)
updated extension 'com.apple.driver.AppleMobileDevice' found on disk at '/Library/Apple/System/Library/Extensions/AppleMobileDevice.kext' (mach-o UUID changed from <unknown> to <unknown>)
updated extension 'com.apple.GeForce' found on disk at '/System/Volumes/Update/mnt1/System/Library/Extensions/GeForce.kext' (mach-o UUID changed from <unknown> to B907167E-E164-36D8-9E8F-695A72E738F7)
rebuilding release collections: boot, system
rebuilding release collections:
    boot kernel collection
    system kext collection
failed to build release collection:
    One or more binaries has an error which prevented linking.  See other errors.
    Could not use 'com.apple.GeForce' because: Cannot find symbol for metaclass pointed to by '__ZN16nvDisplayManager10superClassE'.  Expected symbol '__ZN27IOAccelLegacyDisplayMachine10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN13nvDisplayPipe10superClassE'.  Expected symbol '__ZN24IOAccelLegacyDisplayPipe10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN9nvSurface10superClassE'.  Expected symbol '__ZN20IOAccelLegacySurface10gMetaClassE' to be defined in another kext
    com.apple.GeForce:
        Cannot find symbol for metaclass pointed to by '__ZN16nvDisplayManager10superClassE'.  Expected symbol '__ZN27IOAccelLegacyDisplayMachine10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN13nvDisplayPipe10superClassE'.  Expected symbol '__ZN24IOAccelLegacyDisplayPipe10gMetaClassE' to be defined in another kextCannot find symbol for metaclass pointed to by '__ZN9nvSurface10superClassE'.  Expected symbol '__ZN20IOAccelLegacySurface10gMetaClassE' to be defined in another kext



Please reboot the machine to avoid potential issues rerunning the patcher
Press [ENTER] to continue

olad · Dec 16, 2021

roysterdoyster said:
An almost 13-y.o. machine running the latest macOS is simply breathtaking. So is the MBP4,1 in its glorious timeless beauty of a fighter plane, performing like a tank.

A beautiful, lyrical description of the MBP4,1. I had one. I mishandled it. I lost it. And I regret the loss still. Your words are like a poem to a truly great machine.

Macschrauber · Dec 16, 2021

got it sorted.

(OCLP 0.33n stock settings
Mac Pro 5,1 Dual, clean installed Monterey 12.1 (21C52) )

The main problem was: I did the install process with an old GT120 GPU for easy access to the boot screen, to bless OCLP, etc.
After Monterey has booted I swapped the GT120 with a Kepler GPU and rebuilt the OCLP ESP with changed Hardware.

Seems this 2nd post install patch has gone wrong. Clean Re-Installed Monterey with the Kepler Card left in and now the Patches were written correctly

Code:

Last login: Thu Dec 16 05:19:28 on console
/Volumes/Elements/OpenCore\ Legacy\ Patcher/0.3.3/OpenCore-Patcher\ TUI\ 0.33.app/Contents/MacOS/OpenCore-Patcher ; exit;
test@Mac-Pro ~ % /Volumes/Elements/OpenCore\ Legacy\ Patcher/0.3.3/OpenCore-Patcher\ TUI\ 0.33.app/Contents/MacOS/OpenCore-Patcher ; exit;
- Loading...
- No arguments present, loading TUI

















##################################
# OpenCore Legacy Patcher v0.3.3 #
#   Selected Model: MacPro5,1    #
##################################

This model is supported

1.  Build OpenCore
2.  Install OpenCore to USB/internal drive
3.  Post-Install Volume Patch
4.  Change Model
5.  Patcher Settings
6.  Installer Creation
7.  Credits
Q.  Quit

Please select an option: 3







##########################
# Patching System Volume #
##########################
Patches Root volume to fix misc issues such as:

- Metal Graphics Acceleration
  - Intel: Ivy Bridge (4000 series iGPUs)
  - Nvidia: Kepler (600-700)
- Non-Metal Graphics Accelertation
  - Intel: Ironlake - Sandy Bridge
  - Nvidia: Tesla - Fermi (8000-500 series)
  - AMD: TeraScale 1 and 2 (2000-6000 series)
- Audio support for iMac7,1 and iMac8,1
- Wifi support for BCM94328, BCM94322 and Atheros cards

WARNING: Root Volume Patching is still in active development, please
have all important user data backed up. Note when the system volume
is patched, you can no longer have Delta updates.

Supported Options:

1. Patch System Volume
2. Unpatch System Volume
B. Exit

Patch System Volume?: 1
- Starting Patch Process
- Determinging Required Patch set for Darwin 21
- Found GPU (0): 10DE:FFA

The following patches will be applied:
- Add Legacy Nvidia Kepler Graphics Patch
- Add legacy WiFi Control
Would you like to continue with Root Volume Patching?(y/n): y
- Continuing with Patching
- Verifying whether Root Patching possible
- Patcher is capable of patching
- Apple binaries missing


################################
# Downloading: 12-Monterey.zip #
################################

169.59MB Downloaded of 0.0MB (27191536.54%)
Average Download Speed: 4.14 MB/s
- Download completed
- Unzipping download...
- Renaming folder
- Binaries downloaded to:
/private/var/folders/t9/z03769pn663g8t77qlc26p880000gn/T/_MEIb9t4av/payloads
- Found Root Volume at: disk3s5
- Mounting APFS Snapshot as writable
Password:
- Successfully mounted the Root Volume
- Running patches for MacPro5,1
- Installing Kepler Patches
- Detected supported OS, installing Acceleration Patches
- Installing Kepler Acceleration Kext patches for Monterey
- Adding GeForce.kext
- Adding GeForceAIRPlugin.bundle
- Adding GeForceGLDriver.bundle
- Adding GeForceMTLDriver.bundle
- Adding GeForceVADriver.bundle
- Adding NVDAGF100Hal.kext
- Adding NVDAGK100Hal.kext
- Adding NVDAResman.kext
- Adding NVDAStartup.kext
- Merging Kepler Frameworks
- Installing legacy Wireless support
- Merging Wireless CoreSerices patches
- Merging Wireless usr/libexec patches
- Merging Wireless private/etc
- Adding CoreWLAN.dylib to list.txt
- Updating SkyLightPlugins List.txt
- Rebuilding Kernel Cache (This may take some time)
- Successfully built new kernel cache
- Creating new APFS snapshot
- Unmounting Root Volume (Don't worry if this fails)
- Patching complete

Please reboot the machine for patches to take effect

Press [ENTER] to continue

Seems OCLP has installed some Nvidia Patches with the GT120 built in during installation. So the 2nd post install patch failed.

Pogoon · Dec 16, 2021

Ausdauersportler said:
His machine uses the AMD Radeon Pro 570 which is a Polaris GPU. Every OCLP (TUI) version would recognize this GPU and enable the minimal spoofing (according to the OCLP docs and the change log of the most recent versions and my own experiences).

The GUI version has a limited hardware detection built in and I can only repeat: Use the TUI version!

Systems with different GPU types will use the spoof-less VMM approach with 0.3.2 and later - my guess is Apple delayed for unknown reason the updates of virtual machines. This has happened before and got fixed.

Still do not understand why there are some success reports using the spoof-less method.

Well I always used the TUI version as recommended of course. Maybe default setting of the SMBIOS must certainly depend on the type of onboard GPU which is Nvidia or AMD. But I can confirm that this option was on "none" weirdly when I downloaded OC 0.3.2, and changing to "minimal" fixed the problem after new OC build and reboot.

Shadow Demon · Dec 16, 2021

With OC 0.3.3, the full software installer works without complaint with SMBIOS set to none. I decided to leave it and all is good. No idea about delta OTA. With my NVIDIA graphics, need the full installer anyway and test the next OTA delta on Big Sut.

0134168 · Dec 16, 2021

Macschrauber said:

got it sorted.

(OCLP 0.33n stock settings
Mac Pro 5,1 Dual, clean installed Monterey 12.1 (21C52) )

The main problem was: I did the install process with an old GT120 GPU for easy access to the boot screen, to bless OCLP, etc.
After Monterey has booted I swapped the GT120 with a Kepler GPU and rebuilt the OCLP ESP with changed Hardware.

Seems this 2nd post install patch has gone wrong. Clean Re-Installed Monterey with the Kepler Card left in and now the Patches were written correctly

Code:

Last login: Thu Dec 16 05:19:28 on console
/Volumes/Elements/OpenCore\ Legacy\ Patcher/0.3.3/OpenCore-Patcher\ TUI\ 0.33.app/Contents/MacOS/OpenCore-Patcher ; exit;
test@Mac-Pro ~ % /Volumes/Elements/OpenCore\ Legacy\ Patcher/0.3.3/OpenCore-Patcher\ TUI\ 0.33.app/Contents/MacOS/OpenCore-Patcher ; exit;
- Loading...
- No arguments present, loading TUI

















##################################
# OpenCore Legacy Patcher v0.3.3 #
#   Selected Model: MacPro5,1    #
##################################

This model is supported

1.  Build OpenCore
2.  Install OpenCore to USB/internal drive
3.  Post-Install Volume Patch
4.  Change Model
5.  Patcher Settings
6.  Installer Creation
7.  Credits
Q.  Quit

Please select an option: 3







##########################
# Patching System Volume #
##########################
Patches Root volume to fix misc issues such as:

- Metal Graphics Acceleration
  - Intel: Ivy Bridge (4000 series iGPUs)
  - Nvidia: Kepler (600-700)
- Non-Metal Graphics Accelertation
  - Intel: Ironlake - Sandy Bridge
  - Nvidia: Tesla - Fermi (8000-500 series)
  - AMD: TeraScale 1 and 2 (2000-6000 series)
- Audio support for iMac7,1 and iMac8,1
- Wifi support for BCM94328, BCM94322 and Atheros cards

WARNING: Root Volume Patching is still in active development, please
have all important user data backed up. Note when the system volume
is patched, you can no longer have Delta updates.

Supported Options:

1. Patch System Volume
2. Unpatch System Volume
B. Exit

Patch System Volume?: 1
- Starting Patch Process
- Determinging Required Patch set for Darwin 21
- Found GPU (0): 10DE:FFA

The following patches will be applied:
- Add Legacy Nvidia Kepler Graphics Patch
- Add legacy WiFi Control
Would you like to continue with Root Volume Patching?(y/n): y
- Continuing with Patching
- Verifying whether Root Patching possible
- Patcher is capable of patching
- Apple binaries missing


################################
# Downloading: 12-Monterey.zip #
################################

169.59MB Downloaded of 0.0MB (27191536.54%)
Average Download Speed: 4.14 MB/s
- Download completed
- Unzipping download...
- Renaming folder
- Binaries downloaded to:
/private/var/folders/t9/z03769pn663g8t77qlc26p880000gn/T/_MEIb9t4av/payloads
- Found Root Volume at: disk3s5
- Mounting APFS Snapshot as writable
Password:
- Successfully mounted the Root Volume
- Running patches for MacPro5,1
- Installing Kepler Patches
- Detected supported OS, installing Acceleration Patches
- Installing Kepler Acceleration Kext patches for Monterey
- Adding GeForce.kext
- Adding GeForceAIRPlugin.bundle
- Adding GeForceGLDriver.bundle
- Adding GeForceMTLDriver.bundle
- Adding GeForceVADriver.bundle
- Adding NVDAGF100Hal.kext
- Adding NVDAGK100Hal.kext
- Adding NVDAResman.kext
- Adding NVDAStartup.kext
- Merging Kepler Frameworks
- Installing legacy Wireless support
- Merging Wireless CoreSerices patches
- Merging Wireless usr/libexec patches
- Merging Wireless private/etc
- Adding CoreWLAN.dylib to list.txt
- Updating SkyLightPlugins List.txt
- Rebuilding Kernel Cache (This may take some time)
- Successfully built new kernel cache
- Creating new APFS snapshot
- Unmounting Root Volume (Don't worry if this fails)
- Patching complete

Please reboot the machine for patches to take effect

Press [ENTER] to continue

Seems OCLP has installed some Nvidia Patches with the GT120 built in during installation. So the 2nd post install patch failed.

I have the same mac. Why do you apply patches? In my case i used the same 0.3.2 OCLP it was installed and upgraded to 12.1 like a charm. No patches.

Ausdauersportler · Dec 16, 2021

Macschrauber said:
got it sorted.

(OCLP 0.33n stock settings
Mac Pro 5,1 Dual, clean installed Monterey 12.1 (21C52) )

The main problem was: I did the install process with an old GT120 GPU for easy access to the boot screen, to bless OCLP, etc.
After Monterey has booted I swapped the GT120 with a Kepler GPU and rebuilt the OCLP ESP with changed Hardware.

Seems this 2nd post install patch has gone wrong. Clean Re-Installed Monterey with the Kepler Card left in and now the Patches were written correctly.

Seems OCLP has installed some Nvidia Patches with the GT120 built in during installation. So the 2nd post install patch failed.

OLCP TUI has a hardware detection. Running it delivers the correct correct config.plist, running it applies also the correct patches fitting the needs of the currently detected hardware.

Changing the hardware will need a new config, other patches and so mostly a new installation.

You cannot change the horses in midstream (oder: Du kannst nicht mitten im Rennen die Pferde wechseln!)

Macschrauber · Dec 16, 2021

******* said:
I have the same mac. Why do you apply patches? In my case i used the same 0.3.2 OCLP it was installed and upgraded to 12.1 like a charm. No patches.

missing driver for the Kepler GPU is the answer.

Macschrauber · Dec 16, 2021

Ausdauersportler said:
OLCP TUI has a hardware detection. Running it delivers the correct correct config.plist, running it applies also the correct patches fitting the needs of the currently detected hardware.

Changing the hardware will need a new config, other patches and so mostly a new installation.

You cannot change the horses in midstream (oder: Du kannst nicht mitten im Rennen die Pferde wechseln!)

I didnt expected there is any kind of patch for such an old GPU like the GT120.

I played with fire and got burned. Just a little and it didnt hurt

But I learned my lesson.

0134168 · Dec 16, 2021

Macschrauber said:
missing driver for the Kepler GPU is the answer.

👍

jowaju · Dec 16, 2021

Ausdauersportler said:
minimal, it is minimal, sorry!

For the record I had to use Moderate Spoofing in order to get the update to show on 2 different macs. Once installed I went back to spoofless.

Tockman · Dec 16, 2021

millza.nz · Dec 16, 2021

Hey there,

I have a MacBook Air 2012 (MacBookAir5,2) and am trying to get Monterey to run on it. It will install the OS and then boot to a grey screen with the apple logo and a progress bar with a mouse and will not go any further; this happens with a fresh install and a Catalina to Monterey upgrade. Any Ideas on how to fix this or move past it.

Cheers

George Colgrove · Dec 16, 2021

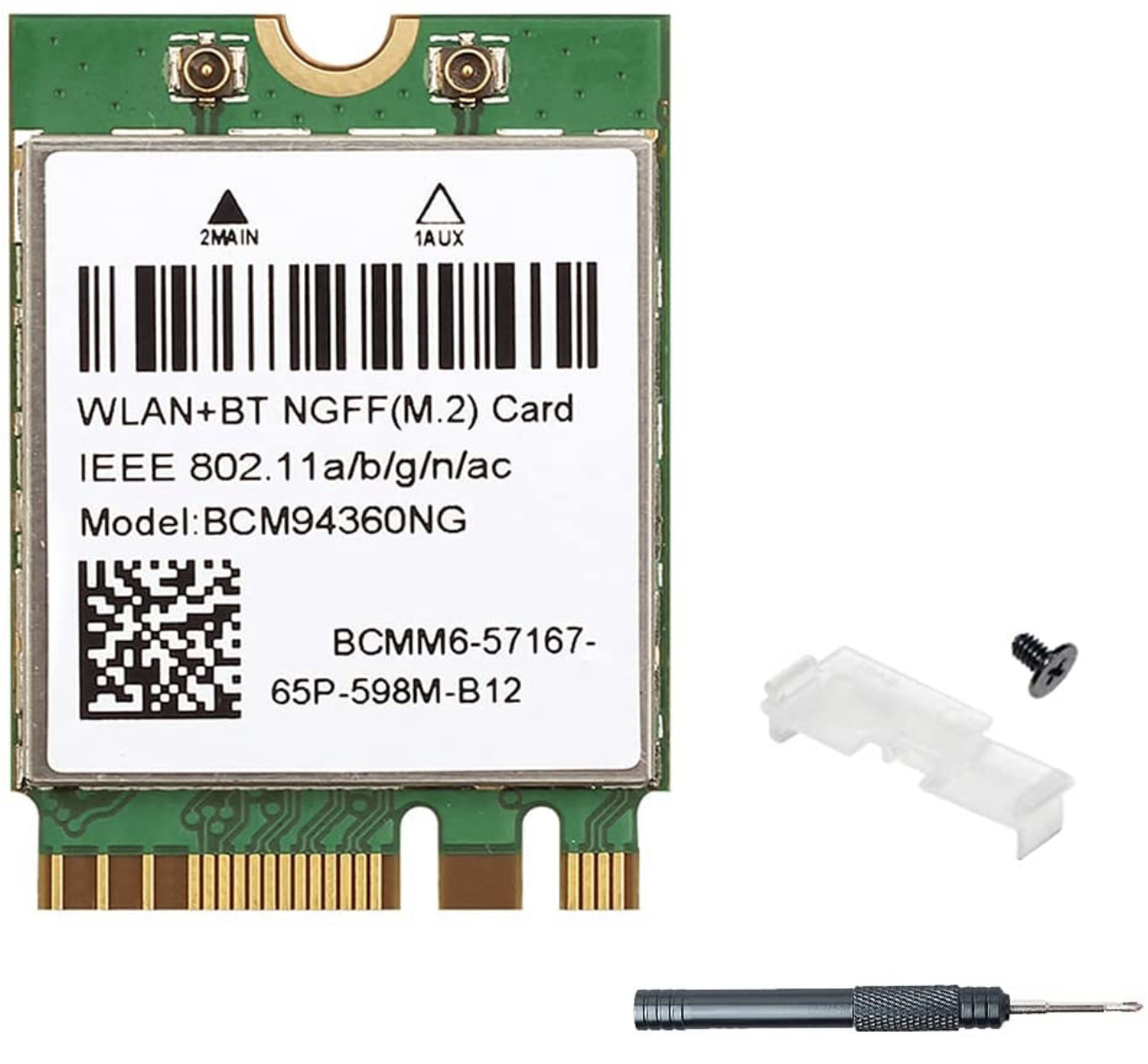

I have a Lenovo Yoga 15 (S5) I revived from the dead. (New motherboard I got a great deal on.).

I bought this Wi-Fi network card which fits the M.2 slot with the right dimensions.

BCM94360NG NGFF M.2 2230 WiFi Card 802.11ac 1200Mbps Adapter for macOS BCM94360CS Wireless Card Original M.2 Card Plug and Play for AirDrop Continuity Handoff Better BCM94352Z DW1560 for Intel NUC

I downloaded the driver from Fenvi from here (Windows 10/11).

https://www.fenvi.com/support/MacOS/win10-32.zip

The network card and Bluetooth are working very well. I argue the Wi-Fi card is faster than the intel card the laptop came with.

Now getting ready to install macos.

George Colgrove · Dec 16, 2021

millza.nz said:
Hey there,

I have a MacBook Air 2012 (MacBookAir5,2) and am trying to get Monterey to run on it. It will install the OS and then boot to a grey screen with the apple logo and a progress bar with a mouse and will not go any further; this happens with a fresh install and a Catalina to Monterey upgrade. Any Ideas on how to fix this or move past it.

Cheers

Try OpenCore Legacy Patcher and watch Mr. Macintosh on YouTube.

George Colgrove · Dec 16, 2021

George Colgrove said:
View attachment 1929648I have a Lenovo Yoga 15 (S5) I revived from the dead. (New motherboard I got a great deal on.).

I bought this Wi-Fi network card which fits the M.2 slot with the right dimensions.

BCM94360NG NGFF M.2 2230 WiFi Card 802.11ac 1200Mbps Adapter for macOS BCM94360CS Wireless Card Original M.2 Card Plug and Play for AirDrop Continuity Handoff Better BCM94352Z DW1560 for Intel NUC

I downloaded the driver from Fenvi from here (Windows 10/11).

https://www.fenvi.com/support/MacOS/win10-32.zip

The network card and Bluetooth are working very well. I argue the Wi-Fi card is faster than the intel card the laptop came with.

Now getting ready to install macos.

Use this driver for Windows 10/11 64b

http://www.fenvi.com/support/MacOS/win10-64.zip

OKonnel · Dec 16, 2021

I installed Monterey 12.1 from a USB stick with OCLP 0.3.4 from scratch.
After installation, I immediately realized that with Monterey my iMac 27 ”CPU i7, late 2013, works 10 times better than with Catalina or Big Sur.
But I ask you, kindly:
is it normal that several times, for two hours or more, the progress bar reaches the middle, stays still for tens of minutes and then starts again? ... When I installed Monterey 12.01 from scratch, instead, with OCLP then, the installation Monterey took about 25 minutes ... Is something wrong? ... Or is this due to the new VMM installation method of OCLP? Thanks

K two · Dec 16, 2021

FWIW? OCLP_033R shows all the available updates to this primitive Mini3,1✅

macOS 12 Monterey on Unsupported Macs Thread

macrumors regular

macrumors 603

macrumors newbie

Attachments

macrumors 6502

macrumors 603

macrumors 6502

macrumors 603

macrumors 68040

macrumors 6502

macrumors 68040

macrumors newbie

macrumors member

Cancelled

macrumors 603

macrumors 68040

macrumors 68040

Cancelled

macrumors 6502

macrumors 6502

macrumors newbie

macrumors member

macrumors member

macrumors member

macrumors 6502

macrumors 68020

Our Staff
