The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.

Attachments

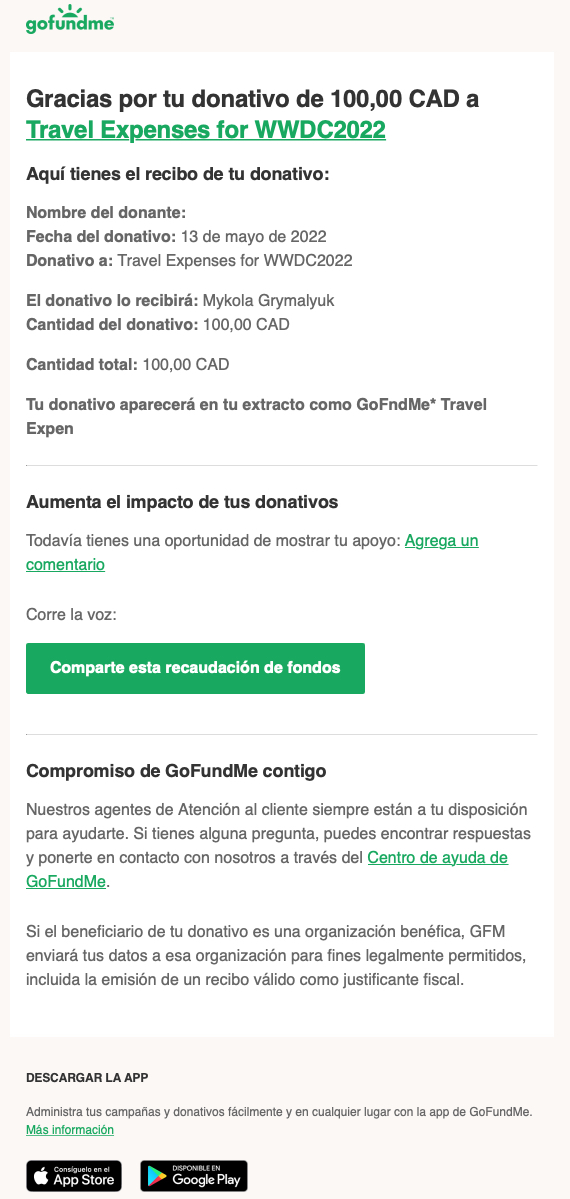

  • Captura de Pantalla 2022-05-14 a las 5.58.00.jpg
    Captura de Pantalla 2022-05-14 a las 5.58.00.jpg
    285.5 KB · Views: 117

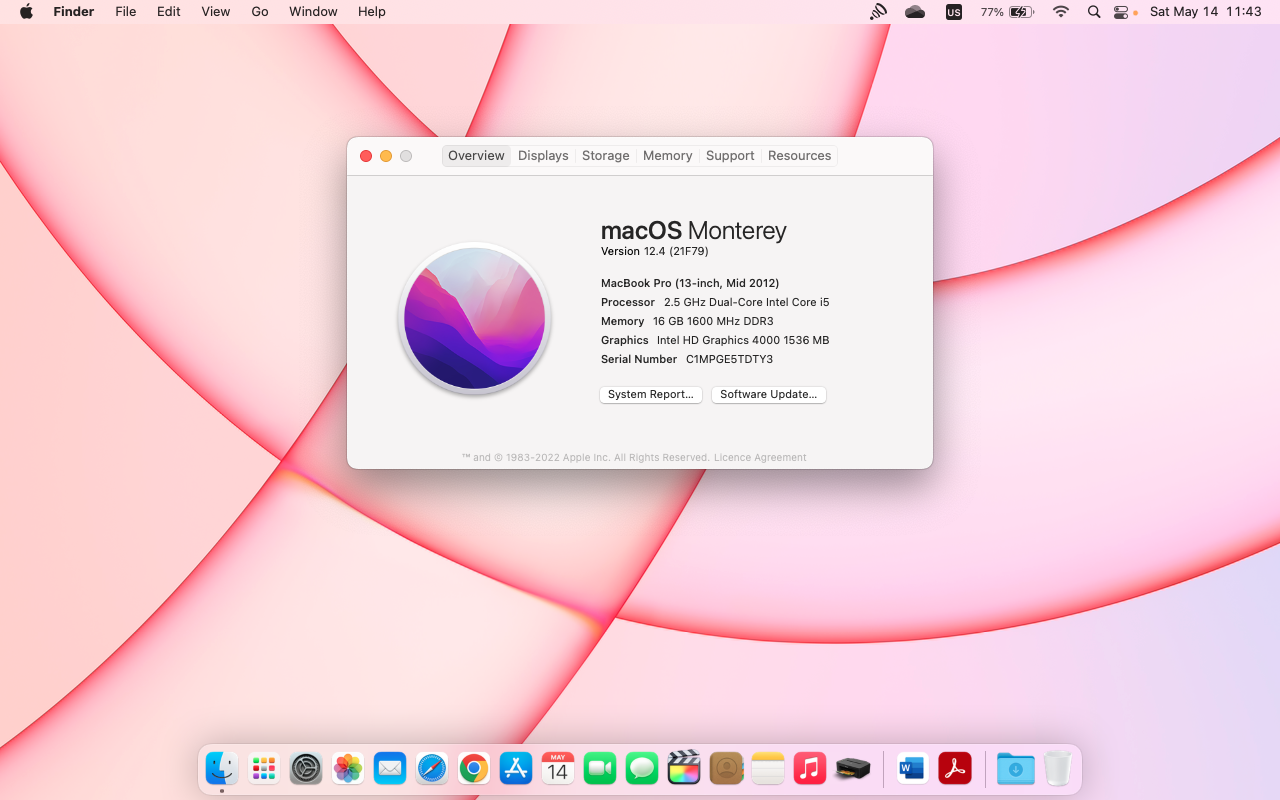

Hi guys just finished updating my MBP 9,2 mid 2012 non retina to macOS Monterey 12.4 R.C. using OCLP 0.2.5. Everything working perfect! Have a great one!
That's fine. But why did you choose 0.2.5 while 0.4.4 is the latest release?

  • Like
Reactions: macinfo
Hey all, running Montery (open core .4.4) on MacBook Pro 10,1 (15" Retina Mid 2012).

I can't get my SD CARD reader working, does anyone know how to?

EDIT: FIXED with this KEXT File: https://github.com/dortania/OpenCore-Legacy-Patcher/issues/978

Just pop it into the Extensions folder and reboot. SD Card now detected when inserted!
Wonderful, that did it for my 10,2! A bit puzzling because khronokernel states on GitHub: "This issue doesn't affect Ivy Bridge and newer Macs". So shouldn't our machines work without this KEXT file? Anyway, this is great. Had already accepted that the card reader had gone - as on my 9,1 years ago..

Last edited:
Hi joevt, Thank you so much for the info. I successfully changed name for my iMac12,2 (K3100M) with your instructions. The last 2 commands did the trick if I did not change the PickerAttribute in OCLP config.plist from 145 to 147. But the .disk_* files in my other 2 iMacs (M5100) can't be changed/deleted due to permission issue. I've noticed that all the folders under Preload for these 2 iMacs have the _nsurlsessiond Name instead of system and wheel. Not sure if this is the cause and what I need to do to get it working?
Note: permissions for all .disk_* files seems normal.
Solution: The permission issue has been resolved by ticking the "CSR_ALLOW_UNRESTRICTED_FS" in <SIP Settings> before <Build and Install OpenCore> in OCLP. You can untick this flag after the change of the label.

Tried everything to change the name but nothing worked. However, while CSR_ALLOW_UNRESTRICTED_FS was still enabled I figured I'd do an age old trick. All I did was create a text file with the contents of "Monterey" and changed the name to ".contentDetails" and... it worked. Also have to note that I am the owner of said file and can change it as needed.

  • Like
Reactions: TigerA
Some weeks ago, the menu bar disappeared on my MBP10,2 and the keyboard did not work properly. Has been mentioned here before (EDIT: #5,703 #5,707 Is there more?). I reinstalled macOS (can't remember, whether I did that from scratch; probably restored data with Time Machine). And it worked again. Now precisely the same thing happened to my MBP8,1. Have been trying different things (just reinstalling macOS wasn't successful).

EDIT: If you guys don't know more than OKonnel did a month ago, I'll just wipe the disk. But I won't bother, if there's an easier way. And: Would be good to know, whether this just happens once in a while. Any idea?

EDIT: What I did: I was trying to revive the card reader with Khronokernel's kext file ( #6,052 ). After I copied the file to the Extensions folder and restarted, the menu was gone. Since I hadn't used it for a week or two, other updates may have interfered.

And a very dumb question: How do I activate safe mode using OCLP? I've tried pressing and releasing at different stages in the booting process, but I don't succeed very often. It took me a while to delete the kext file again - which didn't make a difference.

Last edited:
  • Like
Reactions: OKonnel and hvds
Same positive result here on MBP5,2 (17" Mid 2009). Today's OCLP 0.4.5n.

Just to mention that Wifi and Bluetooth work fine as before.

The machine isn't used in any fancy way. Xcode for C++, Python, and listening to Hotel California is about all I want.
It still does this very well. Thanks to the OCLP and non-Metal developers!!

Hello hvds,

I installed 12.4 RC on my MacBook Pro 5,2 using latest OCLP 0.4.5n as well, and have no "real" issues, other than the persistence of the double menu bar clock issue. It manifests itself after applying patches. While the work around I described in post #5958 still resolves the problem, I am curious if your machine also displayed two instances of menu-bar clock after installing patches.

The work of the OCLP and "non-metal" developers is indeed amazing; the contributions of forum members is absolutely appreciated.

Thank you.

  • Like
Reactions: hvds
Some weeks ago, the menu bar disappeared on my MBP10,2 and the keyboard did not work properly. Has been mentioned here before (EDIT: #5,703 #5,707 Is there more?). I reinstalled macOS (can't remember, whether I did that from scratch; probably restored data with Time Machine). And it worked again. Now precisely the same thing happened to my MBP8,1. Have been trying different things (just reinstalling macOS wasn't successful).

EDIT: If you guys don't know more than OKonnel did a month ago, I'll just wipe the disk. But I won't bother, if there's an easier way. And: Would be good to know, whether this just happens once in a while. Any idea?

EDIT: What I did: I was trying to revive the card reader with Khronokernel's kext file ( #6,052 ). After I copied the file to the Extensions folder and restarted, the menu was gone. Since I hadn't used it for a week or two, other updates may have interfered.

And a very dumb question: How do I activate safe mode using OCLP? I've tried pressing and releasing at different stages in the booting process, but I don't succeed very often. It took me a while to delete the kext file again - which didn't make a difference.
Hi Makra! Unfortunately, the problem remains mysterious. After my complete restore with Time Machine of macOS 12.3.1, in fact, I gradually reintroduced everything I was using at the time of the serious issue I had and you describe too, but strangely I have no longer had problems.
The doubt remains regarding the additional Extensions, as I have no longer put back the Soundflower Extension which use different desktop video and audio capture applications. Not for nothing, but the Boom3D FAQ (which I had and still have) reports a conflict with Sounflower.
I also have two additional Coriolis Extensions (iDefrag) but I put them back and everything works.
While I have not put back "fabio.kext" Extension which concerns the "DVDFab" app.
It should not be overlooked, however, that Boom3D installs an audio Plug-In in the main Library and that it starts without Launch Agents or Daemons... Perhaps I had previously clicked in the Boom3D settings to start Boom3D Remote and perhaps this could have interfered with both the Menu Bar and both the Keyboard since Boom3D Remote interacts with them?... The fact is that I have not touched that Setting anymore and now Boom3D works fine, as does everything in Monterey 12.3.1 in my iMac.
So, I suspect or an Audio Plug-In (modified by Boom3D Remote settings?…) or a conflict o by Soundflower Extension (old?…) or a conflict by “fabio.kext”

EDIT
A hypothesis associated with the above and which explains why the problem did not go away and a complete restore was necessary, although I manually removed everything indicated, could be in some cache that I have not been able to locate.
Another IMPORTANT hypothesis, it’s in granting all access to the disk (in System Preferences -> Security & Privacy) to something that causes the conflict.
AFTER the total restore with TM, in fact, I noticed that the Security & Privacy settings have been restored vide and all the applications inserted have been removed. After that, so, I haven't entered many applications anymore in Security & Privacy.

Last edited:
I'm aware that this post is somewhat in a grey zone area and asking for donations is against the forum rules.
since it's not for myself but for khronokernel: please head over to his Twitter feed and give something back:
-

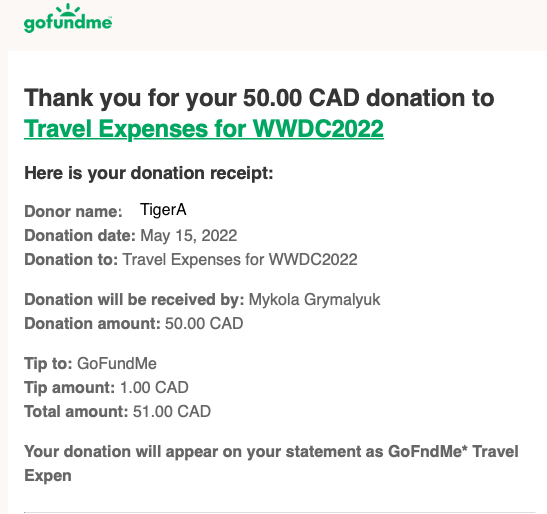

Thanks, MikeBoss! Great idea! I just sent him my contribution.
So! @khronokernel deserves it since he works a lot and @khronokernel has more love and spirituality than Apple which, however, has not allowed its Developers to work to maintain compatibility with macOS 11 and 12 in Macs from 2013 onwards which, like mine, thanks to the work of @khronokernel, fully work well with Monterey.
After all, @khronokernel goes to WWDC for all of us too! So let's help him!

I've installed Montery today using OCLP on my flashed 4,1 MacPro, and all is running great and install went smooth.
Great work and credit for everyone involved in this !

But I am having one major problem with my flashed gtx680, the displayport output does not work under montery.
I have applied the neccecary nvidia kepler patch using OCLP, but only my DVI output is working soo far.

Under MacOS Mojave both ports work fine, driving my dual 30" apple cinema display's.

Is this perhaps a known issue, of which I was not aware of.
Or is there a fix for this ?

Hello hvds,

I installed 12.4 RC on my MacBook Pro 5,2 using latest OCLP 0.4.5n as well, and have no "real" issues, other than the persistence of the double menu bar clock issue. It manifests itself after applying patches. While the work around I described in post #5958 still resolves the problem, I am curious if your machine also displayed two instances of menu-bar clock after installing patches.

The work of the OCLP and "non-metal" developers is indeed amazing; the contributions of forum members is absolutely appreciated.

Thank you.
Hello RogueB,
in my case the menu bar clock is displayed normally, whether I use analogue or digital formats.
This might have to do with my menu bar being quite populated, not sure.
The non-Metal developers are following the double clock (and other issues) up further quite actively, see their new GitHub home here https://github.com/moraea under non-metal frameworks. Last commit of 13 May refers to double-clock. - Though I don't understand much of what is described there, browsing through these pages is interesting, and gives an impression of how much effort the support of non-Metal GPUs indeed is. I find it is ingenious work, especially the tools developed for keeping it manageable.

EDIT: see also latest OCLP nightly of today (16 May)


Attachments

  • Bildschirmfoto 2022-05-15 um 12.03.56.png
    Bildschirmfoto 2022-05-15 um 12.03.56.png
    16.8 KB · Views: 70
Last edited:
12.4 RC is out and fine on my MM 5,2.
How did you install it? For the time being, unable to install RC on my Mac Pro 5,1. 12.3.1 working perfect.



UPDATE: At the end I was able to install it. As far as I can see, all works like a charm. Using OCLP 0.4.5.

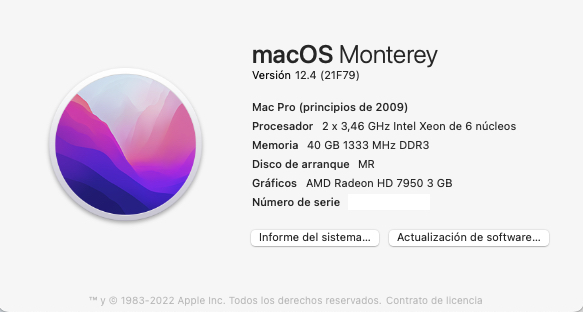

A bit more life for my beloved Mac Pro 5,1. Thanks again, people from OCLP.


Attachments

  • Captura de Pantalla 2022-05-15 a las 16.57.40.jpg
    Captura de Pantalla 2022-05-15 a las 16.57.40.jpg
    76.4 KB · Views: 68
Last edited:
I agree. He is too generous, even for this. The 1000 CAD goal is achieved. But I hope we, this community, goes beyond that.
Canadian!?! That’s even worse.

Bay Area is one of the most expensive places on earth. Even food at McDonald’s is ridiculously priced.

  • Like
Reactions: 0134168
MBP4,1 17-inch Early 2008: Update to 12.4 (21F79) via OCLP 0.4.5n of today.

Q: N o Bluetooth. Is there a fix for this?

MBP4,1 17-inch Early 2008: Update to 12.4 (21F79) via OCLP 0.4.5n of today.

Q: N o Bluetooth. Is there a fix for this?
Worked for my MBP5,2 (mid 2009) at least with the 045n from Friday #6,042 .
On 29 Apr khronokernel made a fix for bluetooth for 12.4b4, announced on Discord. Not aware of a change regarding bluetooth after that... What is your bluetooth controller (sys info, IORegistryExplorer)?

  • Like
Reactions: roysterdoyster
Worked for my MBP5,2 (mid 2009) at least with the 045n from Friday #6,042 .
On 29 Apr khronokernel made a fix for bluetooth for 12.4b4, announced on Discord. Not aware of a change regarding bluetooth after that... What is your bluetooth controller (sys info, IORegistryExplorer)?

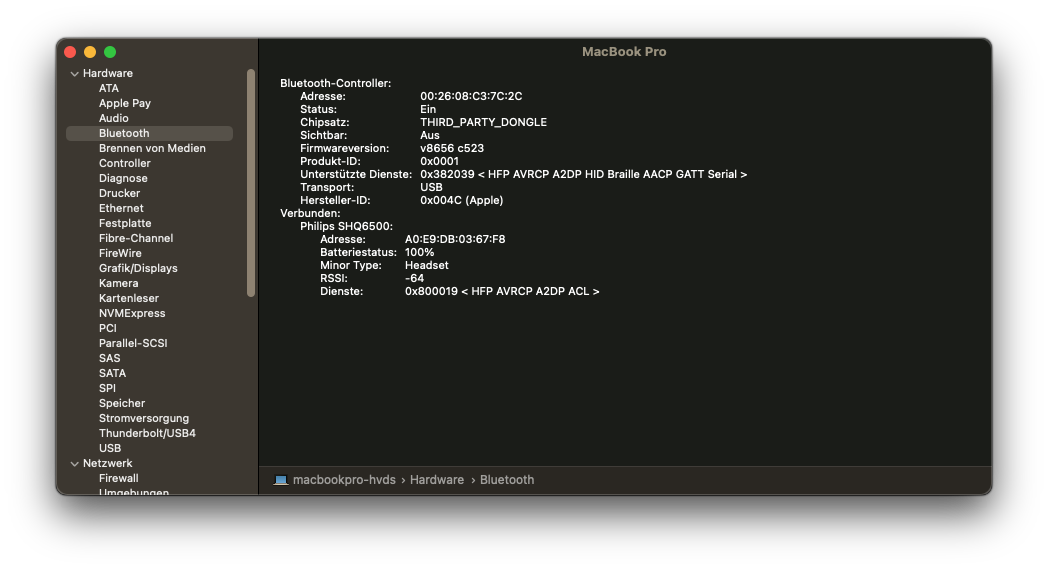

Thank you for your input, hvds.
Bluetooth specs per System info:

Schnittstellen:
en1:
Kartentyp: WLAN (0x14E4, 0x8E)
Firmware-Version: Broadcom BCM43xx 1.0 (5.106.98.100.24)

INI:
ioreg
delivers the following output:
Code:
Last login: Mon May 16 10:04:06 on ttys000
r@MacBook-Pro-von-r ~ % ioreg
+-o Root  <class IORegistryEntry, id 0x100000100, retain 15>
  +-o MacBookPro4,1  <class IOPlatformExpertDevice, id 0x100000111, registered,$
    +-o AppleACPIPlatformExpert  <class AppleACPIPlatformExpert, id 0x100000112$
    | +-o IOSystemStateNotification  <class IOSystemStateNotification, id 0x100$
    | +-o IOPMrootDomain  <class IOPMrootDomain, id 0x100000118, registered, ma$
    | | +-o IORootParent  <class IORootParent, id 0x100000119, !registered, !ma$
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000033f, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000346, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000347, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000349, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000034a, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000034b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000351, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000355, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000356, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000361, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000362, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000363, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000375, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000379, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000037b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000037c, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000038c, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000040d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000040e, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000428, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000498, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000049d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000049f, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004bd, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004c5, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004ed, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004fa, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000508, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000050e, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000571, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005a4, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005a9, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005ad, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005b1, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005b2, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005b6, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005c4, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005d4, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005e6, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005e8, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005e9, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005f0, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005fc, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005fe, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000602, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000603, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000619, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000061b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000061d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000623, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000625, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000627, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000629, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000630, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000633, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000639, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000653, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000654, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000657, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006ae, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006b6, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006b7, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006ee, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000072b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000072d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000072e, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000731, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000732, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000957, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000095b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000b42, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000c44, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000d12, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000fcb, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000020fa, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000020fb, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100002124, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000025bc, $
    | +-o IOPCIMessagedInterruptController  <class IOPCIMessagedInterruptContro$
    | +-o cpus  <class IOPlatformDevice, id 0x100000130, registered, matched, a$
    | +-o CPU0@0  <class IOACPIPlatformDevice, id 0x100000131, registered, matc$
    | | +-o AppleACPICPU  <class AppleACPICPU, id 0x100000134, registered, matc$
    | |   +-o AppleACPICPUInterruptController  <class AppleACPICPUInterruptCont$
    | |   +-o ACPI_SMC_PlatformPlugin  <class ACPI_SMC_PlatformPlugin, id 0x100$
    | +-o CPU1@1  <class IOACPIPlatformDevice, id 0x100000132, registered, matc$
    | | +-o AppleACPICPU  <class AppleACPICPU, id 0x100000135, registered, matc$
    | +-o io-apic@fec00000  <class IOACPIPlatformDevice, id 0x100000133, regist$
    | | +-o AppleAPICInterruptController  <class AppleAPICInterruptController, $
    | +-o AppleACPIEventController  <class AppleACPIEventController, id 0x10000$
    | +-o boot-ec  <class IOACPIPlatformDevice, id 0x100000142, registered, mat$
    | | +-o AppleACPIEC  <class AppleACPIEC, id 0x100000143, registered, matche$
    | +-o bios  <class IOPlatformDevice, id 0x100000144, registered, matched, a$
    | | +-o AppleSMBIOS  <class AppleSMBIOS, id 0x100000145, registered, matche$
    | +-o ADP1  <class IOACPIPlatformDevice, id 0x10000014a, registered, matche$
    | | +-o AppleACPIACAdapter  <class AppleACPIACAdapter, id 0x1000001da, !reg$
    | +-o LID0  <class IOACPIPlatformDevice, id 0x10000014b, registered, matche$
    | | +-o AppleACPILid  <class AppleACPILid, id 0x1000001ec, registered, matc$
    | |   +-o IOHIDEventServiceUserClient  <class IOHIDEventServiceUserClient, $
    | +-o PNLF  <class IOACPIPlatformDevice, id 0x10000014c, registered, matche$
    | | +-o AppleIntelPanelA  <class AppleIntelPanelA, id 0x1000003c8, register$
    | +-o PWRB  <class IOACPIPlatformDevice, id 0x10000014e, registered, matche$
    | | +-o AppleACPIButton  <class AppleACPIButton, id 0x1000001ed, registered$
    | |   +-o IOHIDEventServiceUserClient  <class IOHIDEventServiceUserClient, $
    | +-o SLPB  <class IOACPIPlatformDevice, id 0x10000014f, registered, matche$
    | | +-o AppleACPIButton  <class AppleACPIButton, id 0x1000001ef, registered$
    | |   +-o IOHIDEventServiceUserClient  <class IOHIDEventServiceUserClient, $
    | +-o PCI0  <class IOACPIPlatformDevice, id 0x100000150, registered, matche$
    | | +-o AppleACPIPCI  <class AppleACPIPCI, id 0x1000001e4, registered, matc$
    | |   +-o MCHC@0  <class IOPCIDevice, id 0x1000001a1, registered, matched, $
    | |   | +-o AppleSMCPDRC  <class AppleSMCPDRC, id 0x100000396, registered, $
    | |   +-o PEGP@1  <class IOPCIDevice, id 0x1000001a2, registered, matched, $
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000203, registered, match$
    | |   |   +-o GFX0@0  <class IOPCIDevice, id 0x1000001a3, registered, match$
    | |   |     +-o NVDAHal  <class IOService, id 0x1000003e0, registered, matc$
    | |   |     +-o NVDAgl  <class IOService, id 0x1000003e1, registered, match$
    | |   |     +-o NVDA,Display-A@0  <class IONDRVDevice, id 0x1000003e6, regi$
    | |   |     | +-o NVDATesla  <class NVDATesla, id 0x1000003ea, registered, $
    | |   |     |   +-o AppleMCCSControlModule  <class AppleMCCSControlModule, $
    | |   |     |   | +-o AppleMCCSParameterHandler  <class AppleMCCSParameterH$
    | |   |     |   +-o AppleUpstreamUserClientDriver  <class AppleUpstreamUser$
    | |   |     |   +-o gpu-sensor  <class IOService, id 0x10000043e, registere$
    | |   |     |   +-o IOFramebufferI2CInterface  <class IOFramebufferI2CInter$
    | |   |     |   +-o display0  <class IODisplayConnect, id 0x100000441, regi$
    | |   |     |   | +-o AppleBacklightDisplay  <class AppleBacklightDisplay, $
    | |   |     |   +-o IOFramebufferUserClient  <class IOFramebufferUserClient$
    | |   |     |   +-o IOFramebufferSharedUserClient  <class IOFramebufferShar$
    | |   |     +-o NVKernel  <class NVKernel, id 0x1000003e9, registered, matc$
    | |   |     | +-o NV2DContextTesla  <class NV2DContextTesla, id 0x100000463$
    | |   |     | +-o NV2DContextTesla  <class NV2DContextTesla, id 0x100000468$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000004bb, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000005ca, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x10000062b, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100000635, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100000891, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100000add, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000011e8, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000011ef, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100002120, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x10000212a, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100002727, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100002730, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     +-o NVDA,Display-B@1  <class IONDRVDevice, id 0x1000003e7, regi$
    | |   |     | +-o NVDATesla  <class NVDATesla, id 0x1000003f3, registered, $
    | |   |     |   +-o AppleMCCSControlModule  <class AppleMCCSControlModule, $
    | |   |     |   | +-o AppleMCCSParameterHandler  <class AppleMCCSParameterH$
    | |   |     |   +-o AppleUpstreamUserClientDriver  <class AppleUpstreamUser$
    | |   |     |   +-o IOFramebufferI2CInterface  <class IOFramebufferI2CInter$
    | |   |     |   +-o IOFramebufferUserClient  <class IOFramebufferUserClient$
    | |   |     +-o NVDAinitgl  <class IOService, id 0x10000043f, registered, m$
    | |   +-o UHC4@1A  <class IOPCIDevice, id 0x1000001ba, registered, matched,$
    | |   | +-o UHC4@1a000000  <class AppleUSBUHCIPCI, id 0x100000206, register$
    | |   |   +-o AppleUSBUHCIPort@1a100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   | +-o BRCM2046 Hub@1a100000  <class IOUSBHostDevice, id 0x1000002$
    | |   |   |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |   |   +-o AppleUSB20InternalHub@1a100000  <class AppleUSB20Internal$
    | |   |   |   | +-o AppleUSB20HubPort@1a110000  <class AppleUSB20HubPort, i$
    | |   |   |   | | +-o Bluetooth USB Host Controller@1a110000  <class IOUSBH$
    | |   |   |   | |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacy$
    | |   |   |   | |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id$
    | |   |   |   | |   +-o IOUSBHostInterface@1  <class IOUSBHostInterface, id$
    | |   |   |   | |   +-o IOUSBHostInterface@2  <class IOUSBHostInterface, id$
    | |   |   |   | |   +-o IOUSBHostInterface@3  <class IOUSBHostInterface, id$
    | |   |   |   | +-o AppleUSB20HubPort@1a120000  <class AppleUSB20HubPort, i$
    | |   |   |   | +-o AppleUSB20HubPort@1a130000  <class AppleUSB20HubPort, i$
    | |   |   |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id 0x100$
    | |   |   +-o AppleUSBUHCIPort@1a200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o UHC5@1A,1  <class IOPCIDevice, id 0x1000001be, registered, matche$
    | |   | +-o UHC5@3a000000  <class AppleUSBUHCIPCI, id 0x100000211, register$
    | |   |   +-o AppleUSBUHCIPort@3a100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   +-o AppleUSBUHCIPort@3a200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o EHC2@1A,7  <class IOPCIDevice, id 0x1000001ca, registered, matche$
    | |   | +-o EHC2@fa000000  <class AppleUSBEHCIPCI, id 0x100000214, register$
    | |   |   +-o PRT1@fa100000  <class AppleUSBEHCIPort, id 0x100000279, regis$
    | |   |   +-o PRT2@fa200000  <class AppleUSBEHCIPort, id 0x10000027d, regis$
    | |   |   +-o PRT3@fa300000  <class AppleUSBEHCIPort, id 0x100000280, regis$
    | |   |   +-o PRT4@fa400000  <class AppleUSBEHCIPort, id 0x100000281, regis$
    | |   |     +-o iPhone@fa400000  <class IOUSBHostDevice, id 0x1000020c3, re$
    | |   |       +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |       +-o IOService  <class IOService, id 0x1000020cc, !registered,$
    | |   |       +-o usbmuxd  <class AppleUSBHostDeviceUserClient, id 0x100002$
    | |   |       +-o PTP@0  <class IOUSBHostInterface, id 0x1000020cf, registe$
    | |   |       +-o Apple USB Multiplexor@1  <class IOUSBHostInterface, id 0x$
    | |   |       | +-o usbmuxd  <class AppleUSBHostInterfaceUserClient, id 0x1$
    | |   |       +-o NCM Control@2  <class IOUSBHostInterface, id 0x1000020d1,$
    | |   |       | +-o AppleUSBNCMControl  <class AppleUSBNCMControl, id 0x100$
    | |   |       +-o NCM Data@3  <class IOUSBHostInterface, id 0x1000020d2, re$
    | |   |         +-o AppleUSBNCMData  <class AppleUSBNCMData, id 0x1000020da$
    | |   |           +-o en2  <class IOEthernetInterface, id 0x1000020de, regi$
    | |   |             +-o IONetworkStack  <class IONetworkStack, id 0x1000002$
    | |   |               +-o IONetworkStackUserClient  <class IONetworkStackUs$
    | |   +-o HDEF@1B  <class IOPCIDevice, id 0x1000001a7, registered, matched,$
    | |   | +-o AppleHDAController@1B  <class AppleHDAController, id 0x10000039$
    | |   |   +-o IOHDACodecDevice@1B,0  <class IOHDACodecDevice, id 0x1000003a$
    | |   |     +-o IOHDACodecDriver  <class IOHDACodecDriver, id 0x1000003cb, $
    | |   |       +-o IOHDACodecFunction@1B,0,1  <class IOHDACodecFunction, id $
    | |   |         +-o AppleHDACodecGeneric  <class AppleHDACodecGeneric, id 0$
    | |   |           +-o AppleHDADriver  <class AppleHDADriver, id 0x10000040f$
    | |   |             +-o AppleHDAEngineInput@1B,0,1,0  <class AppleHDAEngine$
    | |   |             | +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |             | +-o IOAudioSelectorControl  <class IOAudioSelectorCon$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             +-o AppleHDAEngineInput@1B,0,1,1  <class AppleHDAEngine$
    | |   |             | +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |             | +-o IOAudioSelectorControl  <class IOAudioSelectorCon$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             +-o AppleHDAEngineOutput@1B,0,1,2  <class AppleHDAEngin$
    | |   |               +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |               +-o IOAudioSelectorControl  <class IOAudioSelectorCon$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o AudioAUUCDriver  <class AudioAUUCDriver, id 0x100$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   +-o pci-bridge@1C  <class IOPCIDevice, id 0x1000001e9, registered, ma$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000215, registered, match$
    | |   +-o RP03@1C,2  <class IOPCIDevice, id 0x1000001a8, registered, matche$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000212, registered, match$
    | |   +-o RP05@1C,4  <class IOPCIDevice, id 0x1000001aa, registered, matche$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000207, registered, match$
    | |   |   +-o ARPT@0  <class IOPCIDevice, id 0x1000001ab, registered, match$
    | |   |     +-o AirPort_Brcm4331  <class AirPort_Brcm4331, id 0x10000022a, $
    | |   |       +-o CCLogPipe  <class CCLogPipe, id 0x10000025d, registered, $
    | |   |       | +-o CCIOReporterLogStream  <class CCIOReporterLogStream, id$
    | |   |       +-o en1  <class AirPort_Brcm4331_Interface, id 0x10000028f, r$
    | |   |       | +-o IONetworkStack  <class IONetworkStack, id 0x100000252, $
    | |   |       |   +-o IONetworkStackUserClient  <class IONetworkStackUserCl$
    | |   |       +-o CCDataPipe  <class CCDataPipe, id 0x10000035b, registered$
    | |   |       | +-o CCIOReporterDataStream  <class CCIOReporterDataStream, $
    | |   |       +-o AirPort_Brcm4331_P2PInterface  <class AirPort_Brcm4331_P2$
    | |   +-o RP06@1C,5  <class IOPCIDevice, id 0x1000001ac, registered, matche$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x10000020a, registered, match$
    | |   |   +-o GIGE@0  <class IOPCIDevice, id 0x1000001ad, registered, match$
    | |   |     +-o yukon2osx  <class yukon2osx, id 0x100000226, !registered, !$
    | |   |       +-o yukon  <class yukon, id 0x100000337, !registered, !matche$
    | |   |         +-o en0  <class IOEthernetInterface, id 0x100000338, regist$
    | |   |         | +-o IONetworkStack  <class IONetworkStack, id 0x100000252$
    | |   |         |   +-o IONetworkStackUserClient  <class IONetworkStackUser$
    | |   |         +-o IOKernelDebugger  <class IOKernelDebugger, id 0x1000003$
    | |   |           +-o IOKDP  <class IOKDP, id 0x10000033a, registered, matc$
    | |   +-o UHC1@1D  <class IOPCIDevice, id 0x1000001ae, registered, matched,$
    | |   | +-o UHC1@1d000000  <class AppleUSBUHCIPCI, id 0x10000020d, register$
    | |   |   +-o AppleUSBUHCIPort@1d100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   +-o AppleUSBUHCIPort@1d200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o UHC2@1D,1  <class IOPCIDevice, id 0x1000001b2, registered, matche$
    | |   | +-o UHC2@3d000000  <class AppleUSBUHCIPCI, id 0x10000020e, register$
    | |   |   +-o AppleUSBUHCIPort@3d100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   +-o AppleUSBUHCIPort@3d200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o UHC3@1D,2  <class IOPCIDevice, id 0x1000001b6, registered, matche$
    | |   | +-o UHC3@5d000000  <class AppleUSBUHCIPCI, id 0x10000020f, register$
    | |   |   +-o AppleUSBUHCIPort@5d100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   | +-o IR Receiver@5d100000  <class IOUSBHostDevice, id 0x1000002d$
    | |   |   |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |   |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id 0x100$
    | |   |   |   | +-o AppleIRController@5d100000,0  <class AppleIRController,$
    | |   |   |   |   +-o IOHIDInterface  <class IOHIDInterface, id 0x1000002fd$
    | |   |   |   |     +-o AppleIRHIDEventDriver  <class AppleIRHIDEventDriver$
    | |   |   |   |       +-o IOHIDEventServiceUserClient  <class IOHIDEventSer$
    | |   |   |   +-o AppleUSBHostCompositeDevice  <class AppleUSBHostComposite$
    | |   |   +-o AppleUSBUHCIPort@5d200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |     +-o Apple Internal Keyboard / Trackpad@5d200000  <class IOUSBHo$
    | |   |       +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |       +-o Apple Internal Keyboard@0  <class IOUSBHostInterface, id $
    | |   |       | +-o AppleUSBTCKeyboard@5d200000,0  <class AppleUSBTCKeyboar$
    | |   |       |   +-o IOHIDInterface  <class IOHIDInterface, id 0x100000318$
    | |   |       |     +-o AppleEmbeddedKeyboard  <class AppleEmbeddedKeyboard$
    | |   |       |       +-o IOHIDEventServiceUserClient  <class IOHIDEventSer$
    | |   |       +-o Touchpad@1  <class IOUSBHostInterface, id 0x10000030c, re$
    | |   |       | +-o AppleUSBMultitouchDriverNoShim@5d200000,1  <class Apple$
    | |   |       |   +-o IOHIDInterface  <class IOHIDInterface, id 0x100000331$
    | |   |       |   | +-o AppleUSBMultitouchHIDEventDriver  <class AppleUSBMu$
    | |   |       |   +-o AppleUSBMultitouchUserClient  <class AppleUSBMultitou$
    | |   |       +-o Touchpad@2  <class IOUSBHostInterface, id 0x10000030d, re$
    | |   |       | +-o AppleUSBTCButtons@5d200000,2  <class AppleUSBTCButtons,$
    | |   |       |   +-o IOHIDInterface  <class IOHIDInterface, id 0x10000031b$
    | |   |       |     +-o IOHIDEventDriver  <class IOHIDEventDriver, id 0x100$
    | |   |       |       +-o IOHIDEventServiceUserClient  <class IOHIDEventSer$
    | |   |       +-o AppleUSBHostCompositeDevice  <class AppleUSBHostComposite$
    | |   +-o EHC1@1D,7  <class IOPCIDevice, id 0x1000001c2, registered, matche$
    | |   | +-o EHC1@fd000000  <class AppleUSBEHCIPCI, id 0x100000210, register$
    | |   |   +-o PRT1@fd100000  <class AppleUSBEHCIPort, id 0x100000272, regis$
    | |   |   +-o PRT2@fd200000  <class AppleUSBEHCIPort, id 0x100000273, regis$
    | |   |   +-o PRT3@fd300000  <class AppleUSBEHCIPort, id 0x100000274, regis$
    | |   |   +-o PRT4@fd400000  <class AppleUSBEHCIPort, id 0x100000275, regis$
    | |   |   | +-o Built-in iSight@fd400000  <class IOUSBHostDevice, id 0x1000$
    | |   |   |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |   |   +-o AppleUSBHostCompositeDevice  <class AppleUSBHostComposite$
    | |   |   |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id 0x100$
    | |   |   |   | +-o VDCAssistant  <class AppleUSBHostInterfaceUserClient, i$
    | |   |   |   +-o IOUSBHostInterface@1  <class IOUSBHostInterface, id 0x100$
    | |   |   |   | +-o VDCAssistant  <class AppleUSBHostInterfaceUserClient, i$
    | |   |   |   +-o IOUSBHostInterface@2  <class IOUSBHostInterface, id 0x100$
    | |   |   |   +-o VDCAssistant  <class AppleUSBHostDeviceUserClient, id 0x1$
    | |   |   +-o PRT5@fd500000  <class AppleUSBEHCIPort, id 0x100000276, regis$
    | |   |   +-o PRT6@fd600000  <class AppleUSBEHCIPort, id 0x100000277, regis$
    | |   +-o PCIB@1E  <class IOPCIDevice, id 0x1000001d0, registered, matched,$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x10000021e, registered, match$
    | |   |   +-o FRWR@3  <class IOPCIDevice, id 0x1000001d1, registered, match$
    | |   |     +-o AppleFWOHCI  <class AppleFWOHCI, id 0x100000397, !registere$
    | |   |       +-o IOFireWireController  <class IOFireWireController, id 0x1$
    | |   |         +-o IOFireWireLocalNode  <class IOFireWireLocalNode, id 0x1$
    | |   |           +-o IOFireWireUserClientIniter  <class IOFireWireUserClie$
    | |   |           +-o IOFireWireUserClientIniter  <class IOFireWireUserClie$
    | |   +-o LPCB@1F  <class IOPCIDevice, id 0x1000001d2, registered, matched,$
    | |   | +-o AppleLPC  <class AppleLPC, id 0x1000003a8, registered, matched,$
    | |   +-o PATA@1F,1  <class IOPCIDevice, id 0x1000001d3, registered, matche$
    | |   +-o SATA@1F,2  <class IOPCIDevice, id 0x1000001d7, registered, matche$
    | |   | +-o AppleICH8AHCI  <class AppleICH8AHCI, id 0x100000222, registered$
    | |   |   +-o PRT0@0  <class AppleAHCIPort, id 0x1000001d8, registered, mat$
    | |   |     +-o IOAHCIDevice@0  <class IOAHCIDevice, id 0x10000022c, regist$
    | |   |       +-o AppleAHCIDiskDriver  <class AppleAHCIDiskDriver, id 0x100$
    | |   |         +-o IOAHCIBlockStorageDevice  <class IOAHCIBlockStorageDevi$
    | |   |           +-o IOBlockStorageDriver  <class IOBlockStorageDriver, id$
    | |   |             +-o Samsung SSD 840 EVO 120GB Media  <class IOMedia, id$
    | |   |               +-o IOMediaBSDClient  <class IOMediaBSDClient, id 0x1$
    | |   |               +-o IOGUIDPartitionScheme  <class IOGUIDPartitionSche$
    | |   |                 +-o EFI System Partition@1  <class IOMedia, id 0x10$
    | |   |                 | +-o IOMediaBSDClient  <class IOMediaBSDClient, id$
    | |   |                 +-o Untitled 2@2  <class IOMedia, id 0x100000265, r$
    | |   |                   +-o IOMediaBSDClient  <class IOMediaBSDClient, id$
    | |   |                   +-o AppleAPFSContainerScheme  <class AppleAPFSCon$
    | |   |                     +-o AppleAPFSMedia  <class AppleAPFSMedia, id 0$
    | |   |                       +-o AppleAPFSMediaBSDClient  <class AppleAPFS$
    | |   |                       +-o AppleAPFSContainer  <class AppleAPFSConta$
    | |   |                         +-o Macintosh HD - Daten@1  <class AppleAPF$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o Preboot@2  <class AppleAPFSVolume, id 0$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o Recovery@3  <class AppleAPFSVolume, id $
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o VM@4  <class AppleAPFSVolume, id 0x1000$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o Macintosh HD@5  <class AppleAPFSVolume,$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         | +-o com.apple.bless.89B1B8EF-7785-4EF1-97$
    | |   |                         |   +-o IOMediaBSDClient  <class IOMediaBSD$
    | |   |                         +-o Update@6  <class AppleAPFSVolume, id 0x$
    | |   |                           +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   +-o SBUS@1F,3  <class IOPCIDevice, id 0x1000001d9, registered, matche$
    | +-o PDRC  <class IOACPIPlatformDevice, id 0x100000152, registered, matche$
    | +-o SMC  <class IOACPIPlatformDevice, id 0x10000018c, registered, matched$
    | | +-o AppleSMC  <class AppleSMC, id 0x1000001e5, registered, matched, act$
    | |   +-o SMCWatchDogTimer  <class SMCWatchDogTimer, id 0x1000001eb, regist$
    | |   | +-o IOWatchdogUserClient  <class IOWatchdogUserClient, id 0x1000003$
    | |   +-o KextAudit  <class KextAudit, id 0x100000239, registered, matched,$
    | |   | +-o KextAuditUserClient  <class KextAuditUserClient, id 0x100000378$
    | |   +-o AppleSMCClient  <class AppleSMCClient, id 0x10000049e, !registere$
    | |   +-o AppleSMCClient  <class AppleSMCClient, id 0x100000566, !registere$
    | +-o ALS0  <class IOACPIPlatformDevice, id 0x10000018d, registered, matche$
    | | +-o AppleLMUController  <class AppleLMUController, id 0x1000003db, regi$
    | +-o SMS0  <class IOACPIPlatformDevice, id 0x10000018e, registered, matche$
    | | +-o SMCMotionSensor  <class SMCMotionSensor, id 0x10000039b, registered$
    | +-o EC  <class IOACPIPlatformDevice, id 0x10000018f, registered, matched,$
    | +-o SMB0  <class IOACPIPlatformDevice, id 0x100000190, registered, matche$
    | | +-o AppleECSMBusController  <class AppleECSMBusController, id 0x1000001$
    | |   +-o AppleSmartBatteryManager  <class AppleSmartBatteryManager, id 0x1$
    | |     +-o AppleSmartBattery  <class AppleSmartBattery, id 0x1000001e1, re$
    | +-o SBS0  <class IOACPIPlatformDevice, id 0x100000191, registered, matche$
    | +-o DMAC  <class IOACPIPlatformDevice, id 0x100000192, registered, matche$
    | +-o FWHD  <class IOACPIPlatformDevice, id 0x100000193, registered, matche$
    | +-o HPET  <class IOACPIPlatformDevice, id 0x100000194, registered, matche$
    | | +-o AppleHPET  <class AppleHPET, id 0x1000001db, !registered, !matched,$
    | +-o IPIC  <class IOACPIPlatformDevice, id 0x100000195, registered, matche$
    | +-o MATH  <class IOACPIPlatformDevice, id 0x100000196, registered, matche$
    | +-o LDRC  <class IOACPIPlatformDevice, id 0x100000197, registered, matche$
    | +-o RTC  <class IOACPIPlatformDevice, id 0x100000198, registered, matched$
    | | +-o AppleRTC  <class AppleRTC, id 0x1000001e8, registered, matched, act$
    | +-o TIMR  <class IOACPIPlatformDevice, id 0x100000199, registered, matche$
    | +-o AppleEFIRuntime  <class AppleEFIRuntime, id 0x1000001dc, registered, $
    |   +-o AppleEFINVRAM  <class AppleEFINVRAM, id 0x1000001de, registered, ma$
    +-o IOResources  <class IOResources, id 0x100000115, registered, matched, a$
    | +-o AppleCredentialManager  <class AppleCredentialManager, id 0x10000011c$
    | | +-o AppleCredentialManagerUserClient  <class AppleCredentialManagerUser$
    | | +-o AppleCredentialManagerUserClient  <class AppleCredentialManagerUser$
    | | +-o AppleCredentialManagerUserClient  <class AppleCredentialManagerUser$
    | +-o AppleFDEKeyStore  <class AppleFDEKeyStore, id 0x10000011d, registered$
    | +-o AppleIntelCPUPowerManagement  <class AppleIntelCPUPowerManagement, id$
    | | +-o AppleIntelCPUPowerManagementClient  <class AppleIntelCPUPowerManage$
    | +-o AppleKeyStore  <class AppleKeyStore, id 0x10000011f, registered, matc$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | +-o AppleSSE  <class AppleSSE, id 0x100000120, registered, matched, activ$
    | +-o CoreAnalyticsHub  <class CoreAnalyticsHub, id 0x100000121, registered$
    | | +-o CoreAnalyticsUserClient  <class CoreAnalyticsUserClient, id 0x10000$
    | +-o Dont_Steal_Mac_OS_X  <class Dont_Steal_Mac_OS_X, id 0x100000122, !reg$
    | +-o EndpointSecurityDriver  <class EndpointSecurityDriver, id 0x100000123$
    | | +-o EndpointSecurityDriverClient  <class EndpointSecurityDriverClient, $
    | +-o IOBluetoothHCIController  <class IOBluetoothHCIController, id 0x10000$
    | | +-o IOBluetoothACPIMethods  <class IOBluetoothACPIMethods, id 0x1000001$
    | +-o IOHDIXController  <class IOHDIXController, id 0x100000125, registered$
    | +-o IOKitRegistryCompatibility  <class IOKitRegistryCompatibility, id 0x1$
    | | +-o display  <class IOServiceCompatibility, id 0x10000013b, registered,$
    | | | +-o IOFB  <class IOServiceCompatibility, id 0x10000013c, registered, $
    | | | +-o IOAccelerator  <class IOServiceCompatibility, id 0x10000013d, reg$
    | | +-o memory  <class IOServiceCompatibility, id 0x10000013e, registered, $
    | +-o IOReportHub  <class IOReportHub, id 0x100000127, registered, matched,$
    | +-o IOTimeSyncClockManager  <class IOTimeSyncClockManager, id 0x100000128$
    | | +-o IOTimeSyncTranslationMach  <class IOTimeSyncTranslationMach, id 0x1$
    | | | +-o IOTimeSyncUserClient  <class IOTimeSyncUserClient, id 0x100000417$
    | | +-o IOTimeSyncClockManagerUserClient  <class IOTimeSyncClockManagerUser$
    | +-o IOUSBMassStorageResource  <class IOUSBMassStorageResource, id 0x10000$
    | +-o AppleALC  <class AppleALC, id 0x10000012a, !registered, !matched, act$
    | +-o AAA_LoadEarly_telemetrap  <class AAA_LoadEarly_telemetrap, id 0x10000$
    | +-o FeatureUnlock  <class FeatureUnlock, id 0x10000012c, !registered, !ma$
    | +-o BlueToolFixup  <class BlueToolFixup, id 0x10000012d, registered, matc$
    | +-o AppleUSBHostResources  <class AppleUSBHostResources, id 0x100000201, $
    | | +-o AppleUSBLegacyRoot  <class AppleUSBLegacyRoot, id 0x10000023e, regi$
    | |   +-o AppleUSBEHCI@fd000000  <class AppleUSBController, id 0x1000002a8,$
    | |   | +-o AppleUSBEHCI Root Hub Simulation@fd000000  <class AppleUSBRootH$
    | |   | +-o Built-in iSight@fd400000  <class AppleUSBDevice, id 0x1000002ab$
    | |   |   +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x1000002b5$
    | |   |   +-o AppleUSBInterface@1  <class AppleUSBInterface, id 0x1000002b6$
    | |   |   +-o AppleUSBInterface@2  <class AppleUSBInterface, id 0x1000002b7$
    | |   +-o AppleUSBEHCI@fa000000  <class AppleUSBController, id 0x1000002ce,$
    | |   | +-o AppleUSBEHCI Root Hub Simulation@fa000000  <class AppleUSBRootH$
    | |   | +-o iPhone@fa400000  <class AppleUSBDevice, id 0x1000020c5, registe$
    | |   |   +-o IOService  <class IOService, id 0x1000020ca, !registered, !ma$
    | |   |   +-o PTP@0  <class AppleUSBInterface, id 0x1000020d3, registered, $
    | |   |   +-o Apple USB Multiplexor@1  <class AppleUSBInterface, id 0x10000$
    | |   |   +-o NCM Control@2  <class AppleUSBInterface, id 0x1000020d5, regi$
    | |   |   +-o NCM Data@3  <class AppleUSBInterface, id 0x1000020d6, registe$
    | |   +-o AppleUSBUHCI@1a000000  <class AppleUSBController, id 0x1000002dd,$
    | |   | +-o AppleUSBUHCI Root Hub Simulation@1a000000  <class AppleUSBRootH$
    | |   | +-o BRCM2046 Hub@1a100000  <class AppleUSBDevice, id 0x1000002e0, r$
    | |   | | +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x1000002e8$
    | |   | +-o Bluetooth USB Host Controller@1a110000  <class AppleUSBDevice, $
    | |   |   +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x10000041f$
    | |   |   +-o AppleUSBInterface@1  <class AppleUSBInterface, id 0x100000420$
    | |   |   +-o AppleUSBInterface@2  <class AppleUSBInterface, id 0x100000421$
    | |   |   +-o AppleUSBInterface@3  <class AppleUSBInterface, id 0x100000422$
    | |   +-o AppleUSBUHCI@5d000000  <class AppleUSBController, id 0x1000002ef,$
    | |     +-o AppleUSBUHCI Root Hub Simulation@5d000000  <class AppleUSBRootH$
    | |     +-o IR Receiver@5d100000  <class AppleUSBDevice, id 0x1000002f2, re$
    | |     | +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x1000002f9$
    | |     +-o Apple Internal Keyboard / Trackpad@5d200000  <class AppleUSBDev$
    | |       +-o Apple Internal Keyboard@0  <class AppleUSBInterface, id 0x100$
    | |       +-o Touchpad@1  <class AppleUSBInterface, id 0x100000310, registe$
    | |       +-o Touchpad@2  <class AppleUSBInterface, id 0x100000311, registe$
    | +-o com_apple_AppleFSCompression_AppleFSCompressionTypeDataless  <class c$
    | +-o com_apple_AppleFSCompression_AppleFSCompressionTypeZlib  <class com_a$
    | +-o AppleImage4  <class AppleImage4, id 0x10000024a, registered, matched,$
    | +-o AppleMobileFileIntegrity  <class AppleMobileFileIntegrity, id 0x10000$
    | +-o AppleSystemPolicy  <class AppleSystemPolicy, id 0x10000024c, register$
    | | +-o AppleSystemPolicyUserClient  <class AppleSystemPolicyUserClient, id$
    | +-o com_apple_BootCache  <class com_apple_BootCache, id 0x10000024d, !reg$
    | +-o com_apple_filesystems_hfs  <class com_apple_filesystems_hfs, id 0x100$
    | +-o com_apple_filesystems_hfs_encodings  <class com_apple_filesystems_hfs$
    | +-o IOHIDResource  <class IOHIDResource, id 0x100000250, registered, matc$
    | | +-o IOHIDResourceDeviceUserClient  <class IOHIDResourceDeviceUserClient$
    | |   +-o IOHIDUserDevice  <class IOHIDUserDevice, id 0x100000494, register$
    | |     +-o IOHIDInterface  <class IOHIDInterface, id 0x100000497, register$
    | |     +-o IOHIDLibUserClient  <class IOHIDLibUserClient, id 0x10000049a, $
    | +-o IOHIDSystem  <class IOHIDSystem, id 0x100000251, registered, matched,$
    | | +-o IOHIDEventSystemUserClient  <class IOHIDEventSystemUserClient, id 0$
    | | +-o IOHIDUserClient  <class IOHIDUserClient, id 0x100000418, !registere$
    | | +-o IOHIDParamUserClient  <class IOHIDParamUserClient, id 0x1000004be, $
    | | +-o IOHIDParamUserClient  <class IOHIDParamUserClient, id 0x100000588, $
    | | +-o IOHIDParamUserClient  <class IOHIDParamUserClient, id 0x1000005b5, $
    | +-o IONetworkStack  <class IONetworkStack, id 0x100000252, registered, ma$
    | | +-o IONetworkStackUserClient  <class IONetworkStackUserClient, id 0x100$
    | +-o IOSurfaceRoot  <class IOSurfaceRoot, id 0x100000253, registered, matc$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | +-o com_apple_filesystems_apfs  <class com_apple_filesystems_apfs, id 0x1$
    | +-o com_apple_filesystems_lifs  <class com_apple_filesystems_lifs, id 0x1$
    | +-o AppleBSDKextStarterTMPFS  <class AppleBSDKextStarter, id 0x100000256,$
    | +-o Lilu  <class Lilu, id 0x100000257, !registered, !matched, active, bus$
    | +-o AppleSCSISubsystemGlobals  <class AppleSCSISubsystemGlobals, id 0x100$
    | +-o AppleIntelSlowAdaptiveClockingManager  <class AppleIntelSlowAdaptiveC$
    | +-o AppleGPUWrangler  <class AppleGPUWrangler, id 0x1000003ad, registered$
    | | +-o AppleGraphicsDeviceControlPlugin  <class AppleGraphicsDeviceControl$
    | | | +-o AGDCPluginDisplayMetrics  <class AGDCPluginDisplayMetrics, id 0x1$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000003$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000004$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000004$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000006$
    | +-o AppleDiskImagesController  <class AppleDiskImagesController, id 0x100$
    | +-o AppleHV  <class AppleHV, id 0x1000003b1, registered, matched, active,$
    | +-o AppleIPAppender  <class AppleIPAppender, id 0x1000003b2, registered, $
    | +-o BroadcomBluetooth20703USBTransport  <class BroadcomBluetooth20703USBT$
    | +-o BroadcomBluetoothHostControllerUSBTransport  <class BroadcomBluetooth$
    | +-o CSRBluetoothHostControllerUSBTransport  <class CSRBluetoothHostContro$
    | +-o IOBluetoothHostControllerPCIeTransport  <class IOBluetoothHostControl$
    | +-o IOBluetoothHostControllerTransport  <class IOBluetoothHostControllerT$
    | +-o IOBluetoothHostControllerUARTTransport  <class IOBluetoothHostControl$
    | +-o IOBluetoothHostControllerUSBTransport  <class IOBluetoothHostControll$
    | +-o IOBluetoothPacketLogger  <class IOBluetoothPacketLogger, id 0x1000003$
    | +-o IOBluetoothSerialManager  <class IOBluetoothSerialManager, id 0x10000$
    | +-o IODisplayWrangler  <class IODisplayWrangler, id 0x1000003bc, register$
    | | +-o IOAccelerationUserClient  <class IOAccelerationUserClient, id 0x100$
    | +-o AppleUSBUserHCIResources  <class AppleUSBUserHCIResources, id 0x10000$
    | +-o IOUserEthernetResource  <class IOUserEthernetResource, id 0x1000003be$
    | +-o com_apple_driver_pmtelemetry  <class com_apple_driver_pmtelemetry, id$
    | +-o IOAVBNub  <class IOAVBNub, id 0x100000413, registered, matched, activ$
    +-o IOUserResources  <class IOUserResources, id 0x100000116, registered, ma$
    +-o AAA_LoadEarly_MouSSE  <class AAA_LoadEarly_MouSSE, id 0x100000114, !reg$
r@MacBook-Pro-von-r ~ %

Can you make anything of this?

Thank you very much in advance, hvds

Thank you for your input, hvds.
Bluetooth specs per System info:

Schnittstellen:
en1:
Kartentyp: WLAN (0x14E4, 0x8E)
Firmware-Version: Broadcom BCM43xx 1.0 (5.106.98.100.24)

INI:
ioreg
delivers the following output:
Code:
Last login: Mon May 16 10:04:06 on ttys000
r@MacBook-Pro-von-r ~ % ioreg
+-o Root  <class IORegistryEntry, id 0x100000100, retain 15>
  +-o MacBookPro4,1  <class IOPlatformExpertDevice, id 0x100000111, registered,$
    +-o AppleACPIPlatformExpert  <class AppleACPIPlatformExpert, id 0x100000112$
    | +-o IOSystemStateNotification  <class IOSystemStateNotification, id 0x100$
    | +-o IOPMrootDomain  <class IOPMrootDomain, id 0x100000118, registered, ma$
    | | +-o IORootParent  <class IORootParent, id 0x100000119, !registered, !ma$
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000033f, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000346, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000347, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000349, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000034a, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000034b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000351, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000355, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000356, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000361, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000362, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000363, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000375, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000379, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000037b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000037c, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000038c, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000040d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000040e, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000428, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000498, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000049d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000049f, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004bd, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004c5, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004ed, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000004fa, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000508, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000050e, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000571, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005a4, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005a9, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005ad, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005b1, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005b2, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005b6, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005c4, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005d4, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005e6, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005e8, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005e9, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005f0, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005fc, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000005fe, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000602, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000603, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000619, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000061b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000061d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000623, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000625, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000627, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000629, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000630, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000633, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000639, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000653, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000654, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000657, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006ae, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006b6, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006b7, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000006ee, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000072b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000072d, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000072e, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000731, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000732, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000957, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x10000095b, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000b42, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000c44, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000d12, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100000fcb, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000020fa, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000020fb, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x100002124, $
    | | +-o RootDomainUserClient  <class RootDomainUserClient, id 0x1000025bc, $
    | +-o IOPCIMessagedInterruptController  <class IOPCIMessagedInterruptContro$
    | +-o cpus  <class IOPlatformDevice, id 0x100000130, registered, matched, a$
    | +-o CPU0@0  <class IOACPIPlatformDevice, id 0x100000131, registered, matc$
    | | +-o AppleACPICPU  <class AppleACPICPU, id 0x100000134, registered, matc$
    | |   +-o AppleACPICPUInterruptController  <class AppleACPICPUInterruptCont$
    | |   +-o ACPI_SMC_PlatformPlugin  <class ACPI_SMC_PlatformPlugin, id 0x100$
    | +-o CPU1@1  <class IOACPIPlatformDevice, id 0x100000132, registered, matc$
    | | +-o AppleACPICPU  <class AppleACPICPU, id 0x100000135, registered, matc$
    | +-o io-apic@fec00000  <class IOACPIPlatformDevice, id 0x100000133, regist$
    | | +-o AppleAPICInterruptController  <class AppleAPICInterruptController, $
    | +-o AppleACPIEventController  <class AppleACPIEventController, id 0x10000$
    | +-o boot-ec  <class IOACPIPlatformDevice, id 0x100000142, registered, mat$
    | | +-o AppleACPIEC  <class AppleACPIEC, id 0x100000143, registered, matche$
    | +-o bios  <class IOPlatformDevice, id 0x100000144, registered, matched, a$
    | | +-o AppleSMBIOS  <class AppleSMBIOS, id 0x100000145, registered, matche$
    | +-o ADP1  <class IOACPIPlatformDevice, id 0x10000014a, registered, matche$
    | | +-o AppleACPIACAdapter  <class AppleACPIACAdapter, id 0x1000001da, !reg$
    | +-o LID0  <class IOACPIPlatformDevice, id 0x10000014b, registered, matche$
    | | +-o AppleACPILid  <class AppleACPILid, id 0x1000001ec, registered, matc$
    | |   +-o IOHIDEventServiceUserClient  <class IOHIDEventServiceUserClient, $
    | +-o PNLF  <class IOACPIPlatformDevice, id 0x10000014c, registered, matche$
    | | +-o AppleIntelPanelA  <class AppleIntelPanelA, id 0x1000003c8, register$
    | +-o PWRB  <class IOACPIPlatformDevice, id 0x10000014e, registered, matche$
    | | +-o AppleACPIButton  <class AppleACPIButton, id 0x1000001ed, registered$
    | |   +-o IOHIDEventServiceUserClient  <class IOHIDEventServiceUserClient, $
    | +-o SLPB  <class IOACPIPlatformDevice, id 0x10000014f, registered, matche$
    | | +-o AppleACPIButton  <class AppleACPIButton, id 0x1000001ef, registered$
    | |   +-o IOHIDEventServiceUserClient  <class IOHIDEventServiceUserClient, $
    | +-o PCI0  <class IOACPIPlatformDevice, id 0x100000150, registered, matche$
    | | +-o AppleACPIPCI  <class AppleACPIPCI, id 0x1000001e4, registered, matc$
    | |   +-o MCHC@0  <class IOPCIDevice, id 0x1000001a1, registered, matched, $
    | |   | +-o AppleSMCPDRC  <class AppleSMCPDRC, id 0x100000396, registered, $
    | |   +-o PEGP@1  <class IOPCIDevice, id 0x1000001a2, registered, matched, $
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000203, registered, match$
    | |   |   +-o GFX0@0  <class IOPCIDevice, id 0x1000001a3, registered, match$
    | |   |     +-o NVDAHal  <class IOService, id 0x1000003e0, registered, matc$
    | |   |     +-o NVDAgl  <class IOService, id 0x1000003e1, registered, match$
    | |   |     +-o NVDA,Display-A@0  <class IONDRVDevice, id 0x1000003e6, regi$
    | |   |     | +-o NVDATesla  <class NVDATesla, id 0x1000003ea, registered, $
    | |   |     |   +-o AppleMCCSControlModule  <class AppleMCCSControlModule, $
    | |   |     |   | +-o AppleMCCSParameterHandler  <class AppleMCCSParameterH$
    | |   |     |   +-o AppleUpstreamUserClientDriver  <class AppleUpstreamUser$
    | |   |     |   +-o gpu-sensor  <class IOService, id 0x10000043e, registere$
    | |   |     |   +-o IOFramebufferI2CInterface  <class IOFramebufferI2CInter$
    | |   |     |   +-o display0  <class IODisplayConnect, id 0x100000441, regi$
    | |   |     |   | +-o AppleBacklightDisplay  <class AppleBacklightDisplay, $
    | |   |     |   +-o IOFramebufferUserClient  <class IOFramebufferUserClient$
    | |   |     |   +-o IOFramebufferSharedUserClient  <class IOFramebufferShar$
    | |   |     +-o NVKernel  <class NVKernel, id 0x1000003e9, registered, matc$
    | |   |     | +-o NV2DContextTesla  <class NV2DContextTesla, id 0x100000463$
    | |   |     | +-o NV2DContextTesla  <class NV2DContextTesla, id 0x100000468$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000004bb, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000005ca, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaSurfaceTesla  <class nvTeslaSurfaceTesla, id 0x100$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x10000062b, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100000635, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100000891, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100000add, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000011e8, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x1000011ef, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100002120, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x10000212a, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100002727, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvDeviceTesla  <class nvDeviceTesla, id 0x100002730, !reg$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     | +-o nvTeslaGLContextTesla  <class nvTeslaGLContextTesla, id 0$
    | |   |     +-o NVDA,Display-B@1  <class IONDRVDevice, id 0x1000003e7, regi$
    | |   |     | +-o NVDATesla  <class NVDATesla, id 0x1000003f3, registered, $
    | |   |     |   +-o AppleMCCSControlModule  <class AppleMCCSControlModule, $
    | |   |     |   | +-o AppleMCCSParameterHandler  <class AppleMCCSParameterH$
    | |   |     |   +-o AppleUpstreamUserClientDriver  <class AppleUpstreamUser$
    | |   |     |   +-o IOFramebufferI2CInterface  <class IOFramebufferI2CInter$
    | |   |     |   +-o IOFramebufferUserClient  <class IOFramebufferUserClient$
    | |   |     +-o NVDAinitgl  <class IOService, id 0x10000043f, registered, m$
    | |   +-o UHC4@1A  <class IOPCIDevice, id 0x1000001ba, registered, matched,$
    | |   | +-o UHC4@1a000000  <class AppleUSBUHCIPCI, id 0x100000206, register$
    | |   |   +-o AppleUSBUHCIPort@1a100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   | +-o BRCM2046 Hub@1a100000  <class IOUSBHostDevice, id 0x1000002$
    | |   |   |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |   |   +-o AppleUSB20InternalHub@1a100000  <class AppleUSB20Internal$
    | |   |   |   | +-o AppleUSB20HubPort@1a110000  <class AppleUSB20HubPort, i$
    | |   |   |   | | +-o Bluetooth USB Host Controller@1a110000  <class IOUSBH$
    | |   |   |   | |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacy$
    | |   |   |   | |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id$
    | |   |   |   | |   +-o IOUSBHostInterface@1  <class IOUSBHostInterface, id$
    | |   |   |   | |   +-o IOUSBHostInterface@2  <class IOUSBHostInterface, id$
    | |   |   |   | |   +-o IOUSBHostInterface@3  <class IOUSBHostInterface, id$
    | |   |   |   | +-o AppleUSB20HubPort@1a120000  <class AppleUSB20HubPort, i$
    | |   |   |   | +-o AppleUSB20HubPort@1a130000  <class AppleUSB20HubPort, i$
    | |   |   |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id 0x100$
    | |   |   +-o AppleUSBUHCIPort@1a200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o UHC5@1A,1  <class IOPCIDevice, id 0x1000001be, registered, matche$
    | |   | +-o UHC5@3a000000  <class AppleUSBUHCIPCI, id 0x100000211, register$
    | |   |   +-o AppleUSBUHCIPort@3a100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   +-o AppleUSBUHCIPort@3a200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o EHC2@1A,7  <class IOPCIDevice, id 0x1000001ca, registered, matche$
    | |   | +-o EHC2@fa000000  <class AppleUSBEHCIPCI, id 0x100000214, register$
    | |   |   +-o PRT1@fa100000  <class AppleUSBEHCIPort, id 0x100000279, regis$
    | |   |   +-o PRT2@fa200000  <class AppleUSBEHCIPort, id 0x10000027d, regis$
    | |   |   +-o PRT3@fa300000  <class AppleUSBEHCIPort, id 0x100000280, regis$
    | |   |   +-o PRT4@fa400000  <class AppleUSBEHCIPort, id 0x100000281, regis$
    | |   |     +-o iPhone@fa400000  <class IOUSBHostDevice, id 0x1000020c3, re$
    | |   |       +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |       +-o IOService  <class IOService, id 0x1000020cc, !registered,$
    | |   |       +-o usbmuxd  <class AppleUSBHostDeviceUserClient, id 0x100002$
    | |   |       +-o PTP@0  <class IOUSBHostInterface, id 0x1000020cf, registe$
    | |   |       +-o Apple USB Multiplexor@1  <class IOUSBHostInterface, id 0x$
    | |   |       | +-o usbmuxd  <class AppleUSBHostInterfaceUserClient, id 0x1$
    | |   |       +-o NCM Control@2  <class IOUSBHostInterface, id 0x1000020d1,$
    | |   |       | +-o AppleUSBNCMControl  <class AppleUSBNCMControl, id 0x100$
    | |   |       +-o NCM Data@3  <class IOUSBHostInterface, id 0x1000020d2, re$
    | |   |         +-o AppleUSBNCMData  <class AppleUSBNCMData, id 0x1000020da$
    | |   |           +-o en2  <class IOEthernetInterface, id 0x1000020de, regi$
    | |   |             +-o IONetworkStack  <class IONetworkStack, id 0x1000002$
    | |   |               +-o IONetworkStackUserClient  <class IONetworkStackUs$
    | |   +-o HDEF@1B  <class IOPCIDevice, id 0x1000001a7, registered, matched,$
    | |   | +-o AppleHDAController@1B  <class AppleHDAController, id 0x10000039$
    | |   |   +-o IOHDACodecDevice@1B,0  <class IOHDACodecDevice, id 0x1000003a$
    | |   |     +-o IOHDACodecDriver  <class IOHDACodecDriver, id 0x1000003cb, $
    | |   |       +-o IOHDACodecFunction@1B,0,1  <class IOHDACodecFunction, id $
    | |   |         +-o AppleHDACodecGeneric  <class AppleHDACodecGeneric, id 0$
    | |   |           +-o AppleHDADriver  <class AppleHDADriver, id 0x10000040f$
    | |   |             +-o AppleHDAEngineInput@1B,0,1,0  <class AppleHDAEngine$
    | |   |             | +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |             | +-o IOAudioSelectorControl  <class IOAudioSelectorCon$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             +-o AppleHDAEngineInput@1B,0,1,1  <class AppleHDAEngine$
    | |   |             | +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |             | +-o IOAudioSelectorControl  <class IOAudioSelectorCon$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |             | | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             | +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |             +-o AppleHDAEngineOutput@1B,0,1,2  <class AppleHDAEngin$
    | |   |               +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o AppleHDAStream  <class AppleHDAStream, id 0x10000$
    | |   |               +-o IOAudioSelectorControl  <class IOAudioSelectorCon$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioLevelControl  <class IOAudioLevelControl, $
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o IOAudioToggleControl  <class IOAudioToggleControl$
    | |   |               | +-o IOAudioControlUserClient  <class IOAudioControl$
    | |   |               +-o AudioAUUCDriver  <class AudioAUUCDriver, id 0x100$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   |               +-o IOAudioEngineUserClient  <class IOAudioEngineUser$
    | |   +-o pci-bridge@1C  <class IOPCIDevice, id 0x1000001e9, registered, ma$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000215, registered, match$
    | |   +-o RP03@1C,2  <class IOPCIDevice, id 0x1000001a8, registered, matche$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000212, registered, match$
    | |   +-o RP05@1C,4  <class IOPCIDevice, id 0x1000001aa, registered, matche$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x100000207, registered, match$
    | |   |   +-o ARPT@0  <class IOPCIDevice, id 0x1000001ab, registered, match$
    | |   |     +-o AirPort_Brcm4331  <class AirPort_Brcm4331, id 0x10000022a, $
    | |   |       +-o CCLogPipe  <class CCLogPipe, id 0x10000025d, registered, $
    | |   |       | +-o CCIOReporterLogStream  <class CCIOReporterLogStream, id$
    | |   |       +-o en1  <class AirPort_Brcm4331_Interface, id 0x10000028f, r$
    | |   |       | +-o IONetworkStack  <class IONetworkStack, id 0x100000252, $
    | |   |       |   +-o IONetworkStackUserClient  <class IONetworkStackUserCl$
    | |   |       +-o CCDataPipe  <class CCDataPipe, id 0x10000035b, registered$
    | |   |       | +-o CCIOReporterDataStream  <class CCIOReporterDataStream, $
    | |   |       +-o AirPort_Brcm4331_P2PInterface  <class AirPort_Brcm4331_P2$
    | |   +-o RP06@1C,5  <class IOPCIDevice, id 0x1000001ac, registered, matche$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x10000020a, registered, match$
    | |   |   +-o GIGE@0  <class IOPCIDevice, id 0x1000001ad, registered, match$
    | |   |     +-o yukon2osx  <class yukon2osx, id 0x100000226, !registered, !$
    | |   |       +-o yukon  <class yukon, id 0x100000337, !registered, !matche$
    | |   |         +-o en0  <class IOEthernetInterface, id 0x100000338, regist$
    | |   |         | +-o IONetworkStack  <class IONetworkStack, id 0x100000252$
    | |   |         |   +-o IONetworkStackUserClient  <class IONetworkStackUser$
    | |   |         +-o IOKernelDebugger  <class IOKernelDebugger, id 0x1000003$
    | |   |           +-o IOKDP  <class IOKDP, id 0x10000033a, registered, matc$
    | |   +-o UHC1@1D  <class IOPCIDevice, id 0x1000001ae, registered, matched,$
    | |   | +-o UHC1@1d000000  <class AppleUSBUHCIPCI, id 0x10000020d, register$
    | |   |   +-o AppleUSBUHCIPort@1d100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   +-o AppleUSBUHCIPort@1d200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o UHC2@1D,1  <class IOPCIDevice, id 0x1000001b2, registered, matche$
    | |   | +-o UHC2@3d000000  <class AppleUSBUHCIPCI, id 0x10000020e, register$
    | |   |   +-o AppleUSBUHCIPort@3d100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   +-o AppleUSBUHCIPort@3d200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   +-o UHC3@1D,2  <class IOPCIDevice, id 0x1000001b6, registered, matche$
    | |   | +-o UHC3@5d000000  <class AppleUSBUHCIPCI, id 0x10000020f, register$
    | |   |   +-o AppleUSBUHCIPort@5d100000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |   | +-o IR Receiver@5d100000  <class IOUSBHostDevice, id 0x1000002d$
    | |   |   |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |   |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id 0x100$
    | |   |   |   | +-o AppleIRController@5d100000,0  <class AppleIRController,$
    | |   |   |   |   +-o IOHIDInterface  <class IOHIDInterface, id 0x1000002fd$
    | |   |   |   |     +-o AppleIRHIDEventDriver  <class AppleIRHIDEventDriver$
    | |   |   |   |       +-o IOHIDEventServiceUserClient  <class IOHIDEventSer$
    | |   |   |   +-o AppleUSBHostCompositeDevice  <class AppleUSBHostComposite$
    | |   |   +-o AppleUSBUHCIPort@5d200000  <class AppleUSBUHCIPort, id 0x1000$
    | |   |     +-o Apple Internal Keyboard / Trackpad@5d200000  <class IOUSBHo$
    | |   |       +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |       +-o Apple Internal Keyboard@0  <class IOUSBHostInterface, id $
    | |   |       | +-o AppleUSBTCKeyboard@5d200000,0  <class AppleUSBTCKeyboar$
    | |   |       |   +-o IOHIDInterface  <class IOHIDInterface, id 0x100000318$
    | |   |       |     +-o AppleEmbeddedKeyboard  <class AppleEmbeddedKeyboard$
    | |   |       |       +-o IOHIDEventServiceUserClient  <class IOHIDEventSer$
    | |   |       +-o Touchpad@1  <class IOUSBHostInterface, id 0x10000030c, re$
    | |   |       | +-o AppleUSBMultitouchDriverNoShim@5d200000,1  <class Apple$
    | |   |       |   +-o IOHIDInterface  <class IOHIDInterface, id 0x100000331$
    | |   |       |   | +-o AppleUSBMultitouchHIDEventDriver  <class AppleUSBMu$
    | |   |       |   +-o AppleUSBMultitouchUserClient  <class AppleUSBMultitou$
    | |   |       +-o Touchpad@2  <class IOUSBHostInterface, id 0x10000030d, re$
    | |   |       | +-o AppleUSBTCButtons@5d200000,2  <class AppleUSBTCButtons,$
    | |   |       |   +-o IOHIDInterface  <class IOHIDInterface, id 0x10000031b$
    | |   |       |     +-o IOHIDEventDriver  <class IOHIDEventDriver, id 0x100$
    | |   |       |       +-o IOHIDEventServiceUserClient  <class IOHIDEventSer$
    | |   |       +-o AppleUSBHostCompositeDevice  <class AppleUSBHostComposite$
    | |   +-o EHC1@1D,7  <class IOPCIDevice, id 0x1000001c2, registered, matche$
    | |   | +-o EHC1@fd000000  <class AppleUSBEHCIPCI, id 0x100000210, register$
    | |   |   +-o PRT1@fd100000  <class AppleUSBEHCIPort, id 0x100000272, regis$
    | |   |   +-o PRT2@fd200000  <class AppleUSBEHCIPort, id 0x100000273, regis$
    | |   |   +-o PRT3@fd300000  <class AppleUSBEHCIPort, id 0x100000274, regis$
    | |   |   +-o PRT4@fd400000  <class AppleUSBEHCIPort, id 0x100000275, regis$
    | |   |   | +-o Built-in iSight@fd400000  <class IOUSBHostDevice, id 0x1000$
    | |   |   |   +-o AppleUSBHostLegacyClient  <class AppleUSBHostLegacyClient$
    | |   |   |   +-o AppleUSBHostCompositeDevice  <class AppleUSBHostComposite$
    | |   |   |   +-o IOUSBHostInterface@0  <class IOUSBHostInterface, id 0x100$
    | |   |   |   | +-o VDCAssistant  <class AppleUSBHostInterfaceUserClient, i$
    | |   |   |   +-o IOUSBHostInterface@1  <class IOUSBHostInterface, id 0x100$
    | |   |   |   | +-o VDCAssistant  <class AppleUSBHostInterfaceUserClient, i$
    | |   |   |   +-o IOUSBHostInterface@2  <class IOUSBHostInterface, id 0x100$
    | |   |   |   +-o VDCAssistant  <class AppleUSBHostDeviceUserClient, id 0x1$
    | |   |   +-o PRT5@fd500000  <class AppleUSBEHCIPort, id 0x100000276, regis$
    | |   |   +-o PRT6@fd600000  <class AppleUSBEHCIPort, id 0x100000277, regis$
    | |   +-o PCIB@1E  <class IOPCIDevice, id 0x1000001d0, registered, matched,$
    | |   | +-o IOPP  <class IOPCI2PCIBridge, id 0x10000021e, registered, match$
    | |   |   +-o FRWR@3  <class IOPCIDevice, id 0x1000001d1, registered, match$
    | |   |     +-o AppleFWOHCI  <class AppleFWOHCI, id 0x100000397, !registere$
    | |   |       +-o IOFireWireController  <class IOFireWireController, id 0x1$
    | |   |         +-o IOFireWireLocalNode  <class IOFireWireLocalNode, id 0x1$
    | |   |           +-o IOFireWireUserClientIniter  <class IOFireWireUserClie$
    | |   |           +-o IOFireWireUserClientIniter  <class IOFireWireUserClie$
    | |   +-o LPCB@1F  <class IOPCIDevice, id 0x1000001d2, registered, matched,$
    | |   | +-o AppleLPC  <class AppleLPC, id 0x1000003a8, registered, matched,$
    | |   +-o PATA@1F,1  <class IOPCIDevice, id 0x1000001d3, registered, matche$
    | |   +-o SATA@1F,2  <class IOPCIDevice, id 0x1000001d7, registered, matche$
    | |   | +-o AppleICH8AHCI  <class AppleICH8AHCI, id 0x100000222, registered$
    | |   |   +-o PRT0@0  <class AppleAHCIPort, id 0x1000001d8, registered, mat$
    | |   |     +-o IOAHCIDevice@0  <class IOAHCIDevice, id 0x10000022c, regist$
    | |   |       +-o AppleAHCIDiskDriver  <class AppleAHCIDiskDriver, id 0x100$
    | |   |         +-o IOAHCIBlockStorageDevice  <class IOAHCIBlockStorageDevi$
    | |   |           +-o IOBlockStorageDriver  <class IOBlockStorageDriver, id$
    | |   |             +-o Samsung SSD 840 EVO 120GB Media  <class IOMedia, id$
    | |   |               +-o IOMediaBSDClient  <class IOMediaBSDClient, id 0x1$
    | |   |               +-o IOGUIDPartitionScheme  <class IOGUIDPartitionSche$
    | |   |                 +-o EFI System Partition@1  <class IOMedia, id 0x10$
    | |   |                 | +-o IOMediaBSDClient  <class IOMediaBSDClient, id$
    | |   |                 +-o Untitled 2@2  <class IOMedia, id 0x100000265, r$
    | |   |                   +-o IOMediaBSDClient  <class IOMediaBSDClient, id$
    | |   |                   +-o AppleAPFSContainerScheme  <class AppleAPFSCon$
    | |   |                     +-o AppleAPFSMedia  <class AppleAPFSMedia, id 0$
    | |   |                       +-o AppleAPFSMediaBSDClient  <class AppleAPFS$
    | |   |                       +-o AppleAPFSContainer  <class AppleAPFSConta$
    | |   |                         +-o Macintosh HD - Daten@1  <class AppleAPF$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o Preboot@2  <class AppleAPFSVolume, id 0$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o Recovery@3  <class AppleAPFSVolume, id $
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o VM@4  <class AppleAPFSVolume, id 0x1000$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         +-o Macintosh HD@5  <class AppleAPFSVolume,$
    | |   |                         | +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   |                         | +-o com.apple.bless.89B1B8EF-7785-4EF1-97$
    | |   |                         |   +-o IOMediaBSDClient  <class IOMediaBSD$
    | |   |                         +-o Update@6  <class AppleAPFSVolume, id 0x$
    | |   |                           +-o AppleAPFSVolumeBSDClient  <class Appl$
    | |   +-o SBUS@1F,3  <class IOPCIDevice, id 0x1000001d9, registered, matche$
    | +-o PDRC  <class IOACPIPlatformDevice, id 0x100000152, registered, matche$
    | +-o SMC  <class IOACPIPlatformDevice, id 0x10000018c, registered, matched$
    | | +-o AppleSMC  <class AppleSMC, id 0x1000001e5, registered, matched, act$
    | |   +-o SMCWatchDogTimer  <class SMCWatchDogTimer, id 0x1000001eb, regist$
    | |   | +-o IOWatchdogUserClient  <class IOWatchdogUserClient, id 0x1000003$
    | |   +-o KextAudit  <class KextAudit, id 0x100000239, registered, matched,$
    | |   | +-o KextAuditUserClient  <class KextAuditUserClient, id 0x100000378$
    | |   +-o AppleSMCClient  <class AppleSMCClient, id 0x10000049e, !registere$
    | |   +-o AppleSMCClient  <class AppleSMCClient, id 0x100000566, !registere$
    | +-o ALS0  <class IOACPIPlatformDevice, id 0x10000018d, registered, matche$
    | | +-o AppleLMUController  <class AppleLMUController, id 0x1000003db, regi$
    | +-o SMS0  <class IOACPIPlatformDevice, id 0x10000018e, registered, matche$
    | | +-o SMCMotionSensor  <class SMCMotionSensor, id 0x10000039b, registered$
    | +-o EC  <class IOACPIPlatformDevice, id 0x10000018f, registered, matched,$
    | +-o SMB0  <class IOACPIPlatformDevice, id 0x100000190, registered, matche$
    | | +-o AppleECSMBusController  <class AppleECSMBusController, id 0x1000001$
    | |   +-o AppleSmartBatteryManager  <class AppleSmartBatteryManager, id 0x1$
    | |     +-o AppleSmartBattery  <class AppleSmartBattery, id 0x1000001e1, re$
    | +-o SBS0  <class IOACPIPlatformDevice, id 0x100000191, registered, matche$
    | +-o DMAC  <class IOACPIPlatformDevice, id 0x100000192, registered, matche$
    | +-o FWHD  <class IOACPIPlatformDevice, id 0x100000193, registered, matche$
    | +-o HPET  <class IOACPIPlatformDevice, id 0x100000194, registered, matche$
    | | +-o AppleHPET  <class AppleHPET, id 0x1000001db, !registered, !matched,$
    | +-o IPIC  <class IOACPIPlatformDevice, id 0x100000195, registered, matche$
    | +-o MATH  <class IOACPIPlatformDevice, id 0x100000196, registered, matche$
    | +-o LDRC  <class IOACPIPlatformDevice, id 0x100000197, registered, matche$
    | +-o RTC  <class IOACPIPlatformDevice, id 0x100000198, registered, matched$
    | | +-o AppleRTC  <class AppleRTC, id 0x1000001e8, registered, matched, act$
    | +-o TIMR  <class IOACPIPlatformDevice, id 0x100000199, registered, matche$
    | +-o AppleEFIRuntime  <class AppleEFIRuntime, id 0x1000001dc, registered, $
    |   +-o AppleEFINVRAM  <class AppleEFINVRAM, id 0x1000001de, registered, ma$
    +-o IOResources  <class IOResources, id 0x100000115, registered, matched, a$
    | +-o AppleCredentialManager  <class AppleCredentialManager, id 0x10000011c$
    | | +-o AppleCredentialManagerUserClient  <class AppleCredentialManagerUser$
    | | +-o AppleCredentialManagerUserClient  <class AppleCredentialManagerUser$
    | | +-o AppleCredentialManagerUserClient  <class AppleCredentialManagerUser$
    | +-o AppleFDEKeyStore  <class AppleFDEKeyStore, id 0x10000011d, registered$
    | +-o AppleIntelCPUPowerManagement  <class AppleIntelCPUPowerManagement, id$
    | | +-o AppleIntelCPUPowerManagementClient  <class AppleIntelCPUPowerManage$
    | +-o AppleKeyStore  <class AppleKeyStore, id 0x10000011f, registered, matc$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | | +-o AppleKeyStoreUserClient  <class AppleKeyStoreUserClient, id 0x10000$
    | +-o AppleSSE  <class AppleSSE, id 0x100000120, registered, matched, activ$
    | +-o CoreAnalyticsHub  <class CoreAnalyticsHub, id 0x100000121, registered$
    | | +-o CoreAnalyticsUserClient  <class CoreAnalyticsUserClient, id 0x10000$
    | +-o Dont_Steal_Mac_OS_X  <class Dont_Steal_Mac_OS_X, id 0x100000122, !reg$
    | +-o EndpointSecurityDriver  <class EndpointSecurityDriver, id 0x100000123$
    | | +-o EndpointSecurityDriverClient  <class EndpointSecurityDriverClient, $
    | +-o IOBluetoothHCIController  <class IOBluetoothHCIController, id 0x10000$
    | | +-o IOBluetoothACPIMethods  <class IOBluetoothACPIMethods, id 0x1000001$
    | +-o IOHDIXController  <class IOHDIXController, id 0x100000125, registered$
    | +-o IOKitRegistryCompatibility  <class IOKitRegistryCompatibility, id 0x1$
    | | +-o display  <class IOServiceCompatibility, id 0x10000013b, registered,$
    | | | +-o IOFB  <class IOServiceCompatibility, id 0x10000013c, registered, $
    | | | +-o IOAccelerator  <class IOServiceCompatibility, id 0x10000013d, reg$
    | | +-o memory  <class IOServiceCompatibility, id 0x10000013e, registered, $
    | +-o IOReportHub  <class IOReportHub, id 0x100000127, registered, matched,$
    | +-o IOTimeSyncClockManager  <class IOTimeSyncClockManager, id 0x100000128$
    | | +-o IOTimeSyncTranslationMach  <class IOTimeSyncTranslationMach, id 0x1$
    | | | +-o IOTimeSyncUserClient  <class IOTimeSyncUserClient, id 0x100000417$
    | | +-o IOTimeSyncClockManagerUserClient  <class IOTimeSyncClockManagerUser$
    | +-o IOUSBMassStorageResource  <class IOUSBMassStorageResource, id 0x10000$
    | +-o AppleALC  <class AppleALC, id 0x10000012a, !registered, !matched, act$
    | +-o AAA_LoadEarly_telemetrap  <class AAA_LoadEarly_telemetrap, id 0x10000$
    | +-o FeatureUnlock  <class FeatureUnlock, id 0x10000012c, !registered, !ma$
    | +-o BlueToolFixup  <class BlueToolFixup, id 0x10000012d, registered, matc$
    | +-o AppleUSBHostResources  <class AppleUSBHostResources, id 0x100000201, $
    | | +-o AppleUSBLegacyRoot  <class AppleUSBLegacyRoot, id 0x10000023e, regi$
    | |   +-o AppleUSBEHCI@fd000000  <class AppleUSBController, id 0x1000002a8,$
    | |   | +-o AppleUSBEHCI Root Hub Simulation@fd000000  <class AppleUSBRootH$
    | |   | +-o Built-in iSight@fd400000  <class AppleUSBDevice, id 0x1000002ab$
    | |   |   +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x1000002b5$
    | |   |   +-o AppleUSBInterface@1  <class AppleUSBInterface, id 0x1000002b6$
    | |   |   +-o AppleUSBInterface@2  <class AppleUSBInterface, id 0x1000002b7$
    | |   +-o AppleUSBEHCI@fa000000  <class AppleUSBController, id 0x1000002ce,$
    | |   | +-o AppleUSBEHCI Root Hub Simulation@fa000000  <class AppleUSBRootH$
    | |   | +-o iPhone@fa400000  <class AppleUSBDevice, id 0x1000020c5, registe$
    | |   |   +-o IOService  <class IOService, id 0x1000020ca, !registered, !ma$
    | |   |   +-o PTP@0  <class AppleUSBInterface, id 0x1000020d3, registered, $
    | |   |   +-o Apple USB Multiplexor@1  <class AppleUSBInterface, id 0x10000$
    | |   |   +-o NCM Control@2  <class AppleUSBInterface, id 0x1000020d5, regi$
    | |   |   +-o NCM Data@3  <class AppleUSBInterface, id 0x1000020d6, registe$
    | |   +-o AppleUSBUHCI@1a000000  <class AppleUSBController, id 0x1000002dd,$
    | |   | +-o AppleUSBUHCI Root Hub Simulation@1a000000  <class AppleUSBRootH$
    | |   | +-o BRCM2046 Hub@1a100000  <class AppleUSBDevice, id 0x1000002e0, r$
    | |   | | +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x1000002e8$
    | |   | +-o Bluetooth USB Host Controller@1a110000  <class AppleUSBDevice, $
    | |   |   +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x10000041f$
    | |   |   +-o AppleUSBInterface@1  <class AppleUSBInterface, id 0x100000420$
    | |   |   +-o AppleUSBInterface@2  <class AppleUSBInterface, id 0x100000421$
    | |   |   +-o AppleUSBInterface@3  <class AppleUSBInterface, id 0x100000422$
    | |   +-o AppleUSBUHCI@5d000000  <class AppleUSBController, id 0x1000002ef,$
    | |     +-o AppleUSBUHCI Root Hub Simulation@5d000000  <class AppleUSBRootH$
    | |     +-o IR Receiver@5d100000  <class AppleUSBDevice, id 0x1000002f2, re$
    | |     | +-o AppleUSBInterface@0  <class AppleUSBInterface, id 0x1000002f9$
    | |     +-o Apple Internal Keyboard / Trackpad@5d200000  <class AppleUSBDev$
    | |       +-o Apple Internal Keyboard@0  <class AppleUSBInterface, id 0x100$
    | |       +-o Touchpad@1  <class AppleUSBInterface, id 0x100000310, registe$
    | |       +-o Touchpad@2  <class AppleUSBInterface, id 0x100000311, registe$
    | +-o com_apple_AppleFSCompression_AppleFSCompressionTypeDataless  <class c$
    | +-o com_apple_AppleFSCompression_AppleFSCompressionTypeZlib  <class com_a$
    | +-o AppleImage4  <class AppleImage4, id 0x10000024a, registered, matched,$
    | +-o AppleMobileFileIntegrity  <class AppleMobileFileIntegrity, id 0x10000$
    | +-o AppleSystemPolicy  <class AppleSystemPolicy, id 0x10000024c, register$
    | | +-o AppleSystemPolicyUserClient  <class AppleSystemPolicyUserClient, id$
    | +-o com_apple_BootCache  <class com_apple_BootCache, id 0x10000024d, !reg$
    | +-o com_apple_filesystems_hfs  <class com_apple_filesystems_hfs, id 0x100$
    | +-o com_apple_filesystems_hfs_encodings  <class com_apple_filesystems_hfs$
    | +-o IOHIDResource  <class IOHIDResource, id 0x100000250, registered, matc$
    | | +-o IOHIDResourceDeviceUserClient  <class IOHIDResourceDeviceUserClient$
    | |   +-o IOHIDUserDevice  <class IOHIDUserDevice, id 0x100000494, register$
    | |     +-o IOHIDInterface  <class IOHIDInterface, id 0x100000497, register$
    | |     +-o IOHIDLibUserClient  <class IOHIDLibUserClient, id 0x10000049a, $
    | +-o IOHIDSystem  <class IOHIDSystem, id 0x100000251, registered, matched,$
    | | +-o IOHIDEventSystemUserClient  <class IOHIDEventSystemUserClient, id 0$
    | | +-o IOHIDUserClient  <class IOHIDUserClient, id 0x100000418, !registere$
    | | +-o IOHIDParamUserClient  <class IOHIDParamUserClient, id 0x1000004be, $
    | | +-o IOHIDParamUserClient  <class IOHIDParamUserClient, id 0x100000588, $
    | | +-o IOHIDParamUserClient  <class IOHIDParamUserClient, id 0x1000005b5, $
    | +-o IONetworkStack  <class IONetworkStack, id 0x100000252, registered, ma$
    | | +-o IONetworkStackUserClient  <class IONetworkStackUserClient, id 0x100$
    | +-o IOSurfaceRoot  <class IOSurfaceRoot, id 0x100000253, registered, matc$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | | +-o IOSurfaceRootUserClient  <class IOSurfaceRootUserClient, id 0x10000$
    | +-o com_apple_filesystems_apfs  <class com_apple_filesystems_apfs, id 0x1$
    | +-o com_apple_filesystems_lifs  <class com_apple_filesystems_lifs, id 0x1$
    | +-o AppleBSDKextStarterTMPFS  <class AppleBSDKextStarter, id 0x100000256,$
    | +-o Lilu  <class Lilu, id 0x100000257, !registered, !matched, active, bus$
    | +-o AppleSCSISubsystemGlobals  <class AppleSCSISubsystemGlobals, id 0x100$
    | +-o AppleIntelSlowAdaptiveClockingManager  <class AppleIntelSlowAdaptiveC$
    | +-o AppleGPUWrangler  <class AppleGPUWrangler, id 0x1000003ad, registered$
    | | +-o AppleGraphicsDeviceControlPlugin  <class AppleGraphicsDeviceControl$
    | | | +-o AGDCPluginDisplayMetrics  <class AGDCPluginDisplayMetrics, id 0x1$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000003$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000004$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000004$
    | | +-o AppleGPUWranglerClient  <class AppleGPUWranglerClient, id 0x1000006$
    | +-o AppleDiskImagesController  <class AppleDiskImagesController, id 0x100$
    | +-o AppleHV  <class AppleHV, id 0x1000003b1, registered, matched, active,$
    | +-o AppleIPAppender  <class AppleIPAppender, id 0x1000003b2, registered, $
    | +-o BroadcomBluetooth20703USBTransport  <class BroadcomBluetooth20703USBT$
    | +-o BroadcomBluetoothHostControllerUSBTransport  <class BroadcomBluetooth$
    | +-o CSRBluetoothHostControllerUSBTransport  <class CSRBluetoothHostContro$
    | +-o IOBluetoothHostControllerPCIeTransport  <class IOBluetoothHostControl$
    | +-o IOBluetoothHostControllerTransport  <class IOBluetoothHostControllerT$
    | +-o IOBluetoothHostControllerUARTTransport  <class IOBluetoothHostControl$
    | +-o IOBluetoothHostControllerUSBTransport  <class IOBluetoothHostControll$
    | +-o IOBluetoothPacketLogger  <class IOBluetoothPacketLogger, id 0x1000003$
    | +-o IOBluetoothSerialManager  <class IOBluetoothSerialManager, id 0x10000$
    | +-o IODisplayWrangler  <class IODisplayWrangler, id 0x1000003bc, register$
    | | +-o IOAccelerationUserClient  <class IOAccelerationUserClient, id 0x100$
    | +-o AppleUSBUserHCIResources  <class AppleUSBUserHCIResources, id 0x10000$
    | +-o IOUserEthernetResource  <class IOUserEthernetResource, id 0x1000003be$
    | +-o com_apple_driver_pmtelemetry  <class com_apple_driver_pmtelemetry, id$
    | +-o IOAVBNub  <class IOAVBNub, id 0x100000413, registered, matched, activ$
    +-o IOUserResources  <class IOUserResources, id 0x100000116, registered, ma$
    +-o AAA_LoadEarly_MouSSE  <class AAA_LoadEarly_MouSSE, id 0x100000114, !reg$
r@MacBook-Pro-von-r ~ %

Can you make anything of this?

Thank you very much in advance, hvds
Well, it's the same device as in my MBP5,2, when searching BRCM in ioreg's output: Broadcom BRCM2046 for Bluetooth (and BRCM4331 for Wifi).
I could for completeness try tonight the latest 045n on my system to see if it still works the same as the nightly from Friday; I guess it will.
What does "Systembericht" show for Bluetooth? Mine looks as attached (but I need to run 12.3.1 at the moment).

EDIT: now on 12.4RC. Booted from EFI made now from latest 045n. Didn't re-apply post-install patches as they don't affect BT.
Bluetooth still works, listening to BT earphones now. Had to remove them first from the BT system prefpane then reconnect but that sometimes happens.
Bluetooth in the Systembericht looks as in 12.3.1 i.e. THIRD_PARTY_DONGLE.


Attachments

  • Bildschirmfoto 2022-05-16 um 14.26.15.png
    Bildschirmfoto 2022-05-16 um 14.26.15.png
    107.5 KB · Views: 72
Last edited:
  • Like
Reactions: roysterdoyster
Just updated my 2012 mini to 12.4 OTA using OCLP 0.4.4. So far everything is running without a hitch. The release version of 12.4 is the same build as last week’s RC.

  • Like
Reactions: hvds
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
