macOS 12 Monterey on Unsupported Macs Thread

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.

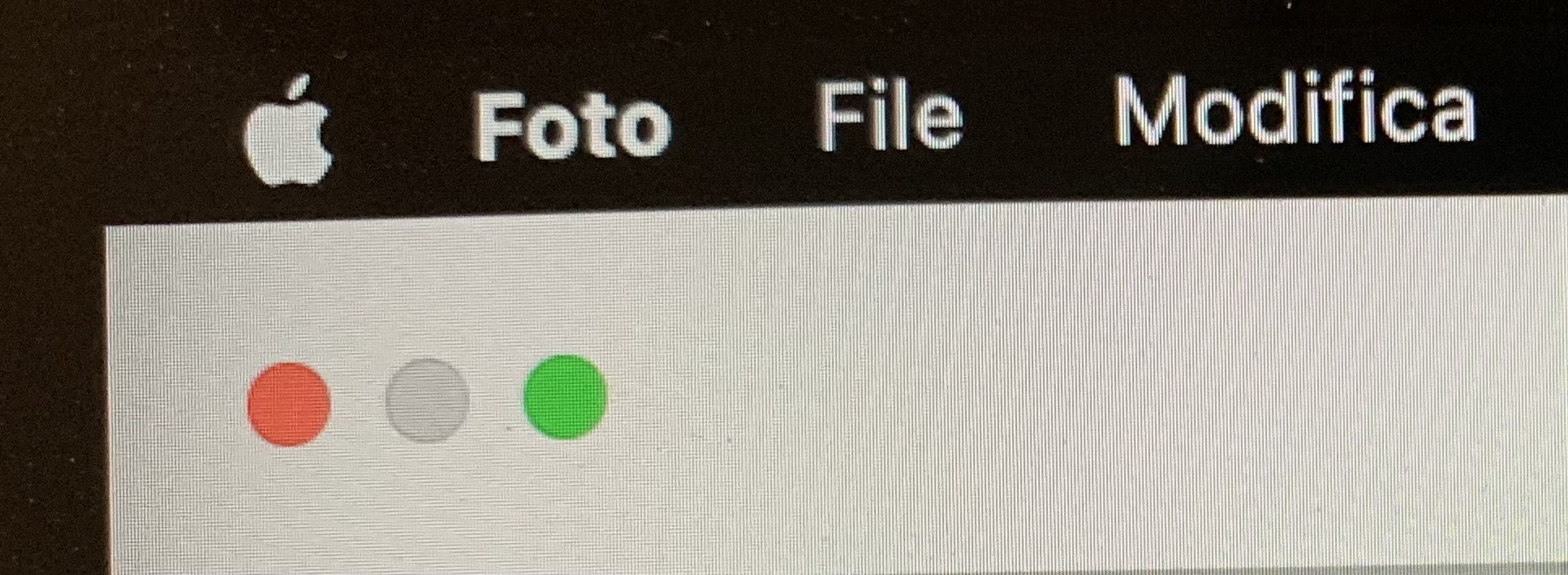

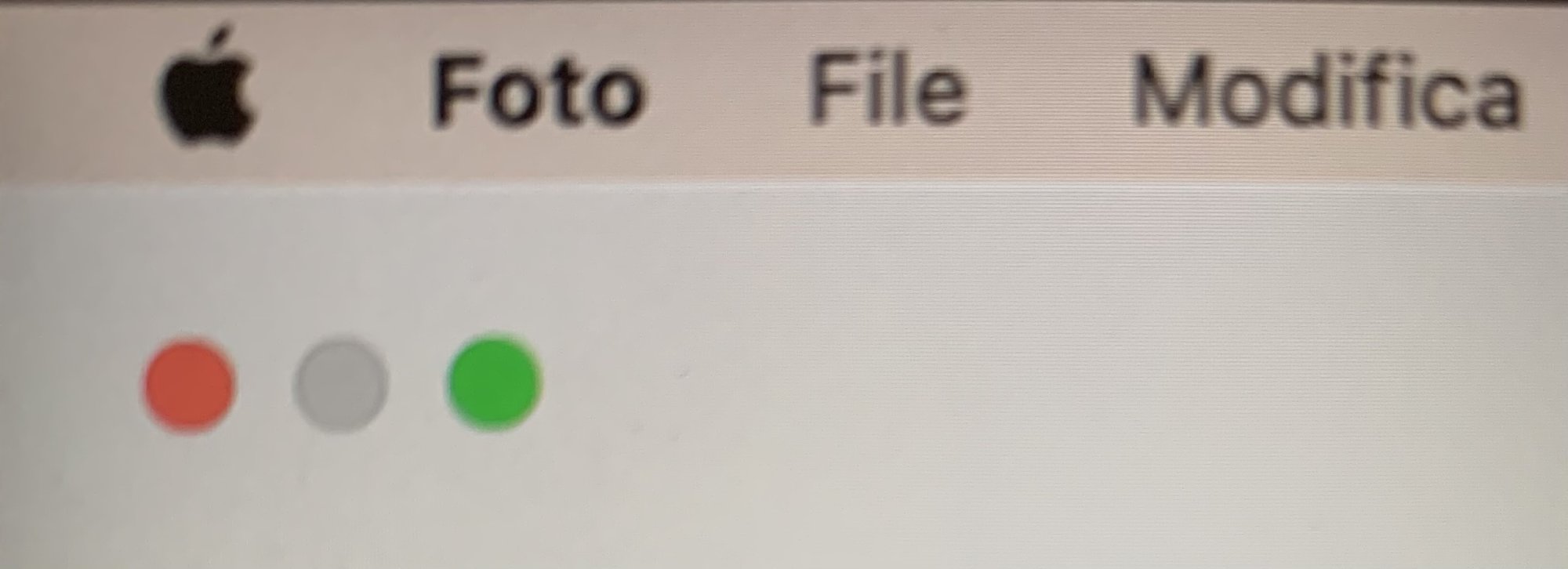

… Photos full-screen menu bar, respectively in Monterey 12.5 (root-patched with the new OCLP 0.4.10) and “native” Big Sur 11.6.8, both with the system in light mode (or automatic, but during the day):





As can be seen, in root-patched Monterey, the full-screen menu bar is always dark, even if the system is in light mode: so, what could be the reason(s) for this behaviour…? And do others of you also have this?

  • Like
Reactions: webg3 and macpro_mid2014
Sven G said:
… Photos full-screen menu bar, respectively in Monterey 12.5 (root-patched with the new OCLP 0.4.10) and “native” Big Sur 11.6.8, both with the system in light mode (or automatic, but during the day):




As can be seen, in root-patched Monterey, the full-screen menu bar is always dark, even if the system is in light mode: so, what could be the reason(s) for this behaviour…? And do others of you also have this?
Click to expand...

I also have a dark menu in Photos on full screen and I don't use any root patch! But, as @Tockman I did not notice it before, because I never use Photos on full screen.

This is not a root patch bug! The dark menu also happens on my MacMini 2014 which natively runs Monterey!

  • Like
Reactions: webg3, Larsvonhier, Sven G and 1 other person
Last edited:
  • Like
  • Haha
Reactions: TOM1211, Larsvonhier, Tockman and 4 others
I am facing the a weird issue. After clean installing the Hackintosh with correct Kext and every. I disable the SIP install the graphics drivers. and then reboot. then when I re-enable the SIP and authenticated root commands the system crashes any solution for that

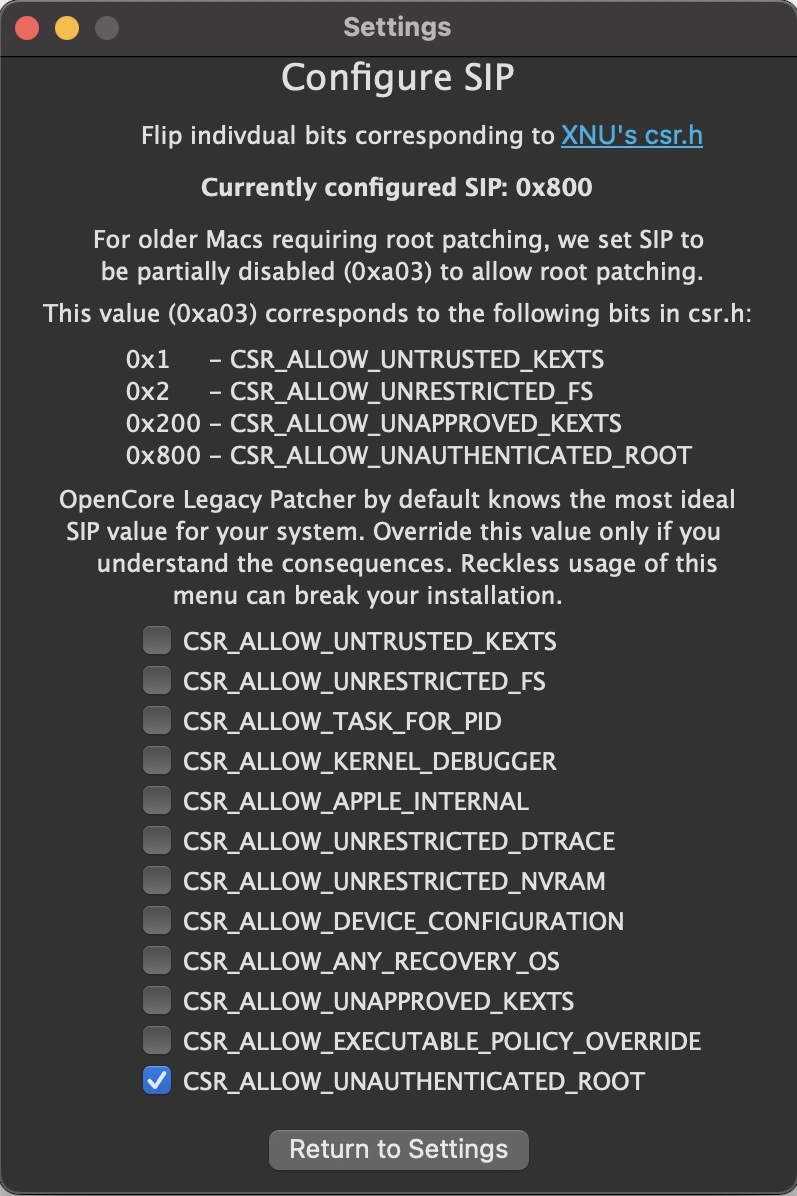

Anyway, you must allow unauthenticated root (SSV disabled), in order to boot after installing kernel extensions (root patching): so, the maximum extent of SIP enabling is the one in the picture below (works fine for me with OCLP, don’t know however about Hackintoshes); and when doing the root patching, of course also unrestricted file system must be allowed (which anyway is the default, in OCLP):

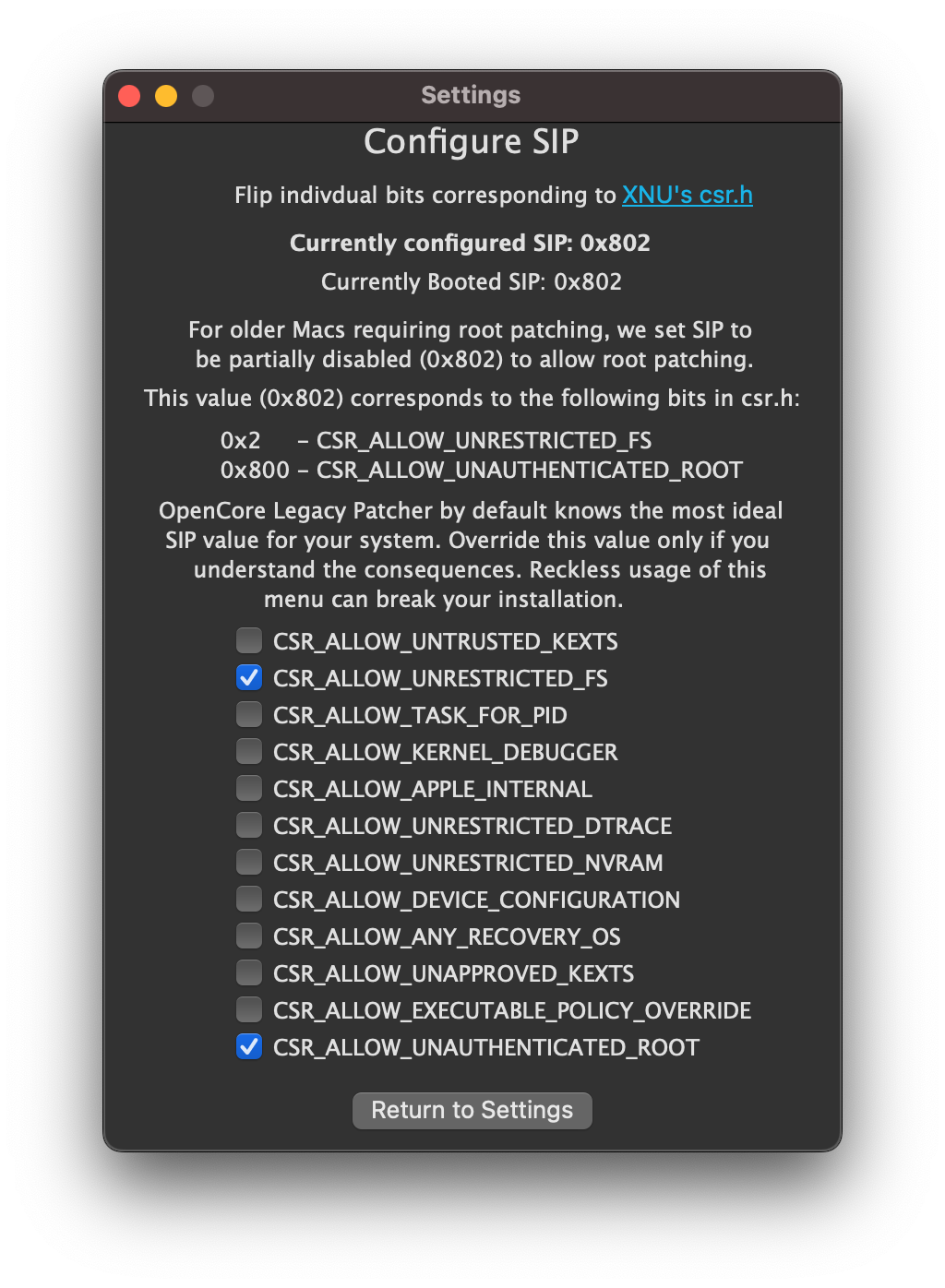

The previous screenshot actually is from an older OCLP version; today’s default is this one (which works perfectly also with unrestricted FS disabled, after having done the root patching; but the last entry must always remain on, anyway):


Last edited:
  • Like
Reactions: macpro_mid2014
This is what I do
1. Clean Install the MacOS Monterey 12.5 using the OpenCore EFI
2. After installation I go to the Recovery mode
3. use the csrutil disable and csrutil authenticated-root disable command
4. Install the OpenCore post install patcher
5. Reboot the computer
6. install all software and drivers everything
7. Go back to the recovery mode re-enable the csrutil enable and csrutil authenticated-root enable
8. Reboot the computer .
9. Greeted by a Kernel panic

Code:
panic(cpu 1 caller 0xffffff801acdcc1d): Kernel trap at 0xffffff7f9d6a3e4c, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x0000000023ec7000, CR4: 0x00000000001606e0
RAX: 0x0000000000000000, RBX: 0xffffff805ecba000, RCX: 0xffffff801b2682b0, RDX: 0xffffff805bfb6cf0
RSP: 0xffffff83ad123de0, RBP: 0xffffff83ad123e50, RSI: 0xffffff801b303520, RDI: 0x0000000000000000
R8:  0x0000000000001c6f, R9:  0x0000000000000000, R10: 0x0000000000001680, R11: 0xffffff805ecba0e8
R12: 0xffffff801b303548, R13: 0xffffff805e8aea80, R14: 0xffffff805e937a00, R15: 0xffffff805ecba000
RFL: 0x0000000000010286, RIP: 0xffffff7f9d6a3e4c, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x1

Backtrace (CPU 1), Frame : Return Address
0xffffff83ad123a70 : 0xffffff801ac23139
0xffffff83ad123af0 : 0xffffff801acdcc1d
0xffffff83ad123cc0 : 0xffffff801acf4486
0xffffff83ad123ce0 : 0xffffff7f9d6a3e4c
0xffffff83ad123e50 : 0xffffff801b096acf
0xffffff83ad123ea0 : 0xffffff801b09668f
0xffffff83ad123f30 : 0xffffff801b092269
0xffffff83ad123f70 : 0xffffff801b0971e3
0xffffff83ad123fb0 : 0xffffff801acd7c67
      Kernel Extensions in backtrace:
         com.apple.driver.AppleGraphicsDevicePolicy(3.6.22)[39BC72B2-5C9D-38C0-B955-8C2FA56789CF]com.apple.0xffffff7f9d6a3000-com.apple.driver.0xffffff7f9d6a9fff
            dependency: com.apple.driver.AppleGraphicsControl(3.6.22)[AA46D551-BE0F-33DA-93A3-8F46197BB36F]com.apple.0xffffff7f9d67f000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[045D5D6F-AD1E-36DB-A249-A346E2B48E54]com.apple.0xffffff7f9ca01000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[8D53E053-6E9C-3315-BCF6-2AF77E05C0DF]com.apple.0xffffff7f9b2b3000
            dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[44D1D375-32BF-3BD0-BC6F-9372C142BCB2]com.apple.0xffffff7f9c132000
            dependency: com.apple.AppleGraphicsDeviceControl(3.6.22)[91D61DEC-2946-3790-8134-B808C016C4C9]com.apple.0xffffff7f9c185000

BSD process name corresponding to current thread: kernel_task
Boot args: alcid=11 watchdog=0


Is there a solution for this

You should probably not re-enable the authenticated root, as you modified the system volume (but I’m no Hackintosh expert, so others might know better)…

  • Like
Reactions: Tockman
But does it at least boot without kernel panics, if you don’t enable authenticated root…? You will get OTA system software updates anyway (at least, it’s so on real OCLP-ed Macs): only that they’ll be full installers, instead of deltas. Sadly, I cannot say much more, also as I know little or nothing about Hackintoshes…

MrPerfectionist said:
This is what I do
1. Clean Install the MacOS Monterey 12.5 using the OpenCore EFI
2. After installation I go to the Recovery mode
3. use the csrutil disable and csrutil authenticated-root disable command
4. Install the OpenCore post install patcher
5. Reboot the computer
6. install all software and drivers everything
7. Go back to the recovery mode re-enable the csrutil enable and csrutil authenticated-root enable
8. Reboot the computer .
9. Greeted by a Kernel panic

Code:
panic(cpu 1 caller 0xffffff801acdcc1d): Kernel trap at 0xffffff7f9d6a3e4c, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x0000000000000000, CR3: 0x0000000023ec7000, CR4: 0x00000000001606e0
RAX: 0x0000000000000000, RBX: 0xffffff805ecba000, RCX: 0xffffff801b2682b0, RDX: 0xffffff805bfb6cf0
RSP: 0xffffff83ad123de0, RBP: 0xffffff83ad123e50, RSI: 0xffffff801b303520, RDI: 0x0000000000000000
R8:  0x0000000000001c6f, R9:  0x0000000000000000, R10: 0x0000000000001680, R11: 0xffffff805ecba0e8
R12: 0xffffff801b303548, R13: 0xffffff805e8aea80, R14: 0xffffff805e937a00, R15: 0xffffff805ecba000
RFL: 0x0000000000010286, RIP: 0xffffff7f9d6a3e4c, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x0000000000000000, Error code: 0x0000000000000000, Fault CPU: 0x1

Backtrace (CPU 1), Frame : Return Address
0xffffff83ad123a70 : 0xffffff801ac23139
0xffffff83ad123af0 : 0xffffff801acdcc1d
0xffffff83ad123cc0 : 0xffffff801acf4486
0xffffff83ad123ce0 : 0xffffff7f9d6a3e4c
0xffffff83ad123e50 : 0xffffff801b096acf
0xffffff83ad123ea0 : 0xffffff801b09668f
0xffffff83ad123f30 : 0xffffff801b092269
0xffffff83ad123f70 : 0xffffff801b0971e3
0xffffff83ad123fb0 : 0xffffff801acd7c67
      Kernel Extensions in backtrace:
         com.apple.driver.AppleGraphicsDevicePolicy(3.6.22)[39BC72B2-5C9D-38C0-B955-8C2FA56789CF]com.apple.0xffffff7f9d6a3000-com.apple.driver.0xffffff7f9d6a9fff
            dependency: com.apple.driver.AppleGraphicsControl(3.6.22)[AA46D551-BE0F-33DA-93A3-8F46197BB36F]com.apple.0xffffff7f9d67f000
            dependency: com.apple.iokit.IOACPIFamily(1.4)[045D5D6F-AD1E-36DB-A249-A346E2B48E54]com.apple.0xffffff7f9ca01000
            dependency: com.apple.iokit.IOPCIFamily(2.9)[8D53E053-6E9C-3315-BCF6-2AF77E05C0DF]com.apple.0xffffff7f9b2b3000
            dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[44D1D375-32BF-3BD0-BC6F-9372C142BCB2]com.apple.0xffffff7f9c132000
            dependency: com.apple.AppleGraphicsDeviceControl(3.6.22)[91D61DEC-2946-3790-8134-B808C016C4C9]com.apple.0xffffff7f9c185000

BSD process name corresponding to current thread: kernel_task
Boot args: alcid=11 watchdog=0


Is there a solution for this
Click to expand...
Probably not here in this thread - as mentioned earlier by hwojtek, please hop over to the hackintosh threads on MR.

  • Like
Reactions: laertemeira
Thanks to the latest developers efforts, with OCLP 0.4.10 I got the following Kepler cards up and running in Mac Pro with macOS 12.5. Full acceleration/metal, login problem solved:

GT630 2GB
Quadro K600 1GB
Quadro K420 1GB (no bootscreen due to PC firmware on card)

So I add my big kudos to the community that again made this possible!

  • Love
Reactions: chris1111
Many thanks for the update, downloaded it and created an installation medium with 12.5 mojave... after a boot it also worked, when I installed the root patches, I always get into a reboot waiting loop... the white bar fills up to the middle and then reboot ... and that again and again ... can jmd help me have big sur on it on the hard drive, could access the data I could delete you ...

kral84 said:
Many thanks for the update, downloaded it and created an installation medium with 12.5 mojave... after a boot it also worked, when I installed the root patches, I always get into a reboot waiting loop... the white bar fills up to the middle and then reboot ... and that again and again ... can jmd help me have big sur on it on the hard drive, could access the data I could delete you ...
Click to expand...
Seems that you boot from a wrong volume. Go to boot picker to make sure you boot the latest installation, and that installation is really finished (all reboot stages, no additional helper volume remaining).

Monterey was completed, everything was running, I just activated the root patcher ... installed everything perfectly (Kepler and Wifi) forimac 12,2, after a restart boot loop :( I only have Monterey and Bigsur in the boot picker

csrutil is diable and authenticated-root too

  • Like
Reactions: rodolfo.araujo
kral84 said:
Monterey was completed, everything was running, I just activated the root patcher ... installed everything perfectly (Kepler and Wifi) forimac 12,2, after a restart boot loop :( I only have Monterey and Bigsur in the boot picker

csrutil is diable and authenticated-root too
Click to expand...
Did you copy your EFI partition to the boot disk?

edzuper said:
I have the same iMac late 2013 and to avoid any issues, should I update first to OCLP 0.4.10 ( post install patches included ) before running the Monterey 12.5 update ? Regards
Click to expand...

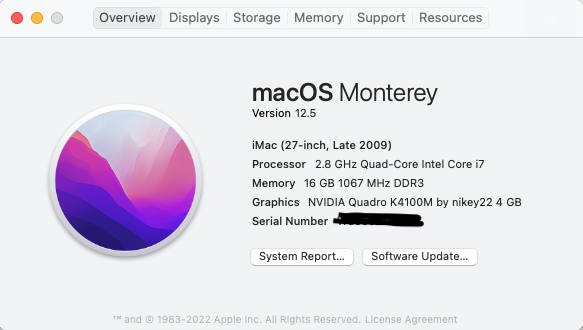

Successful Install MacOS 12.5 on my iMac 27' 2009 NVIDIA Quadro K4100M by nikey22 4 GB


Attachments

  • iMac 27' 2009.png
    iMac 27' 2009.png
    78.1 KB · Views: 67
  • Like
Reactions: chris1111
stupid mistake .... i installed in programs :( and in your folder was 0.4.7 after replace, it works :D

Stupid question but stupid mistake ...thx

  • Like
Reactions: Tockman
