Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.

crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
I don't think anything changed, so, yeah.

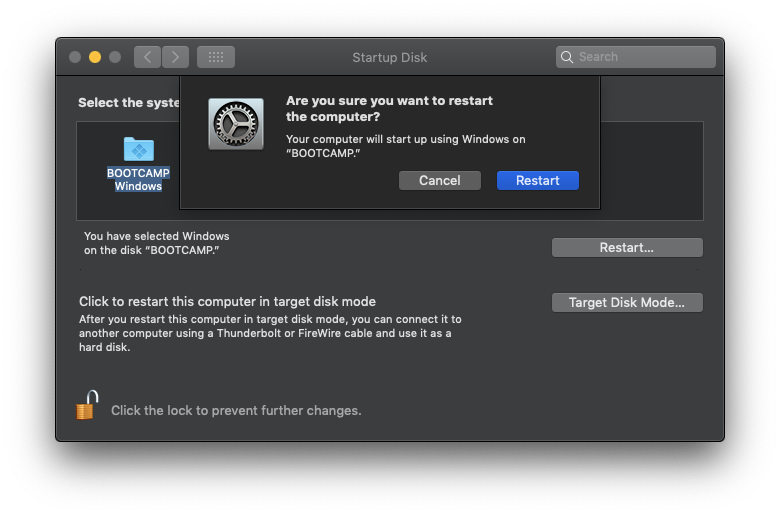

Actually it has changed, you can now boot windows from startup disk with SIP enabled. So yeah it changed...

Screen Shot 2018-09-12 at 5.16.08 PM.png


crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
Oh, nice! At least something. Did you look at updates for Windows BootCamp boot manager?

Screen Shot 2018-09-12 at 5.26.31 PM.png


I'll check the windows side in a little while. I doubt anything hit there...

UPDATE:
Okay, I checked. Once you boot into windows you are stuck there until you do a PRAM reset. Of course if you are using BootRunner, or a similar app., there's no problem. Just use their boot selector as an alternative to "Startup Disk" and you don't need to go through that hassle.

Last edited:

parisinvest

macrumors 6502
Dec 24, 2017
263
19
Paris
First of all I would like to thank very much @tsialex for the very good help and support he gave me preparing the new firmware for my MAC PRO Mid 2010 with the latest updates, version 138.0.0.0.0, with the NVMe boot and also the MAC PRO hardware descriptor from Base_20 (MID 2010) to the mid-2012 Base_21 one, and sent it to me just for burn it in my firmware chip.

This morning I was able to record the new firmware and it worked perfectly.

I installed the HIGHPoint SSD7101A card with 4 NVMe blades Samsung 960 EVO 500G to start RAID0 performance tests with 2, 3 and 4 blades, as well as performance with only 1 NVMe without RAID.

I did not get the performance I expected, and I think this is due to the highPoint's ability to manage the PCIe 2.0 slot (the HighPoint card is PCIe 3.0).

Results in MAC OSX 10.13.6 using RAID0 created by MAC OSX DISKUTIL. Slot 2

With 1 NVMe I achieved the following results:
Read: 2609.7
Write: 1925.8

With 2 NVMe in RAID0 I got the following results:
Read: 4301.3
Write: 3305.2

With 3 NVMe in RAID0 I got the following results:
Read: 4703.8
Write: 3846.1

With 4 NVMe in RAID0 I got the following results:
Read: 4793.5
Write: 3646.0

I was able also to boot from NVMe in both version 10.13 and version 10.14

NOTE:

If I create the RAID through the proprietary software of the HighPoint controller the performance gets a little better, but with the proprietary software installed I do not have visibility of the NVMe blade by MAC OSX only from RAID0.

More specifically .. my idea is to use 1 blade to boot and the other 3 as RAID0, in case I use the highpoint proprietary software I can not see the NVMe blade that I would use to boot and with that I can not install MAC OSX, so all tests was made using distil for RAID0 creation.

I would like to enphasize that without the very good support received from @tsialex will be impossible for me to change my firmware to the lates version.

Hardware Overview:
Model Name: Mac Pro
Model Identifier: MacPro5,1
Processor Name: 6-Core Intel Xeon
Processor Speed: 3,46 GHz
Number of Processors: 2
Total Number of Cores: 12
L2 Cache (per Core): 256 KB
L3 Cache (per Processor): 12 MB
Memory: 128 GB
Boot ROM Version: 138.0.0.0.0
SMC Version (system): 1.39f11
SMC Version (processor tray): 1.39f11


hello sir, sorry bother you with an old topic, but i need to know your evo 960 boot mac pro or not? it's not ahci, but nvme, if you did boot with it, which pcie adapter do you use please? thank you so much.


t8er8

macrumors 6502
Dec 4, 2017
252
100
Quebec, Canada

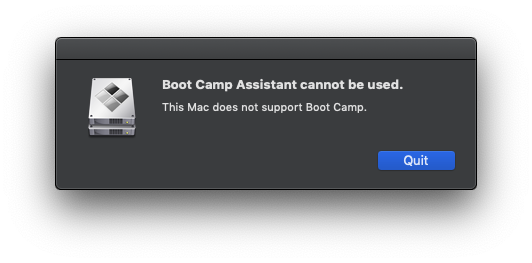

View attachment 781020

I'll check the windows side in a little while. I doubt anything hit there...

UPDATE:
Okay, I checked. Once you boot into windows you are stuck there until you do a PRAM reset. Of course if you are using BootRunner, or a similar app., there's no problem. Just use their boot selector as an alternative to "Startup Disk" and you don't need to go through that hassle.

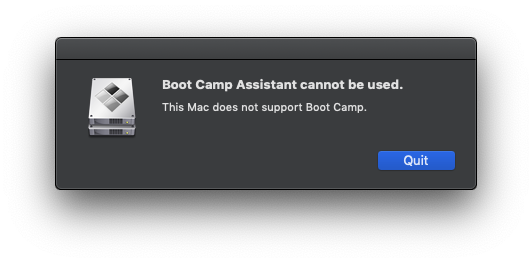

you know any fix for why I get this message?


tsialex

Contributor
Original poster
Jun 13, 2016
13,454
13,601
hello sir, sorry bother you with an old topic, but i need to know your evo 960 boot mac pro or not? it's not ahci, but nvme, if you did boot with it, which pcie adapter do you use please? thank you so much.
@marcoscc has a Highpoint 7101a and I reconstructed his BootROM, 138.0.0.0.0 with NVMe EFI module from MP61.0124.B00.


crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
you know any fix for why I get this message?

You get the message because Bootcamp Assistant isn’t supported on the cMP with updated firmware/macOS.

The fix is something only Apple can do.

Install BootRunner3 for a workaround. There are other Apps. that work fine too, I just happen to use this one at the moment.


korleone_ARG

macrumors newbie
Sep 12, 2018
5
0
Hi! first of all, I would like to thank everybody for all the information you guys posted in this and other posts. You guys are awesome.

I have a couple of questions, I got a Lycom and a Samsung 970, followed the GDoc tutorial and made the NVMe as a bootable drive. I haven't installed this new flash yet(138). Everything works flawlessly, excepting a couple of details:

1. I can't make the R/W speed past 800 MB. I've installed the PCI in the slot 3, so I'm not sure what I'm doing wrong there.
2. and not that important, my mac shows the NVMe as an external drive.

Does anybody have had these issues? thanks in advance!


tsialex

Contributor
Original poster
Jun 13, 2016
13,454
13,601
Hi! first of all, I would like to thank everybody for all the information you guys posted in this and other posts. You guys are awesome.

I have a couple of questions, I got a Lycom and a Samsung 970, followed the GDoc tutorial and made the NVMe as a bootable drive. I haven't installed this new flash yet(138). Everything works flawlessly, excepting a couple of details:

1. I can't make the R/W speed past 800 MB. I've installed the PCI in the slot 3, so I'm not sure what I'm doing wrong there.
2. and not that important, my mac shows the NVMe as an external drive.

Does anybody have had these issues? thanks in advance!
All PCIe drives are external to the Mac Pro firmware. Upgrade to 138.0.0.0.0, enable trim, then test again.


tsialex

Contributor
Original poster
Jun 13, 2016
13,454
13,601
Hey tsialex, do you believe FileVault could be enabled via a terminal command for those of us that have GPU's which support boot screens?
I have to investigate that, didn’t have time to look at this, but I think it’s possible.

  • Like
Reactions: itadampf

marcoscc

macrumors newbie
Aug 26, 2017
21
30
Rio de janeiro - Brazil
hello sir, sorry bother you with an old topic, but i need to know your evo 960 boot mac pro or not? it's not ahci, but nvme, if you did boot with it, which pcie adapter do you use please? thank you so much.

I can boot NVMe balde installed in HIGHPoint SSD7101A card nom RAID configuration or Lycon DT-120 . Marcos Silva


crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
I'm confused by this exchange. I trashed my old Bootcamp Win 7 partition 3 months ago. Does this mean I can't install Win 10 using Bootcamp Assistant anymore? I just started up Bootcamp Assistant (from HS) and didn't get any message saying it couldn't be used with 2010 Mac Pro anymore. Can you clarify please?

Are you running Mojave with firmware 138.0.0.0.0 with SIP enabled and a non-EFI GPU?

My comments were specifically related to if Apple updated or changed the bootcamp drivers or default bootcamp assistant behavior. They have not...

Either way, the BCA drivers downloaded with BCA on a cMP don’t support win10 or APFS .

You can still install Win10, download the BC drivers, and install them manually without BCA. It’s not hard.

This isn’t officially supported, just like a lot of other things we do in the cMP world.

Last edited:

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
I'm confused by this exchange. I trashed my old Bootcamp Win 7 partition 3 months ago. Does this mean I can't install Win 10 using Bootcamp Assistant anymore? I just started up Bootcamp Assistant (from HS) and didn't get any message saying it couldn't be used with 2010 Mac Pro anymore. Can you clarify please?

Bootcamp Assistant is not required at the beginning for cMP users, and not the best way for us as well (even if it can work).

Since we can install multiple hard drives. It's so much better to install an independent hard drive that dedicated for Windows.

Simply install that hard drive (better to remove all other hard drives as well just to avoid accidentally pick the wrong drive to format during installation). Hold "C" to boot from the Windows 10 installation disc. Then flow the on screen instruction to install Windows natively.
[doublepost=1536806530][/doublepost]
No, it wasn’t working here with SIP enabled with non-EFI GPU.

Storage, that should be SIP / EFI GPU independent, but can be affected by those NTFS software.


crjackson2134

macrumors 601
Mar 6, 2013
4,847
1,957
Charlotte, NC
Bootcamp Assistant is not required at the beginning for cMP users, and not the best way for us as well (even if it can work).

Since we can install multiple hard drives. It's so much better to install an independent hard drive that dedicated for Windows.

Simply install that hard drive (better to remove all other hard drives as well just to avoid accidentally pick the wrong drive to format during installation). Hold "C" to boot from the Windows 10 installation disc. Then flow the on screen instruction to install Windows natively.
[doublepost=1536806530][/doublepost]

Storage, that should be SIP / EFI GPU independent, but can be affected by those NTFS software.

Already lots of install threads for this. We were discussing changes in BootRom and behavior changes discovered in today’s release. Sorry for leading thread off topic.


PianoPro

macrumors 6502a
Sep 4, 2018
511
385
Are you running Mojave with firmware 138.0.0.0.0 with SIP enabled and a non-EFI GPU?

Yes to all of that. Do you only get the "Bootcamp not supported message" from Mojave? I just tried it from HS where it worked, so I figured whatever you saw was not related to FW 138. I didn't try running it from Mojave.

Last edited:

itadampf

macrumors member
Jan 16, 2016
38
58
Europe
All PCIe drives are external to the Mac Pro firmware. Upgrade to 138.0.0.0.0, enable trim, then test again.

In my case: Lycom DT-120 in slot 4, Evo 970, bootrom 138, High Sierra
I did not have to enable trim as it was already enabled, and got the right r/w speeds
