MP 1,1-5,1 MacPro5,1: What you have to do to upgrade to Mojave (10.13/10.14 BootROM upgrades instructions thread)
- Thread starter tsialex
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
Hello all
I ask help you, I have a Mac Pro 5.1 2010 ( with upgrade CPU 2 x 3,33 Ghz in this moment is installed OSX 10.12.9 ) with old graphic card HD5770 and so I can't install Mojave. I would like buy a new graphic card; is it possible upgrade con R9 290 or 290X ? If yes i will see the screen boot when start ? Or which graphic card I can use with screen boot ?
Thanks a lot and I ask patience for my English
Max
I ask help you, I have a Mac Pro 5.1 2010 ( with upgrade CPU 2 x 3,33 Ghz in this moment is installed OSX 10.12.9 ) with old graphic card HD5770 and so I can't install Mojave. I would like buy a new graphic card; is it possible upgrade con R9 290 or 290X ? If yes i will see the screen boot when start ? Or which graphic card I can use with screen boot ?
Thanks a lot and I ask patience for my English
Max
You will need to update to 10.13.6 and update firmware to MP51.0089.B00 before updating to Mojave.
This is Apple's official recommendation for 10.14 Mojave:
https://support.apple.com/en-us/HT208898
These specific third-party graphics cards are Metal-capable and compatible with macOS Mojave on Mac Pro (Mid 2010) and Mac Pro (Mid 2012):
- MSI Gaming Radeon RX 560 128-bit 4GB GDRR5
- SAPPHIRE Radeon PULSE RX 580 8GB GDDR5
- SAPPHIRE Radeon HD 7950 Mac Edition
- NVIDIA Quadro K5000 for Mac
- NVIDIA GeForce GTX 680 Mac Edition
Ok, I stand corrected. But will not work to diagnose problems and reinstall macOS like a 2600XT/GT120 will with 10.13.6.actually IIRC the X1900 XT is an EBC card so should in *theory* work in a MP5,1 I know for a fact it works fine in a MP3,1 ("famous" youtube dude "its my natural colour" had one in his MP3,1 for a long time)
(of course it wont function properly post 10.7.5)
id actually like to get an X1900 XT or Xserve1,1/2,1 X1300 256MB PCIe BTO card and chuck it in my 5,1 then throw windows in EFI mode at it and watch the drivers utterly Sh*t themselfs trying to figure it all out
especially as I read the X1x00 ATI cards dont have a PC VBIOS but Just an EFI, (with the X1900s VBIOS being stored in the MP1,1/2,1s BootROM)

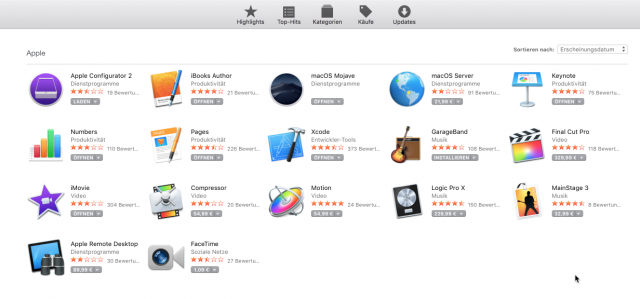

Just wan't to Update following the instructions from first post. But my MAS doesn't find High Sierra anymore?!
Only Mojave available?! So what to do now??
Only Mojave available?! So what to do now??
https://support.apple.com/en-us/HT208969Yes that what I used, this brings me to this list:
Thanks, the link from there works on my system:
https://itunes.apple.com/us/app/macos-high-sierra/id1246284741?ls=1&mt=12
https://support.apple.com/en-us/HT208898
Your question is fairly subjective and depends on use.
The two NVIDIA cards on this list are EFI and no longer officially available for purchase.
There are currently no NVIDIA Web Drivers available for Mojave.
Wait for NVIDIA Web Drivers for Mojave if you really want non-EFI options beyond the official list.
Thanks for the info. I will use sutartosinstall from 10.13.6 then.
I know that I need to wait for NVIDIA release, but I have a question:
After the clean installation complete (on another disk) without the need of boot screen, how can I install web driver without being able to see the screen? I usually access through VNC via mobile when I need to update Web Driver, but now it's a clean installation... (I guess without vnc and with the system preconfiguration screen) how can I install web driver for first time?
Last edited:
sorry for my question:
if i'd like to make a clean installation of Mojave, with only a rx580?
Tell me if it's correct: I must to create a USB key, then i set the startup disk in system preference, set USB, restart, then I will see the screen to format disk, before the installation? Or it will be black screen? Tks in advance
if i'd like to make a clean installation of Mojave, with only a rx580?
Tell me if it's correct: I must to create a USB key, then i set the startup disk in system preference, set USB, restart, then I will see the screen to format disk, before the installation? Or it will be black screen? Tks in advance
Just want to note that I'm already on MP51.0089.B00 and the Mojave installer says I need to perform a firmware update.
You first need to be on MP51.0089.B00 firmware (Boot ROM Version).
Then update to 138.0.0.0.0 for Mojave install with Metal GPU.
Apple's official instructions do NOT include instructions for clean install, you will be "on your own" for that method:
https://support.apple.com/en-us/HT208898
You will update MP51.0089.B00 > 138.0.0.0.0 for Mojave. You need a Metal GPU installed for that update.
AFAIK, it's barely next to impossible to do that.
TBH, one of the hardest thing to do is try to install a clean macOS with just an unflashed Maxwell / Pascal GPU.
As you pointed out, there will be nothing display at all and no remote control available. So, unless you know how to use VoiceOver, I will say it's almost impossible to get it done (install web driver, or at least go through the initial setup and remote control setup).
Since you mentioned that you remote via VNC on mobile. So, I expect you don't have another Mac. Which means can't use another Mac to install OS and web driver, then transfer the hard drive to the cMP. IMO, this is the easiest way, but seems not feasible to you.
Thanks for the reply.
I also have the original graphic (ATI HD 4870) with which I could see the screen during installation ... but I understood that I can not use it to install Mojave, right?
If there is no other solution ...maybe I would have to install a clean High Sierra using the ATI HD 4870, install web driver / enable remote access vnc, and then upgrade to Mojave?
You can't update the BootROM from USB. You have to do all BootROM upgrades it from 10.13.6. Btw, you can do a clean install with startosinstall from 10.13.6.
People with RX-580 can tell you about the rest.
[doublepost=1537894997][/doublepost]
That don't work too. Once Mojave starts, NVIDIA drivers will stop.
Apple have a solution for this. You can install almost anything with startosinstall. It's what's used by sysadmins to install apps/drivers at installation time. You will have to do the same, check --installpackage.
[doublepost=1537895217][/doublepost]
You can't flash R9-290 or R9-290X. The most powerful flashable AMD card is HD 7970/R9-280X.
Last edited:
This should work.
But before you try that, you may try.
1) Only install the Nvidia card in your cMP
2) Run the 10.14 installer
3) select a newly formatted drive as destination (for clean installation)
4) When it prompt for restart, shut it down
5) remove the Nvidia GPU
6) Install the HD4870
7) Turn on the cMP to let the OS installation continue.
There will be few possible outcome
A) OS installation completed, HD4870 can boot to desktop with just the Mac EFI. So, now you can install web driver and then swap the Nvidia GPU back in.
B) OS installation completed, but HD4870 only shows black screen once driver loaded. Then nothing you can do. But use your HS -> Mojave method
C) OS installation can't be completed, but going into a reboot loop / hang / crash. Then again, you have to use the HS - > Mojave method.
Anyway, no need to install web driver for HS. Simple make a clean installation with HD4870, activate VNC, then upgrade to Mojave should be enough. HOWEVER, this still very depends on if you can get VNC when the system still shows you the very initial setup screen right after OS installation (e.g. the screen that to ask if you want to send system info to the Apple server).
If that's the final part of the installation, and VNC cannot be activated until you make a choice, and really boot to desktop. Then your plan still won't work.
Maybe it's better to just repackage nvidia web drivers and use startosinstall --installpackage?
Yes, this sounds easier.
Intentionally force install the 10.14 web driver into a clean 10.13.6, then perform the OS upgrade may work.
I believe the steps would be
1) install HD4870
2) make a clean 10.13.6 installation
2.5) Completely disable SIP and Gatekeeper (this may not be required, but I can imagine this can avoid lots of issues)
3) install the correct web driver for 10.13.6
3.5) With step 2.5, this should be a very straight forward installation, no permission, security block.
4) shutdown
5) move HD4870, install the Nvidia GPU
6) run 10.14 installer to upgrade to 138.0.0.0.0 (if not done yet)
6.5) double check both SIP and Gatekeeper still OFF, turn on VNC as backup
7) force install the 10.14 web driver onto the current 10.13.6 (DO NOT RESTART)
8) Run the 10.14 installer to update the OS
If my logic is right. Then the 10.14 installer will run natively with the Metal supported Nvidia GPU. OS will be installed, 10.14 Nvidia web driver will be load on the first boot.
The user now can then re-activate SIP or Gatekeeper if preferred. But expect will face some web driver issue on the 1st reboot. Hopefully VNC can help to fix it.
It's a good idea, there's nothing to lose so I'll try it to see if there's luck.
I'm also looking at this:
https://github.com/vulgo/webdriver.sh
It seems that it allows to install Web Driver through command line. Perhaps can I start up the Mac in single user /verbose mode after the install, and then install the web driver throught command line. (I suppose I can see the screen on single user with the Nvidia card, but I'm not sure).
If you use one of the Metal capable GPUs and it is not flashed then you will not get a boot screen? Are the Sapphire 7950 and the Nvidia GTX 680 the only cards that will support a boot screen? What are the disadvatages of not having a boot screen. If it's for diagnostic purposes than once Mojave is installed with a non EFI card would you lose that capability? I'm thinking about future updates and how not having a boot screen will affect that process/
You won't see anything from an unflashed Nvidia card (in macOS) until web driver is loaded.
Unlike Windows, macOS didn't even provide the most basic ability to activate a modern Nvidia GPU in any basic display mode.
[doublepost=1537898750][/doublepost]
The Quadro K5000 for Mac also has boot screen.
From memory, when you lost boot screen, you will lost (ONLY correct in 10.14)
1) the display ability in single user mode
2) the display ability in single user recovery mode
3) boot manager
4) the ability to display the Apple logo before driver is loaded
5) the display ability in AHT / ASD
(4) is completely useless
(1) and (2) still can work if you only need to enter something and no need to see the result (e.g. use single user recovery mode to enable / disable SIP)
(3) will be completely broken, system hang
(5) I have no idea, most likely still working, but due to nothing is displayed, which means useless.
Last edited:
To use that, you need this things installed:
- Xcode Command Line Tools
- Brew
- Brew taps.
Look at --installpackage option of startosintall, flatten NVIDIA web driver/repackage it.
