MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro
- Thread starter cdf
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
You do realise that Terminal has the power to do a lot of harm to your OS if you type a command with a typo? Maybe start by watching some videos about Terminal 101
Thanks for helping me so far. Just one more thing. I have managed to bless and it didn’t give me any errors. I just see any errors SMC. I have the following error when trying to see the open core version.
remove versionnvram and leave only nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102
pencore-version
remove versionnvram and leave only nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102

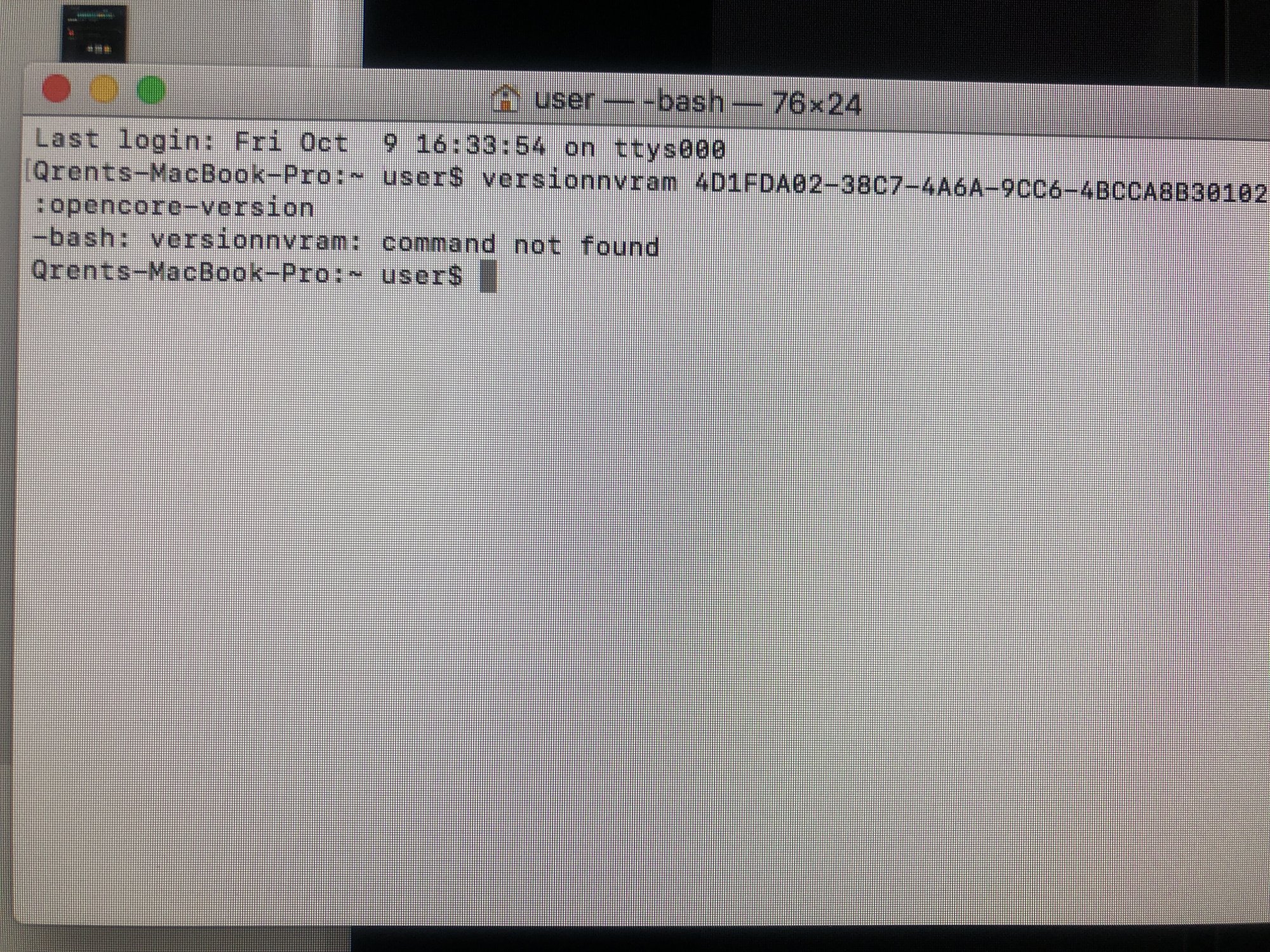

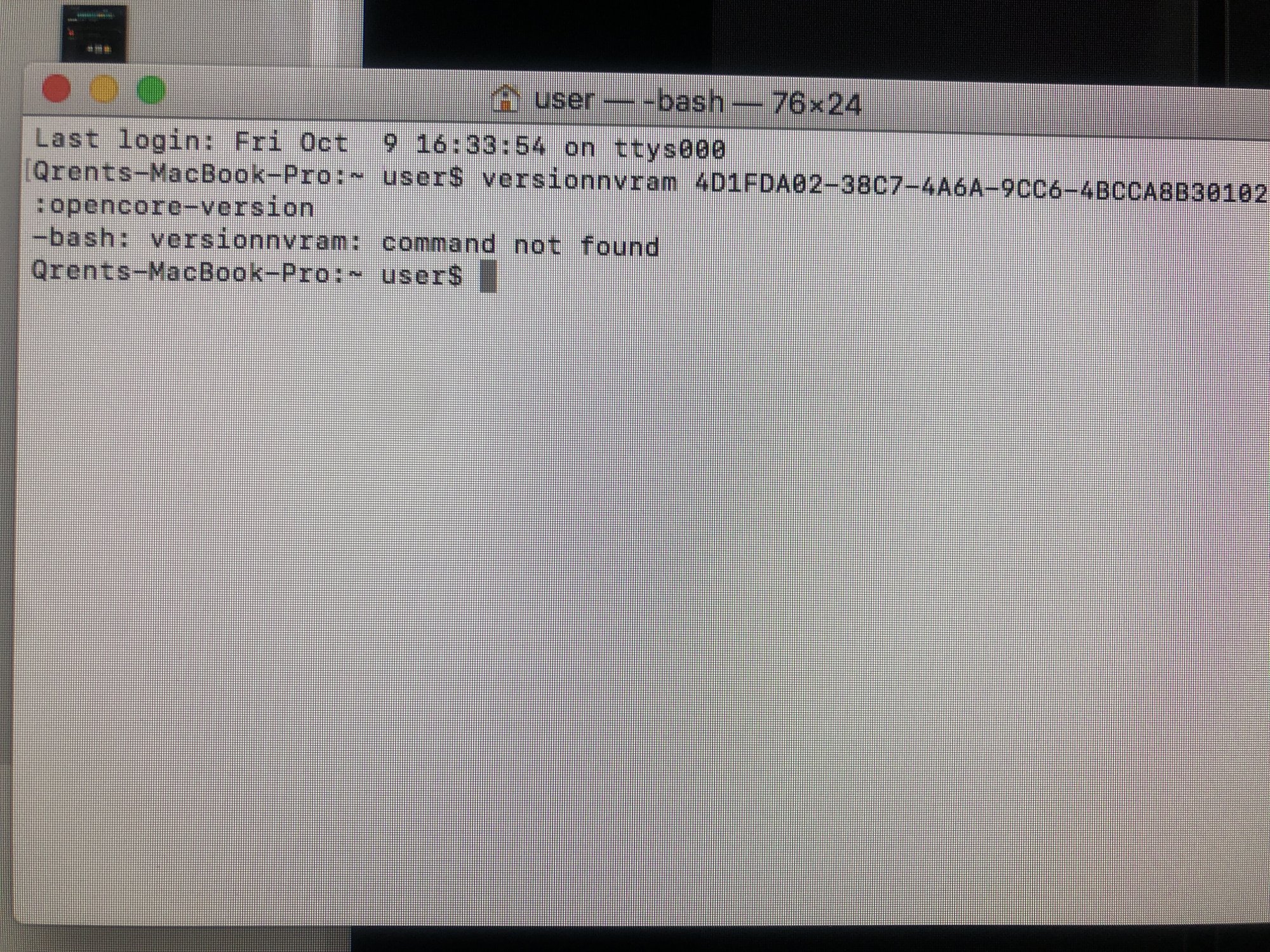

Thanks. These are the results. It still says command not found.
No offence, but since you can't quite follow the procedures. May I suggest you to halt at here.
May I know what's your reason to install OpenCore?
OpenCore is quite advance, and if you use it to run non natively supported OS. You may stuck at no boot condition if you keep making this kind of low level mistake.
I wish you only proceed if you can really follow the steps in post #1.
cdf makes everything very clear in post #1. All you need to do is just comprehend them, then follow the exact steps.
However, you failed to follow the step to get your disk ID in terminal.
And you failed to copy and paste a terminal command which is boxed.
This is a sign that you may make much more serious mistake if you continue.
Again, no offence, but you really should take a break, and think twice if you really want to continue.
Last edited:
Thanks for the advice. Although I followed all the steps except step 1 because I already have catalina in disk01.
The main reason to install OC is to have my disk 01 the main as it still mounting as external.
If it's already working for you, you better keep your current config.
For me, it looks like that you don't have enough knowledge to "jump steps" yet.
And you are trying to mod the procedures to make your existing Catalina boot via OpenCore.
Of course, you can do that, however, I must warn you that there is a high chance you will stuck at no boot condition (e.g. OpenCore isn't loaded, and your cMP can't boot the Catalina natively).
Please only proceed if you accept this risk, and know your recovery plan.
For "installing OpenCore with existing Catalina", you may consider to use my package. As long as SIP is disabled. All you need to do it just put the EFI folder into position, and run the bless tool.
Activate AMD hardware acceleration
I created a new "easy to install package" as per many requested (based on the official OpenCore). [The attached package updated to 1.0.0] For those who only need HWAccel, post #594 has everything you need. This new package mainly offer HWAccel + boot screen. Also, this package should work in...
forums.macrumors.com
@h9826790 sorry but i am not quite sure where and if I'm missing something.
If I set in the config.plist UpdateSMBIOS "false" I can boot both Catalina and BS beta9 with display port connection from my RX5600xt GFX but I have noticed that I lost HWA acceleration (according to Videoproc) on both the OS.
If I set UpdateSMBIOS to "true" I can boot Catalina with display port connection and have also HWA Acceleration but I can't pass the 2nd stage boot BigSur Beta9 and I have to connect the monitor to HDMI connection (with clearly Max resolution problem since I have a QuadHD capable display).
Attached config.plist
I don't remember to had these problems with the "old" rx590 gfx that I had until Big Sur beta2...
is it related to the fact that using hybridisation smbios I lost gfx connections other that HDMI on this specific graphic card?
as always thank you.
cheers
If I set in the config.plist UpdateSMBIOS "false" I can boot both Catalina and BS beta9 with display port connection from my RX5600xt GFX but I have noticed that I lost HWA acceleration (according to Videoproc) on both the OS.
If I set UpdateSMBIOS to "true" I can boot Catalina with display port connection and have also HWA Acceleration but I can't pass the 2nd stage boot BigSur Beta9 and I have to connect the monitor to HDMI connection (with clearly Max resolution problem since I have a QuadHD capable display).
Attached config.plist
I don't remember to had these problems with the "old" rx590 gfx that I had until Big Sur beta2...
is it related to the fact that using hybridisation smbios I lost gfx connections other that HDMI on this specific graphic card?
as always thank you.
cheers
hi startergo, I’m using:
<key>agdpmod</key>
<data>cGlrZXJhAA==</data>
that if I understand is equivalent to “pikera”.
Is it right?
Thank you
Hello @vit9696 , sometimes when I rebuild a new kernelcollection (
Which main kernelcollection path opencore loads ?
/Volumes/Preboot/UUIDBigSur/boot/System/Library/KernelCollections/BootKernelExtensions.kc
only this or others too?
Then I have another question, would be possible to implement a kext injection (maybe on next opencore version) on these paths:
/Volumes/BigSurLabel/System/Library/KernelCollections/BootKernelExtensions.kc
/Volumes/BigSurLabel/System/Library/KernelCollections/SystemKernelExtensions.kc
I don't know how to extract the BootKernelExtensions.kc but I guess it contains the kernel and main kext required to make the "kernel cache".
kmutil install --update-all ; kcditto) with patched kext, from opencore selecting the "BigSur Preboot" I get "exiting efiboot" with no boot neither single user mode (as if the BootKernelExtensions.kc is refused from opencore), while with the same BKE modified kernelcollection I can boot from apple startup manager or refind (without opencore) either with CMD+S and exit and normal booting.Which main kernelcollection path opencore loads ?
/Volumes/Preboot/UUIDBigSur/boot/System/Library/KernelCollections/BootKernelExtensions.kc
only this or others too?
Then I have another question, would be possible to implement a kext injection (maybe on next opencore version) on these paths:
/Volumes/BigSurLabel/System/Library/KernelCollections/BootKernelExtensions.kc
/Volumes/BigSurLabel/System/Library/KernelCollections/SystemKernelExtensions.kc
I don't know how to extract the BootKernelExtensions.kc but I guess it contains the kernel and main kext required to make the "kernel cache".
Last edited:
One question, I have gotten ( donated ) 128 GB of DDR3 4x32GB organized in 1-3 - 5-7 pattern put it in the MacPro the machine chimes, no red light I get the boot screen, I can choose the disk to boot on, logo shows up, but no progress bar. apple logo stays on as long as it wants.
Do I need to turn something on in the config.plist?
Thank you,
Do I need to turn something on in the config.plist?
Thank you,
I don't think the cMPs can use 32 GBOne question, I have gotten ( donated ) 128 GB of DDR3 4x32GB organized in 1-3 - 5-7 pattern put it in the MacPro the machine chimes, no red light I get the boot screen, I can choose the disk to boot on, logo shows up, but no progress bar. apple logo stays on as long as it wants.
Do I need to turn something on in the config.plist?
Thank you,
DIMMs

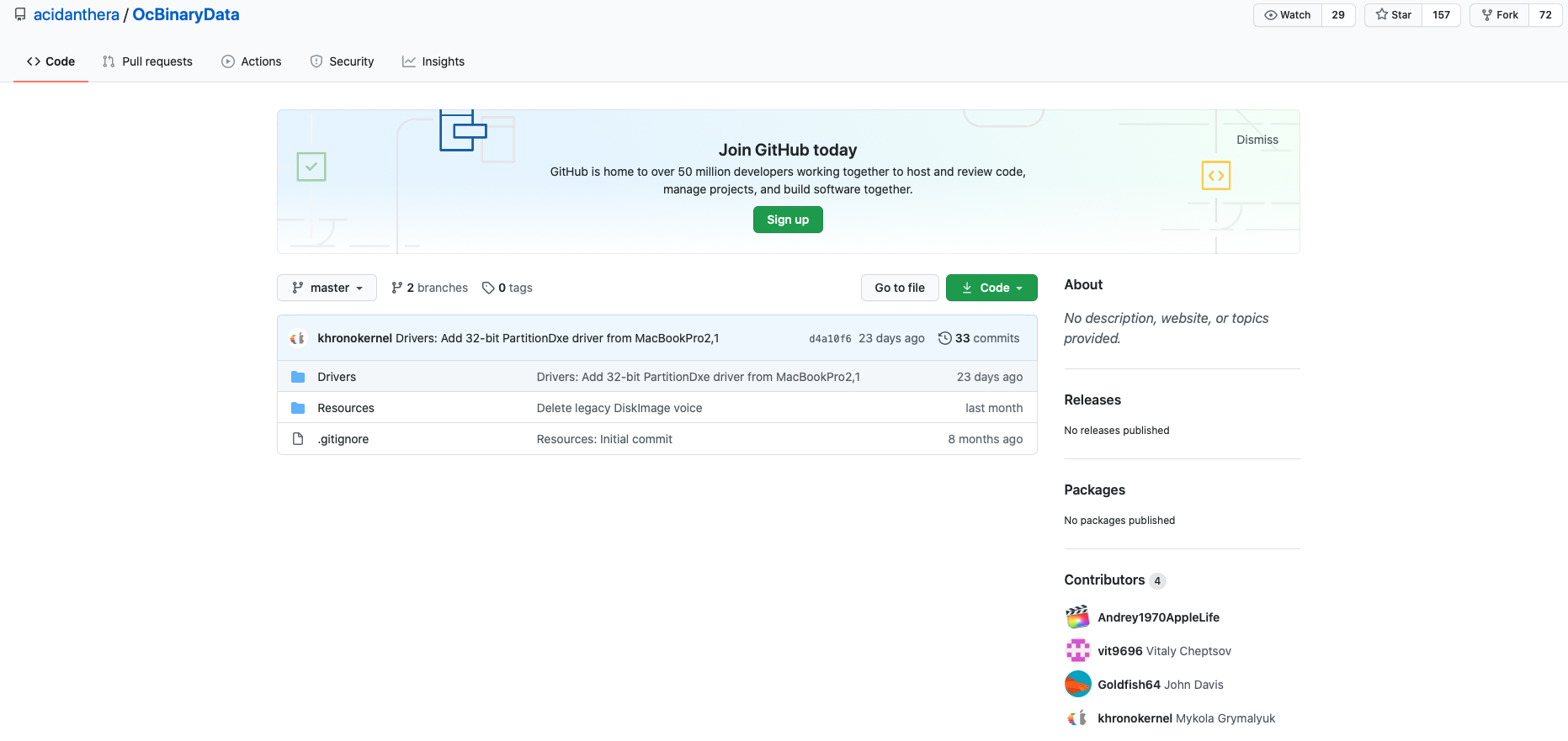

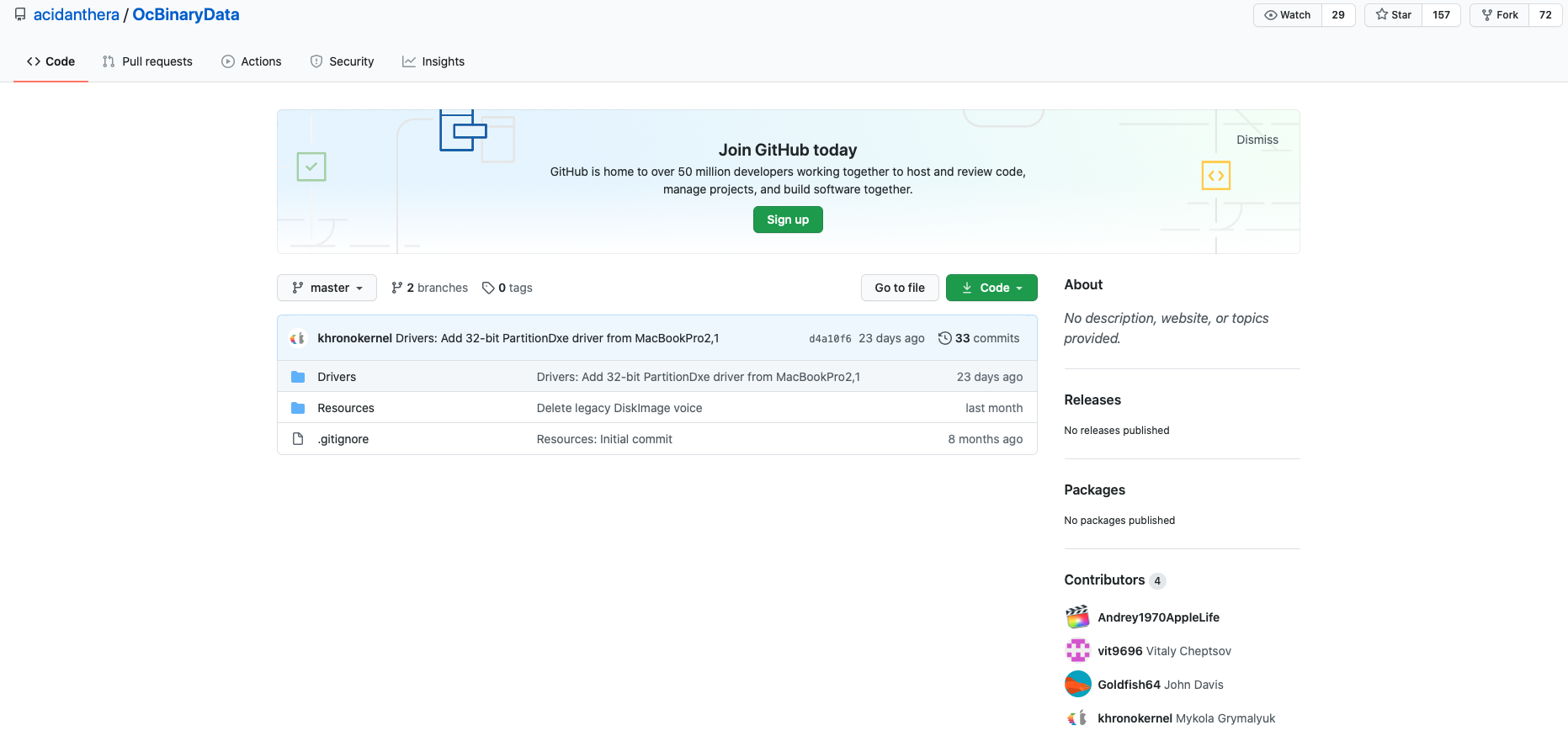

Just click on the green button “code” then choose “download zip “ or something very similar
Last edited:
It does actually, if you get 32GB module DDR3 LRDIMM it will work, I wanted to know if there was something that I could potentially turn on in the config.plist so that mine that was given to me for free
could be recognized. The machine boots but hang on the Apple logo... I may by the LRDIMM instead the one I got was RDIMM only ..
IMO, might be useful to use the git clone command into guide, it will save a lot of confusion. Instead of downloading extracting etc. use one command to clone a specific OC tag (0.6.2 for example) and pull the same way the OCData. People will be able to copy/paste the 3 commands to assemble the directory easy. You saw how I do it into my plist generator.
Did you end up figuring this out? I'm not sure this is working on my machine either. Kextstat is showing com.apple.driver.AppleIntelMCEReporter listed. Not sure if this should or should not be there if AppleMCEReporterDisabler.kext is loaded and doing what it should be at startup? Can anyone clarify? Running Catalina 10.15.7.
cMP 5,1 dual X5690
Did you end up finding a solution to this RaoulDuke-Esq? I'm having the same issues since 10.15.6. System would run well for about a month on average between BSDs. Now, I'm not even getting a day of uptime between crashes. Very similar looking crash reports. Any help or suggestions would be much appreciated. My suspicions were parallels up to now. But it's even crashing without it running now.
Kernel Extensions in backtrace:
com.apple.driver.AppleIntelCPUPowerManagement(222.0)[0CDAF741-D451-3432-8313-555EBC9DDE2C]@0xffffff7f9c2cb000->0xffffff7f9c2f4fff
Same as mine and the others are similar as well. Is anyone else experiencing something similar?
Last edited:
I replaced my config.plist and OpenCore folder from 0.6.1 to 0.6.2. After that I followed the steps again and everything worked out well. I skipped Step 4 Install Catalina since I already had it installed.
Hi There,
First off I wanted to say a Huge Thank You to the OP and everyone involved in this guide and all the magic that allowed me to Install OpenCore and get Catalina on my 5,1.
It works and from a complete techno dunce like me being able to follow along and get this done is massive.
I am running into a few small aesthetic issues that if someone has a solution to resolve it would be awesome but if not then its an aesthetic issue so ill just deal with it.
I followed the basic installation parts 1 - 5 to the letter in post #1. and I also Enabled the Graphical Boot Picker in "Part II Advanced Configuration".
When I boot up the Mac the wild and negative colours appear on boot. Much like when I first installed OpenCore. I can make out that the Graphical Boot Picker is working but those pinks and yellows and rainbow spectrum colours don't look the greatest. Once I select the Boot Drive the Black screen with the white apple logo kicks in and everything is fine from there on.
I went and repeated all the Post Install actions again (made sure the changes were correct) I even re enabled some like HiDPI Display, GOP Renderer but reboots with those reverted were still the same.
Could someone let me know if the initial boot screen is supposed to be crazy colours and if not if you have any suggestions on what the issue might be that would be awesome.
End of day though is a small aesthetic issue when I first boot up so if that's just how it is I won't complain.
Awesome Job once again
Edit: Attached are photos of the screens I see in order, Ive seen this (Apart from the Graphic Icon of the Boot Drive) on boot up ever since going to Open Core (incase that in itself is unusual). a second after the last photo in the series it goes to the black apple boot screen for a second before logging into Catalina
First off I wanted to say a Huge Thank You to the OP and everyone involved in this guide and all the magic that allowed me to Install OpenCore and get Catalina on my 5,1.
It works and from a complete techno dunce like me being able to follow along and get this done is massive.
I am running into a few small aesthetic issues that if someone has a solution to resolve it would be awesome but if not then its an aesthetic issue so ill just deal with it.
I followed the basic installation parts 1 - 5 to the letter in post #1. and I also Enabled the Graphical Boot Picker in "Part II Advanced Configuration".
When I boot up the Mac the wild and negative colours appear on boot. Much like when I first installed OpenCore. I can make out that the Graphical Boot Picker is working but those pinks and yellows and rainbow spectrum colours don't look the greatest. Once I select the Boot Drive the Black screen with the white apple logo kicks in and everything is fine from there on.
I went and repeated all the Post Install actions again (made sure the changes were correct) I even re enabled some like HiDPI Display, GOP Renderer but reboots with those reverted were still the same.
Could someone let me know if the initial boot screen is supposed to be crazy colours and if not if you have any suggestions on what the issue might be that would be awesome.
End of day though is a small aesthetic issue when I first boot up so if that's just how it is I won't complain.
Awesome Job once again
Edit: Attached are photos of the screens I see in order, Ive seen this (Apart from the Graphic Icon of the Boot Drive) on boot up ever since going to Open Core (incase that in itself is unusual). a second after the last photo in the series it goes to the black apple boot screen for a second before logging into Catalina
Last edited:
