MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro
- Thread starter cdf
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status

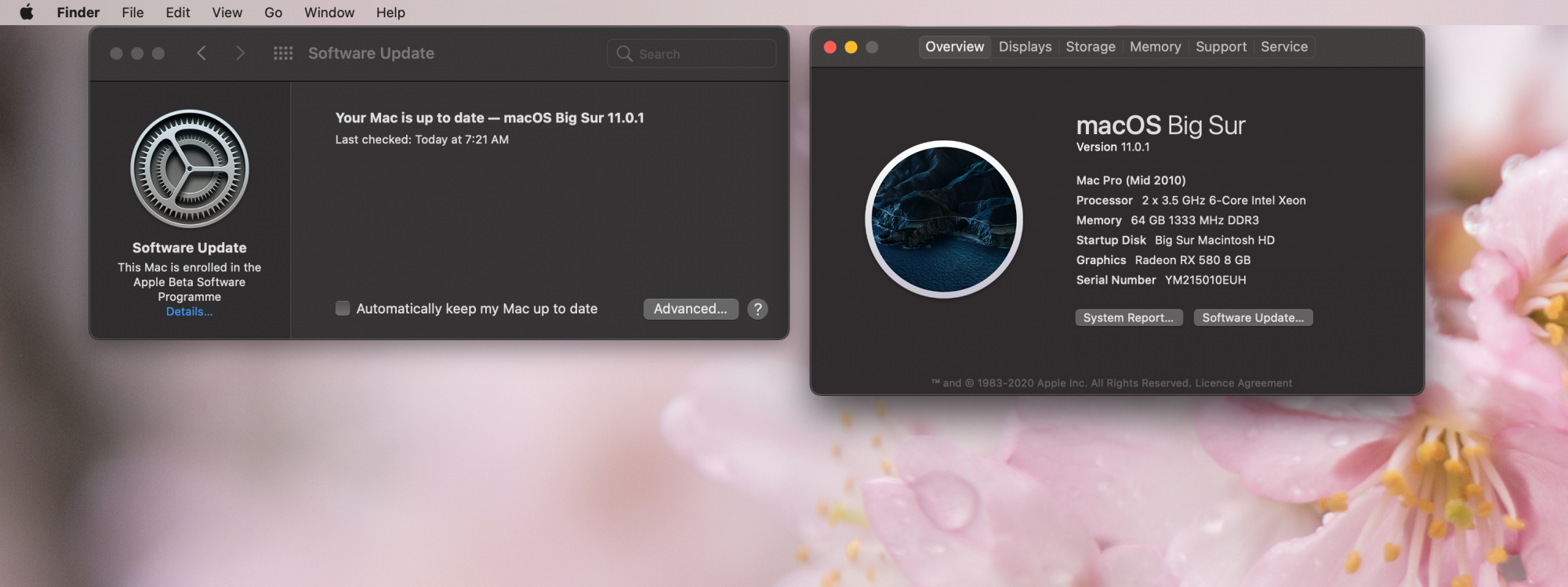

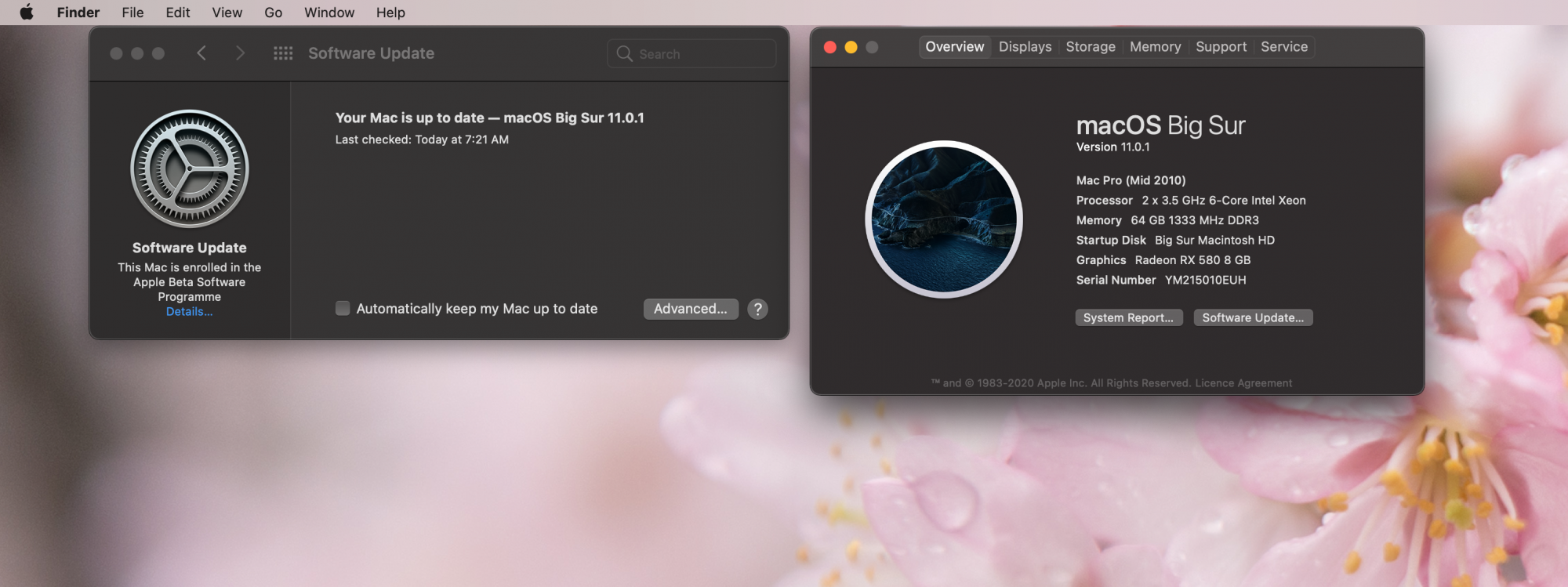

i upgrade from RC 1 and just direct update . I am using H9826790 hardware acc standard config file only. like RC 1 update. nothing need to do.
Last edited:
I haven't tried with spoofing the iMacPro.
But it should work though, I will try that and report ASAP.
I'm curious... did they remove the check from the installer? Could you just install it without the no_compat_check boot arg on a mac pro 5,1 (assuming you have a GPU that supports Metal).
If the traditional method to make MacOS USB installer still work with the Bug Sur official release.
Then I expect all you need to do is just boot to OpenCore boot picker, select to boot into that USB installer, then do the normal MacOS installation.
Of course, if you want / need to format a hard drive, you should NOT put OpenCore onto that hard drive. You can keep OpenCore on another hard drive, or even another USB thumb drive.

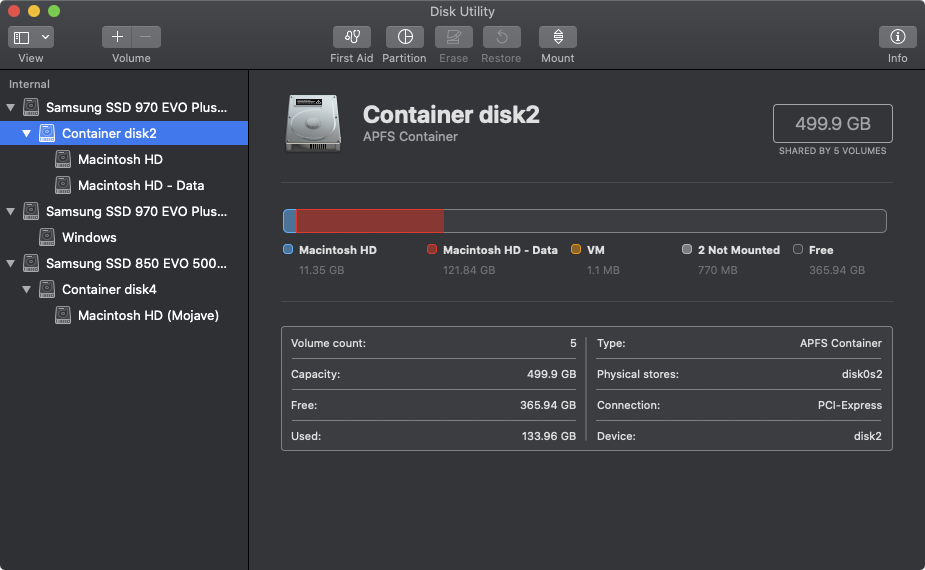

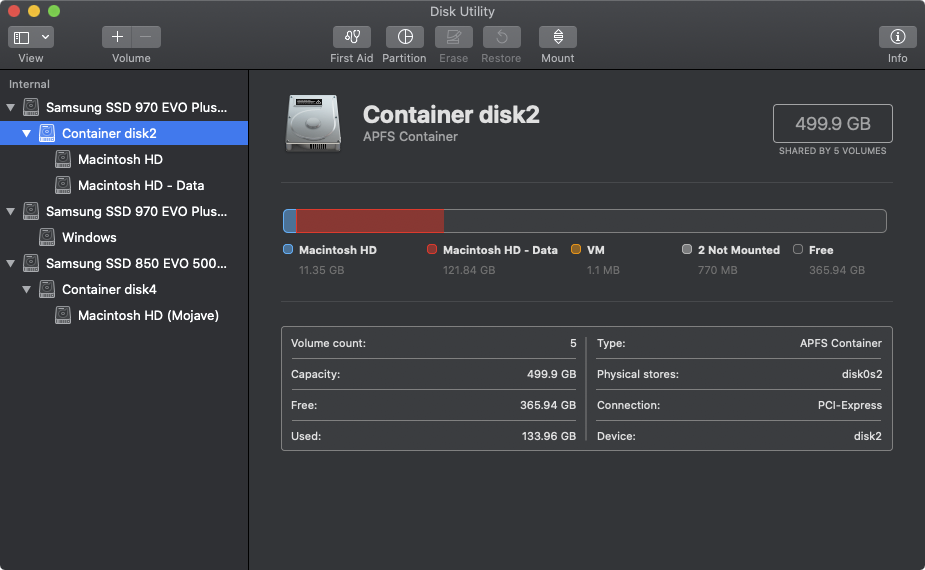

I have a standard setup, running Mojave on Disk A and Catalina with OC blessed on Disk B. Will I need to format the B hard drive, if is currently formatted as APFS?
Code:
$ diskutil list disk0
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *500.1 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_APFS Container disk2 499.9 GB disk0s2
Last edited:
If you do that correctly, only format the APFS partition (or more precise, the container), but not the whole drive B. Then OC should stay, and you can still make a clean Big Sur installation on drive B.
Activate AMD hardware acceleration
I created a new "easy to install package" as per many requested (based on the official OpenCore). [The attached package updated to 1.0.0] For those who only need HWAccel, post #594 has everything you need. This new package mainly offer HWAccel + boot screen. Also, this package should work in...
forums.macrumors.com
I confirm that each step is strictly in accordance with "PART I Basic Installation", but when enter "nvram 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102：opencore-version", it prompts Error 'nvram: Error getting variable - '4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102：opencore-version': (iokit/common) data was not found"
They did not remove the check for the installer. If they had, you would just plug the or lunch the install and it would install. Have you tried the method explain on page #1? Yes I have metal graphics.
Good day, Happy Veterans Day.
Win10 install issue: I can't get the ExFat driver to work apparently. Tried two different USB sticks (both ExFat, MBR), different USB ports. ExFatDxeLegacy copied to EFI/OC/Drivers and added to the config, VMM is off, still OC doesn't seem to detect the installer. Any additional steps to take into consideration?
UPDATE: It's not an issue with ExFat, macOS USB installer also doesn't show up in OC. Looks like it's not scanning USB devices at all - any ideas before I start from scratch with vanilla OC? My config is the sample one for 0.6.3+HWaccel+VMM OFF+graphical boot picker so nothing unusual there that would cause USB devices not to appear.
UPDATE: It's not an issue with ExFat, macOS USB installer also doesn't show up in OC. Looks like it's not scanning USB devices at all - any ideas before I start from scratch with vanilla OC? My config is the sample one for 0.6.3+HWaccel+VMM OFF+graphical boot picker so nothing unusual there that would cause USB devices not to appear.
Last edited:
I will answer myself, installed Big Sur on a second drive and I can confirm ( At least from my testing ) that Mojave's IO80211Family is not compatible with macOS 11.0.1 Beta. Result is kernel panic because IO80211Family is already loaded in prelinked kernel. Maybe if BigSur's gets completely removed from the system, it will work. This guide should work https://medium.com/@andv/making-wif...d-macs-with-failed-with-66-error-36c98e3f7965 but if someone finds OC only solution, definitely share it.
Last edited:
I'm having trouble installing Windows 10 according to these instructions. I've installed OpenCore--and it works fine. Since I have a Nehalem processor, I haven't enabled VMM:
All the installation instructions for Windows work fine up until the point where I eject the USB stick and reboot. OpenCore shows me my Windows partition in the boot picker. However, when I pick it, the Mac just gets stuck on a gray screen. I'm using the DP output of my RX 580 connected to a 4K Dell monitor. Here's what's in my EFI partition:
Here's the OpenCore debug log (with the DEBUG version of OpenCore installed):
The lines from 125:171 00:110 are what displays after I pick "Windows". The last entry in the log above is what displays on the screen when the boot process gets stuck.
Also note lines 08:412 00:027 to 08:641 00:027. Those show the process of adding the bless entry for Windows. I don't see anything there that looks amiss.
From my reading of the OpenCore code, InternalLoadBootEntry() is called on BootEntryManagement.c:1923, it prints the last log line at DefaultEntryChoice.c:1180, then my best guess is that InternalLoadBootEntry() returns without an error status and Context->StartImage() is called at BootEntryManagement.c:1931. OcLoadBootEntry returns to OcBootManagementLib.c:687. It looks like it's supposed to play a sound on success or failure--but from the log, it looks like audio is disabled. However, on failure, it looks like it should show the boot picker menu again. I don't know much about EFI code, but I think the context at this point in OcBootManagementLib.c:OcRunBootPicker is an infinite loop looking for key presses (see OcBootManagementLib.c:555). I don't know if the Context->StartImage() call only returns on failure or if OcBootManagementLib.c:OcRunBootPicker runs in its own thread.
Any ideas for further troubleshooting?
Bash:
Machine:~ username$ sysctl machdep.cpu.features | grep VMM
Machine:~ username$All the installation instructions for Windows work fine up until the point where I eject the USB stick and reboot. OpenCore shows me my Windows partition in the boot picker. However, when I pick it, the Mac just gets stuck on a gray screen. I'm using the DP output of my RX 580 connected to a 4K Dell monitor. Here's what's in my EFI partition:
Bash:
Machine:EFI username$ tree -h
.
└── [2.0K] EFI
├── [2.0K] APPLE
│ └── [2.0K] EXTENSIONS
│ └── [ 15M] Firmware.scap
├── [2.0K] Boot
│ └── [8.9K] BOOTX64.efi
├── [2.0K] Microsoft
│ ├── [6.0K] Boot
│ │ ├── [ 20K] BCD
│ │ ├── [ 32K] BCD.LOG
│ │ ├── [ 0] BCD.LOG1
│ │ ├── [ 0] BCD.LOG2
│ │ ├── [ 64K] BOOTSTAT.DAT
│ │ ├── [2.0K] Fonts
│ │ │ ├── [3.5M] chs_boot.ttf
│ │ │ ├── [3.7M] cht_boot.ttf
│ │ │ ├── [1.9M] jpn_boot.ttf
│ │ │ ├── [2.3M] kor_boot.ttf
│ │ │ ├── [174K] malgun_boot.ttf
│ │ │ ├── [171K] malgunn_boot.ttf
│ │ │ ├── [142K] meiryo_boot.ttf
│ │ │ ├── [141K] meiryon_boot.ttf
│ │ │ ├── [162K] msjh_boot.ttf
│ │ │ ├── [160K] msjhn_boot.ttf
│ │ │ ├── [153K] msyh_boot.ttf
│ │ │ ├── [152K] msyhn_boot.ttf
│ │ │ ├── [ 44K] segmono_boot.ttf
│ │ │ ├── [ 84K] segoe_slboot.ttf
│ │ │ ├── [ 84K] segoen_slboot.ttf
│ │ │ └── [ 48K] wgl4_boot.ttf
│ │ ├── [2.0K] Resources
│ │ │ ├── [ 90K] bootres.dll
│ │ │ └── [2.0K] en-US
│ │ │ └── [ 13K] bootres.dll.mui
│ │ ├── [2.0K] bg-BG
│ │ │ ├── [ 80K] bootmgfw.efi.mui
│ │ │ └── [ 80K] bootmgr.efi.mui
│ │ ├── [4.9K] boot.stl
│ │ ├── [1.5M] bootmgfw.efi
│ │ ├── [1.5M] bootmgr.efi
│ │ ├── [2.0K] cs-CZ
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ ├── [ 79K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] da-DK
│ │ │ ├── [ 77K] bootmgfw.efi.mui
│ │ │ ├── [ 77K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] de-DE
│ │ │ ├── [ 81K] bootmgfw.efi.mui
│ │ │ ├── [ 82K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] el-GR
│ │ │ ├── [ 82K] bootmgfw.efi.mui
│ │ │ ├── [ 83K] bootmgr.efi.mui
│ │ │ └── [ 46K] memtest.efi.mui
│ │ ├── [2.0K] en-GB
│ │ │ ├── [ 76K] bootmgfw.efi.mui
│ │ │ └── [ 76K] bootmgr.efi.mui
│ │ ├── [2.0K] en-US
│ │ │ ├── [ 75K] bootmgfw.efi.mui
│ │ │ ├── [ 75K] bootmgr.efi.mui
│ │ │ └── [ 44K] memtest.efi.mui
│ │ ├── [2.0K] es-ES
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ ├── [ 80K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] es-MX
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ └── [ 80K] bootmgr.efi.mui
│ │ ├── [2.0K] et-EE
│ │ │ ├── [ 76K] bootmgfw.efi.mui
│ │ │ └── [ 76K] bootmgr.efi.mui
│ │ ├── [2.0K] fi-FI
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ ├── [ 79K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] fr-CA
│ │ │ ├── [ 81K] bootmgfw.efi.mui
│ │ │ └── [ 81K] bootmgr.efi.mui
│ │ ├── [2.0K] fr-FR
│ │ │ ├── [ 81K] bootmgfw.efi.mui
│ │ │ ├── [ 82K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] hr-HR
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ └── [ 79K] bootmgr.efi.mui
│ │ ├── [2.0K] hu-HU
│ │ │ ├── [ 81K] bootmgfw.efi.mui
│ │ │ ├── [ 82K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] it-IT
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ ├── [ 79K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] ja-JP
│ │ │ ├── [ 68K] bootmgfw.efi.mui
│ │ │ ├── [ 68K] bootmgr.efi.mui
│ │ │ └── [ 42K] memtest.efi.mui
│ │ ├── [ 31K] kd_02_10df.dll
│ │ ├── [370K] kd_02_10ec.dll
│ │ ├── [ 26K] kd_02_1137.dll
│ │ ├── [234K] kd_02_14e4.dll
│ │ ├── [ 43K] kd_02_15b3.dll
│ │ ├── [ 43K] kd_02_1969.dll
│ │ ├── [ 31K] kd_02_19a2.dll
│ │ ├── [ 20K] kd_02_1af4.dll
│ │ ├── [291K] kd_02_8086.dll
│ │ ├── [ 19K] kd_07_1415.dll
│ │ ├── [ 48K] kd_0C_8086.dll
│ │ ├── [ 17K] kdnet_uart16550.dll
│ │ ├── [ 27K] kdstub.dll
│ │ ├── [2.0K] ko-KR
│ │ │ ├── [ 67K] bootmgfw.efi.mui
│ │ │ ├── [ 68K] bootmgr.efi.mui
│ │ │ └── [ 42K] memtest.efi.mui
│ │ ├── [2.0K] lt-LT
│ │ │ ├── [ 77K] bootmgfw.efi.mui
│ │ │ └── [ 78K] bootmgr.efi.mui
│ │ ├── [2.0K] lv-LV
│ │ │ ├── [ 77K] bootmgfw.efi.mui
│ │ │ └── [ 78K] bootmgr.efi.mui
│ │ ├── [1.3M] memtest.efi
│ │ ├── [2.0K] nb-NO
│ │ │ ├── [ 77K] bootmgfw.efi.mui
│ │ │ ├── [ 77K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] nl-NL
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ ├── [ 80K] bootmgr.efi.mui
│ │ │ └── [ 44K] memtest.efi.mui
│ │ ├── [2.0K] pl-PL
│ │ │ ├── [ 80K] bootmgfw.efi.mui
│ │ │ ├── [ 80K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] pt-BR
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ ├── [ 78K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] pt-PT
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ ├── [ 79K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] qps-ploc
│ │ │ └── [ 53K] memtest.efi.mui
│ │ ├── [2.0K] ro-RO
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ └── [ 78K] bootmgr.efi.mui
│ │ ├── [2.0K] ru-RU
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ ├── [ 79K] bootmgr.efi.mui
│ │ │ └── [ 44K] memtest.efi.mui
│ │ ├── [2.0K] sk-SK
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ └── [ 79K] bootmgr.efi.mui
│ │ ├── [2.0K] sl-SI
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ └── [ 78K] bootmgr.efi.mui
│ │ ├── [2.0K] sr-Latn-RS
│ │ │ ├── [ 79K] bootmgfw.efi.mui
│ │ │ └── [ 79K] bootmgr.efi.mui
│ │ ├── [2.0K] sv-SE
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ ├── [ 78K] bootmgr.efi.mui
│ │ │ └── [ 44K] memtest.efi.mui
│ │ ├── [2.0K] tr-TR
│ │ │ ├── [ 77K] bootmgfw.efi.mui
│ │ │ ├── [ 78K] bootmgr.efi.mui
│ │ │ └── [ 45K] memtest.efi.mui
│ │ ├── [2.0K] uk-UA
│ │ │ ├── [ 78K] bootmgfw.efi.mui
│ │ │ └── [ 78K] bootmgr.efi.mui
│ │ ├── [9.6K] winsipolicy.p7b
│ │ ├── [2.0K] zh-CN
│ │ │ ├── [ 63K] bootmgfw.efi.mui
│ │ │ ├── [ 64K] bootmgr.efi.mui
│ │ │ └── [ 42K] memtest.efi.mui
│ │ └── [2.0K] zh-TW
│ │ ├── [ 64K] bootmgfw.efi.mui
│ │ ├── [ 63K] bootmgr.efi.mui
│ │ └── [ 42K] memtest.efi.mui
│ └── [2.0K] Recovery
│ ├── [ 12K] BCD
│ ├── [ 16K] BCD.LOG
│ ├── [ 0] BCD.LOG1
│ └── [ 0] BCD.LOG2
└── [2.0K] OC
├── [2.0K] ACPI
├── [2.0K] Bootstrap
│ └── [8.9K] Bootstrap.efi
├── [4.0K] Drivers
│ ├── [ 40K] AudioDxe.efi
│ ├── [ 35K] CrScreenshotDxe.efi
│ ├── [ 22K] ExFatDxeLegacy.efi
│ ├── [ 81K] HiiDatabase.efi
│ ├── [ 25K] NvmExpressDxe.efi
│ ├── [ 57K] OpenCanopy.efi
│ ├── [ 20K] OpenRuntime.efi
│ ├── [ 15K] OpenUsbKbDxe.efi
│ ├── [ 13K] Ps2KeyboardDxe.efi
│ ├── [7.2K] Ps2MouseDxe.efi
│ ├── [7.2K] UsbMouseDxe.efi
│ └── [ 26K] XhciDxe.efi
├── [2.0K] Kexts
├── [472K] OpenCore.efi
├── [2.0K] Resources
│ ├── [2.0K] Audio
│ ├── [2.0K] Font
│ ├── [2.0K] Image
│ └── [2.0K] Label
├── [4.0K] Tools
│ ├── [ 11K] BootKicker.efi
│ ├── [9.9K] ChipTune.efi
│ ├── [ 11K] CleanNvram.efi
│ ├── [ 10K] GopStop.efi
│ ├── [ 13K] HdaCodecDump.efi
│ ├── [2.5K] KeyTester.efi
│ ├── [ 34K] MmapDump.efi
│ ├── [7.7K] OpenControl.efi
│ ├── [1017K] OpenShell.efi
│ ├── [8.0K] ResetSystem.efi
│ ├── [ 10K] RtcRw.efi
│ └── [8.5K] VerifyMsrE2.efi
└── [8.9K] config.plist
57 directories, 167 files
Bash:
Machine:~ username$ diskutil list
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *960.2 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_APFS Container disk1 704.0 GB disk0s2
3: Microsoft Basic Data Windows 255.9 GB disk0s3
/dev/disk1 (synthesized):
#: TYPE NAME SIZE IDENTIFIER
0: APFS Container Scheme - +704.0 GB disk1
Physical Store disk0s2
1: APFS Volume Macintosh HD 197.2 GB disk1s1
2: APFS Volume Preboot 27.1 MB disk1s2
3: APFS Volume Recovery 507.4 MB disk1s3
4: APFS Volume VM 20.5 KB disk1s4
Bash:
Machine:~ username$ sudo gpt -r show /dev/disk0
Password:
gpt show: /dev/disk0: Suspicious MBR at sector 0
start size index contents
0 1 MBR
1 1 Pri GPT header
2 32 Pri GPT table
34 6
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 1374945080 2 GPT part - 7C3457EF-0000-11AA-AA11-00306543ECAC
1375354720 160
1375354880 499767296 3 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
1875122176 262799
1875384975 32 Sec GPT table
1875385007 1 Sec GPT headerHere's the OpenCore debug log (with the DEBUG version of OpenCore installed):
Code:
00:000 00:000 OC: OpenCore DBG-063-2020-11-02 is loading in Optional mode (0/0)...
00:026 00:026 OC: Boot timestamp - 2020.11.11 19:24:55
00:053 00:026 OCCPU: MP services threads 8 (enabled 8) - Success
00:080 00:026 OCCPU: MP services Pkg 1 Cores 8 Threads 16 - Success
00:107 00:026 OCCPU: Found Intel(R) Xeon(R) CPU W3520 @ 2.67GHz
00:134 00:026 OCCPU: Signature 106A5 Stepping 5 Model 1A Family 6 Type 0 ExtModel 1 ExtFamily 0 uCode 1D
00:159 00:025 OCCPU: EIST CFG Lock 0
00:187 00:027 OCCPU: Ratio Min 12 Max 20 Current 20 Turbo 22 21 21 21
00:215 00:027 OCCPU: Timer address is 408 from LPC
00:344 00:128 OCCPU: Detected Apple Processor Type: 0F -> 0901
00:409 00:065 OCCPU: CPUFrequencyFromTSC 2659999453Hz 2659MHz
00:436 00:026 OCCPU: CPUFrequency 2659999453Hz 2659MHz
00:463 00:026 OCCPU: FSBFrequency 132999972Hz 132MHz
00:490 00:026 OCCPU: Pkg 1 Cores 4 Threads 8
00:517 00:026 OC: OcLoadNvramSupport...
00:543 00:026 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - Not Found
00:570 00:026 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:597 00:026 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Not Found
00:624 00:026 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - Not Found
00:651 00:026 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:UIScale - Success
00:678 00:026 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:704 00:026 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success
00:731 00:026 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - Success
00:758 00:026 OC: Current version is DBG-063-2020-11-02
00:785 00:026 OC: OcMiscMiddleInit...
00:812 00:026 OC: LoadHandle 7DB9EB18 with BootProtect in None mode - Success
00:839 00:026 OC: OcLoadUefiSupport...
00:865 00:026 OCAU: Found C32332DF-FC56-4FE1-9358-BA0D529B24CD protocol
00:892 00:026 OC: Disabling audio in favour of firmware implementation
00:919 00:026 OC: Loading Apple Secure Boot with Disabled (level 0)
00:946 00:026 OCABC: RTDFRG 0 DEVMMIO 0 NOSU 0 NOVRWR 0 NOSB 1 NOHBMAP 0 SMSLIDE 0 WRUNPROT 0
00:973 00:026 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 0 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 0
01:000 00:026 OCABC: Firmware has 4184130 free pages (514114 in lower 4 GB)
01:026 00:026 OCABC: Awaiting rendezvous with OpenRuntime r11
01:053 00:026 OC: RBVR 1 DDBR 0
01:080 00:026 OC: Got 1 drivers
01:107 00:026 OC: Driver OpenRuntime.efi at 0 is being loaded...
01:136 00:028 OCB: Arch filtering 0(36868)->7D6D9018(36868) caps 4 - Success
01:161 00:024 OCABC: Got rendezvous with OpenRuntime r11
01:187 00:026 OCABC: MAT support is 0
01:214 00:026 OC: Driver OpenRuntime.efi at 0 is successfully loaded!
01:241 00:026 OC: Connecting drivers...
03:098 01:857 OC: Connecting drivers done...
03:125 00:026 OCC: GOP exists on ConsoleOutHandle and has 0 modes
03:152 00:026 OCC: Looking for GOP replacement due to invalid mode count
03:179 00:026 OCC: Alternative GOP status is - Success
03:206 00:026 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
03:232 00:026 OCC: Requesting 0x0@0 (max: 1) resolution, curr 4294967295, total 8
03:259 00:026 OCC: Mode 0 - 3840x2160:1
03:286 00:026 OCC: Mode 1 - 640x480:1
03:313 00:026 OCC: Mode 2 - 800x600:1
03:340 00:026 OCC: Mode 3 - 1024x768:1
03:367 00:026 OCC: Mode 4 - 1280x1024:1
03:393 00:026 OCC: Mode 5 - 1400x1050:1
03:421 00:027 OCC: Mode 6 - 1600x1200:1
03:448 00:026 OCC: Mode 7 - 1280x960:1
03:475 00:026 OCC: Setting mode 0 with 3840x2160 resolution
03:510 00:035 OCC: Changed resolution mode to 0
03:537 00:026 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Success
03:564 00:026 OCC: Switching to direct GOP renderer...
03:591 00:026 0: shl:0 shr:0 mask:FF0000
03:618 00:026 1: shl:0 shr:0 mask:FF00
03:644 00:026 2: shl:0 shr:0 mask:FF
03:671 00:026 Bytes per pixel: 4
03:698 00:026 0: shl:0 shr:0 mask:FF0000
03:725 00:026 1: shl:0 shr:0 mask:FF00
03:752 00:026 2: shl:0 shr:0 mask:FF
03:779 00:026 Bytes per pixel: 4
03:805 00:026 OCC: Using builtin text renderer with 1 scale
05:133 01:327 OCC: Install console control (7D4C5938/0/0), current - Success
05:163 00:029 OCC: Setup ASCII Output - Success
05:190 00:027 OC: Requested console mode is 0x0 (max: 0) from
05:218 00:027 OC: Requested not to use audio
05:245 00:027 OC: OcLoadAcpiSupport...
05:272 00:027 OCA: Found 10 ACPI tables
05:299 00:027 OCA: Detected table 50434146 (003030656C707041) at 7F5AB000 of 244 bytes at index 0
05:327 00:027 OCA: Detected table 54444345 (003030656C707041) at 7F5AD000 of 83 bytes at index 1
05:354 00:027 OCA: Detected table 54455048 (003030656C707041) at 7F5AA000 of 56 bytes at index 2
05:382 00:027 OCA: Detected table 43495041 (003030656C707041) at 7F5A8000 of 424 bytes at index 3
05:410 00:028 OCA: Detected table 54445353 (00004D5050757043) at 7F58E000 of 85884 bytes at index 4
05:438 00:027 OCA: Detected table 54445353 (6963684161746153) at 7F58D000 of 484 bytes at index 5
05:466 00:027 OCA: Detected table 54445353 (0000756164486F4E) at 7F589000 of 1733 bytes at index 6
05:493 00:027 OCA: Detected table 4746434D (003030656C707041) at 7F5A7000 of 60 bytes at index 7
05:521 00:027 OCA: Detected table 54434656 (0000000000000000) at 7F57A000 of 59524 bytes at index 8
05:549 00:027 OCA: Detected table 52414D44 (003030656C707041) at 7F579000 of 104 bytes at index 9
05:576 00:027 OCA: FACS signature is 0 (0)
05:604 00:027 OCA: Exposing XSDT table 50434146 (003030656C707041) at 7F5AB000 of 244 bytes at index 0
05:631 00:027 OCA: Exposing XSDT table 54444345 (003030656C707041) at 7F5AD000 of 83 bytes at index 1
05:659 00:027 OCA: Exposing XSDT table 54455048 (003030656C707041) at 7F5AA000 of 56 bytes at index 2
05:687 00:027 OCA: Exposing XSDT table 43495041 (003030656C707041) at 7F5A8000 of 424 bytes at index 3
05:714 00:027 OCA: Exposing XSDT table 54445353 (00004D5050757043) at 7F58E000 of 85884 bytes at index 4
05:742 00:027 OCA: Exposing XSDT table 54445353 (6963684161746153) at 7F58D000 of 484 bytes at index 5
05:770 00:027 OCA: Exposing XSDT table 54445353 (0000756164486F4E) at 7F589000 of 1733 bytes at index 6
05:798 00:027 OCA: Exposing XSDT table 4746434D (003030656C707041) at 7F5A7000 of 60 bytes at index 7
05:825 00:027 OCA: Exposing XSDT table 54434656 (0000000000000000) at 7F57A000 of 59524 bytes at index 8
05:853 00:027 OCA: Exposing XSDT table 52414D44 (003030656C707041) at 7F579000 of 104 bytes at index 9
05:881 00:027 OCA: Exposing RSDT table 50434146 (003030656C707041) at 7F5AB000 of 244 bytes at index 0
05:909 00:028 OCA: Exposing RSDT table 54444345 (003030656C707041) at 7F5AD000 of 83 bytes at index 1
05:937 00:027 OCA: Exposing RSDT table 54455048 (003030656C707041) at 7F5AA000 of 56 bytes at index 2
05:965 00:027 OCA: Exposing RSDT table 43495041 (003030656C707041) at 7F5A8000 of 424 bytes at index 3
05:992 00:027 OCA: Exposing RSDT table 54445353 (00004D5050757043) at 7F58E000 of 85884 bytes at index 4
06:020 00:027 OCA: Exposing RSDT table 54445353 (6963684161746153) at 7F58D000 of 484 bytes at index 5
06:047 00:026 OCA: Exposing RSDT table 54445353 (0000756164486F4E) at 7F589000 of 1733 bytes at index 6
06:075 00:027 OCA: Exposing RSDT table 4746434D (003030656C707041) at 7F5A7000 of 60 bytes at index 7
06:102 00:027 OCA: Exposing RSDT table 54434656 (0000000000000000) at 7F57A000 of 59524 bytes at index 8
06:130 00:027 OCA: Exposing RSDT table 52414D44 (003030656C707041) at 7F579000 of 104 bytes at index 9
06:158 00:027 OC: OcLoadPlatformSupport...
06:185 00:027 OC: OcLoadDevPropsSupport...
06:212 00:027 OC: OcMiscLateInit...
06:239 00:027 OC: Translated HibernateMode None to 0
06:266 00:027 OC: Hibernation detection status is Not Found
06:294 00:027 OC: Panic log does not exist
06:321 00:027 OC: OcLoadKernelSupport...
06:348 00:027 OC: All green, starting boot management...
06:375 00:027 OC: Ready for takeoff in 0 us
06:402 00:026 OCB: Adding fs 7DBAD518 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/VenMedia(2B0585EB-D8B8-49A9-8B8C-E21B01AEF2B7)
06:430 00:028 OCB: Adding fs 7DB9EB18 (E:0|L:1|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,2D5D20F2-84B1-40C7-B66E-6AAA2339F8C4,0x28,0x64000)
06:459 00:028 OCB: Adding fs 7DB73018 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)
06:488 00:029 OCB: Adding fs 7D5DAA98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,031E676BE32E70398BC910C4B907724B)
06:517 00:029 OCB: Adding fs 7D5DA518 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E3C0FB2138E1248B52B03077D401136)
06:547 00:029 OCB: Adding fs 7D596F98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A83876A560138C4C87E7A17403DA001A)
06:576 00:029 OCB: Adding fs 7D581218 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x3,0x0,0x0)/HD(1,GPT,F29C8BB6-2589-4ADF-BB69-8302DB8C053C,0x28,0x64000)
06:604 00:028 OCB: Adding fs 7D579D18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x3,0x0,0x0)/HD(3,GPT,914A1790-146C-4548-93E9-284DC04F74F3,0x1D1BCBE88,0x40000)
06:633 00:028 OCB: Adding fs 7D57C398 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0x0,0x0)/HD(1,GPT,52721EC1-5B21-4246-B4E2-A7CC0F2B7F8C,0x28,0x64000)
06:662 00:029 OCB: Adding fs 7D57C118 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0x0,0x0)/HD(2,GPT,41C704C3-F4D2-477B-AD3A-67B4BA3B32FE,0x64028,0x1D1B4BFB0)
06:691 00:028 OCB: Found 10 potentially bootable filesystems
06:718 00:027 OCB: Found 1 BootOrder entries with BootNext excluded
06:745 00:027 OCB: efi-boot-device-data = PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
06:775 00:029 OCB: efi-backup-boot-device-data - Not Found
06:803 00:027 OCB: efi-apple-recovery-data - Not Found
06:830 00:027 OCB: Dumping BootOrder
06:857 00:027 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
06:887 00:029 OCB: Parsing predefined list...
06:915 00:027 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
06:943 00:028 OCB: 1 -> Boot0081 - failed to read
06:971 00:027 OCB: 2 -> Boot0082 - failed to read
06:998 00:027 OCB: Building entry from Boot0080
07:025 00:027 OCB: Assuming DP is full-form or lacks suffix
07:052 00:027 OCB: Expanded DP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
07:082 00:029 OCB: Expanded DP remainder - \6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
07:110 00:027 OCB: Matched fs 7DB73018
07:137 00:027 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
07:167 00:029 OCB: Trying to get label from \6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\.contentDetails
07:195 00:028 OCB: Trying to get label from \6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\.disk_label.contentDetails
07:225 00:029 OCB: Registering entry Macintosh HD (T:2|F:0|G:0|E:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
07:255 00:030 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)
07:284 00:029 OCBP: APFS Volume Info - 7D4EB118 (1, 43856F67-ABAB-4F0F-8086-5201D65C0BED, 16)
07:312 00:027 OCBP: APFS Container Info - 7D4EBA98 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
07:339 00:027 OCBP: BlessedFileHEX (1/5 264) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 02 00 00 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 38 FF F3 51 00 00 00 00 BD 69 FA A5 0C 30 D3 4A BE D3 6D 78
07:369 00:029 OCBP: BlessedFileHEX (2/5 264) - 2E D4 FD 10 02 02 04 03 24 00 F7 FC 74 BE 7C 0B F3 49 91 47 01 F4 04 2E 68 42 67 6F 85 43 AB AB 0F 4F 80 86 52 01 D6 5C 0B ED 04 04 9A 00 5C 00 36 00 42 00 36 00 37 00 31 00 45 00 30 00 33 00
07:398 00:029 OCBP: BlessedFileHEX (3/5 264) - 2D 00 32 00 45 00 45 00 33 00 2D 00 33 00 39 00 37 00 30 00 2D 00 38 00 42 00 43 00 39 00 2D 00 31 00 30 00 43 00 34 00 42 00 39 00 30 00 37 00 37 00 32 00 34 00 42 00 5C 00 53 00 79 00 73 00
07:427 00:029 OCBP: BlessedFileHEX (4/5 264) - 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00
07:457 00:029 OCBP: BlessedFileHEX (5/5 264) - 69 00 00 00 7F FF 04 00
07:484 00:027 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
07:514 00:029 OCBP: Blessed file is valid
07:541 00:027 OCBP: 10 filesystems for APFS - Success
07:569 00:028 OCBP: APFS Volume Info - 7D4EB218 (1, 43856F67-ABAB-4F0F-8086-5201D65C0BED, 16)
07:597 00:027 OCBP: APFS Container Info - 7D4EAE98 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
07:625 00:027 OCBP: APFS match container 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 vs 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 for 3 of 10 - 1
07:653 00:028 OCBP: Missing partition 43856F67-ABAB-4F0F-8086-5201D65C0BED on preboot - Not Found
07:680 00:027 OCBP: No APFS booter 3 of 10 for 43856F67-ABAB-4F0F-8086-5201D65C0BED - Not Found
07:708 00:027 OCBP: APFS Volume Info - 7D4EAF98 (1, 6B671E03-2EE3-3970-8BC9-10C4B907724B, 0)
07:736 00:027 OCBP: APFS Container Info - 7D4EAE18 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
07:763 00:027 OCBP: APFS match container 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 vs 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 for 4 of 10 - 1
07:792 00:028 OCBP: Found partition 6B671E03-2EE3-3970-8BC9-10C4B907724B on preboot
07:819 00:027 OCBP: Want predefined list for APFS 16 at 6B671E03-2EE3-3970-8BC9-10C4B907724B
07:846 00:026 OCBP: Predefined 6B671E03-2EE3-3970-8BC9-10C4B907724B \System\Library\CoreServices\boot.efi was found
07:874 00:027 OCBP: Found APFS booter 4 of 10 for 6B671E03-2EE3-3970-8BC9-10C4B907724B (7EDEF870)
07:902 00:028 OCBP: APFS Volume Info - 7D6D7918 (1, B20F3C2E-8E13-4812-B52B-03077D401136, 4)
07:930 00:027 OCBP: APFS Container Info - 7D4EAD98 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
07:957 00:027 OCBP: APFS match container 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 vs 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 for 5 of 10 - 1
07:985 00:028 OCBP: Missing partition B20F3C2E-8E13-4812-B52B-03077D401136 on preboot - Not Found
08:013 00:027 OCBP: No APFS booter 5 of 10 for B20F3C2E-8E13-4812-B52B-03077D401136 - Not Found
08:041 00:027 OCBP: APFS Volume Info - 7D6D7918 (1, A57638A8-1360-4C8C-87E7-A17403DA001A, 8)
08:069 00:027 OCBP: APFS Container Info - 7D4EAE98 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
08:096 00:027 OCBP: APFS match container 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 vs 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4 for 6 of 10 - 1
08:124 00:028 OCBP: Missing partition A57638A8-1360-4C8C-87E7-A17403DA001A on preboot - Not Found
08:152 00:027 OCBP: No APFS booter 6 of 10 for A57638A8-1360-4C8C-87E7-A17403DA001A - Not Found
08:186 00:033 OCBP: APFS bless for 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4:<null string> is Success
08:214 00:027 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,676F8543ABAB0F4F80865201D65C0BED)/\6B671E03-2EE3-3970-8BC9-10C4B907724B\System\Library\CoreServices\boot.efi
08:244 00:030 OCB: Discarding already present DP
08:271 00:027 OCB: Processing blessed list
08:298 00:027 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/VenMedia(2B0585EB-D8B8-49A9-8B8C-E21B01AEF2B7)
08:327 00:029 OCBP: BlessedFileHEX (1/1 48) - 01 03 18 00 0B 00 00 00 00 00 D5 FF 00 00 00 00 FF FF FD FF 00 00 00 00 04 06 14 00 EB 85 05 2B B8 D8 A9 49 8B 8C E2 1B 01 AE F2 B7 7F FF 04 00
08:356 00:028 OCBP: BlessedFileDP - MemoryMapped(0xB,0xFFD50000,0xFFFDFFFF)/FvFile(2B0585EB-D8B8-49A9-8B8C-E21B01AEF2B7)
08:384 00:027 OCBP: Blessed file is valid
08:412 00:027 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,2D5D20F2-84B1-40C7-B66E-6AAA2339F8C4,0x28,0x64000)
08:440 00:028 OCBP: Blessed file is missing
08:467 00:027 OCBP: Blessed folder is missing
08:495 00:028 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:525 00:029 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi was found
08:552 00:026 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,2D5D20F2-84B1-40C7-B66E-6AAA2339F8C4,0x28,0x64000)/\EFI\Microsoft\Boot\bootmgfw.efi
08:583 00:031 OCB: Trying to get label from \EFI\Microsoft\Boot\.contentDetails
08:613 00:029 OCB: Trying to get label from \EFI\Microsoft\Boot\.disk_label.contentDetails
08:641 00:027 OCB: Registering entry Windows (T:32|F:0|G:0|E:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,2D5D20F2-84B1-40C7-B66E-6AAA2339F8C4,0x28,0x64000)/\EFI\Microsoft\Boot\bootmgfw.efi
08:669 00:027 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,031E676BE32E70398BC910C4B907724B)
08:698 00:029 OCBP: APFS Volume Info - 7D4EA898 (1, 6B671E03-2EE3-3970-8BC9-10C4B907724B, 0)
08:726 00:027 OCBP: APFS Container Info - 7D4DCC18 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
08:753 00:027 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2E3C0FB2138E1248B52B03077D401136)
08:783 00:029 OCBP: APFS Volume Info - 7D4EA898 (1, B20F3C2E-8E13-4812-B52B-03077D401136, 4)
08:810 00:027 OCBP: APFS Container Info - 7D4EA498 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
08:838 00:027 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,A5FA69BD-300C-4AD3-BED3-6D782ED4FD10,0x64028,0x51F3FF38)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,A83876A560138C4C87E7A17403DA001A)
08:867 00:029 OCBP: APFS Volume Info - 7D4EA898 (1, A57638A8-1360-4C8C-87E7-A17403DA001A, 8)
12:421 03:553 OCBP: APFS Container Info - 7D4EA398 (1, 1A6DB817-9F40-47C2-9DFF-2E897D65F5C4)
15:974 03:553 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x3,0x0,0x0)/HD(1,GPT,F29C8BB6-2589-4ADF-BB69-8302DB8C053C,0x28,0x64000)
19:569 03:594 OCBP: Blessed file is missing
23:122 03:552 OCBP: Blessed folder is missing
26:704 03:581 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
30:257 03:553 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
33:811 03:553 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
37:364 03:553 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x3,0x0,0x0)/HD(3,GPT,914A1790-146C-4548-93E9-284DC04F74F3,0x1D1BCBE88,0x40000)
40:918 03:554 OCBP: Blessed file is missing
44:471 03:552 OCBP: Blessed folder is missing
48:024 03:552 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
51:579 03:554 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
55:133 03:554 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
58:687 03:554 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0x0,0x0)/HD(1,GPT,52721EC1-5B21-4246-B4E2-A7CC0F2B7F8C,0x28,0x64000)
62:244 03:556 OCBP: Blessed file is missing
65:798 03:553 OCBP: Blessed folder is missing
69:376 03:577 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
72:930 03:554 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
76:485 03:554 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
80:039 03:554 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0x0,0x0)/HD(2,GPT,41C704C3-F4D2-477B-AD3A-67B4BA3B32FE,0x64028,0x1D1B4BFB0)
83:629 03:589 OCBP: Blessed file is missing
87:210 03:581 OCBP: BlessedFolderHEX (1/3 184) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 04 00 00 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 B0 BF B4 D1 01 00 00 00 C3 04 C7 41 D2 F4 7B 47 AD 3A 67 B4
90:766 03:555 OCBP: BlessedFolderHEX (2/3 184) - BA 3B 32 FE 02 02 04 04 6E 00 5C 00 55 00 73 00 65 00 72 00 73 00 5C 00 70 00 65 00 74 00 65 00 72 00 5C 00 73 00 72 00 63 00 5C 00 67 00 69 00 74 00 68 00 75 00 62 00 5C 00 6E 00 65 00 78 00
94:322 03:555 OCBP: BlessedFolderHEX (3/3 184) - 74 00 2D 00 6C 00 6F 00 61 00 64 00 65 00 72 00 5C 00 62 00 75 00 69 00 6C 00 64 00 5C 00 78 00 36 00 34 00 5C 00 6C 00 6F 00 61 00 64 00 65 00 72 00 00 00 7F FF 04 00
97:878 03:555 OCBP: BlessedFolderDP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x4,0x0,0x0)/HD(2,GPT,41C704C3-F4D2-477B-AD3A-67B4BA3B32FE,0x64028,0x1D1B4BFB0)/\Users\peter\src\github\next-loader\build\x64\loader
101:434 03:555 OCBP: Blessed folder \Users\peter\src\github\next-loader\build\x64\loader\boot.efi is missing - Not Found
104:988 03:554 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
108:542 03:553 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
112:095 03:553 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
115:649 03:553 OCB: Showing menu... (polling hotkeys)
125:061 09:411 OCB: Should boot from 1. Windows (T:32|F:0|G:0|E:0|DEF:0)
125:171 00:110 OCB: Perform boot Windows to dp PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,2D5D20F2-84B1-40C7-B66E-6AAA2339F8C4,0x28,0x64000)/\EFI\Microsoft\Boot\bootmgfw.efi (0/0)
125:208 00:037 OCSB: Secure boot is disabled, skipping
125:235 00:027 OCB: Arch filtering 7C852018(1557824)->7C852018(1557824) caps 4 - Success
125:264 00:028 OCB: Matching <> args on type 32 0The lines from 125:171 00:110 are what displays after I pick "Windows". The last entry in the log above is what displays on the screen when the boot process gets stuck.
Also note lines 08:412 00:027 to 08:641 00:027. Those show the process of adding the bless entry for Windows. I don't see anything there that looks amiss.
From my reading of the OpenCore code, InternalLoadBootEntry() is called on BootEntryManagement.c:1923, it prints the last log line at DefaultEntryChoice.c:1180, then my best guess is that InternalLoadBootEntry() returns without an error status and Context->StartImage() is called at BootEntryManagement.c:1931. OcLoadBootEntry returns to OcBootManagementLib.c:687. It looks like it's supposed to play a sound on success or failure--but from the log, it looks like audio is disabled. However, on failure, it looks like it should show the boot picker menu again. I don't know much about EFI code, but I think the context at this point in OcBootManagementLib.c:OcRunBootPicker is an infinite loop looking for key presses (see OcBootManagementLib.c:555). I don't know if the Context->StartImage() call only returns on failure or if OcBootManagementLib.c:OcRunBootPicker runs in its own thread.
Any ideas for further troubleshooting?
Last edited:

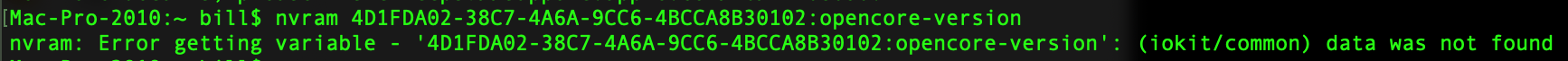

You have a space between the ":" and "opencore-version". Remove the space and it should work.
I want to share my experience with OpenCore and Big Sur.
I have updated macOS Catalina with OpenCore 0.6.3 ( downloaded from here and not modified ) to macOS Big Sur in my MacPro 4.1->5.1. The first time I tried it stacked in the "less than one minute" message for hours. I decided to reboot the computer manually and thankfully it resumed the installation from there, so I was finally able to enter the upgraded system.
As I was successful this way, I decided to try a fresh install as I did notice that the system was a little slow. I first tried in a secondary classical spinning drive and all was smooth and perfect. Then I tried to make a fresh install in my main SSD drive for the final install. I completely erased the drive from the Big Sur copy, that I was able to install in the spinning HD, and copied a fresh EFI files to the drive. The first time the computer when down once again and again. So as I had the other installation I decided to erase again the whole SSD from this other drive and install again the EFI folders. This time all was smooth again. Honestly I don't know what happened when I did the first trial over the SSD. Now the system feels fresh and fast as Catalina never was. Goodbye for good, Catalina!!
But not all is perfect. I'm experiencing the sound hangs and crackling sounds I use to have an later Mojave versions. Apple changed something in the last Mojave iterations that caused this "interruptus" sound ( specially with Apple Music or Youtube videos ). When I installed Catalina with OpenCore these problems disappeared and the sound was great again. But now in Big Sur I have the same issue back.
As a workaround in Mojave I used to open Apple Logic and modify the buffer. That used to solve my problem, but it's quite annoying to open all the time an app to make the sound works as expected. In Catalina it was solved, I don't know if via OpenCore or just the system.
So now my question is: Is it any way to solve this issue with the sound via OpenCore again?
Thank you in advanced
I have updated macOS Catalina with OpenCore 0.6.3 ( downloaded from here and not modified ) to macOS Big Sur in my MacPro 4.1->5.1. The first time I tried it stacked in the "less than one minute" message for hours. I decided to reboot the computer manually and thankfully it resumed the installation from there, so I was finally able to enter the upgraded system.
As I was successful this way, I decided to try a fresh install as I did notice that the system was a little slow. I first tried in a secondary classical spinning drive and all was smooth and perfect. Then I tried to make a fresh install in my main SSD drive for the final install. I completely erased the drive from the Big Sur copy, that I was able to install in the spinning HD, and copied a fresh EFI files to the drive. The first time the computer when down once again and again. So as I had the other installation I decided to erase again the whole SSD from this other drive and install again the EFI folders. This time all was smooth again. Honestly I don't know what happened when I did the first trial over the SSD. Now the system feels fresh and fast as Catalina never was. Goodbye for good, Catalina!!
But not all is perfect. I'm experiencing the sound hangs and crackling sounds I use to have an later Mojave versions. Apple changed something in the last Mojave iterations that caused this "interruptus" sound ( specially with Apple Music or Youtube videos ). When I installed Catalina with OpenCore these problems disappeared and the sound was great again. But now in Big Sur I have the same issue back.
As a workaround in Mojave I used to open Apple Logic and modify the buffer. That used to solve my problem, but it's quite annoying to open all the time an app to make the sound works as expected. In Catalina it was solved, I don't know if via OpenCore or just the system.
So now my question is: Is it any way to solve this issue with the sound via OpenCore again?
Thank you in advanced
Last edited:
I was able to get the ISO image to mount as a disk, with a name CCCOMA_X64FRE_EN-US_DV9.
The exFAT MBR 32 Gb (empty) USB was already in a USB port. It's name was/is: Untitled.
Then I opened the Terminal and typed in: rsync -r /Volumes/CCCOMA_X64FRE_EN-US_DV9/ /Volumes/Untitled
Hit return and waited.
I checked and the USB and it had exactly the same contents as the mounted windows installer - at least by visual inspection.
However, when I rebooted, it did not show up as a bootable option in the boot picker.
Should the USB stick be titled Windows? It is titled Untitled in the Disk Utility and in the Terminal application.
How do I check to see if the USB stick is bootable?
Or have I missed some step previously?
The exFAT MBR 32 Gb (empty) USB was already in a USB port. It's name was/is: Untitled.
Then I opened the Terminal and typed in: rsync -r /Volumes/CCCOMA_X64FRE_EN-US_DV9/ /Volumes/Untitled
Hit return and waited.
I checked and the USB and it had exactly the same contents as the mounted windows installer - at least by visual inspection.
However, when I rebooted, it did not show up as a bootable option in the boot picker.
Should the USB stick be titled Windows? It is titled Untitled in the Disk Utility and in the Terminal application.
How do I check to see if the USB stick is bootable?
Or have I missed some step previously?
No, I haven't bothered... nothing about Big Sur really has me all that excited, and I don't use my mac pro much anymore anyways. I will probably install it at some point and check it out.
Did you opened an issue into acidanthera's bug tracker and provided debug logs as comparative between the two versions? I don't think anyone will be able to help you here with your sound related issues.
When you plug the formatted USB into Catalina, does it show as disk into your desktop? I had to fiddle with few USB sticks until I got a good working one, I ended using a $5 16GB Lexar USB 2.0 which made the install perfect. I don't use USB 3.0 flash drives since CMP was not designed for, especially that you use legacy drivers into OC. The OP instructions are proper and they work perfect if you follow them at letter.
Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Just wondering since I don't think I ever saw an answer, but I have OC 0.6.3 and have been running OC with a base config for some time now on a native Mojave install. To update the machine to Catalina, is it necessary to have a whole other drive configured for the purpose as stated or can Mojave be upgraded by toggling the respective flags in OC? Seems a little basic, but Id rather not go about restoring backups from one drive to another since Catalina would be the daily driver anyway. Thanks in advance and if this has been answered, feel free to point it out.
Maybe something changed in 0.6.3 (or the default config*) that makes booting from USB impossible, but i checked a few different USB sticks both USB 3.0 and USB 2.0 on different ports and none are detected in OC, neither Win10 nor macOS installers. Ended up making an installer out of an internal HDD... and it worked great. Also i formatted it with GUID not MBR so maybe that was the culprit. All the Win10 USB sticks were MBR as per instructions.
(*) I haven't been able to interpret the documentation properly yet, but in "Security Properties" section there's a flag called ScanPolicy and the default config provided in this Wiki has a value of "0" and failsafe is "0x10F0103", but i don't know how the combination of different device types works here. (page 45 of the configuration PDF)
EDIT:
Not sure how "0" is interpreted then(i have no clue about bitmasks), but if the above is the default ScanPolicy then it lacks OC_SCAN_ALLOW_DEVICE_USB
Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
