MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
startergo

startergo

macrumors 603
Sep 20, 2018
5,022
2,283
Norbert Mikołajczyk said:
Hi guys, setting up the OpenCore.
What to do to make already installed windows 10 visible for opencore?
I see there is a tutorial how to install windows 10 with opencore, but what should I do if I have it already installed and working?
Where can I download needed files that I need to transfer from usb to efi folder?
Click to expand...
If you have it installed with the BOOTCAMP assistant (hybrid MBR) or a standalone Legacy/MBR mode it will not show up in the OpenCore because those versions are unsupported. Bear in mind Intel will stop supporting Legacy installs from 2020. Your option is to convert it to UEFI with GPT partitioning scheme:

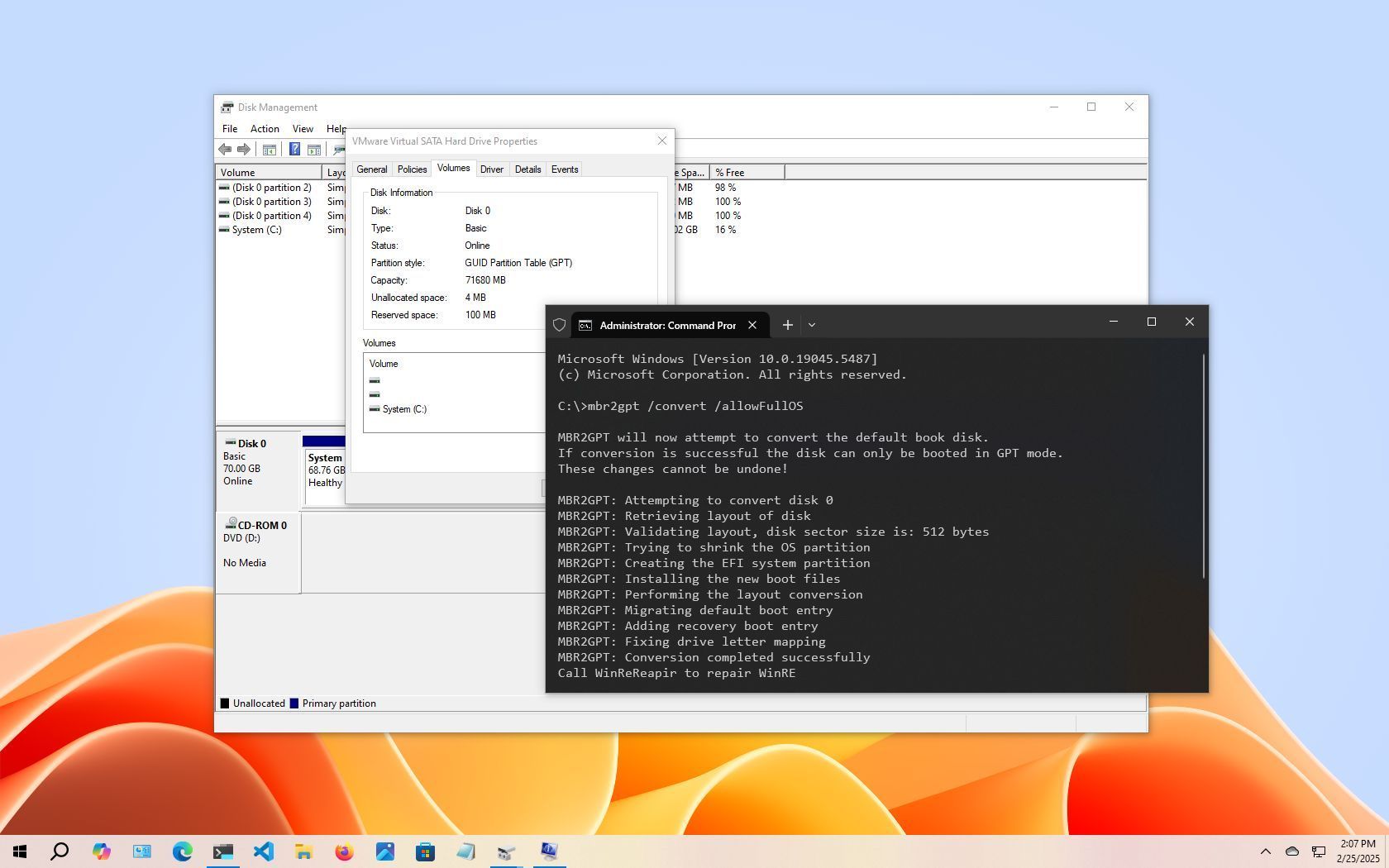

www.windowscentral.com

How to convert MBR to GPT drive to switch BIOS to UEFI on Windows 10

A PC with UEFI is more secure and faster than the legacy one using BIOS, and here's how to switch.
www.windowscentral.com www.windowscentral.com
This will only work if it is installed on a separate drive.

R

rocksarntpeople

macrumors member
Apr 5, 2019
41
9
Not sure if this should go here, but Im having issues signing into iMessage on a 5.1 Mac Pro running OpenCore for HW accelerated video. This just started happening when I had to sign out if iCloud services yesterday so Im not sure that it is related to the OpenCore config or not. Been using it for a while and haven't had any issues at all up until now. If you have any ideas, that would be great.
[automerge]1590851210[/automerge]
rocksarntpeople said:
Not sure if this should go here, but Im having issues signing into iMessage on a 5.1 Mac Pro running OpenCore for HW accelerated video. This just started happening when I had to sign out if iCloud services yesterday so Im not sure that it is related to the OpenCore config or not. Been using it for a while and haven't had any issues at all up until now. If you have any ideas, that would be great.
Click to expand...


**Nevermind** Got this sorted and not related to OC...please delete

Last edited:
Norbert Mikołajczyk

Norbert Mikołajczyk

macrumors 6502
May 26, 2016
346
171
startergo said:
If you have it installed with the BOOTCAMP assistant (hybrid MBR) or a standalone Legacy/MBR mode it will not show up in the OpenCore because those versions are unsupported. Bear in mind Intel will stop supporting Legacy installs from 2020. Your option is to convert it to UEFI with GPT partitioning scheme:
www.windowscentral.com

How to convert MBR to GPT drive to switch BIOS to UEFI on Windows 10

A PC with UEFI is more secure and faster than the legacy one using BIOS, and here's how to switch.
www.windowscentral.com www.windowscentral.com
This will only work if it is installed on a separate drive.
Click to expand...

Thanks! I checked and it seems I have mbr on separate disk.
‘if I do the conversion under windows then when I reboot the opencore will see the windows automatically or should I still follow the tutorial and copy those files?
i assume when I’ll convert mbr partition to gpt I won’t be able to boot windows without the opencore, am I right?

startergo

startergo

macrumors 603
Sep 20, 2018
5,022
2,283
Norbert Mikołajczyk said:
Thanks! I checked and it seems I have mbr on separate disk.
‘if I do the conversion under windows then when I reboot the opencore will see the windows automatically or should I still follow the tutorial and copy those files?
i assume when I’ll convert mbr partition to gpt I won’t be able to boot windows without the opencore, am I right?
Click to expand...
After you complete the steps, several actions will take place, including validation of the drive and creation of an EFI system partition (ESP). The UEFI boot files and GPT components will be added to the partition. Then the MBR2GPT tool will update the Boot Configuration Data (BCD), and the previous letter will be added to the drive.
Click to expand...
Do it from the recovery console not from Windows. It should be automatically recognized by OC. Don't boot to Windows without OC.

  • Like
Reactions: Norbert Mikołajczyk
D

dataid

macrumors regular
Feb 1, 2020
100
66
USA
Dayo said:
The boot chime settings in OpenCore are for the benefit of Hacks, the primary target users of OpenCore, which do not have native chimes and should not be set on a cMP.
Click to expand...

Thanks, you are right OpenCore boot chime is not needed on a legacy Mac, turned off BootChime in config.plist and the Apple firmware chime works.

  • Like
Reactions: cdf and Dayo
Norbert Mikołajczyk

Norbert Mikołajczyk

macrumors 6502
May 26, 2016
346
171
startergo said:
Do it from the recovery console not from Windows. It should be automatically recognized by OC. Don't boot to Windows without OC.
Click to expand...
Great, thanks again!
what could potentially happen when booting gpt windows without opencore?
Potential Nvram or windows corruption?
I ask because to transform mbr to gpt I need to disable opencore to be able to boot to windows.
after first oc installation I can no longer select and boot to Mac from windows (something broke) and I need to do the nvram reset Each time. So it could happen that after the gpt change windows will boot again without oc. maybe after the change I should shutdown, eject the windows hdd and then enable opencore?

startergo

startergo

macrumors 603
Sep 20, 2018
5,022
2,283
Norbert Mikołajczyk said:
Great, thanks again!
what could potentially happen when booting gpt windows without opencore?
Potential Nvram or windows corruption?
I ask because to transform mbr to gpt I need to disable opencore to be able to boot to windows.
after first oc installation I can no longer select and boot to Mac from windows (something broke) and I need to do the nvram reset Each time. So it could happen that after the gpt change windows will boot again without oc. maybe after the change I should shutdown, eject the windows hdd and then enable opencore?
Click to expand...
Don't disable OC. Do the Virtualbox boot and conversion inside virtual box.

  • Like
Reactions: Norbert Mikołajczyk
C

cdf

macrumors 68020
Original poster
Jul 27, 2012
2,256
2,583
Good news: OpenCore version 0.5.9 now automatically detects the Windows bless path (to bootmgfw.efi). This allows us to delete bootx64.efi and still boot Windows through OC without any additional configuration. Deleting bootx64.efi is useful to prevent the cMP from damaging its BootROM by booting Windows directly.

  • Like
Reactions: JedNZ, Macschrauber, leoaf79 and 3 others
Norbert Mikołajczyk

Norbert Mikołajczyk

macrumors 6502
May 26, 2016
346
171
cdf said:
Good news: OpenCore version 0.5.9 now automatically detects the Windows bless path (to bootmgfw.efi). This allows us to delete bootx64.efi and still boot Windows through OC without any additional configuration. Deleting bootx64.efi is useful to prevent the cMP from damaging its BootROM by booting Windows directly.
Click to expand...
sounds great!
so with opencore 0.5.9 I don’t need to change my legacy windows install in the end?

  • Like
Reactions: eksu
leoaf79

leoaf79

macrumors member
Mar 28, 2013
51
7
Hey guys, under OpenCore, how to install Windows 10 on the same Catalina disk, in a new partition?
I've tried before, but unsuccessfully.
The thing is I do have a NVME 1TB SSD, and I'd like to put booth OS on it. Today I use another dedicated disk (hdd) for Windows 10 and it is too slow.

Last edited:
C

carrozzi

macrumors newbie
May 13, 2020
1
0
My apologies in advance if this is an obvious question, but I haven't been able to find an answer in my searching so far. I installed OC 0.5.8 with NDK using h9826790's package on my cmp 5,1, and everything is working great. I now would like to add the ability to boot into Linux(I went with Ubuntu 20.04). In the past (it has been awhile) I would just use refit/refind, so I didn't think it would be an issue. I have an internal sata drive with high sierra where I installed OC, a nvme ssd with mohave, and a third sata drive. I tried a couple custom partitioning attempts on the third drive, and with available space on the nvme drive but upon reboot, no linux in the boot picker. I then pulled both OSX drives and ran through the installation with just the third drive(second sata) installed, and everything worked fine. Let ubuntu take the entire drive and partition as it desired, rebooted fine, updated, rebooted again, etc. But putting the two drives back in, still no linux in boot picker. I've seen some threads on people using refind and OC together, but those all seemed to be on hacks, not Apple HW. Is there a plist setting I need to change or something, or will it just not work? Thanks!

C

cdf

macrumors 68020
Original poster
Jul 27, 2012
2,256
2,583
leoaf79 said:
Hey guys, under OpenCore, how to install Windows 10 on the same Catalina disk, in a new partition?
I've tried before, but unsuccessfully.
The thing is I do have a NVME 1TB SSD, and I'd like to put booth OS on it. Today I use another dedicated disk (hdd) for Windows 10 and it is too slow.
Click to expand...

Wait for version 0.5.9, and then follow the guide with one exception: when copying the boot files to the EFI partition, only copy EFI/Microsoft, leaving OpenCore's BOOT folder intact.

carrozzi said:
or will it just not work?
Click to expand...

It works. And you don't need any other boot loader than OpenCore. You can install grub with the removable option (creating a bootx64.efi that OpenCore will automatically detect) or specify the bless path in your config (take a look at the manual).

  • Like
Reactions: Charles.tech, carrozzi and leoaf79
Macschrauber

Macschrauber

macrumors 68030
Dec 27, 2015
2,981
1,487
Germany
just tried 0.5.9

text mode is ok,

OpenCanopy not.

followed the instructions from post 1, took the sample settings from post 1 (June, 1st version)

1.) added the contenct of OcBinaryData (replaced in Resources the folders Audio, Images, Label, Font)
2.) in config.plist
set Misc / Boot / Pickermode to External
added UEFI / Drivers / Item 1: OpenCanopy.efi

just ignores OpenCanopy, no text mode also, loads my boot drive directly

opencore does its magic as I have vmm in sysctl machdep.cpu.features

h9826790

h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
Macschrauber said:
just tried 0.5.9

text mode is ok,

OpenCanopy not.

followed the instructions from post 1, took the sample settings from post 1 (June, 1st version)

1.) added the contenct of OcBinaryData (replaced in Resources the folders Audio, Images, Label, Font)
2.) in config.plist
set Misc / Boot / Pickermode to External
added UEFI / Drivers / Item 1: OpenCanopy.efi

just ignores OpenCanopy, no text mode also, loads my boot drive directly

opencore does its magic as I have vmm in sysctl machdep.cpu.features
Click to expand...
You may try my 0.5.9 package. Or compare your config / EFI folder to my package.

I have OpenCanopy running since 0.5.9 beta

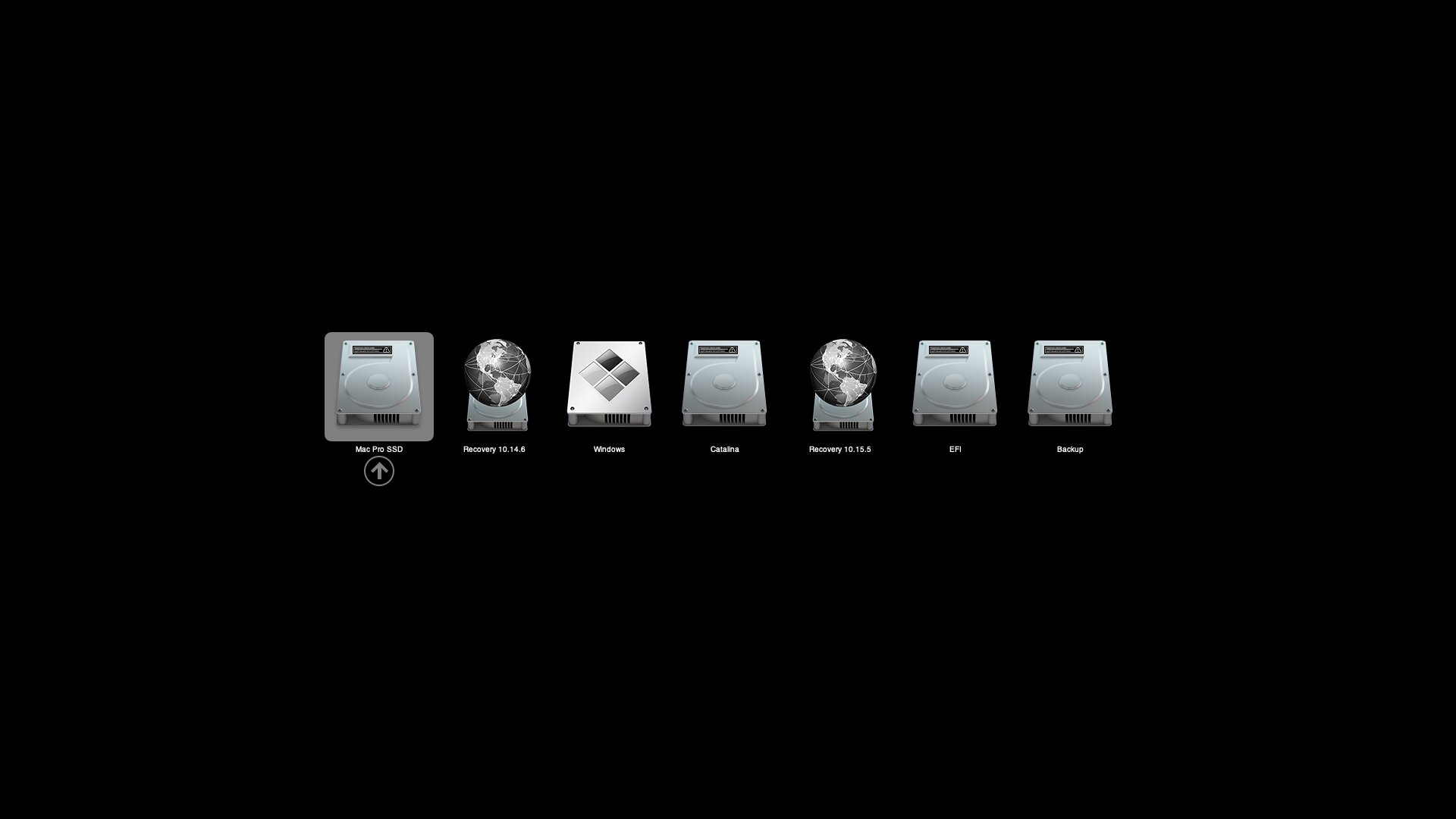

OpenCanopy 1080P.png

  • Like
Reactions: 205Maxi, leoaf79 and Macschrauber
C

cdf

macrumors 68020
Original poster
Jul 27, 2012
2,256
2,583
  • Like
Reactions: lbuisson
