MP 1,1-5,1 testing TB3 AIC with MP 5,1

Octavio Lozano

Octavio Lozano

macrumors newbie
Apr 29, 2020
1
0
Andreas Hoffmann said:
Guys, what about the Alpine Range? Will it work just like a Titanium Ridge? Is there a firmware for this card?
The Titan Ridge in Ukraine is very rare, found only the Alpine ridge for sale. And with Ebay now it’s hard to get a package... :(
Click to expand...

yes i see the same guyselling alpines for mp 4,1 and 5,1, I really want to know how do they do that

EddieK420

EddieK420

macrumors member
Jan 28, 2009
86
62
IndioX said:
you must remove the pin from the board!
Click to expand...

What happens if I did this flashing using the KeeYees EEPROM programmer without the mod?

the backing up and flashing of the Titanridge seemed to go ok. But Could I have destroyed the card since I did not modify the KeeYees EEPROM to 3.3V?? Thanks

K

KevinClark

macrumors 6502
Feb 28, 2019
349
42
the first time I bought a flasher tried to modify and broken it so I decided to buy an other one and flashed my card without take care about voltage and that worked

K

KevinClark

macrumors 6502
Feb 28, 2019
349
42
Is there a new firmware like dsm because I have flashed mine the two thunderbolt port of the titan ridge flashed works in OS X but not together If I plug one device on one of the two it works if I plug one device on each

nothings works I use an Apollo silver thunderbolt 2 card and a quad dsp thunderbolt 2 + 2 apple adapter and 2 cables apple

K

KevinClark

macrumors 6502
Feb 28, 2019
349
42
IndioX said:
but you already know the difference between a USB-C cable and a TB3 cable?

a TB3 cable has a flash (max 20GB) AND the number 3 (max 40GB) on the cable


View attachment 900953


a flashed titan ridge card need OC 0.5.6 with SSDT file and set in the config.
if you use the SSDT file from DSM2, it must be in slot4!
the device must be connected during coldboot, unplug > replug and after a warmboot you will see
your device
Click to expand...

where can i download this oc 0.5.6

Andreas Hoffmann

Andreas Hoffmann

macrumors newbie
Apr 23, 2020
5
1
Guys, there is an incomprehensible problem.
When I start Apollo (hot plugging) - the computer is rebooting with a kernel panic.
If I make a "cold connection" - first the system is turned on, then during the boot process, the Mac is rebooted, and already works fine with the second boot. If he managed to boot with Apollo, you can make a "hot plug", and there will be no kernel panic.
What can be wrong? I thought that the problem was in the system. But connected another ssd - the problem did not disappear.

Mac pro 5.1 (2010) / 10.13.6

PS: This is a problem for my friend, whom I helped with setting TR, on my Mac about 4.1 / 5.1 with the same card - no problem

J

johnsonic

macrumors newbie
Apr 21, 2020
6
0
Just chiming in here because this quote MADE MY YEAR:

Mikis said:
My machine can sleep with the titan ridge installed. It’s when I plug anything into is when sleep gets messed up.
Click to expand...

I have an Apollo x8, and just need to switch it off & put my machine to sleep - and it stays sleeping! To use again just hit my spacebar, let everything wake up, switch on the Apollo and it's recognized right away.

Was really not ideal to restart every time, get a kernel panic, let it restart and finally be recognized. Was just shutting my monitors off but didn't like that my computer fans were circulating dust through the case 24/7. Mikis - you are a hero.

M

Mikis

macrumors member
Jun 3, 2015
30
7
johnsonic said:
Just chiming in here because this quote MADE MY YEAR:



I have an Apollo x8, and just need to switch it off & put my machine to sleep - and it stays sleeping! To use again just hit my spacebar, let everything wake up, switch on the Apollo and it's recognized right away.

Was really not ideal to restart every time, get a kernel panic, let it restart and finally be recognized. Was just shutting my monitors off but didn't like that my computer fans were circulating dust through the case 24/7. Mikis - you are a hero.
Click to expand...
Wow. Haven’t tried that... are you using the ssdt for the Titan ridge. I abandoned that as it was giving me kernel panics but it might be worth another go if you can sleep the machine!

thanks John.

J

johnsonic

macrumors newbie
Apr 21, 2020
6
0
Mikis said:
Wow. Haven’t tried that... are you using the ssdt for the Titan ridge. I abandoned that as it was giving me kernel panics but it might be worth another go if you can sleep the machine!

thanks John.
Click to expand...

I am! Not too concerned about the kernel panic because once it's going it's going, hasn't crashed while the apollo is recognized or anything. Been using it heavily for about a six weeks.

M

Mikis

macrumors member
Jun 3, 2015
30
7
johnsonic said:
I am! Not too concerned about the kernel panic because once it's going it's going, hasn't crashed while the apollo is recognized or anything. Been using it heavily for about a six weeks.
Click to expand...
Ok. I’m going to try this. Do you mind if I ask what version of the flash you used on your Titan ridge. 23 or 33?

thanks

B

Brask

macrumors member
Mar 2, 2020
35
17
Denmark
EddieK420 said:
What happens if I did this flashing using the KeeYees EEPROM programmer without the mod?

the backing up and flashing of the Titanridge seemed to go ok. But Could I have destroyed the card since I did not modify the KeeYees EEPROM to 3.3V?? Thanks
Click to expand...
I have done this repeatedly, with different versions of the firmware, without any problem. And I have seen several other users in here reporting the same experience. It appears that there is no need to modify the KeeYees EEPROM programmer for working on the Titan Ridge.

  • Like
Reactions: EddieK420
EddieK420

EddieK420

macrumors member
Jan 28, 2009
86
62
Brask said:
I have done this repeatedly, with different versions of the firmware, without any problem. And I have seen several other users in here reporting the same experience. It appears that there is no need to modify the KeeYees EEPROM programmer for working on the Titan Ridge.
Click to expand...

Thank you Brask! Good to know. I ended up getting the Titanridge card working. The problem was a bad thunderbolt 3 cable.

Z

zk2004mb

macrumors newbie
Jun 23, 2020
2
0
Huge thanks to everyone contributing to this topic!
It seems the solution for MacPro5,1 is almost perfect: flash the rom, get titan ridge card set, inject ssdt and there you go.
However I do need some extra help here. I noticed that the ssdt for macpro5,1 is specified for pcie slot 4.
But I'm in team red and running a X570 hackintosh on ASUS Crosshair VIII Impact.
It's a mini-dtx board and I have only 1 pcie16 slot for GPU. I'm using a jumping cable to get an extra pcie x4 from one of my m.2 slot. I have two m.2 slot, one from CPU directly and one from X570 chipset. I'm using the one from CPU to connect the titan ridge card.
So my question is: what kind of ssdt do I need for my board? How should I edit it based on the macpro5,1 ssdt?
Thanks!

M

Mikis

macrumors member
Jun 3, 2015
30
7
johnsonic said:
Just chiming in here because this quote MADE MY YEAR:



I have an Apollo x8, and just need to switch it off & put my machine to sleep - and it stays sleeping! To use again just hit my spacebar, let everything wake up, switch on the Apollo and it's recognized right away.

Was really not ideal to restart every time, get a kernel panic, let it restart and finally be recognized. Was just shutting my monitors off but didn't like that my computer fans were circulating dust through the case 24/7. Mikis - you are a hero.
Click to expand...

Hey john.

You are the hero. This is working so well. I’m finally able to get my Mac to sleep, wake it up and switch on my apollo and it reconnects every time. I’ve also got a StarTech usb 3.1 gen 2hub running 7 drives and a further usb 3.0 hub for peripherals and all is sleeping perfectly.

My Mac and apollo is in a machine room and I have to climb under my desk to get to it so I went and bought an ikea HomeKit socket. Once set up, I’ll be able to say “hey Siri, sleep/ wake up the apollo” and all will be good with the world!!

Also, I compiled my own version of open core 0.5.9 with the ssdt added and hardware gpu acceleration and the Mac has not given me any kernel panics yet... fingers x’d.

thanks again John!

Manek43509

Manek43509

macrumors member
Aug 21, 2010
45
26
Norwich, UK
joevt said:
pciutils is discussed at #206 and later. It can be used to get information about a PCIe card, including the current link speed and width, using the PCIe registers. In some cases, a 8.0 GT/s card may have it's speed incorrectly set to 2.5 GT/s in a 5.0 GT/s slot and some pciutils commands can adjust the speed back up to 5.0 GT/s. This problem exists with the amfeltec and GC-TITAN RIDGE when used in the MacPro3,1. Newer Mac Pros get a new firmware update with Mojave that may fix this.

If you go to the support page for the GC-TITAN RIDGE which was linked in the first post, you can see there are two DisplayPort 1.4 inputs.

The Sunix UPD2018 has only one DisplayPort 1.2 input and can output only USB-C with DisplayPort alt mode (like used by the LG UltraFine 4K). It cannot output two DisplayPort signals plus PCIe over Thunderbolt (like used by the LG UltraFine 5K).

With two DisplayPort 1.4 inputs, the GC-TITAN RIDGE can support two USB-C displays such as the LG UltraFine 4K (but you should also connect the USB 2.0 header to support audio, brightness control, and USB ports of the display). You can transmit two 4K DisplayPort signals using a single Thunderbolt 3 port, or one display (up to 8K 30 Hz) per Thunderbolt 3 port.

The GC-TITAN RIDGE also supports Thunderbolt displays.The LG UltraFine 5K uses two DisplayPort 1.2 signals. Lower resolution Thunderbolt displays only use one DisplayPort signal. Newer Thunderbolt displays (don't exist yet) may use DisplayPort 1.4 which can do 5K with one DisplayPort signal so you could connect a second to the other Thunderbolt port.

UPDATE: dual 8K 30Hz may be too much for the GC-TITAN RIDGE. I haven't seen anyone show that dual HBR3 works. Dual HBR3 is required for the Apple Pro Display XDR 6K display when using GPUs that don't support DSC. USB-C displays that also support Thunderbolt connection (like the newer model LG UltraFine 4K) using a Titan Ridge Thunderbolt controller require PCIe tunnelling over Thunderbolt for USB support. I don't know a method to make such a display connect via USB-C mode instead of Thunderbolt mode.
Click to expand...

Hi, I'm hoping you can help me with something related to this… (I'm not a frequent poster, but I often read these threads for advice.)

I have a Mac Pro 5,1 which I have just added a flashed GC-TITAN RIDGE Thunderbolt card to. I have two 27" Thunderbolt Displays, and I want to connect this machine to both of them. I was hoping that I could just connect my graphics output to the Mini DisplayPort input on the GC-TITAN RIDGE and then connect one display to each of the Thunderbolt ports, and they would both work… But I can only get one screen working at a time.

Is there something simple I'm missing? Do I need to connect to both the Mini DisplayPort inputs on the GC-TITAN RIDGE at the same time? And if so how, if my internal GPU only has one DisplayPort output?

Your post seems to say that it's possible to drive two of the older Thunderbolt displays from one GC-TITAN RIDGE card, so I'm very encouraged by that – but I can't seem to figure out the right configuration to do this for myself! So I'm hoping you might be able to help me out?

J

joevt

macrumors 604
Jun 21, 2012
6,967
4,262
Manek43509 said:
Do I need to connect to both the Mini DisplayPort inputs on the GC-TITAN RIDGE at the same time? And if so how, if my internal GPU only has one DisplayPort output?
Click to expand...
Yes, one Mini DisplayPort input per display. Two displays requires both inputs be used. If you have an internal GPU with a working HDMI port, then maybe you can use an HDMI 1.4 to DisplayPort adapter?

Club 3D | HDMI to DisplayPort Adapter

CAC-2330 - The Club 3D HDMI™ to DisplayPort™ Adapter is the perfect solution for connecting devices with an HDMI™ output, such as Game-Console or Notebook, to a display with a DisplayPort™ input. It is equipped with USB-A port to supply power in case there isn’t enough power from HDMI source...
www.club-3d.com www.club-3d.com

Club 3D | HDMI to DisplayPort 4K60Hz M/F Active Adapter

The Club 3D CAC-1331 is an HDMI™ to DisplayPort™ 1.2 Active Adapter which allows you to transmit a HDMI™ signal into a DisplayPort™signal. This product supports DP1.2 specification with resolution up to 3840 x 2160@60Hz. Besides, it is equipped with USB Type A port to supply power in case there...
www.club-3d.com www.club-3d.com

  • Like
Reactions: JedNZ
Manek43509

Manek43509

macrumors member
Aug 21, 2010
45
26
Norwich, UK
joevt said:
Yes, one Mini DisplayPort input per display. Two displays requires both inputs be used. If you have an internal GPU with a working HDMI port, then maybe you can use an HDMI 1.4 to DisplayPort adapter?

Club 3D | HDMI to DisplayPort Adapter

CAC-2330 - The Club 3D HDMI™ to DisplayPort™ Adapter is the perfect solution for connecting devices with an HDMI™ output, such as Game-Console or Notebook, to a display with a DisplayPort™ input. It is equipped with USB-A port to supply power in case there isn’t enough power from HDMI source...
www.club-3d.com www.club-3d.com

Club 3D | HDMI to DisplayPort 4K60Hz M/F Active Adapter

The Club 3D CAC-1331 is an HDMI™ to DisplayPort™ 1.2 Active Adapter which allows you to transmit a HDMI™ signal into a DisplayPort™signal. This product supports DP1.2 specification with resolution up to 3840 x 2160@60Hz. Besides, it is equipped with USB Type A port to supply power in case there...
www.club-3d.com www.club-3d.com
Click to expand...

Thank you, that's super helpful!

The internal GPU is a GeForce GTX 780; it has a DisplayPort output, an HDMI output, and two DVIs.

I do also have a Blackmagic eGPU with Thunderbolt 3 in and out, which has an AMD Radeon Pro 580 inside it, which I use with my MacBook Pro. I thought I could try running Thunderbolt 3 from the Mac Pro to eGPU, and driving both the Thunderbolt Displays from there, but that hasn't worked for me so far – the Mac Pro recognises that the eGPU is there in System Information, but doesn't mount drivers for it to actually work…

AppleDrank

AppleDrank

macrumors member
May 15, 2019
36
1
Arizona
Is there any way I can test whether the Titan Ridge card installed in my cMP 5,1 is just dead?

Details:

The Titan Ridge was working great. Now, not at all, in either Mojave OR Windows 10. I can't dual boot anymore either, IMO because I have 2 security certificates in my boot rom. Could this cause the Titan Ridge card not to work also? (I use for external drives only, no eGPU).

More Details:
Because of 2 security certificates, I have to physically remove Mojave NVME card to get into Windows now. Replace it and it boots back into Mojave.

Thunderbolt control center in Windows 10 wasn't detecting the Titan Ridge either, and drives I plugged in weren't showing up.

My setup is:
cMP 5,1
Mojave NVME PCI boot drive, Windows 10 on SSD in slot 1.
RX580
Titan Ridge

I think I need to avoid booting into Windows (and probably in general) because TSIAlex said 2 certs is a sign the BootRom chip is wearing out.

F

Fred4

macrumors newbie
Feb 21, 2020
16
0
I've been trying to get mine to work, just USB3 at this point. No luck. I have OC, and copied the "SSDT-TBOLT3.aml" file in the ACPI folder. Flashed the blue chip, and can't get it working. Reading some posts, people are saying it won't work if the green chip is at 0.42, only 0.23 works, but I can't find the files, no MD5's, and idk which version I have. My Blue was "1ea78c1c29a68e2b872a1b40c0e7f6bb" before the flash, and my green is "4f2b63bc8392fe87fe2075ca9253c527".
I can't find any text in the file for a version number, doesn't look like they marked it. Anyone have the 0.23 version?
My card is showing in system as "pci8086,15ec: Type: USB eXtensible Host Controller", and from what I've seen from working cards, they say "Titan Ridge". I've tried to plug in 3 different USB3 drives, and nothing...
[automerge]1593931203[/automerge]
DS-Juan said:
Hey people! Thank you for this thread, its been really helpful to read :)

Also hello foojitsu1!

I have a mac 5,1 and im also trying to get the thunderbolt working, it doesnt seem to want to showup in windows. I suspect that since its a recently purchased card from Amazon it may be the version 43 firmware.

Could i perhaps trouble you also for this file? Im willing to order and Eprom device to give it a try. I've had this computer here for almost two months not working :(

Anyways, your help would certainly be appreciated!

Thanks in advance :)
Click to expand...
I think I am having the same issue. Did you find the 23 firmware?

Last edited:
F

Fred4

macrumors newbie
Feb 21, 2020
16
0
IndioX said:
normaly, the titan ridge works in a cMP as USB3.1gen2 card without any modifcation
on card or system under last mojave and with bootROM 144.0.0.0.0

with my EFI and 0.23 firmware on green SPI and the DSM2 flash on blue SPI
i have two cards on different cMP without problems
(cards that shipped the last half year comes with 0.43 firmware! they does not work)

do a 3-times NVRAM reset when the card is in and bless the EFI again
the speed should 40Gb/s with my EFI

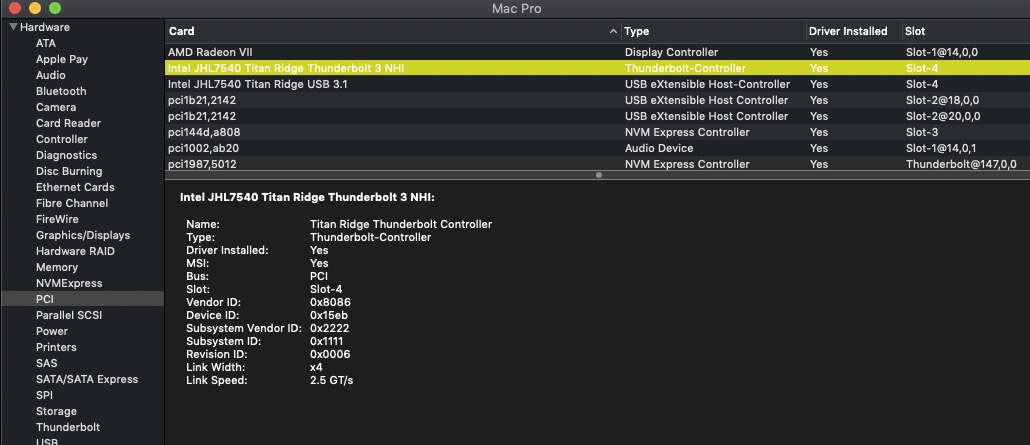

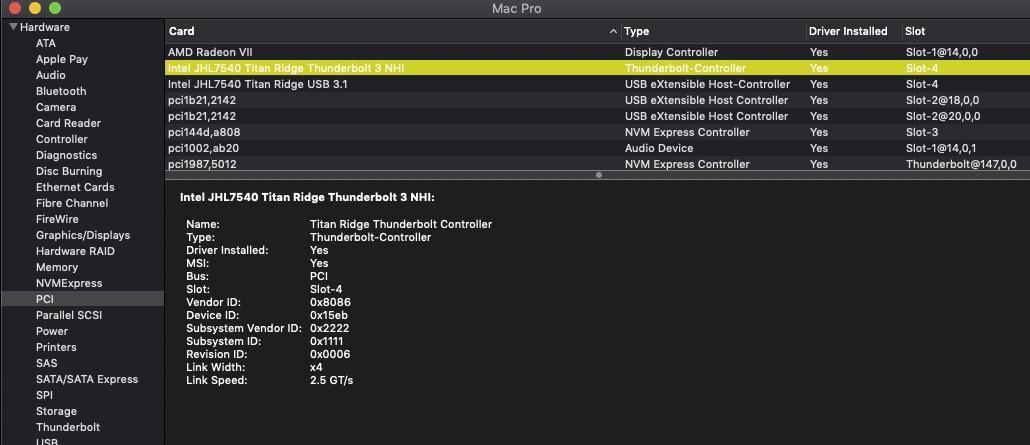

View attachment 906493

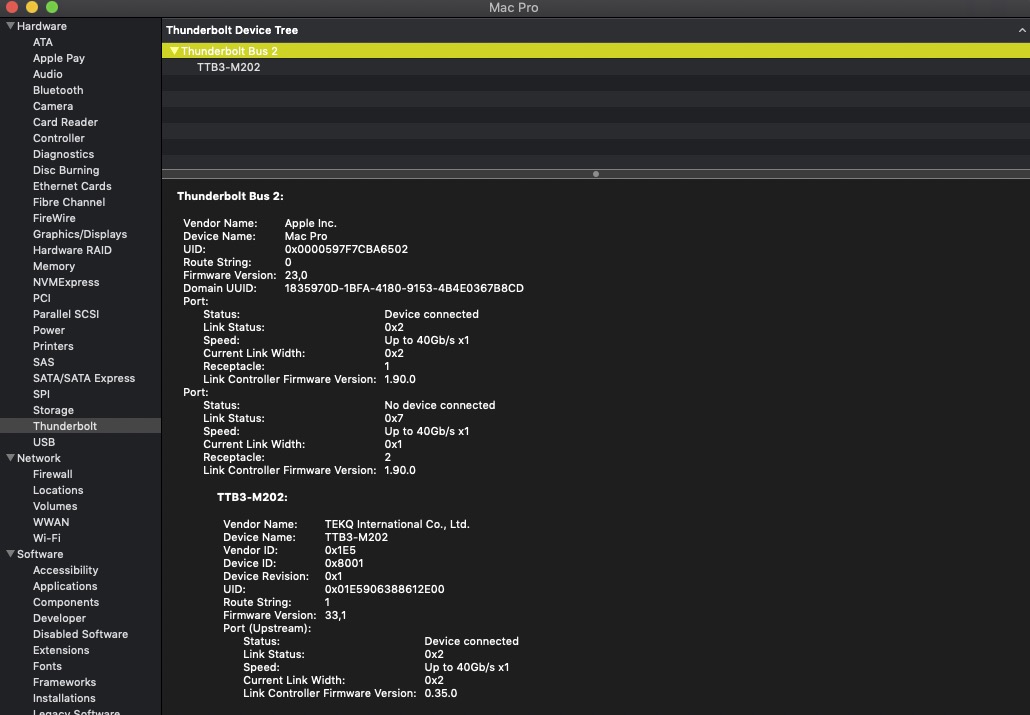

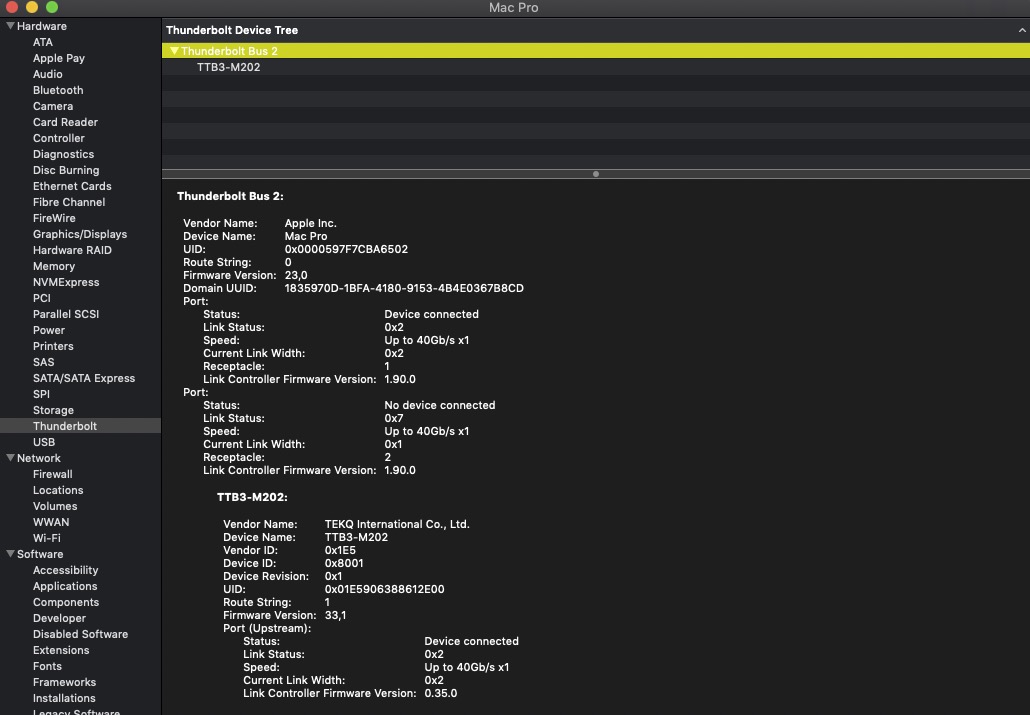

View attachment 906494
Click to expand...
I could really use your help. I'm stuck. I can't get my TR card to work, and I am thinking it is because it has the new firmware 0.43 after seeing your post. Any idea where I can get a copy of the older firmware for the green chip?

J

joevt

macrumors 604
Jun 21, 2012
6,967
4,262
Fred4 said:
I've been trying to get mine to work, just USB3 at this point. No luck. I have OC, and copied the "SSDT-TBOLT3.aml" file in the ACPI folder. Flashed the blue chip, and can't get it working. Reading some posts, people are saying it won't work if the green chip is at 0.42, only 0.23 works, but I can't find the files, no MD5's, and idk which version I have. My Blue was "1ea78c1c29a68e2b872a1b40c0e7f6bb" before the flash, and my green is "4f2b63bc8392fe87fe2075ca9253c527".
I can't find any text in the file for a version number, doesn't look like they marked it. Anyone have the 0.23 version?
My card is showing in system as "pci8086,15ec: Type: USB eXtensible Host Controller", and from what I've seen from working cards, they say "Titan Ridge". I've tried to plug in 3 different USB3 drives, and nothing...
[automerge]1593931203[/automerge]

I think I am having the same issue. Did you find the 23 firmware?
Click to expand...
My script at https://gist.github.com/joevt/4f6d4d97b560efab9603ac509bf00122 will tell you the version numbers in a firmware file. I think I need to fix output for multi digit decimal versions though. Maybe later.

Code:
source /Volumes/Work/Programming/ThunderboltProjects/Scripts/ThunderboltUtil.sh

IFS=$'\n'
for thebin in $(find /Volumes/Work/Programming/ThunderboltProjects/Notes -type f -name '*.bin'); do
    loadfwfile "$thebin"
done 2>&1

listdroms

1)
thedrom=71000000000000ed00e0403498016900ed0008c0010108818002800000000882900180000000088380048001000008849003800100000585500000058650000002c70b88200100640000000000038980058a504000058b5040000b0147494741425954450011025a3339302044455349474e415245000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2062432/Gigabyte-Z390-Designare-TB3-ROM.bin:active:v33:nvm_v33.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/DESIGNARE-Z390-NVM33-Elias64Fr.bin:active:v33:nvm_v33.0:0x4200

2)
thedrom=6c0000000000100100d5cc6de801090001000d000100
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2062504/Mac-AA95B1DDAB278B95-C0_6.90.0-C1_47.1-R0.bin:active:v47:nvm_v47.1:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-1E7E29AD0135F9BC/Mac-1E7E29AD0135F9BC-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-226CB3C6A851A671/Mac-226CB3C6A851A671-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-53FDB3D8DB8CA971/Mac-53FDB3D8DB8CA971-B2_2.32.0.10-C1_51.1-R0.bin:active:v51:nvm_v51.1:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-63001698E7A34814/Mac-63001698E7A34814-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-827FAC58A8FDFA22/Mac-827FAC58A8FDFA22-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-827FB448E656EC26/Mac-827FB448E656EC26-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-937A206F2EE63C01/Mac-937A206F2EE63C01-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-AA95B1DDAB278B95/Mac-AA95B1DDAB278B95-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-E1008331FDC96864/Mac-E1008331FDC96864-B2_2.46.0.12-C1_55.3-R0.bin:active:v55:nvm_v55.3:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-E7203C0F68AA0004/Mac-E7203C0F68AA0004-B2_2.32.0.11-C1_51.2-R0.bin:active:v51:nvm_v51.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-1E7E29AD0135F9BC/Mac-1E7E29AD0135F9BC-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-226CB3C6A851A671/Mac-226CB3C6A851A671-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-53FDB3D8DB8CA971/Mac-53FDB3D8DB8CA971-B2_2.32.0.10-C1_51.1-R0.bin:active:v51:nvm_v51.1:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-63001698E7A34814/Mac-63001698E7A34814-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-827FAC58A8FDFA22/Mac-827FAC58A8FDFA22-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-827FB448E656EC26/Mac-827FB448E656EC26-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-937A206F2EE63C01/Mac-937A206F2EE63C01-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-A61BADE1FDAD7B05/Mac-A61BADE1FDAD7B05-B2_2.51.0.14-C1_56.1-R0.bin:active:v56:nvm_v56.1:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-AA95B1DDAB278B95/Mac-AA95B1DDAB278B95-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-E1008331FDC96864/Mac-E1008331FDC96864-B2_2.46.0.12-C1_55.3-R0.bin:active:v55:nvm_v55.3:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-E7203C0F68AA0004/Mac-E7203C0F68AA0004-B2_2.32.0.11-C1_51.2-R0.bin:active:v51:nvm_v51.2:0x4200

3)
thedrom=9a0000000000008680dc30485301650086803412010108818002800000000882900180000000088380048001000008849003800100000585500000058650000002c70b88200100640000000000038980058a500000058b50000009014153524f434b000f02583537302043726561746f72000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2065495/ASDRock-X570-Creator-MXIC-25L8006E-TB3.bin:active:v45:nvm_v45.0:0x4200

4)
thedrom=71000000000000ed00d9f6c7e2016900ed0007a2010108818002800000000882900180000000088380048001000008849003800100000585500000058650000002c70b88200100640000000000038980058a504000058b5040000b01474947414259544500110247432d544954414e205249444745000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2085204/TitanRidgeNVM23Original.bin:active:v23:nvm_v23.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2085293/TitanRidgeNVM43Patched.bin:inactive:v43:nvm_v43.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2085293/TitanRidgeNVM43Patched.bin:active:v43:nvm_v43.0:0x82200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/GC-TITAN-RIDGE-NVM23-Elias64Fr.bin:active:v23:nvm_v23.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/0-0GC-TITAN RIDGE#1.bin:linux:v23:nvm_v23.0:0x200
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/0-1GC-TITAN RIDGE#2.bin:linux:v23:nvm_v23.0:0x200

5)
thedrom=7500000000000049185fa466a90149004918040066020881800280000000088280028000000002830b842001003c0000000000058550000009014153526f636b0015025a3337302047616d696e672d4954582f6163000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2085799/ASRock_z390_itx_new.bin:active:v14:nvm_v14.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/ASROCK_Z390_ITX_NVM20_MOD-Elias64Fr.bin:inactive:v14:nvm_v14.0:0x4200

6)
thedrom=7500000000000049187420312b0151004918040066040881800280000000088280028000000002830b842001003c0000000000058550000009014153526f636b001d025a333930205068616e746f6d2047616d696e672d4954582f6163000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/ASROCK_Z390_ITX_NVM20_MOD-Elias64Fr.bin:active:v20:nvm_v20.0:0x82200

7)
thedrom=370000000000003100cbd78eae025d00310011110101088180028000000008829001800000000883800480010000088490038001000002c50b8620010064000000000003878002c802c9058a50000002cb0701415355530012025448554e444552424f4c5445582033000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/ASUS-THUNDERBOLT-EX-3/AlpineRidgeEX3-NVM18-NATA.bin:active:v18:nvm_v18.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/ASUS-THUNDERBOLT-EX-3/AlpineRidgeEX3-NVM18-NATA.bin:inactive:v18:nvm_v18.0:0x82200

8)
thedrom=37000000000000310099debb9b0156003100555501010881800280000000088290018000000002c302c402c50b8620010064000000000003878005885040000589500000058a50000002cb0701415355530011025448554e444552424f4c54455833000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/ASUS-THUNDERBOLT-EX-3/AlpineRidgeEX3-NVM26-NATA.bin:active:v26:nvm_v26.412:0x4200

9)
thedrom=370000000000003100340ee524015e00310041600121088180028000000008829001800000000883800480010000088490038001000002c50b8620010064000000000003878005885000000589500000058a500000058b500000070141535553000a0255583535304744000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/ASUS-UX550-NVM33-Elias64Fr.bin:active:v33:nvm_v33.2404:0x4200

10)
thedrom=71000000000000ed001e00a616016a00ed0019c00201088180028000000008829001800000000883800480010000088490038001000002c50b8620010064000000000003878005885040000589500000058a500000058b5040000b01474947414259544500120247432d414c50494e45205249444745000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/GC-ALPINE RIDGE-NVM20-V1-Elias64Fr.bin:active:v20:nvm_v20.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/GC-ALPINE-RIDGE-NVM20-V2-Elias64Fr.bin:active:v20:nvm_v20.0:0x4200

11)
thedrom=71000000000000ed001a032aba026700ed0019800201088180028000000008829001800000000883800480010000088490038001000002c50b86200100640000000000038780058850400002c9058a500000058b5040000b01474947414259544500120247432d414c50494e45205249444745000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/GC-ALPINE RIDGE-NVM21-V3-NATA.bin:inactive:v21:nvm_v21.0:0x4200

12)
thedrom=9a0000000000008680870a975e016400868073200121088180028000000008829001800000000883800480010000088490038001000002c50b8620010064000000000003878005885000000589500000058a500000058b5000000801496e74656c000f0248616465732043616e796f6e000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/GC-ALPINE RIDGE-NVM21-V3-NATA.bin:active:v33:nvm_v33.0:0x82200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/NUC8i7HNK/NUC8i7HNKpatched.bin:active:v41:nvm_v41.3:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/NUC8i7HNK/NUC8i7HNKpatched.bin:inactive:v33:nvm_v33.0:0x82200

13)
thedrom=71000000000000ed009a1ec570016800ed000dc0010208818002800000000882900180000000088380048001000008849003800100000585500000058650000002c70b88200100640000000000038980058a504000058b5040000b0147494741425954450010025a34393020564953494f4e2044000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/Gigabyte-Vision-D-NVM-50-Elias64Fr-CaseySJ.bin:active:v50:nvm_v50.0:0x4200

14)
thedrom=71000000000000ed0032d4d58d016c00ed0007c0010108818002800000000882900180000000088380048001000008849003800100000585500000058650000002c70b88200100640000000000038980058a504000058b5040000b0147494741425954450014025a3339302041524f555320585452454d45000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/[SUCCESS] Gigabyte Designare Z390 (Thunderbolt 3) + i7-9700K + AMD RX 580/post-2087524/Repository of Patched Firmware Files/Z390-AORUS-XTREME-NVM33-Elias64Fr.bin:active:v33:nvm_v33.0:0x4200

15)
thedrom=9500000000000041008c6b38dd015c0041000d030101088180028000000008829001800000000883800480010000088490038001000002c50b86200180dc0000000000038780058850000002c902ca058b5000000901414b6954694f000c024e6f6465204c697465000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Node Lite [B1-25 15W]/AKiTiO T3 NodeLite Update Tool_v1.0.0.5_C1-35+4.51(16.2)/00/FwUpdateTool.FwBin.AKiTiO_T3_NodeLite_rev35_Ti_v451_20180820_SEC1_sign.bin:active:v35:nvm_v35.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Node Lite [B1-25 15W]/AKiTiO T3 NodeLite Update Tool_v1.0.0.5_C1-35+4.51(16.3)/00/FwUpdateTool.FwBin.AKiTiO_T3_NodeLite_rev35_Ti_v451_20180820_SEC1_sign.bin:active:v35:nvm_v35.0:0x4200

16)
thedrom=9500000000000041008263c8b101620041000e030101088180028000000008829001800000000883800480010000088490038001000002c50b86200100a00000000000038780058850400002c902ca058b5040000901414b6954694f0012025468756e6465723320517561642058000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Node Lite [B1-25 15W]/AKiTiO T3 NodeLite Update Tool_v1.0.0.5_C1-35+4.51(16.2)/01/FwUpdateTool.FwBin.AKiTiO_T3_QuadX_C0_23_w_TI_v4p43_SEC1_sign.bin:active:v23:nvm_v23.4304:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Node Lite [B1-25 15W]/AKiTiO T3 NodeLite Update Tool_v1.0.0.5_C1-35+4.51(16.3)/01/FwUpdateTool.FwBin.AKiTiO_T3_QuadX_C0_23_w_TI_v4p43_SEC1_sign.bin:active:v23:nvm_v23.4304:0x4200

17)
thedrom=950000000000004100bdd46443026b00410001030101088180028000000008829001800000000883800480010000088490038001000002c50b86200100500000000000038780058850400002c902ca058b5040000a01696e5874726f6e001a02414b6954694f205468756e646572332044756f2050726f000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.0.5_B1-25+4.33/00/FwUpdateTool.FwBin.AKiTiO_T3_Node_rev23_TI83_20170103_SEC1_sign.bin:active:v18:nvm_v18.7601:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.04_B1-25+4.33/00/FwUpdateTool.FwBin.AKiTiO_T3_Node_rev23_TI83_20170103_SEC1_sign.bin:active:v18:nvm_v18.7601:0x4200

18)
thedrom=9500000000000041005c207c3d024c004100080301010881800280000000088290018000000002c302c402c50b86200100dc000000000002c702c802c902ca02cb0a01696e5874726f6e000e02414b6954694f204e6f6465000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.0.5_B1-25+4.33/01/FwUpdateTool.FwBin.AKiTiO_T3_Node_rev25_Ti4_33_20170406_SEC1_sign.bin:active:v21:nvm_v21.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.04_B1-25+4.33/01/FwUpdateTool.FwBin.AKiTiO_T3_Node_rev25_Ti4_33_20170406_SEC1_sign.bin:active:v21:nvm_v21.0:0x4200

19)
thedrom=950000000000004100de0a8918014d004100080301010881800280000000088290018000000002c302c402c50b86200100dc000000000003878002c802c902ca02cb0a01696e5874726f6e000e02414b6954694f204e6f6465000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.0.5_B1-25+4.33/02/FwUpdateTool.FwBin.AKiTiO_T3_Node_rev21_10262016_SEC1_sign.bin:active:v23:nvm_v23.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.0.5_B1-25+4.33/03/FwUpdateTool.FwBin.AKiTiO_T3_PCIeBox_rev19_TI176_SEC1_sign.bin:active:v25:nvm_v25.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.04_B1-25+4.33/02/FwUpdateTool.FwBin.AKiTiO_T3_Node_rev21_10262016_SEC1_sign.bin:active:v23:nvm_v23.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.04_B1-25+4.33/04/FwUpdateTool.FwBin.AKiTiO_T3_DP_rev18_Ti176_SEC1_sign.bin:active:v25:nvm_v25.0:0x4200

20)
thedrom=9500000000000041001147c933026c00410005030101088180028000000008829001800000000883800480010000088490038001000002c50b86200100400100000000038780058850400002c902ca058b5040000a01696e5874726f6e001b02414b6954694f205468756e64657233205043496520426f78000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.0.5_B1-25+4.33/04/FwUpdateTool.FwBin.AKiTiO_T3_DP_rev18_Ti176_SEC1_sign.bin:active:v19:nvm_v19.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/AKiTiO/Thunder3, Node [25.1 15W]/AKiTiO T3 Node Update Tool_v1.0.04_B1-25+4.33/03/FwUpdateTool.FwBin.AKiTiO_T3_PCIeBox_rev19_TI176_SEC1_sign.bin:active:v19:nvm_v19.0:0x4200

21)
thedrom=370000000000003100b4c9bba70154003100056001010881800280000000088290018000000002c302c402c50b86200100dc000000000003878002c802c902ca02cb0701415355530018024153555320524f472058472053746174696f6e2032000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/ASUS/ROG XG Station 2 [v25 100W]/ASUS-ROG-XG-STATION-2_V25/ASUS_ROG_XG_Station_2_AR_EP_4C_B1_rev25_W_TI_4_3_3_NO_MOD_SEC1_sign_0419.bin:active:v25:nvm_v25.4300:0x4200

22)
thedrom=3700000000000031007123b8480150003100076001010881800280000000088290018000000002c302c402c50b86200100dc000000000003878002c802c902ca02cb0a014153555354656b00110258472053544154494f4e2050524f000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/ASUS/XG Station Pro [29.1 15W]/TBT FW V1.6/ASUS_XGPro_AR_EP_4C_C1_rev29_W_Ti_rev4_45_SEC1_sign.bin:active:v29:nvm_v29.4504:0x4200

23)
thedrom=8f0000000000000400a0067618016d00040053a1010408818002800000000882900180000000088380048001000008849003800100000585090100058609010002c70b8820010064000000000003898002ca02cb02cc02cd1401426c61636b6d616769632044657369676e000b02654750552050726f000308080000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Blackmagic/Blackmagic eGPU Firmware Updater Folder/Blackmagic_eGPU_Firmware Folder/Library/ThunderboltAccessoryFirmwareUpdates/BlackmagicDesign/Blackmagic_eGPU_Pro_Thunderbolt.bin:active:v50:nvm_v50.0:0x4200

24)
thedrom=8f0000000000000400fbce3264016e000400ffa1010308818002800000000882900180000000088380048001000008849003800100000585090100058609010002c70b8820010064000000000003898002ca02cb02cc02cd1401426c61636b6d616769632044657369676e000f026547505520525835383000030000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Blackmagic/Blackmagic eGPU Firmware Updater Folder/Blackmagic_eGPU_Firmware Folder/Library/ThunderboltAccessoryFirmwareUpdates/BlackmagicDesign/Blackmagic_eGPU_Thunderbolt.bin:active:v50:nvm_v50.0:0x4200

25)
thedrom=71000000000000ed00cf231640014d00ed0009b0011b0881800280000000088290018000000002c302c402c50b86200100dc000000000003878002c802c902ca02cb0b014749474142595445000d0247414d494e4720424f58000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Gigabyte/1st gen Gaming Box [F1.0 H2D 100W]/[Thunderbolt firmware] Default version. Achieve great balance between USB bandwidth and graphics performance/Gigabyte_RX580IXEB_8GD_Ver1.0/Gigabyte_RX580IXEB_8GD_Ver1.0.bin:active:v27:nvm_v27.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Gigabyte/1st gen Gaming Box [F1.0 H2D 100W]/[Thunderbolt firmware] Improve Host to Device bandwidth/Gigabyte_RX580IXEB_8GD_Ver1.0 H2D/Gigabyte_RX580IXEB_8GD_Ver1.0 H2D.bin:active:v27:nvm_v27.0:0x4200

26)
thedrom=cf000000000000f000aa8ceaad014f00f000660a01190881800280000000088290018000000002c302c402c50b86200100dc000000000003878002c802c902ca02cb050148500015024741312d31302d416363656c657261746f72000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/HP/OMEN Accelerator [25.25 60W]/SP86866/TB3FW/HP_GA1_10_Accelerator_Shiva_AR_EP_A68_B1_rev25_W_TI83B_020_25_SEC1_sign.bin:active:v25:nvm_v25.2000:0x4200

27)
thedrom=740000000000000801367d82f901520008010417011a0881800280000000088290018000000002c302c402c50b8620010064000000000003878002c80589500000058a50000002cb09014c656e6f766f000e02373230732d3133494b4252000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Lenovo/TB3 Graphics Dock [v003 65W]/thunderbolt_firmware_201712/720SIKBRTBTFWUpdateV03/Debug/Lenovo_720s13_KBLR_AR_HR_2C_C0_rev26_Native_SEC1_sign.bin:active:v26:nvm_v26.0:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Lenovo/TB3 Graphics Dock [v003 65W]/thunderbolt_firmware_201712/Thunderbolt Firmware Update/Debug/Lenovo_720s13_KBLR_AR_HR_2C_C0_rev26_Native_SEC1_sign.bin:active:v26:nvm_v26.0:0x4200

28)
thedrom=a40000000000002e0178b736130160002e0158e314290881800280000000088290018000000002c302c402c50b86200100dc000000000003878002c802c902ca02cb1e01534150504849524520544543484e4f4c4f4759204c494d49544544000a0247656172426f78000307010000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/Sapphire/Gearbox [41.41 60W]/SAPPHIRE_GearBox_H2D_v2/SAPPHIRE_GearBox_H2D.bin:active:v41:nvm_v41.5504:0x4200

29)
thedrom=8100000000000068015fd5786d01470068010550010102c102c20883800480010000088490038001000002c50b86200100dc000000000003878002c802c902ca02cb060154554c000c025442582d3535304341000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/Mantiz Venus [25.1 87W]/Mantiz-H2D87W.bin:active:v25:nvm_v25.3304:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/04/FwUpdateTool.FwBin.TUL_TBX_550CA_AR_EP_A68_B1_rev25_W_TI83_4p33_SEC1_sign_NO_MOD_20170710_sign.bin:active:v25:nvm_v25.3304:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/05/FwUpdateTool.FwBin.TUL_DEVIL_BOX_V10_AR_EP_A68_B1_rev25_TI_361_20171003_101_SEC1_sign.bin:active:v25:nvm_v25.3304:0x4200

30)
thedrom=810000000000006801a020894101470068016923010202c102c20883800480010000088490038001000002c50b86200100dc000000000003878002c802c902ca02cb060154554c000c02444556494c20424f58000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/00/FwUpdateTool.FwBin.TUL_DSL6540B_V02_A68_C0_V15_tps65983_Intel_Apex_Creek_CH_2_12_P45W_20170103_001.bin:active:v23:nvm_v23.6103:0x4200

31)
thedrom=810000000000006801a65fcc69014c006801035001010881800280000000088290018000000002c302c402c50b86200100640000000000038780058850400002c902ca058b504000060154554c000b0244534c3635343042000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/01/FwUpdateTool.FwBin.TUL_DSL6540B_V02_A68_C0_V14_tps65983_Intel_Apex_Creek_CH_2_12_PD45W_20161213_001.bin:active:v14:nvm_v14.6103:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/02/FwUpdateTool.FwBin.TUL_DSL6540_V10_A68_B1_V23_tps65983_Intel_Apex_Creek_2_10_PD60W_20170125_101.bin:active:v15:nvm_v15.6103:0x4200

32)
thedrom=8100000000000068019eb04ec901470068016923010102c102c20883800480010000088490038001000002c50b86200100dc000000000003878002c802c902ca02cb060154554c000c02444556494c20424f58000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/03/FwUpdateTool.FwBin.TUL_TBX_550CA_AR_EP_A68_B1_rev25_W_TI83_4p33_SEC1_sign_20170605.bin:active:v23:nvm_v23.6103:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/PowerColor Devil Box [25.101 60W]/FwUpdateTool_TUL_DEVIL_BOX_Rev25_20171003_101_SEC1/06/FwUpdateTool.FwBin.TUL_DEVIL_BOX_V10_AR_EP_A68_B1_rev23_TI_361_SEC1_relaxing_eGFX_sign.bin:active:v25:nvm_v25.6103:0x4200

33)
thedrom=73000000000000080041b846f401760008003700010102c102c20883800480010000088490038001000002c50b86200100dc000000000003878002c802c902ca058b5000001c01536f6e6e657420546563686e6f6c6f676965732c20496e632e002202427265616b6177617920426f7820446576656c6f7065722045646974696f6e000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/eGPU firmwares/TUL/Sonnet Breakaway Box [25.1 DE 60W]/Sonnet_Breakaway_Box_Developer_Edition_AR_EP_A68_B1_rev25_W_TI83_3p61_SEC1_sign.bin:active:v25:nvm_v25.6103:0x4200

34)
thedrom=71000000000000ed00c4311795025400ed000b8002010881800280000000088290018000000002c302c402c50b8620010064000000000003878002c802c9058a50000002cb0b01474947414259544500110247412d5a3137302d47414d494e47000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuGigaMac/0-0 GIGABYTE GA-Z170-GAMING.bin:linux:v21:nvm_v21.0:0x200

35)
thedrom=550000000000005a00bbc044b90162005a0016de0101088180028000000008829001800000000883800480010000088490038001000002c50b86200100dc0000000000038780058850400002c902ca058b50400006014f57430015025468756e646572626f6c74203320446f636b000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuGigaMac/0-1_OWC Thunderbolt 3 Dock.bin:linux:v20:nvm_v20.9342:0x200

36)
thedrom=cf000000000000f000bee33fc7016d00f00067040102088180028000000008829001800000000883800480010000088490038001000002c502c602c70b88200100640000000000038980058a504000058b5040000a01485020496e632e0019024850205468756e646572626f6c7420446f636b204732000308080000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuGigaMac/0-301_HP Thunderbolt Dock G2.bin:linux:v19:nvm_v19.ec03:0x200

37)
thedrom=550000000000005a00eed74ba8016c005a0013de0101088180028000000008829001800000000883800480010000088490038001000002c50b86200100dc0000000000038780058850400002c902ca058b50400018014f7468657220576f726c6420436f6d707574696e67000d0248656c696f7320544233000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacBookPro/0-101_active1 OWC Heliios 3.bin:linux:v25:nvm_v25.6103:0x200

38)
thedrom=7300000000000008000a99c267017a00080043000101088180028000000008829001800000000883800480010000088490038001000002c50b86200100dc0000000000038780058850000002c902ca058b5000001c01536f6e6e657420546563686e6f6c6f676965732c20496e632e0017024563686f20457870726573732053454c20544233000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacBookPro/0-1_active0 Sonnet Echo Express SEL.bin:linux:v34:nvm_v34.100:0x200

39)
thedrom=730000000000000800bf0d0e6e027b00080024000101088180028000000008829001800000000883800480010000088490038001000002c50b86200100dc0000000000038780058850000002c902ca058b5000001c01536f6e6e657420546563686e6f6c6f676965732c20496e632e0018024563686f20457870726573732053452d4920544233000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacBookPro/30101_active2 Sonnet Echo Express SE-I.bin:linux:v21:nvm_v21.6103:0x200

40)
thedrom=6c00000000001001006d66283501090001000c000100
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacMini/active_Trebleet.bin:linux:v47:nvm_v47.4:0x200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-473D31EABEB93F9B/Mac-473D31EABEB93F9B-B0_13.38.0-C0_41.2-R0.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-4B682C642B45593E/Mac-4B682C642B45593E-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-551B86E5744E2388/Mac-551B86E5744E2388-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-66E35819EE2D0D05/Mac-66E35819EE2D0D05-B0_13.38.0-C0_41.2-R0.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-77F17D7DA9285301/Mac-77F17D7DA9285301-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-7BA5B2D9E42DDD94/Mac-7BA5B2D9E42DDD94-C0_16.0.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-7BA5B2DFE22DDD8C/Mac-7BA5B2DFE22DDD8C-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-A5C67F76ED83108C/Mac-A5C67F76ED83108C-B0_13.38.0-C0_41.2-R0.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-B4831CEBD52A0C4C/Mac-B4831CEBD52A0C4C-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-BE088AF8C5EB4FA2/Mac-BE088AF8C5EB4FA2-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-CAD6701F7CEA0921/Mac-CAD6701F7CEA0921-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-473D31EABEB93F9B/Mac-473D31EABEB93F9B-B0_13.38.0-C0_41.2-R0.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-4B682C642B45593E/Mac-4B682C642B45593E-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-551B86E5744E2388/Mac-551B86E5744E2388-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-66E35819EE2D0D05/Mac-66E35819EE2D0D05-B0_13.38.0-C0_41.2-R0.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-77F17D7DA9285301/Mac-77F17D7DA9285301-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-7BA5B2D9E42DDD94/Mac-7BA5B2D9E42DDD94-C0_16.0.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-7BA5B2DFE22DDD8C/Mac-7BA5B2DFE22DDD8C-C0_16.0.0-C1_47.4-R0.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-A5C67F76ED83108C/Mac-A5C67F76ED83108C-B0_13.38.0-C0_41.2-R0.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-B4831CEBD52A0C4C/Mac-B4831CEBD52A0C4C-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-BE088AF8C5EB4FA2/Mac-BE088AF8C5EB4FA2-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-CAD6701F7CEA0921/Mac-CAD6701F7CEA0921-C0_5.90.0-C0_41.4-R0.bin:active:v41:nvm_v41.4:0x4200

41)
thedrom=ed0000000000006f00a0536d500256006f0001020101088180028000000008829001800000000883800480010000088490038001000002c502c602c7058850400002c902ca058b5040000f0153746172746563682e636f6d000a0254423332445032000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/0-1TB32DP2.bin:linux:v18:nvm_v18.0:0x200

42)
thedrom=ed0000000000006f0081850c9d0256006f0000020101088180028000000008829001800000000883800480010000088490038001000002c502c602c7058850400002c902ca058b5040000f0153746172746563682e636f6d000a0254423332484432000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/0-1TB32HD2.bin:linux:v18:nvm_v18.0:0x200

43)
thedrom=7a000000000000bd01be9c3676016500bd01210a01010881800280000000088290018000000002c302c402c502c602c70b88200100640000000000038980058a504000058b5040001e0157696e737461727320546563686e6f676f6c79204c696d69746564000902555441323144000308080000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/1-1 Winstar UTA21D.bin:linux:v36:nvm_v36.4306:0x200

44)
thedrom=7300000000000008009f25f48f017a00080031000101088180028000000008829001800000000883800480010000088490038001000002c50b86200100dc0000000000038780058850000002c902ca058b5000001c01536f6e6e657420546563686e6f6c6f676965732c20496e632e0017024563686f20457870726573732049494920544233000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/1-103Sonnet Echo Express III D.bin:linux:v25:nvm_v25.100:0x200

45)
thedrom=ad100000000000868064963b59006b00410001030101088180028000000008829001800000000883800480010000088490038001000002c50b86600100500000000000038780058850000002c902ca058b5000000a01696e5874726f6e001a02414b6954694f205468756e646572332044756f2050726f000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/UbuntuMacPro/1-3AKiTiO_Thunder3 Duo Pro.bin:linux:v16:nvm_v1.0:0x200

46)
thedrom=7f0100000000100100d5cc6de801090001000d000100
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-1E7E29AD0135F9BC/Mac-1E7E29AD0135F9BC-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-827FB448E656EC26/Mac-827FB448E656EC26-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-937A206F2EE63C01/Mac-937A206F2EE63C01-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-E1008331FDC96864/Mac-E1008331FDC96864-B2_2.46.0.12-C1_55.3-R1.bin:active:v55:nvm_v55.3:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-1E7E29AD0135F9BC/Mac-1E7E29AD0135F9BC-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-827FB448E656EC26/Mac-827FB448E656EC26-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-937A206F2EE63C01/Mac-937A206F2EE63C01-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-A61BADE1FDAD7B05/Mac-A61BADE1FDAD7B05-B2_2.51.0.14-C1_56.1-R1.bin:active:v56:nvm_v56.1:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-E1008331FDC96864/Mac-E1008331FDC96864-B2_2.46.0.12-C1_55.3-R1.bin:active:v55:nvm_v55.3:0x4200

47)
thedrom=db0000000000000000392fa490015800010010000100088180028000000008829001800000000883800480010000088490038001000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0010-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0010-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

48)
thedrom=db0000000000000000656f6bb4015800010011000100088180028000000008829001800000000883800480010000088490038001000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0011-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0011-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

49)
thedrom=db000000000000000081af3ad9015800010012000100088180028000000008829001800000000883800480010000088490038001000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0012-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0012-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

50)
thedrom=db0000000000000000156e5627015800010015000100088180028000000008829001800000000883800480010000088490038001000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0015-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0015-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

51)
thedrom=c801000000000000007b4cd55c015800010016000100088181028100000008829101810000000883810481010000088491038101000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0016-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0016-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

52)
thedrom=db0000000000000000adeec86e015800010017000100088180028000000008829001800000000883800480010000088490038001000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0017-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0017-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

53)
thedrom=c80100000000000000a2b9e0a5015800010018000100088181028100000008829101810000000883810481010000088491038101000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0018-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0018-B2_2.29.0.15-C1_49.4.bin:active:v49:nvm_v49.4:0x4200

54)
thedrom=db0000000000000000741bfd97015800010019000100088180028000000008829001800000000883800480010000088490038001000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x0019-B2_2.46.0.16-C1_55.2.bin:active:v55:nvm_v55.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x0019-B2_2.46.0.16-C1_55.2.bin:active:v55:nvm_v55.2:0x4200

55)
thedrom=c801000000000000001a397eec01580001001a000100088181028100000008829101810000000883810481010000088491038101000005850901000586090100028703882003898002ca02cb0d014170706c6520496e632e000c024d6163696e746f7368000000000000000000000000000000000000000000000000000000000000000000
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-27AD2F918AE68F61/Mac-0x001A-B2_2.46.0.16-C1_55.2.bin:active:v55:nvm_v55.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-27AD2F918AE68F61/Mac-0x001A-B2_2.46.0.16-C1_55.2.bin:active:v55:nvm_v55.2:0x4200

56)
thedrom=7f01000000001001006d66283501090001000c000100
sources:
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-551B86E5744E2388/Mac-551B86E5744E2388-C0_5.90.0-C0_41.4-R1.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-66E35819EE2D0D05/Mac-66E35819EE2D0D05-B0_13.38.0-C0_41.2-R1.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-7BA5B2D9E42DDD94/Mac-7BA5B2D9E42DDD94-C0_16.0.0-C0_41.4-R1.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-7BA5B2DFE22DDD8C/Mac-7BA5B2DFE22DDD8C-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-A5C67F76ED83108C/Mac-A5C67F76ED83108C-B0_13.38.0-C0_41.2-R1.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.15.5 /Mac-CAD6701F7CEA0921/Mac-CAD6701F7CEA0921-C0_5.90.0-C0_41.4-R1.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-551B86E5744E2388/Mac-551B86E5744E2388-C0_5.90.0-C0_41.4-R1.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-66E35819EE2D0D05/Mac-66E35819EE2D0D05-B0_13.38.0-C0_41.2-R1.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-7BA5B2D9E42DDD94/Mac-7BA5B2D9E42DDD94-C0_16.0.0-C0_41.4-R1.bin:active:v41:nvm_v41.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-7BA5B2DFE22DDD8C/Mac-7BA5B2DFE22DDD8C-C0_16.0.0-C1_47.4-R1.bin:active:v47:nvm_v47.4:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-A5C67F76ED83108C/Mac-A5C67F76ED83108C-B0_13.38.0-C0_41.2-R1.bin:active:v41:nvm_v41.2:0x4200
/Volumes/Work/Programming/ThunderboltProjects/Notes/USBCUpdater 10.16.0 beta/Mac-CAD6701F7CEA0921/Mac-CAD6701F7CEA0921-C0_5.90.0-C0_41.4-R1.bin:active:v41:nvm_v41.4:0x4200

T

tommy chen

macrumors 6502a
Oct 1, 2018
907
390
Fred4 said:
I could really use your help. I'm stuck. I can't get my TR card to work, and I am thinking it is because it has the new firmware 0.43 after seeing your post. Any idea where I can get a copy of the older firmware for the green chip?
Click to expand...

here you will find the last 0,23 custom firmware from DSM2

forums.macrumors.com

testing TB3 AIC with MP 5,1

I am still in the Hospital but I just wanted to share with you a new and improved Firmware Version for the Titan Ridge Card. Will start to work on the SSDT stuff as soon as I am back home...
forums.macrumors.com forums.macrumors.com

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
