Thunderbolt 3 M.2 NVMe SSD Enclosures

[EugW]

I don’t really need the encryption, so I can get rid of it if it causes issues. Let me know what the negatives are. Thanks.

In the past I'd say performance, but at least with your sequential benchmarks, your performance seems fine with that encrypted drive.

I personally don't like encryption when it's not necessary because it needlessly complexifies things. If in the future you say transport it to another machine but don't remember the password, then you're permanently locked out of your data. And if you ever need data recovery for a failed drive, it's basically impossible, although you should ideally have multiple proper backups so you wouldn't need data recovery.



[SpecFoto]

I can remove encryption, let me know why it’s not ideal. Thanks.

My 4 drive enclosures, 2 Maiwo K1717 and 2 Acasis; 1 a 405 Pro Max Dual Drive and 1 405 Pro, I use for home use are not encrypted. But I do encrypt my older 4TB 405 M1 Acasis startup drive I use for my M1 14" MBP when traveling. Just because if someone was to swipe it they would not have all my info. Have not seen any negatives performance wise since I did this in 2022.

Far as your speeds and temp all looks great! Congrats, see it was't that hard and down the line if you get a TB 5 Mac you can now easily swap out the SSD's and put then in a super fast TB5 enclosure



[ExplorerNL]

I’m in the market for a USB-C NVMe SSD enclosure and have narrowed it down to three options:

• COLORII MC40 – approximately $45
• QWIIZLAB ES40UR – approximately $65
• Hagibis MC40 – approximately $65

At first glance, they all seem to offer similar features, but I’m curious about what justifies the price differences. Is it the build quality, thermal management, compatibility, or other factors?



[EugW]

I’m in the market for a USB-C NVMe SSD enclosure and have narrowed it down to three options:

• COLORII MC40 – approximately $45
• QWIIZLAB ES40UR – approximately $65
• Hagibis MC40 – approximately $65

At first glance, they all seem to offer similar features, but I’m curious about what justifies the price differences. Is it the build quality, thermal management, compatibility, or other factors?

Colorii is the brand of the manufacturer. They are the OEM for both Hagibis and the Qwiizlab. I have both the Hagibis and Qwiizlab and they are identical aside from the branding and packaging, and the slightly different included thermal pads. Even the hardware identifier and the firmware revision was the same.

The only other notable difference is that the Qwiizlab advertises 8 TB support while the Hagibis advertises 4 TB. I don’t know if that’s a real difference though, or if it’s just documentation error. Oh and the USB-C cable is different. My Hagibis came with a USB-C cable that has integrated LED that indicates voltage, current, and wattage.



[ExplorerNL]

Colorii is the brand of the manufacturer. They are the OEM for both Hagibis and the Qwiizlab. I have both the Hagibis and Qwiizlab and they are identical aside from the branding and packaging, and the slightly different included thermal pads. Even the hardware identifier and the firmware revision was the same.

The only other notable difference is that the Qwiizlab advertises 8 TB support while the Hagibis advertises 4 TB. I don’t know if that’s a real difference though, or if it’s just documentation error.

So you would get the COLORII one since it’s $20 cheaper? Thanks!



[EugW]

So you would get the COLORII one since it’s $20 cheaper? Thanks!

Where are you getting it from? When I saw it at Alibaba, it was closer in cost after shipping, and I wasn’t sure how long the shipping would take. If you’re getting any of these from AliExpress or Alibaba, make sure to check the shipping details.

I’m assuming the Colorii has exactly the same included accessories but I haven’t ordered one so I can’t confirm that.

Anyhow, the prices at AliExpress fluctuate. I got the Hagibis for <US$55 but the Colorii cost more at that time. For $45 shipped, that’s a steal.



[ExplorerNL]

Where are you getting it from? When I saw it at Alibaba, it was closer in cost after shipping, and I wasn’t sure how long the shipping would take. If you’re getting any of these from AliExpress or Alibaba, make sure to check the shipping details.

I’m assuming the Colorii has exactly the same included accessories but I haven’t ordered one so I can’t confirm that.

Anyhow, the prices at AliExpress fluctuate. I got the Hagibis for <US$55 but the Colorii cost more at that time. For $45 shipped, that’s a steal.

AliExpress choice sale, 45 euro including free shipping 10 day delivery, hagibis and qwizzlab are 65 euro



[EugW]

AliExpress choice sale, 45 euro including free shipping 10 day delivery, hagibis and qwizzlab are 65 euro

Ah, for Canada on Alibaba, I see that the silver model is significantly cheaper than the grey model. Nice. 👍

I don’t see mention of the included thermal pads and tools but hopefully it’s the same.

If the shipping to Europe is a fast method, then go for it, and please report back when you get it.



[ExplorerNL]

Ah, for Canada on Alibaba, I see that the silver model is significantly cheaper than the grey model. Nice. 👍

I don’t see mention of the included thermal pads and tools but hopefully it’s the same.

If the shipping to Europe is a fast method, then go for it, and please report back when you get it.

Based on this it looks similar



[EugW]

Based on this it looks similar

The only difference between the silver and grey is the colour. The anodized grey colour can be scratched off whereas the silver wouldn't show scratches as easily. That's one reason I prefer silver MacBooks to Space Grey.

My Hagibis and Qwiizlab are both grey like Apple's Space Grey because that's all that was available at the time. I would have preferred silver, although it my case in doesn't really matter since they just sit on my desk so there isn't much opportunity for them to get scratched significantly. Interesting to see they have black now too.

BTW, in that video, they show the included thermal pads and tools, as well as the packaging with protective sleeve. It looks just like Qwiizlab's, even down to the sleeve. The packaging for the Hagibis is different and the Hagibis doesn't include a sleeve.



[ExplorerNL]

The only difference between the silver and grey is the colour. The anodized grey colour can be scratched off whereas the silver wouldn't show scratches as easily. That's one reason I prefer silver MacBooks to Space Grey.

My Hagibis and Qwiizlab are both grey like Apple's Space Grey because that's all that was available at the time. I would have preferred silver, although it my case in doesn't really matter since they just sit on my desk so there isn't much opportunity for them to get scratched significantly. Interesting to see they have black now too.

BTW, in that video, they show the included thermal pads and tools, as well as the packaging with protective sleeve. It looks just like Qwiizlab's, even down to the sleeve. The packaging for the Hagibis is different and the Hagibis doesn't include a sleeve.

I won't use it daily and I baby sit it, so I ordered the gray one, thank you for your help, I will post when I have it!



[Idgit]

Ah, for Canada on Alibaba, I see that the silver model is significantly cheaper than the grey model. Nice. 👍

I don’t see mention of the included thermal pads and tools but hopefully it’s the same.

If the shipping to Europe is a fast method, then go for it, and please report back when you get it.

Do you have a link? I'm in Canada, too, and I'm seeing the silver model $5 more than the grey one. And they're still over $80 CAD, which isn't really a deal for these.



[EugW]

Do you have a link? I'm in Canada, too, and I'm seeing the silver model $5 more than the grey one. And they're still over $80 CAD, which isn't really a deal for these.

Hmmm... It says it can't be shipped to this address:

https://www.aliexpress.com/item/1005008555989592.html

There is another listing but it's $79.xx for the grey. Free shipping with 1-2 weeks delivery:

40Gbps M.2 NVMe USB 4.0 SSD Enclosure Thunderbolt USB-C SSD Case Compatible with USB 3.2/3.1/3.0 For Macbook iPad iPhone Case - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com



[Idgit]

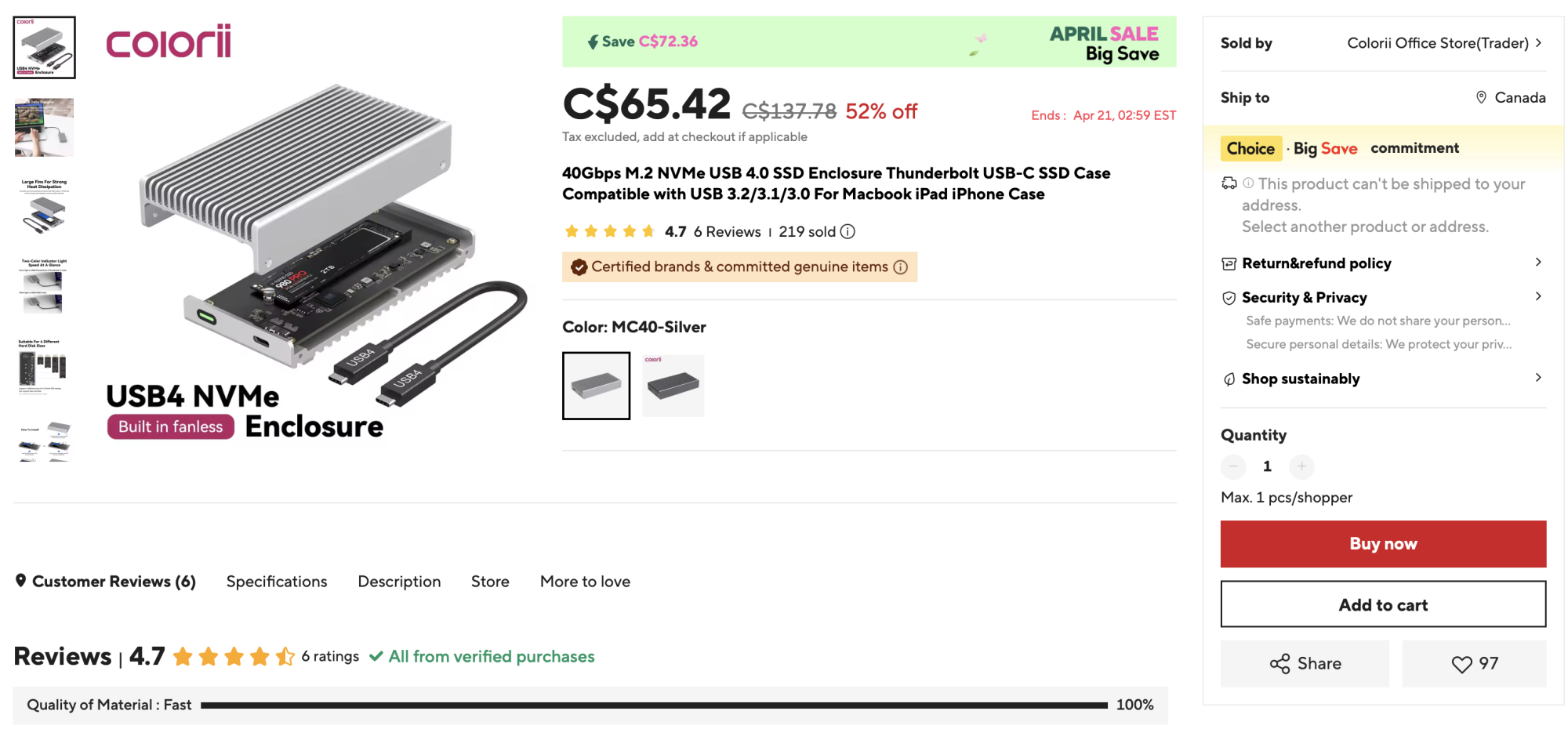

Hmmm... It says it can't be shipped to this address:

https://www.aliexpress.com/item/1005008555989592.html

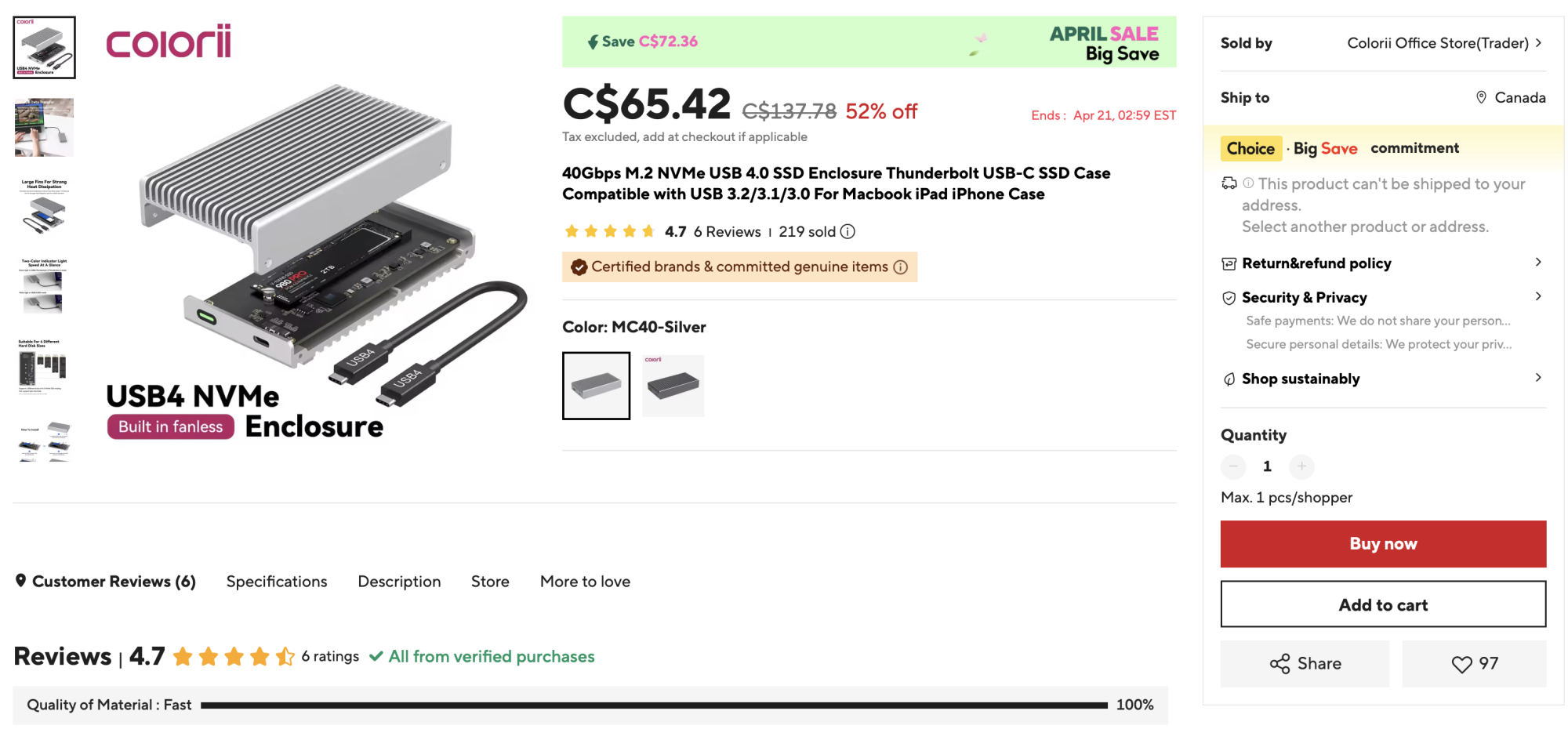

View attachment 2503051

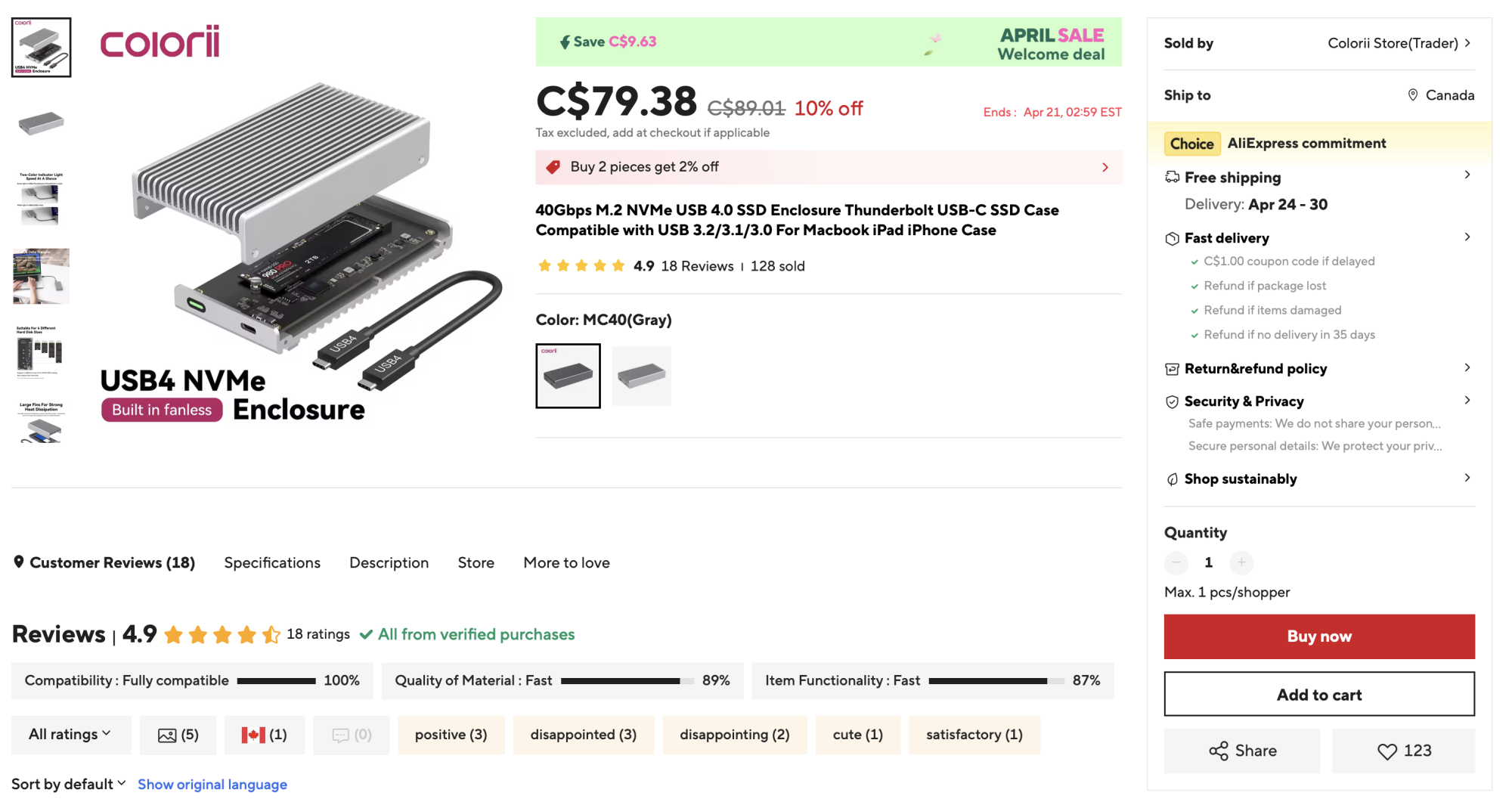

There is another listing but it's $79.xx for the grey. Free shipping with 1-2 weeks delivery:

40Gbps M.2 NVMe USB 4.0 SSD Enclosure Thunderbolt USB-C SSD Case Compatible with USB 3.2/3.1/3.0 For Macbook iPad iPhone Case - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

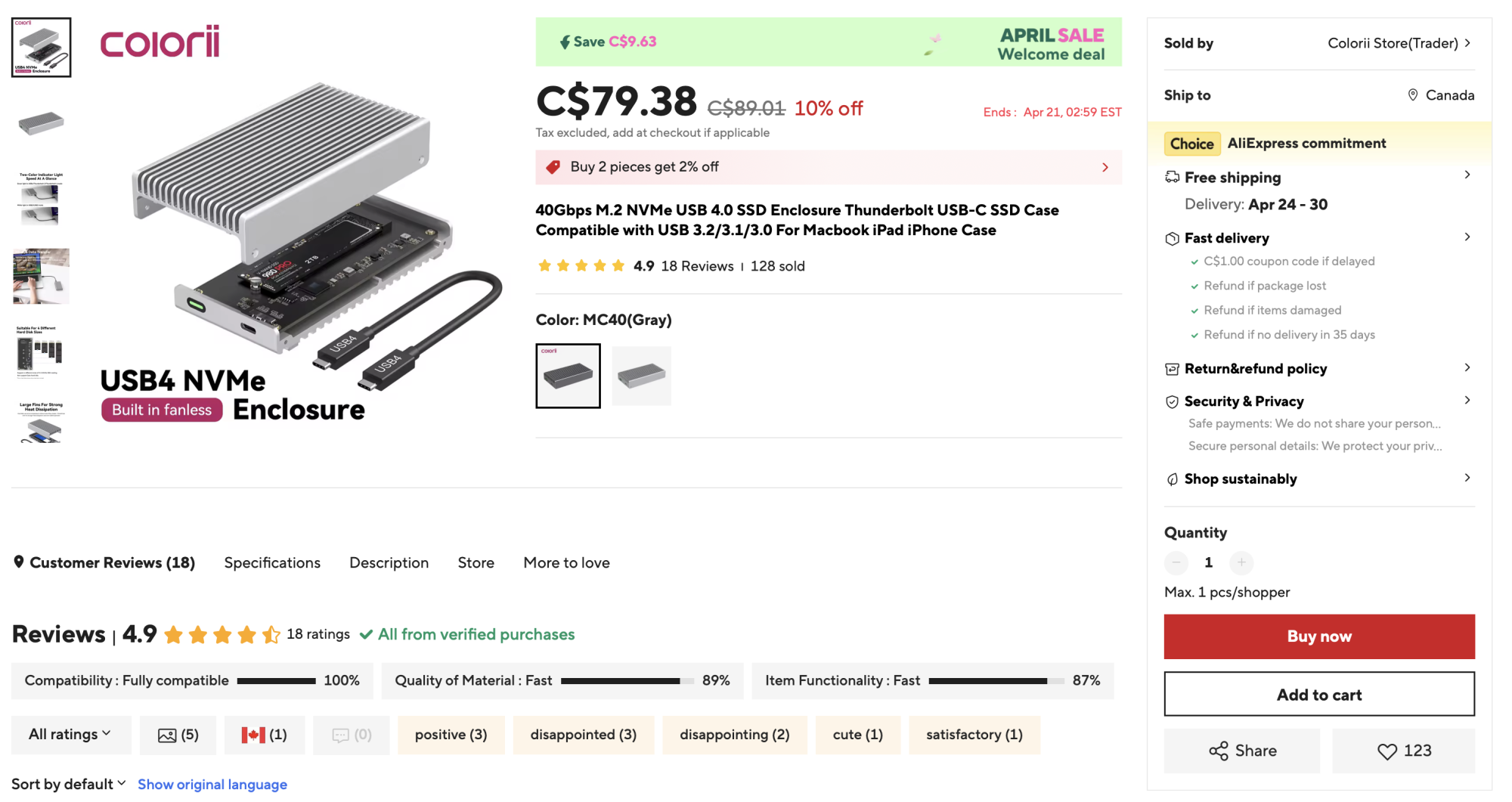

View attachment 2503054

Yeah, that's weird about the shipping restriction.



[ExplorerNL]

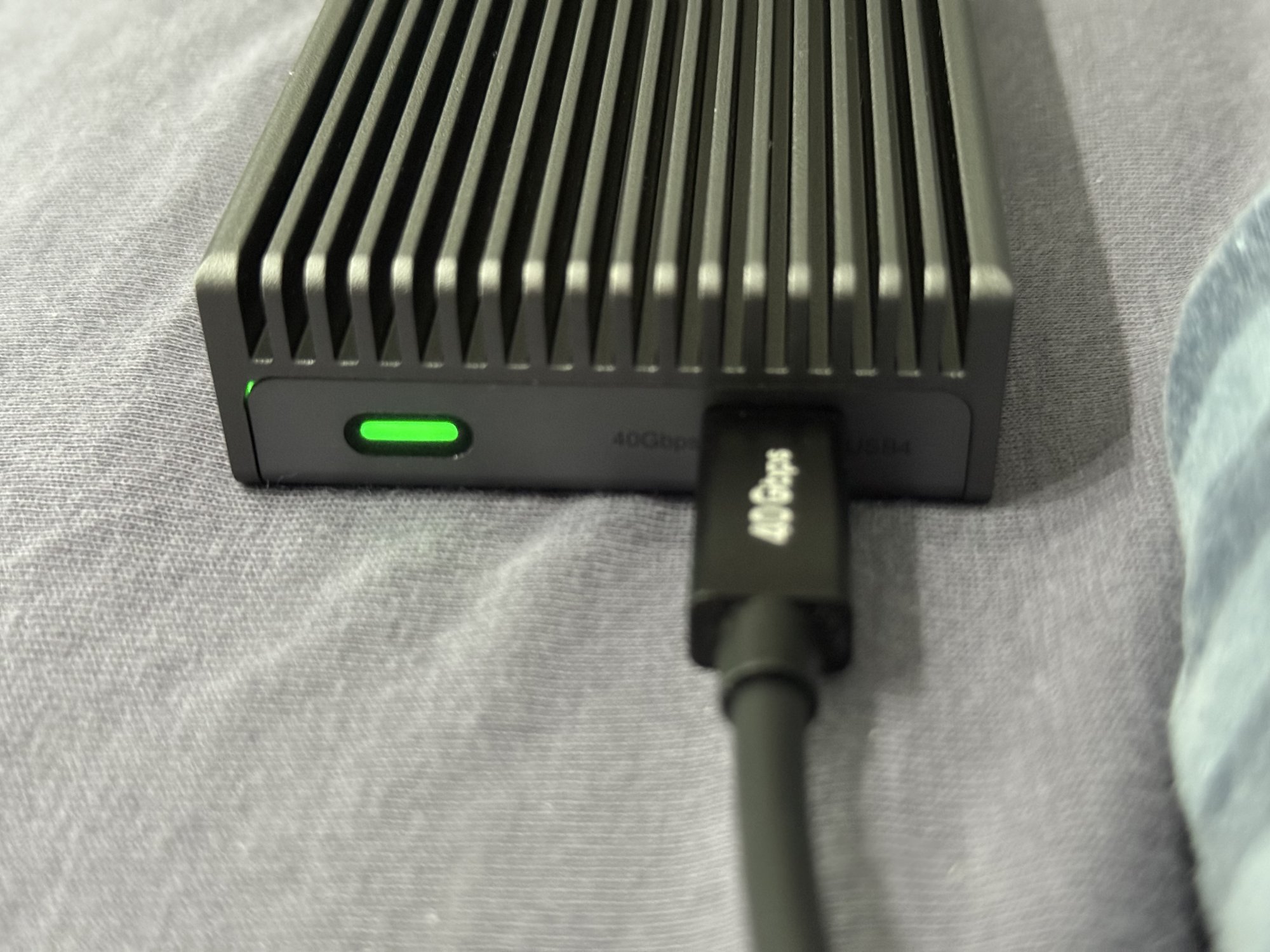

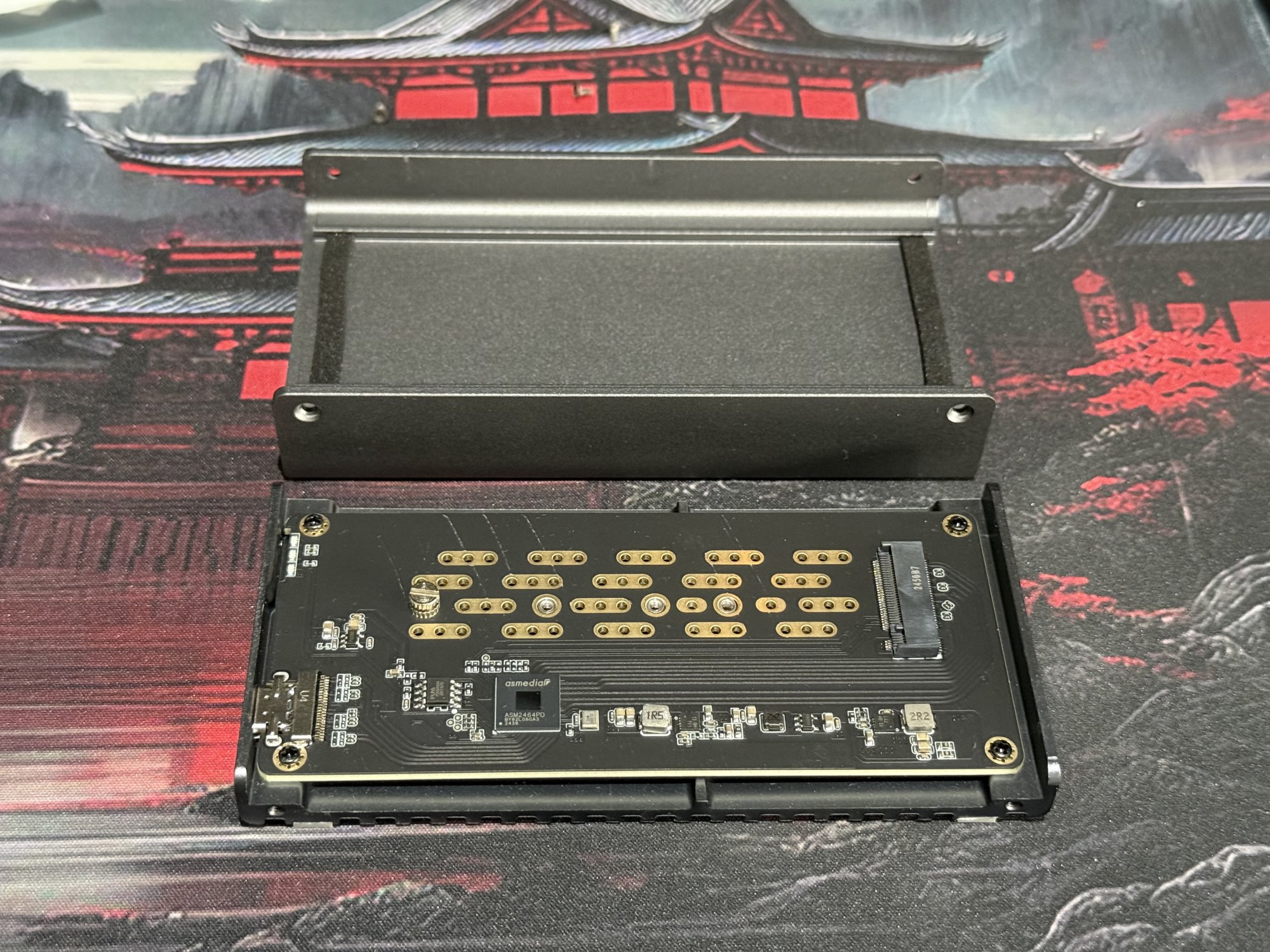

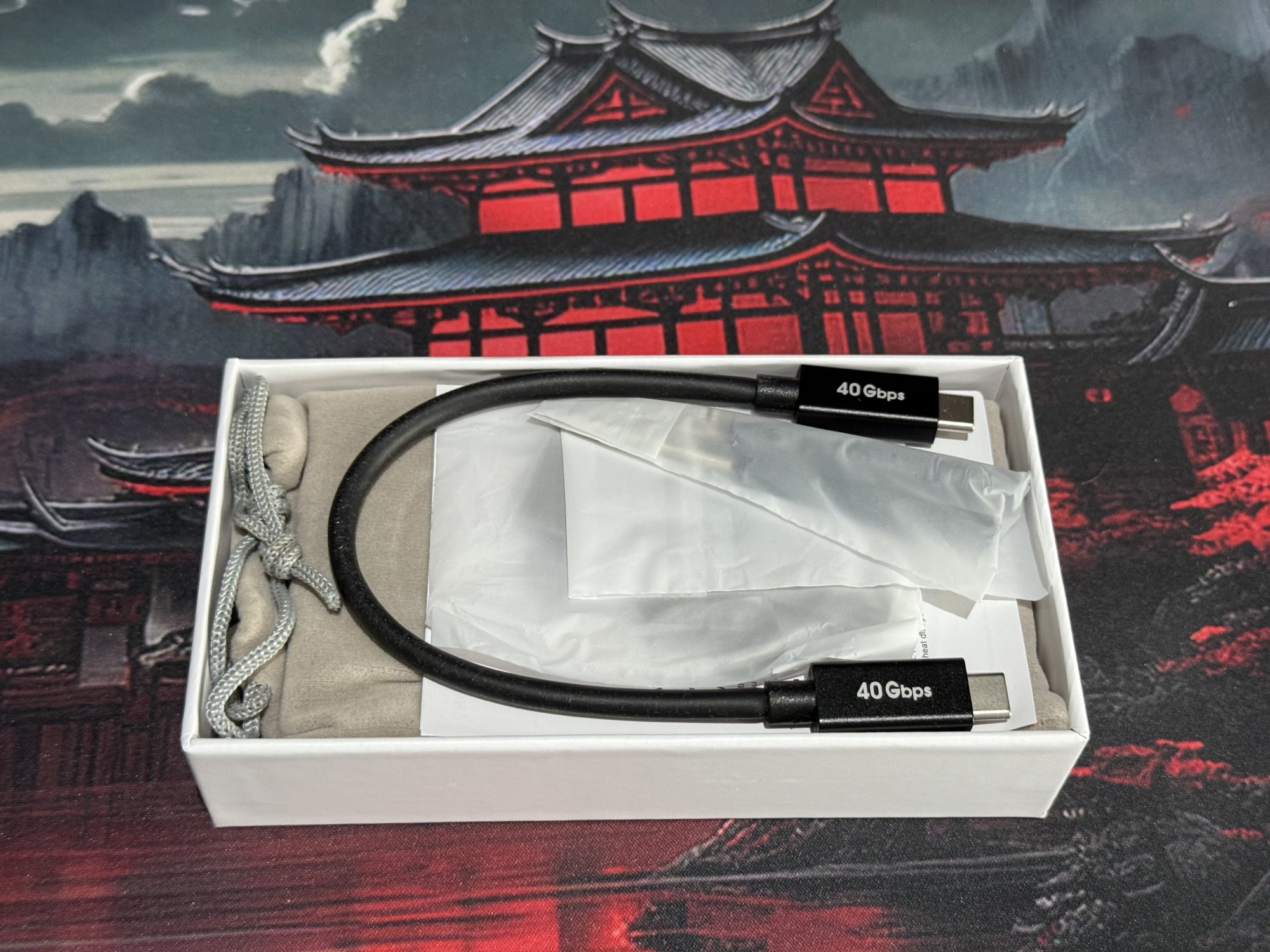

COLORII MC40 Arrived today, works great! Not sure if I need to do a firmware update though for the controller



[EugW]

COLORII MC40 Arrived today, works great! Not sure if I need to do a firmware update though for the controller

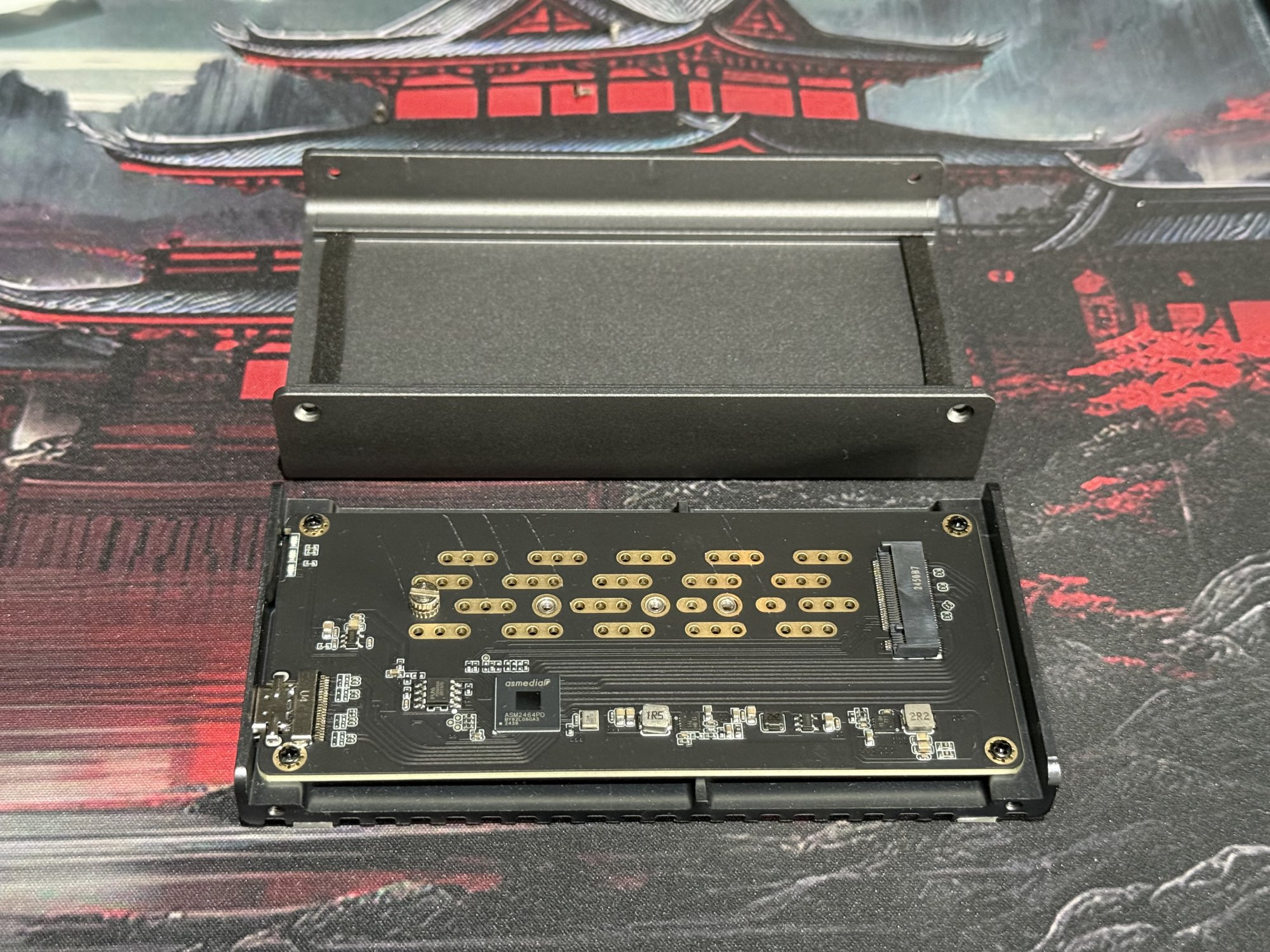

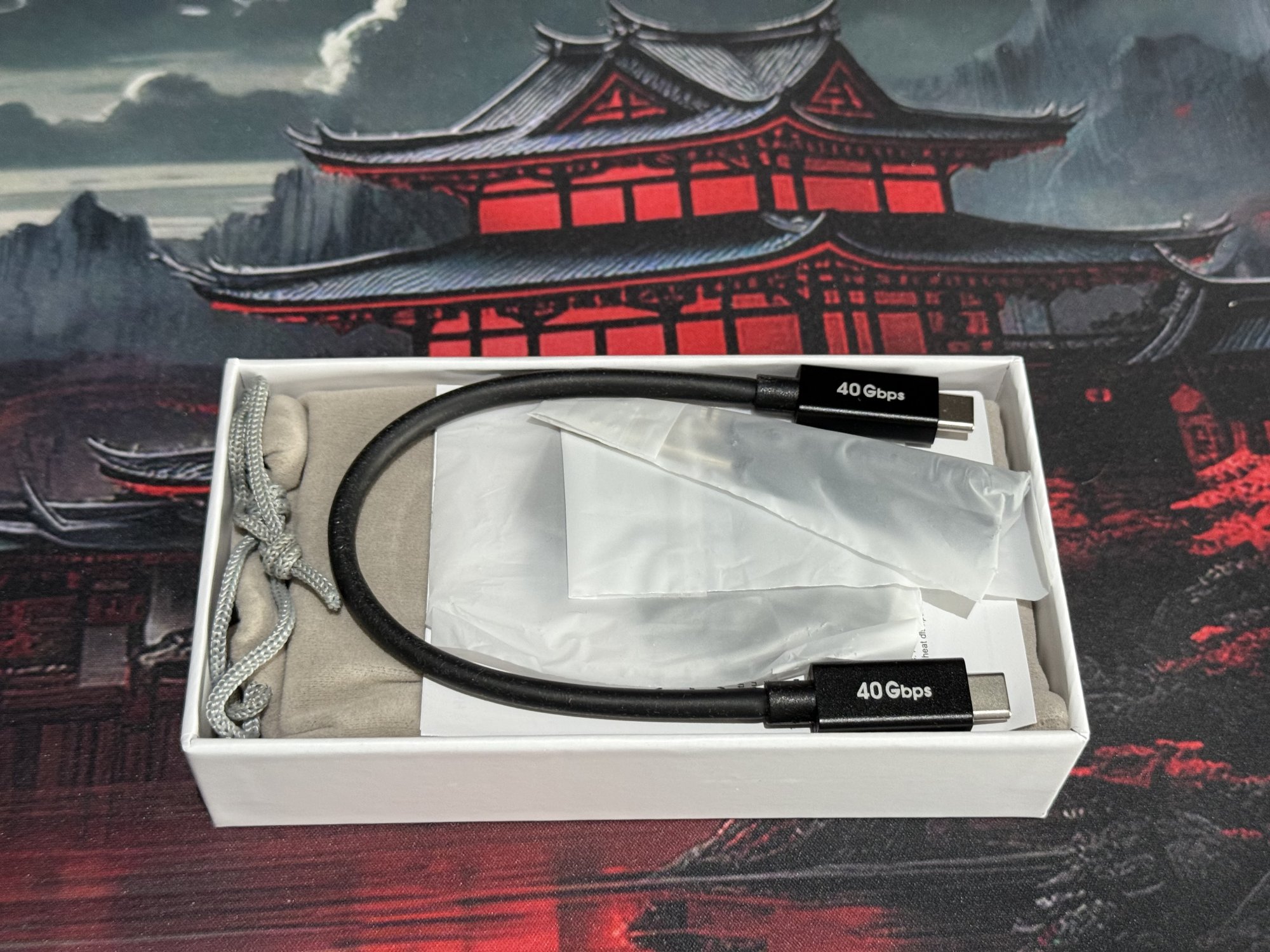

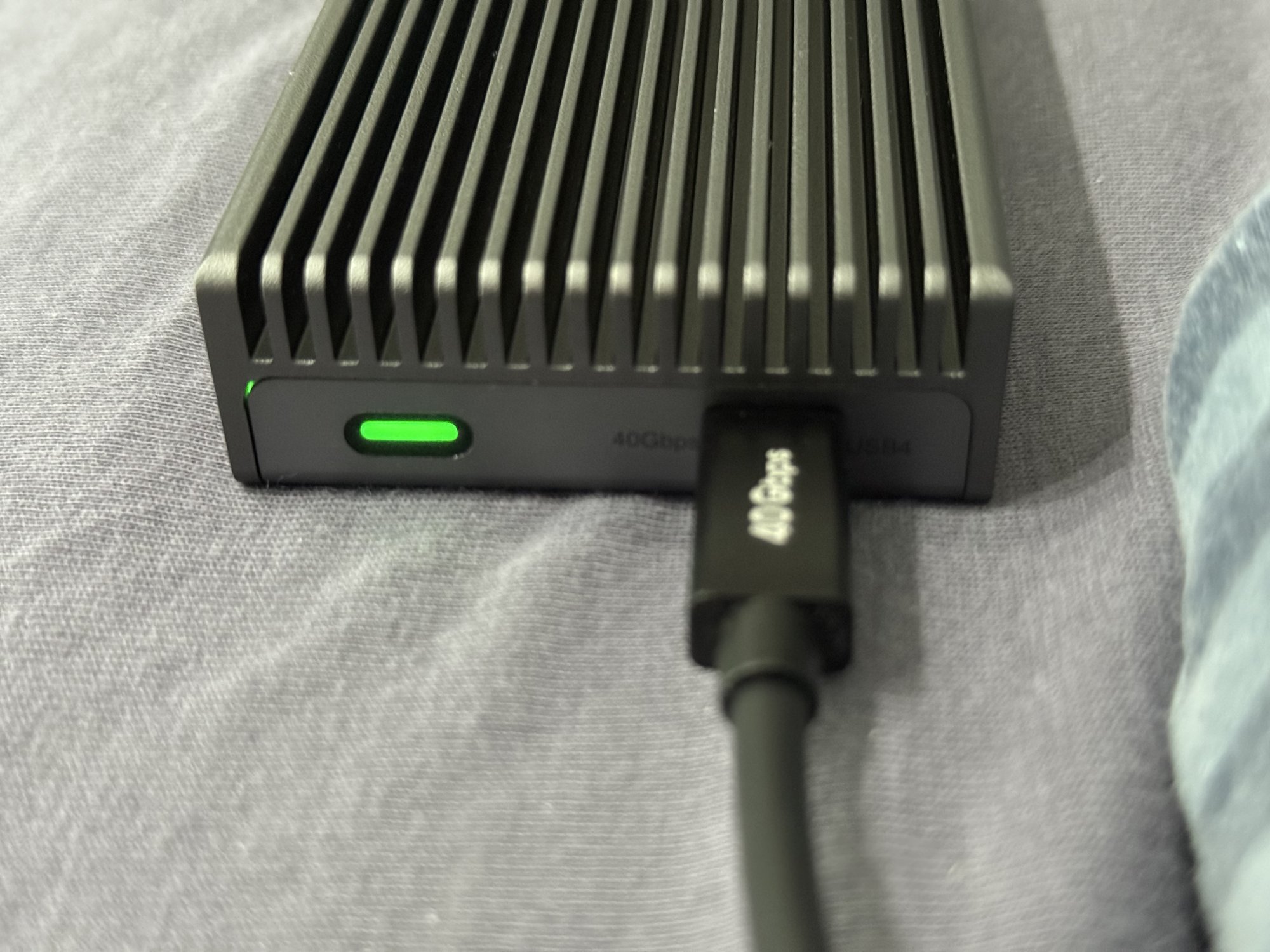

View attachment 2504604View attachment 2504606View attachment 2504608

Looks exactly the same as my Hagibis and my Qwiizlab, not surprisingly.

What firmware are you running? I don’t know if you can even update it on a Mac.



[ExplorerNL]

Looks exactly the same as my Hagibis and my Qwiizlab, not surprisingly.

What firmware are you running? I don’t know if you can even update it on a Mac.

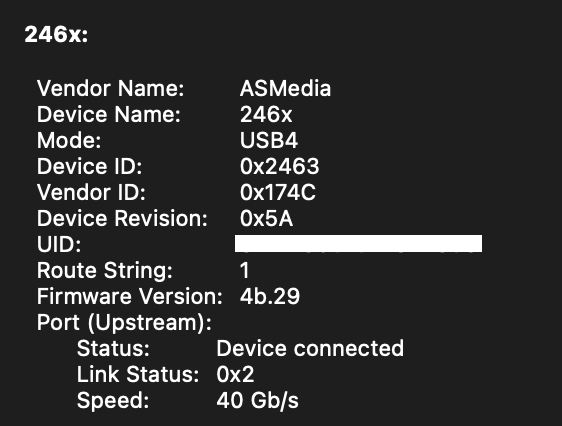

I do have a Windows PC as well, but this is what the specs are



[mogens]

Get firmware updates here, I’ve updated my Jeyi enclosure several times.
Password is : asmedia

https://www.station-drivers.com/ind...40Gbps)/orderby,2/page,2/lang,en-gb/?Itemid=0



[ekwipt]

is that for OWC drives as well?



[EugW]

Get firmware updates here, I’ve updated my Jeyi enclosure several times.
Password is : asmedia

https://www.station-drivers.com/ind...40Gbps)/orderby,2/page,2/lang,en-gb/?Itemid=0

Windows required.



[Elviss116]

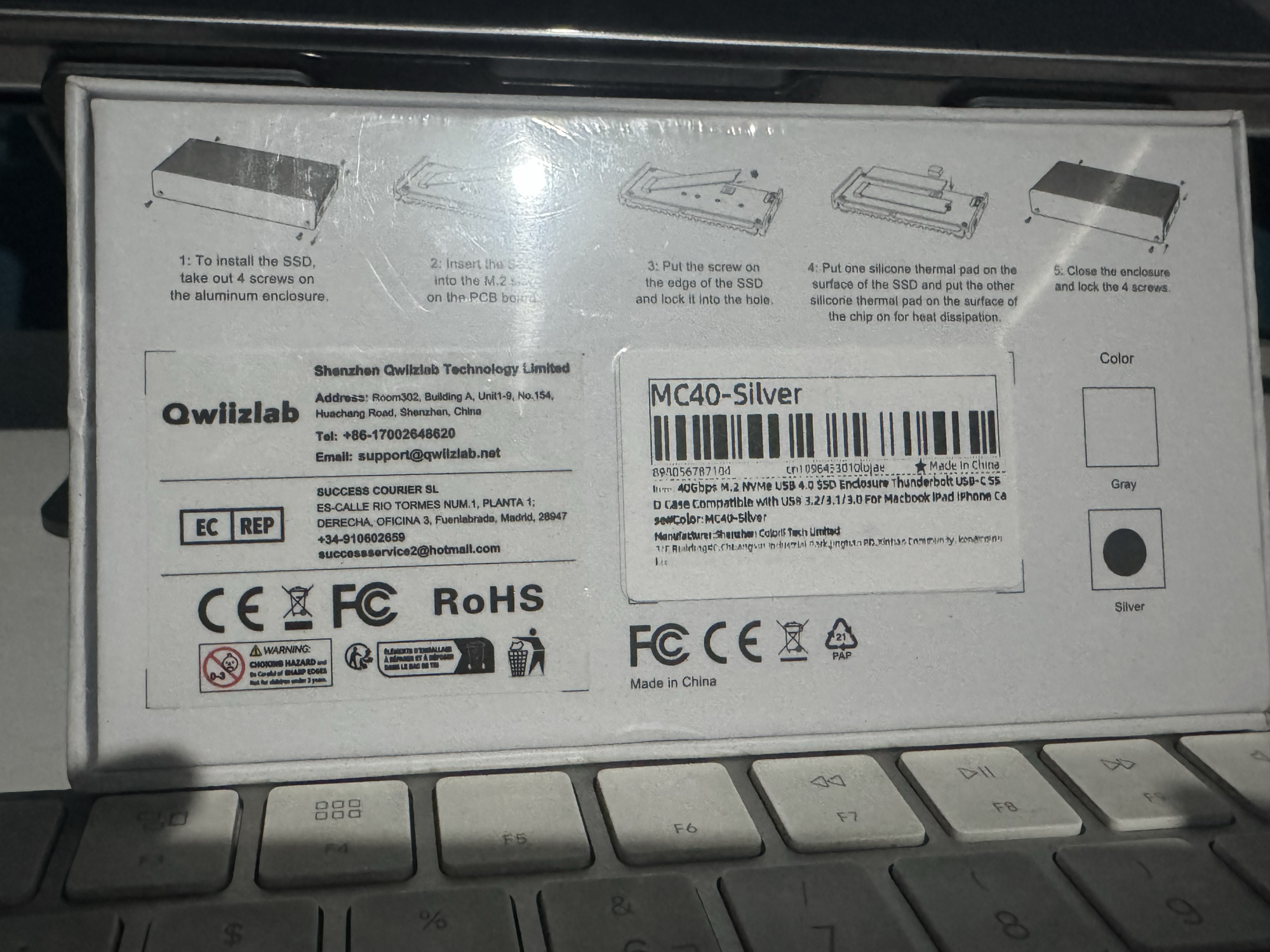

i bought Colorii in "Colorii Office Store" (Aliexpress) but received QUIZLAB



[EugW]

i bought coloori but received QUIZLAB (Aliexpress)

Ha. I guess that makes sense since we believe Colorii makes Qwiizlab.

The interesting part is there is no such thing as a Qwiizlab MC40. The corresponding Qwiizlab model is ES40UR, but it is the same thing as the MC40.



[adonis3k]

Get firmware updates here, I’ve updated my Jeyi enclosure several times.
Password is : asmedia

https://www.station-drivers.com/ind...40Gbps)/orderby,2/page,2/lang,en-gb/?Itemid=0

How do you update it?



[Idgit]

How do you update it?

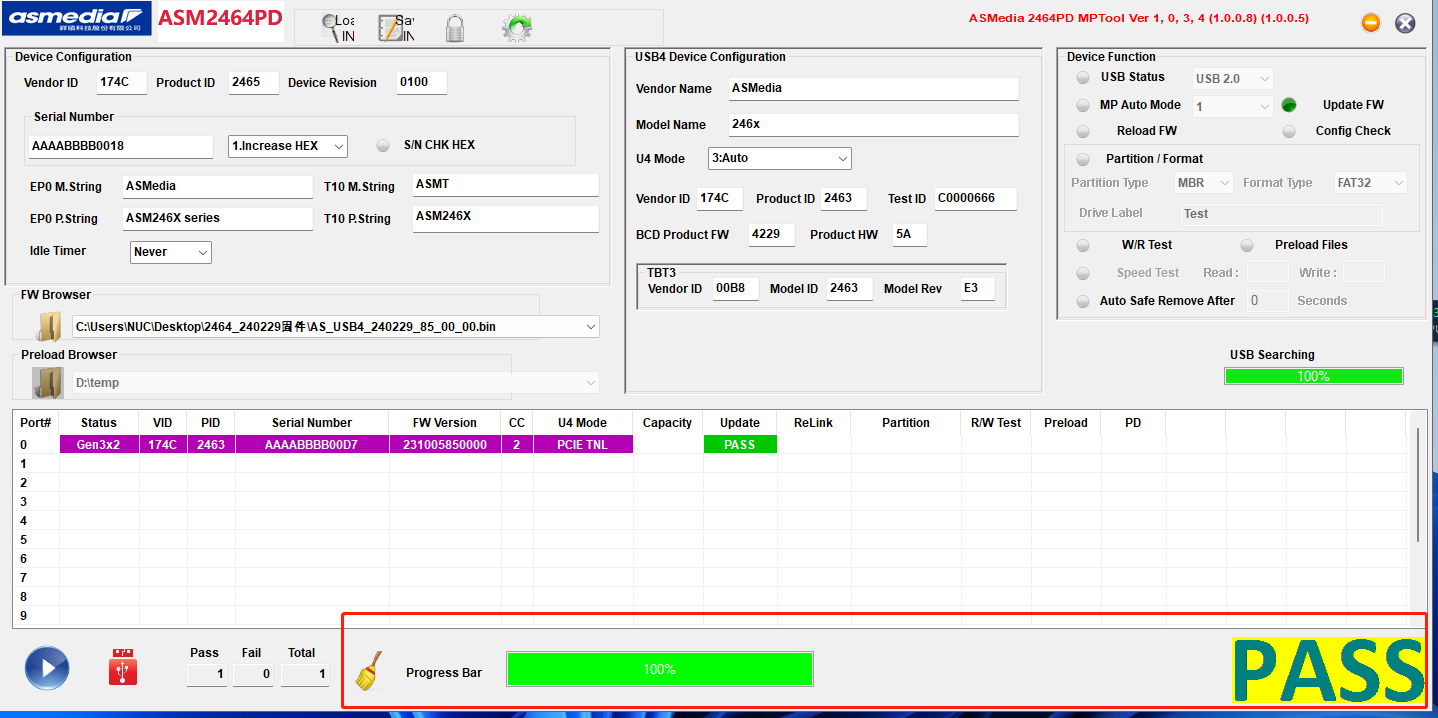

How to upgrade ASM2464 firmware (version 240229)

ASM2464PD Firmware(new): Download Note 1： If a virus is detected after unzipping, don't worry, just run it normally. Note 2： This firmware update software can only run on Windows OS Step 1: Open the firmware (and be able to detect your device in the firmware) Step 2: Unlock the firmware and...

www.jeyi.com

These instructions are for an older firmware but they still apply for the latest firmware. Just ignored the download link at the beginning of the instructions and instead get the latest firmware from the link that @mogens posted above.



[Elviss116]

How to upgrade ASM2464 firmware (version 240229)

ASM2464PD Firmware(new): Download Note 1： If a virus is detected after unzipping, don't worry, just run it normally. Note 2： This firmware update software can only run on Windows OS Step 1: Open the firmware (and be able to detect your device in the firmware) Step 2: Unlock the firmware and...

www.jeyi.com

These instructions are for an older firmware but they still apply for the latest firmware. Just ignored the download link at the beginning of the instructions and instead get the latest firmware from the link that @mogens posted above.

is possible update with nvme or without it?
