I'm nearly 100% positiv I used an USB key to install El Capitan on my Pro.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
2006/2007 Mac Pro (1,1/2,1) and OS X El Capitan
- Thread starter Mr. Zarniwoop
- Start date
-
- Tags
- mac pro 2006 mac pro 2007
- Sort by reaction score
Well that's my problem. Where can I find a bulletproof manual like the one for Yosemite. I've got a feeling that I have to read through all kinds of threads on Macrumors to cover everything.
I saw that you're from the Netherlands. Maybe you are capable of reading a little German. I wrote a short tutorial (in German) in an German Mac forum.
have a look here
Maybe it helps a little...
Hey guys,
Hope this isn't a dumb question. I have Yosemite Running on my Mac Pro 1,1. What is the easiest way to upgrade it to El Capitan. I tried the building a bootable install disk, but every time I go into target disk mode I get no display. I'm guessing this a symptom of the first Yosemite hack? Thanks for any help you can provide.
Cheers,
Zach
What model Video card do you have and what is it flashed for? Have you cleared PRAM from a shutdown a couple times?
Mine is running ElCap and sometimes it STILL will hang. Remember we are using these for an app it was never meant to handle and we have to allow for things to go wierd every once in a while.
Hi folks,
maybe I solved the upgrade-to-10.11.4-on-Mac-Pro-1.1 quest:
- I installed 10.11.0 clean with an USB Stick on a supported Mac (MP3.1)
replaced the 2 boot.efi
- booted on MP1.1 and configured an user
- I ran the CapitanPikeFix_grey.pkg patch
than I went to the /usr/standalone/i386/ directory
- replaced that (old) boot.efi.capitan.pike
with the latest version I found on the github site (3.1, it has 316.416 bytes and is from Tuesday 12 April 2016 at 22:52) and renamed it to boot.efi.capitan.pike so that the script replaces it now with the 3.1 boot.efi
- ran the 10.11.4 combo update
all went smooth without any glitch and after 5 minutes or so I found myself in the login screen. I have no EFI GPU in that Mac btw.
Also after the Recovery Update 1.0 I replaced the boot.efi with 3.1 in the recovery partition. It started with Command-R after boot chime.
hth - and that it pays a little back
btw I have System Integrity Protection status disabled if that counts. And also I have two 512 MB Sticks in my 1.1 - plus 6 x 1GB
cheers,
Macschrauber
odd english included
maybe I solved the upgrade-to-10.11.4-on-Mac-Pro-1.1 quest:
- I installed 10.11.0 clean with an USB Stick on a supported Mac (MP3.1)
replaced the 2 boot.efi
- booted on MP1.1 and configured an user
- I ran the CapitanPikeFix_grey.pkg patch
than I went to the /usr/standalone/i386/ directory
- replaced that (old) boot.efi.capitan.pike
with the latest version I found on the github site (3.1, it has 316.416 bytes and is from Tuesday 12 April 2016 at 22:52) and renamed it to boot.efi.capitan.pike so that the script replaces it now with the 3.1 boot.efi
- ran the 10.11.4 combo update
all went smooth without any glitch and after 5 minutes or so I found myself in the login screen. I have no EFI GPU in that Mac btw.
Also after the Recovery Update 1.0 I replaced the boot.efi with 3.1 in the recovery partition. It started with Command-R after boot chime.
hth - and that it pays a little back
btw I have System Integrity Protection status disabled if that counts. And also I have two 512 MB Sticks in my 1.1 - plus 6 x 1GB
cheers,
Macschrauber
odd english included
Finally had the time to do a clean build out with 10.11.4 on my Mac Pro 1,1 (2,1). I had no issues whatsoever and the OS seems to run smooth on this system. Is there a script I can add that replaces the boot.efi after an update? It's a little more problematic for me since I have a PC video card so no boot screen to look at so I'd like to avoid that scenario completely if possible haha
Also thanks to everybody that has contributed to this effort. I thought I was going to have to give up this machine a long time ago but instead ran Mavericks, Yosemite and now El Capitan using this technique. 9 years later and I'm definitely playing with house money
Also thanks to everybody that has contributed to this effort. I thought I was going to have to give up this machine a long time ago but instead ran Mavericks, Yosemite and now El Capitan using this technique. 9 years later and I'm definitely playing with house money
Hi Guys!!! An Avid follower, and possibly a bit of an idiot.... Been Running My MacPro 1 1 which is now a 2 1 for many years, and with excellent support like this have had the luxury of the latest OS's.
Today I looked at my MacPro and thought Yosemite to ElCapitan Time!! - So I built the pikify v8 stick on my newish MBPro, stuck it into the MacPro. Rebooted and asked the installer to update the 10.10 OS.

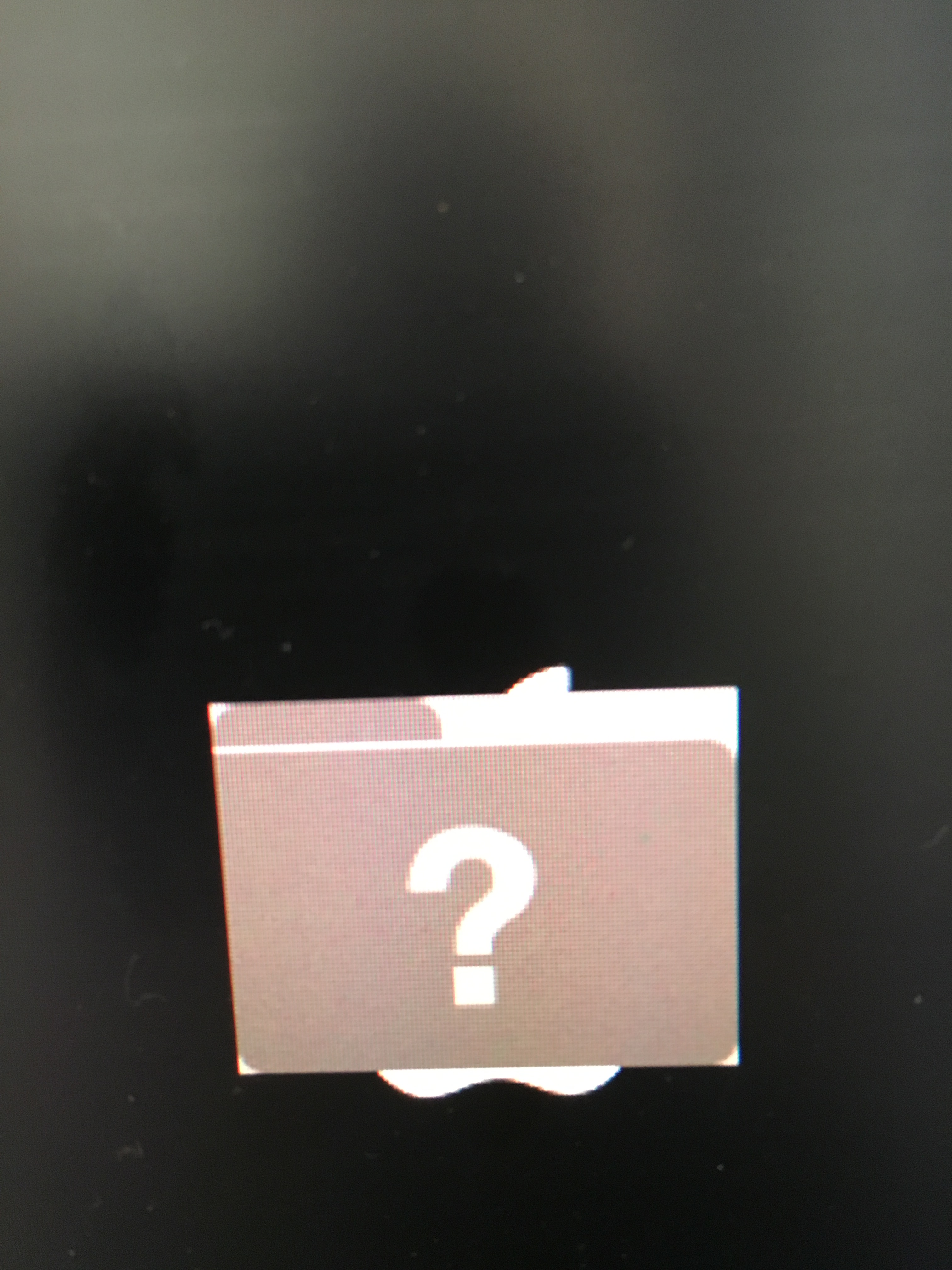

Right now the machine tries to boot ElCapitan, but fails and then launches Recovery Mode......
Guys sorry to ask, as I'm sure the answer is in here somewhere - what is the method to fix this? I'm not the strongest Unix Commands guy, and apologies for the question; struggling to find the answer in the 84 Page thread.
Many Thanks
B
Today I looked at my MacPro and thought Yosemite to ElCapitan Time!! - So I built the pikify v8 stick on my newish MBPro, stuck it into the MacPro. Rebooted and asked the installer to update the 10.10 OS.
Right now the machine tries to boot ElCapitan, but fails and then launches Recovery Mode......
Guys sorry to ask, as I'm sure the answer is in here somewhere - what is the method to fix this? I'm not the strongest Unix Commands guy, and apologies for the question; struggling to find the answer in the 84 Page thread.
Many Thanks
B
How much RAM do you have and is any of it 512mb modules? If less than 12GB and if any 512s in there this will be a well documented problem.
Thanks Ant, I did upgrade the unit a while ago - I don;t think I have any 512's and I am upto 12Gb, is there any way of checking without taking the lid off?
Go to "About this Mac" then click the Memory tab. It will show the memory slots and what is in them.
Yeah - problem there is I have no OS booting only recovery mode - No About this Mac in there
Sorry nightmare111 but you are exactly wrong.
MacPro's can boot from USB keys, I boot my 2,1 (formerly 1,1) from USB keys all the time!
Of course they need to be built properly (see my posts on page 56 post #1390).
If you only have access to the one Mac, and it is a MacPro 1,1 or 2,1 the USB key is the only method that is going to help you get El Capitan installed.
If you do have access to more than one Mac, then there are other ways. See post #1
Last edited:
Exactly right - I built the USB Boot key for my 1.1 this afternoon, and it built the machine from the key. These machines boot perfectly from USB
Hi dhboff,
Did you boot off the USB key? It will go straight into the Installer (looks a bit like recovery but isn't).
If the installer ran (with your input), did it run to completion?
If you can get access to the disk, the installer log file can be found at /var/log/install.log. If you can get to it, then post it here and I'll take a look at it for you.....
Wicked.
[doublepost=1460740691][/doublepost]
I think it did run to completion. I think being the key point.
Your log file does not show me what I expected to see. It does not look like a typical install log from a "pikify" USB key install. So it's either been overwritten by another installer run or we need to make sure you are following the steps correctly (no offence intended, it's just hard to know when using forum boards)
1. Perform a backup (if you didn't already do that)
2. Boot into the USB key (installer), reboot, hold the ALT key down immediately on hearing the boot chime, select the Install OS X El Capitan partition
3. It should boot into the installer environment, you may get the language chooser, or you may see the Install window
4. Work through the install
5. When the install completes you may need to hit the reboot button.
Assumptions:
A. You are using a pikify built USB key
B. Your graphics card shows boot screens (my flashed 5770 does!)
C. When you created the USB key you are using a (very) recent copy of Install OS X El Capitan App downloaded from the Mac App Store (if you have the latest copy it will already be 10.11.4, no need for update after the install)
Good luck
i created a pikify usb boot with the 10.11.4 from the app store but didn't manage to boot from it, but i used pikify boot files on a restore and it worked fine even the restore partition
2. Right-click on the downloaded El Capitan Installer app and click show package contents.
3. Browse to the folder /Contents/SharedSupport.
4. Double-click to mount “InstallESD.dmg”.
5. Open up Disk Utility and drag BaseSystem.dmg to the side bar (in Disk Utility).
6. Click on BaseSystem.dmg in Disk Utility and select the Restore tab.
7. Set the BaseSystem.dmg as the source and choose the thumb drive or the 8GB internal blank partition (formatted as HFS+) as the destination.
8. Restore the image to that destination.
9. If you so desire, rename the thumb drive or the internal partition. For instance, I named mine “Install”.
10. Use the Finder to browse the newly restored installer. Go to the folder /System/Installation on the installer and delete the “Packages” alias file.
11. Go back to the mounted InstallESD.dmg and drag the “Packages” folder to the installer into the /System/Installation folder where the alias file used to be.
12. Copy the “BaseSystem.dmg” and “BaseSystem.chunklist” files to the root of the installer.
13. On the installer, go to /System/Installation/Packages/ and right-click on Essentials.pkg. Open it with Pacifist. Within Pacifist, navigate to /System/Library/Kernels/. There you will see a file named “kernel”.
14. Using the Finder, on the installer, create a folder named “Kernels” [without the quotation marks] in /System/Library/ and open the new folder.
15. Drag the “kernel” file from Pacifist to the Finder window where the “Kernels” folder is open.
Modification of the generic stand-alone El Capitan installer so that it will run on an old Mac Pro
1. Using the Finder, on the installer, navigate to System/Installation/Packages.
2. Right-click OSInstall.mpkg and open it with the Flat Package Editor.
3. Click and drag the “Distribution” file to your desktop and then open that using the text editor.
4. Scroll down a little bit until you see “var platformSupportValues=[...” [without the quotation marks]. That is followed by a bunch of board ID. For the Mac Pro 1,1 and 2,1 you will need to add "Mac-F4208DC8","Mac-F4208DA9" [it is imperative that such ID be surrounded by non-curly quotation marks]. Add them to the beginning of the list. You can copy the following line, including the last comma (without the carriage return that follows it), and then paste it to “Distribution”:
"Mac-F4208DC8","Mac-F4208DA9",
5. Save the edited Distribution file.
6. In the Flat Package Editor window, with the Distribution file highlighted, click Delete.
7. Now drag the edited Distribution file into the window and save the package file.
8. Also in the Packages folder you will need to modify the InstallableMachines.plist file with the same to above board ID again following the syntax.
9. You have to modify the PlatformSupport.plist located in the System/Library/CoreServices folder, again adding the two board IDs in the correct syntax.
10. And now we come to the most crucial part: including Pike’s boot.efi on the installer. For this, replace the boot.efi files located in System/Library/CoreServices and usr/standalone/i386 with Pike’s boot.efi that you previously downloaded as indicated earlier.
11. Finally, replace the bootbase.efi file located in System/Library/CoreServices with Pike’s bootbase.efi that you previously downloaded as indicated earlier.
Installation of El Capitan on an old Mac Pro using the modified installer
1. Boot from the installer by holding option after the boot chime
3. Browse to the folder /Contents/SharedSupport.
4. Double-click to mount “InstallESD.dmg”.
5. Open up Disk Utility and drag BaseSystem.dmg to the side bar (in Disk Utility).
6. Click on BaseSystem.dmg in Disk Utility and select the Restore tab.
7. Set the BaseSystem.dmg as the source and choose the thumb drive or the 8GB internal blank partition (formatted as HFS+) as the destination.
8. Restore the image to that destination.
9. If you so desire, rename the thumb drive or the internal partition. For instance, I named mine “Install”.
10. Use the Finder to browse the newly restored installer. Go to the folder /System/Installation on the installer and delete the “Packages” alias file.
11. Go back to the mounted InstallESD.dmg and drag the “Packages” folder to the installer into the /System/Installation folder where the alias file used to be.
12. Copy the “BaseSystem.dmg” and “BaseSystem.chunklist” files to the root of the installer.
13. On the installer, go to /System/Installation/Packages/ and right-click on Essentials.pkg. Open it with Pacifist. Within Pacifist, navigate to /System/Library/Kernels/. There you will see a file named “kernel”.
14. Using the Finder, on the installer, create a folder named “Kernels” [without the quotation marks] in /System/Library/ and open the new folder.
15. Drag the “kernel” file from Pacifist to the Finder window where the “Kernels” folder is open.
Modification of the generic stand-alone El Capitan installer so that it will run on an old Mac Pro
1. Using the Finder, on the installer, navigate to System/Installation/Packages.
2. Right-click OSInstall.mpkg and open it with the Flat Package Editor.
3. Click and drag the “Distribution” file to your desktop and then open that using the text editor.
4. Scroll down a little bit until you see “var platformSupportValues=[...” [without the quotation marks]. That is followed by a bunch of board ID. For the Mac Pro 1,1 and 2,1 you will need to add "Mac-F4208DC8","Mac-F4208DA9" [it is imperative that such ID be surrounded by non-curly quotation marks]. Add them to the beginning of the list. You can copy the following line, including the last comma (without the carriage return that follows it), and then paste it to “Distribution”:
"Mac-F4208DC8","Mac-F4208DA9",
5. Save the edited Distribution file.
6. In the Flat Package Editor window, with the Distribution file highlighted, click Delete.
7. Now drag the edited Distribution file into the window and save the package file.
8. Also in the Packages folder you will need to modify the InstallableMachines.plist file with the same to above board ID again following the syntax.
9. You have to modify the PlatformSupport.plist located in the System/Library/CoreServices folder, again adding the two board IDs in the correct syntax.
10. And now we come to the most crucial part: including Pike’s boot.efi on the installer. For this, replace the boot.efi files located in System/Library/CoreServices and usr/standalone/i386 with Pike’s boot.efi that you previously downloaded as indicated earlier.
11. Finally, replace the bootbase.efi file located in System/Library/CoreServices with Pike’s bootbase.efi that you previously downloaded as indicated earlier.
Installation of El Capitan on an old Mac Pro using the modified installer
1. Boot from the installer by holding option after the boot chime
Hello ls2025,
Take a look at the posts above, my post #2092 contains links to a method of building the USB key.
The directions you are following are a little out of date, they can work, but you will have to get everything correct otherwise it will not boot, as you have experienced!
