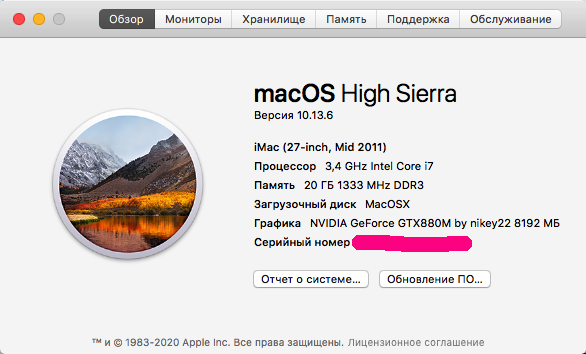

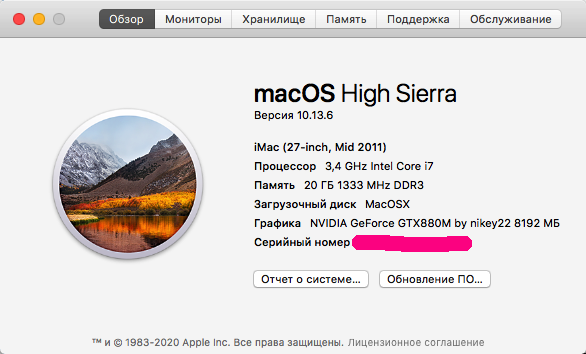

Today I bought an 880M video card
I flashed the bios from NIKEY
Works perfectly in iMac 2011 27"
Thanks!
I flashed the bios from NIKEY
Works perfectly in iMac 2011 27"
Thanks!
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
iM 4,1-14,4 2011 iMac Graphics Card Upgrade
- Thread starter MichaelDT
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
Interesting, my GTX880M card would not even POST on my 2011 iMac. It goes past the POST on the 2010 but I'm having a hard time getting a way to flash it. (the ethernet doesn't work!)
No command line needed. There's a menu that pops up when you boot into grml. I think Network Setup is one of the options. Just go through the menus and choose wifi and choose your wifi network. Once you're connected, you can log into your wifi router and find that Mac's IP address. Then you can SSH into it from another computer. Try it out with a working screen before you do the flashing.
Last edited:
Thank you very much, Nick.
My understanding is: If I buy the Dell version of this M5950 card which already has the EFI chip, I just need to flash your vBIOS without worrying about the EFi chip or resistor. Is that correct?
There are numerous reports on some NVIDIA cards not POSTing on the 12,2 iMac, even reference to those on the initial post here. What happens on mine is that the fans spin up for a second and then the system shuts off.
I didn't even dismount the card from the heat sink when I tried it in the 11,3 iMac and it does POST (to 2 LEDs) but I need to flash it.
It's still connected to the heat sink and I don't feel like taking it apart so the photo is probably less than useful.
I’m pretty sure you need at minimum a 128k chip, I do believe these cards have a 64k chip.
Using the chip from you dead card should work.
Is it possible to change the memory in an existing bios?
Hi! I'm trying to flash this bios onto a card that was pulled from a Dell, which is exactly the same, except it has 1gb of memory. Flashing the apple version onto the dell card should work, but obviously i will only get 512mb memory. Is it possible to change this rom to utilize all of the...
www.techpowerup.com

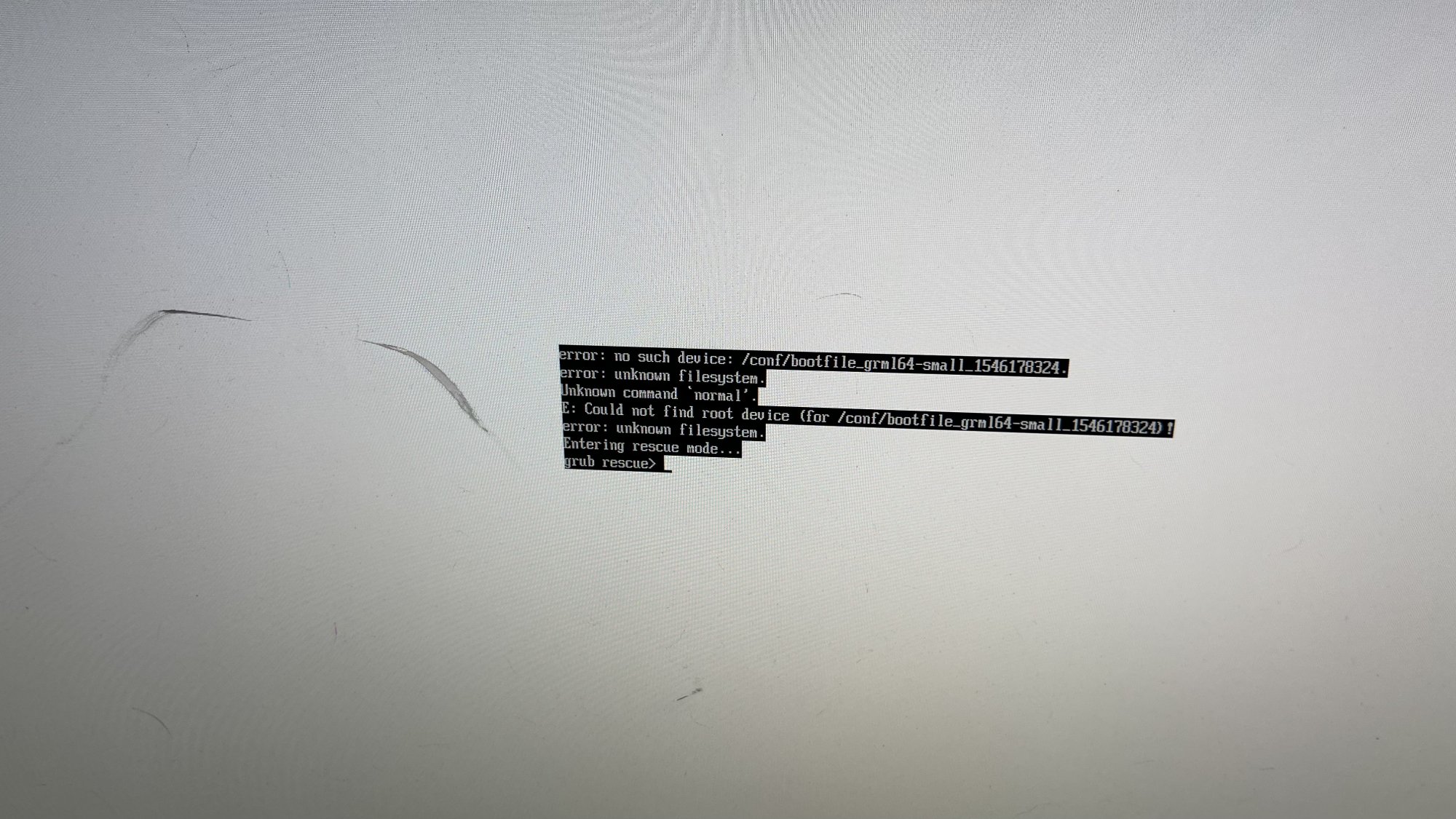

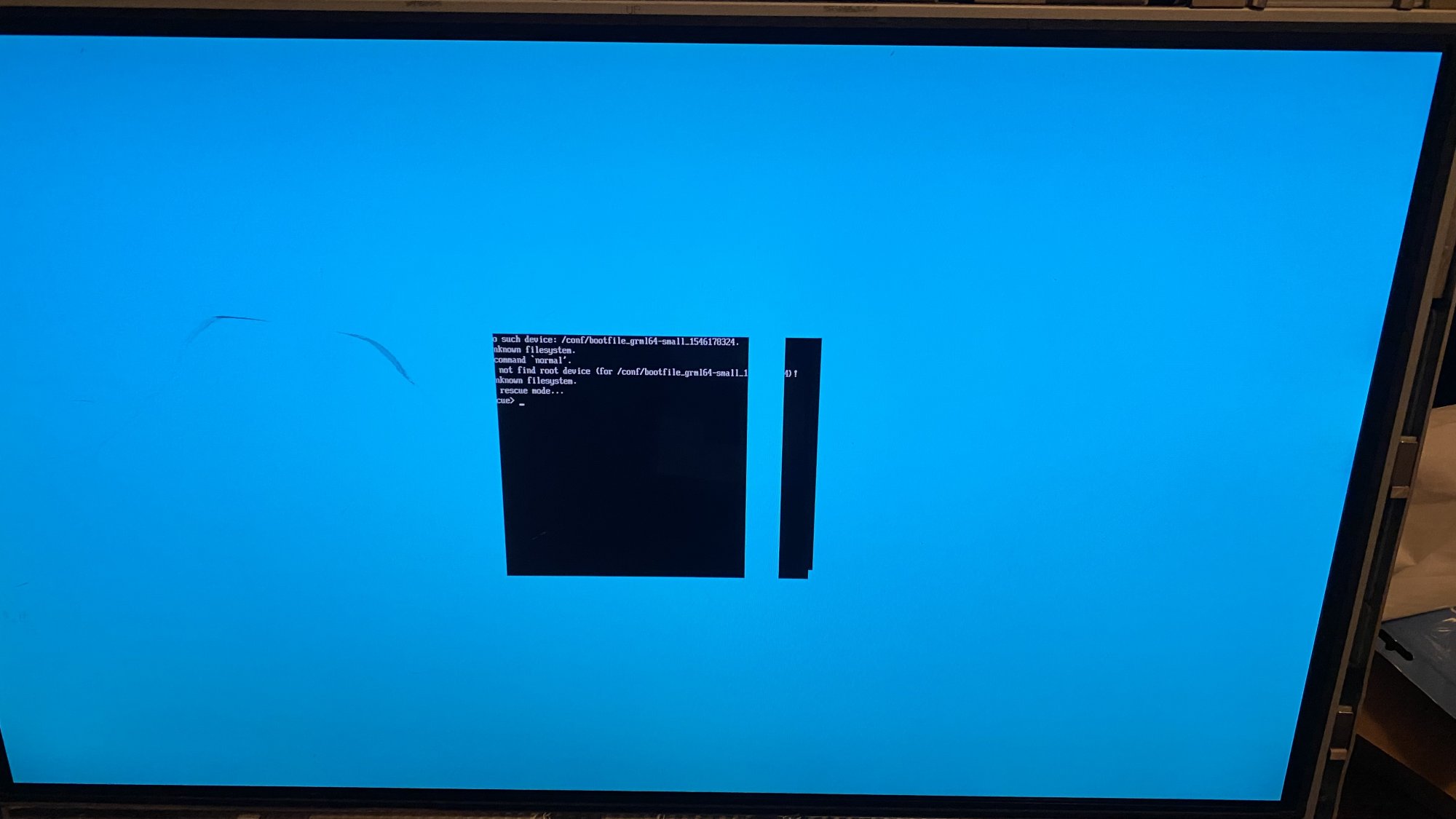

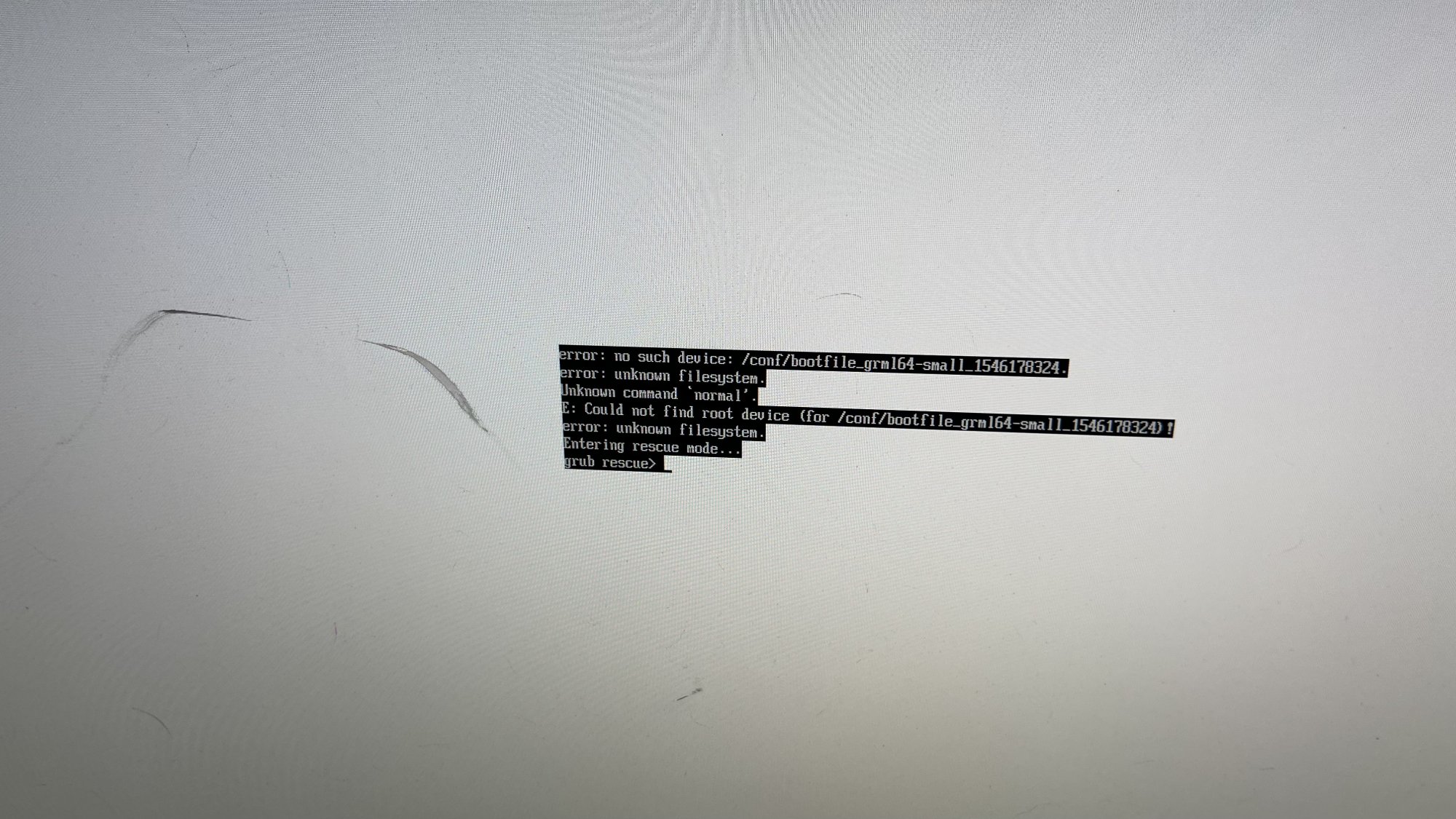

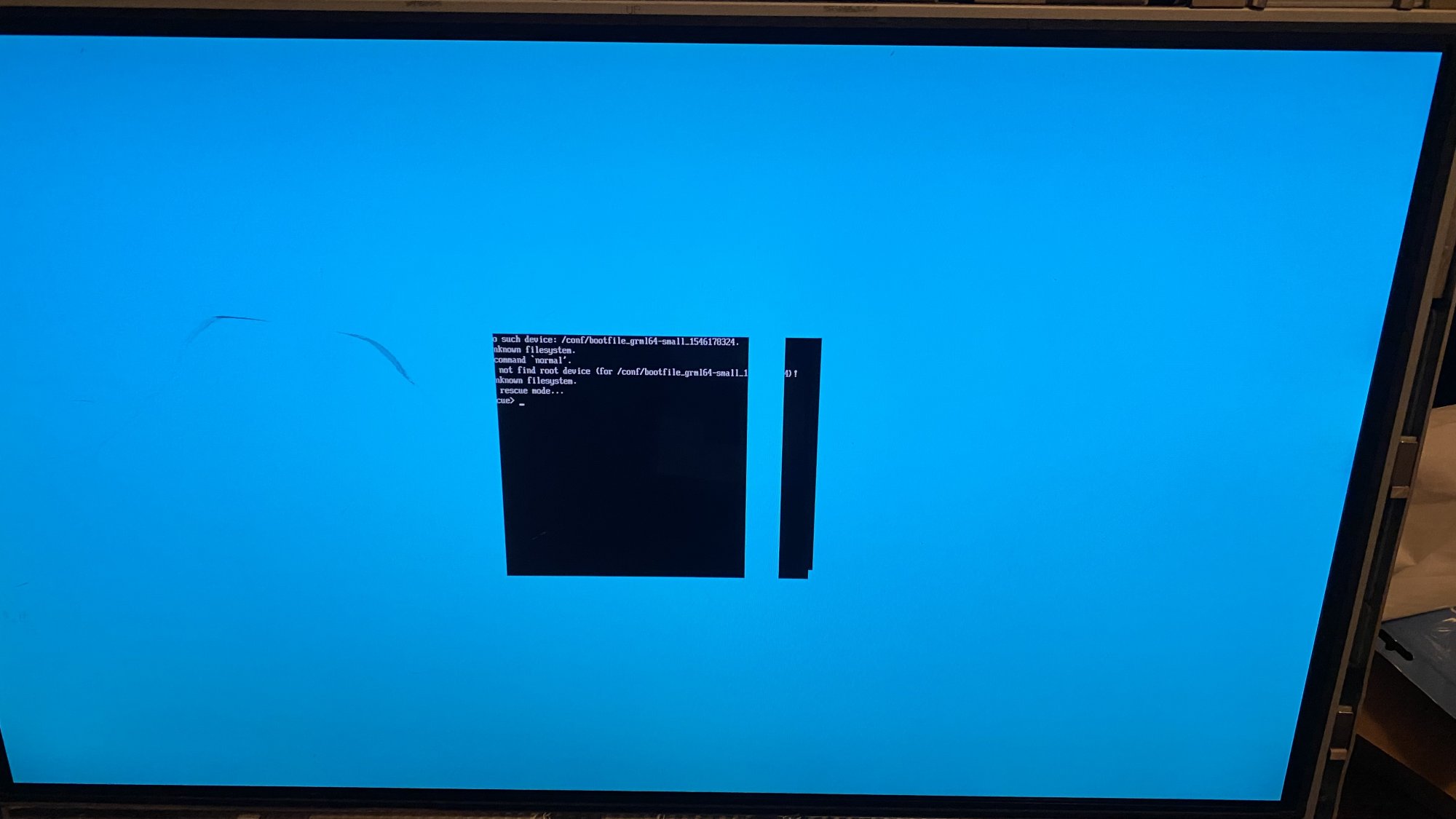

I have downloaded the file from the link and when I follow the directions this is what I get and it doesn't matter what usb stick I use or what computer. I have already flashed a handful of computers using this method, but the stick worked before and now nothing. Can someone please help me out.
Attachments
I had a similar issue when my stick was formatted to NTFS... Make sure it is fat32 and try again.
Tried that last night and for some reason it's not starting the WiFi (that I know works as MacOS is using it right now)
there are a bunch of settings where I took the default, perhaps there is one of those that I need to change?

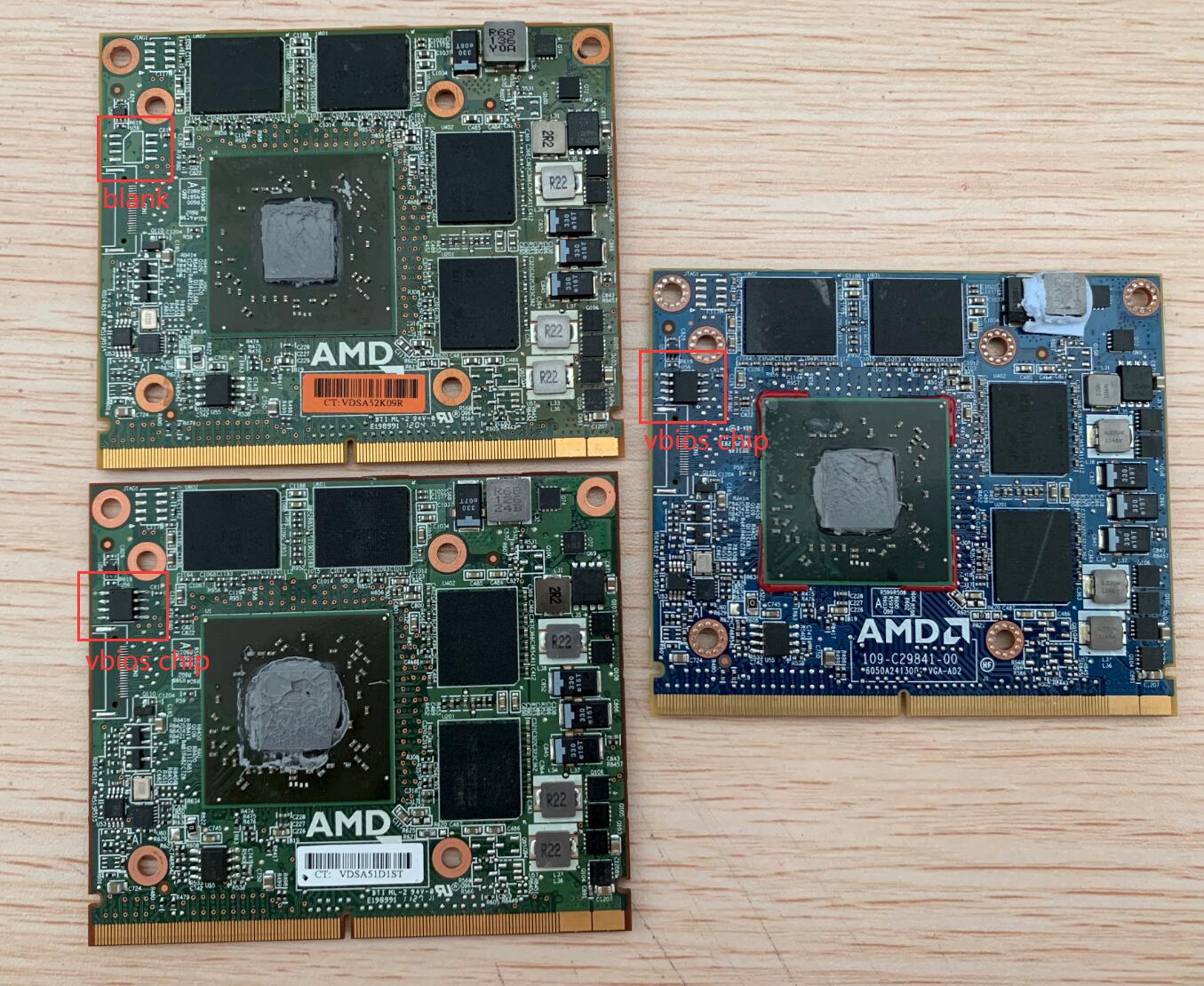

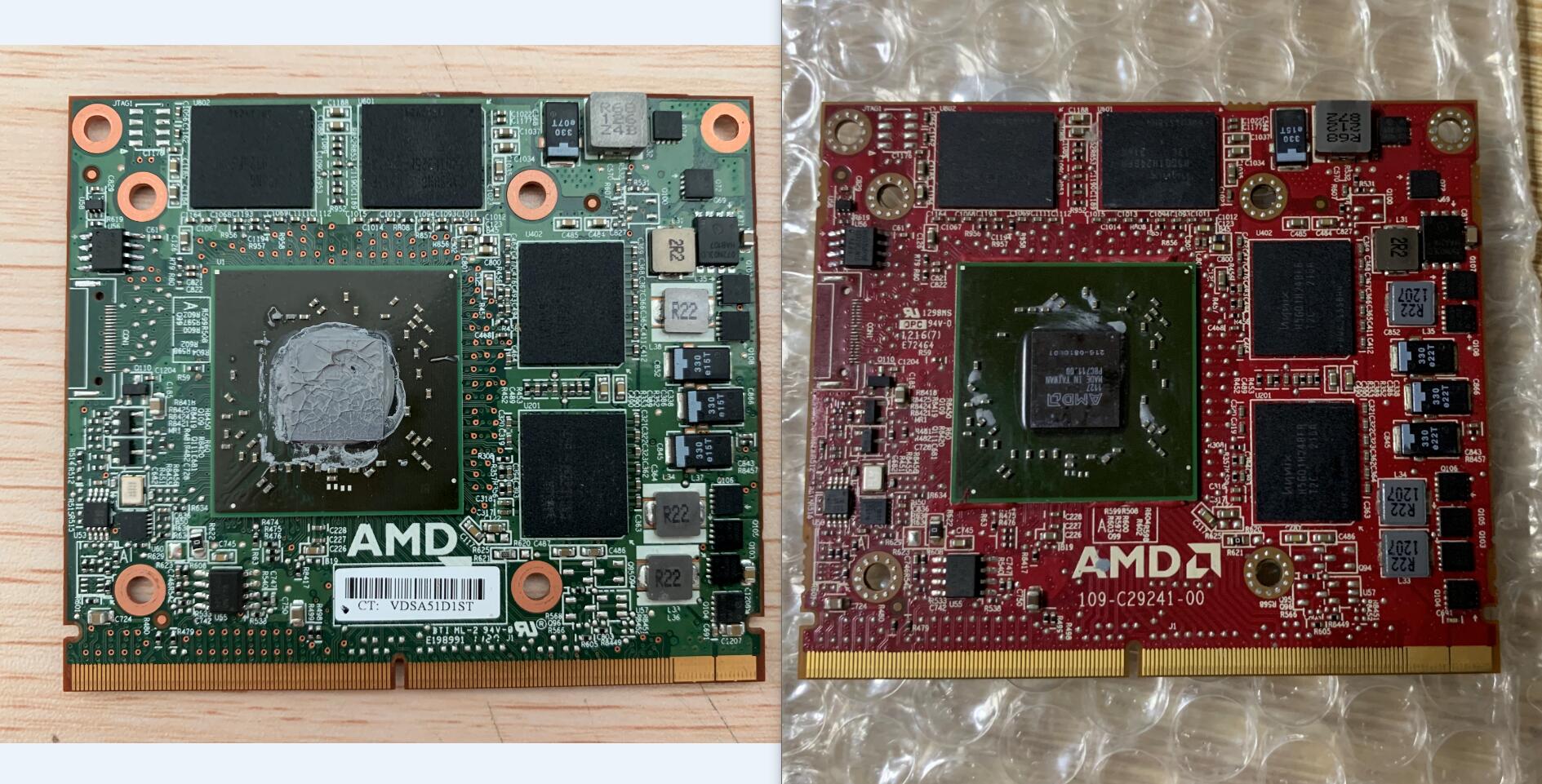

Dell red pcb vbios storage chip capacity is 64kb, need to replace 128kb or replace with a larger capacity. I am replacing the k610m like storage chip 256kb capacity. There is no problem using it.
Attachments
Got the WiFi working, was using the wrong password.... duh.
Now on to disassembly and another attempt at the GTX880M.
Now on to disassembly and another attempt at the GTX880M.
My 880M video card works fine!!!
Sleep works without OPENKORE.
Brightness adjustment works without OPENKORE.
The temperature at high load is a maximum of 56 degrees!!!
Well, after all that I suspect that the card is defective.
I was able to get the WiFi working. For those interested in the sequence of commands I'll put them at the end of this post.
I then installed the GTX880 into the iMac and booted the GRML stick. I was able to successfully log in via ssh, see the GTX880 card, save the original BIOS, load the 880M bios from this thread and then I put the display into the system.

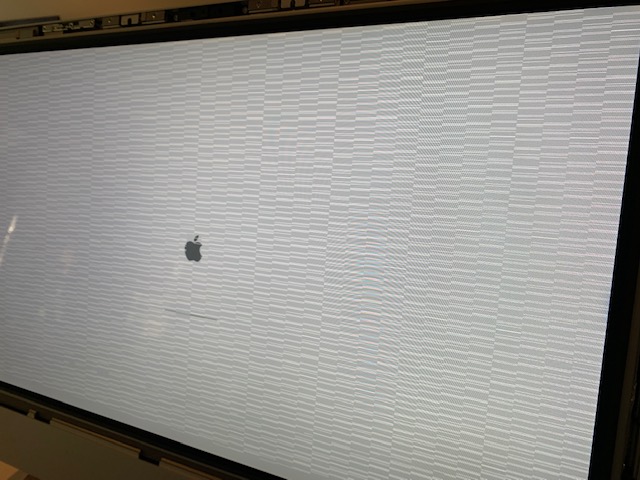

I can see the boot picker but the screen is scrambled. The system tries to boot but when it switches to turn the GPU on it crashes and reboots. Again putting the old Radeon 5750 back into the system and all is fine. (see photo)
so like I said all for naught. So close but no cigar....
Steps to doing WiFi on the GRML stick
boot the GMRL stick, wait about 2 minutes (there is a 15-second wait to boot and another minute or so of booting) It helps to have your SSID for your network to have a unique first letter in all that can be seen by the Mac. For example, mine is named Jackson and that's the only one that starts with J. If you don't you're going to have to actually boot this on something else and figure out which letter corresponds to your network.
now do the following:
e (without enter, this gets into netconfig)
1<enter> (this selects the WiFi adapter)
<enter> (set up wireless)
<enter> (scan for networks)
"first letter of your network SSID" then <enter>
<enter> (enable WPA for security if you have it, most do)
"your security passcode" followed by <enter>
<enter> (default params)
<enter> (default params)
<enter> (default params)
<enter> (no VLAN)
<enter> (enable DHCP)
N <enter> (don't store for boot, doesn't work anyway)
right-arrow <enter> (quit and start WiFi)
you should then be able to log in via SSH
It helps if you have a working system where you can watch what is happening when you do this to practice but I realize some don't have that luxury when they are trying to revive sysems with bad GPUs.
I was able to get the WiFi working. For those interested in the sequence of commands I'll put them at the end of this post.
I then installed the GTX880 into the iMac and booted the GRML stick. I was able to successfully log in via ssh, see the GTX880 card, save the original BIOS, load the 880M bios from this thread and then I put the display into the system.
I can see the boot picker but the screen is scrambled. The system tries to boot but when it switches to turn the GPU on it crashes and reboots. Again putting the old Radeon 5750 back into the system and all is fine. (see photo)
so like I said all for naught. So close but no cigar....
Steps to doing WiFi on the GRML stick
boot the GMRL stick, wait about 2 minutes (there is a 15-second wait to boot and another minute or so of booting) It helps to have your SSID for your network to have a unique first letter in all that can be seen by the Mac. For example, mine is named Jackson and that's the only one that starts with J. If you don't you're going to have to actually boot this on something else and figure out which letter corresponds to your network.
now do the following:
e (without enter, this gets into netconfig)
1<enter> (this selects the WiFi adapter)
<enter> (set up wireless)
<enter> (scan for networks)
"first letter of your network SSID" then <enter>
<enter> (enable WPA for security if you have it, most do)
"your security passcode" followed by <enter>
<enter> (default params)
<enter> (default params)
<enter> (default params)
<enter> (no VLAN)
<enter> (enable DHCP)
N <enter> (don't store for boot, doesn't work anyway)
right-arrow <enter> (quit and start WiFi)
you should then be able to log in via SSH
It helps if you have a working system where you can watch what is happening when you do this to practice but I realize some don't have that luxury when they are trying to revive sysems with bad GPUs.
Attachments
Update: About the "race condition" which became apparent with Big Sur 11.3+
Story:
This Apple bug causes the boot or reboot hanging on systems lacking a special Intel CPU instruction. In general all system older than the Apple 2011 Intel Sandy Bridge systems have been affected.
Affected Systems and macOS versions:
This Bug also affects the iMac11.x family (Late 2009 and Mid 2010 system) used on this thread to replace the GPU. It happens with all macOS versions later than Big Sur 11.2.3 and includes all Monterey Beta versions published so far.
News:
This Bug has fixed by the SurPlus OpenCore patch. The patch has been included into the latest nightly build of OCLP 0.3.0. To use it just migrate to this OCLP or edit the config.plist manually as described on the SurPlus thread. In case you edit manually do not forget to disable the latebloom extension and delete the boot-args needed by this workaround.
Note: First post has been updated. I am just the messenger here. All credits go to @Syncretic!
Hello.
Last Saturday, I installed a K3100M video card in my iMac 27" 2010 and installed Big Sur on it. For installation, I used OLCP version 2.5. I still have a flash drive with the copied High Sierra. The problem is that the screen backlight control does not work. At the same time, if I boot from a "clean" High Sierra flash drive, then in High Sierra the control of the screen backlight works, and if I boot from the same flash drive via Open Clover, it does not work. Please help me to understand the situation and fix the screen backlight control! What information do I need to provide for this?
Last Saturday, I installed a K3100M video card in my iMac 27" 2010 and installed Big Sur on it. For installation, I used OLCP version 2.5. I still have a flash drive with the copied High Sierra. The problem is that the screen backlight control does not work. At the same time, if I boot from a "clean" High Sierra flash drive, then in High Sierra the control of the screen backlight works, and if I boot from the same flash drive via Open Clover, it does not work. Please help me to understand the situation and fix the screen backlight control! What information do I need to provide for this?
How did you install Big Sur? (was it via OCLP or via another patcher?).
And was the OCLP installed after or before the GPU was installed? (the vBIOS for the K1000M will only work in conjunction with OCLP; if this is the case you may have to rebuild your OCLP install, ensure your config.plist has "boot-arg agdpmod=vit9696", ensure no legacy video card patches have been applied, etc)
OK, so from what you've said.
- you have an external USB with HS (which backlight is OK in)
- Mac's internal drive has Big Sur and OpenCore on it (not sure what you mean by 'Open Clover', unless you mean that you've used Clover to mount the EFI), in which the backlight doesn't work.
This could be that your Big Sur installation needs the patch linked here: https://forums.macrumors.com/thread....1596614/page-322?post=28702210#post-28702210
Hi,
I've the same issue with Sleep Mode and Wake up on Catalina with Nvidia K3100M.
Do you have the link to the iMac Sleep Patch ?
Many thanks
Regards
Memoli
Let‘s stick with things we certainly know and let us not start on this thread helping with assumptions.
There is a difference between a not working backlight and missing backlight control. I still do not know what the real problem is.
Patches are not needed with OCLP on Big Sur other than the ones included into OCLP itself (Kepler patches on Monterey Beta7+ and WiFi patches on Monterey in general).
There is no entry in the boot-args like agdpmod=vit9696, this particular setting has been included into the DeviceProperties Section of the GPU. It is only there to avoid the black screen issue on boot and enable the mini DP port for a second external display. And it will be only there if OCLP finds a Kepler GPU in the iMac while running and installing OpenCore.
Yes, so you need to install OpenCore through OCLP after installing the NVIDIA card unless you are using the patcher settings to force a metal Kepler GPU choice.
You both could spend some time reading the first post and the OCLP docs to get a better understanding.
The first post of this thread is considered to be the documention of most former and all recent achievements and developments. Just check it out.
A link is provided in post 1 of this thread.
