iM 4,1-14,4 2011 iMac Graphics Card Upgrade

[The_Croupier]

Hello, i have weird case, iMac 2009(11,1), 880M with vBIOS, and my internal lcd didnt work, card works perfectly on external lcd, when i go to list of connected monitors, i didnt see internal lcd, but after pc goes to sleep(after some time, not by pressing button), it starts see internal lcd, backlight fires up, but the picture does not appear. I would appreciate your help!

Post in thread '2011 iMac Graphics Card Upgrade'
https://forums.macrumors.com/threads/2011-imac-graphics-card-upgrade.1596614/post-29726164



[Marche90]

What is the best GPU to use on the 2011 imacs with 6000 series AMD? Can any gpus be used with the 2 heatpipe method that also work with the 2011 imac with decent preformance?

Are we talking here about a 21.5" or a 27"? Because the answer will be different. So far from what I've seen the best MXM-A card (can use on all iMacs) that is compatible with macOS is the WX4150. If it's an MXM-B (27" only) card I think it is the WX7100, but you can't use a 2 heatpipe heat dissipator with an MXM-B card, it NEEDS to have the 3 heatpipes.



[Alex W.]

Are we talking here about a 21.5" or a 27"? Because the answer will be different. So far from what I've seen the best MXM-A card (can use on all iMacs) that is compatible with macOS is the WX4150. If it's an MXM-B (27" only) card I think it is the WX7100, but you can't use a 2 heatpipe heat dissipator with an MXM-B card, it NEEDS to have the 3 heatpipes.

27" with a 6770m (2 heat pipe)



[iLazarus]

Have you run geekbench 5, perhaps your CPU is throttling?

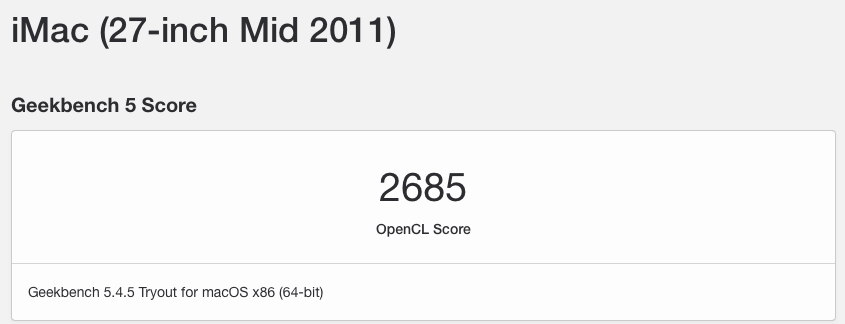

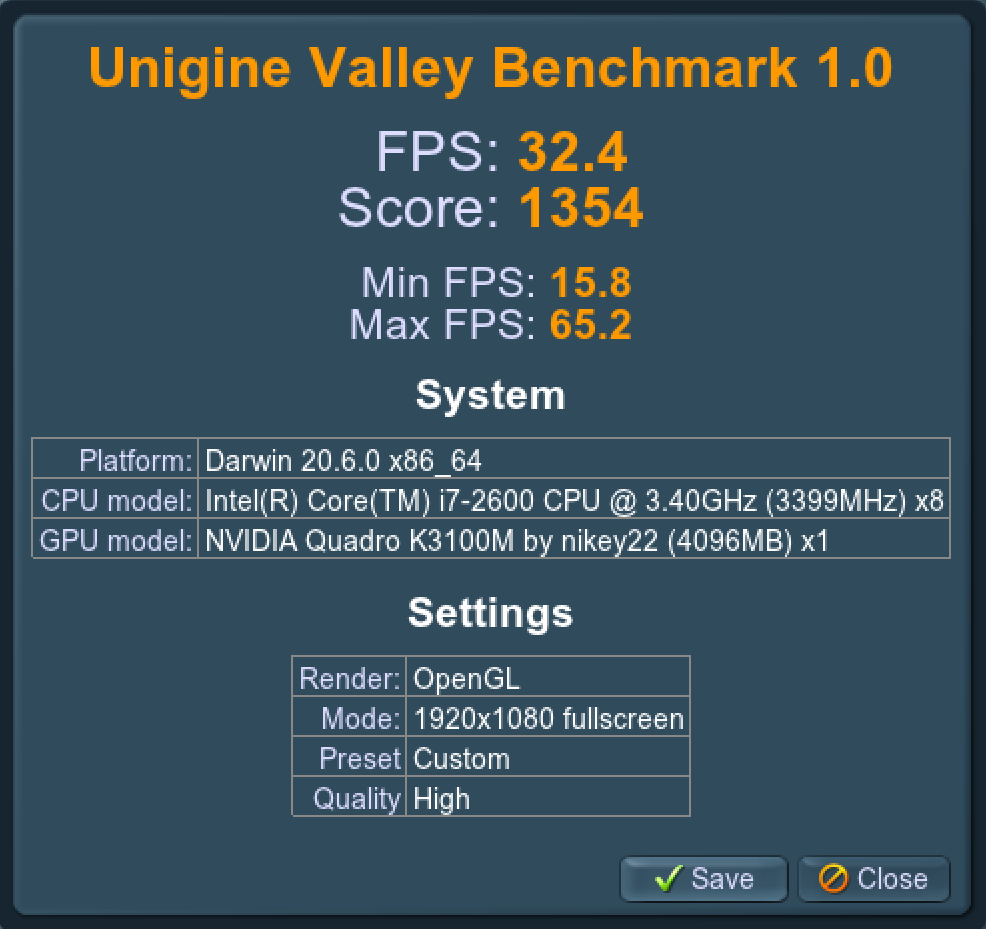

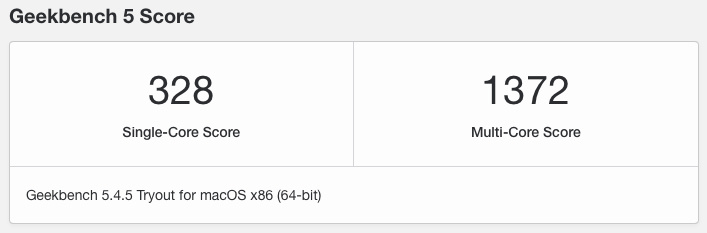

yes GB5 was the first thing I ran actually, but I wasn't sure about it...

Full GPU Benchmark here (no result on depth of field!?)



[DeletteUA]

Flash back your own original vBIOS and try to boot. If it does not post/work you got simply a broken card and you should return it to the seller.
The original vBIOS will only work with safe mode boot into macOS (device ID 6929 is not supported by macOS).

So I have to use clip to reflash the bios ? Can I use bios from another same video card? I’m not sure that the seller saved original bios



[The_Croupier]

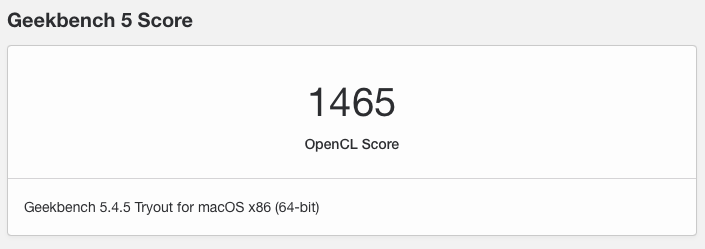

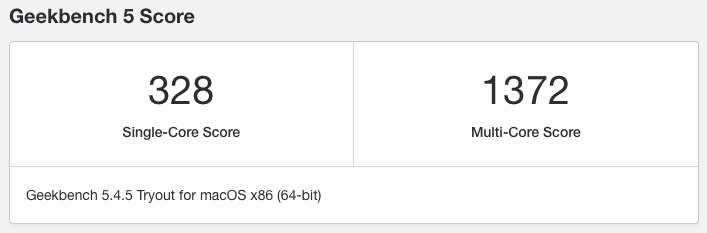

yes GB5 was the first thing I ran actually, but I wasn't sure about it...

View attachment 2060863View attachment 2060864

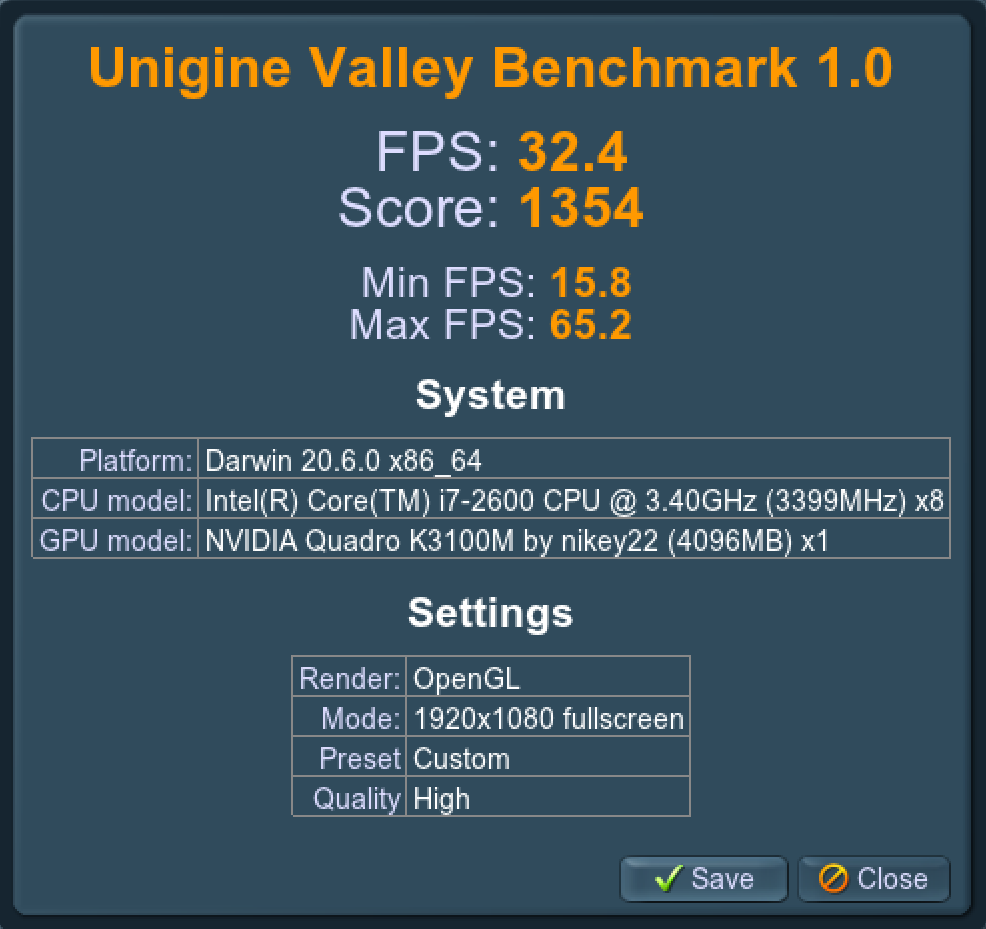

Full GPU Benchmark here (no result on depth of field!?)

As I suspected your CPU is being throttled hence your low valley score, for your 2011 i7 you score should look more like this:



[iLazarus]

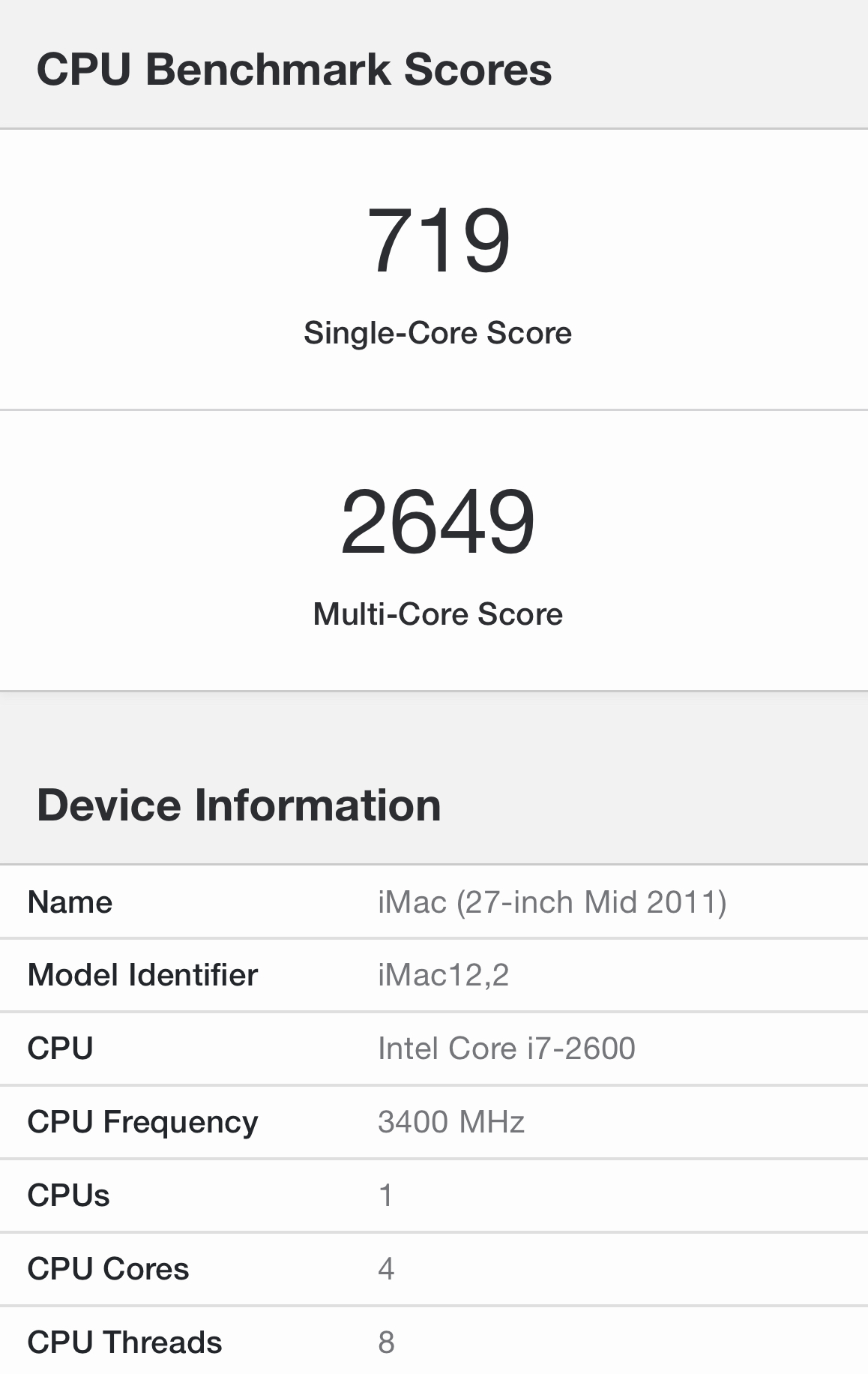

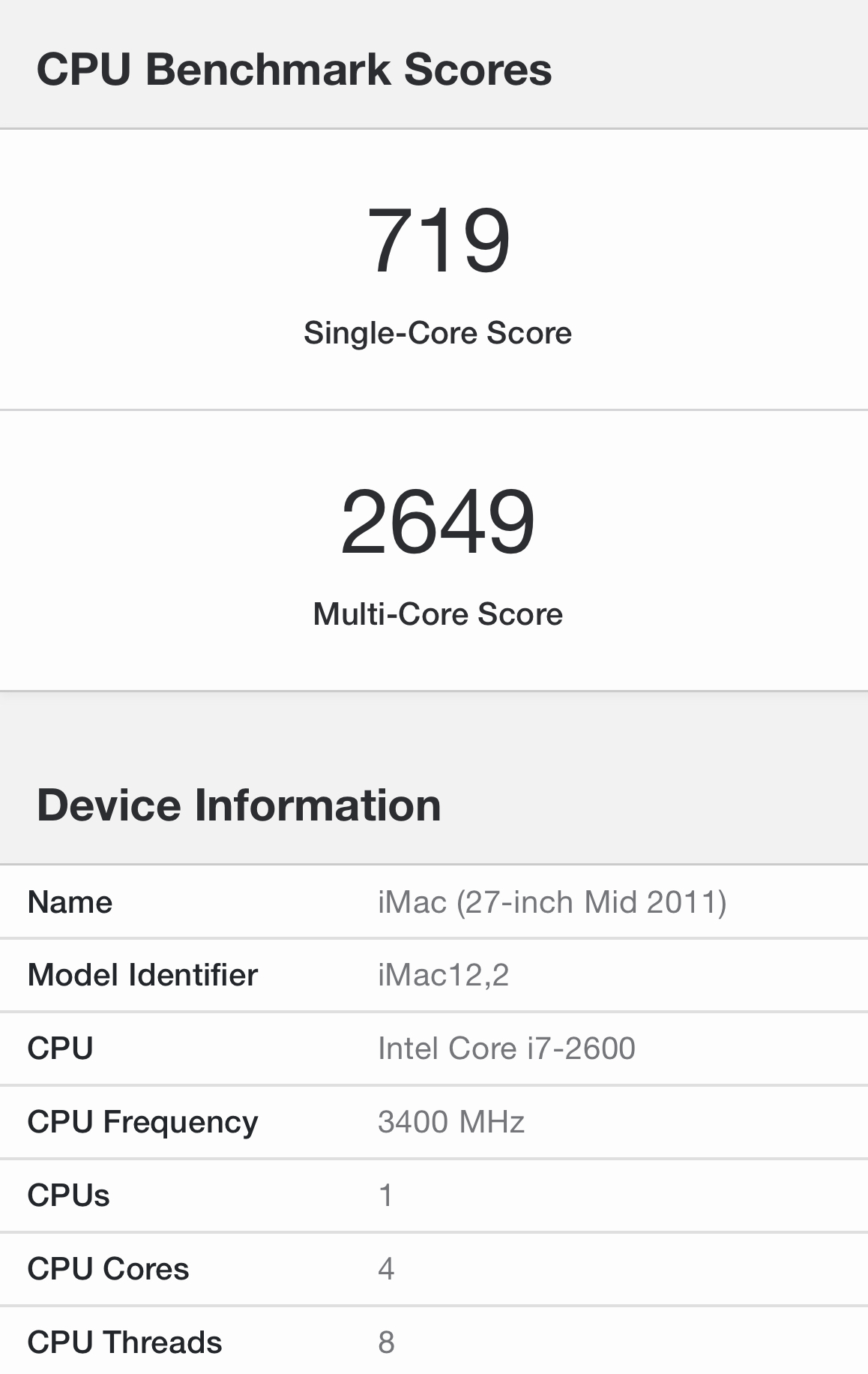

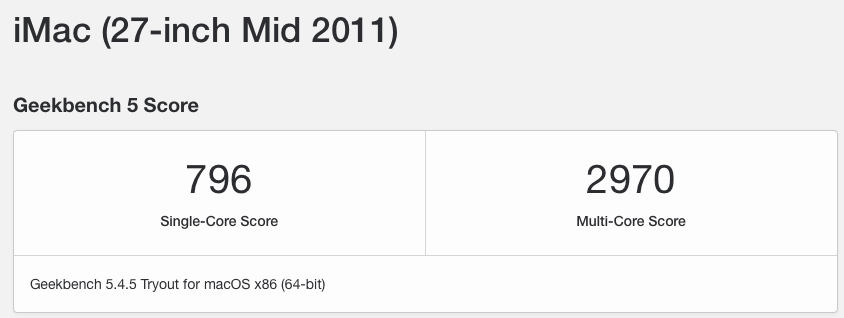

As I suspected your CPU is being throttled hence your low valley score, for your 2011 i7 you score should look more like this:
View attachment 2061106

wow that's also double of my performance.
any ideas what that might cause? could it be related to the gpu upgrade?
unfortunately I don't have a reference or benchmarks from before the upgrade

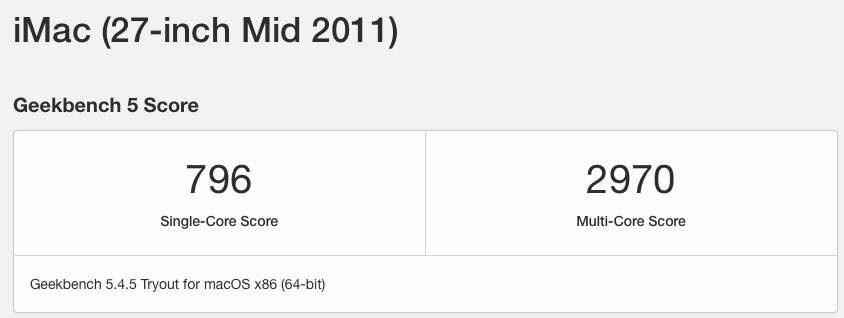

Here is the full CPU Benchmark.

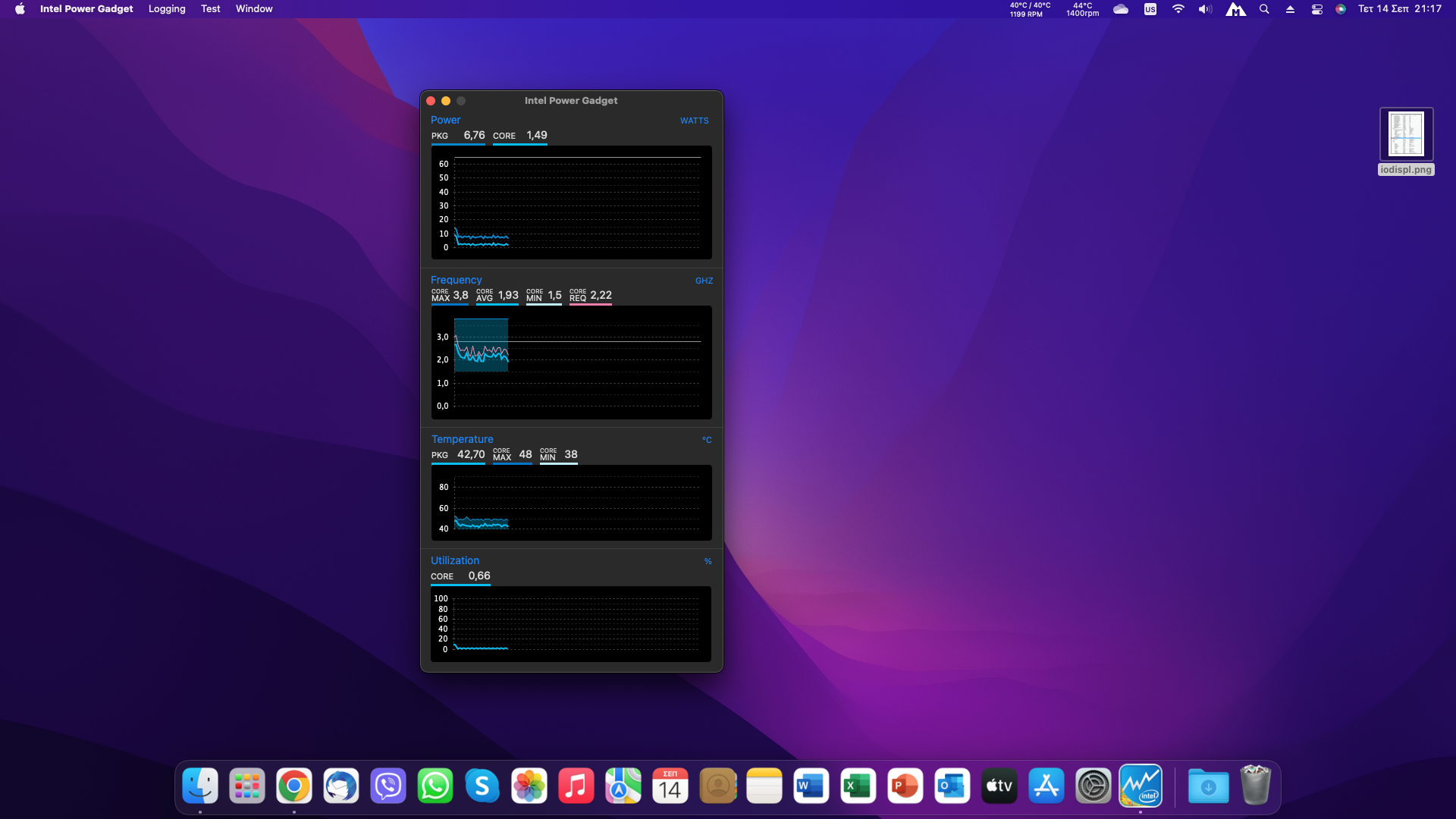

I tried to install the Intel Power Gadget to get some data, but the app crashes before on start...



[sliderfra]

Flash back your own original vBIOS and try to boot. If it does not post/work you got simply a broken card and you should return it to the seller.
The original vBIOS will only work with safe mode boot into macOS (device ID 6929 is not supported by macOS).

Hi,
The S7100x does not have any video output. It relies on the intel (or AMD) IGPU to render graphics with the use of optimus (or AMD Enduro). Unless you found a BIOS that enables the video output or use the Intel IGPU as primary video render, you might not be able to use it on the MAC.



[Nguyen Duc Hieu]

Hi,
The S7100x does not have any video output. It relies on the intel (or AMD) IGPU to render graphics with the use of optimus (or AMD Enduro). Unless you found a BIOS that enables the video output or use the Intel IGPU as primary video render, you might not be able to use it on the MAC.

By "video output", you meant the physical port on the card for video signal? (i.e to connect a cable). I assume all readers to this thread are aware that graphic card in MXM form don't have physical video output ports.

Or did you mean some settings inside the firmware (vBIOS) that prevent a combination of a Xeon CPU (w/o iGPU) with the S7100x on any PC?



[The_Croupier]

wow that's also double of my performance.
any ideas what that might cause? could it be related to the gpu upgrade?
unfortunately I don't have a reference or benchmarks from before the upgrade

Here is the full CPU Benchmark.

I tried to install the Intel Power Gadget to get some data, but the app crashes before on start...

Check you didn’t knock off L5500 ferrite near the cpu fan convector. very easy to do. Search the forum for L5500 for more info.
But yes it’s CPU related.



[sliderfra]

Hi

By "video output", you meant the physical port on the card for video signal? (i.e to connect a cable). I assume all readers to this thread are aware that graphic card in MXM form don't have physical video output ports.

Or did you mean some settings inside the firmware (vBIOS) that prevent a combination of a Xeon CPU (w/o iGPU) with the S7100x on any PC?

Hi.
I mean that S7100x is a server based mxm module so it's BIOS does not allow video output on edp or any other ext display. It must rely on the Igpu display output, exactly like Tesla mxm boards.
Unless someone has a modified vbios that enable video output, I'm not sure that board is usable on mac. Although it works perfectly fine on any give laptop with Optimus (dell précision, hp zbook...)



[Ausdauersportler]

Hi

Hi.
I mean that S7100x is a server based mxm module so it's BIOS does not allow video output on edp or any other ext display. It must rely on the Igpu display output, exactly like Tesla mxm boards.
Unless someone has a modified vbios that enable video output, I'm not sure that board is usable on mac. Although it works perfectly fine on any give laptop with Optimus (dell précision, hp zbook...)

Have you recently checked the famous unknown documentation on hidden on the first post of this thread?

The S7100X can run in iMacs and can use the internal display, but there are a lot of problems with all GCN 1-3 dGPU models when used in iMac12,2 models. Now I am starting to repeat what we have tried to put into the docs.

BTW:
The iGPU within iMacs can not run the internal display!



[iLazarus]

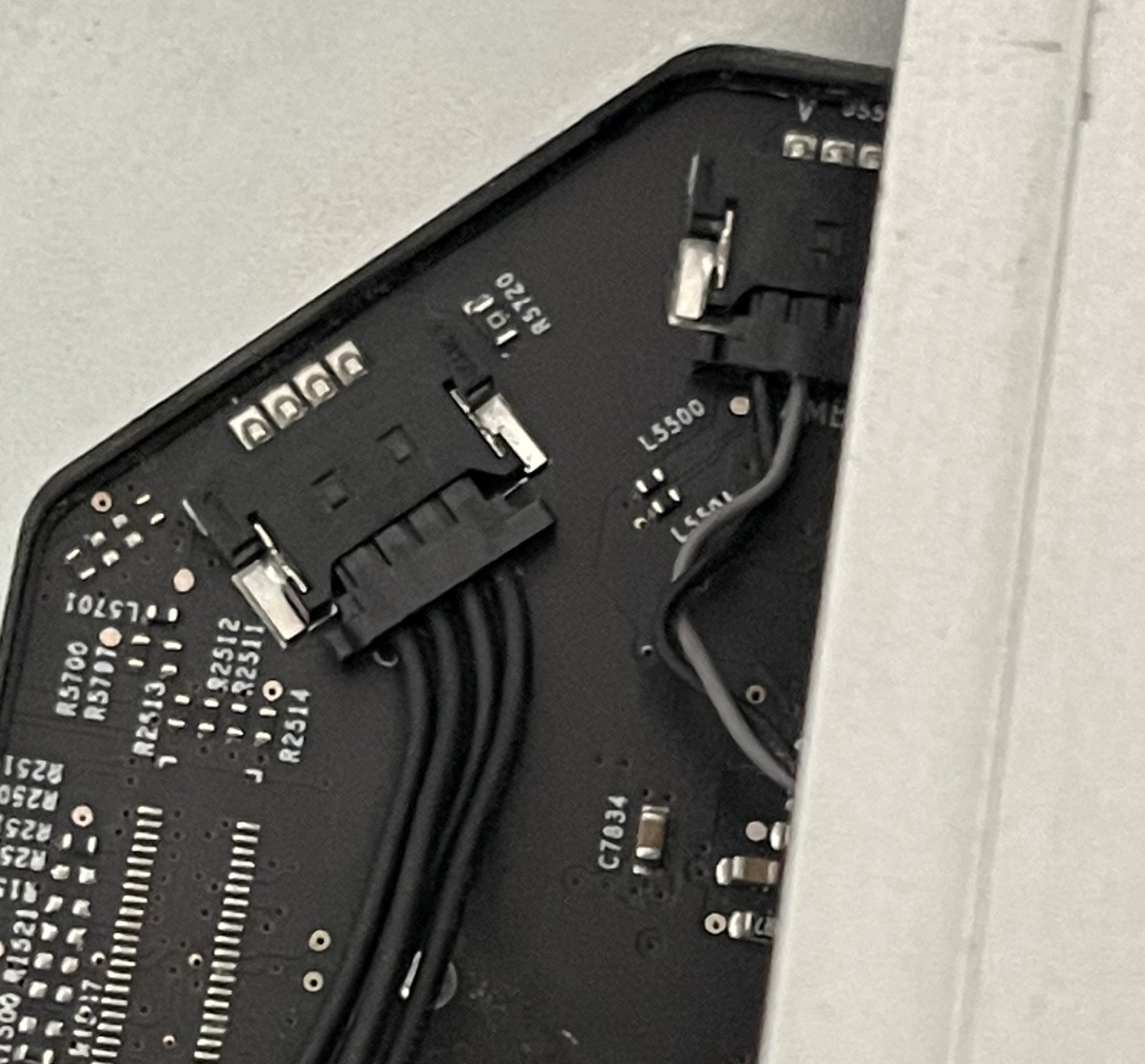

Check you didn’t knock off L5500 ferrite near the cpu fan convector. very easy to do. Search the forum for L5500 for more info.
But yes it’s CPU related.

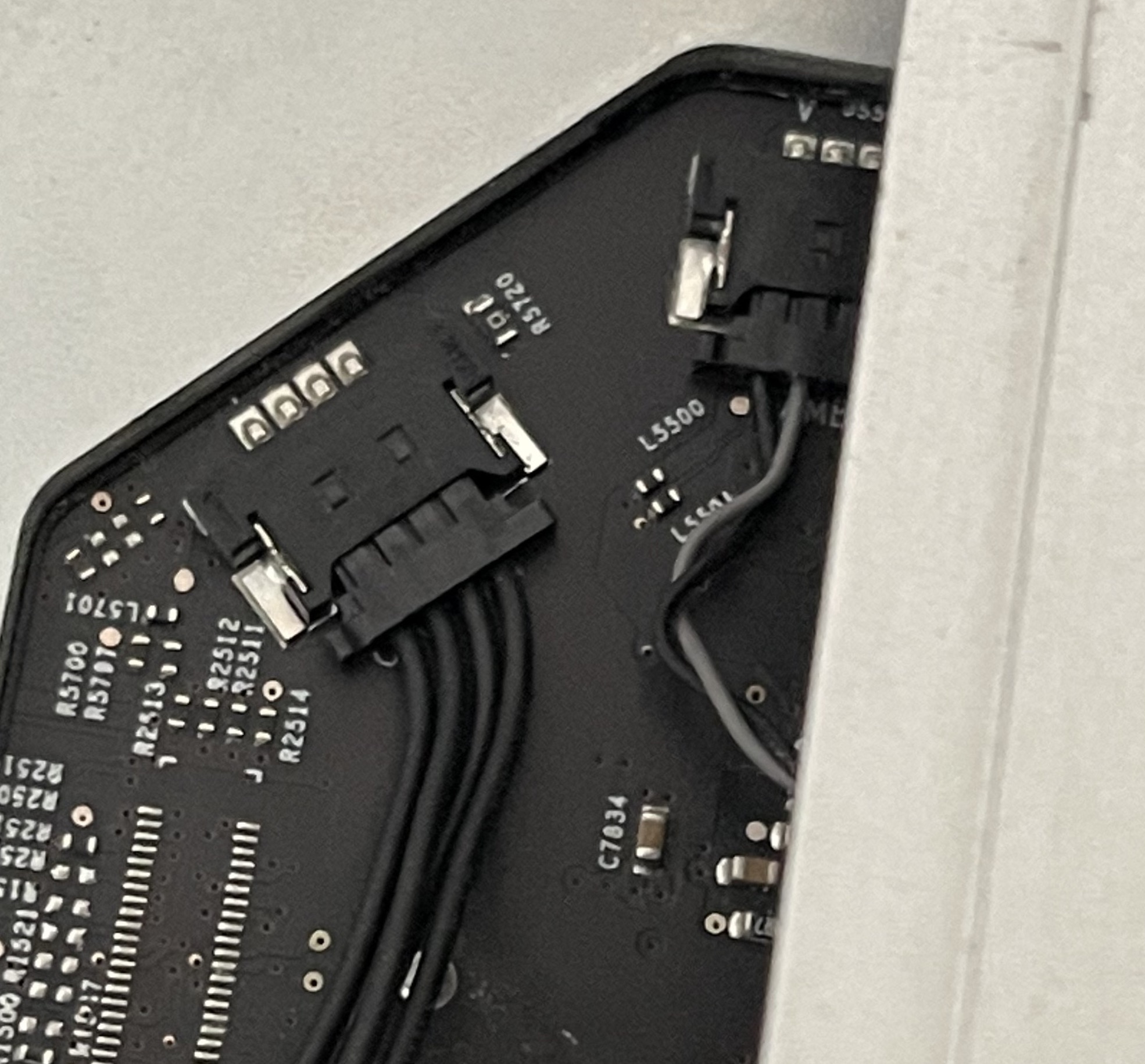

I have checked the L5500 and it looks like its still there..?

going through some post I found this

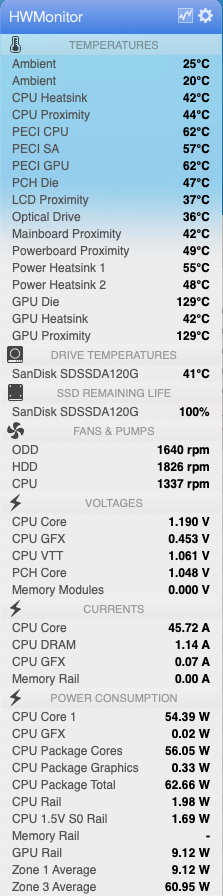

Yes, it is gone. You could have seen this using HW Monitor and checking the ambient temp sensor. It will only show 129C - with is equivalent to no data.

its mentioned that 129°C indicates no data... so when Unigine was showing "GPU Temp 129°C" is that related to the iMac not recognizing the GPU temperature sensor or not receiving data? can that be fixed for the GPU to be recognized?

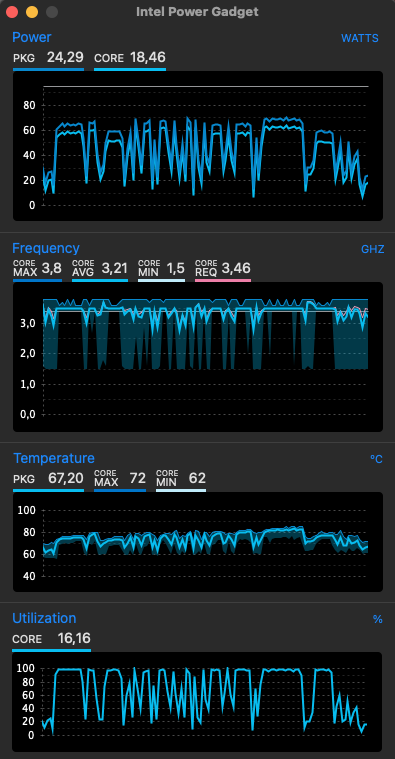

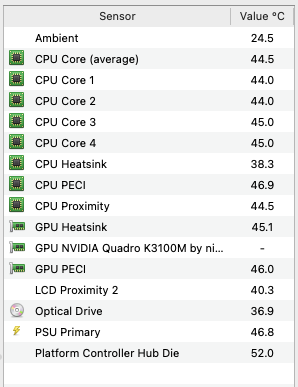

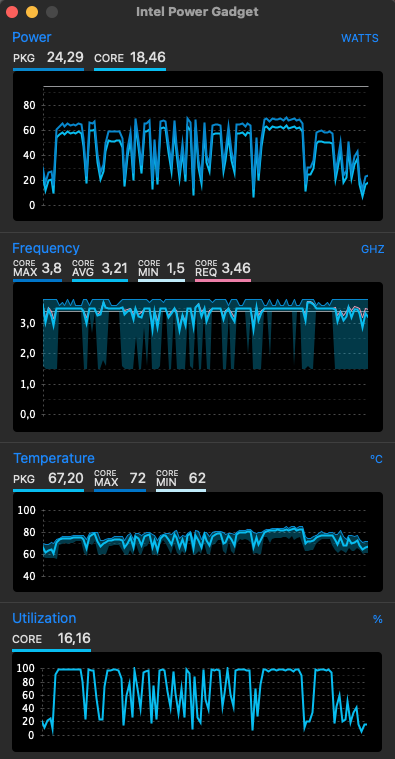

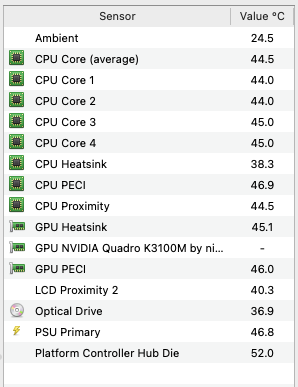

all my temps look fine, no issues here - I am also still trying to get the power gadget to work on the machine but it always crashes and gives me this error

Spoiler: Intel Power Gadget Crash Report

Process: Intel Power Gadget [1221]
Path: /Applications/Intel Power Gadget/Intel Power Gadget.app/Contents/MacOS/Intel Power Gadget
Identifier: com.intel.PowerGadget
Version: 3.7.0 (3.7.0)
Code Type: X86-64 (Native)
Parent Process: ??? [1]
Responsible: Intel Power Gadget [1221]
User ID: 502

Date/Time: 2022-09-14 15:33:29.555 +0200
OS Version: macOS 11.6.8 (20G730)
Report Version: 12
Anonymous UUID: 69E887F2-9F32-4B05-9116-98352A1EBD2E


Time Awake Since Boot: 650 seconds

System Integrity Protection: enabled

Crashed Thread: 0 Dispatch queue: com.apple.main-thread

Exception Type: EXC_CRASH (SIGABRT)
Exception Codes: 0x0000000000000000, 0x0000000000000000
Exception Note: EXC_CORPSE_NOTIFY

Application Specific Information:
*** Terminating app due to uncaught exception 'NSInvalidArgumentException', reason: '-[__NSCFData _fastCStringContents:]: unrecognized selector sent to instance 0x60000041e0d0'
abort() called
terminating with uncaught exception of type NSException

Application Specific Backtrace 1:
0 CoreFoundation 0x00007fff205d18af __exceptionPreprocess + 242
1 libobjc.A.dylib 0x00007fff2030abbb objc_exception_throw + 48
2 CoreFoundation 0x00007fff206543e8 -[NSObject(NSObject) __retain_OA] + 0
3 CoreFoundation 0x00007fff205399ed ___forwarding___ + 1448
4 CoreFoundation 0x00007fff205393b8 _CF_forwarding_prep_0 + 120
5 CoreFoundation 0x00007fff204ef86e CFStringCompareWithOptionsAndLocale + 314
6 IntelPowerGadget 0x0000000102937a55 UsePMU + 438
7 Intel Power Gadget 0x00000001027918a7 Intel Power Gadget + 22695
8 AppKit 0x00007fff22c67b74 -[NSCustomObject nibInstantiate] + 404
9 AppKit 0x00007fff22c67983 -[NSIBObjectData instantiateObject:] + 238
10 AppKit 0x00007fff22c670e2 -[NSIBObjectData nibInstantiateWithOwnerptions:topLevelObjects:] + 484
11 AppKit 0x00007fff22c5bb48 loadNib + 392
12 AppKit 0x00007fff22c5b154 +[NSBundle(NSNibLoading) _loadNibFile:nameTableptions:withZonewnerBundle:] + 693
13 AppKit 0x00007fff22c5adaa -[NSBundle(NSNibLoading) loadNibNamedwner:topLevelObjects:] + 201
14 AppKit 0x00007fff22c5ab88 +[NSBundle(NSNibLoading) loadNibNamedwner:] + 394
15 AppKit 0x00007fff22c4d712 NSApplicationMain + 566
16 libdyld.dylib 0x00007fff2047af3d start + 1

Thread 0 Crashed:: Dispatch queue: com.apple.main-thread
0 libsystem_kernel.dylib 0x00007fff2043091e __pthread_kill + 10
1 libsystem_pthread.dylib 0x00007fff2045f5bd pthread_kill + 263
2 libsystem_c.dylib 0x00007fff203b4406 abort + 125
3 libc++abi.dylib 0x00007fff20422ef2 abort_message + 241
4 libc++abi.dylib 0x00007fff204145fd demangling_terminate_handler() + 266
5 libobjc.A.dylib 0x00007fff2030d3d3 _objc_terminate() + 96
6 libc++abi.dylib 0x00007fff20422307 std::__terminate(void (*)()) + 8
7 libc++abi.dylib 0x00007fff20424beb __cxxabiv1::failed_throw(__cxxabiv1::__cxa_exception*) + 27
8 libc++abi.dylib 0x00007fff20424bb2 __cxa_throw + 116
9 libobjc.A.dylib 0x00007fff2030ace9 objc_exception_throw + 350
10 com.apple.CoreFoundation 0x00007fff206543e8 -[NSObject(NSObject) doesNotRecognizeSelector:] + 132
11 com.apple.CoreFoundation 0x00007fff205399ed ___forwarding___ + 1448
12 com.apple.CoreFoundation 0x00007fff205393b8 _CF_forwarding_prep_0 + 120
13 com.apple.CoreFoundation 0x00007fff204ef86e CFStringCompareWithOptionsAndLocale + 314
14 com.intel.framework.PowerGadget 0x0000000102937a55 0x102935000 + 10837
15 com.intel.PowerGadget 0x00000001027918a7 0x10278c000 + 22695
16 com.apple.AppKit 0x00007fff22c67b74 -[NSCustomObject nibInstantiate] + 404
17 com.apple.AppKit 0x00007fff22c67983 -[NSIBObjectData instantiateObject:] + 238
18 com.apple.AppKit 0x00007fff22c670e2 -[NSIBObjectData nibInstantiateWithOwnerptions:topLevelObjects:] + 484
19 com.apple.AppKit 0x00007fff22c5bb48 loadNib + 392
20 com.apple.AppKit 0x00007fff22c5b154 +[NSBundle(NSNibLoading) _loadNibFile:nameTableptions:withZonewnerBundle:] + 693
21 com.apple.AppKit 0x00007fff22c5adaa -[NSBundle(NSNibLoading) loadNibNamedwner:topLevelObjects:] + 201
22 com.apple.AppKit 0x00007fff22c5ab88 +[NSBundle(NSNibLoading) loadNibNamedwner:] + 394
23 com.apple.AppKit 0x00007fff22c4d712 NSApplicationMain + 566
24 libdyld.dylib 0x00007fff2047af3d start + 1

Thread 1:
0 libsystem_pthread.dylib 0x00007fff2045b420 start_wqthread + 0

Thread 2:
0 libsystem_pthread.dylib 0x00007fff2045b420 start_wqthread + 0

Thread 3:
0 libsystem_pthread.dylib 0x00007fff2045b420 start_wqthread + 0

Thread 4:
0 libsystem_pthread.dylib 0x00007fff2045b420 start_wqthread + 0

Thread 5:
0 libsystem_pthread.dylib 0x00007fff2045b420 start_wqthread + 0

Thread 6:: JavaScriptCore bmalloc scavenger
0 libsystem_kernel.dylib 0x00007fff2042ccce __psynch_cvwait + 10
1 libsystem_pthread.dylib 0x00007fff2045fe49 _pthread_cond_wait + 1298
2 libc++.1.dylib 0x00007fff203c8e03 std::__1::condition_variable::__do_timed_wait(std::__1::unique_lock<std::__1::mutex>&, std::__1::chrono::time_point<std::__1::chrono::system_clock, std::__1::chrono::duration<long long, std::__1::ratio<1l, 1000000000l> > >) + 93
3 com.apple.JavaScriptCore 0x00007fff3782450b bmalloc::Scavenger::threadRunLoop() + 763
4 com.apple.JavaScriptCore 0x00007fff37823ee9 bmalloc::Scavenger::threadEntryPoint(bmalloc::Scavenger*) + 9
5 com.apple.JavaScriptCore 0x00007fff37826a77 void* std::__1::__thread_proxy<std::__1::tuple<std::__1::unique_ptr<std::__1::__thread_struct, std::__1::default_delete<std::__1::__thread_struct> >, void (*)(bmalloc::Scavenger*), bmalloc::Scavenger*> >(void*) + 39
6 libsystem_pthread.dylib 0x00007fff2045f8fc _pthread_start + 224
7 libsystem_pthread.dylib 0x00007fff2045b443 thread_start + 15

Thread 0 crashed with X86 Thread State (64-bit):
rax: 0x0000000000000000 rbx: 0x00000001050b3e00 rcx: 0x00007ffeed471478 rdx: 0x0000000000000000
rdi: 0x0000000000000103 rsi: 0x0000000000000006 rbp: 0x00007ffeed4714a0 rsp: 0x00007ffeed471478
r8: 0x00007ffeed471340 r9: 0x0000000000000000 r10: 0x0000000000000000 r11: 0x0000000000000246
r12: 0x0000000000000103 r13: 0x0000003000000008 r14: 0x0000000000000006 r15: 0x0000000000000016
rip: 0x00007fff2043091e rfl: 0x0000000000000246 cr2: 0x0000000104f8b000

Logical CPU: 0
Error Code: 0x02000148
Trap Number: 133

Thread 0 instruction stream not available.

Thread 0 last branch register state not available.


Binary Images:
0x10278c000 - 0x1027a2fff +com.intel.PowerGadget (3.7.0 - 3.7.0) <64A26D04-9F2D-35DB-A328-67952E32FEBB> /Applications/Intel Power Gadget/Intel Power Gadget.app/Contents/MacOS/Intel Power Gadget
0x1027b0000 - 0x10287ffff +com.CorePlot.CorePlot (2.2) <EAAC5EF4-441D-35EC-B819-9421BDBCDA87> /Applications/Intel Power Gadget/Intel Power Gadget.app/Contents/Frameworks/CorePlot.framework/Versions/A/CorePlot
0x102935000 - 0x102943fff +com.intel.framework.PowerGadget (3.7.0 - 3.7.0) <420841E3-EAE4-329A-A2FD-849B56B6E75E> /Library/Frameworks/IntelPowerGadget.framework/Versions/A/IntelPowerGadget
0x104bc1000 - 0x104bd0fff libobjc-trampolines.dylib (824.1) <73C4C02C-79D9-3C18-B974-0E39A4C63C9C> /usr/lib/libobjc-trampolines.dylib
0x104fdc000 - 0x105077fff dyld (852.2) <E20C43E3-CEB9-397A-9056-11A6A8D3F86E> /usr/lib/dyld
0x7fff20197000 - 0x7fff20198fff libsystem_blocks.dylib (79) <4DF6D8F5-D9C2-3A96-8DE4-5E99D6B73DC8> /usr/lib/system/libsystem_blocks.dylib
0x7fff20199000 - 0x7fff201cefff libxpc.dylib (2038.120.1) <0397FC9F-BD11-31FC-882E-9EDAA1E5CA65> /usr/lib/system/libxpc.dylib
0x7fff201cf000 - 0x7fff201e6fff libsystem_trace.dylib (1277.120.1) <0A24EB90-5396-36B0-A7E6-E9288702856D> /usr/lib/system/libsystem_trace.dylib
0x7fff201e7000 - 0x7fff20284fff libcorecrypto.dylib (1000.140.4) <57E7471E-3960-3398-8918-20DF446EA99B> /usr/lib/system/libcorecrypto.dylib
0x7fff20285000 - 0x7fff202b1fff libsystem_malloc.dylib (317.140.5) <10C22FD0-FC7B-3325-852E-FEC4E88D2BC5> /usr/lib/system/libsystem_malloc.dylib
0x7fff202b2000 - 0x7fff202f6fff libdispatch.dylib (1271.120.2) <BA7AD614-F2C2-3E89-9043-43DD548AE5B1> /usr/lib/system/libdispatch.dylib
0x7fff202f7000 - 0x7fff20330fff libobjc.A.dylib (824.1) <C41DA6BE-7BC8-30D9-BA01-F196997747FC> /usr/lib/libobjc.A.dylib
0x7fff20331000 - 0x7fff20333fff libsystem_featureflags.dylib (28.60.1) <6EB33926-8E22-3000-B2F1-C6182B8CBD8F> /usr/lib/system/libsystem_featureflags.dylib
0x7fff20334000 - 0x7fff203bcfff libsystem_c.dylib (1439.141.1) <8447A4B8-0751-3EF1-AA9B-042E40EFA07D> /usr/lib/system/libsystem_c.dylib
0x7fff203bd000 - 0x7fff20412fff libc++.1.dylib (905.6) <81674ADB-670F-3B19-AF5D-F3F66CB93D44> /usr/lib/libc++.1.dylib
0x7fff20413000 - 0x7fff20428fff libc++abi.dylib (905.6) <78CE7863-E224-3D0B-98F1-E5E3E382322D> /usr/lib/libc++abi.dylib
0x7fff20429000 - 0x7fff20458fff libsystem_kernel.dylib (7195.141.32) <70F8035C-BC80-38BA-82CC-A8856CEA0133> /usr/lib/system/libsystem_kernel.dylib
0x7fff20459000 - 0x7fff20464fff libsystem_pthread.dylib (454.120.2) <49670AEC-4D5D-3383-906C-23F568351FCB> /usr/lib/system/libsystem_pthread.dylib
0x7fff20465000 - 0x7fff204a0fff libdyld.dylib (852.2) <5FBD0E1A-ACCE-36DB-B11C-622F26C85132> /usr/lib/system/libdyld.dylib
0x7fff204a1000 - 0x7fff204aafff libsystem_platform.dylib (254.80.2) <A85D12B6-6213-34EE-84D8-8E993C19E330> /usr/lib/system/libsystem_platform.dylib
0x7fff204ab000 - 0x7fff204d6fff libsystem_info.dylib (542.40.4) <E757523E-5882-3CED-A3EF-E5A574FBD1C2> /usr/lib/system/libsystem_info.dylib
0x7fff204d7000 - 0x7fff20974fff com.apple.CoreFoundation (6.9 - 1778.104) <EEEB32C2-62AF-3FAA-B52D-57041FF85F0E> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
0x7fff20975000 - 0x7fff20babfff com.apple.LaunchServices (1122.45 - 1122.45) <406B30E1-D2BB-3C5E-A6A9-E7ED004B2533> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
0x7fff20bac000 - 0x7fff20c80fff com.apple.gpusw.MetalTools (1.0 - 1) <C6E7E6C8-27EB-37D6-A2F4-747921FAE89D> /System/Library/PrivateFrameworks/MetalTools.framework/Versions/A/MetalTools
0x7fff20c81000 - 0x7fff20e07fff libBLAS.dylib (1336.140.1) <2C2F4402-DB7D-3F4C-AB33-2774B4016A17> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
0x7fff20e08000 - 0x7fff20e55fff com.apple.Lexicon-framework (1.0 - 86.2) <FE0BC1AF-D1A0-3A6B-A404-A187AEF07704> /System/Library/PrivateFrameworks/Lexicon.framework/Versions/A/Lexicon
0x7fff20e56000 - 0x7fff20ec4fff libSparse.dylib (106) <95043C27-910C-3B53-ADE7-0E7907E579C9> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libSparse.dylib
0x7fff20ec5000 - 0x7fff20f42fff com.apple.SystemConfiguration (1.20 - 1.20) <AE4BE9DB-6F7D-3D4A-BA51-D86DDFC6B5B2> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
0x7fff20f43000 - 0x7fff20f77fff libCRFSuite.dylib (50) <95816B40-6F71-33EB-9324-E2942543DDD4> /usr/lib/libCRFSuite.dylib
0x7fff20f78000 - 0x7fff211b0fff libmecabra.dylib (929.10) <1E492E01-642F-3A9D-8A04-CF648C32696C> /usr/lib/libmecabra.dylib
0x7fff211b1000 - 0x7fff2150ffff com.apple.Foundation (6.9 - 1778.104) <618AA32D-82DB-3D57-BB47-1C8F544C583B> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
0x7fff21510000 - 0x7fff215f8fff com.apple.LanguageModeling (1.0 - 247.3) <D7E3186D-41DD-3826-85C8-D9ECC7D17197> /System/Library/PrivateFrameworks/LanguageModeling.framework/Versions/A/LanguageModeling
0x7fff215f9000 - 0x7fff2172ffff com.apple.CoreDisplay (237.4 - 237.4) <07520DBC-E1BB-310C-AD92-6F313820D60E> /System/Library/Frameworks/CoreDisplay.framework/Versions/A/CoreDisplay
0x7fff21730000 - 0x7fff219a0fff com.apple.audio.AudioToolboxCore (1.0 - 1181.72.4) <333BE894-477D-3E1C-9C2D-1F62A45EFA2B> /System/Library/PrivateFrameworks/AudioToolboxCore.framework/Versions/A/AudioToolboxCore
0x7fff219a1000 - 0x7fff21b86fff com.apple.CoreText (677.6.0.4 - 677.6.0.4) <10390630-1B5A-3F96-8133-B8D117114934> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
0x7fff21b87000 - 0x7fff22218fff com.apple.audio.CoreAudio (5.0 - 5.0) <7178815E-1890-3A3D-B0FD-F93EBB529E78> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
0x7fff22219000 - 0x7fff22570fff com.apple.security (7.0 - 59754.141.1) <7EC1D1C5-672E-3DFD-902C-D511ECE6C110> /System/Library/Frameworks/Security.framework/Versions/A/Security
0x7fff22571000 - 0x7fff227d0fff libicucore.A.dylib (66112.1) <657C24AB-D881-36E1-9A4F-DE4C2DD4599E> /usr/lib/libicucore.A.dylib
0x7fff227d1000 - 0x7fff227dafff libsystem_darwin.dylib (1439.141.1) <29F82ABE-E1A0-3BC2-B91E-ADC010CF23FA> /usr/lib/system/libsystem_darwin.dylib
0x7fff227db000 - 0x7fff22ac6fff com.apple.CoreServices.CarbonCore (1307.3 - 1307.3) <8191DB78-205F-3709-8E42-E257F3AD4459> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
0x7fff22ac7000 - 0x7fff22b05fff com.apple.CoreServicesInternal (476.1.1 - 476.1.1) <E07F95A5-AE7E-34A2-84CC-3870DCDC45D6> /System/Library/PrivateFrameworks/CoreServicesInternal.framework/Versions/A/CoreServicesInternal
0x7fff22b06000 - 0x7fff22b40fff com.apple.CSStore (1122.45 - 1122.45) <89B4E3D2-3649-3F38-BBCA-81E7C4499971> /System/Library/PrivateFrameworks/CoreServicesStore.framework/Versions/A/CoreServicesStore
0x7fff22b41000 - 0x7fff22beffff com.apple.framework.IOKit (2.0.2 - 1845.120.6) <61CDC69E-EC9E-32B1-8A63-532619BA310F> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
0x7fff22bf0000 - 0x7fff22bfbfff libsystem_notify.dylib (279.40.4) <608B5A07-D31A-3BEC-86BF-C2E498C085AF> /usr/lib/system/libsystem_notify.dylib
0x7fff22bfc000 - 0x7fff22c49fff libsandbox.1.dylib (1441.141.7) <E9DB038B-6A6E-3FFC-82DD-E8F99DCE87F7> /usr/lib/libsandbox.1.dylib
0x7fff22c4a000 - 0x7fff23995fff com.apple.AppKit (6.9 - 2202.70.110) <A37AD4DE-56BB-3EC8-A745-F2EB9B6D9990> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
0x7fff23996000 - 0x7fff23be4fff com.apple.UIFoundation (1.0 - 728.9) <A7628FB1-C04A-3F24-A14A-DDCD4CE67A00> /System/Library/PrivateFrameworks/UIFoundation.framework/Versions/A/UIFoundation
0x7fff23be5000 - 0x7fff23bf7fff com.apple.UniformTypeIdentifiers (637 - 637) <69F847F6-A328-3815-BFCA-80941AFB95A5> /System/Library/Frameworks/UniformTypeIdentifiers.framework/Versions/A/UniformTypeIdentifiers
0x7fff23bf8000 - 0x7fff23d82fff com.apple.desktopservices (1.21 - 1346.6.1) <F2D70A76-BF47-31DC-8337-D4D929DA4A27> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
0x7fff24062000 - 0x7fff246e8fff libnetwork.dylib (2288.140.9) <89D3B8D4-0C56-3CFB-98C9-A7218C9A8EEB> /usr/lib/libnetwork.dylib
0x7fff246e9000 - 0x7fff24b87fff com.apple.CFNetwork (1240.0.4 - 1240.0.4) <5AC97239-B546-33F2-80B0-ACBFD66C0E58> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
0x7fff24b88000 - 0x7fff24b96fff libsystem_networkextension.dylib (1295.140.3) <022BE26C-C058-3CC7-8E0B-348B3D3B639C> /usr/lib/system/libsystem_networkextension.dylib
0x7fff24b97000 - 0x7fff24b97fff libenergytrace.dylib (22.100.1) <13CE770E-37DA-35D5-84A7-2F6C07F3B707> /usr/lib/libenergytrace.dylib
0x7fff24b98000 - 0x7fff24bf4fff libMobileGestalt.dylib (978.140.1) <9C7A444F-988C-3904-BFF0-2006B5E45075> /usr/lib/libMobileGestalt.dylib
0x7fff24bf5000 - 0x7fff24c0bfff libsystem_asl.dylib (385.0.2) <A5147017-3488-3B18-A11B-C19697C110FC> /usr/lib/system/libsystem_asl.dylib
0x7fff24c0c000 - 0x7fff24c24fff com.apple.TCC (1.0 - 1) <845AFCDB-F10A-3A02-A71C-972277147946> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
0x7fff24c25000 - 0x7fff24f8afff com.apple.SkyLight (1.600.0 - 588.10) <D4F56F4F-645B-3CB4-AF65-4052DAEFE46A> /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/SkyLight
0x7fff24f8b000 - 0x7fff2563dfff com.apple.CoreGraphics (2.0 - 1463.18.4.1) <C6A2258D-84FF-3442-B1C3-4B78B0F71645> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
0x7fff2563e000 - 0x7fff25735fff com.apple.ColorSync (4.13.0 - 3473.7.1) <956899AB-8A43-3A93-A1CA-6622B36AC2F2> /System/Library/Frameworks/ColorSync.framework/Versions/A/ColorSync
0x7fff25736000 - 0x7fff25791fff com.apple.HIServices (1.22 - 716) <6118C8D4-70EA-3FD5-A375-0B500896506A> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
0x7fff25792000 - 0x7fff257d0fff libAWDSupport.dylib (951) <DD7F429A-3750-31AF-A344-776C63EAB960> /System/Library/PrivateFrameworks/WirelessDiagnostics.framework/Versions/A/Libraries/libAWDSupport.dylib
0x7fff257d1000 - 0x7fff2582dfff libprotobuf.dylib (4205) <7B397A12-BA3F-3B18-9669-79FFA52F48AF> /System/Library/PrivateFrameworks/WirelessDiagnostics.framework/Versions/A/Libraries/libprotobuf.dylib
0x7fff2582e000 - 0x7fff2583ffff libprotobuf-lite.dylib (4205) <659388D5-1B65-3DD9-9ECF-2DE5C4264D31> /System/Library/PrivateFrameworks/WirelessDiagnostics.framework/Versions/A/Libraries/libprotobuf-lite.dylib
0x7fff25840000 - 0x7fff25884fff com.apple.awd (1.0 - 951) <170D4BE0-FE3D-3EDC-AF7E-BAC00F506733> /System/Library/PrivateFrameworks/WirelessDiagnostics.framework/Versions/A/WirelessDiagnostics
0x7fff25b38000 - 0x7fff25f68fff com.apple.CoreData (120 - 1048) <66C2F919-F7E8-32BB-927B-7C2656D7BFF9> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
0x7fff25f69000 - 0x7fff25f7efff com.apple.ProtocolBuffer (1 - 285.24.10.20.1) <A2E727C2-659A-3791-8076-2DA387C440F9> /System/Library/PrivateFrameworks/ProtocolBuffer.framework/Versions/A/ProtocolBuffer
0x7fff25f7f000 - 0x7fff2612dfff libsqlite3.dylib (321.3) <07A2B3EB-504A-316C-85B3-051F47DD2F73> /usr/lib/libsqlite3.dylib
0x7fff2612e000 - 0x7fff261aafff com.apple.Accounts (113 - 113) <A4533970-D42E-3A4E-8244-2ACC60504923> /System/Library/Frameworks/Accounts.framework/Versions/A/Accounts
0x7fff261ab000 - 0x7fff261c2fff com.apple.commonutilities (8.0 - 900) <56BAD997-43B7-3AF5-8E99-9F0810619899> /System/Library/PrivateFrameworks/CommonUtilities.framework/Versions/A/CommonUtilities
0x7fff261c3000 - 0x7fff26242fff com.apple.BaseBoard (526 - 526) <A59E4406-C169-3723-9CC5-396A3ED80F49> /System/Library/PrivateFrameworks/BaseBoard.framework/Versions/A/BaseBoard
0x7fff26243000 - 0x7fff2628bfff com.apple.RunningBoardServices (1.0 - 505.100.9) <596F75F9-6D8E-3113-BE54-B4CA556D2770> /System/Library/PrivateFrameworks/RunningBoardServices.framework/Versions/A/RunningBoardServices
0x7fff2628c000 - 0x7fff26300fff com.apple.AE (918.6 - 918.6) <BA358FC6-72F7-3772-B99C-C52B337CA324> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
0x7fff26301000 - 0x7fff26307fff libdns_services.dylib (1310.140.1) <9D69602C-7ADF-3701-8A4E-F7C7B0A1AC37> /usr/lib/libdns_services.dylib
0x7fff26308000 - 0x7fff2630ffff libsystem_symptoms.dylib (1431.140.1) <EA6435E7-8F85-315B-8AED-C20A07DE7F96> /usr/lib/system/libsystem_symptoms.dylib
0x7fff26310000 - 0x7fff2649bfff com.apple.Network (1.0 - 1) <0BE21B58-8D4B-3B4C-B638-1A8A8B1A473F> /System/Library/Frameworks/Network.framework/Versions/A/Network
0x7fff2649c000 - 0x7fff264cbfff com.apple.analyticsd (1.0 - 1) <482FA91A-D1A4-3657-822B-9A5544D8E607> /System/Library/PrivateFrameworks/CoreAnalytics.framework/Versions/A/CoreAnalytics
0x7fff264cc000 - 0x7fff264cefff libDiagnosticMessagesClient.dylib (112) <2FCF6C74-5FAF-3968-AE36-294C9EF3AA75> /usr/lib/libDiagnosticMessagesClient.dylib
0x7fff264cf000 - 0x7fff2651bfff com.apple.spotlight.metadata.utilities (1.0 - 2150.28.1) <15F00C77-F7CB-389D-A791-0C5F6C55CB9A> /System/Library/PrivateFrameworks/MetadataUtilities.framework/Versions/A/MetadataUtilities
0x7fff2651c000 - 0x7fff265b6fff com.apple.Metadata (10.7.0 - 2150.28.1) <B125EEE5-1371-33EC-8B57-EFBB8F280642> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
0x7fff265b7000 - 0x7fff265bdfff com.apple.DiskArbitration (2.7 - 2.7) <819CA24F-E4C7-3BC3-8A09-360EBD6F4B6E> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
0x7fff265be000 - 0x7fff26f29fff com.apple.vImage (8.1 - 544.5) <172D145D-8B46-36F0-AB15-87FBF41EFE18> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
0x7fff26f2a000 - 0x7fff27207fff com.apple.QuartzCore (1.11 - 927.24) <1114FEFA-83FF-30A5-A879-572B591797E7> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
0x7fff27208000 - 0x7fff27249fff libFontRegistry.dylib (309) <ACF99477-688E-33DA-8100-3191721EB052> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
0x7fff2724a000 - 0x7fff2738afff com.apple.coreui (2.1 - 692.1) <CC1F2421-0338-3912-86BE-A15BFDDF5C00> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
0x7fff27477000 - 0x7fff27482fff com.apple.PerformanceAnalysis (1.278.3 - 278.3) <4460D0DF-74B4-3EDB-9391-733525F1D0C6> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
0x7fff27483000 - 0x7fff27492fff com.apple.OpenDirectory (11.6 - 230.40.1) <E204DA2B-17DA-3A4B-A03C-8F3B673D5CCD> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory
0x7fff27493000 - 0x7fff274b2fff com.apple.CFOpenDirectory (11.6 - 230.40.1) <9294B2FA-1269-3173-AB57-E80EBD2FE3E1> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
0x7fff274b3000 - 0x7fff274bffff com.apple.CoreServices.FSEvents (1290.120.6 - 1290.120.6) <DB10EBE8-D050-3260-9D82-04B6C9A0F64B> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/FSEvents.framework/Versions/A/FSEvents
0x7fff274c0000 - 0x7fff274e4fff com.apple.coreservices.SharedFileList (144 - 144) <FC634ADE-7F29-3A8D-AEB4-2F5A34685C88> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SharedFileList.framework/Versions/A/SharedFileList
0x7fff274e5000 - 0x7fff274e7fff libapp_launch_measurement.dylib (14.1) <34296F0E-D81B-383B-8B45-137CA086BC4D> /usr/lib/libapp_launch_measurement.dylib
0x7fff274e8000 - 0x7fff2752ffff com.apple.CoreAutoLayout (1.0 - 21.10.1) <0AA28C77-F6DE-3B5B-BD3B-6BDCE805B634> /System/Library/PrivateFrameworks/CoreAutoLayout.framework/Versions/A/CoreAutoLayout
0x7fff27530000 - 0x7fff27612fff libxml2.2.dylib (34.15) <B08FB968-0D6A-3047-A9F0-411C9B9ECCA7> /usr/lib/libxml2.2.dylib
0x7fff27613000 - 0x7fff27660fff com.apple.CoreVideo (1.8 - 0.0) <03CC5CF8-2336-31E9-B3FA-0C38F72367FE> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
0x7fff27661000 - 0x7fff27663fff com.apple.loginsupport (1.0 - 1) <F0181B5E-C653-3769-B7D2-8AEB1210898C> /System/Library/PrivateFrameworks/login.framework/Versions/A/Frameworks/loginsupport.framework/Versions/A/loginsupport
0x7fff2768c000 - 0x7fff276a7fff com.apple.UserManagement (1.0 - 1) <844C9F98-08E1-36EB-978D-660B4F4FA17E> /System/Library/PrivateFrameworks/UserManagement.framework/Versions/A/UserManagement
0x7fff27c4c000 - 0x7fff2859dfff libwebrtc.dylib (7611.3.10.1.16) <615459DA-B98B-336D-A277-1D38D0A1610C> /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebCore.framework/Versions/A/Frameworks/libwebrtc.dylib
0x7fff2861b000 - 0x7fff2862bfff libsystem_containermanager.dylib (318.100.4) <E0A89571-6D3E-3184-9F39-C6094C87B92B> /usr/lib/system/libsystem_containermanager.dylib
0x7fff2862c000 - 0x7fff2863dfff com.apple.IOSurface (290.8.1 - 290.8.1) <9D6CA654-3E6F-3719-B9B9-65C4CDA41BC5> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
0x7fff2863e000 - 0x7fff28647fff com.apple.IOAccelerator (442.9 - 442.9) <CF36BA06-85BA-3CCF-B59D-6A92EAB5EABB> /System/Library/PrivateFrameworks/IOAccelerator.framework/Versions/A/IOAccelerator
0x7fff28648000 - 0x7fff2876bfff com.apple.Metal (244.303 - 244.303) <079212EC-20C5-3F1F-B2E4-9DD637DD75FB> /System/Library/Frameworks/Metal.framework/Versions/A/Metal
0x7fff2876c000 - 0x7fff28788fff com.apple.audio.caulk (1.0 - 70) <B2CA358A-CC85-3B89-810C-B0209F0EEAEA> /System/Library/PrivateFrameworks/caulk.framework/Versions/A/caulk
0x7fff28789000 - 0x7fff28873fff com.apple.CoreMedia (1.0 - 2780.10.4.1) <FDE1187A-BDBD-3B4E-A200-A3E2E22694B5> /System/Library/Frameworks/CoreMedia.framework/Versions/A/CoreMedia
0x7fff28874000 - 0x7fff289d0fff libFontParser.dylib (305.6.0.4) <7A6DF449-3B4B-34FC-9D5C-B00FE59E6031> /System/Library/PrivateFrameworks/FontServices.framework/libFontParser.dylib
0x7fff289d1000 - 0x7fff28cccfff com.apple.HIToolbox (2.1.1 - 1062) <028D8F63-A386-33B9-A797-FF5C82B44C2F> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
0x7fff28ccd000 - 0x7fff28ce0fff com.apple.framework.DFRFoundation (1.0 - 267) <236EDA40-6A75-3BFE-9300-F9E4AAD36256> /System/Library/PrivateFrameworks/DFRFoundation.framework/Versions/A/DFRFoundation
0x7fff28ce1000 - 0x7fff28ce4fff com.apple.dt.XCTTargetBootstrap (1.0 - 18119.1) <C49751E0-0098-380F-99BC-DE7F2087884B> /System/Library/PrivateFrameworks/XCTTargetBootstrap.framework/Versions/A/XCTTargetBootstrap
0x7fff28ce5000 - 0x7fff28d0efff com.apple.CoreSVG (1.0 - 149) <01655535-CA23-3F54-A8CE-92423D73CC99> /System/Library/PrivateFrameworks/CoreSVG.framework/Versions/A/CoreSVG
0x7fff28d0f000 - 0x7fff28f4ffff com.apple.ImageIO (3.3.0 - 2130.9.1) <B546BA22-369B-30B2-A2F0-BBF24B09037D> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
0x7fff28f50000 - 0x7fff292cbfff com.apple.CoreImage (16.3.0 - 1140.2) <E05C48FC-81E3-3270-A37C-D206F364FF62> /System/Library/Frameworks/CoreImage.framework/Versions/A/CoreImage
0x7fff292cc000 - 0x7fff29332fff com.apple.MetalPerformanceShaders.MPSCore (1.0 - 1) <6AE9618A-B8C9-3D0F-A389-71382F438DF8> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/Frameworks/MPSCore.framework/Versions/A/MPSCore
0x7fff29333000 - 0x7fff29336fff libsystem_configuration.dylib (1109.140.1) <89E70992-616F-3DD3-9430-67025F759A1B> /usr/lib/system/libsystem_configuration.dylib
0x7fff29337000 - 0x7fff2933bfff libsystem_sandbox.dylib (1441.141.7) <6C99B070-E74F-3065-8DA0-D7214DA85E23> /usr/lib/system/libsystem_sandbox.dylib
0x7fff2933c000 - 0x7fff2933dfff com.apple.AggregateDictionary (1.0 - 1) <9FD9D68F-7B02-31A6-9583-EFF60B2A9F1C> /System/Library/PrivateFrameworks/AggregateDictionary.framework/Versions/A/AggregateDictionary
0x7fff2933e000 - 0x7fff29341fff com.apple.AppleSystemInfo (3.1.5 - 3.1.5) <0B523600-B02C-359B-BDD7-6EADCE8B5AD8> /System/Library/PrivateFrameworks/AppleSystemInfo.framework/Versions/A/AppleSystemInfo
0x7fff29342000 - 0x7fff29343fff liblangid.dylib (136) <5645ED02-635B-3BA0-ACEF-D6C8BC74FAF0> /usr/lib/liblangid.dylib
0x7fff29344000 - 0x7fff293e8fff com.apple.CoreNLP (1.0 - 245.2) <24291100-1C4C-361B-B53B-B99CB4B53906> /System/Library/PrivateFrameworks/CoreNLP.framework/Versions/A/CoreNLP
0x7fff293e9000 - 0x7fff293effff com.apple.LinguisticData (1.0 - 399) <55FF3554-9E14-3351-8E3C-3280C9CB664B> /System/Library/PrivateFrameworks/LinguisticData.framework/Versions/A/LinguisticData
0x7fff293f0000 - 0x7fff299ebfff libBNNS.dylib (288.100.5) <CF9C3646-9299-3DF7-A75B-9BD26A484201> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBNNS.dylib
0x7fff299ec000 - 0x7fff29b79fff libvDSP.dylib (760.100.3) <CD7A02E8-1A5C-3D13-BC5A-545B847821A1> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
0x7fff29b7a000 - 0x7fff29b8bfff com.apple.CoreEmoji (1.0 - 128.4) <37352743-CFF8-3196-8234-6AF30E531759> /System/Library/PrivateFrameworks/CoreEmoji.framework/Versions/A/CoreEmoji
0x7fff29b8c000 - 0x7fff29b96fff com.apple.IOMobileFramebuffer (343.0.0 - 343.0.0) <42639410-F2AB-305A-966C-6F40DEE93E08> /System/Library/PrivateFrameworks/IOMobileFramebuffer.framework/Versions/A/IOMobileFramebuffer
0x7fff29b97000 - 0x7fff29c69fff com.apple.framework.CoreWLAN (16.0 - 1657) <1D2BD28E-D4EC-366C-AB9F-D7F64979E925> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
0x7fff29c6a000 - 0x7fff29e6bfff com.apple.CoreUtils (6.6 - 660.37) <1A9D0FC4-F5C4-32AE-B4BC-B4826F7655A9> /System/Library/PrivateFrameworks/CoreUtils.framework/Versions/A/CoreUtils
0x7fff29e6c000 - 0x7fff29e8efff com.apple.MobileKeyBag (2.0 - 1.0) <70A80CF0-3682-32A6-AB83-8647FD8B2E52> /System/Library/PrivateFrameworks/MobileKeyBag.framework/Versions/A/MobileKeyBag
0x7fff29e8f000 - 0x7fff29e9ffff com.apple.AssertionServices (1.0 - 505.100.9) <968E021C-1BCD-3249-BBAD-FEE64370EB1F> /System/Library/PrivateFrameworks/AssertionServices.framework/Versions/A/AssertionServices
0x7fff29ea0000 - 0x7fff29f2bfff com.apple.securityfoundation (6.0 - 55240.40.4) <DB010D41-F904-3592-9301-BB75A0FA2FD4> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
0x7fff29f2c000 - 0x7fff29f35fff com.apple.coreservices.BackgroundTaskManagement (1.0 - 104) <B222BEB6-CE24-3D70-903B-A9034D6FC6F6> /System/Library/PrivateFrameworks/BackgroundTaskManagement.framework/Versions/A/BackgroundTaskManagement
0x7fff29f36000 - 0x7fff29f3afff com.apple.xpc.ServiceManagement (1.0 - 1) <E1167FFF-E757-3C96-B26A-C0CE98EAA899> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
0x7fff29f3b000 - 0x7fff29f3dfff libquarantine.dylib (119.40.4) <1263FFEA-9722-39FA-A097-D28B4F7FDE04> /usr/lib/system/libquarantine.dylib
0x7fff29f3e000 - 0x7fff29f49fff libCheckFix.dylib (31) <33E12D2E-4045-3AD2-8C3C-0DDD5266EAF0> /usr/lib/libCheckFix.dylib
0x7fff29f4a000 - 0x7fff29f61fff libcoretls.dylib (169.100.1) <972397D6-A93B-302D-9CA3-C8B12C93899B> /usr/lib/libcoretls.dylib
0x7fff29f62000 - 0x7fff29f72fff libbsm.0.dylib (68.40.1) <FEA138A5-B03E-3AD5-9E21-3F35405D147F> /usr/lib/libbsm.0.dylib
0x7fff29f73000 - 0x7fff29fbcfff libmecab.dylib (929.10) <E391699C-D139-338C-8919-1B2817BC1E25> /usr/lib/libmecab.dylib
0x7fff29fbd000 - 0x7fff29fc2fff libgermantok.dylib (24) <3DF990AD-8806-36B2-8168-4F18762C74A4> /usr/lib/libgermantok.dylib
0x7fff29fc3000 - 0x7fff29fd8fff libLinearAlgebra.dylib (1336.140.1) <6CE0B7EF-EC7A-34A1-B590-A05851FE42D9> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLinearAlgebra.dylib
0x7fff29fd9000 - 0x7fff2a1f7fff com.apple.MetalPerformanceShaders.MPSNeuralNetwork (1.0 - 1) <5B727E28-3ACF-3DBB-B787-B1633CFB2413> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/Frameworks/MPSNeuralNetwork.framework/Versions/A/MPSNeuralNetwork
0x7fff2a1f8000 - 0x7fff2a247fff com.apple.MetalPerformanceShaders.MPSRayIntersector (1.0 - 1) <315027A8-ADFD-3DC7-9B2A-6F1457E4D32E> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/Frameworks/MPSRayIntersector.framework/Versions/A/MPSRayIntersector
0x7fff2a248000 - 0x7fff2a3a9fff com.apple.MLCompute (1.0 - 1) <E0A748E2-21DA-319C-8B28-80A853090B86> /System/Library/Frameworks/MLCompute.framework/Versions/A/MLCompute
0x7fff2a3aa000 - 0x7fff2a3e0fff com.apple.MetalPerformanceShaders.MPSMatrix (1.0 - 1) <5D3C245B-BF53-31B0-B405-E4EB0FA608ED> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/Frameworks/MPSMatrix.framework/Versions/A/MPSMatrix
0x7fff2a3e1000 - 0x7fff2a437fff com.apple.MetalPerformanceShaders.MPSNDArray (1.0 - 1) <C251786D-BC17-3C99-94E7-10EC828139D4> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/Frameworks/MPSNDArray.framework/Versions/A/MPSNDArray
0x7fff2a438000 - 0x7fff2a4c8fff com.apple.MetalPerformanceShaders.MPSImage (1.0 - 1) <AAE88278-E296-3976-9FCC-345F71C8005D> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/Frameworks/MPSImage.framework/Versions/A/MPSImage
0x7fff2a4c9000 - 0x7fff2a4d8fff com.apple.AppleFSCompression (125 - 1.0) <EAA1DBD4-02EE-3E39-A9F8-C40AA535C32A> /System/Library/PrivateFrameworks/AppleFSCompression.framework/Versions/A/AppleFSCompression
0x7fff2a4d9000 - 0x7fff2a4e5fff libbz2.1.0.dylib (44) <90425CDA-B4E1-3004-800B-7E4A87DCBCD2> /usr/lib/libbz2.1.0.dylib
0x7fff2a4e6000 - 0x7fff2a4eafff libsystem_coreservices.dylib (127.1) <7AE405FC-6A44-34A0-86AD-6BD80B0050BB> /usr/lib/system/libsystem_coreservices.dylib
0x7fff2a4eb000 - 0x7fff2a518fff com.apple.CoreServices.OSServices (1122.45 - 1122.45) <03269E57-EFEB-3B5E-81A1-FC80CE023D24> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
0x7fff2a519000 - 0x7fff2a648fff com.apple.AuthKit (1.0 - 1) <BE5EBFF1-F354-3F16-9B16-B30B6867ED3E> /System/Library/PrivateFrameworks/AuthKit.framework/Versions/A/AuthKit
0x7fff2a6e7000 - 0x7fff2a6f9fff libz.1.dylib (76.1) <A38D8BF8-6238-3A19-A1C9-851A2D3EB3C4> /usr/lib/libz.1.dylib
0x7fff2a6fa000 - 0x7fff2a745fff libsystem_m.dylib (3186.100.3) <10F86B94-7CEE-35AB-86DC-E91032378BC7> /usr/lib/system/libsystem_m.dylib
0x7fff2a746000 - 0x7fff2a746fff libcharset.1.dylib (59) <E389024B-7CAC-32A5-BF12-DF20C8A3B050> /usr/lib/libcharset.1.dylib
0x7fff2a747000 - 0x7fff2a74cfff libmacho.dylib (980) <1FCE2BE3-4F6F-3EAA-9BC5-A9892A45CF0D> /usr/lib/system/libmacho.dylib
0x7fff2a74d000 - 0x7fff2a768fff libkxld.dylib (7195.141.32) <E72BDD0E-BB61-34A2-8D0C-EED3FC3CC7EB> /usr/lib/system/libkxld.dylib
0x7fff2a769000 - 0x7fff2a774fff libcommonCrypto.dylib (60178.120.3) <7E242F29-1CB6-30EF-8C9A-C768A90FDBA0> /usr/lib/system/libcommonCrypto.dylib
0x7fff2a775000 - 0x7fff2a77ffff libunwind.dylib (201) <A5B040A8-847F-36EE-B13D-5DD1F5CD5BED> /usr/lib/system/libunwind.dylib
0x7fff2a780000 - 0x7fff2a787fff liboah.dylib (203.58) <26D08622-69F5-32DB-80D2-9B4651A9F0CC> /usr/lib/liboah.dylib
0x7fff2a788000 - 0x7fff2a792fff libcopyfile.dylib (173.40.2) <8C783785-0F5F-3DC5-B815-B29CEBA75737> /usr/lib/system/libcopyfile.dylib
0x7fff2a793000 - 0x7fff2a79afff libcompiler_rt.dylib (102.2) <1FDC92D1-8A17-30AF-8E72-4F0517AEA157> /usr/lib/system/libcompiler_rt.dylib
0x7fff2a79b000 - 0x7fff2a79dfff libsystem_collections.dylib (1439.141.1) <11D5775A-AD4C-35ED-BC05-616AB67ACBBE> /usr/lib/system/libsystem_collections.dylib
0x7fff2a79e000 - 0x7fff2a7a0fff libsystem_secinit.dylib (87.60.1) <27982311-637E-3308-9F55-4871762736F4> /usr/lib/system/libsystem_secinit.dylib
0x7fff2a7a1000 - 0x7fff2a7a3fff libremovefile.dylib (49.120.1) <5973CED7-797B-3288-9589-C1856752F91A> /usr/lib/system/libremovefile.dylib
0x7fff2a7a4000 - 0x7fff2a7a4fff libkeymgr.dylib (31) <AAA929A0-45E5-3186-8ABD-37EB25B2C939> /usr/lib/system/libkeymgr.dylib
0x7fff2a7a5000 - 0x7fff2a7acfff libsystem_dnssd.dylib (1310.140.1) <4A85F13B-E3AD-3C44-B327-091F56D35CC1> /usr/lib/system/libsystem_dnssd.dylib
0x7fff2a7ad000 - 0x7fff2a7b2fff libcache.dylib (83) <435668CB-666B-3379-AD65-F604A72099F4> /usr/lib/system/libcache.dylib
0x7fff2a7b3000 - 0x7fff2a7b4fff libSystem.B.dylib (1292.120.1) <BF2EB42A-8928-3250-B344-00481468F0DB> /usr/lib/libSystem.B.dylib
0x7fff2a7b5000 - 0x7fff2a7b8fff libfakelink.dylib (3) <C7E36B51-4FD6-3704-975E-AB9B46DF6D30> /usr/lib/libfakelink.dylib
0x7fff2a7b9000 - 0x7fff2a7b9fff com.apple.SoftLinking (1.0 - 1) <AF16BDE9-8995-39F5-A0ED-C65232A61095> /System/Library/PrivateFrameworks/SoftLinking.framework/Versions/A/SoftLinking
0x7fff2a7ba000 - 0x7fff2a7f1fff libpcap.A.dylib (98.100.3) <7EB940E4-BB5E-327D-B7F8-951F22F27D72> /usr/lib/libpcap.A.dylib
0x7fff2a7f2000 - 0x7fff2a8e2fff libiconv.2.dylib (59) <1F132286-CEA4-37A4-93F7-3C0A60C3645B> /usr/lib/libiconv.2.dylib
0x7fff2a8e3000 - 0x7fff2a8f4fff libcmph.dylib (8) <8A5DF97C-1CDA-36BC-86E8-EF8B7F314EDC> /usr/lib/libcmph.dylib
0x7fff2a8f5000 - 0x7fff2a966fff libarchive.2.dylib (83.100.2) <BAF76083-029C-3AC5-96E5-AE54786574A6> /usr/lib/libarchive.2.dylib
0x7fff2a967000 - 0x7fff2a9cefff com.apple.SearchKit (1.4.1 - 1.4.1) <7B3B1E70-2C63-30E2-B5CF-6BC8EE7EA418> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
0x7fff2a9cf000 - 0x7fff2a9d0fff libThaiTokenizer.dylib (3) <84E7B443-74C5-386F-AEFF-FD48B94A04EB> /usr/lib/libThaiTokenizer.dylib
0x7fff2a9d1000 - 0x7fff2a9f3fff com.apple.applesauce (1.0 - 16.28) <0F9016E9-9DBB-3047-A1C3-A9FC85BAFE20> /System/Library/PrivateFrameworks/AppleSauce.framework/Versions/A/AppleSauce
0x7fff2a9f4000 - 0x7fff2aa0bfff libapple_nghttp2.dylib (1.41) <B730D1A0-8F61-3497-B63A-5661EB887E73> /usr/lib/libapple_nghttp2.dylib
0x7fff2aa0c000 - 0x7fff2aa1efff libSparseBLAS.dylib (1336.140.1) <D18578FF-C9A9-38EF-86D9-18C0D4FFCE5E> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libSparseBLAS.dylib
0x7fff2aa1f000 - 0x7fff2aa20fff com.apple.MetalPerformanceShaders.MetalPerformanceShaders (1.0 - 1) <295CF572-CFF5-3C5D-8006-F63988CFB5B7> /System/Library/Frameworks/MetalPerformanceShaders.framework/Versions/A/MetalPerformanceShaders
0x7fff2aa21000 - 0x7fff2aa25fff libpam.2.dylib (28.40.1) <B2457D3D-DADD-3157-8BFD-CF76F982FC13> /usr/lib/libpam.2.dylib
0x7fff2aa26000 - 0x7fff2aa46fff libcompression.dylib (96.120.1) <FAAB6617-1DDB-3B53-9290-8ACDEFF1510B> /usr/lib/libcompression.dylib
0x7fff2aa47000 - 0x7fff2aa4cfff libQuadrature.dylib (7) <EA417A8F-8395-32AC-A67A-FA75DC2110CB> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libQuadrature.dylib
0x7fff2aa4d000 - 0x7fff2adf1fff libLAPACK.dylib (1336.140.1) <EF9A0E29-BFF1-3A1A-A19E-4361F085EB13> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
0x7fff2adf2000 - 0x7fff2ae41fff com.apple.DictionaryServices (1.2 - 341) <960CC0D7-B2C6-3308-A120-C86F41A2301C> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
0x7fff2ae42000 - 0x7fff2ae5afff liblzma.5.dylib (16) <933D5DEC-E8E8-3946-A16E-1056F2075602> /usr/lib/liblzma.5.dylib
0x7fff2ae5b000 - 0x7fff2ae5cfff libcoretls_cfhelpers.dylib (169.100.1) <E2AC5901-93EC-3F67-A8B1-738E76B49804> /usr/lib/libcoretls_cfhelpers.dylib
0x7fff2ae5d000 - 0x7fff2af58fff com.apple.APFS (1677.141.3 - 1677.141.3) <2B4A367B-E360-350E-A1D1-4497D0193D8B> /System/Library/PrivateFrameworks/APFS.framework/Versions/A/APFS
0x7fff2af59000 - 0x7fff2af67fff libxar.1.dylib (452.0.6) <C92A8F0A-9A5E-3BF3-A7AF-2C255779C6AF> /usr/lib/libxar.1.dylib
0x7fff2af68000 - 0x7fff2af6bfff libutil.dylib (58.40.3) <CBC74043-ACDF-36BF-A47F-879F976BFC4D> /usr/lib/libutil.dylib
0x7fff2af6c000 - 0x7fff2af94fff libxslt.1.dylib (17.6) <BFB2EA40-332D-3DB4-AA3E-025966219E88> /usr/lib/libxslt.1.dylib
0x7fff2af95000 - 0x7fff2af9ffff libChineseTokenizer.dylib (37.1) <344E5492-4BD5-354A-8274-047F8388A826> /usr/lib/libChineseTokenizer.dylib
0x7fff2afa0000 - 0x7fff2b116fff libvMisc.dylib (760.100.3) <5CA32C80-516B-3872-8912-957CEDF08871> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
0x7fff2b117000 - 0x7fff2b248fff libate.dylib (3.0.6) <AD713B5B-0048-3127-9D03-C6B6AA4337DF> /usr/lib/libate.dylib
0x7fff2b249000 - 0x7fff2b250fff libIOReport.dylib (64.100.1) <4690B952-7BCF-31DB-A796-996D8094AB24> /usr/lib/libIOReport.dylib
0x7fff2b352000 - 0x7fff2b359fff libMatch.1.dylib (38) <E1296A96-E533-39A6-A519-05A0AE78181E> /usr/lib/libMatch.1.dylib
0x7fff2b35a000 - 0x7fff2b3e5fff libCoreStorage.dylib (554.140.2) <AEE8AC91-7058-3275-90D4-B0217A41BED6> /usr/lib/libCoreStorage.dylib
0x7fff2b3e6000 - 0x7fff2b439fff com.apple.AppleVAFramework (6.1.3 - 6.1.3) <DC3B87A5-AA7D-3534-BF4F-089E16226C0D> /System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
0x7fff2b43a000 - 0x7fff2b453fff libexpat.1.dylib (26.141.1) <F579645F-A493-3F2D-A9DB-C77664A1BCA1> /usr/lib/libexpat.1.dylib
0x7fff2b454000 - 0x7fff2b45dfff libheimdal-asn1.dylib (597.140.3) <2C0EE410-4623-327D-A0EF-CFBC583989E4> /usr/lib/libheimdal-asn1.dylib
0x7fff2b45e000 - 0x7fff2b472fff com.apple.IconFoundation (479.4 - 479.4) <6B77361F-69AF-393F-97B8-9BDED38304B0> /System/Library/PrivateFrameworks/IconFoundation.framework/Versions/A/IconFoundation
0x7fff2b473000 - 0x7fff2b4dffff com.apple.IconServices (479.4 - 479.4) <727B7BC3-AC02-31F7-9149-0014FDBCF17B> /System/Library/PrivateFrameworks/IconServices.framework/Versions/A/IconServices
0x7fff2b4e0000 - 0x7fff2b57efff com.apple.MediaExperience (1.0 - 1) <B71F329D-70E3-34A8-A789-82D7ACA63C34> /System/Library/PrivateFrameworks/MediaExperience.framework/Versions/A/MediaExperience
0x7fff2b57f000 - 0x7fff2b5a7fff com.apple.persistentconnection (1.0 - 1.0) <E05B6AF9-376E-3E4D-B2F5-3A7A85D7CBB3> /System/Library/PrivateFrameworks/PersistentConnection.framework/Versions/A/PersistentConnection
0x7fff2b5a8000 - 0x7fff2b5b6fff com.apple.GraphVisualizer (1.0 - 100.1) <09C716AC-B62A-3EF0-85A1-98A949EB88B3> /System/Library/PrivateFrameworks/GraphVisualizer.framework/Versions/A/GraphVisualizer
0x7fff2b5b7000 - 0x7fff2b9d2fff com.apple.vision.FaceCore (4.3.2 - 4.3.2) <0E25BE9A-551C-3457-B7E8-7ED414223E3A> /System/Library/PrivateFrameworks/FaceCore.framework/Versions/A/FaceCore
0x7fff2b9d3000 - 0x7fff2ba1afff com.apple.OTSVG (1.0 - 677.6.0.4) <935CDA2A-2DB0-3EE2-A7FA-51AD1D76F4D3> /System/Library/PrivateFrameworks/OTSVG.framework/Versions/A/OTSVG
0x7fff2ba1b000 - 0x7fff2ba21fff com.apple.xpc.AppServerSupport (1.0 - 2038.120.1) <523B9C03-A39E-3FF4-8216-34309C158113> /System/Library/PrivateFrameworks/AppServerSupport.framework/Versions/A/AppServerSupport
0x7fff2ba22000 - 0x7fff2ba34fff libhvf.dylib (1.0 - $[CURRENT_PROJECT_VERSION]) <53477D30-E8A6-3935-A3B1-7CBDE387210A> /System/Library/PrivateFrameworks/FontServices.framework/libhvf.dylib
0x7fff2ba35000 - 0x7fff2ba37fff libspindump.dylib (295.3) <C176CDF2-026D-3D71-84E6-8F4CF724510D> /usr/lib/libspindump.dylib
0x7fff2ba38000 - 0x7fff2baf8fff com.apple.Heimdal (4.0 - 2.0) <35D3F56E-089C-3648-9E5A-834E997401B3> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
0x7fff2bc98000 - 0x7fff2bcd4fff com.apple.bom (14.0 - 235.1) <354D4983-EA7A-3F97-B1FF-9648F3981208> /System/Library/PrivateFrameworks/Bom.framework/Versions/A/Bom
0x7fff2bcd5000 - 0x7fff2bd1efff com.apple.AppleJPEG (1.0 - 1) <D751A39A-DC50-3E2E-9C2D-70284574EC84> /System/Library/PrivateFrameworks/AppleJPEG.framework/Versions/A/AppleJPEG
0x7fff2bd1f000 - 0x7fff2bdfdfff libJP2.dylib (2130.9.1) <E12448D4-ADF7-3F7B-8182-A454AF6703BB> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
0x7fff2bdfe000 - 0x7fff2be01fff com.apple.WatchdogClient.framework (1.0 - 98.120.2) <13BB2B82-DF17-33C3-A19B-432E03744896> /System/Library/PrivateFrameworks/WatchdogClient.framework/Versions/A/WatchdogClient
0x7fff2be02000 - 0x7fff2be38fff com.apple.MultitouchSupport.framework (4440.3.1 - 4440.3.1) <118E6696-69C3-3820-AB0F-6A81D6269868> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
0x7fff2be39000 - 0x7fff2bf97fff com.apple.VideoToolbox (1.0 - 2780.10.4.1) <1134D8C6-EA97-32B4-BD4C-DD02901F4B0B> /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox
0x7fff2bf98000 - 0x7fff2bfcbfff libAudioToolboxUtility.dylib (1181.72.4) <F26A13BB-BCDD-3F04-B98C-5CD9E445DD35> /usr/lib/libAudioToolboxUtility.dylib
0x7fff2bfcc000 - 0x7fff2bfecfff libPng.dylib (2130.9.1) <A4B1C989-F76B-390E-ADED-763893374F09> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
0x7fff2bfed000 - 0x7fff2c04cfff libTIFF.dylib (2130.9.1) <0BEF5DB5-CC75-39C9-B8AF-375F7BFA715D> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
0x7fff2c04d000 - 0x7fff2c069fff com.apple.IOPresentment (58 - 37) <990B304C-15B6-397D-8B7E-636DA14AE1D3> /System/Library/PrivateFrameworks/IOPresentment.framework/Versions/A/IOPresentment
0x7fff2c06a000 - 0x7fff2c071fff com.apple.GPUWrangler (6.3.6 - 6.3.6) <EB257619-862B-3CEF-8A65-FE5229D7123D> /System/Library/PrivateFrameworks/GPUWrangler.framework/Versions/A/GPUWrangler
0x7fff2c072000 - 0x7fff2c074fff libRadiance.dylib (2130.9.1) <3576CE24-AA0C-32FA-BBFD-09EAE6F531B2> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
0x7fff2c075000 - 0x7fff2c07afff com.apple.DSExternalDisplay (3.1 - 380) <DCD6682A-9C61-3779-A81D-8E1FBED38C69> /System/Library/PrivateFrameworks/DSExternalDisplay.framework/Versions/A/DSExternalDisplay
0x7fff2c07b000 - 0x7fff2c09ffff libJPEG.dylib (2130.9.1) <7B97FF23-3433-3713-804C-3AB9E810B167> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
0x7fff2c0a0000 - 0x7fff2c0cffff com.apple.ATSUI (1.0 - 1) <92428504-C766-3ACE-BC36-89F1A5CAB61C> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATSUI.framework/Versions/A/ATSUI
0x7fff2c0d0000 - 0x7fff2c0d4fff libGIF.dylib (2130.9.1) <9CB41F9F-8206-3F71-87CF-60B98BB99F15> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
0x7fff2c0d5000 - 0x7fff2c0defff com.apple.CMCaptureCore (1.0 - 82.6) <C1960208-BCA3-3D47-9DBE-CF1A81C2053B> /System/Library/PrivateFrameworks/CMCaptureCore.framework/Versions/A/CMCaptureCore
0x7fff2c0df000 - 0x7fff2c126fff com.apple.print.framework.PrintCore (16.1 - 531.1) <8139D1A2-7037-3B4F-AB8F-2BF38D64D798> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
0x7fff2c127000 - 0x7fff2c1f4fff com.apple.TextureIO (3.10.9 - 3.10.9) <0E29AC8D-246E-3F7F-A8A0-10E09DD64603> /System/Library/PrivateFrameworks/TextureIO.framework/Versions/A/TextureIO
0x7fff2c1f5000 - 0x7fff2c1fdfff com.apple.InternationalSupport (1.0 - 61.1) <8E0C26AC-7462-34B5-B608-0DB611CCB687> /System/Library/PrivateFrameworks/InternationalSupport.framework/Versions/A/InternationalSupport
0x7fff2c1fe000 - 0x7fff2c278fff com.apple.datadetectorscore (8.0 - 674) <3E182298-355E-337F-A398-B266DEC5E6F3> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
0x7fff2c279000 - 0x7fff2c2d6fff com.apple.UserActivity (439 - 439) <E011EB02-BB18-3154-8010-AD4C6D21792B> /System/Library/PrivateFrameworks/UserActivity.framework/Versions/A/UserActivity
0x7fff2c2d7000 - 0x7fff2ca73fff com.apple.MediaToolbox (1.0 - 2780.10.4.1) <A90F330D-ACB5-30FC-9F25-CA12F6D8DE3C> /System/Library/Frameworks/MediaToolbox.framework/Versions/A/MediaToolbox
0x7fff2cf44000 - 0x7fff2cf75fff libSessionUtility.dylib (76.69) <E6D8E0BB-3C76-343B-B8EA-03C411971A6C> /System/Library/PrivateFrameworks/AudioSession.framework/libSessionUtility.dylib
0x7fff2cf76000 - 0x7fff2d0aafff com.apple.audio.toolbox.AudioToolbox (1.14 - 1.14) <F2960A44-070D-30E7-88FD-A43905059819> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
0x7fff2d0ab000 - 0x7fff2d110fff com.apple.audio.AudioSession (1.0 - 76.69) <3E7FD009-AC1B-398E-A5BE-D892725A73C7> /System/Library/PrivateFrameworks/AudioSession.framework/Versions/A/AudioSession
0x7fff2d111000 - 0x7fff2d123fff libAudioStatistics.dylib (27.64) <2072394F-C2D4-3EBE-8259-CEBBC87DB2C7> /usr/lib/libAudioStatistics.dylib
0x7fff2d124000 - 0x7fff2d133fff com.apple.speech.synthesis.framework (9.0.66 - 9.0.66) <3FADC203-0E7D-3208-9BF7-CD8AE1B9D204> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
0x7fff2d134000 - 0x7fff2d1a0fff com.apple.ApplicationServices.ATS (377 - 516) <79E67A4C-DAED-3E60-AF13-23BF0C11A3CA> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
0x7fff2d1a1000 - 0x7fff2d1b9fff libresolv.9.dylib (68.2) <F487B0C2-E9E6-3305-AAD9-8F4BEBB649CE> /usr/lib/libresolv.9.dylib
0x7fff2d23a000 - 0x7fff2d26dfff com.apple.securityinterface (10.0 - 55149.120.1) <F804A124-CA96-3542-9037-30B9F1ED462E> /System/Library/Frameworks/SecurityInterface.framework/Versions/A/SecurityInterface
0x7fff2d287000 - 0x7fff2d2ebfff com.apple.CoreMediaIO (1000.0 - 5325) <34DFE2B6-23CA-34DE-998E-FF6B1EFAFB5B> /System/Library/Frameworks/CoreMediaIO.framework/Versions/A/CoreMediaIO
0x7fff2d2ec000 - 0x7fff2d3cbfff libSMC.dylib (20) <B45BD314-B645-3948-B1C2-1FDA40453078> /usr/lib/libSMC.dylib
0x7fff2d3cc000 - 0x7fff2d42bfff libcups.2.dylib (494.4) <F7752C87-6C78-38DB-9938-0395B5CD0359> /usr/lib/libcups.2.dylib
0x7fff2d42c000 - 0x7fff2d43bfff com.apple.LangAnalysis (1.7.0 - 254) <EE21E044-0B25-3D3E-A892-A276452D8EC8> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
0x7fff2d43c000 - 0x7fff2d446fff com.apple.NetAuth (6.2 - 6.2) <08F7BAF1-D834-3FAF-9FCC-7FBC32BAF037> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
0x7fff2d447000 - 0x7fff2d44efff com.apple.ColorSyncLegacy (4.13.0 - 1) <CA708578-E33E-3175-B162-FF7EA1574FED> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSyncLegacy.framework/Versions/A/ColorSyncLegacy
0x7fff2d44f000 - 0x7fff2d45afff com.apple.QD (4.0 - 416) <41CBD1BE-1975-3983-B4E0-32E511997BB5> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
0x7fff2d45b000 - 0x7fff2daaffff com.apple.audio.AudioResourceArbitration (1.0 - 1) <882F280D-B129-3299-B098-D1E59B78841A> /System/Library/PrivateFrameworks/AudioResourceArbitration.framework/Versions/A/AudioResourceArbitration
0x7fff2dab0000 - 0x7fff2dabbfff com.apple.perfdata (1.0 - 67.40.1) <B80E66C3-5A5F-391A-9475-15DB16BA72E8> /System/Library/PrivateFrameworks/perfdata.framework/Versions/A/perfdata
0x7fff2dabc000 - 0x7fff2dacafff libperfcheck.dylib (41) <A9A6BE18-57EA-35F6-96BC-D71C49013A09> /usr/lib/libperfcheck.dylib
0x7fff2dacb000 - 0x7fff2dadafff com.apple.Kerberos (3.0 - 1) <06AAAB8C-AA8B-344E-A3F3-4CEDF0AF8C78> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
0x7fff2dadb000 - 0x7fff2db2bfff com.apple.GSS (4.0 - 2.0) <83CD04C6-22CD-319D-884B-1B369F8FE028> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
0x7fff2db2c000 - 0x7fff2db3cfff com.apple.CommonAuth (4.0 - 2.0) <ADDE6649-F244-334C-AA10-B53BCA2C1E55> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
0x7fff2db92000 - 0x7fff2dbb1fff com.apple.security.KeychainCircle.KeychainCircle (1.0 - 1) <92FFAD21-9FA8-3194-8764-946F3D8F429E> /System/Library/PrivateFrameworks/KeychainCircle.framework/Versions/A/KeychainCircle
0x7fff2dbb2000 - 0x7fff2dbbafff com.apple.CorePhoneNumbers (1.0 - 1) <A667EA02-1F06-36D7-8290-0B6CD36F89BC> /System/Library/PrivateFrameworks/CorePhoneNumbers.framework/Versions/A/CorePhoneNumbers
0x7fff2dbbb000 - 0x7fff2dc44fff libTelephonyUtilDynamic.dylib (5359.1) <77A0F846-3480-31C8-9373-80A8D0056B54> /usr/lib/libTelephonyUtilDynamic.dylib
0x7fff2dd0d000 - 0x7fff2dd0dfff liblaunch.dylib (2038.120.1) <A3F46CC6-BD89-39DB-8732-C885B881A635> /usr/lib/system/liblaunch.dylib
0x7fff2e006000 - 0x7fff2e291fff com.apple.NetworkExtension (1.0 - 1) <342A18C5-3D63-33D5-B988-42E5124407C8> /System/Library/Frameworks/NetworkExtension.framework/Versions/A/NetworkExtension
0x7fff2e4ef000 - 0x7fff2e63afff com.apple.Sharing (1630 - 1630) <76D1A200-27A3-3B3E-8B30-4026ABD24217> /System/Library/PrivateFrameworks/Sharing.framework/Versions/A/Sharing
0x7fff2e63b000 - 0x7fff2e75cfff com.apple.Bluetooth (8.0.5 - 8.0.5d7) <25AF84A9-3CCA-3228-9CB7-BBCE558F4B88> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/IOBluetooth
0x7fff2e776000 - 0x7fff2e7cffff com.apple.ProtectedCloudStorage (1.0 - 1) <4BCCB350-CAA2-3217-8AE6-6A6B25755D9F> /System/Library/PrivateFrameworks/ProtectedCloudStorage.framework/Versions/A/ProtectedCloudStorage
0x7fff2ff37000 - 0x7fff2ff5efff com.apple.RemoteViewServices (2.0 - 163) <5A16528F-4822-3B0C-BB89-A79459F3AF87> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
0x7fff2ff5f000 - 0x7fff2ff6efff com.apple.SpeechRecognitionCore (6.1.25 - 6.1.25) <80F52037-912C-335F-B1DA-22AFD73DBDA2> /System/Library/PrivateFrameworks/SpeechRecognitionCore.framework/Versions/A/SpeechRecognitionCore
0x7fff2ff6f000 - 0x7fff2ff76fff com.apple.speech.recognition.framework (6.0.3 - 6.0.3) <00007833-3C2A-3F10-97ED-838FB606B5FD> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
0x7fff301a4000 - 0x7fff301a4fff libsystem_product_info_filter.dylib (8.40.1) <6CA8DEA4-5BD4-375F-9AA7-3338135306C5> /usr/lib/system/libsystem_product_info_filter.dylib
0x7fff3021c000 - 0x7fff30233fff libnetworkextension.dylib (1295.140.3) <B698E134-F3EE-3502-9A1C-3E83845BB97A> /usr/lib/libnetworkextension.dylib
0x7fff3027c000 - 0x7fff3027cfff com.apple.Accelerate.vecLib (3.11 - vecLib 3.11) <AB0631EC-4898-3FA1-8A55-769D815EC2E2> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
0x7fff302a2000 - 0x7fff302a2fff com.apple.CoreServices (1122.45 - 1122.45) <7B05D1AD-BD60-34BF-B8E7-9B0B81715128> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
0x7fff3045e000 - 0x7fff3045efff com.apple.Accelerate (1.11 - Accelerate 1.11) <32A870CF-9FDF-3AB0-B578-7A12C70ADA33> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
0x7fff3049f000 - 0x7fff304aafff com.apple.MediaAccessibility (1.0 - 130) <9F936D44-8663-3C49-9B14-3D906CEC361C> /System/Library/Frameworks/MediaAccessibility.framework/Versions/A/MediaAccessibility
0x7fff304ab000 - 0x7fff304cafff com.apple.networking.AlgosScoreFramework (1.0 - 1) <D0286FFC-1658-30C0-A2C6-FBE9C94331EB> /System/Library/PrivateFrameworks/AlgosScoreFramework.framework/Versions/A/AlgosScoreFramework
0x7fff30ca0000 - 0x7fff30d05fff com.apple.CoreBluetooth (1.0 - 1) <3045519A-D711-3CD1-9E87-D7581A430423> /System/Library/Frameworks/CoreBluetooth.framework/Versions/A/CoreBluetooth
0x7fff30d06000 - 0x7fff30d0ffff com.apple.SymptomDiagnosticReporter (1.0 - 79.120.1) <22A34196-22AD-3021-88CD-CC9A7C0AF006> /System/Library/PrivateFrameworks/SymptomDiagnosticReporter.framework/Versions/A/SymptomDiagnosticReporter
0x7fff30d23000 - 0x7fff30d2ffff com.apple.AppleIDAuthSupport (1.0 - 1) <B80B4F16-3756-303D-A349-3486A08B2216> /System/Library/PrivateFrameworks/AppleIDAuthSupport.framework/Versions/A/AppleIDAuthSupport
0x7fff30d30000 - 0x7fff30dd8fff com.apple.DiscRecording (9.0.3 - 9030.4.5) <ED2D9708-858A-37F1-B573-4069453277B7> /System/Library/Frameworks/DiscRecording.framework/Versions/A/DiscRecording
0x7fff30dd9000 - 0x7fff30e0cfff com.apple.MediaKit (16 - 927.40.2) <88268EAB-5430-3BCB-9263-E3B4BCC34609> /System/Library/PrivateFrameworks/MediaKit.framework/Versions/A/MediaKit
0x7fff30e0d000 - 0x7fff30ef8fff com.apple.DiskManagement (14.0 - 1733.140.2) <4BF7BFA4-4950-3582-B43B-25A4B6A3E7B7> /System/Library/PrivateFrameworks/DiskManagement.framework/Versions/A/DiskManagement
0x7fff30ef9000 - 0x7fff312b3fff com.apple.CoreAUC (326.2.0 - 326.2.0) <2CA2A80E-FEA5-3631-AD13-A8CC304C7FF7> /System/Library/PrivateFrameworks/CoreAUC.framework/Versions/A/CoreAUC
0x7fff312b4000 - 0x7fff312b7fff com.apple.Mangrove (1.0 - 25) <00241832-3B38-3D76-88DA-0F0ADEEBFAAC> /System/Library/PrivateFrameworks/Mangrove.framework/Versions/A/Mangrove
0x7fff312b8000 - 0x7fff312e5fff com.apple.CoreAVCHD (6.1.0 - 6100.4.1) <D4FFFBBA-0AD9-31D0-99A1-7FC249867A20> /System/Library/PrivateFrameworks/CoreAVCHD.framework/Versions/A/CoreAVCHD
0x7fff312e6000 - 0x7fff31435fff com.apple.FileProvider (349.141.2 - 349.141.2) <D2C77486-711B-3A81-B6D5-EB059AC1D2F9> /System/Library/Frameworks/FileProvider.framework/Versions/A/FileProvider
0x7fff31436000 - 0x7fff31458fff com.apple.GenerationalStorage (2.0 - 323) <9419BDA9-3F2D-32A8-8ABD-5CAF5B6DB77F> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
0x7fff318c1000 - 0x7fff31a55fff com.apple.AVFCore (1.0 - 2020.10) <70A422C7-FCC6-3C1F-A78E-686B861847F4> /System/Library/PrivateFrameworks/AVFCore.framework/Versions/A/AVFCore
0x7fff31a56000 - 0x7fff31ac5fff com.apple.FrontBoardServices (703.16 - 703.16) <1B6F7F55-D9F7-342F-8361-E66465F2A617> /System/Library/PrivateFrameworks/FrontBoardServices.framework/Versions/A/FrontBoardServices
0x7fff31ac6000 - 0x7fff31aeffff com.apple.BoardServices (1.0 - 526) <12D89B26-4E91-34A2-83D9-3023D199255C> /System/Library/PrivateFrameworks/BoardServices.framework/Versions/A/BoardServices
0x7fff31ca2000 - 0x7fff31ce1fff com.apple.AppleVPAFramework (3.26.1 - 3.26.1) <07AE0E16-85CC-30F2-A575-A51458366DD9> /System/Library/PrivateFrameworks/AppleVPA.framework/Versions/A/AppleVPA
0x7fff31d94000 - 0x7fff31dcffff com.apple.DebugSymbols (195.1 - 195.1) <C94557E3-11DD-3007-B001-DC2509CFE14D> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
0x7fff31dd0000 - 0x7fff31e85fff com.apple.CoreSymbolication (12.5 - 64544.81.1) <1D4A9F11-AB1C-3F5F-90A1-38C3EAA7BE1F> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
0x7fff32d94000 - 0x7fff32df7fff com.apple.framework.Apple80211 (17.0 - 1728) <C7EF405F-8CD4-3565-9736-290425CBCD71> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
0x7fff32df8000 - 0x7fff32f49fff com.apple.CoreWiFi (3.0 - 341) <EC143451-C0F3-369A-886B-64ACE24E65C6> /System/Library/PrivateFrameworks/CoreWiFi.framework/Versions/A/CoreWiFi
0x7fff32f4a000 - 0x7fff32f64fff com.apple.BackBoardServices (1.0 - 1.0) <A7D65AAF-EFEF-3BC9-BF87-973374EBA5D7> /System/Library/PrivateFrameworks/BackBoardServices.framework/Versions/A/BackBoardServices
0x7fff33183000 - 0x7fff331b9fff com.apple.SystemConfiguration.EAP8021X (14.0.0 - 14.0) <72DFE637-46E4-3CF1-8233-6B88CDB4855B> /System/Library/PrivateFrameworks/EAP8021X.framework/Versions/A/EAP8021X
0x7fff33227000 - 0x7fff3322afff com.apple.help (1.3.8 - 71) <F94CF2A6-2886-3552-A1E5-8D83452AE773> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Help.framework/Versions/A/Help
0x7fff3322b000 - 0x7fff33232fff com.apple.EFILogin (2.0 - 2) <A86695A6-1567-330B-870D-805FDB9EE437> /System/Library/PrivateFrameworks/EFILogin.framework/Versions/A/EFILogin
0x7fff33233000 - 0x7fff3323efff libcsfde.dylib (554.140.2) <678CA1E1-733D-3709-A327-2208B49C6C1A> /usr/lib/libcsfde.dylib
0x7fff3347d000 - 0x7fff3347dfff com.apple.ApplicationServices (48 - 50) <1B28DE8B-4836-3AE7-8532-A3447E0BCDFF> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
0x7fff3367f000 - 0x7fff336d6fff com.apple.CorePrediction (1.0 - 1) <EAA60434-D01F-3117-9596-C544DC0EB782> /System/Library/PrivateFrameworks/CorePrediction.framework/Versions/A/CorePrediction
0x7fff33792000 - 0x7fff33792fff libHeimdalProxy.dylib (79) <2572CF4E-C22E-346A-A72F-9BD07BA56057> /System/Library/Frameworks/Kerberos.framework/Versions/A/Libraries/libHeimdalProxy.dylib
0x7fff33845000 - 0x7fff33845fff com.apple.audio.units.AudioUnit (1.14 - 1.14) <025405B1-07C0-31B1-9D9A-4BFA4DD370E5> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
0x7fff33958000 - 0x7fff34159fff com.apple.vision.EspressoFramework (1.0 - 256.4.4) <A207A19F-47D1-38C7-A792-9E0CCC778EF3> /System/Library/PrivateFrameworks/Espresso.framework/Versions/A/Espresso
0x7fff3415a000 - 0x7fff34171fff com.apple.ANEServices (4.76 - 4.76) <3C70C879-5C89-3890-AEE6-A72BA53ACCFC> /System/Library/PrivateFrameworks/ANEServices.framework/Versions/A/ANEServices
0x7fff34815000 - 0x7fff34865fff com.apple.ChunkingLibrary (334.1 - 334.1) <1F0C24A0-F8F0-3773-91FF-39956CF3A1F8> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
0x7fff34f18000 - 0x7fff350befff com.apple.WebKitLegacy (16611 - 16611.3.10.1.16) <89D67C80-B745-34BB-8DC4-ADA89608E2A3> /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebKitLegacy.framework/Versions/A/WebKitLegacy
0x7fff350d9000 - 0x7fff350eefff com.apple.CoreML.AppleNeuralEngine (1.0 - 1) <14E9F653-6DB2-3E6B-805F-C3FA91EAF4FC> /System/Library/PrivateFrameworks/AppleNeuralEngine.framework/Versions/A/AppleNeuralEngine
0x7fff35275000 - 0x7fff35278fff com.apple.Cocoa (6.11 - 23) <9BA4B46A-DF69-3A51-B714-894061371F68> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
0x7fff363a3000 - 0x7fff36637fff libAWDSupportFramework.dylib (4205) <0EA22A3B-3DA1-3E4B-95C1-5457C3828A15> /System/Library/PrivateFrameworks/WirelessDiagnostics.framework/Versions/A/Libraries/libAWDSupportFramework.dylib
0x7fff36711000 - 0x7fff36734fff com.apple.openscripting (1.7 - 190.1) <75008FD0-9D88-367B-A001-79867E995441> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/OpenScripting.framework/Versions/A/OpenScripting
0x7fff36735000 - 0x7fff36738fff com.apple.securityhi (9.0 - 55008) <4933616C-D994-3E1E-AFEA-E1E460A1A39E> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SecurityHI.framework/Versions/A/SecurityHI
0x7fff36739000 - 0x7fff3673cfff com.apple.ink.framework (10.15 - 227) <FDE6A6E5-DDD2-31DE-9695-6148EE88005B> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
0x7fff3673d000 - 0x7fff36740fff com.apple.CommonPanels (1.2.6 - 101) <623B24C3-6256-388A-949B-C7A37AD72690> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/CommonPanels.framework/Versions/A/CommonPanels
0x7fff36741000 - 0x7fff36748fff com.apple.ImageCapture (1711.5.2.1 - 1711.5.2.1) <DF34BF94-579A-3CD7-8785-F49C06525E50> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/ImageCapture.framework/Versions/A/ImageCapture
0x7fff36749000 - 0x7fff37939fff com.apple.JavaScriptCore (16611 - 16611.3.10.1.16) <748274B1-A103-3812-8EB2-5973EAB641DA> /System/Library/Frameworks/JavaScriptCore.framework/Versions/A/JavaScriptCore
0x7fff379a5000 - 0x7fff37ab7fff com.apple.AVFCapture (1.0 - 82.6) <119E6F65-DB53-38B4-B4FA-7AFB5645476D> /System/Library/PrivateFrameworks/AVFCapture.framework/Versions/A/AVFCapture
0x7fff37ab8000 - 0x7fff37b4bfff com.apple.Quagga (47 - 47) <7DABFA1D-0B1C-3F38-8B71-FDA918DF066E> /System/Library/PrivateFrameworks/Quagga.framework/Versions/A/Quagga
0x7fff37b4c000 - 0x7fff37d96fff com.apple.CMCapture (1.0 - 82.6) <FBCE95F0-81D5-38F1-8B39-88F51E3EC323> /System/Library/PrivateFrameworks/CMCapture.framework/Versions/A/CMCapture
0x7fff39569000 - 0x7fff39570fff com.apple.URLFormatting (146 - 146.22) <22DEF2D9-9562-3894-B49E-EABD33DD746B> /System/Library/PrivateFrameworks/URLFormatting.framework/Versions/A/URLFormatting
0x7fff39571000 - 0x7fff3957ffff com.apple.accessibility.AXCoreUtilities (1.0 - 1) <203FB146-6AA7-38B4-90E4-7E6321B04D56> /System/Library/PrivateFrameworks/AXCoreUtilities.framework/Versions/A/AXCoreUtilities
0x7fff39580000 - 0x7fff39597fff libAccessibility.dylib (2885.49.1) <3686A929-B308-3045-B64E-3B78F9631DAD> /usr/lib/libAccessibility.dylib
0x7fff39598000 - 0x7fff3bcdefff com.apple.WebCore (16611 - 16611.3.10.1.16) <834945B6-869A-33A6-8240-1323A0A2DE87> /System/Library/Frameworks/WebKit.framework/Versions/A/Frameworks/WebCore.framework/Versions/A/WebCore
0x7fff3bff1000 - 0x7fff3c088fff com.apple.AirPlaySync (1.0 - 2780.10.4.1) <AD221FBA-7DFB-310F-AB9C-760D0F1F37B2> /System/Library/PrivateFrameworks/AirPlaySync.framework/Versions/A/AirPlaySync
0x7fff3c2bc000 - 0x7fff3c30afff com.apple.Safari.SafeBrowsing (16611 - 16611.3.10.1.16) <651F7152-448E-3282-97B3-FE7843434D7B> /System/Library/PrivateFrameworks/SafariSafeBrowsing.framework/Versions/A/SafariSafeBrowsing
0x7fff3c30b000 - 0x7fff3caeafff com.apple.WebKit (16611 - 16611.3.10.1.16) <DCE95942-415F-32AA-AAD1-AE1426D73A1A> /System/Library/Frameworks/WebKit.framework/Versions/A/WebKit
0x7fff3cc9d000 - 0x7fff3cca0fff com.apple.print.framework.Print (15 - 271) <47961FDE-D450-3357-948E-CFDEFA763A7B> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Print.framework/Versions/A/Print
0x7fff3cca1000 - 0x7fff3cca4fff com.apple.Carbon (160 - 164) <0449CF9B-AA81-3428-BF73-DCED8B5BF65F> /System/Library/Frameworks/Carbon.framework/Versions/A/Carbon
0x7fff3cd9d000 - 0x7fff3cd9dfff com.apple.avfoundation (2.0 - 2020.10) <19FE20E3-D0AC-3846-A30D-E1B9EC6731C3> /System/Library/Frameworks/AVFoundation.framework/Versions/A/AVFoundation
0x7fff3cf57000 - 0x7fff3cf76fff com.apple.private.SystemPolicy (1.0 - 1) <68B979DB-7E8E-30A9-82B3-3A7326C6B7A9> /System/Library/PrivateFrameworks/SystemPolicy.framework/Versions/A/SystemPolicy
0x7fff3d54e000 - 0x7fff3d552fff com.apple.CoreOptimization (1.0 - 1) <FDE8D61F-3821-38CE-8990-A45D4E88BB28> /System/Library/PrivateFrameworks/CoreOptimization.framework/Versions/A/CoreOptimization
0x7fff3d8b4000 - 0x7fff3d8c6fff libmis.dylib (274.140.2) <F4EE6883-6A50-33B0-9AF9-5131DA07E3D3> /usr/lib/libmis.dylib
0x7fff3dde3000 - 0x7fff3dde6fff com.apple.WebInspectorUI (16611 - 16611.3.10.1.16) <D264AF7C-F963-3344-BE0A-A507EAC89952> /System/Library/PrivateFrameworks/WebInspectorUI.framework/Versions/A/WebInspectorUI
0x7fff40cfc000 - 0x7fff40d07fff com.apple.CaptiveNetworkSupport (13.0 - 1) <240BA909-E91B-3F24-A2EC-8D6A02931F5D> /System/Library/PrivateFrameworks/CaptiveNetwork.framework/Versions/A/CaptiveNetwork
0x7fff4157b000 - 0x7fff41598fff libCGInterfaces.dylib (544.5) <71690317-CCE5-3430-891A-1C8CC036345A> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/Libraries/libCGInterfaces.dylib
0x7fff6bc1b000 - 0x7fff6bc21fff libCoreFSCache.dylib (200.12) <0E7443EE-D778-3B2E-9973-F825BCA0E0D6> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreFSCache.dylib
0x7fff6bc22000 - 0x7fff6bc26fff libCoreVMClient.dylib (200.12) <93679C5E-92E3-3C6A-A585-C603F4AD399A> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
0x7fff6bc27000 - 0x7fff6bc36fff com.apple.opengl (18.5.9 - 18.5.9) <2A421CC5-4D60-339C-9772-3AC991232BD8> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
0x7fff6bc37000 - 0x7fff6bc39fff libCVMSPluginSupport.dylib (18.5.9) <BF44FEB3-FB8E-3FD8-8988-AD56AD53CFD4> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
0x7fff6bc3a000 - 0x7fff6bc42fff libGFXShared.dylib (18.5.9) <C4751529-359A-3ECC-84B2-74A23EFAD42A> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
0x7fff6bc43000 - 0x7fff6bc76fff libGLImage.dylib (18.5.9) <C153E192-20A3-3F7D-A897-533DACE748EC> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
0x7fff6bc77000 - 0x7fff6bcb3fff libGLU.dylib (18.5.9) <8275A6AB-AAD5-3222-A80B-411C0FAFCA63> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
0x7fff6be48000 - 0x7fff6be52fff libGL.dylib (18.5.9) <C6BE589B-CD26-3142-BD18-10C13D404904> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
0x7fff6d292000 - 0x7fff6d2eafff com.apple.opencl (4.6 - 4.6) <79DA4138-12AB-3561-9967-D49EFB14B437> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
0x7fff6e39c000 - 0x7fff6e483fff com.apple.audio.AVFAudio (1.0 - 477.88) <B2C8331B-60D4-3651-B9A0-B9914A230C36> /System/Library/Frameworks/AVFAudio.framework/Versions/A/AVFAudio
0x7fff6fa05000 - 0x7fff6fa17fff com.apple.CMImaging (1.0 - 82.6) <F60EEDA0-C221-3B51-B537-EE2FE48E19E9> /System/Library/PrivateFrameworks/CMImaging.framework/Versions/A/CMImaging

External Modification Summary:
Calls made by other processes targeting this process:
task_for_pid: 0
thread_create: 0
thread_set_state: 0
Calls made by this process:
task_for_pid: 0
thread_create: 0
thread_set_state: 0
Calls made by all processes on this machine:
task_for_pid: 0
thread_create: 0
thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=804.0M resident=0K(0%) swapped_out_or_unallocated=804.0M(100%)
Writable regions: Total=2.5G written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=2.5G(100%)

VIRTUAL REGION
REGION TYPE SIZE COUNT (non-coalesced)
=========== ======= =======
Accelerate framework 128K 1
Activity Tracing 256K 1
CG image 92K 2
CoreServices 224K 1
CoreUI image data 164K 3
Foundation 16K 1
JS JIT generated code 1.0G 3
JS VM Isolated Heap 24K 2
Kernel Alloc Once 8K 1
MALLOC 270.2M 52
MALLOC guard page 48K 10
MALLOC_MEDIUM (reserved) 840.0M 7 reserved VM address space (unallocated)
MALLOC_NANO (reserved) 384.0M 1 reserved VM address space (unallocated)
STACK GUARD 56.0M 7
Stack 11.0M 7
VM_ALLOCATE 12K 3
WebKit Malloc 8296K 10
__DATA 15.1M 336
__DATA_CONST 17.8M 200
__DATA_DIRTY 760K 124
__FONT_DATA 4K 1
__LINKEDIT 500.6M 8
__LLVM_COV 160K 1
__OBJC_RO 70.3M 1
__OBJC_RW 2496K 2
__TEXT 303.4M 339
__UNICODE 588K 1
mapped file 66.8M 17
shared memory 752K 14
=========== ======= =======
TOTAL 3.5G 1156
TOTAL, minus reserved VM space 2.3G 1156

Model: iMac12,2, BootROM 87.0.0.0.0, 4 processors, Quad-Core Intel Core i7, 3,4 GHz, 32 GB, SMC 1.72f1
Graphics: NVIDIA Quadro K3100M by nikey22, NVIDIA Quadro K3100M by nikey22, spdisplays_pcie_device, 4 GB
Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1333 MHz, 0x029E, 0x434D5341384758334D314131333333433920
Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1333 MHz, 0x029E, 0x434D5341384758334D314131333333433920
Memory Module: BANK 0/DIMM1, 8 GB, DDR3, 1333 MHz, 0x029E, 0x434D5341384758334D314131333333433920
Memory Module: BANK 1/DIMM1, 8 GB, DDR3, 1333 MHz, 0x029E, 0x434D5341384758334D314131333333433920
AirPort: spairport_wireless_card_type_airport_extreme (0x168C, 0x9A), Atheros 9380: 4.0.74.0-P2P
Bluetooth: Version 8.0.5d7, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet, Ethernet, en0
Serial ATA Device: SanDisk SDSSDA120G, 120,03 GB
Serial ATA Device: HL-DT-STDVDRW GA32N
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: Magic Keyboard
USB Device: IR Receiver
USB Device: Internal Memory Card Reader
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
Thunderbolt Bus: iMac, Apple Inc., 22.1

anyone got an idea on why it crashes? is it because of the OCLP patches etc?

how else can I check what's causing the CPU to throttle?
of course physically check the CPU for damage and/or test it on another machine, but are there any other components that might cause issues?


thanks so far for the support



[Ausdauersportler]

I have checked the L5500 and it looks like its still there..?

View attachment 2061965

going through some post I found this



its mentioned that 129°C indicates no data... so when Unigine was showing "GPU Temp 129°C" is that related to the iMac not recognizing the GPU temperature sensor or not receiving data? can that be fixed for the GPU to be recognized?

all my temps look fine, no issues here - I am also still trying to get the power gadget to work on the machine but it always crashes and gives me this erro

anyone got an idea on why it crashes? is it because of the OCLP patches etc?

how else can I check what's causing the CPU to throttle?
of course physically check the CPU for damage and/or test it on another machine, but are there any other components that might cause issues?


thanks so far for the support

- PowerGadget crashes because of OpenCore and the way it is disabling the iGPU and I will not help since you already know the CPU is crippled in some way
- Macs Fan Control does not show all temp sensors in exactly the same way as HW Monitor and other tools.
- The first post has a hardware problems section. You could have checked this days ago...this is possibly the most important hint.



[Marche90]

Huh. Guess that's what happened with my first project and never realized. No wonder the fans spun up immediately... I was never able to locate the sensor info on HW monitor though (as in, I couldn't locate the sensor showing 129°). Oh well, I no longer have that system.

My "fix" for that system was only a partial one, since it only worked on Windows: use ThrottleStop and disable BD PROCHOT.

EDIT: I never realized there was a HWMonitor app for mac 🙃, I kept thinking it was the Windows app. At least I'm learning more, haha.



[iLazarus]

- PowerGadget crashes because of OpenCore and the way it is disabling the iGPU and I will not help since you already know the CPU is crippled in some way
- Macs Fan Control does not show all temp sensors in exactly the same way as HW Monitor and other tools.
- The first post has a hardware problems section. You could have checked this days ago...this is possibly the most important hint.

I see, I wanted to have a graph to see when it throttles but whatever - the CPU should not be broken or anything its just not able to boost for some reason. AHT didn't show any errors, I went through most of the things here already.

I have read a good amount of posts (including yours) on multiple threads here and also ifixit but they always go back to the same issue of L5500 - which doesn't seem dead to me - temperatures have been check on multiple tools.

like I said, its only the GPU that shows 129°C - the only thing I didn't do is to move the ODD sensor on the GPU and see if it still throttles. or does this "missing" sensor not affect the SMC to allow CPU boost? since it is not mentioned in your post #9,047 , that relocating the ODD sensor to the GPU will solve this.

also in regards to testing, your link to a specific ASD version for 2011 iMacs ASD has only the docs but not the actual software?



[madvinegar]

anyone got an idea on why it crashes? is it because of the OCLP patches etc?

how else can I check what's causing the CPU to throttle?
of course physically check the CPU for damage and/or test it on another machine, but are there any other components that might cause issues?


thanks so far for the support

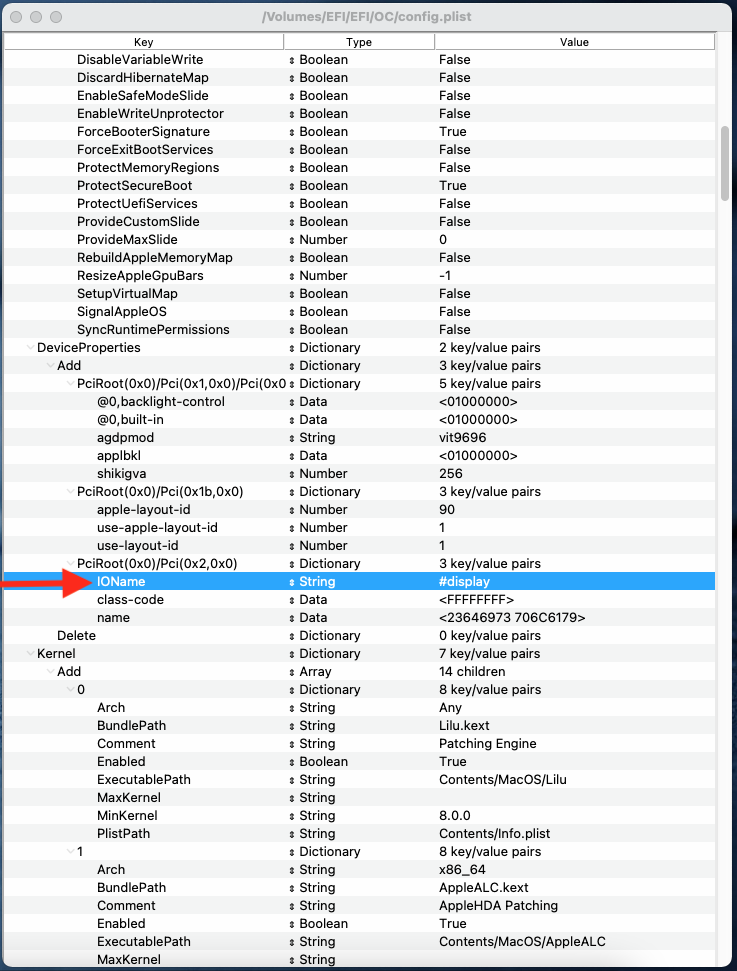

To get intel power gadget working:

1. Use any tool or terminal commands you are comfortable with to mount the EFI partition. I use opencore configurator.
2. Use "proper tree" app (or any other tool you prefer) to open the config.plist file (located inside /EFI/EFI/OC folder).
3. Delete the line that says "IONAME... String....#display" under device properties.
4. Save changes in config.plist. (File --> Save)
5. Reboot.

After the reboot your intel power gadget should be working.



[iLazarus]

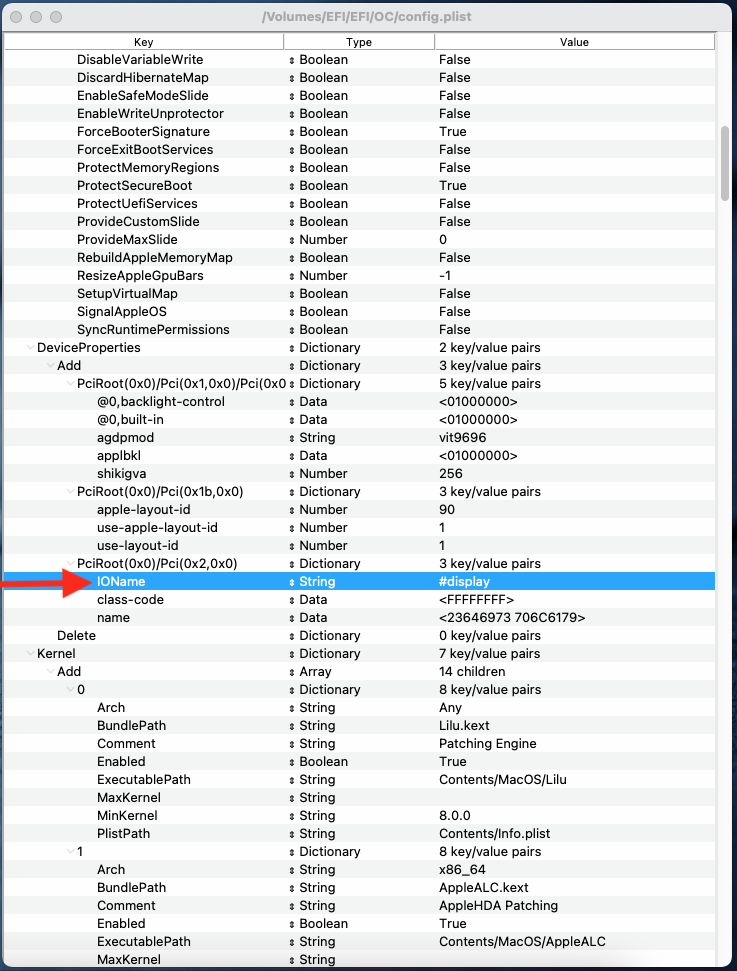

To get intel power gadget working:

1. Use any tool or terminal commands you are comfortable with to mount the EFI partition. I use opencore configurator.
2. Use "proper tree" app (or any other tool you prefer) to open the config.plist file (located inside /EFI/EFI/OC folder).
3. Delete the line that says "IONAME... String....#display" under device properties.
4. Save changes in config.plist. (File --> Save)
5. Reboot.

After the reboot your intel power gadget should be working.

thanks for the explanation! it worked!

also the CPU seems to work fine now, GPU is also scoring as it should

I guess the performance is now ok, the only thing that is bothering me is a a high pitched sound that appears to become more frequent & intense, but I can't locate it exactly... 🥲

update: it actually stopped before the iMac went to sleep (dimmed lcd) so I tried to play around with the brightness and it is absolutely causing the noise! so if I turn down the brightness no sound....

I'd like to point out that once I got BS installed and using the EFI folder generated by the micropatcher iMac edition, I got a high pitch noise.

My iMac has a K1100 which works just great, so on the config list it adds the backlightfixup.kext and also creates a device ID for it.

Well if this helps anyone, in order to get rid of that noise I disabled the next and delete the entries for the backlight device manually on the config.plist.

After that the noise is gone.

*Also the telematrap.kext for this processor is not needed, actually it slows the iMac down.

can someone confirm that this approach (also) works in the 2011 iMac 27"?



[Retromac2008]

I didn't want to have any more problems with my 6970m. I just wanted it to work.

It would have been enough for me to use it as an integrated gpu.
I unplugged a transistor from the back of the gpu and re-inserted it in my imac.
Now the 6970 can no longer use the dedicated vram, but only the system one, as if it were an integrated gpu.
The performances are very low in 3d, but it works perfectly for the 2d.
Obviously the temperatures are very low and the use of the gpu is always at a minimum.
For the 2d is perfect, and is normally recognized by the OS.
It works in target display mode
It works by connecting the 2 outputs to 2 other screens (3 screens in total)
In short, for my uses it is perfect and I don't think it will ever break again.
(it had gone into the oven twice already and i was tired)



[orpheus0001]

Hello everyone,

I've been reworking the K3100M ROM and the related blackscreen issue/boot loop issue that some of you have been dealing with. As @Ausdauersportler mentioned, it could be related to an interaction between the bootrom and the efi driver. Apple added a security update, 2020-005 and then 2020-006 which could be breaking some compatibility at least in the IM12,2 (2011) generation, although they kept the same bootrom version after the 2020-006 update:
Bootrom: 87.0.0.0.0
SMC version: 1.72f2

I'm currently running my modded rom in a test machine (iMac 27", 2011, High Sierra 10.13.6)
It is working well, no black screen upon driver initialization now and login screen should be present upon reboots.
It survives a PRAM reset as well
I added this line to the AppleGraphicsDevicePolicy.kext under the ConfigMap key:

<key>Mac-942B59F58194171B</key>
<string>none</string>

but I'm not sure it is necessary for High Sierra.

Anyhow, the results are very encouraging:
View attachment 1748221
If a few others who own a K3100M could test the ROM out on a 2011 machine (or other machines), I'd appreciate the feedback. As far as I can tell, it should work well with the -BFR and/or -AFR variants, but I could be wrong. I'll update the main K3100M rom page with the new ROM to keep our iMacs working "insanely great!"
Enjoy!

**update**
4-22-2021 - [K3100M_V4.rom] Updated rom to allow for Elpida memory to be used.

I dumped my stock BIOS for the K3100m, and its 166kb instead of the 256kb the new ones are. I'm guessing something is wrong here. Am I doing something wrong or is it fine? I don't want to flash anything until I'm sure, and because while I do have a CH341A programmer, the clips don't fit around the weird bios chip package.
EDIT: Forgot to mention, I looked up the bios chip online, its 2mbit which should be 256kb, so it's not that it's incompatible.
NVIDIA Firmware Update Utility (Version 5.414.0) Simplified Version For OEM Only Adapter: Quadro K3100M (10DE,11B6,1028,15CD) H:--:NRM S:00,B:02,D:00,F:00 Identifying EEPROM... EEPROM ID (C2,2012) : MX MX25L2005 2.7-3.6V 2048Kx1S, page Reading adapter firmware image... IFR Data Size : 1044 bytes IFR CRC32 : 18ED6828 IFR Image Size : 1536 bytes IFR Image CRC32 : 10823B23 IFR Subsystem ID : 1028-15CD Image Size : 168960 bytes Version : 80.04.E8.00.1C ~CRC32 : F33D0CFF Image Hash : E6E93DC70A23BDD126AFCB13E5F96827 Subsystem ID : 1028-15CD Hierarchy ID : Normal Board Chip SKU : 960 Project : 2053-0501 CDP : N/A Build Date : 11/13/13 Modification Date : 01/07/14 UEFI Support : Yes UEFI Version : 0x10028 (Nov 7 2013 @ 17238399 ) UEFI Variant Id : 0x0000000000000104 ( GK1xx MXM ) UEFI Signer(s) : Microsoft Corporation UEFI CA 2011 InfoROM Version : N/A InfoROM Backup Exist : NO License Placeholder : Absent GPU Mode : N/A Saving of image completed.



[Ausdauersportler]

I dumped my stock BIOS for the K3100m, and its 166kb instead of the 256kb the new ones are. I'm guessing something is wrong here. Am I doing something wrong or is it fine? I don't want to flash anything until I'm sure, and because while I do have a CH341A programmer, the clips don't fit around the weird bios chip package.
NVIDIA Firmware Update Utility (Version 5.414.0) Simplified Version For OEM Only Adapter: Quadro K3100M (10DE,11B6,1028,15CD) H:--:NRM S:00,B:02,D:00,F:00 Identifying EEPROM... EEPROM ID (C2,2012) : MX MX25L2005 2.7-3.6V 2048Kx1S, page Reading adapter firmware image... IFR Data Size : 1044 bytes IFR CRC32 : 18ED6828 IFR Image Size : 1536 bytes IFR Image CRC32 : 10823B23 IFR Subsystem ID : 1028-15CD Image Size : 168960 bytes Version : 80.04.E8.00.1C ~CRC32 : F33D0CFF Image Hash : E6E93DC70A23BDD126AFCB13E5F96827 Subsystem ID : 1028-15CD Hierarchy ID : Normal Board Chip SKU : 960 Project : 2053-0501 CDP : N/A Build Date : 11/13/13 Modification Date : 01/07/14 UEFI Support : Yes UEFI Version : 0x10028 (Nov 7 2013 @ 17238399 ) UEFI Variant Id : 0x0000000000000104 ( GK1xx MXM ) UEFI Signer(s) : Microsoft Corporation UEFI CA 2011 InfoROM Version : N/A InfoROM Backup Exist : NO License Placeholder : Absent GPU Mode : N/A Saving of image completed.

Everything is fine, just the tool you are using to dump is fetching only the non-zero bytes. All vBIOS we provide here are padded with zeros to allow clip and software flashing. Just use the Linux tool mentioned in the FAQ to save the original version and write the new version.
Clip flashing will only work with most/all AMD cards and a few NVIDA cards like the K610, K1100M, K2100M. All others need software flashing.



[Ausdauersportler]

thanks for the explanation! it worked!

View attachment 2062536

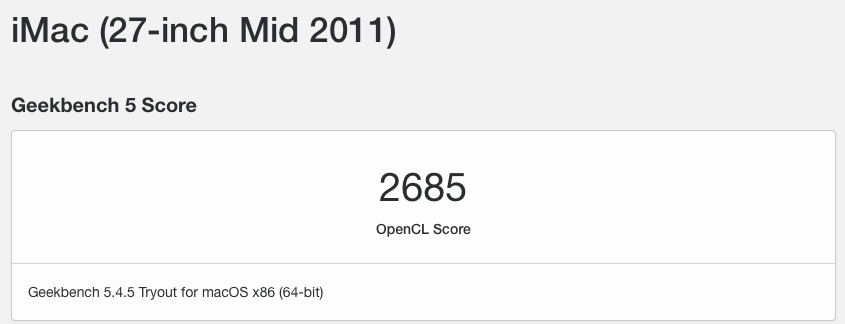

also the CPU seems to work fine now, GPU is also scoring as it should

View attachment 2062539
View attachment 2062540
View attachment 2062543

I guess the performance is now ok, the only thing that is bothering me is a a high pitched sound that appears to become more frequent & intense, but I can't locate it exactly... 🥲

update: it actually stopped before the iMac went to sleep (dimmed lcd) so I tried to play around with the brightness and it is absolutely causing the noise! so if I turn down the brightness no sound....



can someone confirm that this approach (also) works in the 2011 iMac 27"?

Rewrite a new OCLP config (which will break PowerGadget, again), test CPU and GPU performance, then delete the IONAME line from the new config and redo both tests and check - of course - the Intel PowerGadget, again.

Just want to be 100% sure the OCLP config at this point can cause such trouble.



[Nguyen Duc Hieu]

Hi

Hi.
I mean that S7100x is a server based mxm module so it's BIOS does not allow video output on edp or any other ext display. It must rely on the Igpu display output, exactly like Tesla mxm boards.
Unless someone has a modified vbios that enable video output, I'm not sure that board is usable on mac. Although it works perfectly fine on any give laptop with Optimus (dell précision, hp zbook...)

Thank you.
I will try it when I have some time to assemble the S7100x to my HP USDT 800G1. It has 1 DP dedicated for the MXM graphic card. The manual also states that it needs a CPU with iGPU to function.
But anyway, this thread already provides the vBIOS modded by the experts for eDP output on the iMac.



[SEJU]

About installing AMD GCN cards:

1. ...
2. ...
3. ...
4. ...
5. ...
6. ...
7. ...
8. GCN4 Polaris cards like WX4130/WX4150/WX4170/WX7100 work in iMac12,x without any problem other than the known loss of one external display port (the one close to the network port). This port can be still used for Thunderbolt devices.
9. You need a WX7100 Ver 1.1 card to use it in the iMac12,2. There is no hardware fix known. The RX480 does not post in the iMac12,2 at all (it is an Ver 1.0 card, too).

All this has been described in great detail on the first post and the vBIOS posts linked in from there.

First of all thanks for this amazing thread! I have recently received a nonworking iMac 2011 27" as a gift, resurrected it and I am currently considering as a next step upgrading the GPU. I am focusing on either a WX4150 (Dell branded) or a WX7100 (Dell branded v.1.1) for this matter. From post #1 I deduced that both cards should run without problems. They should POST, etc. But recently I stumbled upon the sleep/wake issue related to iMac 12.2 (2011) machines and I am unable to sort out, if it occurs also with GCN4 Polaris WX4150 or WX7100 cards. There are way too many posts related to the sleep/wake issue and they sometimes contradict each other.

The post from @Ausdauersportler says, that there are no problems other than the loss of one external display port with GCN4 Polaris cards.

Could someone please confirm if GCN4 cards in iMac12,2 have sleep/wake issues? (After upgrading from High Sierra and while running OCLP or similar).

Thanks!



[Ausdauersportler]

First of all thanks for this amazing thread! I have recently received a nonworking iMac 2011 27" as a gift, resurrected it and I am currently considering as a next step upgrading the GPU. I am focusing on either a WX4150 (Dell branded) or a WX7100 (Dell branded v.1.1) for this matter. From post #1 I deduced that both cards should run without problems. They should POST, etc. But recently I stumbled upon the sleep/wake issue related to iMac 12.2 (2011) machines and I am unable to sort out, if it occurs also with GCN4 Polaris WX4150 or WX7100 cards. There are way too many posts related to the sleep/wake issue and they sometimes contradict each other.

The post from @Ausdauersportler says, that there are no problems other than the loss of one external display port with GCN4 Polaris cards.

Could someone please confirm that/if GCN4 cards in iMac12,2 have sleep/wake issues? (After upgrading from High Sierra and while running OCLP or similar).

Thanks!

Please identify the posts with contradictions you found. Happy to correct these.
