MP 1,1-5,1 Activate AMD hardware acceleration

startergo · Nov 8, 2019

I am trying to test the encoding but I get a segmentation error:

Code:

g5@G5 Downloads % ffmpeg -i file_example_MP4_1920_18MG.mp4 -c:v hevc_amf -c:a copy -quality quality -b:v 3M -bufsize 16M -maxrate  6M outhevcAMD.mp4
zsh: segmentation fault  ffmpeg -i file_example_MP4_1920_18MG.mp4 -c:v hevc_amf -c:a copy -quality   3

Anybody knows why?

h9826790 · Nov 9, 2019

startergo said:
I am trying to test the encoding but I get a segmentation error:

Code:

g5@G5 Downloads % ffmpeg -i file_example_MP4_1920_18MG.mp4 -c:v hevc_amf -c:a copy -quality quality -b:v 3M -bufsize 16M -maxrate 6M outhevcAMD.mp4 zsh: segmentation fault ffmpeg -i file_example_MP4_1920_18MG.mp4 -c:v hevc_amf -c:a copy -quality 3

Anybody knows why?

Please check the command in my previous post.

Activate AMD hardware acceleration

HEVC encoding function tested. Pass with flying colour. And this is the output file media info.

forums.macrumors.com

In MacOS, we won’t command FFMpeg to use AMF. Instead, we only ask it to use VideoToolBox, then the OS will assign the associate GPU to handle the decoding / encoding work.

This is why I emphasised a few times that HEAccel is a system wide function in MacOS. Either work or doesn’t work. And there is no 3rd party software can use HWAccel without my hack on cMP in MacOS.

startergo · Nov 9, 2019

h9826790 said:
Please check the command in my previous post.

Activate AMD hardware acceleration

HEVC encoding function tested. Pass with flying colour. And this is the output file media info.

forums.macrumors.com

In MacOS, we won’t command FFMpeg to use AMF. Instead, we only ask it to use VideoToolBox, then the OS will assign the associate GPU to handle the decoding / encoding work.

This is why I emphasised a few times that HEAccel is a system wide function in MacOS. Either work or doesn’t work. And there is no 3rd party software can use HWAccel without my hack on cMP in MacOS.

Code:

g5@G5 Downloads % ffmpeg -hwaccel videotoolbox -i file_example_MP4_1920_18MG.mp4 -vcodec hevc_videotoolbox -b:v 12000k -c:a copy /Downloads/HEVC.mp4
zsh: segmentation fault  ffmpeg -hwaccel videotoolbox -i file_example_MP4_1920_18MG.mp4 -vcodec  -b:v


g5@G5 Downloads % ffplay file_example_MP4_1920_18MG.mp4
zsh: segmentation fault  ffplay file_example_MP4_1920_18MG.mp4

I get segmentation fault even with ffplay

startergo · Nov 9, 2019

It looks like there is a bug in Catalina and FFmpeg:

#8073 (Segfault on macOS 10.15 "Catalina": stop reason = EXC_BAD_ACCESS (code=EXC_I386_GPFLT); libdyld.dylib`stack_not_16_byte_aligned_error) – FFmpeg

trac.ffmpeg.org

h9826790 · Nov 9, 2019

startergo said:
It looks like there is a bug in Catalina and FFmpeg:

#8073 (Segfault on macOS 10.15 "Catalina": stop reason = EXC_BAD_ACCESS (code=EXC_I386_GPFLT); libdyld.dylib`stack_not_16_byte_aligned_error) – FFmpeg

trac.ffmpeg.org

Possible, I can’t quite sure if I did any FFMpeg test in Catalina yet.

Marry be all my tests were done in Mojave.

tommy chen · Nov 9, 2019

@h9826790
what have you edited in the first post today?

startergo · Nov 9, 2019

In Mojave ffmpeg:

Code:

G5% ffmpeg -hwaccel videotoolbox -i file_example_MP4_1920_18MG.mp4 -vcodec hevc_videotoolbox -b:v 12000k -c:a copy HEVC.mp4
ffmpeg version 4.1.4 Copyright (c) 2000-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'file_example_MP4_1920_18MG.mp4':
  Metadata:
    major_brand     : mp42
    minor_version   : 0
    compatible_brands: mp42mp41isomavc1
    creation_time   : 2015-08-07T09:13:36.000000Z
  Duration: 00:00:30.53, start: 0.000000, bitrate: 4675 kb/s
    Stream #0:0(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, bt709), 1920x1080 [SAR 1:1 DAR 16:9], 4486 kb/s, 30 fps, 30 tbr, 30 tbn, 60 tbc (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Video Handler
      encoder         : AVC Coding
    Stream #0:1(und): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 256 kb/s (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Audio Handler
Stream mapping:
  Stream #0:0 -> #0:0 (h264 (native) -> hevc (hevc_videotoolbox))
  Stream #0:1 -> #0:1 (copy)
Press [q] to stop, [?] for help
[hevc_videotoolbox @ 0x7f931b00ce00] Error: cannot create compression session: -12903
[hevc_videotoolbox @ 0x7f931b00ce00] Try -allow_sw 1. The hardware encoder may be busy, or not supported.
Error initializing output stream 0:0 -- Error while opening encoder for output stream #0:0 - maybe incorrect parameters such as bit_rate, rate, width or height
Conversion failed!
G5% ffmpeg -hwaccel videotoolbox -i file_example_MP4_1920_18MG.mp4 -vcodec hevc_videotoolbox -b:v 12000k -c:a -allow_sw 1 copy HEVC.mp4
ffmpeg version 4.1.4 Copyright (c) 2000-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'file_example_MP4_1920_18MG.mp4':
  Metadata:
    major_brand     : mp42
    minor_version   : 0
    compatible_brands: mp42mp41isomavc1
    creation_time   : 2015-08-07T09:13:36.000000Z
  Duration: 00:00:30.53, start: 0.000000, bitrate: 4675 kb/s
    Stream #0:0(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, bt709), 1920x1080 [SAR 1:1 DAR 16:9], 4486 kb/s, 30 fps, 30 tbr, 30 tbn, 60 tbc (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Video Handler
      encoder         : AVC Coding
    Stream #0:1(und): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 256 kb/s (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Audio Handler
[NULL @ 0x7f7fb181fe00] Unable to find a suitable output format for '1'
1: Invalid argument

[automerge]1573311541[/automerge]
Playing the file with ffplay:

Code:

G5% ffplay file_example_MP4_1920_18MG.mp4
ffplay version 4.1.4 Copyright (c) 2003-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'file_example_MP4_1920_18MG.mp4':
  Metadata:
    major_brand     : mp42
    minor_version   : 0
    compatible_brands: mp42mp41isomavc1
    creation_time   : 2015-08-07T09:13:36.000000Z
  Duration: 00:00:30.53, start: 0.000000, bitrate: 4675 kb/s
    Stream #0:0(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, bt709), 1920x1080 [SAR 1:1 DAR 16:9], 4486 kb/s, 30 fps, 30 tbr, 30 tbn, 60 tbc (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Video Handler
      encoder         : AVC Coding
    Stream #0:1(und): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 256 kb/s (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Audio Handler
  59.56 A-V: -0.018 fd=   0 aq=    0KB vq=    0KB sq=    0B f=0/0

[automerge]1573311976[/automerge]
Swordsmith play ffmpeg drops a-lot of frames:

Code:

G5% ffplay /Volumes/High\ Sierra/Users/g5/Downloads/Sony\ Swordsmith\ HDR\ UHD\ 4K\ Demo.mp4
ffplay version 4.1.4 Copyright (c) 2003-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from '/Volumes/High Sierra/Users/g5/Downloads/Sony Swordsmith HDR UHD 4K Demo.mp4':
  Metadata:
    major_brand     : isom
    minor_version   : 1
    compatible_brands: isom
    creation_time   : 2016-10-24T05:33:14.000000Z
  Duration: 00:01:26.10, start: 0.000000, bitrate: 71567 kb/s
    Stream #0:0(und): Video: hevc (Main 10) (hvc1 / 0x31637668), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 71382 kb/s, 59.94 fps, 59.94 tbr, 60k tbn, 59.94 tbc (default)
    Metadata:
      creation_time   : 2016-10-24T06:29:51.000000Z
      handler_name    : Video Media Handler
      encoder         : HEVC Coding
    Stream #0:1(eng): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 192 kb/s (default)
    Metadata:
      creation_time   : 2016-10-24T06:29:51.000000Z
      handler_name    : Sound Media Handler
 121.64 A-V: -0.030 fd=3080 aq=    0KB vq=    0KB sq=    0B f=0/0

[automerge]1573312094[/automerge]
But quicktime plays perfectly (no CPU usage)

h9826790 · Nov 9, 2019

IndioX said:
@h9826790
what have you edited in the first post today?

Add explanation about how to open Lilu.kext in step 4.

startergo · Nov 9, 2019

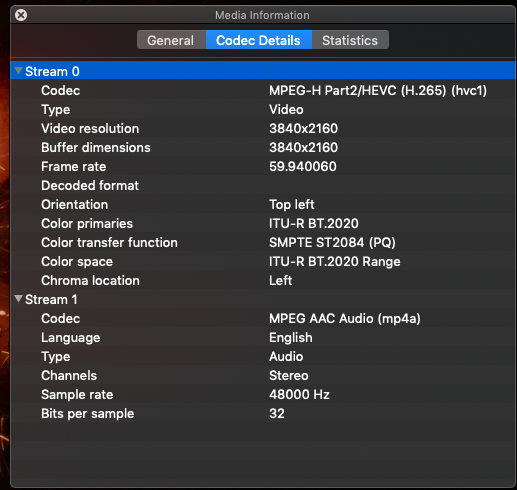

Only Quicktime and VLC play well HEVC full GPU and no CPU utilization. ffmpeg and Videoproc stutter. VLC only dropped 8 frames.
[automerge]1573324239[/automerge]

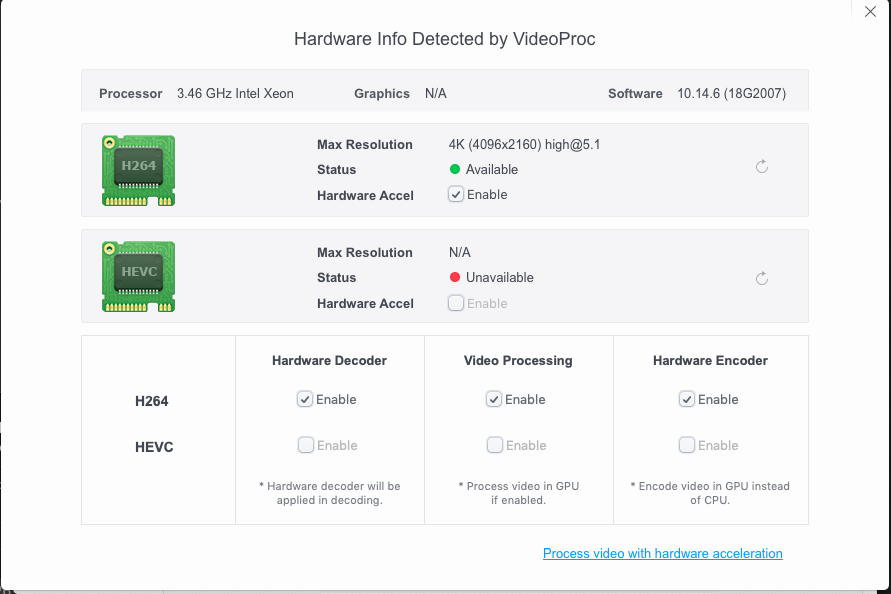

All tests done with original cMP5.1 SMBIOS shikigva=102. Videoproc says HEVC not enabled:

startergo · Nov 9, 2019

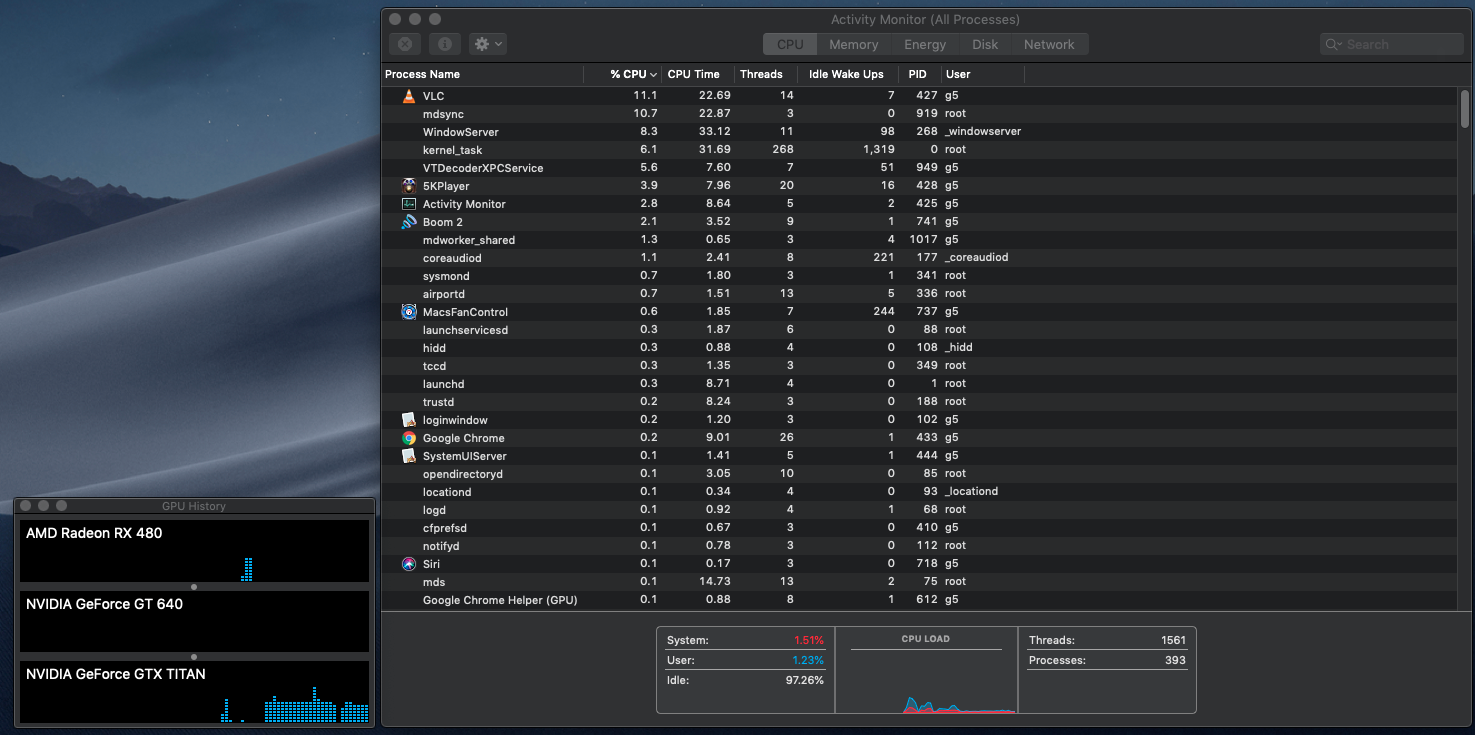

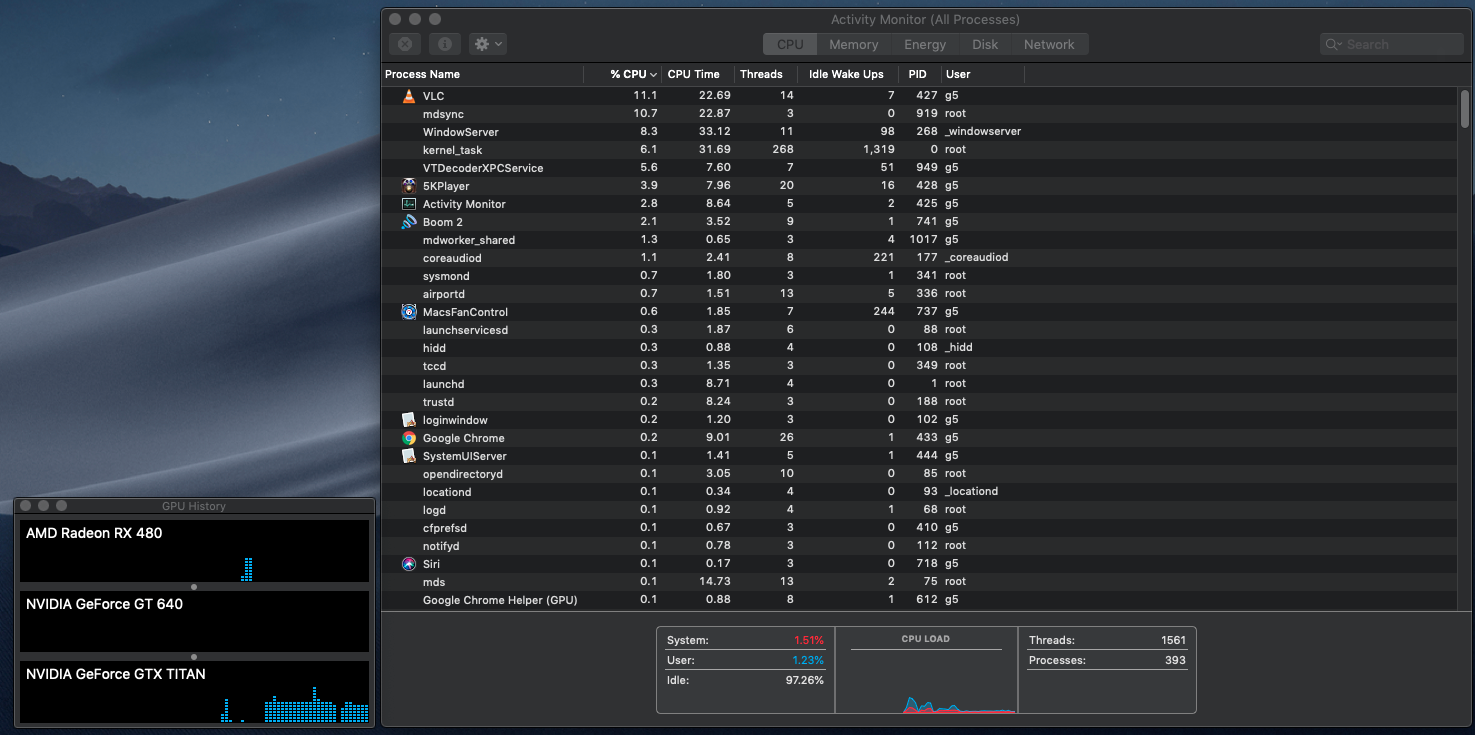

HEVC Playback VLC GTX Titan. CPU almost not used.

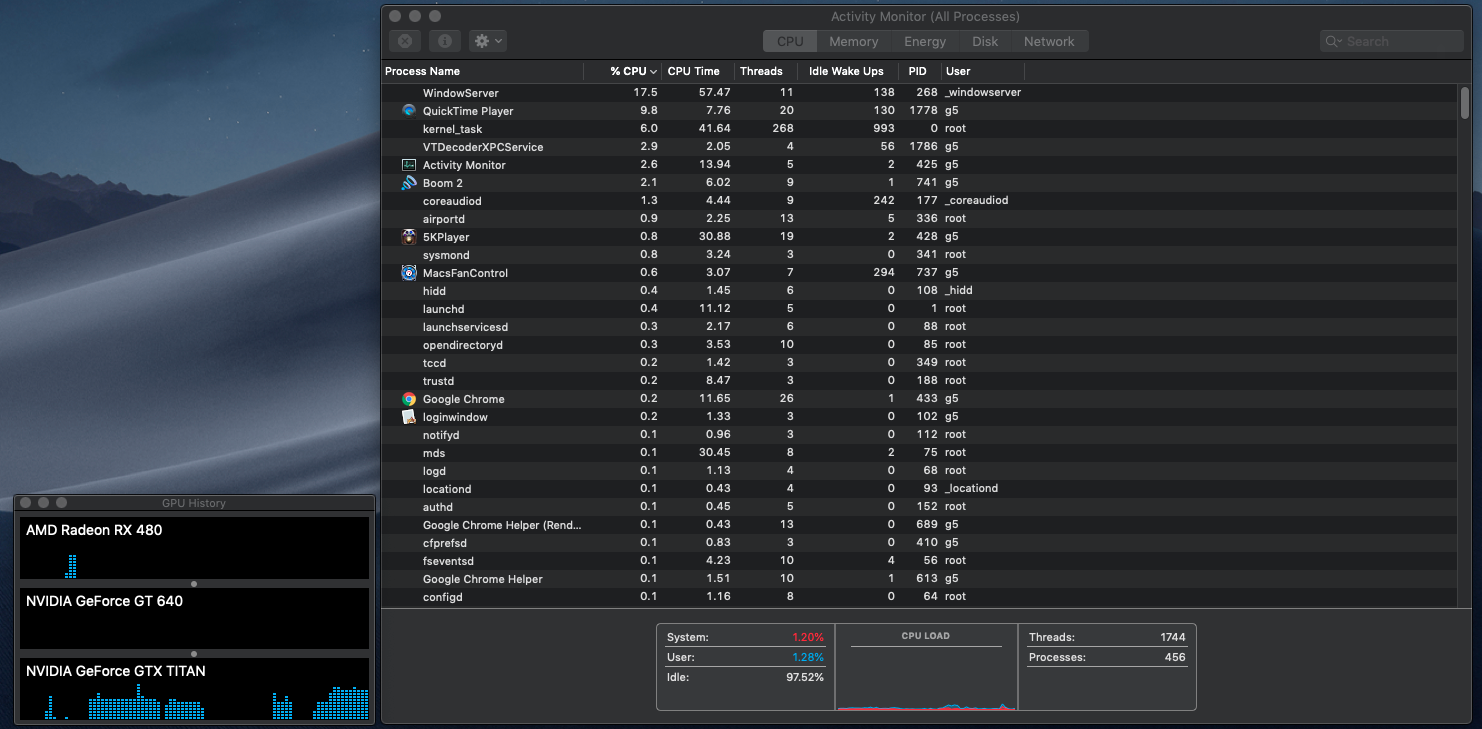

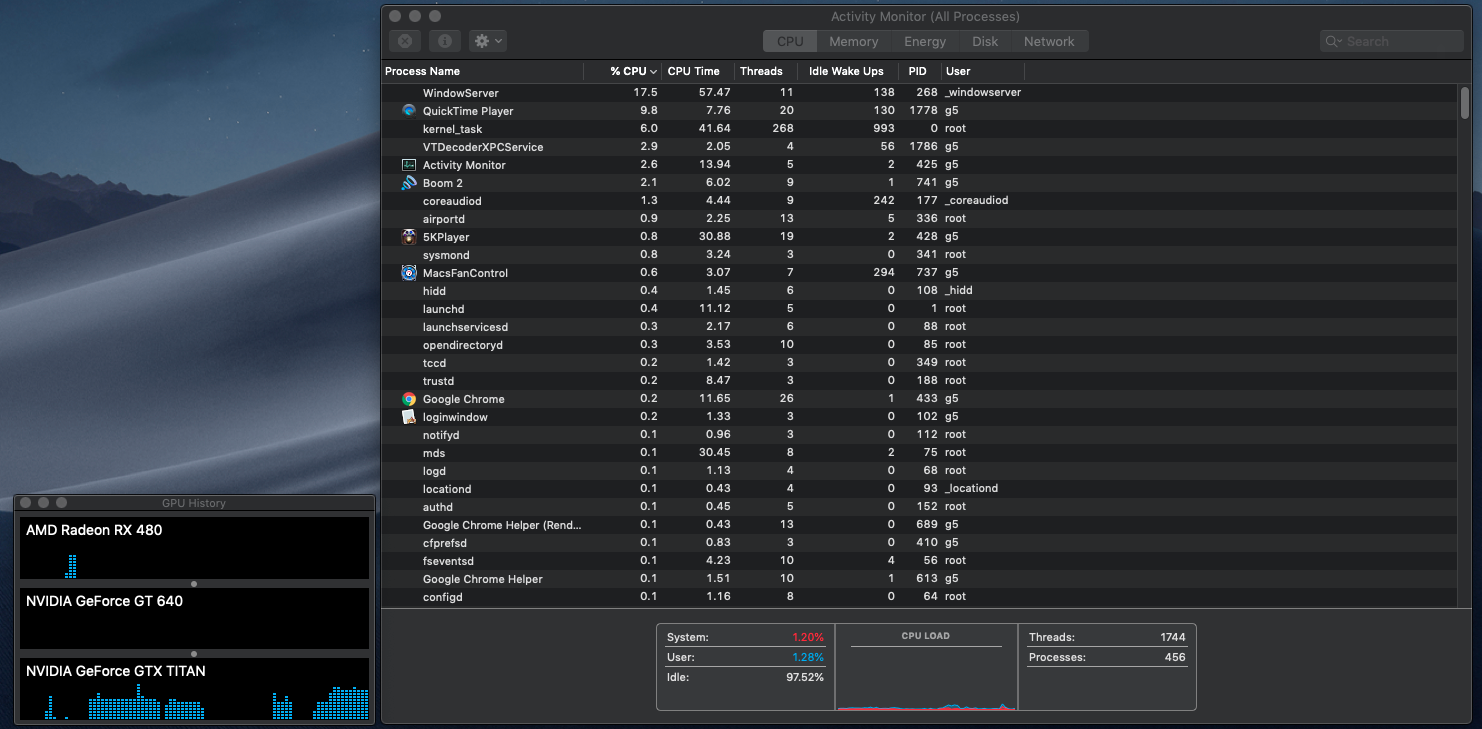

HEVC Playback Quicktime GTX Titan. CPU almost not used.

h9826790 · Nov 9, 2019

startergo said:

In Mojave ffmpeg:

Code:

G5% ffmpeg -hwaccel videotoolbox -i file_example_MP4_1920_18MG.mp4 -vcodec hevc_videotoolbox -b:v 12000k -c:a copy HEVC.mp4
ffmpeg version 4.1.4 Copyright (c) 2000-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'file_example_MP4_1920_18MG.mp4':
  Metadata:
    major_brand     : mp42
    minor_version   : 0
    compatible_brands: mp42mp41isomavc1
    creation_time   : 2015-08-07T09:13:36.000000Z
  Duration: 00:00:30.53, start: 0.000000, bitrate: 4675 kb/s
    Stream #0:0(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, bt709), 1920x1080 [SAR 1:1 DAR 16:9], 4486 kb/s, 30 fps, 30 tbr, 30 tbn, 60 tbc (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Video Handler
      encoder         : AVC Coding
    Stream #0:1(und): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 256 kb/s (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Audio Handler
Stream mapping:
  Stream #0:0 -> #0:0 (h264 (native) -> hevc (hevc_videotoolbox))
  Stream #0:1 -> #0:1 (copy)
Press [q] to stop, [?] for help
[hevc_videotoolbox @ 0x7f931b00ce00] Error: cannot create compression session: -12903
[hevc_videotoolbox @ 0x7f931b00ce00] Try -allow_sw 1. The hardware encoder may be busy, or not supported.
Error initializing output stream 0:0 -- Error while opening encoder for output stream #0:0 - maybe incorrect parameters such as bit_rate, rate, width or height
Conversion failed!
G5% ffmpeg -hwaccel videotoolbox -i file_example_MP4_1920_18MG.mp4 -vcodec hevc_videotoolbox -b:v 12000k -c:a -allow_sw 1 copy HEVC.mp4
ffmpeg version 4.1.4 Copyright (c) 2000-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'file_example_MP4_1920_18MG.mp4':
  Metadata:
    major_brand     : mp42
    minor_version   : 0
    compatible_brands: mp42mp41isomavc1
    creation_time   : 2015-08-07T09:13:36.000000Z
  Duration: 00:00:30.53, start: 0.000000, bitrate: 4675 kb/s
    Stream #0:0(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, bt709), 1920x1080 [SAR 1:1 DAR 16:9], 4486 kb/s, 30 fps, 30 tbr, 30 tbn, 60 tbc (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Video Handler
      encoder         : AVC Coding
    Stream #0:1(und): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 256 kb/s (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Audio Handler
[NULL @ 0x7f7fb181fe00] Unable to find a suitable output format for '1'
1: Invalid argument

[automerge]1573311541[/automerge]
Playing the file with ffplay:

Code:

G5% ffplay file_example_MP4_1920_18MG.mp4
ffplay version 4.1.4 Copyright (c) 2003-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from 'file_example_MP4_1920_18MG.mp4':
  Metadata:
    major_brand     : mp42
    minor_version   : 0
    compatible_brands: mp42mp41isomavc1
    creation_time   : 2015-08-07T09:13:36.000000Z
  Duration: 00:00:30.53, start: 0.000000, bitrate: 4675 kb/s
    Stream #0:0(und): Video: h264 (High) (avc1 / 0x31637661), yuv420p(tv, bt709), 1920x1080 [SAR 1:1 DAR 16:9], 4486 kb/s, 30 fps, 30 tbr, 30 tbn, 60 tbc (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Video Handler
      encoder         : AVC Coding
    Stream #0:1(und): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 256 kb/s (default)
    Metadata:
      creation_time   : 2015-08-07T09:13:36.000000Z
      handler_name    : L-SMASH Audio Handler
  59.56 A-V: -0.018 fd=   0 aq=    0KB vq=    0KB sq=    0B f=0/0

[automerge]1573311976[/automerge]
Swordsmith play ffmpeg drops a-lot of frames:

Code:

G5% ffplay /Volumes/High\ Sierra/Users/g5/Downloads/Sony\ Swordsmith\ HDR\ UHD\ 4K\ Demo.mp4
ffplay version 4.1.4 Copyright (c) 2003-2019 the FFmpeg developers
  built with Apple clang version 11.0.0 (clang-1100.0.33.12)
  configuration: --prefix=/usr/local/Cellar/ffmpeg/4.1.4-with-options --enable-shared --cc=clang --host-cflags='-I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include -I/Library/Java/JavaVirtualMachines/jdk-11.0.1.jdk/Contents/Home/include/darwin' --host-ldflags= --enable-gpl --enable-libaom --enable-libmp3lame --enable-libopus --enable-libsnappy --enable-libtheora --enable-libvorbis --enable-libvpx --enable-libx264 --enable-libx265 --enable-libfontconfig --enable-libfreetype --enable-frei0r --enable-libass --disable-libjack --disable-indev=jack --enable-opencl --enable-videotoolbox --disable-htmlpages --enable-chromaprint --enable-libbluray --enable-libbs2b --enable-libcaca --enable-libfdk-aac --enable-libgme --enable-libgsm --enable-libmodplug --enable-libopenh264 --enable-librsvg --enable-librtmp --enable-librubberband --enable-libsoxr --enable-libspeex --enable-libsrt --enable-libssh --enable-libtesseract --enable-libtwolame --enable-libvidstab --enable-libvmaf --enable-libwavpack --enable-libwebp --enable-libxml2 --enable-libxvid --enable-libzimg --enable-libzmq --enable-openssl --enable-nonfree --enable-decklink --extra-cflags=-I/usr/local/include --extra-ldflags=-L/usr/local/include --enable-version3 --enable-libopencore-amrnb --enable-libopencore-amrwb --enable-libopenjpeg --disable-decoder=jpeg2000 --extra-cflags=-I/usr/local/Cellar/openjpeg/2.3.1/include/openjpeg-2.3
  libavutil      56. 22.100 / 56. 22.100
  libavcodec     58. 35.100 / 58. 35.100
  libavformat    58. 20.100 / 58. 20.100
  libavdevice    58.  5.100 / 58.  5.100
  libavfilter     7. 40.101 /  7. 40.101
  libswscale      5.  3.100 /  5.  3.100
  libswresample   3.  3.100 /  3.  3.100
  libpostproc    55.  3.100 / 55.  3.100
Input #0, mov,mp4,m4a,3gp,3g2,mj2, from '/Volumes/High Sierra/Users/g5/Downloads/Sony Swordsmith HDR UHD 4K Demo.mp4':
  Metadata:
    major_brand     : isom
    minor_version   : 1
    compatible_brands: isom
    creation_time   : 2016-10-24T05:33:14.000000Z
  Duration: 00:01:26.10, start: 0.000000, bitrate: 71567 kb/s
    Stream #0:0(und): Video: hevc (Main 10) (hvc1 / 0x31637668), yuv420p10le(tv, bt2020nc/bt2020/smpte2084), 3840x2160 [SAR 1:1 DAR 16:9], 71382 kb/s, 59.94 fps, 59.94 tbr, 60k tbn, 59.94 tbc (default)
    Metadata:
      creation_time   : 2016-10-24T06:29:51.000000Z
      handler_name    : Video Media Handler
      encoder         : HEVC Coding
    Stream #0:1(eng): Audio: aac (LC) (mp4a / 0x6134706D), 48000 Hz, stereo, fltp, 192 kb/s (default)
    Metadata:
      creation_time   : 2016-10-24T06:29:51.000000Z
      handler_name    : Sound Media Handler
 121.64 A-V: -0.030 fd=3080 aq=    0KB vq=    0KB sq=    0B f=0/0

[automerge]1573312094[/automerge]
But quicktime plays perfectly (no CPU usage)

I almost never use FFPlay, not sure if it default to use hardware decode. It seems not (according to your test).
[automerge]1573330835[/automerge]

startergo said:
HEVC Playback VLC GTX Titan. CPU almost not used.
View attachment 876096

HEVC Playback Quicktime GTX Titan. CPU almost not used.
View attachment 876097

Interesting configuration. In never expect anyone will mix these three GPU on a cMP.

Anyway, the GTX Titan not even have HEVC hardware decode.

It’s either activity monitor can’t handle that config correctly. Or even some error at OS level.

startergo · Nov 9, 2019

h9826790 said:
I almost never use FFPlay, not sure if it default to use hardware decode. It seems not (according to your test).

So I did a lot of testing with the Titan. VlC, QuickTime and finalcutpro use to the full extent the GPU (40 percent). CPU usage in FCP is 2-3%. Similar results for the AMD.
[automerge]1573331117[/automerge]
And this is HEVC video and the videoproc says no hardware accel for HEVC. Plus it stutters when playing the same video. I will not use it.

h9826790 · Nov 9, 2019

It’s a known cosmetic error. When you activate H264 hardware acceleration in Mojave by my method, HEVC hardware decode will also be activated, no exception. Either both work, or both doesn’t work. But VideoProc can indicate that correctly.

For Titan, remove all other GPU, then we will know the answer.
[automerge]1573331525[/automerge]
Anyway, I won’t be too surprised some player (or even the OS) can’t handle GPU hardware acceleration correctly when mixing GPU like this.

startergo · Nov 9, 2019

h9826790 said:
It’s a known cosmetic error. When you activate H642 hardware acceleration in Mojave by my method, HEVC hardware decode will also be activated, no exception. Either both work, or both doesn’t work. But VideoProc can indicate that correctly.

For Titan, remove all other GPU, then we will know the answer.
[automerge]1573331525[/automerge]
Anyway, I won’t be too surprised some player (or even the OS) can’t handle GPU hardware acceleration correctly when mixing GPU like this.

I tried the RX-580 alone. Videoproc does not detect hardware accel HEVC. It does only when spoofing full imacpro SMBIOS.

h9826790 · Nov 9, 2019

startergo said:
I tried the RX-580 alone. Videoproc does not detect hardware accel HEVC. It does only when spoofing full imacpro SMBIOS.

That’s exactly what I mean, HEVC hardware decode won’t show up without SMBIOS spoofing, but will work (as long as H264 HWaccel detected)
[automerge]1573332663[/automerge]
And if you want to prove the Titan can do the same thing, remove all other GPU but only leave the Titan, then run the test.

This is the best way to avoid any false result.

startergo · Nov 9, 2019

h9826790 said:
That’s exactly what I mean, HEVC hardware decode won’t show up without SMBIOS spoofing, but will work (as long as H264 HWaccel detected)
[automerge]1573332663[/automerge]
And if you want to prove the Titan can do the same thing, remove all other GPU but only leave the Titan, then run the test.

This is the best way to avoid any false result.

Something screws up when only Titan is installed in the expansion chassis. Hardware acceleration breaks:

Code:

-----------------------------------------------------------------------
System Info
-----------------------------------------------------------------------
Host                           G5.lan
OS                             macOS Catalina Version 10.15.1 (Build 19B88)
Kernel                         Darwin 19.0.0 x86_64
RAM                            128.00 GB
Model Identifier               MacPro5,1
CPU                            Intel(R) Xeon(R) CPU           X5690  @ 3.47GHz
Intel Generation               ???
Platform ID                    0x00000000
Board ID                       Mac-F221BEC8
FW Version                     144.0.0.0.0
Serial Number
Hardware UUID
System ID
ROM
Board Serial Number
VDA Decoder                    Decoder Failed
-----------------------------------------------------------------------
Serial Info
-----------------------------------------------------------------------
Country                        Unknown
Year                           2011
Week                           12.17.2011-12.23.2011
Line                           707 (copy 1)
Model                          MacPro5,1
Valid                          Possibly
-----------------------------------------------------------------------
display
-----------------------------------------------------------------------
GPU Name                       GK110 [GeForce GTX TITAN]
GPU Device ID                  0x100510DE
Quartz Extreme (QE/CI)         Yes
Metal Supported                Yes
Metal Device Name              NVIDIA GeForce GTX TITAN
Metal Default Device           Yes
Metal Low Power                No
Metal Headless                 No

Not sure if it has something to do that the GFX0 is not occupied? But both Titan and even GT-640 use HEVC when all slots are occupied. I have renamed PXS2 to GFX1.

h9826790 · Nov 9, 2019

startergo said:

Something screws up when only Titan is installed in the expansion chassis. Hardware acceleration breaks:

Code:

-----------------------------------------------------------------------
System Info
-----------------------------------------------------------------------
Host                           G5.lan
OS                             macOS Catalina Version 10.15.1 (Build 19B88)
Kernel                         Darwin 19.0.0 x86_64
RAM                            128.00 GB
Model Identifier               MacPro5,1
CPU                            Intel(R) Xeon(R) CPU           X5690  @ 3.47GHz
Intel Generation               ???
Platform ID                    0x00000000
Board ID                       Mac-F221BEC8
FW Version                     144.0.0.0.0
Serial Number
Hardware UUID
System ID
ROM
Board Serial Number
VDA Decoder                    Decoder Failed
-----------------------------------------------------------------------
Serial Info
-----------------------------------------------------------------------
Country                        Unknown
Year                           2011
Week                           12.17.2011-12.23.2011
Line                           707 (copy 1)
Model                          MacPro5,1
Valid                          Possibly
-----------------------------------------------------------------------
display
-----------------------------------------------------------------------
GPU Name                       GK110 [GeForce GTX TITAN]
GPU Device ID                  0x100510DE
Quartz Extreme (QE/CI)         Yes
Metal Supported                Yes
Metal Device Name              NVIDIA GeForce GTX TITAN
Metal Default Device           Yes
Metal Low Power                No
Metal Headless                 No

Not sure if it has something to do that the GFX0 is not occupied? But both Titan and even GT-640 use HEVC when all slots are occupied. I have renamed PXS2 to GFX1.

GFX0 renaming is not required for HEVC decode. That only required for HEVC encoding.

Again, best test would be remove the RX580, and only install the Titan, then see if hardware acceleration still available.

MacManu77 · Nov 10, 2019

guys I can't apply any of the 2 methods... but in the past I had succeeded. I take the various steps to the letters ... maybe it's better that I do a clean installation of Mojave first?

h9826790 · Nov 10, 2019

MacManu77 said:
guys I can't apply any of the 2 methods... but in the past I had succeeded. I take the various steps to the letters ... maybe it's better that I do a clean installation of Mojave first?

If you don't know what's messed up. Then most likely start from a clean Mojave will be faster.

MacManu77 · Nov 10, 2019

h9826790 said:
If you don't know what's messed up. Then most likely start from a clean Mojave will be faster.

I guess I do that.
Did you happen to see if that bug they found with fcpx after they made the clips resolved?

h9826790 · Nov 10, 2019

MacManu77 said:
I guess I do that.
Did you happen to see if that bug they found with fcpx after they made the clips resolved?

Not yet, away from home

tsialex · Nov 10, 2019

Ludacrisvp · Nov 10, 2019

h9826790 said:
GFX0 renaming is not required for HEVC decode. That only required for HEVC encoding.

Again, best test would be remove the RX580, and only install the Titan, then see if hardware acceleration still available.

Maybe i missed something but why do we think the NVIDIA GTX TITAN would get hardware [de/en]coding now?

h9826790 · Nov 10, 2019

Ludacrisvp said:
Maybe i missed something but why do we think the NVIDIA GTX TITAN would get hardware [de/en]coding now?

Activate AMD hardware acceleration

HEVC Playback VLC GTX Titan. CPU almost not used. HEVC Playback Quicktime GTX Titan. CPU almost not used.

forums.macrumors.com

Flacko · Nov 11, 2019

Ludacrisvp said:
Maybe i missed something but why do we think the NVIDIA GTX TITAN would get hardware [de/en]coding now?

AKAIK the GTX Titan (GK110 core) is a Kepler series and none of the Kepler cores have the hardware for HEVC. Here is a grid from Nvidia which is self explanatory:

MP 1,1-5,1 Activate AMD hardware acceleration

macrumors 603

macrumors P6

macrumors 603

macrumors 603

macrumors P6

macrumors 6502a

macrumors 603

macrumors P6

macrumors 603

macrumors 603

macrumors P6

macrumors 603

macrumors P6

macrumors 603

macrumors P6

macrumors 603

macrumors P6

macrumors regular

macrumors P6

macrumors regular

macrumors P6

Contributor

macrumors 6502a

macrumors P6

macrumors 6502

Our Staff
