My macbook will not recognise the audio output of the display (i connected my speakers to the display).
Does somebody manage to make it work?
Does somebody manage to make it work?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Dell released their newest Ultrasharp model ,U2723QE, U3223QE Ultrasharp monitor
- Thread starter eret9616
- Start date
-
- Tags
- monitor
- Sort by reaction score

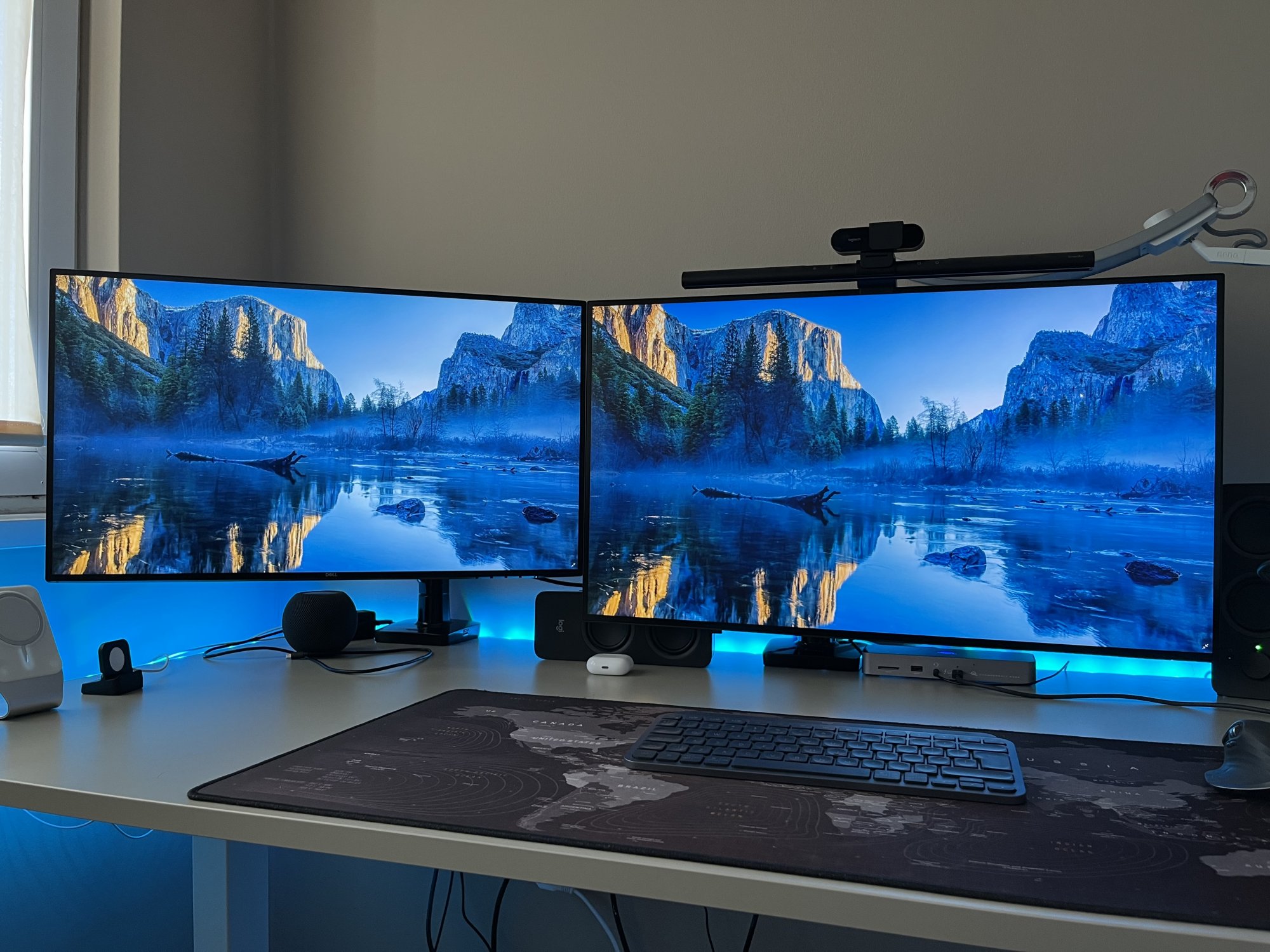

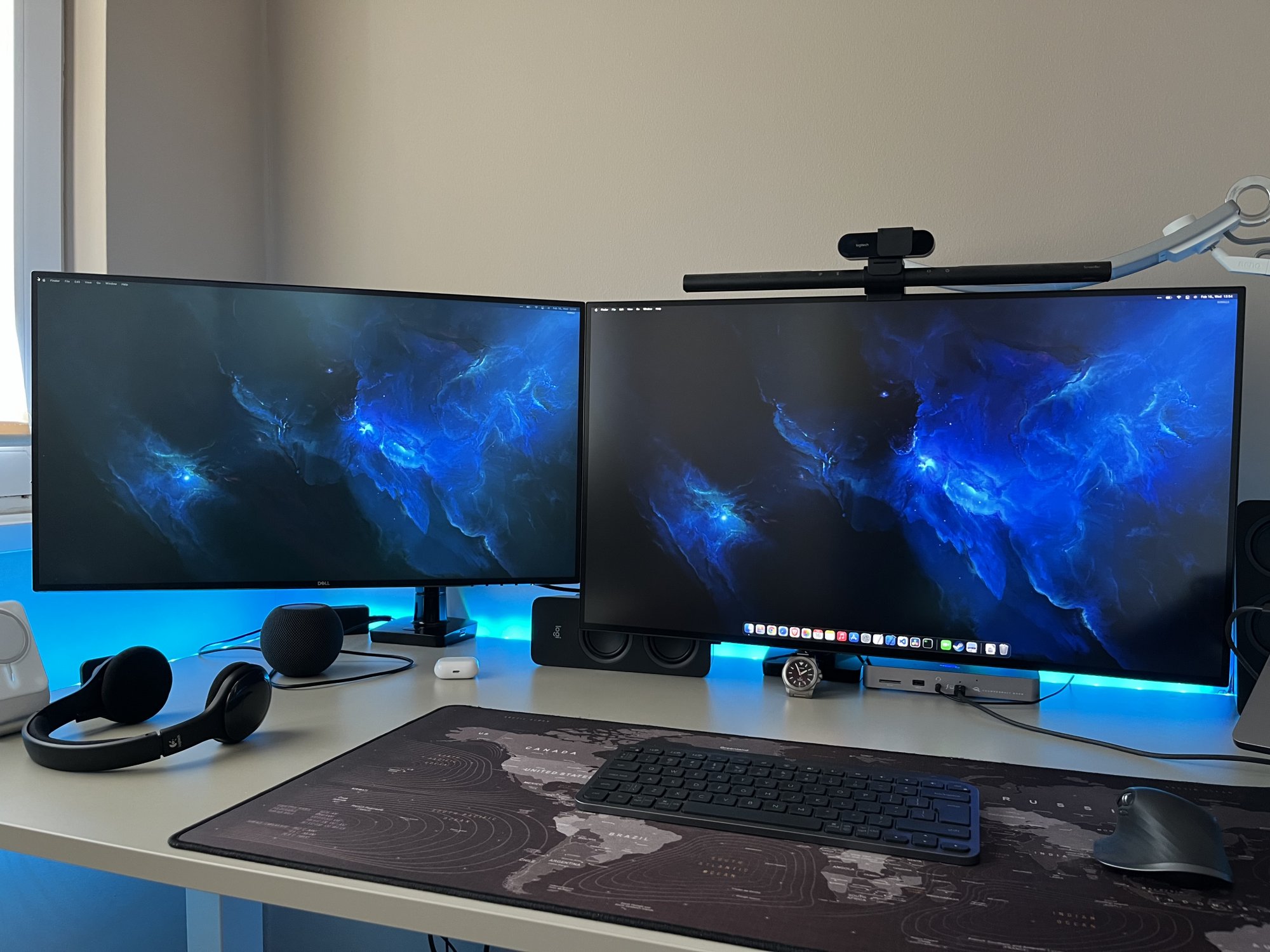

Dell U2721DE and U3223QE side by side, to demonstrate the size difference between 27" and 32" and the difference between the non-black and black IPS panels (contrast of 1000:1 vs 2000:1). The U3223QE looks even more beautiful in real life, than in photos. Also, 32" is so much bigger than 27"!
Apparently the refresh rate with my 2019 MacBook Pro 16" is reduced to 30Hz if "High Data Speed" is activated. If "High Resolution" is active, refresh rate is back to 60Hz but ports including NIC are much slower.
Is this the same for others?
is that with the latest monitor (U2723QE / U3223QE?). Having USB 3.2 instead of thunderbolt could be the reason. I don't understand why would they not use thunderbolt in such a beast.
Makes sense, but that is unfortunate.
USB-C max speed is 20GB/s and for 4K/60Hz you need at least 18GB/s. That is why you end up having slower speed on other ports. If you choose "High data speed", you get 4k/30HZ and have additional ~10gbps for the ports.
They could have solved the problem with a single thunderbolt port (40gbps).
Stupid questions but what's the best way to connect this to the mini. USB C or HDMI? I only have those two precious USB c ports on my m1 mini and one has an SSD attached! But I figure I'm going to have to use the other one for the monitor to use the built in ports?
Also looking at the manual it has an upstream usb c port and a downstream one, what does that mean exactly. What can I do with one that I can't do with the other?
I think I'm going to order both from Dell and see which sizing I prefer.
Also looking at the manual it has an upstream usb c port and a downstream one, what does that mean exactly. What can I do with one that I can't do with the other?
I think I'm going to order both from Dell and see which sizing I prefer.
Thanks for the clarification.
Dell's website states "Streamline your workspace with extensive connectivity ports including USB-C (up to 90W power delivery), RJ45 (Ethernet), DP1.4, and HDMI. Quick Access USB-C (up to 15W of power charging) and super speed USB 10Gbps ports enable easy connections and fast data transfers." but apparently there are restrictions.
Would this be any better with most recent MacBook Pros?
There wouldn't be any difference if it is a new MacBook Pro or slightly older. They have been using only Thunderbolt ports for several generations. The limit is on the monitor's end (the port). If you check more expensive monitors from Dell, they write that it has Thunderbolt:
Computerzubehör und -peripheriegeräte
Dell PC Zubehör: Tastatur, Maus, Headsets, Webcams, Dockingstation, Akkus & mehr. Black Friday Angebote 2024! Flexibel zahlen mit Klarna/PayPal. Preis Match & Preisgarantie! Gratis Versand! 2x Rewards
www.dell.com
It looks like you may need to connect directly to your MacBook if you need fast data transfer.
I am not sure, just speculating, but what if you use port numbers 4 (DP) and 5 (USB-C) to connect to your MacBook? I think you should be able to get 60HZ/4K and high data speed. However, then you use 2 ports instead of 1.
What resolution scale are you preferring to run? My four displays shipped today, showing Friday arrival!
Would a Thunderbolt 2 <-> USB-C cable not work as both DP and USB between a Mac Pro and these screens - or am I mixing up technologies?
Understood. Thanks for the proposal, I had the same thought but it didn't work, i.e. it did only consider the primary USB-C connection.There wouldn't be any difference if it is a new MacBook Pro or slightly older. They have been using only Thunderbolt ports for several generations. The limit is on the monitor's end (the port). If you check more expensive monitors from Dell, they write that it has Thunderbolt:
Computerzubehör und -peripheriegeräte
Dell PC Zubehör: Tastatur, Maus, Headsets, Webcams, Dockingstation, Akkus & mehr. Black Friday Angebote 2024! Flexibel zahlen mit Klarna/PayPal. Preis Match & Preisgarantie! Gratis Versand! 2x Rewardswww.dell.com
It looks like you may need to connect directly to your MacBook if you need fast data transfer.
I am not sure, just speculating, but what if you use port numbers 4 (DP) and 5 (USB-C) to connect to your MacBook? I think you should be able to get 60HZ/4K and high data speed. However, then you use 2 ports instead of 1.
The other idea was to just make use of the primary USB-C connection for power delivery and data but not for video but this doesn't work either.
If the MacBook Pro has DisplayPort 1.4 (HBR3), then "4K" at 60 Hz and USB 3.x speeds should™ be possible because only two of USB-C's high-speed lanes need to be dedicated to DisplayPort 1.4 HBR3 for "4K" at 60 Hz (as opposed to dedicating all four high-speed lanes to DisplayPort 1.2 HBR2), leaving the other two high-speed lanes available for USB 3.x.
The Thunderbolt port still acts as a "normal" DisplayPort output if a DisplayPort monitor is connected. The questions, then, are (1) does the MacBook Pro have DisplayPort 1.4 and (2) is the monitor wired up for that as well. And those new Dells are.
No.
You can't hook up a USB-C monitor, such as those Dells, using a Thunderbolt 3 <-> Thunderbolt 2 adapter.
The vast majority of USB-C to DisplayPort cables go in that direction only.
Adapters or cables that go from DisplayPort (plus USB) to USB-C do exist though, such as the Wacom Link Plus, which is what I use.
Last edited:
On the 27" no scaling, on the U3223QE I use the middle scaling setting (3008x1692).
I'm really curious to see 4 of these next to each other, so please don't forget to post a picture
The same happened to me when I plugged the USB-C cable into one of the ports on the MacBook’s left side. Once I used one of the ports on the right side (next to the MacBook audio jack) it worked. Maybe that could be your solution as well?
Thank mogrefy and TheJustAbout for the information.
Still, I will look into their website for other payment methods and compare with paying by the credit card.
However, the price listed on Dell official website of my country is higher than the others for almost 60%.
So that's the reason why I am looking for the seller who ship overseas.
I check the shopblt website and they require the customer outside of the US to provide the front and back image of the credit card for the first time purchase from them, which I consider as not a usual request.
Still, I will look into their website for other payment methods and compare with paying by the credit card.
I notice that these monitors are also available on Dell official website of each countries (including mine) in the past few days.
However, the price listed on Dell official website of my country is higher than the others for almost 60%.
So that's the reason why I am looking for the seller who ship overseas.
Do you know where a list of specifications for MacBook Pros is maintained? Apple's Technical Specifications don't mention HBR: Technical Specifications
It's a 2019 MacBook Pro 16" with 2.3 GHz Intel i9 and AMD Radeon Pro 5500M.
Thanks.
At this point, I am interested why do you think that dell is a better option than LG?
LG's advantages:
has 2(!) thunderbolts vs single USB-C (you don't choose between high resolution and data transfer, you can have both),
450 cd/m² vs 400,
cheaper,
has speakers (hopefully as good as Ultrafine 4k/5k)
Dell's advantages:
90W charging vs 60W
great ports
better contrast (2000 vs 1300)
IPS Black (?)
I am just trying to make a decision and would like to know your opinion.
LG's advantages:
has 2(!) thunderbolts vs single USB-C (you don't choose between high resolution and data transfer, you can have both),
450 cd/m² vs 400,
cheaper,
has speakers (hopefully as good as Ultrafine 4k/5k)
Dell's advantages:
90W charging vs 60W
great ports
better contrast (2000 vs 1300)
IPS Black (?)
I am just trying to make a decision and would like to know your opinion.
Your Mac has DP 1.4 but Apple doesn't support Alt Mode/MST in macOS. The last thing to try is disabling power delivery by monitor and charge the notebook through its charger.
macOS does DisplayPort Alternate Mode via USB-C just fine. It doesn't support the kind of MST necessary to daisy-chain multiple DisplayPort monitors but you don't need that for a single monitor.
For me, the stand on the LG is a deal breaker in portrait mode as it is wider than the width of the display in portrait mode, making it impossible to align multiple side-by-side. It is also out of stock on LG site, and on AMZN listed at $1,299.99 while I paid $1,092.49 so nearly a $200.00 price difference.
