macOS 11 Big Sur on Unsupported Macs Thread

[OKonnel]

I just realized that with OCLP Build 0.1.6 (OpenCore is 0.7.0) Magic Mouse and Apple Trackpad are no longer recognised at boot on the Opencore Picker screen and not even on the macOS Login screen with FileVault. So, then they work fine in Big Sur and even if I boot into Recovery Mode.
I tried resetting SMC and PRAM and also modifying UEFI -> AppleInput, using Auto instead of Builtin; but without success. Any idea? They always worked great before.
(Note: I'm not sure if they started working bad with OCLP Build 0.1.6 or even some other previous Main Build).
Thank you very much



[pyedog]

Hi,

No slowdown and overheating CPUs with your i5?

Finally here with a 2.3 GHz Intel Core i7 four hearts (Macmini6,2) with 16 GB of RAM, i decide to came back to Catalina, because my mid 2012 was starting to heat more than usual and turn the fan, with in the activity monitor a kernel-task a little high.

On my mac mini 6,2 (i7 2.3 on 11.4 w/ OLCP) I found that mdsync was hogging 99% cpu. Theoretically with quad core + hyperthreading, that isn't ... terrible ... but it does seem excessive. Killing the process fixes the problem, but that makes for long term spotlight problems. I figured it would eventually go away, but it stayed high for over a day.
Rebooting doesn't seem to help.
kernel_task seems to sit at around 2.5% which seems reasonable.



[K two]

I just realized that with OCLP Build 0.1.6 (OpenCore is 0.7.0) Magic Mouse and Apple Trackpad are no longer recognised at boot on the Opencore Picker screen and not even on the macOS Login screen with FileVault. So, then they work fine in Big Sur and even if I boot into Recovery Mode.
I tried resetting SMC and PRAM and also modifying UEFI -> AppleInput, using Auto instead of Builtin; but without success. Any idea? They always worked great before.
(Note: I'm not sure if they started working bad with OCLP Build 0.1.6 or even some other previous Main Build).
Thank you very much

Apple Wireless Keyboard works fine w/OCLP v.0.1.6 Boot Picker on Mini3,1, 11.4.



[K two]

On my mac mini 6,2 (i7 2.3 on 11.4 w/ OLCP) I found that mdsync was hogging 99% cpu. Theoretically with quad core + hyperthreading, that isn't ... terrible ... but it does seem excessive. Killing the process fixes the problem, but that makes for long term spotlight problems. I figured it would eventually go away, but it stayed high for over a day.
Rebooting doesn't seem to help.
kernel_task seems to sit at around 2.5% which seems reasonable.

A Time Machine share will cause MDS and it's hoard of attendants to hog your Mac CPU. It can't be excluded from Spotlight.



[Tockman]

Panics began.
I wonder is there 11.5 beta as main reason or maybe kind of conflict with OCLP.

panic(cpu 1 caller 0xffffff80221c09f6): Kernel trap at 0xffffff80221a11f0, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0x00007ff719c66000, CR3: 0x00000005addb71af, CR4: 0x00000000001626e0
RAX: 0x000000000086f5fe, RBX: 0xfffffe9f22d1a940, RCX: 0xffffffffffffff01, RDX: 0xbfffff804b8d5bc0
RSP: 0xffffffc128753960, RBP: 0xffffffc1287539d0, RSI: 0x0000000000000940, RDI: 0xfffffea540000000
R8:  0xfffffe9f22d1a940, R9:  0x000ffffffffff000, R10: 0x0000000080238ef7, R11: 0x0000008080000000
R12: 0xffffff86ce3c1180, R13: 0x00000005addb7000, R14: 0x00000000002e3f5e, R15: 0xffffff804b8d5bc0
RFL: 0x0000000000010287, RIP: 0xffffff80221a11f0, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00007ff719c66000, Error code: 0x0000000000000000, Fault CPU: 0x1, PL: 1, VF: 0

Backtrace (CPU 1), Frame : Return Address
0xffffff8021f569e0 : 0xffffff802208915d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffff8021f56a30 : 0xffffff80221d0033 mach_kernel : _kdp_i386_trap + 0x143
0xffffff8021f56a70 : 0xffffff80221c062a mach_kernel : _kernel_trap + 0x55a
0xffffff8021f56ac0 : 0xffffff802202da2f mach_kernel : _return_from_trap + 0xff
0xffffff8021f56ae0 : 0xffffff802208897d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffff8021f56c00 : 0xffffff8022088c73 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffff8021f56c70 : 0xffffff802289898a mach_kernel : _panic + 0x54
0xffffff8021f56ce0 : 0xffffff80221c09f6 mach_kernel : _sync_iss_to_iks + 0x2c6
0xffffff8021f56e60 : 0xffffff80221c06dd mach_kernel : _kernel_trap + 0x60d
0xffffff8021f56eb0 : 0xffffff802202da2f mach_kernel : _return_from_trap + 0xff
0xffffff8021f56ed0 : 0xffffff80221a11f0 mach_kernel : _phys_attribute_clear + 0x130
0xffffffc1287539d0 : 0xffffff802214da17 mach_kernel : _vm_page_balance_inactive + 0x107
0xffffffc128753a20 : 0xffffff802215fed4 mach_kernel : _vm_page_queues_remove + 0x574
0xffffffc128753a70 : 0xffffff8022161477 mach_kernel : _vm_page_free_prepare_queues + 0x57
0xffffffc128753ab0 : 0xffffff8022144288 mach_kernel : _vm_io_reprioritize_init + 0x1998
0xffffffc128753b20 : 0xffffff8022142e1a mach_kernel : _vm_io_reprioritize_init + 0x52a
0xffffffc128753b50 : 0xffffff8022144135 mach_kernel : _vm_io_reprioritize_init + 0x1845
0xffffffc128753b80 : 0xffffff8022143342 mach_kernel : _vm_io_reprioritize_init + 0xa52
0xffffffc128753bc0 : 0xffffff802212ea2b mach_kernel : _vm_map_remove + 0xa3b
0xffffffc128753d10 : 0xffffff802212e063 mach_kernel : _vm_map_remove + 0x73
0xffffffc128753d40 : 0xffffff80220bcf8d mach_kernel : _task_terminate_internal + 0x1dd
0xffffffc128753d80 : 0xffffff802260da98 mach_kernel : _exit_with_reason + 0x1e8
0xffffffc128753df0 : 0xffffff802262b453 mach_kernel : _postsig_locked + 0x423
0xffffffc128753e70 : 0xffffff802262b833 mach_kernel : _bsd_ast + 0x383
0xffffffc128753ec0 : 0xffffff8022080620 mach_kernel : _ast_taken_user + 0x100
0xffffffc128753ef0 : 0xffffff802202d9fb mach_kernel : _return_from_trap + 0xcb

Process name corresponding to current thread: MTLCompilerService
Boot args: keepsyms=1 debug=0x100 chunklist-security-epoch=0 -chunklist-no-rev2-dev chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
20G5023d

Kernel version:
Darwin Kernel Version 20.6.0: Mon May 10 03:15:35 PDT 2021; root:xnu-7195.140.13.0.1~20/RELEASE_X86_64
Kernel UUID: 3893CD5D-E480-3097-A4F4-3F1A6D146AE4
KernelCache slide: 0x0000000021e00000
KernelCache base:  0xffffff8022000000
Kernel slide:      0x0000000021e10000
Kernel text base:  0xffffff8022010000
__HIB  text base: 0xffffff8021f00000
System model name: iMac13,2 (Mac-42FD25EABCABB274)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 2993115344478
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x000002b8e393c596
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x00000017bb1ccf98 0x0000000000000000
last started kext at 173923481940: @filesystems.smbfs    3.6 (addr 0xffffff7fbd93b000, size 487424)
loaded kexts:
com.parallels.kext.usbconnect    16.5.0 49183
com.parallels.kext.netbridge    16.5.0 49183
com.parallels.kext.vnic    16.5.0 49183
com.parallels.kext.hypervisor    16.5.0 49183
org.dungeon.driver.SATSMARTDriver    0.8
com.LaCie.ScsiType00    1.9.1
com.lacie.driver.mvumi    1.3.21
com.khronokernel.SidecarFixup    1.0.0
org.vanilla.driver.CPUFriend    1.2.3
as.lvs1974.AirportBrcmFixup    2.1.2
as.vit9696.WhateverGreen    1.4.9
as.vit9696.Lilu    1.5.3
@filesystems.smbfs    3.6
>!ATopCaseHIDEventDriver    4050.1
>AudioAUUC    1.70
>!APlatformEnabler    2.7.0d0
>AGPM    122.1
>X86PlatformShim    1.0.0
@filesystems.autofs    3.0
@fileutil    20.036.15
>!AGraphicsDevicePolicy    6.3.3
@AGDCPluginDisplayMetrics    6.3.3
>pmtelemetry    1
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
|IO!BSerialManager    8.0.5d7
>!AUpstreamUserClient    3.6.8
@Dont_Steal_Mac_OS_X    7.0.0
>!AHV    1
>!AHDAHardwareConfigDriver    283.15
>!ADiskImages2    1
>!AHDA    283.15
>!AMikeyHIDDriver    131
@GeForce    16.0.0
>!A!ISlowAdaptiveClocking    4.0.0
>AGDCBacklightControl    6.3.3
>!A!IHD4000Graphics    16.0.5
>!AThunderboltIP    4.0.3
>eficheck    1
>!ABacklight    180.3
>!AMikeyDriver    283.15
@nvidia.NVDAStartup    16.0.0
>!ALPC    3.1
>!ASMCLMU    212
>!AMCCSControl    1.14
>!A!IFramebufferCapri    16.0.5
>!AFIVRDriver    4.1.0
>ACPI_SMC_PlatformPlugin    1.0.0
|IO!BUSBDFU    8.0.5d7
|SCSITaskUserClient    436.140.1
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.hfs.kext    556.100.11
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@filesystems.apfs    1677.140.1
>!ASDXC    1.9.0
|!ABCM5701Ethernet    11.0.0
>AirPort.BrcmNIC    1400.1.1
>!AAHCIPort    346.100.2
@private.KextAudit    1.0
>!AACPIButtons    6.1
>!ARTC    2.0
>!AHPET    1.8
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
>!A!ICPUPowerManagementClient    222.0.0
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    311
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
>!A!ICPUPowerManagement    222.0.0
>!AMultitouchDriver    4440.3
>!AInputDeviceSupport    4400.35
>!AHS!BDriver    4050.1
>IO!BHIDDriver    8.0.5d7
@kext.triggers    1.0
>!AGraphicsControl    6.3.3
|IOSerial!F    11
|IOAVB!F    940.4
|IOEthernetAVB!C    1.1.0
>DspFuncLib    283.15
@kext.OSvKernDSPLib    529
@nvidia.driver.NVDAGK100Hal    16.0.0
@nvidia.driver.NVDAResman    16.0.0
@!AGPUWrangler    6.3.3
|IOSlowAdaptiveClocking!F    1.0.0
@plugin.IOgPTPPlugin    985.2
>!AThunderboltEDMSink    5.0.3
>!ABacklightExpert    1.1.0
>!AHDA!C    283.15
|IOHDA!F    283.15
|IOAudio!F    300.6.1
@vecLib.kext    1.2.0
|IONDRVSupport    585.1
>!ASMBus!C    1.0.18d1
>!ASMBusPCI    1.0.14d1
|IOAccelerator!F2    442.9
@!AGraphicsDeviceControl    6.3.3
|IOGraphics!F    585.1
|IOSCSIParallel!F    3.0.0
>IOPlatformPluginLegacy    1.0.0
>X86PlatformPlugin    1.0.0
>IOPlatformPlugin!F    6.0.0d8
|Broadcom!BHost!CUSBTransport    8.0.5d7
|IO!BHost!CUSBTransport    8.0.5d7
|IO!BHost!CTransport    8.0.5d7
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>usb.!UHub    1.2
>!ABSDKextStarter    3
|IOSurface    290.8.1
@filesystems.hfs.encodings.kext    1
>!AThunderboltPCIUpAdapter    4.1.1
>!AThunderboltPCIDownAdapter    4.1.1
>!AThunderboltDPInAdapter    8.1.4
>!AThunderboltDPOutAdapter    8.1.4
>!AThunderboltDPAdapter!F    8.1.4
>!AXsanScheme    3
|IOAHCIBlock!S    332
>!AThunderboltNHI    7.2.8
|IOThunderbolt!F    9.3.2
|IO80211!F    1200.12.2b1
|IOSkywalk!F    1
>mDNSOffloadUserClient    1.0.1b8
>corecapture    1.0.4
|IOAHCI!F    294.100.1
>usb.!UEHCIPCI    1.2
>usb.!UEHCI    1.2
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
|IOSMBus!F    1.1
|IOHID!F    2.0.0
$!AImage4    3.0.0
|IOTimeSync!F    985.2
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    8.0.5d7
|IOReport!F    47
|IO!BPacketLogger    8.0.5d7
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
|CoreAnalytics!F    1
>!ASSE    1.0
>!AKeyStore    2
>!UTDM    511.120.2
|IOUSBMass!SDriver    184.121.1
|IOSCSIBlockCommandsDevice    436.140.1
|IO!S!F    2.1
|IOSCSIArchitectureModel!F    436.140.1
>!AMobileFileIntegrity    1.0.5
@kext.CoreTrust    1
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.corecrypto    11.1
@kec.Libm    1



[BenSova]

So I know you all are using OpenCore and the older patching method is kind of dead, but I'm going down with my ship, and to finish everything up, I have one last goal and getting there I might need a little help with (I will switch to OC with macOS 12, also Objective-C, and also try to fix every other dumb decision I've made with this patcher, that has nothing to do with this though). I think someone has already figured out it, so I'm just going to ask here before confusing myself more haha.

I was trying to patch the kexts on an installer USB's BaseSystem, so I patched the kexts, fixed the permissions then went to rebuild the kernel collection, but I noticed that there's not a kernel. I check macOS Base System, the Preboot, and the main Install macOS Big Sur volume, but nothing.

I later noticed that @jackluke had a repo on GitHub that does this, but without any source code that explains how the kernel was rebuilt (https://github.com/jacklukem/BigSurfixes), the only source code I could find was the scripts to copy a pre-made custom kernel collection to the USB.

I'm wondering, does anyone know (possibly jackluke, maybe someone else) how this was achieved? I could just be dumb/blind and I'm missing something big that could help me (I probably am...), but I thought it would be good to come here since somebody probably knows what I'm missing.

Thanks in advance!

So I eventually got to thinking if I can do something really stupid to achieve this. I'm going to make a macOS install, replace all the kexts on it with the ones from the installer USB, and then run kmutil on the macOS installer. Finally, I'll copy the kexts and kernel cache to the installer USB.
It might work, it might not work. We'll see!



[tchek]

On my mac mini 6,2 (i7 2.3 on 11.4 w/ OLCP) I found that mdsync was hogging 99% cpu. Theoretically with quad core + hyperthreading, that isn't ... terrible ... but it does seem excessive. Killing the process fixes the problem, but that makes for long term spotlight problems. I figured it would eventually go away, but it stayed high for over a day.
Rebooting doesn't seem to help.
kernel_task seems to sit at around 2.5% which seems reasonable.

Do you have WIFI enable ?

On my mini 6,2, as soon as i put the wifi on, kernel_task jumped 2.7% to 12% to make spikes at 18/20 and stay there at the top of the list ...



[mwidjaya]

No slowdown and overheating CPUs with your i5?

Nothing like that. No high kernel_task CPU util.



[Dilli]

So I eventually got to thinking if I can do something really stupid to achieve this. I'm going to make a macOS install, replace all the kexts on it with the ones from the installer USB, and then run kmutil on the macOS installer. Finally, I'll copy the kexts and kernel cache to the installer USB.
It might work, it might not work. We'll see!

you current patch giving 1x1 error[already raised by someone else on your GitHub) while making the install media. Hope to see this sorted.



[maxsp97]

This is hopeful for us MP5,1 users. I haven’t tried updating so am still on 11.2.3.

I was pointed to this separate thread https://forums.macrumors.com/threads/mac-os-11-3-has-broken-support-for-older-mac-pros.2289056/ for all info on the 5,1 issues; might be usefull to post your experience there as well.

greetz,
Willem

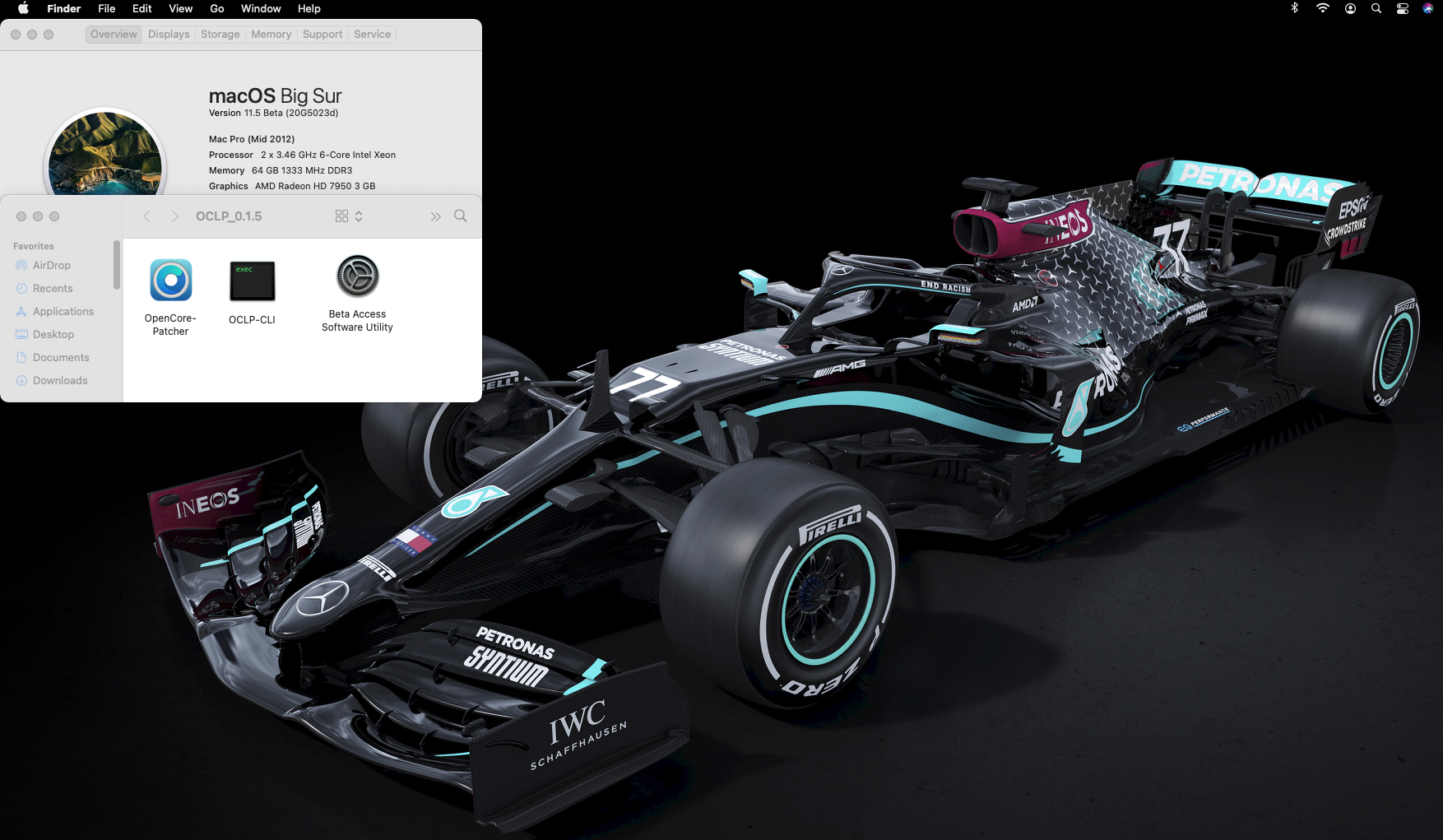

cMP mid 2012 5,1 updated BS 11.14.3 to 11.15 Beta 1 with OCLP 0.1.5 no issue at all.
Hardware:

• Samsung 970 EVO NVMe M.2 with WINGS PX1 adapter.
• GPU AMD Radeon HD 7950 3 GB
• Broadcom BCM43xx 1.0 (7.77.111.1 AirPortDriverBrcmNIC-1680.8)



[KevinClark]

Can you tell me exactly how you did it ? thanks



[maxsp97]

Can you tell me exactly how you did it ? thanks

Just following the OCLP instructions, after select installed just let the software runs.



[KevinClark]

can you send me your file please?



[Athanti]

Today I updated from 11.4 to 11.5 beta. Everything works perfect except the glitches , screenshot. Iused the oclp 0.1.6 and photos work ok. I have brightness. I can use it for daily use. Don't hear any fans. You are a great team. The glitches I have are on Safari and finder.



[pyedog]

Do you have WIFI enable ?

On my mini 6,2, as soon as i put the wifi on, kernel_task jumped 2.7% to 12% to make spikes at 18/20 and stay there at the top of the list ...

WiFi is enabled, but kernel_task stays fairly low ...



[K two]

Panics began.
I wonder is there 11.5 beta as main reason or maybe kind of conflict with OCLP.

panic(cpu 1 caller 0xffffff80221c09f6): Kernel trap at 0xffffff80221a11f0, type 13=general protection, registers:
CR0: 0x000000008001003b, CR2: 0x00007ff719c66000, CR3: 0x00000005addb71af, CR4: 0x00000000001626e0
RAX: 0x000000000086f5fe, RBX: 0xfffffe9f22d1a940, RCX: 0xffffffffffffff01, RDX: 0xbfffff804b8d5bc0
RSP: 0xffffffc128753960, RBP: 0xffffffc1287539d0, RSI: 0x0000000000000940, RDI: 0xfffffea540000000
R8:  0xfffffe9f22d1a940, R9:  0x000ffffffffff000, R10: 0x0000000080238ef7, R11: 0x0000008080000000
R12: 0xffffff86ce3c1180, R13: 0x00000005addb7000, R14: 0x00000000002e3f5e, R15: 0xffffff804b8d5bc0
RFL: 0x0000000000010287, RIP: 0xffffff80221a11f0, CS:  0x0000000000000008, SS:  0x0000000000000010
Fault CR2: 0x00007ff719c66000, Error code: 0x0000000000000000, Fault CPU: 0x1, PL: 1, VF: 0

Backtrace (CPU 1), Frame : Return Address
0xffffff8021f569e0 : 0xffffff802208915d mach_kernel : _handle_debugger_trap + 0x3fd
0xffffff8021f56a30 : 0xffffff80221d0033 mach_kernel : _kdp_i386_trap + 0x143
0xffffff8021f56a70 : 0xffffff80221c062a mach_kernel : _kernel_trap + 0x55a
0xffffff8021f56ac0 : 0xffffff802202da2f mach_kernel : _return_from_trap + 0xff
0xffffff8021f56ae0 : 0xffffff802208897d mach_kernel : _DebuggerTrapWithState + 0xad
0xffffff8021f56c00 : 0xffffff8022088c73 mach_kernel : _panic_trap_to_debugger + 0x273
0xffffff8021f56c70 : 0xffffff802289898a mach_kernel : _panic + 0x54
0xffffff8021f56ce0 : 0xffffff80221c09f6 mach_kernel : _sync_iss_to_iks + 0x2c6
0xffffff8021f56e60 : 0xffffff80221c06dd mach_kernel : _kernel_trap + 0x60d
0xffffff8021f56eb0 : 0xffffff802202da2f mach_kernel : _return_from_trap + 0xff
0xffffff8021f56ed0 : 0xffffff80221a11f0 mach_kernel : _phys_attribute_clear + 0x130
0xffffffc1287539d0 : 0xffffff802214da17 mach_kernel : _vm_page_balance_inactive + 0x107
0xffffffc128753a20 : 0xffffff802215fed4 mach_kernel : _vm_page_queues_remove + 0x574
0xffffffc128753a70 : 0xffffff8022161477 mach_kernel : _vm_page_free_prepare_queues + 0x57
0xffffffc128753ab0 : 0xffffff8022144288 mach_kernel : _vm_io_reprioritize_init + 0x1998
0xffffffc128753b20 : 0xffffff8022142e1a mach_kernel : _vm_io_reprioritize_init + 0x52a
0xffffffc128753b50 : 0xffffff8022144135 mach_kernel : _vm_io_reprioritize_init + 0x1845
0xffffffc128753b80 : 0xffffff8022143342 mach_kernel : _vm_io_reprioritize_init + 0xa52
0xffffffc128753bc0 : 0xffffff802212ea2b mach_kernel : _vm_map_remove + 0xa3b
0xffffffc128753d10 : 0xffffff802212e063 mach_kernel : _vm_map_remove + 0x73
0xffffffc128753d40 : 0xffffff80220bcf8d mach_kernel : _task_terminate_internal + 0x1dd
0xffffffc128753d80 : 0xffffff802260da98 mach_kernel : _exit_with_reason + 0x1e8
0xffffffc128753df0 : 0xffffff802262b453 mach_kernel : _postsig_locked + 0x423
0xffffffc128753e70 : 0xffffff802262b833 mach_kernel : _bsd_ast + 0x383
0xffffffc128753ec0 : 0xffffff8022080620 mach_kernel : _ast_taken_user + 0x100
0xffffffc128753ef0 : 0xffffff802202d9fb mach_kernel : _return_from_trap + 0xcb

Process name corresponding to current thread: MTLCompilerService
Boot args: keepsyms=1 debug=0x100 chunklist-security-epoch=0 -chunklist-no-rev2-dev chunklist-security-epoch=0 -chunklist-no-rev2-dev

Mac OS version:
20G5023d

Kernel version:
Darwin Kernel Version 20.6.0: Mon May 10 03:15:35 PDT 2021; root:xnu-7195.140.13.0.1~20/RELEASE_X86_64
Kernel UUID: 3893CD5D-E480-3097-A4F4-3F1A6D146AE4
KernelCache slide: 0x0000000021e00000
KernelCache base:  0xffffff8022000000
Kernel slide:      0x0000000021e10000
Kernel text base:  0xffffff8022010000
__HIB  text base: 0xffffff8021f00000
System model name: iMac13,2 (Mac-42FD25EABCABB274)
System shutdown begun: NO
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 2993115344478
Last Sleep:           absolute           base_tsc          base_nano
  Uptime  : 0x000002b8e393c596
  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000
  Wake    : 0x0000000000000000 0x00000017bb1ccf98 0x0000000000000000
last started kext at 173923481940: @filesystems.smbfs    3.6 (addr 0xffffff7fbd93b000, size 487424)
loaded kexts:
com.parallels.kext.usbconnect    16.5.0 49183
com.parallels.kext.netbridge    16.5.0 49183
com.parallels.kext.vnic    16.5.0 49183
com.parallels.kext.hypervisor    16.5.0 49183
org.dungeon.driver.SATSMARTDriver    0.8
com.LaCie.ScsiType00    1.9.1
com.lacie.driver.mvumi    1.3.21
com.khronokernel.SidecarFixup    1.0.0
org.vanilla.driver.CPUFriend    1.2.3
as.lvs1974.AirportBrcmFixup    2.1.2
as.vit9696.WhateverGreen    1.4.9
as.vit9696.Lilu    1.5.3
@filesystems.smbfs    3.6
>!ATopCaseHIDEventDriver    4050.1
>AudioAUUC    1.70
>!APlatformEnabler    2.7.0d0
>AGPM    122.1
>X86PlatformShim    1.0.0
@filesystems.autofs    3.0
@fileutil    20.036.15
>!AGraphicsDevicePolicy    6.3.3
@AGDCPluginDisplayMetrics    6.3.3
>pmtelemetry    1
|IOUserEthernet    1.0.1
>usb.!UUserHCI    1
|IO!BSerialManager    8.0.5d7
>!AUpstreamUserClient    3.6.8
@Dont_Steal_Mac_OS_X    7.0.0
>!AHV    1
>!AHDAHardwareConfigDriver    283.15
>!ADiskImages2    1
>!AHDA    283.15
>!AMikeyHIDDriver    131
@GeForce    16.0.0
>!A!ISlowAdaptiveClocking    4.0.0
>AGDCBacklightControl    6.3.3
>!A!IHD4000Graphics    16.0.5
>!AThunderboltIP    4.0.3
>eficheck    1
>!ABacklight    180.3
>!AMikeyDriver    283.15
@nvidia.NVDAStartup    16.0.0
>!ALPC    3.1
>!ASMCLMU    212
>!AMCCSControl    1.14
>!A!IFramebufferCapri    16.0.5
>!AFIVRDriver    4.1.0
>ACPI_SMC_PlatformPlugin    1.0.0
|IO!BUSBDFU    8.0.5d7
|SCSITaskUserClient    436.140.1
>!AFileSystemDriver    3.0.1
@filesystems.tmpfs    1
@filesystems.hfs.kext    556.100.11
@BootCache    40
@!AFSCompression.!AFSCompressionTypeZlib    1.0.0
@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1
@filesystems.apfs    1677.140.1
>!ASDXC    1.9.0
|!ABCM5701Ethernet    11.0.0
>AirPort.BrcmNIC    1400.1.1
>!AAHCIPort    346.100.2
@private.KextAudit    1.0
>!AACPIButtons    6.1
>!ARTC    2.0
>!AHPET    1.8
>!ASMBIOS    2.1
>!AACPIEC    6.1
>!AAPIC    1.7
>!A!ICPUPowerManagementClient    222.0.0
@!ASystemPolicy    2.0.0
@nke.applicationfirewall    311
|IOKitRegistryCompatibility    1
|EndpointSecurity    1
>!A!ICPUPowerManagement    222.0.0
>!AMultitouchDriver    4440.3
>!AInputDeviceSupport    4400.35
>!AHS!BDriver    4050.1
>IO!BHIDDriver    8.0.5d7
@kext.triggers    1.0
>!AGraphicsControl    6.3.3
|IOSerial!F    11
|IOAVB!F    940.4
|IOEthernetAVB!C    1.1.0
>DspFuncLib    283.15
@kext.OSvKernDSPLib    529
@nvidia.driver.NVDAGK100Hal    16.0.0
@nvidia.driver.NVDAResman    16.0.0
@!AGPUWrangler    6.3.3
|IOSlowAdaptiveClocking!F    1.0.0
@plugin.IOgPTPPlugin    985.2
>!AThunderboltEDMSink    5.0.3
>!ABacklightExpert    1.1.0
>!AHDA!C    283.15
|IOHDA!F    283.15
|IOAudio!F    300.6.1
@vecLib.kext    1.2.0
|IONDRVSupport    585.1
>!ASMBus!C    1.0.18d1
>!ASMBusPCI    1.0.14d1
|IOAccelerator!F2    442.9
@!AGraphicsDeviceControl    6.3.3
|IOGraphics!F    585.1
|IOSCSIParallel!F    3.0.0
>IOPlatformPluginLegacy    1.0.0
>X86PlatformPlugin    1.0.0
>IOPlatformPlugin!F    6.0.0d8
|Broadcom!BHost!CUSBTransport    8.0.5d7
|IO!BHost!CUSBTransport    8.0.5d7
|IO!BHost!CTransport    8.0.5d7
>usb.IOUSBHostHIDDevice    1.2
>usb.cdc    5.0.0
>usb.networking    5.0.0
>usb.!UHostCompositeDevice    1.2
>usb.!UHub    1.2
>!ABSDKextStarter    3
|IOSurface    290.8.1
@filesystems.hfs.encodings.kext    1
>!AThunderboltPCIUpAdapter    4.1.1
>!AThunderboltPCIDownAdapter    4.1.1
>!AThunderboltDPInAdapter    8.1.4
>!AThunderboltDPOutAdapter    8.1.4
>!AThunderboltDPAdapter!F    8.1.4
>!AXsanScheme    3
|IOAHCIBlock!S    332
>!AThunderboltNHI    7.2.8
|IOThunderbolt!F    9.3.2
|IO80211!F    1200.12.2b1
|IOSkywalk!F    1
>mDNSOffloadUserClient    1.0.1b8
>corecapture    1.0.4
|IOAHCI!F    294.100.1
>usb.!UEHCIPCI    1.2
>usb.!UEHCI    1.2
>usb.!UHostPacketFilter    1.0
|IOUSB!F    900.4.2
>usb.!UXHCIPCI    1.2
>usb.!UXHCI    1.2
>!AEFINVRAM    2.1
>!AEFIRuntime    2.1
|IOSMBus!F    1.1
|IOHID!F    2.0.0
$!AImage4    3.0.0
|IOTimeSync!F    985.2
|IONetworking!F    3.4
>DiskImages    493.0.0
|IO!B!F    8.0.5d7
|IOReport!F    47
|IO!BPacketLogger    8.0.5d7
$quarantine    4
$sandbox    300.0
@kext.!AMatch    1.0.0d1
|CoreAnalytics!F    1
>!ASSE    1.0
>!AKeyStore    2
>!UTDM    511.120.2
|IOUSBMass!SDriver    184.121.1
|IOSCSIBlockCommandsDevice    436.140.1
|IO!S!F    2.1
|IOSCSIArchitectureModel!F    436.140.1
>!AMobileFileIntegrity    1.0.5
@kext.CoreTrust    1
>!AFDEKeyStore    28.30
>!AEffaceable!S    1.0
>!ACredentialManager    1.0
>KernelRelayHost    1
|IOUSBHost!F    1.2
>!UHostMergeProperties    1.2
>usb.!UCommon    1.0
>!ABusPower!C    1.0
>!ASEPManager    1.0.1
>IOSlaveProcessor    1
>!AACPIPlatform    6.1
>!ASMC    3.1.9
|IOPCI!F    2.9
|IOACPI!F    1.4
>watchdog    1
@kec.pthread    1
@kec.corecrypto    11.1
@kec.Libm    1

You may want update your OCLP? Consider the nightly build at 0.1.6, here: https://nightly.link/dortania/OpenC...flows/build-app/main/OpenCore-Patcher.app.zip



[BenSova]

you current patch giving 1x1 error[already raised by someone else on your GitHub) while making the install media. Hope to see this sorted.

What's the full error?



[Dilli]

Is the process trustd running amok? Go to the directory /private/var/protected/trustd/ Delete the valid.sqlite3 files. When rebooting with a network connection Apple will rebuild the .sqlite files, trustd will peak briefly, then CPU activity will return to normal for good. 😎

Do I also delete valid.sqlte3-shm & -wal files. please confirm. I already deleted the valid.sqlite3 file



[K two]

Do I also delete valid.sqlte3-shm & -wal files. please confirm. I already deleted the valid.sqlite3 file

Yes. Reboot with a good network connection. trustd will peak, briefly, then fall back to normal.



[K two]

Can you tell me exactly how you did it ? thanks

Start here: https://dortania.github.io/OpenCore-Legacy-Patcher/INSTALLER.html#downloading



[K two]

can you send me your file please?

Get it, here: https://github.com/dortania/OpenCore-Legacy-Patcher/releases



[Dilli]

What's the full error?

I will get back to you.



[Tockman]

You may want update your OCLP? Consider the nightly build at 0.1.6, here

I guess it's necessary to be done once. My panics appear not in the run of installation (that's OK on OCLP 0.1.2) but suddenly during normal OS work.



[Ausdauersportler]

I guess it's necessary to be done once. My panics appear not in the run of installation (that's OK on OCLP 0.1.2) but suddenly during normal OS work.

You cannot boil it down to a specific software in use or hardware piece which is broken or became unreliable after nearly 10 years? Memory can always be a source of joy and trouble.



[mwidjaya]

You cannot boil it down to a specific software in use or hardware piece which is broken or became unreliable after nearly 10 years? Memory can always be a source of joy and trouble.

Yes, difficult to track down a piece of software that is now throwing up kernel panics.

I suspect @Tockman did not start clean when first upgraded to Big Sur.

I would go about:
- clean install of Big Sur (erase disk and start all over)
- do not migrate apps
- all new install of apps but only minimal apps needed and ditch apps that are no longer used
- copy across data files needed
