macOS 12 Monterey on Unsupported Macs Thread

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
houser said:
Macbook Pro rMBP 10,1 mid 2012 and Macbook Air 3,2 2010 updated to
Monterey 12.5.1 via OCLP 0.4.10. No obvious issues so far.
Click to expand...
Did you run into any problems with the MBA3,2?
I managed to do rMBP10,1 to Monterey using OCLP 0.4.10 and a MBP8,1 with no problems at All, but the Macbook Air 3,2 doesn’t want to take it. During installation, I get to ‘13 minutes remaining’, it stalls for a while and then the screen goes white and the computer just hangs (no caps lock light activity).
I tried many times, erasing the internal drive every time to make sure it’s a clean install. Tried NVRAM reset, no change.
Tried BigSur instead, same issue.

Ausdauersportler said:
Please save, compress and upload the IONetworkingFamily.kext from Monterey 12.2. You find this folder in /System/Library/Extensions . Copy to your desktop and compress there...

Thanks in advance!

(P.S.: If you know how to patch it back into the current 12.6 installation your might try it yourself...)
Click to expand...
Thank you for your instructions.
Unfortunately I do not know how to patch it back (and google didn't get me anywhere close).
So I got the file and attached it.

Can I do anything else?


Attachments

  • IONetworkingFamily.kext.zip
    2.3 MB · Views: 59
Jlsteed said:
Did you run into any problems with the MBA3,2?
I managed to do rMBP10,1 to Monterey using OCLP 0.4.10 and a MBP8,1 with no problems at All, but the Macbook Air 3,2 doesn’t want to take it. During installation, I get to ‘13 minutes remaining’, it stalls for a while and then the screen goes white and the computer just hangs (no caps lock light activity).
I tried many times, erasing the internal drive every time to make sure it’s a clean install. Tried NVRAM reset, no change.
Tried BigSur instead, same issue.
Click to expand...
@Jisteed
No problems at all with either. Just making sure you have not missed this:
You are aware that you have to keep the alt key depressed for every restart on those older Macs to get to the boot icons?
If you miss that, you need to force a restart and keep the alt key pressed for the install to continue.
Good luck.

  • Like
Reactions: BGS
molx said:
Thank you for your instructions.
Unfortunately I do not know how to patch it back (and google didn't get me anywhere close).
So I got the file and attached it.

Can I do anything else?
Click to expand...
Disclaimer:
I do not own an MacPro5,1 and it would be by far more easy if you find a user capable of root patching and debugging.

Need to know:
The patching of Big Sur and later has been described by Apple in the Kernel Debug Kits, you just need to download one from the Appel developer account (free) and check the included single readme file. The cycle is quite simple:

1. identify and mount the root
2. replace files on the mounted path
3. adjust permissions (chmod -R 0:0 and chown -R 755 applied to the extension you just changed)
4. rebuild kernel using kmutil (only needed if your change kernel extensions)
5. create a new bootable snapshot
6. reboot

On reboot press CMD+V on the OC boot picker to enable the verbose mode or edit the config.plist to have it permanently enabled - just in case the system hangs.

Patching:
After mounting the root your can just try to replace the complete kernel extension (brute force method) or the few internal plugins named like your cards vendor inside the package. Use Finder show contents to browse through the complete package.

Recovery: (patched system does not boot)
You should be able to enter the recovery partition of your 12.6 test installation (press space on the OC boot picker) in case the new kernel does not boot. Just boot into recovery, open a terminal and enter (assuming you have named the APFS container Monterey12.6:

Code:
mount -uw /Volumes/Monterey12.6
bless --mount /Volumes/Monterey12.6 --bootefi --last-sealed-snapshot

This will throw you back into the unpatched original state after primary installation and you are ready to retry.

P.S.:
If you feel not comfortable to do all this wait for other users to tackle this...

Last edited:
  • Like
Reactions: molx, OKonnel, macinfo and 1 other person

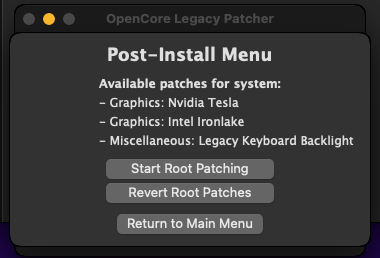

Is there a way to only apply SOME of the post-install root patches?

For example. Before I apply the available patches, my keyboard backlight works perfectly.

Other then some graphical things I need, i.e. external monitor ability, I don't think my mac needs as many patches as its patching. 🤷‍♂️

Regardless of the patches, my brightness HUD is still glitchy. Transposes one HUD on top of the other meant for the external display.

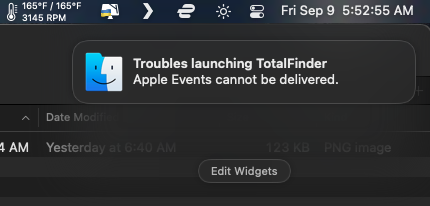

Could also be the reason TotalFinder isn't working after patching. Something in these 3 patches goofs it up. Causes the following error:
rootpatches.png troubleslaunching.png
Reverting it works fine.
Any insight would be appreciated.

  • Like
Reactions: JPi686
ChrisOSX said:
Is there a way to only apply SOME of the post-install root patches?

For example. Before I apply the available patches, my keyboard backlight works perfectly.

Other then some graphical things I need, i.e. external monitor ability, I don't think my mac needs as many patches as its patching. 🤷‍♂️

Regardless of the patches, my brightness HUD is still glitchy. Transposes one HUD on top of the other meant for the external display.

Could also be the reason TotalFinder isn't working after patching. Something in these 3 patches goofs it up. Causes the following error:
View attachment 2084387 View attachment 2084388
Reverting it works fine.
Any insight would be appreciated.
Click to expand...
No, unless you write your own patcher or patch completely manually. You are free to check the source code and fork it.

  • Like
Reactions: OKonnel and shafez
houser said:
@Jisteed
No problems at all with either. Just making sure you have not missed this:
You are aware that you have to keep the alt key depressed for every restart on those older Macs to get to the boot icons?
If you miss that, you need to force a restart and keep the alt key pressed for the install to continue.
Good luck.
Click to expand...
Thanks very much for replying.
I did the ‘Alt/Option’ key to select the EFI-Boot from the beginning, but I don’t recall ever getting through the installation far enough for it to restart. After selecting ‘Install OS Monterey’, I just followed the on-screen prompts to install it to the Macintosh HD, and away it went for 15 minutes or so before hitting the white screen problem.
I managed to recover back to High Sierra for now until I figure out how to overcome this issue.

straycat23 said:
Oops! Spoke too soon. There are some websites I cannot log into. Some I can, like this one. 0.4.6 worked perfectly on my Mac Pro 5.1. I used the latest version on my MacBook Pro 5.1. I think I’ll try to reload Monterey with an earlier version of OCLP.
Click to expand...
Is this a Safari 16.0 problem or an OCLP 0.4.11 issue? Has anyone else experienced this?

  • Like
Reactions: Oyah12
Just thought I'd ask if anyone else here has updated to Monterey on the 2014, 5K iMac (15,1)? I had no problem doing this with the OpenCore installer but serious issues with unresponsiveness and associated application hangs soon began and I eventually had to revert back to Big Sur! Not sure what was going on, but I suspect the fact that this Mac runs a Fusion drive had something to do with it. The OpenCore boot patch could be installed on either the SSD or HD components of the Fusion (I tried both) and although booting was OK with either, the hangs and unresponsiveness began regardless. No post-install root patches were required, presumably because they're not required on this model. I like the subtle changes brought in with Monterey so it's a shame I can't run it on this otherwise excellent Mac.

  • Like
Reactions: Sven G
Jlsteed said:
Thanks very much for replying.
I did the ‘Alt/Option’ key to select the EFI-Boot from the beginning, but I don’t recall ever getting through the installation far enough for it to restart. After selecting ‘Install OS Monterey’, I just followed the on-screen prompts to install it to the Macintosh HD, and away it went for 15 minutes or so before hitting the white screen problem.
I managed to recover back to High Sierra for now until I figure out how to overcome this issue.
Click to expand...
@Jisted
I am probably unclear with my suggestions.
If your situation is anything like mine, the white screen is probably simply indicative of an attempted restart without alt key pressed. So when you see that, just try and force quit with long press on power key, then start again with power key while pressing alt-key.
You should then see and be able to select the current install partition usually named MacOS install and continue the install. In my experience, OCLP installs on these Macbook Airs has to be supervised to press alt for each restart.
Good luck.

  • Like
Reactions: BGS and Sven G
^^^ 12.6.1 is still in beta: so it won’t show up, unless you are enrolled in the beta channel. As for an unresponsive system just after a major OS upgrade, this could just as well be a quite normal thing (indexing, caches, etc. etc.), as it could not: if it persists, of course there surely are some problems…

cyberstudio said:
Confused... question... I can't see 12.6.1 in System Preferences Software Update, but I can see it when I ask OCLP to download a macOS installer!!!??? Why is that? Can I install 12.6.1 by running /Applications/Install macOS Monterey?
Click to expand...
It's a beta. Wait until it launches officially and do not get confused by people installing it enthusiastically and not mentioning it is from the beta program.

Sorry, I know it`s out of the thread, but wanted to share with you. I have a new Macbook Pro M1 Pro and it´s insane the performance, thermal signature, battery, display, etc.

I´m afraid I wont be using my beloved Macbook pro 17" 2011 much from now on.

Last edited:
  • Like
Reactions: splifingate, TheStork, JedNZ and 4 others
Hi guys. After OC running pretty much flawlessly for some time I am now finding that my Mac will no longer shutdown properly, nor will it ever wake again from sleep once it does.

On shutdown everything quits etc and the sounds wind down but it stays on the desktop pic for a long time (10 min+). If nothing is done it will eventually restart itself, without a chime, presenting the 'computer didn't shut down properly' message before starting up. The crash reports seem to be the same every time.

If allowed to sleep nothing will happen when keyboard or mouse is activated. Sometimes it sounds like mechanically its waking but sometimes not.

Any ideas where to start looking to try and fix this? Its completely the same every time now and not random at all.
Thanks.

anic(cpu 12 caller 0xffffff8020979978): watchdog timeout: no checkins from watchdogd in 307 seconds (5875 totalcheckins since monitoring last enabled), shutdown in progress
Panicked task 0xffffff908431d670: 287 threads: pid 0: kernel_task
Backtrace (CPU 12), panicked thread: 0xffffff8bb8c34aa0, Frame : Return Address
0xfffffff5579c3b90 : 0xffffff801d47fdad
0xfffffff5579c3be0 : 0xffffff801d5e10d6
0xfffffff5579c3c20 : 0xffffff801d5d0443
0xfffffff5579c3c70 : 0xffffff801d41fa70
0xfffffff5579c3c90 : 0xffffff801d48017d
0xfffffff5579c3db0 : 0xffffff801d47f936
0xfffffff5579c3e10 : 0xffffff801dd15153
0xfffffff5579c3f00 : 0xffffff8020979978
0xfffffff5579c3f20 : 0xffffff802097927e
0xfffffff5579c3f50 : 0xffffff801ec7e265
0xfffffff5579c3fa0 : 0xffffff801d41f19e
Kernel Extensions in backtrace:
com.apple.driver.watchdog(1.0)[72F13DD7-D531-351F-8628-18318F125B22]@0xffffff8020977000->0xffffff8020979fff
com.apple.driver.AppleSMC(3.1.9)[EE1310F2-B1FA-3BF6-B86B-65F1EA049CE7]@0xffffff801ec6f000->0xffffff801ec87fff
dependency: com.apple.driver.watchdog(1)[72F13DD7-D531-351F-8628-18318F125B22]@0xffffff8020977000->0xffffff8020979fff
dependency: com.apple.iokit.IOACPIFamily(1.4)[CD3677CB-1370-3425-AB61-064B4F0508E6]@0xffffff801fb8c000->0xffffff801fb8dfff
dependency: com.apple.iokit.IOPCIFamily(2.9)[31170FF9-33B7-341F-865B-4E0D7872EF82]@0xffffff8020035000->0xffffff8020061fff

Process name corresponding to current thread (0xffffff8bb8c34aa0): kernel_task
Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0

Mac OS version:
21G115

Kernel version:
Darwin Kernel Version 21.6.0: Mon Aug 22 20:17:10 PDT 2022; root:xnu-8020.140.49~2/RELEASE_X86_64
Kernel UUID: 06A10466-36D7-3A0B-9EE7-A9053A8991A3
KernelCache slide: 0x000000001d200000
KernelCache base: 0xffffff801d400000
Kernel slide: 0x000000001d210000
Kernel text base: 0xffffff801d410000
__HIB text base: 0xffffff801d300000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: YES
Panic diags file available: NO (0xe00002cd)
Hibernation exit count: 0

System uptime in nanoseconds: 59044301481538
Last Sleep: absolute base_tsc base_nano
Uptime : 0x000035b3529db026
Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000
Wake : 0x0000000000000000 0x00000025e2737e5a 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 7% of segments limit (OK) with 1 swapfiles and OK swap space
Zone info:
Zone map: 0xffffff808023f000 - 0xffffffa08023f000
. PGZ : 0xffffff808023f000 - 0xffffff8088240000
. VM : 0xffffff8088240000 - 0xffffff8553bd9000
. RO : 0xffffff8553bd9000 - 0xffffff86ecf0c000
. GEN0 : 0xffffff86ecf0c000 - 0xffffff8bb88a5000
. GEN1 : 0xffffff8bb88a5000 - 0xffffff908423e000
. GEN2 : 0xffffff908423e000 - 0xffffff954fbd7000
. GEN3 : 0xffffff954fbd7000 - 0xffffff9a1b571000
. DATA : 0xffffff9a1b571000 - 0xffffffa08023f000
Metadata: 0xffffffffc7fee000 - 0xffffffffe7fee000
Bitmaps : 0xffffffffe7fee000 - 0xfffffffffffee000



- - - - - - - - -

anic(cpu 12 caller 0xffffff801ef79978): watchdog timeout: no checkins from watchdogd in 306 seconds (2358 totalcheckins since monitoring last enabled), shutdown in progress
Panicked task 0xffffff9589a31670: 298 threads: pid 0: kernel_task
Backtrace (CPU 12), panicked thread: 0xffffff9589792000, Frame : Return Address
0xffffffc13aaf3b90 : 0xffffff801ba7fdad
0xffffffc13aaf3be0 : 0xffffff801bbe10d6
0xffffffc13aaf3c20 : 0xffffff801bbd0443
0xffffffc13aaf3c70 : 0xffffff801ba1fa70
0xffffffc13aaf3c90 : 0xffffff801ba8017d
0xffffffc13aaf3db0 : 0xffffff801ba7f936
0xffffffc13aaf3e10 : 0xffffff801c315153
0xffffffc13aaf3f00 : 0xffffff801ef79978
0xffffffc13aaf3f20 : 0xffffff801ef7927e
0xffffffc13aaf3f50 : 0xffffff801d27e265
0xffffffc13aaf3fa0 : 0xffffff801ba1f19e
Kernel Extensions in backtrace:
com.apple.driver.watchdog(1.0)[72F13DD7-D531-351F-8628-18318F125B22]@0xffffff801ef77000->0xffffff801ef79fff
com.apple.driver.AppleSMC(3.1.9)[EE1310F2-B1FA-3BF6-B86B-65F1EA049CE7]@0xffffff801d26f000->0xffffff801d287fff
dependency: com.apple.driver.watchdog(1)[72F13DD7-D531-351F-8628-18318F125B22]@0xffffff801ef77000->0xffffff801ef79fff
dependency: com.apple.iokit.IOACPIFamily(1.4)[CD3677CB-1370-3425-AB61-064B4F0508E6]@0xffffff801e18c000->0xffffff801e18dfff
dependency: com.apple.iokit.IOPCIFamily(2.9)[31170FF9-33B7-341F-865B-4E0D7872EF82]@0xffffff801e635000->0xffffff801e661fff

Process name corresponding to current thread (0xffffff9589792000): kernel_task
Boot args: -lilubetaall -wegbeta agdpmod=pikera enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -wegtree -no_compat_check no32exec=0

Mac OS version:
21G115

Kernel version:
Darwin Kernel Version 21.6.0: Mon Aug 22 20:17:10 PDT 2022; root:xnu-8020.140.49~2/RELEASE_X86_64
Kernel UUID: 06A10466-36D7-3A0B-9EE7-A9053A8991A3
KernelCache slide: 0x000000001b800000
KernelCache base: 0xffffff801ba00000
Kernel slide: 0x000000001b810000
Kernel text base: 0xffffff801ba10000
__HIB text base: 0xffffff801b900000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)
System shutdown begun: YES
Panic diags file available: YES (0x0)
Hibernation exit count: 0

System uptime in nanoseconds: 23872524566853
Last Sleep: absolute base_tsc base_nano
Uptime : 0x000015b64158cb44
Sleep : 0x0000000000000000 0x0000000000000000 0x0000000000000000
Wake : 0x0000000000000000 0x000000271af5a3c2 0x0000000000000000
Compressor Info: 0% of compressed pages limit (OK) and 0% of segments limit (OK) with 0 swapfiles and OK swap space
Zone info:
Zone map: 0xffffff80ba000000 - 0xffffffa0ba000000
. PGZ : 0xffffff80ba000000 - 0xffffff80c2001000
. VM : 0xffffff80c2001000 - 0xffffff858d99a000
. RO : 0xffffff858d99a000 - 0xffffff8726ccd000
. GEN0 : 0xffffff8726ccd000 - 0xffffff8bf2666000
. GEN1 : 0xffffff8bf2666000 - 0xffffff90bdfff000
. GEN2 : 0xffffff90bdfff000 - 0xffffff9589998000
. GEN3 : 0xffffff9589998000 - 0xffffff9a55332000
. DATA : 0xffffff9a55332000 - 0xffffffa0ba000000
Metadata: 0xffffff8081ff0000 - 0xffffff80a1ff0000
Bitmaps : 0xffffff80a1ff0000 - 0xffffff80b9ff0000

kkinto said:
Hi guys. After OC running pretty much flawlessly for some time I am now finding that my Mac will no longer shutdown properly, nor will it ever wake again from sleep once it does.
Click to expand...
Have you reset SMC & NVRAM?

straycat23 said:
Is this a Safari 16.0 problem or an OCLP 0.4.11 issue? Has anyone else experienced this?
Click to expand...
I have loaded OCLP 0.4.11 3 times with latest Monterey. Safari 15.6.1 runs fine. Safari 16.0 And beta 16.1 will not allow me to sign into certain websites. Others, it will. I am using a MacBook Pro 5.1. I don’t know if it’s OCLP 0.4.11 or the Sarfari version. I am able to use Safari 16.0 on OCLP 0.4.6, so I’m guessing it’s the OCLP 0.4.11

  • Like
Reactions: Oyah12
houser said:
@Jisted
I am probably unclear with my suggestions.
If your situation is anything like mine, the white screen is probably simply indicative of an attempted restart without alt key pressed. So when you see that, just try and force quit with long press on power key, then start again with power key while pressing alt-key.
You should then see and be able to select the current install partition usually named MacOS install and continue the install. In my experience, OCLP installs on these Macbook Airs has to be supervised to press alt for each restart.
Good luck.
Click to expand...
I tried doing the reboot when I hit the white/grey screen, but from the bootpicker there was no option for MacOS Install (with the Monterey background). Only EFI Boot, macOS Installer, Untitled (High Sierra), and Install OS Monterey (from the USB boot disk), so I believe the installer hadn't reached the point where it is usable. When clicking 'macOS Installer', I am faced with the 'No usable OS error screen ø'.
During the installation process the progress bar reached 'About 12 minutes remaining' which is when the white/grey screen appears.
I've tried this a number of times with different approaches (clean install after Disk Utility erase of internal disk, NVRAM reset), but each time, I get this far with the same results.

Trying again now with different USB device (external SSD).
I also realised I wasn't checking for the installer inside the EFI Boot Disk 🤦‍♂️
My other Macs were so straight forward.

Update. After half a dozen “hang at white screen” occurrences, each time I powered down the Mac, restarted with Alt key, go to EFI BOOT and choose the installer with Disk icon. It finally went through.
I kind of know this is documented in OCLP website but the description isn’t quite as what I was seeing.

Anyway, thanks guys for the support. Greatly appreciated.

Last edited:
  • Like
Reactions: houser
You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
Back
