MP 1,1-5,1 Manually Configured OpenCore on the Mac Pro

Status
The first post of this thread is a WikiPost and can be edited by anyone with the appropiate permissions. Your edits will be public.
h9826790 said:
Yes, that works.
View attachment 936629

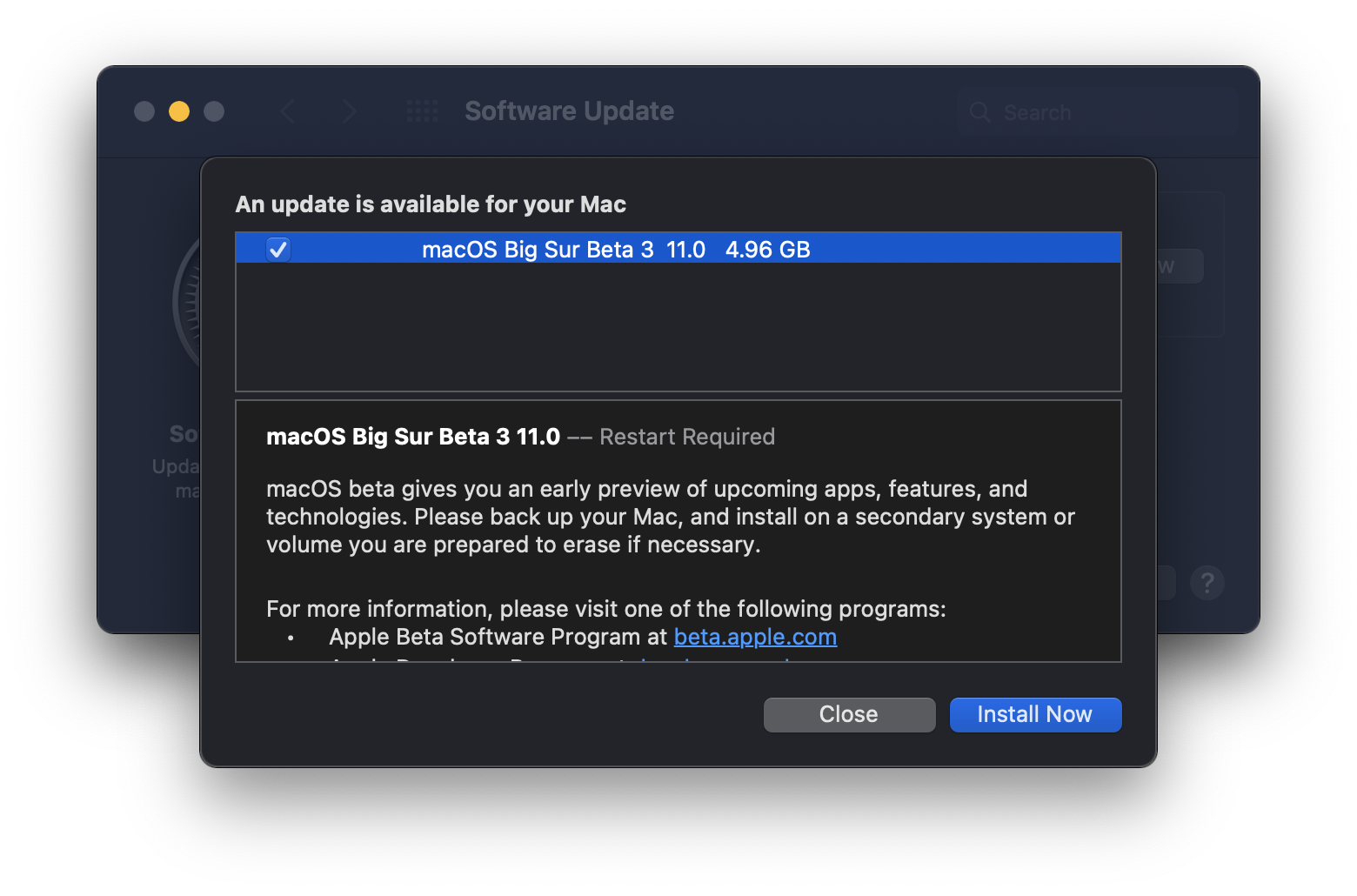

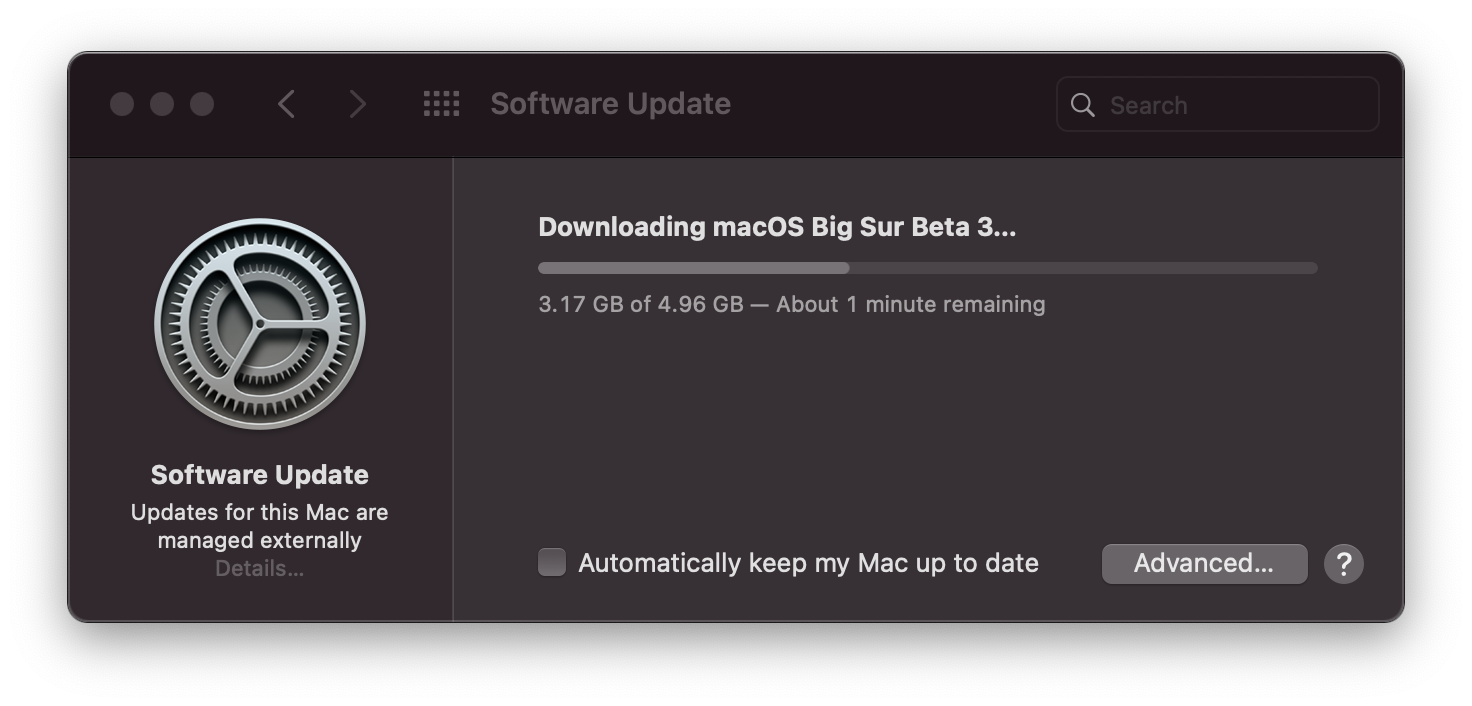

Once click the "More info..." it will download the 4.96GB incremental update image, but not the full 12.88GB full update image.

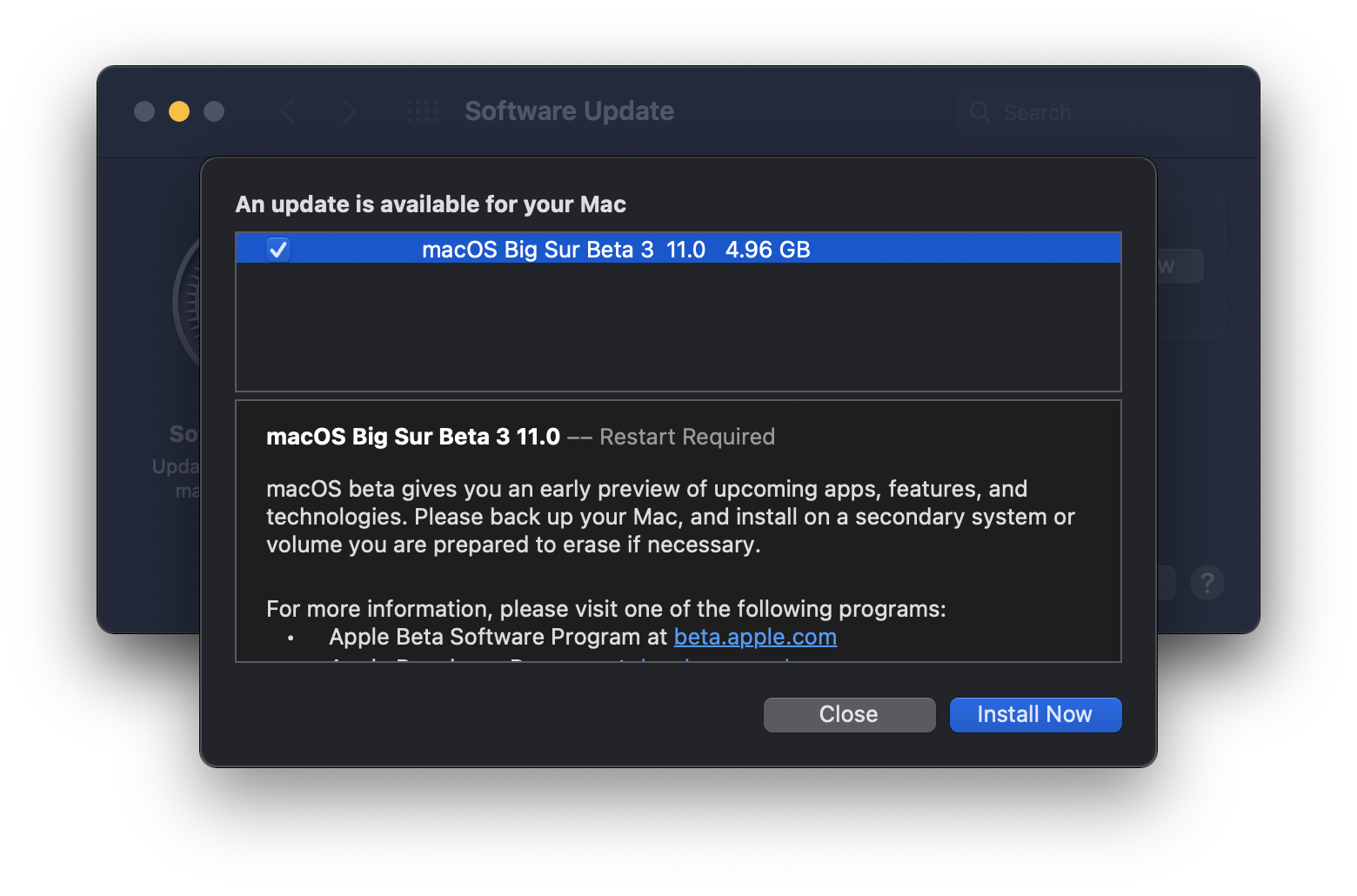

View attachment 936653

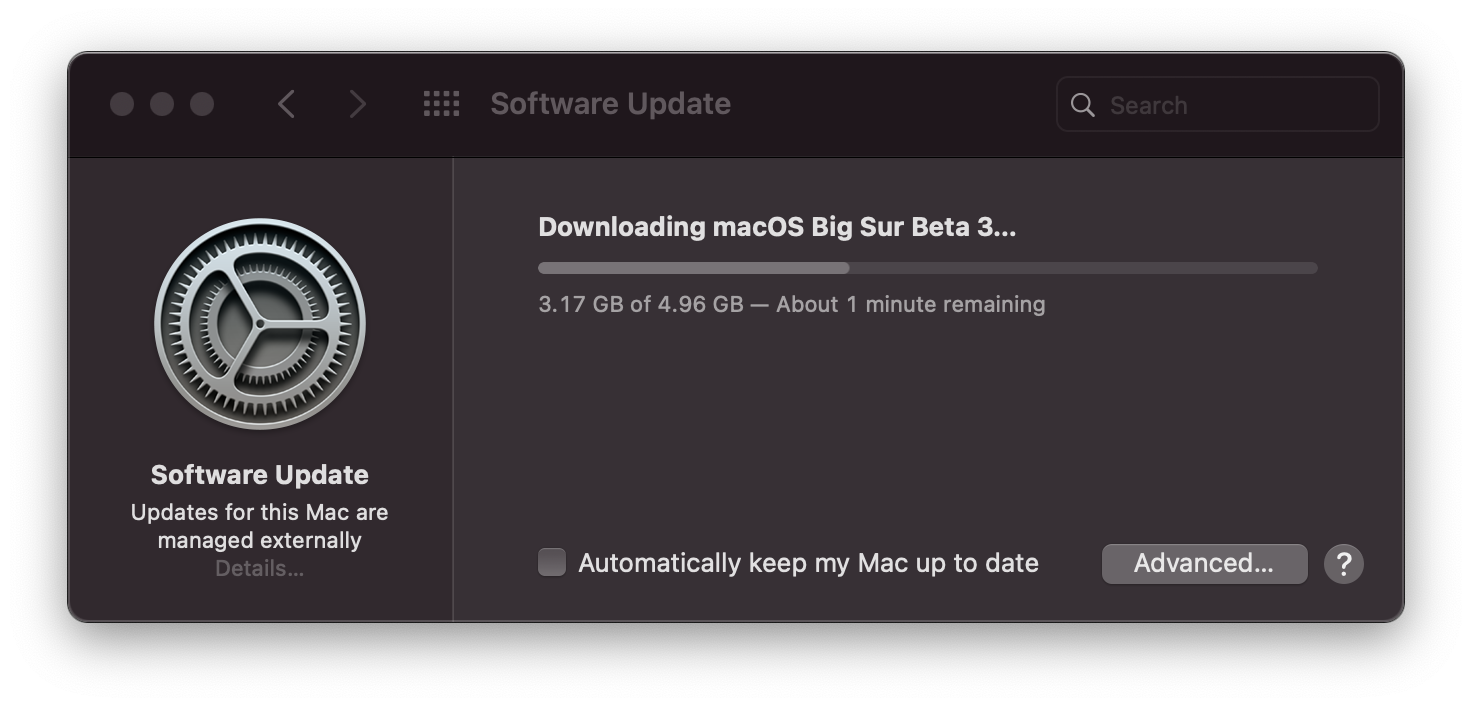

View attachment 936656

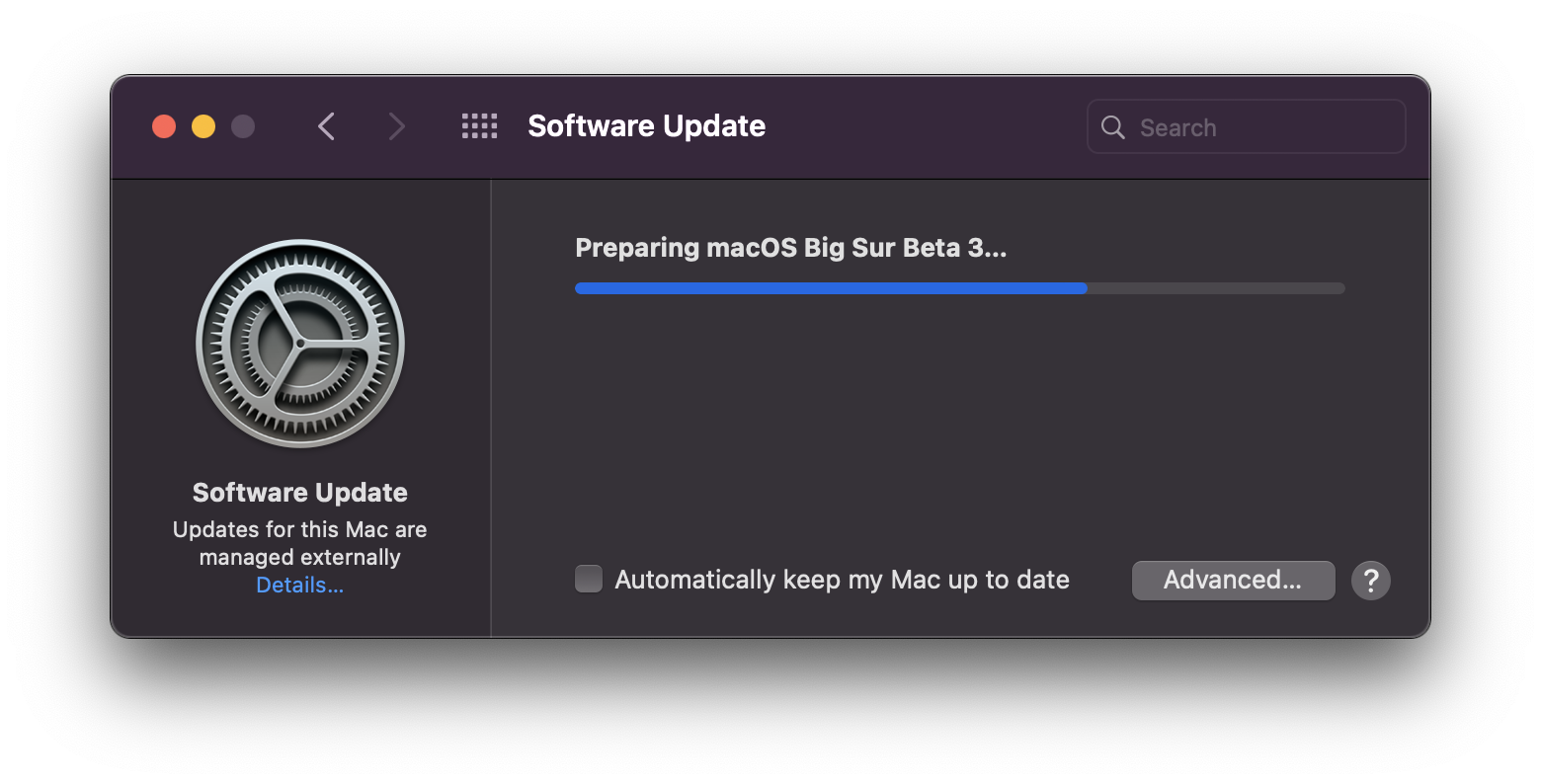

And it seems this more like the iOS OTA update. It has pretty long preparation time.

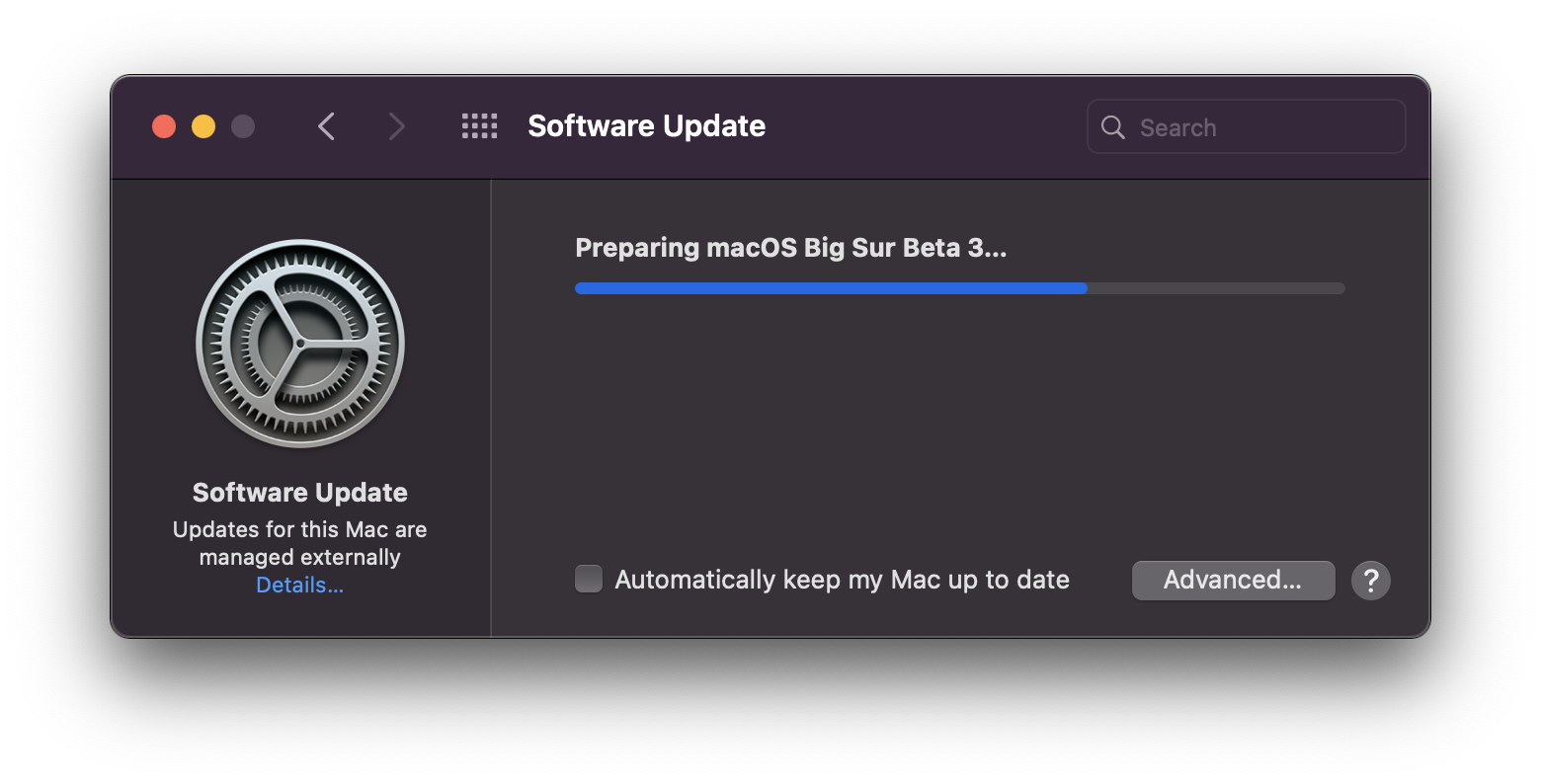

View attachment 936658
Click to expand...
Yesterday I did the OTA update with almost same result on my Opencore mac pro 5,1 spoofing a iMac Pro 1,1. However the OpenCanopy boot screen selector shows Big Sur as “Preboot”. Whereas in beta 2 it showed as the SSD’s name.

it appears to be seeing only the “Preboot”. Selecting this it boots to Big Sur beta 3 and seems to function as expected.

Any suggestions? before I reinstall with the full installer which I also downloaded.

Thanks

David403 said:
Yesterday I did the OTA update with almost same result on my Opencore mac pro 5,1 spoofing a iMac Pro 1,1. However the OpenCanopy boot screen selector shows Big Sur as “Preboot”. Whereas in beta 2 it showed as the SSD’s name.

it appears to be seeing only the “Preboot”. Selecting this it boots to Big Sur beta 3 and seems to function as expected.

Any suggestions? before I reinstall with the full installer which I also downloaded.

Thanks
Click to expand...
Just tested that, even run the full installer will show "Preboot" on the OC boot picker now. It seems this is part of the "new function" (SSV?).
[automerge]1595530316[/automerge]
IndioX said:
yes, the small updater works

but allways: no H264 HWacc, PCIe drives are external
and kernel panics with dual CPU

:- (
Click to expand...
startergo said:
That means that the kexts can't load.
Click to expand...

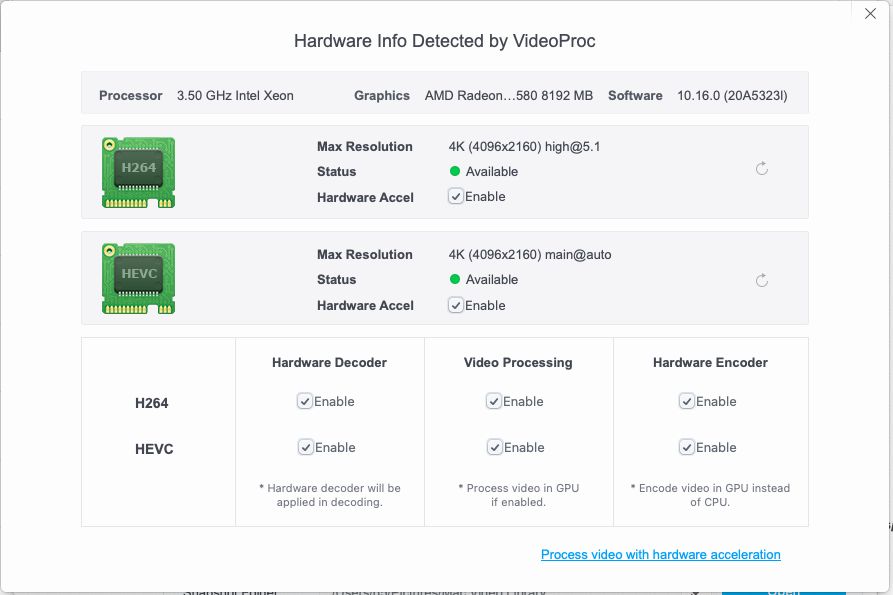

Everything works. HWAccel, OpenCore, kext injection etc.
Screenshot 2020-07-24 at 02.45.10.png


IndioX, are you running the latest OC 0.6 beta?
[automerge]1595530747[/automerge]
eksu said:

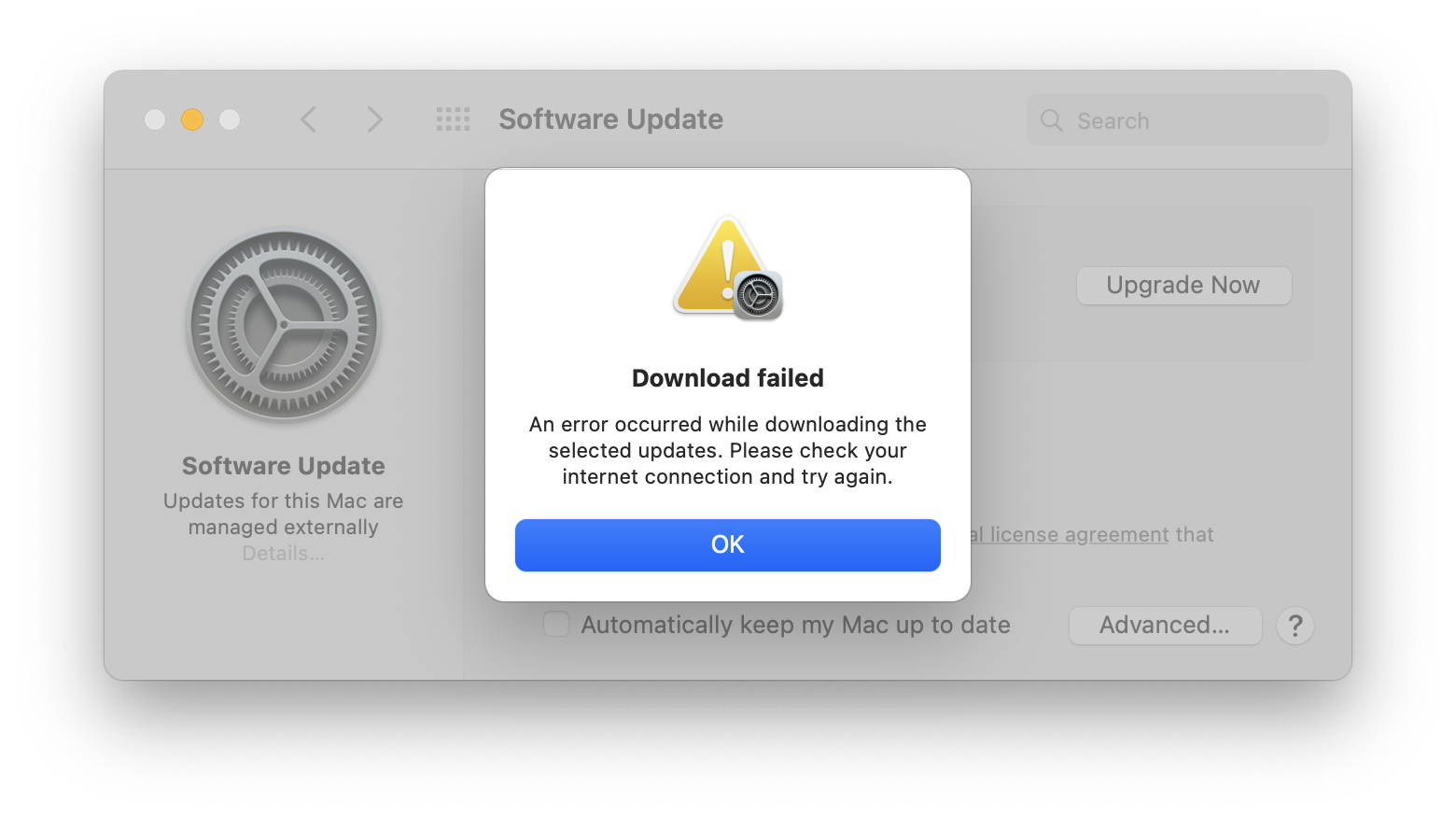

This is the error I get when I try to do the incremental update.

I am using smbios 'hybridization' so I have modified my Board ID, but everything else is still the same. I will try enabling the VMM flag and see I get different behavior, but perhaps I need to spoof a iMacPro to download the incremental update.

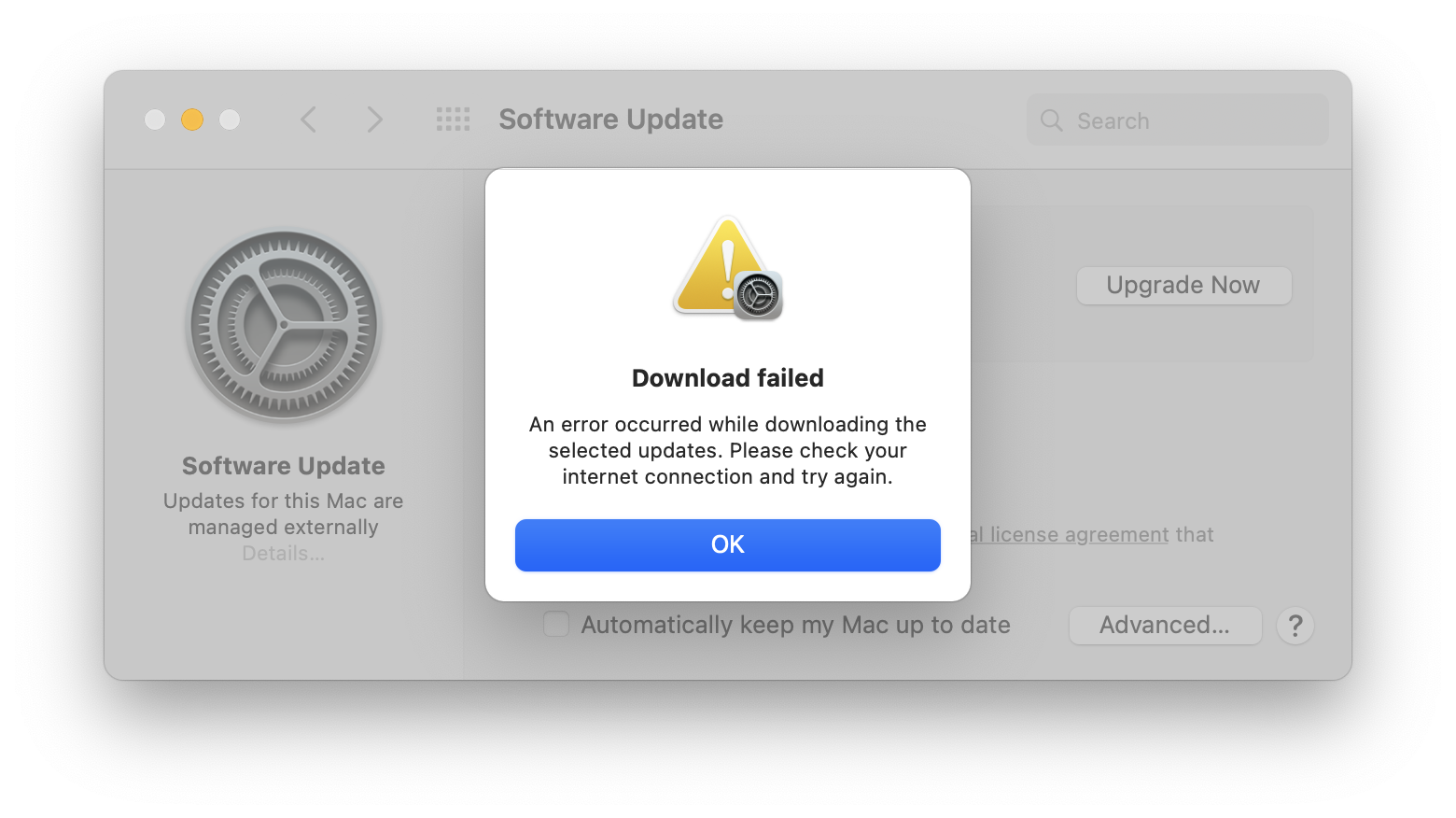

View attachment 936716

Update: I have to have the VMM flag enabled to do the incremental update.

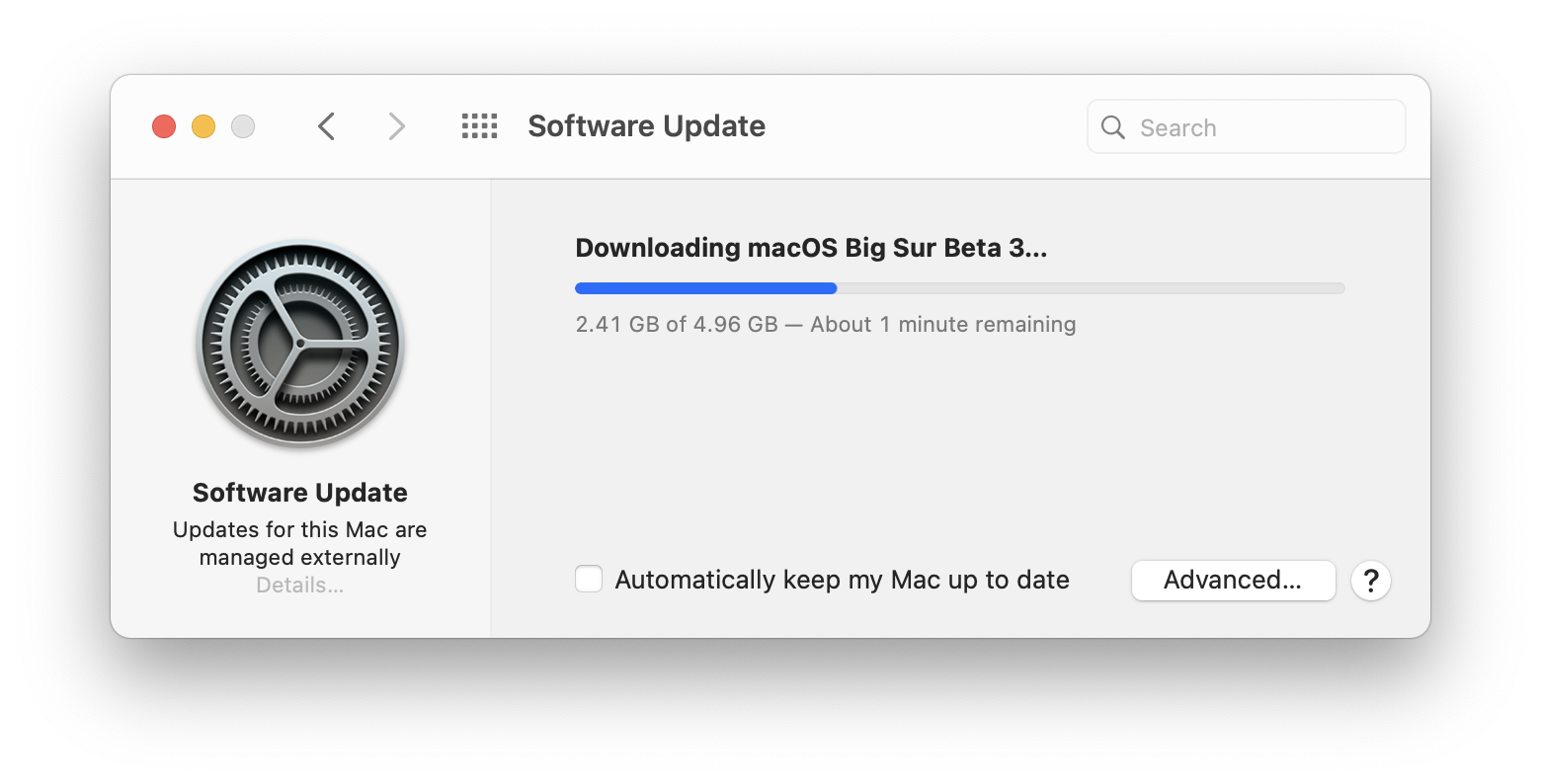

View attachment 936721
Click to expand...
Thanks for the report. It's good to know that the incremental update still works with VMM flag on.

So, it seems full SMBIOS spoofing only required when we run the full macOS 11 installer.

Last edited:
h9826790 said:
Just tested that, even run the full installer will show "Preboot" on the OC boot picker now. It seems this is part of the "new function" (SSV?).
Click to expand...

I wonder if this "feature" rather than 'fault' is also present on the suported set of macs that boot natively without Opencore? ...or is it just with Opencore.

Last edited:
eksu said:
Update: I have to have the VMM flag enabled to do the incremental update.

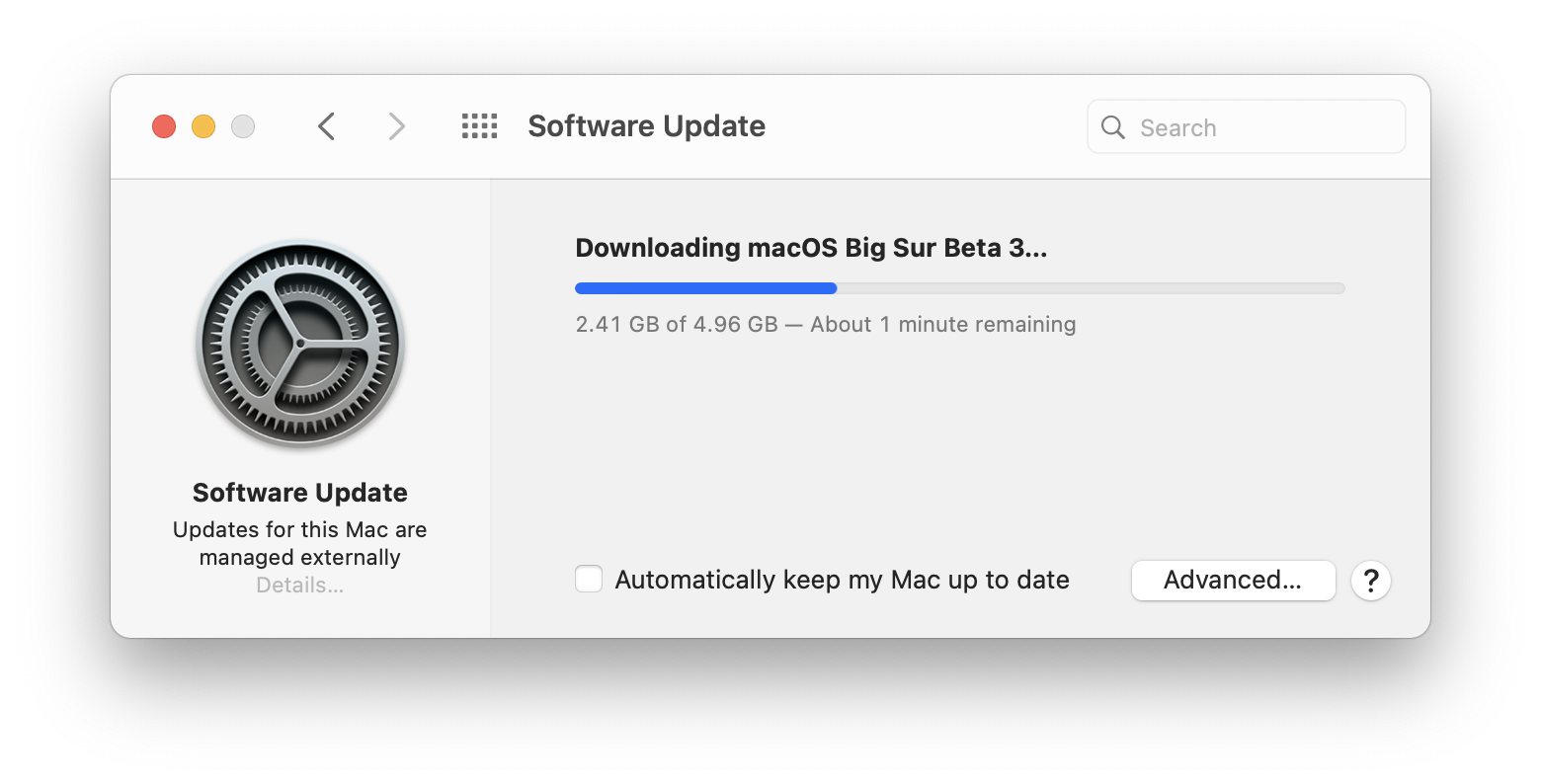

View attachment 936721
Click to expand...
Update: My machine will restart to run the incremental update, but I never quite boot into it. On my OC boot screen I see “Big Sur HD” as well as “macOS Installer” (although it has been like that ever since installed Beta 2)

Last edited:
My flashed R9 280X crapped out on me the other day. I have replaced it with a spare Powercolor HD7950 v2, which I don't think is flashable so I opted for OC except that I don't see the Boot Picker. I think it works because if I hit Esc on boot, it stops the boot process but my screen is black until Catalina's drivers kick in.

Is my GPU too old for this and I need an RX580 minimum?

weckart said:
My flashed R9 280X crapped out on me the other day. I have replaced it with a spare Powercolor HD7950 v2, which I don't think is flashable so I opted for OC except that I don't see the Boot Picker. I think it works because if I hit Esc on boot, it stops the boot process but my screen is black until Catalina's drivers kick in.

Is my GPU too old for this and I need an RX580 minimum?
Click to expand...
Too old, the graphic cards by that time should have no UEFI GOP.

Why the 7950 isn't flashable? You need the HDMI port that will be disabled?

  • Like
Reactions: weckart
h9826790 said:
Too old, the graphic cards by that time should have no UEFI GOP.

Why the 7950 isn't flashable? You need the HDMI port that will be disabled?
Click to expand...
No. This one has two DVI ports along with one HDMI and two MDPs. That usually ends up not working.

Hello, this was my first time trying to use Opencore and everything mostly went without a hitch. I'm running Catalina on an NVMe SSD. Now I have tried looking up this answer on this thread and other threads to see if I could find my solution, unfortunately, I was unable to find anything that has worked. So all I need to figure out is why opencore isn't seeing an "older" Bootcamp I had installed before installing opencore. I have Windows installed on SATA SSD and I have tried the instruction on the first page but opencore won't see the USB I rsynced either. If anyone can point me in the right direction I would appreciate it.

Thank you for your hard work in keeping the Mac Pro 5,1 alive. I was able to grab mine from my job since they upgraded to the trashcans and to be honest with the upgrades that can be put on this thing I can't see why they did.

Just updated from 10.15.4 to 11.0 beta (20A5323l). With full smbios spoofing as iMacPro.
The system cannot wake from sleep:
panic(cpu 0 caller 0xffffff800a47737a): Sleep transition timed out after 180 seconds while calling power state change callbacks. Suspected bundle: com.apple.iokit.IOUSBHostFamily. Thread 0x932e.
Failure code:: 0x00000040 00000014

Backtracing specified thread
Backtrace (CPU 0), Frame : Return Address
0xffffffa24ece3888 : 0xffffff8009dd5f08 mach_kernel : _machine_switch_context + 0xc8
0xffffffa25aae3c40 : 0xffffff8009cce5ac mach_kernel : _thread_unstop + 0x149c
0xffffffa25aae3cb0 : 0xffffff8009ccd07f mach_kernel : _thread_block_reason + 0xaf
0xffffffa25aae3d00 : 0xffffff8009dd2e96 mach_kernel : _lck_mtx_lock_wait_x86 + 0x146
0xffffffa25aae3d40 : 0xffffff8009dd26fb mach_kernel : _lck_mtx_lock_slow + 0x1db
0xffffffa25aae3d70 : 0xffffff800a406a78 mach_kernel : __ZN10IOWorkLoop9closeGateEv + 0x28
0xffffffa25aae3da0 : 0xffffff800a409b39 mach_kernel : __ZN13IOCommandGate9runActionEPFiP8OSObjectPvS2_S2_S2_ES2_S2_S2_S2_ + 0x49
0xffffffa25aae3e00 : 0xffffff800a3ed790 mach_kernel : __ZN9IOService23driverInformPowerChangeEv + 0x2c0
0xffffffa25aae3ea0 : 0xffffff800a3ed074 mach_kernel : __ZN9IOService15pmDriverCalloutEPS_ + 0x34
0xffffffa25aae3ec0 : 0xffffff8009ceeb15 mach_kernel : _thread_call_delayed_timer + 0xec5
0xffffffa25aae3f40 : 0xffffff8009cee641 mach_kernel : _thread_call_delayed_timer + 0x9f1
0xffffffa25aae3fa0 : 0xffffff8009c5013e mach_kernel : _call_continuation + 0x2e
Click to expand...

Back to hybrid smbios spoofing with BigSur Beta3:
Code:
kextstat | grep -v com.apple
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
   46    4 0xffffff7f84029000 0x85000    0x85000    as.vit9696.Lilu (1.4.6) DD07088A-9CCC-3062-A65E-47FED367B1B6 <8 6 5 3 2 1>
   47    0 0xffffff7f840ae000 0x72000    0x72000    as.vit9696.WhateverGreen (1.4.1) F3083B30-6C84-350C-A3E6-5969F93B15DE <46 13 8 6 5 3 2 1>
   48    0 0xffffff7f84126000 0x9000     0x9000     as.lvs1974.DebugEnhancer (1.0.1) 45AFB5D8-6CB3-32B6-B382-AF57B25934DB <46 8 6 5 3 2 1>
   49    0 0xffffff7f8412f000 0x8000     0x8000     com.cdf.NightShiftEnabler (1.0.0) F1736F42-6F3E-35E7-9B37-5A77F8834CE1 <46 8 6 5 3 2 1>
   50    0 0xffffff7f84137000 0xa000     0xa000     as.lvs1974.HibernationFixup (1.3.4) 50F72DA3-D349-3EBA-93D9-7DDA1F27D01A <46 8 6 5 3 2 1>
  151    0 0xffffff7f84a7a000 0x187000   0x187000   at.obdev.nke.LittleSnitch (5474) 21D3E540-82E5-38B3-9030-999B3D754C89 <8 6 5 3 1>

DRM playback in AppleTV does not work. AppleTV shows green screen and Netflix Red screen.

startergo said:
Back to hybrid smbios spoofing with BigSur Beta3:
Code:
kextstat | grep -v com.apple
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
   46    4 0xffffff7f84029000 0x85000    0x85000    as.vit9696.Lilu (1.4.6) DD07088A-9CCC-3062-A65E-47FED367B1B6 <8 6 5 3 2 1>
   47    0 0xffffff7f840ae000 0x72000    0x72000    as.vit9696.WhateverGreen (1.4.1) F3083B30-6C84-350C-A3E6-5969F93B15DE <46 13 8 6 5 3 2 1>
   48    0 0xffffff7f84126000 0x9000     0x9000     as.lvs1974.DebugEnhancer (1.0.1) 45AFB5D8-6CB3-32B6-B382-AF57B25934DB <46 8 6 5 3 2 1>
   49    0 0xffffff7f8412f000 0x8000     0x8000     com.cdf.NightShiftEnabler (1.0.0) F1736F42-6F3E-35E7-9B37-5A77F8834CE1 <46 8 6 5 3 2 1>
   50    0 0xffffff7f84137000 0xa000     0xa000     as.lvs1974.HibernationFixup (1.3.4) 50F72DA3-D349-3EBA-93D9-7DDA1F27D01A <46 8 6 5 3 2 1>
  151    0 0xffffff7f84a7a000 0x187000   0x187000   at.obdev.nke.LittleSnitch (5474) 21D3E540-82E5-38B3-9030-999B3D754C89 <8 6 5 3 1>

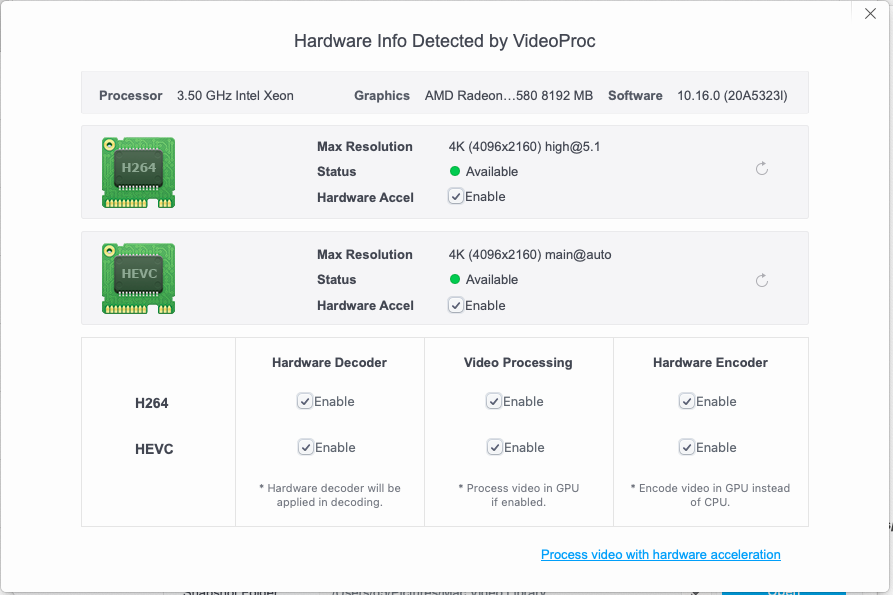

View attachment 936826
DRM playback in AppleTV does not work. AppleTV shows green screen and Netflix Red screen.
Click to expand...

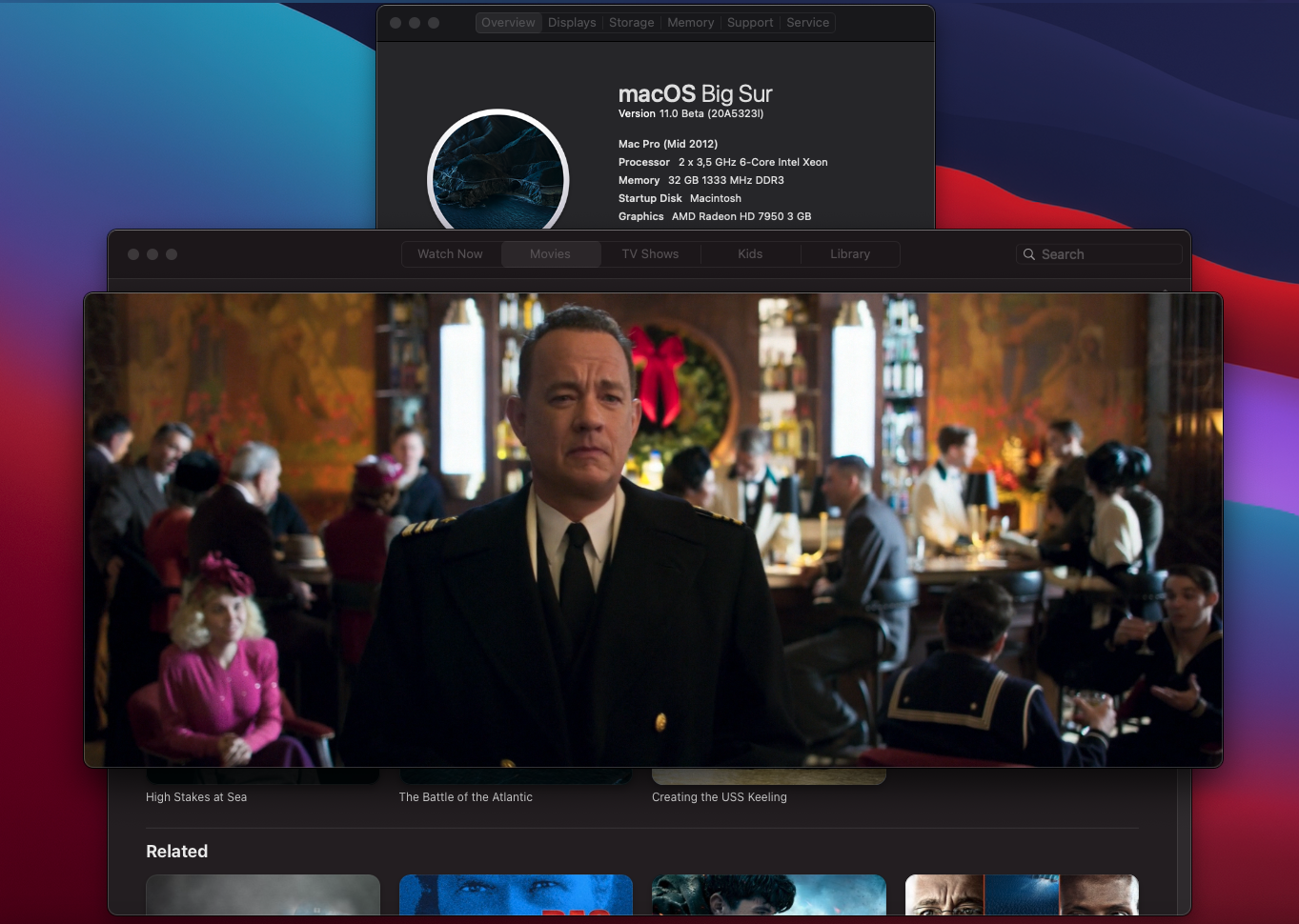

It feels good 🤷‍♂️

Screenshot 2020-07-24 at 01.18.06.png

Has there been any effort to make OC compatible with Win 10 legacy booting? Is it feasible? I hate the thought of converting my current Win 10 installation.

cdf said:
This is due to the Lilu user-patcher not working in Big Sur. Have you tried with more spoofing?
Click to expand...
I can only see the preview and then it turns green (with more spoofing). Even with partial spoofing the wake from sleep does not happen. Anyway I don't like BigSur beta. A lot of freezing when opening apps. It is not very snappy. So far this is a no no for me.
[automerge]1595561256[/automerge]
Also I just checked the iMessage Keys and the values for the two last rows are all 0's. I am not sure it is a good sign.
So this extended spoofing although it brings automatic updates for Catalina may not be so good after all.

Last edited:
startergo said:
Also I just checked the iMessage Keys and the values for the two last rows are all 0's.
Click to expand...
The reason those 2 values were 0 is because I set "Update NVRAM" without specifying any values for the NVRAM. Don't do that.
So what it essentially does is it "updates NVRAM" as it says only with 0 values. So the values for the MLB and the ROM in the variables:
nvram 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:ROM
and
nvram 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:MLB
will be undefined. These values take part in the iMessage Keys creation among others. I had to clear the NVRAM settings to restore those values. If you want to do full SMBIOS spoofing you have to find a valid serial number and a valid ROM number (preferably Apple).

h9826790 said:
Check console, if there is a GPURestart crash report (when freeze happened), then most likely it's macOS issue.
Click to expand...
I think it is caused by Adobe creative cloud, at least all of console reports that were saved at the time a new crash happened today all of them had CoreSync from the Creative Cloud folder. It's really hard to figure out from the log what exactly caused the freeze on the time.

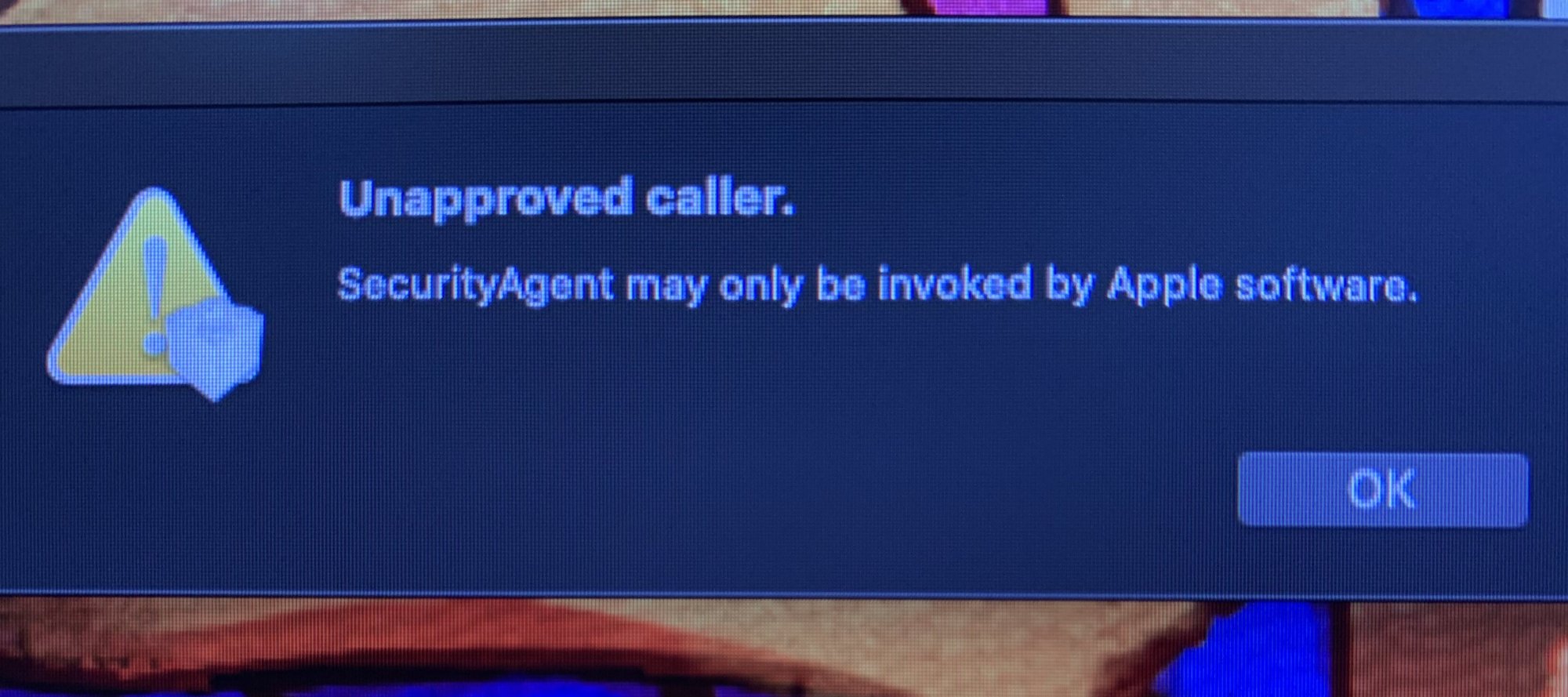

On the other hand, this appeared on my computer, but it was impossible to take a screenshot of it so I had to use my phone:


Alex-IN said:
It feels good 🤷‍♂️

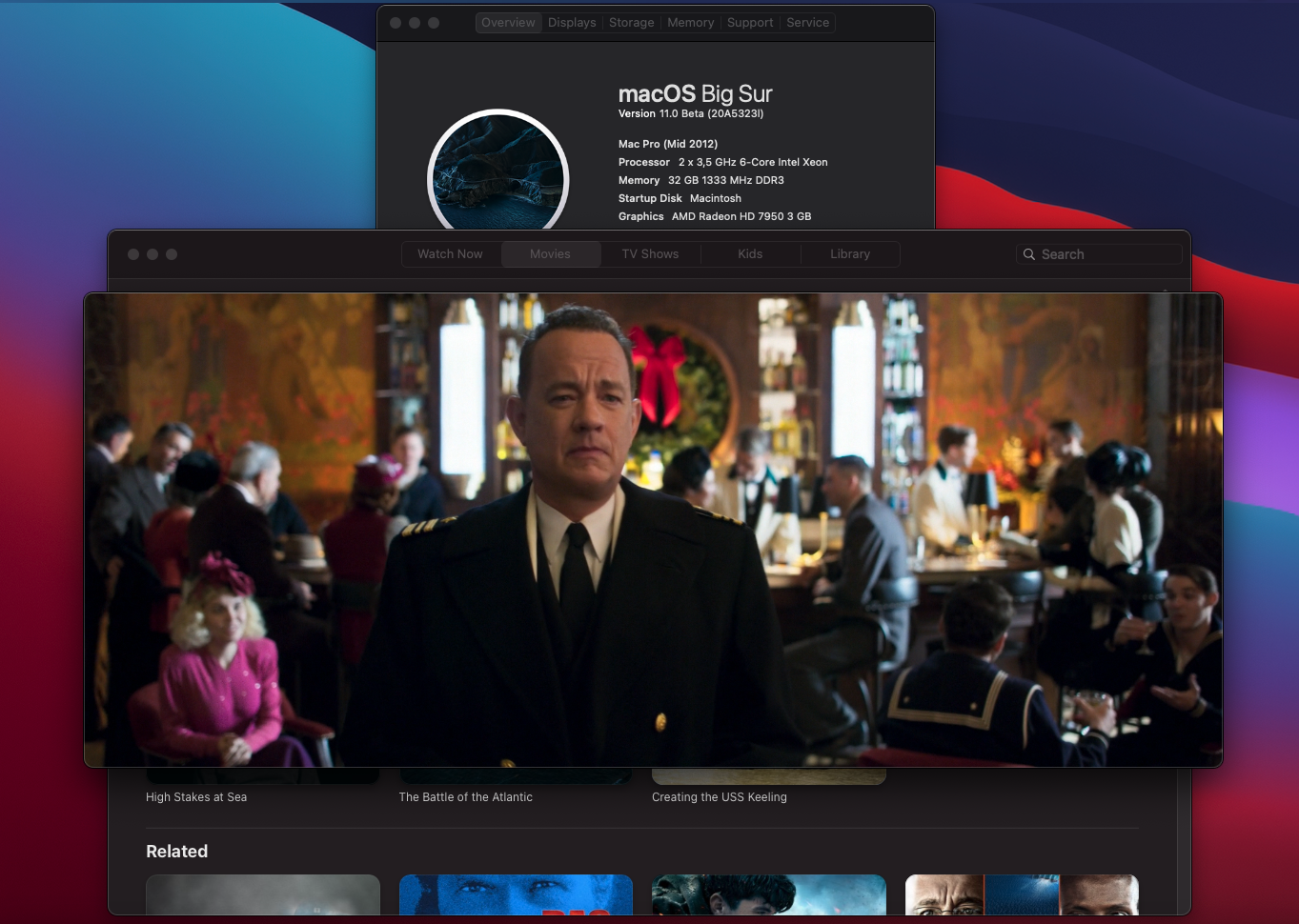

View attachment 936832
Click to expand...
Yeah, there is no HWAccel for HD7950. MacOS should assign CPU to decode automatically (in TV apps). However, in this case, I don’t think Safari can play Netflix at 1080P (or 4k). Please test that if possible.

Big Sur still at early beta. I don’t expect Lilu / WhateverGreen / OpenCore are full compatible at this moment. But once things get together, I believe we can work out a config / setting that works well in Big Sur (even with modern GPU).

  • Like
Reactions: cdf
Alex-IN said:
try my EFI folder
Click to expand...

Thanks for your help.

I tried your EFI and it worked as far as being able to start the installer then when it reboots it gets to a stage where the update assistant starts to a progress bar (about 10%) then the computer shuts down and reboots.

😕
