Cant do it, when im in the middle of editing reg files it goes to blue screen. there is one time where i succesfully changed it, then it immediately went to bluescreen
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Upgrading 2013-2015 Macbook Pro SSD to M.2 NVMe
- Thread starter maxthackray
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
ah i see. i haven't tried it since i don't need bootcamp as of yet. let's see if there are more workarounds from the people here
Hi guys! It is very hard to ho through all posts(again) do you recall if issue with Big Sur installed on 3rd party nvme missing recovery was ever mentioned?
MacOS version: Big Sur 11.5.2 (18G7016)
Mac: MacBookAir6,1 (2013)
Processor: Intel Core i5 1.3 GHz
Boot ROM Version: 431.140.6.0.0
SSD: Cruicial P2 512GB (firmware version: P2CR033) + noName short adapter
MacOS version: Big Sur 11.5.2 (18G7016)
Mac: MacBookAir6,1 (2013)
Processor: Intel Core i5 1.3 GHz
Boot ROM Version: 431.140.6.0.0
SSD: Cruicial P2 512GB (firmware version: P2CR033) + noName short adapter
Last edited:
Hello everyone,
I would like to ask a favor to those who are using Crucial P2 2TB, especially to the lucky ones like @porg with the "initial model" (performing as expected 👌), it would be to run Phison utility and share the output (can be downloaded from Phison tool, also included as an attachment. Just rename it, changing the extension zip by rar).
A recent related article Unsavory Flash Swap: Re-Testing Crucial’s P2 SSD After QLC Downgrade
Many thanks in advance 🙏🙏🙏
I would like to ask a favor to those who are using Crucial P2 2TB, especially to the lucky ones
like @porg with the "initial model" (performing as expected 👌), it would be to run Phison utility and share the output (can be downloaded from Phison tool, also included as an attachment. Just rename it, changing the extension zip by rar).A recent related article Unsavory Flash Swap: Re-Testing Crucial’s P2 SSD After QLC Downgrade
Many thanks in advance 🙏🙏🙏
Hi, I have seen this only when you have cloned to the new drive. Could that have happened to you? A clean install, followed by a migration should give you the recovery partition. Also, the recovery partition is invisible when booting with the alt-key. You need to boot with Cmd-R pressed. Just another guess.
Finally, this problem is also confirmed by one of the big review websites.Hello everyone,
I would like to ask a favor to those who are using Crucial P2 2TB, especially to the lucky ones
A recent related article Unsavory Flash Swap: Re-Testing Crucial’s P2 SSD After QLC Downgrade
Many thanks in advance 🙏🙏🙏
Unfortunately, I can't run the Phison utility on my drive, because I don't have Windows and I don't want to get it and install it just because of this. Is there a free Windows 10 anyway?
So I can only link to my own tests here.
https://forums.macrumors.com/thread...ook-pro-ssd-to-m-2-nvme.2034976/post-29941571
https://forums.macrumors.com/thread...ook-pro-ssd-to-m-2-nvme.2034976/post-29960587
My 2TB Crucial P2 in the late 2013 MBP 15", does not show a slowdown. Not after a few minutes, nor after 64GB written continously. It has not written UK CA on the label. I have had the chance to do the test on a friend's 2015 MBP 15" with his 2TB model P2 (bought 3 weeks ago on Amazon). The SSD performed close to Crucial's specs, also no slowdown, even after 3x64 GBs written.
However, I have had the opportunity to check on another 2TB Crucial P2 that has dropped write performance only after 32 GBs, sadly as low as described in the new Tom's Hardware review.
Hello guys. Does anyone have an idea how to correctly enable NvmeFix on a real macbook ? I installed a 2242 Sabrent NVME on my 2017 MBP but my battery is loosing to much power during idle. I tried everything to fix it, but it seems NvmeFix doesn't work, I can't find NVMEpmProxy through IOreg. I found some post online saying that it has to be "properly installed via bootloader", which I guess I can't do on a legit mac. Any ideas ?
Thanks !
Thanks !
It was a clean install, the thing is - nothing happens when I press cmd+R, macOS boots as usual
EDIT: Problem solved (partially) I have to go through startup manager and then use cmd+R, I have 200MB fat32 partition, a leftover from bootcamp, I guess it may be causing the issue. Apart from that, previously, with the old BootROM(117.0.0.0) cmd+R was going directly to internet recovery.
Last edited:
Hi @olfo ,
Thanks a lot. Waiting for your research findings 🔎
Please note that you may install Windows 10, without license (activation) and with full functionality for 1 month, plenty of time for testing 🧐
Phison tool's output confirms which "P2's version" you may have, QLC or TLC. But the level of detail may help to distinguish further details (as the exact model of the NAND installed).
Attached the output of mine. @TiBook550 and @JR2006 yours may be so helpful. Quoting @macpro_mid2014
"But indeed I am interested in the "failure" of the Crucial P2, if I had the opportunity to analyze the problem more precisely e.g. with other variants of the P2, I would invest the time."
Hope this helps!
Hi! How did you do it? It can be easily done using Hackingtool, steps are:
1. boot into recovery and disable sip for kexts:
Code:
csrutil disable
Code:
csrutil enable --without kext3. go to utilities
4. choose 'install kext'
5. choose kexts to install - lilu and NVMEfix (you can download them from GitHub or by Hackingtool
6. reboot
Hope it helps, I was using it before updating BootROM to the newest one (I had 117.0.0.0 before)
Last edited:
Hello !
I've already did that, I use the hackintool method. But it seems it just doesn't correctly enable it.
On the NVMEFix github page, it says :
"If active power management initialisation is successful, an NVMePMProxy entry will be created in the IOPower IORegistry plane with IOPowerManagement dictionary."
But I can't see it, so the power management initialisation seems to fail.
Hi J3G, I am sorry, but it is to mouch hassle to go through installing Windows only for that reason and only for a month.
As it looks, I would even buy the P2 again, because in Europe the online reseller has to take it back if it is faulty. Maybe that's why we can get some better drives here still. In the end I don't care if it is QLC or TLC as long as it meets the specs, and mine does. And it was cheap, so why should I complain?
I understand that it is painful not to know beforehand what you buy. I would check the number of chips on the PCB, as the Tom's Hardware article says the lower quality drives have less. Even by the weight of the box you could probably tell which drive it is.
To be honest I do not remember seeing the entry, but the hibernation was working so was not bothered by that fact. You can always try with the debug version and see what it logs. How bad is the power drain?
Hi @olfo
Thanks in any case.
Better to double check if the online retailer would may consider as faulty a "stealth configuration change".
By the way, I can confirm that the "downgraded configurations" also affect Europe.
I guess that you at least may concede that the "divide and conquer" doesn't help us as consumers.
It's not so obvious, since that method is not valid for the 1TB and 2TB models, as you may check in @93770 post #8,767 (Second picture shows a "fully populated" P2 1 TB, so same look and feel and weigh. Just a deeper analysis will unveil the real configuration. Than requires using the Phison tool or physical inspection, that take in mind means voiding the warranty).
Hi @Stratus Fear,
Could you by any chance run the Phison tool (and share the output)? All the info in @93770 post #8,767
Thanks in advance
Can you tell me how the debug version works ?
I don't really have any problem with hibernation either, but the drain is kind of bad actually. Around 20-30% overnight :/

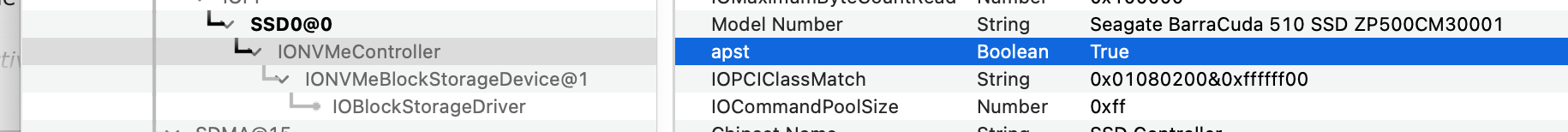

You are looking for the wrong entry.
You want to look for 'apst' in IOReg, I had to ask the developer to confirm - NVMePMProxy is only used for Active PM management, and not for APST. This kext enables APST on MacBooks and not Active PM Management.
What you can also do is install istatmenu to read your SSD voltages at idle. Should fall around the 0.10A to 0.14A range for most Phison-based SSDs.
EDIT: Added screenshot to illustrate
You are looking for the wrong entry.
You want to look for 'apst' in IOReg, I had to ask the developer to confirm - NVMePMProxy is only used for Active PM management, and not for APST. This kext enables APST on MacBooks and not Active PM Management.
What you can also do is install istatmenu to read your SSD voltages at idle. Should fall around the 0.10A to 0.14A range for most Phison-based SSDs.
EDIT: Added screenshot to illustrate
View attachment 1821078
Oh okay thanks, I didn't know. But so, how is that I still loose around 30% of battery overnight since I change the ssd ?
What app is this? The one for showing the apst statusYou are looking for the wrong entry.
You want to look for 'apst' in IOReg, I had to ask the developer to confirm - NVMePMProxy is only used for Active PM management, and not for APST. This kext enables APST on MacBooks and not Active PM Management.
What you can also do is install istatmenu to read your SSD voltages at idle. Should fall around the 0.10A to 0.14A range for most Phison-based SSDs.
EDIT: Added screenshot to illustrate
View attachment 1821078
IORegistryExplorer: https://github.com/vulgo/IORegistryExplorer
@sksmMacs do you have a guide you used for how to create a successful windows to go bootable drive? I bought a P31 and it's been a huge pain - I installed boot camp to update the SSD firmware and the external enclosure(s) I've tried don't appear to work with this drive. In the skHynix firmware app the drive is always listed as "Unresponsive".
I've followed at least two different methods for installing Windows to Go thinking I'd follow your lead and install the drive in the Macbook and use Windows to Go to update the firmware and neither Windows to Go disks show up during boot holding "option".
I'd like to keep the drive if I could, but updating the firmware has proven exceptionally tricky.
i didn't used bootcamp updating my P31, but i did have similar experience, i have used a cheap Amazon nvme to usb 3.2 gen external enclosure but my son Gaming PC (Gigabyte motherboard) won't recognized it properly, i have to plug in directly to motherboard PCie Nvme slot to work. good luck.
Read the first post - it's to do with the default Mac settings related to sleep/suspend/hibernate (those issues continue to happen regardless of the kexts you load in).
By default (for example on my MacBookPro 12,1) it will stay powered "on" with the lid closed until the battery drains to 50%, this is often made worse when bluetooth is enabled or iCloud "Find My" services are enabled (they constantly ping the Apple servers to report location). Applications running in the background also delay your hibernate settings.
To fix this, you just need to change the intervals as described in the first post.
Sorry, unclear - the generic Amazon NVMe to USB adapter did NOT work when plugged it into the PC? That is the behavior (so far) of two different NVMe adapters I've tried.
try not to use external usb adapter enclosures onto any USB ports, yes Windows 10 Pro PC usb 2.0, 3.1, 3.2 ports did not work for me, I don't use bootcamp, only Parallels, so I have it installed the P31 Nvme ssd directly to my Windows 10 PC motherboard PCie Nvme M2 socket, updating firmware was pretty quick.
Last edited:
